Balkene Home SIENA 64015 User manual

SIENA
COFFEE TABLE
Item#: 64015
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE.
10112021
Questions, problems, missing parts?
Before returning to your retailer, our Florida-based customer service team is available:
ATTACH YOUR RECEIPT
Keep a copy of your proof of purchase
or order confirmation, which will be
needed if you need to contact us about
warranty coverage.
Purchase date:
Call toll-free [phone] 9 am – 9 pm, EST
Email
Live Chat
[email protected]
www.balkenehome.com 9 am – 6 pm, EST, Monday – Friday

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿ ¿¿¿¿¿¿Ç
INFORMATION
BEFORE YOU BEGIN
Before beginning assembly, make sure all parts are present. Compare parts
received with the "Parts List." If any part is missing or damaged, do NOT attempt
to assemble the product. Please read and understand this entire manual before
attempting to assemble this product. If you have any questions regarding the
product, please contact Customer Service.
GENERAL INFORMATION
This product is made of particle board and MDF. For safe assembly, work on a
dry, soft, secure, and clean surface. Do not clean with detergents or chemicals.
Do not sit or stand on the unit. Do not place damp or hot items such as coffee
cups directly on the surface of this item. Keep away from direct sunlight and
water. Do not drag the unit. For indoor use only.
SAFETY INFORMATION
WARNING
DO NOT sit or stand, or allow children to sit or stand on the assembled product.
Make sure connectors are securely in place. Perform periodic checks to ensure
the connectors remain secure and adjust if needed. Keep unassembled parts and
hardware away from children and infants. This package contains small parts and
sharp edges. Adult assembly required.
CAUTION
READ all instructions before beginning assembly. Failure to do so may result in
faulty assembly and potential injury. Assemble the item on a soft, nonabrasive
surface such as carpet or cardboard to avoid damaging the item.
Max safe load limit:
Top: 30 KG / 66 LB
Open Shelf: 12 KG / 26.5 LB
Drawer: 5 KG / 11 LB
Right Compartment: 12 KG / 26.5 LB
Call toll-free [phone] 9 am – 9 pm, EST
Email
Live Chat
[email protected]
www.balkenehome.com 9 am – 6 pm, EST, Monday – Friday

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿ ¿¿¿¿¿¿Ã
PARTS LIST
PART DESCRIPTION QTY
ATop Panel
BLeft Side
CRight Side
DCenter Panel
EBottom Panel
1
1
1
1
1
FBottom Face Frame
GShelf
HTop Face Frame
2
1
2
IDoor Rail 2
PART DESCRIPTION QTY
JSupport Leg
KFront Door
LBack Door
MDrawer Face
NDrawer Back
1
1
1
2
2
OLeft Drawer Side
PRight Drawer Side
QDrawer Bottom
2
2
2
A
C
E
D
B
F
G
H
J
K
I
F
I
H
Q
O
N
N
Q
P
M
P
O
M
L

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿4
HARDWARE CONTENTS
1
Cam Bolt
6x35mm
Qty: 30
YOU WILL NEED FOR ASSEMBLY:
(not included)
Phillips-head screwdriver
Mallet or hammer
2
Cam Nut
Qty: 30
3
Dowel
8x30mm
Qty: 36
4
Hex Bolt
6x18mm
Qty: 6
5
Handle
Qty: 2
6
Screw Bolt
4x18mm
Qty: 4
7
Drawer Runner
Qty: 4
8
Screw
3x12mm
Qty: 12
9
Track Pin
Qty: 2
Screw
4x65mm
Qty: 4
Screw
4x35mm
Qty: 10
Hanger Roller
Qty: 4
Screw
4x12mm
Qty: 8
Screw Bolt
4x12mm
Qty: 4
Screw Bolt
4x10mm
Qty: 4
Screw
5x40mm
Qty: 1
Hex Wrench
Qty: 1
Foot Pad
Qty: 5

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿5
ASSEMBLY
1
1
x2
F
Insert Cam Bolts 1 into the indicated holes in
each Bottom Face Frame F. Use a Phillips-head
screwdriver to tighten the threads into the
panels.
Hardware Required: 1 Cam Bolt x4
Insert Dowels 3 into the 2 remaining holes
in each Bottom Face Frame F.
Insert the hardware in the Bottom Face
Frames into the corresponding holes in the
edges of the Bottom Panel E as shown. Secure
by inserting a Cam Nut 2 into each
of the adjoining holes in the underside of
the Bottom Shelf. (HINT: the small arrow on
the flat side of the Cam Nut should point
toward the adjoining panel.)Use a Phillips-
head screwdriver to turn the Cam Nuts
clockwise to secure the Cam Bolts.
Hardware Required: 2 Cam Nut x4
3 Dowel x4
F
FF
3
32
→→
2
ASSEMBLY NOTE: Use a Phillips-
head screwdriver to tighten each
Cam Bolt you install until its
threads are fully inserted.
E
J
Install the Support Leg J on the bottom of the
Bottom Panel E using a Screw ? as shown.
Apply a Foot Pad ? to the bottom of the
Support Leg. Press firmly to adhere.
Hardware Required: ? Screw (5x40mm) x1
? Foot Pad x1
2
E

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿¿¿¿¿¿¿6
ASSEMBLY
3
Hardware Required: 1 Cam Bolt x7 7 Runner x4
8 Screw (3x12mm) x12 ? Foot Pad x2
8
7
B
7
8
1
1
1
1
1
FRONT BACK
FRONT
BACK
FRONT
BACK
FRONT
8
7
FRONT
BACK
7
8
FRONT BACK
D
1
1
FRONT
BACK
FRONT

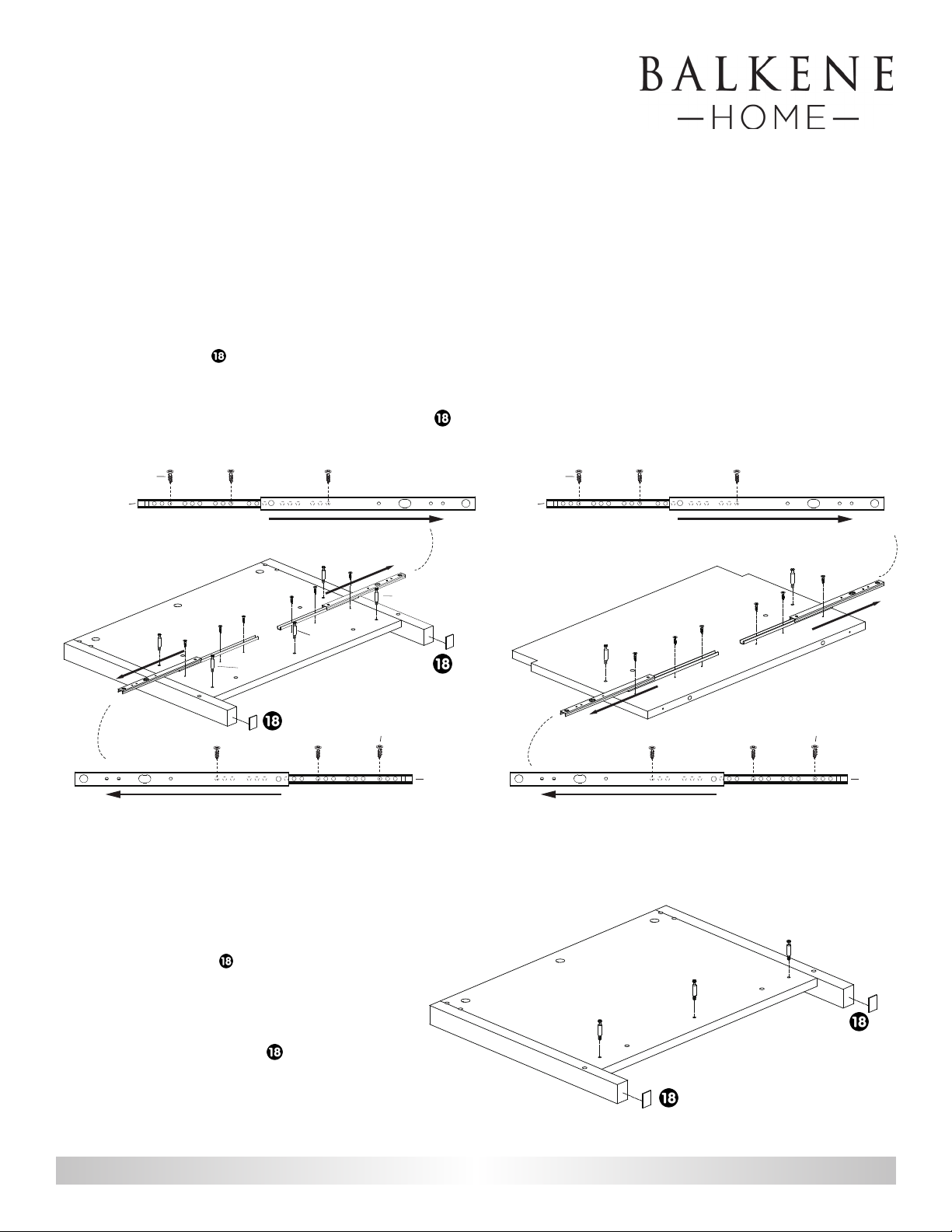

Install the Drawer Runners 7 on the Left Side B and Middle Panel D.
Fully extend one Runner and align the inner section along one set of 3 small holes on the Left Side as shown. Verify
that the orientation of the Runner matches the diagram, then fasten the Runner to the Divider using 3 Screws 8
positioned as shown. Once the Runner is attached, slide it back to the closed position. Attach the second Runner to
the Left Side following the same method, checking orientation before inserting Screws. Install the Runners on the
Middle Panel in the same way.
Insert a total of 5 Cam Bolts 1 into the indicated holes above and below the Runners on the Left Side and 2 Cam
Bolts on the Middle Panel.
Apply Foot Pads ? to the bottom of the Left Side legs. Press firmly to adhere.
4Insert Cam Bolts 1 into the 3 indicated holes on
the Right Side C.
Apply Foot Pads ? to the bottom of the Right
Side legs. Press firmly to adhere.
Hardware Required: 1 Cam Bolt x3
? Foot Pad x2
C
1

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿¿¿¿¿¿¿7
ASSEMBLY
5
6
Hardware Required: 3 Dowel x2
? Screw (4x35mm) x2
Hardware Required:
7
G
D
2
2
3
3
Place Dowels 3 in the 2 holes between the Cam
Bolts 1 already installed in the Center Panel D.
Insert the Cam Bolts and Dowels into the
corresponding holes in the edge of the Shelf G as
shown. Secure by inserting a Cam Nut 2 into
each of the adjoining holes in the underside of the
Shelf. Use a Phillips-head screwdriver to turn the
Cam Nuts clockwise to secure the Cam Bolts.
2 Cam Nut x2
3 Dowel x2
G
3
3
E
Place Dowels 3 in the 2 indicated holes on the bottom
edge of the Center Panel D.
Insert the installed Dowels into the corresponding holes
at the center of the Bottom Panel E.
Secure the components together by inserting 2
Screws ? through the bottom of the Bottom Panel and
into the Center Panel.
E
3
3
2
2
B
Insert 6 Dowels 3 into the Left Side B as indicated.
Attach the Left Side to the partially-assembled unit by
inserting the installed Dowels and Cam Bolts 1 into the
corresponding holes in the left edges of Shelf G and
Bottom Panel E. Secure by inserting a Cam Nut into
the holes at the underside of the right end of the
Bottom Panel and Shelf. Use a Phillips-head
screwdriver to turn the Cam Nuts to secure the Cam
Bolts.
Hardware Required: 2 Cam Nut x5
3 Dowel x6

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿8
ASSEMBLY
8
9
Attach each Door Rail I to a Top Face Frame H
using 3 Hex Bolts 4. Use the Hex Wrench ? to
tighten each Hex Bolt.
Hardware Required: 4 Hex Bolt (6x18mm) x6
?Hex Wrench x2
H
I
4
4
Insert 2 Dowels 3 into the each end of both
Top Face Frames H. Slide the Top Face
Frames into place on the partially-
assembled unit as shown, inserting the
Dowels into corresponding holes on the
Left Side.
Insert 4 more Dowels into the remaining
holes along the bottom edge of the Right
Side C.
Attach the Rightt Side to the partially-
assembled unit by sliding the Camm Bolts 1
into the corresponding holes in the right
end of the Bottom Panell E while inserting
the Dowels on the free end of each Top
Face Frame into the Right Side panel.
Secure by inserting a CCamm Nut into each of
the 3 holes at the underside of the right
end of the Bottom Panel. Use a Phillips-
head screwdriver to turn the CCamm Nuts to
secure the CCamm Bolts.
3
3
3
3
3
H
H
B
C
2
Hardware Required: 2 Cam Nut x3
3 Dowel x12
in the underside of the Top Panel A.
Hardware Required: 1 Cam Bolt x8

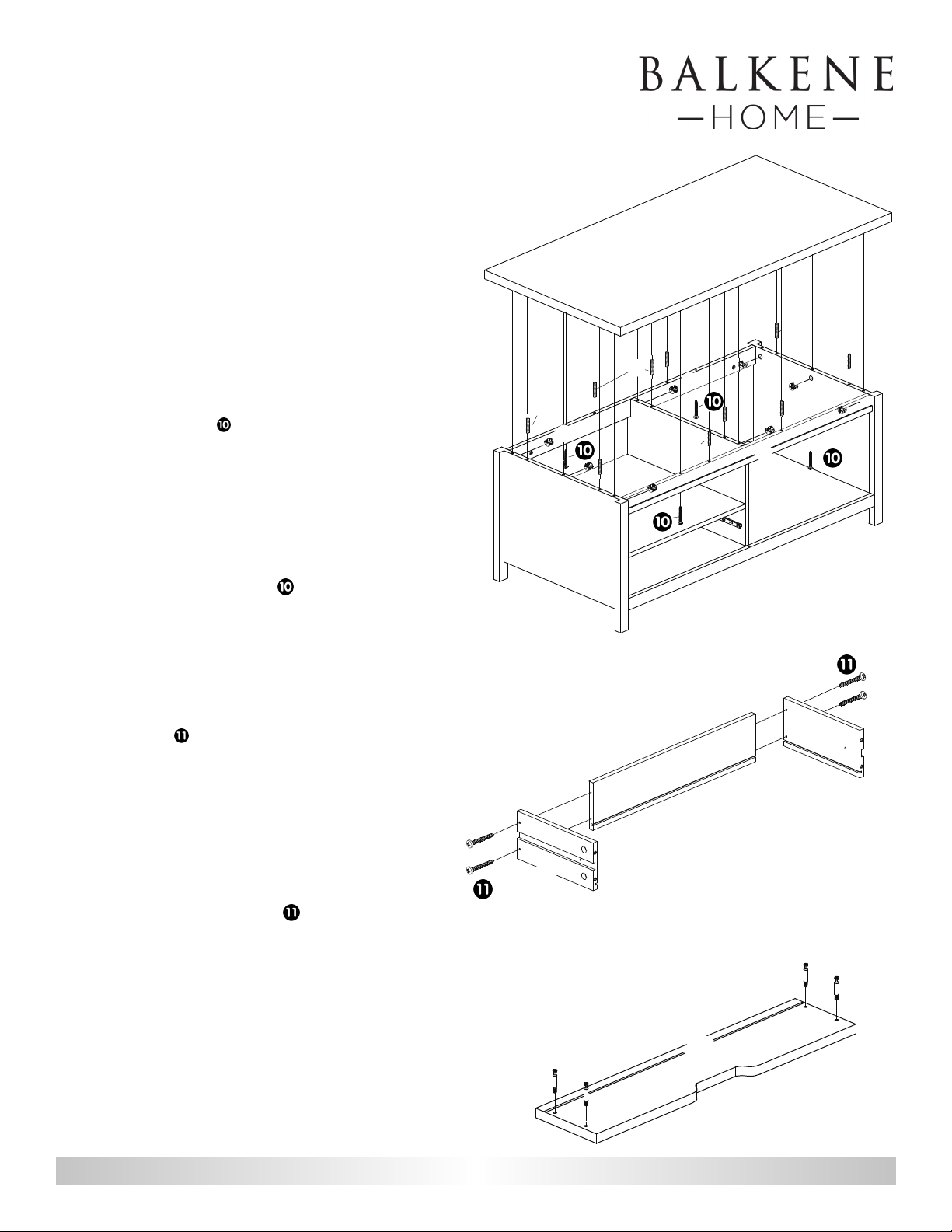

10 Insert a total of 8 Cam Bolts 1 into the indicated holes
A
1

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿¿¿¿¿¿¿9
ASSEMBLY
Insert 10 Dowels 3 in the top edges of the
Left Side B, Center Panel D, Right Side C,
and Top Face Frames H.
Lower the Top Panel A into place by
inserting the Cam Bolts 1 into the top edges
of the vertical panels. Secure by inserting a
Cam Nut 2 into each of the adjoining holes
near the tops of the vertical panels. Use a
Phillips-head screwdriver to turn the Cam
Nuts clockwise to secure the Cam Bolts.
Insert 2 Screws ? through the bottom of
each of the Top Face Frames and into the
Top Panel. Tighten with a Phillips-head
screwdriver.
Hardware Required: 2 Cam Nut x8
3 Dowel x10
? Screw (4x65mm) x4
11
A
3
22
B
3
3
3H
2
With runner side facing out, attach the Left
Drawer Side O to the Drawer Back N using
2 Screws ?. Ensure that the narrow
groove at the bottom runs continuously
along the inside of both pieces.
Repeat to attach the Right Drawer Side P
to the Drawer Back.
Begin assembling the second drawer using
the same method.
12
Hardware Required: ? Screw (4x35mm) x8
x2
N
O
P
Insert Cam Bolts 1 into the indicated holes
in each Drawer Front M. Use a Phillips-head
screwdriver to tighten the threads fully into
the panels.
1 Cam Bolt x8
13
x2
M
1
1
Hardware Required:

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿10
ASSEMBLY
14
15
Hardware Required: 2 Cam Nut x8
P2
2
O
Q
M
x2
Slide the Drawer Bottom Q into place in the
groove in the drawer panels.
Insert the Cam Bolts in the Drawer Front M
into the front edges of the Drawer Sides.
Secure by inserting a Cam Nut 2 into each of
the adjoining holes on the outside of the
Drawer Sides. Use a Phillips-head screwdriver
to turn the Cam Nuts clockwise to secure the
Cam Bolts.
Finish assembling the second drawer using
the same method.

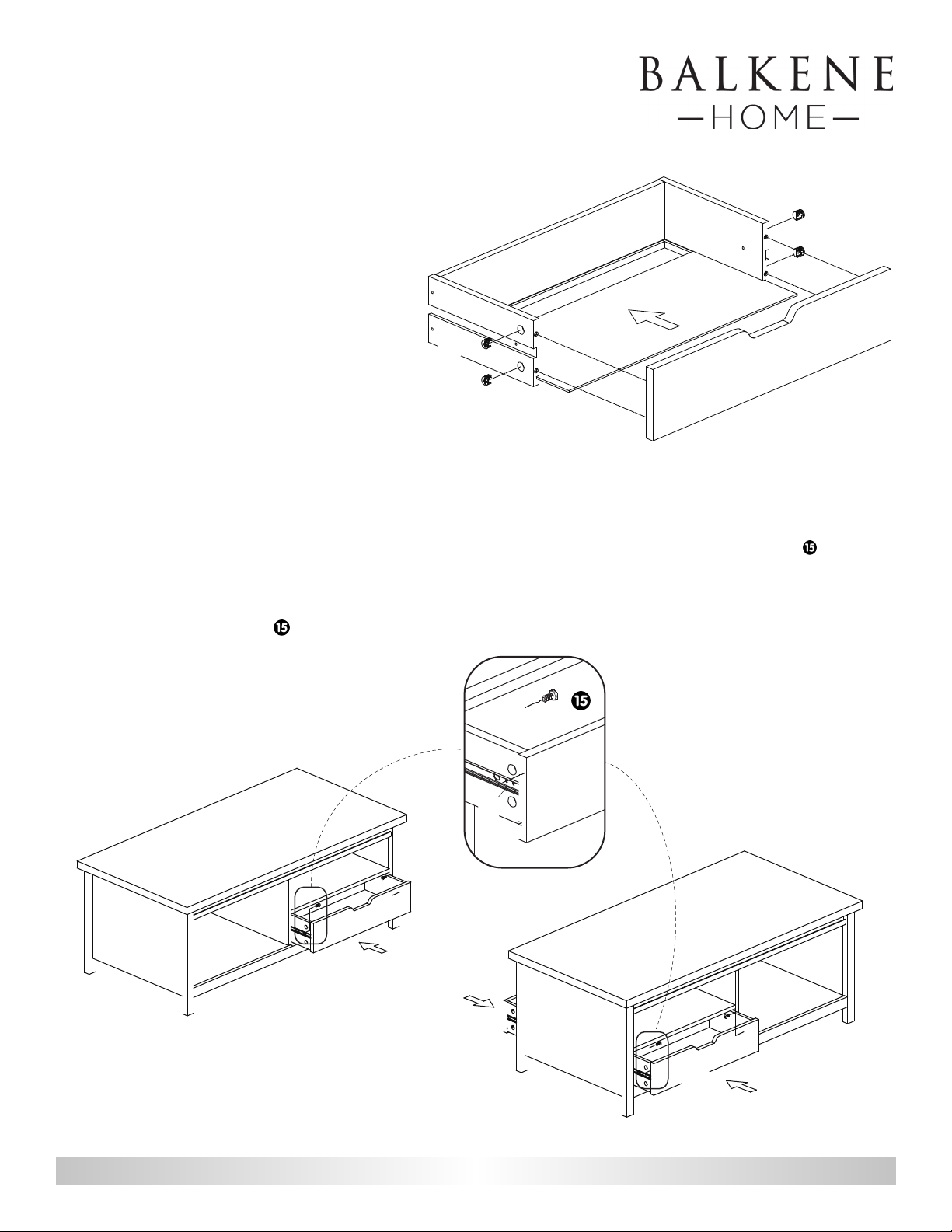

To install the first drawer, fully extend both Drawer Runners 7 on one side of the table and slide the
drawer into place between them. Secure the Runners to the sides of the Drawer using 2 Screw Bolts ?.
Follow the same method to install the second drawer on the other side of the table.
Hardware Required: ? Screw Bolt (4x10mm) x4
BACK SIDE
M
M
7
FRONT SIDE

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿11
ASSEMBLY
9
16
Hardware Required: 9 Track Pin x2
Insert a Track Pin 9 into place in the center
of the top edge of each Bottom Face
Frame F.
F
BACK SIDE
FRONT SIDE
17 Attach a Handle 5 to each Door K/L using 2 Screw Bolts 6.
Attach 2 Hanger Rollers ? to each Door as shown using 2 Screws ? per Roller.
5
5
KL
6
6
Hardware Required: 5 Handle x2
6 Screw Bolt (4x18mm) x4
? Hanger Roller x4
? Screw (4x12mm) x8

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿12
ASSEMBLY
BACK SIDE
FRONT SIDE

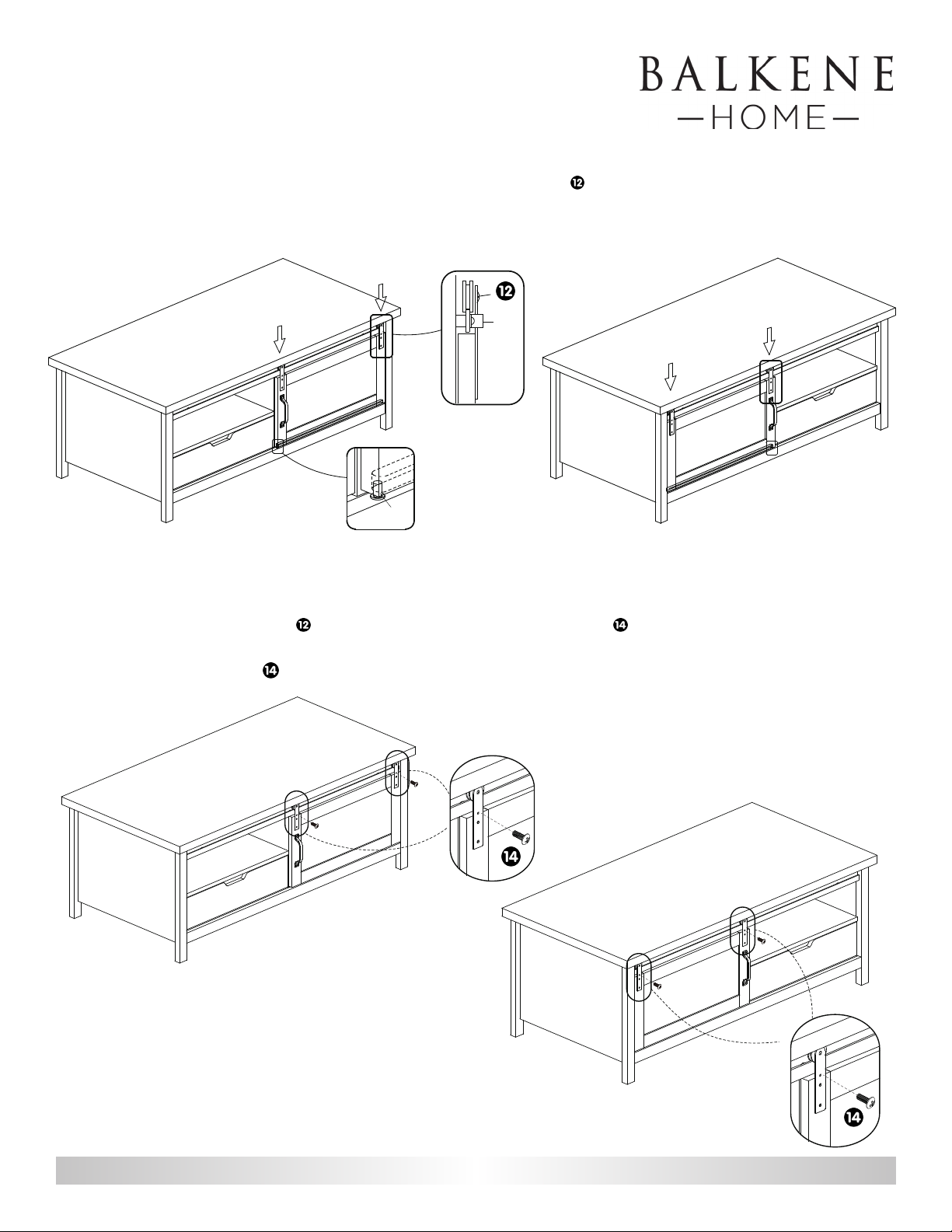

18 Hang each Door K/L by resting the wheels of the Roller Hangers ? on top of the Door Rail I and settling
the track on the bottom edge of the door onto the Track Pin 9.
K
9
L
I
19 Secure each Roller Hanger ? to the Door Rail I by inserting a Screw Bolt ? as shown.
BACK SIDE
FRONT SIDE
Hardware Required: ?Screw Bolt (4x12mm) x4
Your Siena Coffee Table is ready for use!

LIMITED WARRANTY
Customers in the Contiguous US
With proof of purchase from an authorized retailer, this product is warranted
for a period of 1 year from original purchase date against defects in materials
and workmanship under normal use. This warranty does NOT cover normal
wear/weathering, exposure to water, freezing temperatures, oils, fluids, or
chemicals OR use in a commercial context if the unit is not designated as a
commercial model. At Well Traveled Living’s sole discretion, products under
warranty will be repaired and/or replaced at no charge to the customer.
Returns sent back to Well Traveled Living must be sent via prepaid freight in
the original retail packaging.
For warranty service, contact Balkene Home/Well Traveled Living at the
address, phone numbers or website and email listed in this owner’s manual.
Be sure to have your sales receipt, date of purchase and catalogue/model
numbers available when calling. All warranty service will be coordinated by
Well Traveled Living's Amelia Island, Florida service center. This warranty is
extended only to the original owner. Proof of purchase will be required before
warranty service is rendered. The sales receipt is the only valid proof of
purchase. This warranty only covers failures due to defects in materials or
workmanship which occur during normal use. Failures and/or damage which
result from accident, negligence, misuse, abuse, neglect, mishandling,
alteration or modification, failure to maintain, improper assembly or
maintenance, service by unauthorized agency or use of unauthorized
components or damage that is attributable to acts of God are NOT covered.
This limited warranty gives you specific legal rights and you may also have
other rights which vary from jurisdiction to jurisdiction. The provisions of the
United Nations Convention on Contracts for the Sales of Goods shall not apply
to this limited warranty or the sale of products covered by this limited
warranty.
• THERE ARE NO EXPRESS WARRANTIES EXCEPT AS
LISTED.
• PURCHASER ASSUMES ALL RISKS IN THE
ASSEMBLY AND OPERATION OF THIS UNIT.
• FAILURE TO FOLLOW WARNINGS AND
OPERATIONAL INSTRUCTIONS CONTAINED IN
THIS MANUAL CAN RESULT IN SEVERE PROPERTY
DAMAGE AND/OR PERSONAL INJURY.
• IN NO EVENT WILL WELL TRAVELED LIVING, OR
ITS DIRECTORS, OFFICERS OR AGENTS BE LIABLE
TO THE PURCHASER OR ANY THIRD PARTY,
WHETHER IN CONTRACT, IN TORT, OR ON ANY
OTHER BASIS, FOR ANY INDIRECT, SPECIAL,
PUNITIVE, EXEMPLARY, CONSEQUENTIAL, OR
INCIDENTAL LOSS, COST, OR DAMAGE ARISING
OUT OF OR IN CONNECTION WITH THE SALE,
MAINTENANCE, USE, OR INABILITY TO USE THE
PRODUCT, EVEN IF WELL TRAVELED LIVING OR
ITS DIRECTORS, OFFICERS OR AGENTS HAVE BEEN
ADVISED OF THE POSSIBILITY OF SUCH LOSSES,
COSTS OR DAMAGES, OR IF SUCH LOSSES, COSTS,
OR DAMAGES ARE FORESEEABLE. IN NO EVENT
WILL WELL TRAVELED LIVING, OR ITS OFFICERS,
DIRECTORS, OR AGENTS BE LIABLE FOR ANY
DIRECT LOSSES, COSTS OR DAMAGES THAT
EXCEED THE PURCHASE PRICE OF THE PRODUCT.
• SOME JURISDICTIONS DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATION OR EXCLUSION MAY NOT APPLY TO
THE PURCHASER.
Important Notice
Do NOT return to place of purchase—for customer service and warranty issues: Distributed by:
Well Traveled Living
716 S 8th Street, Amelia Island, FL 32034
balkenehome.com
[email protected]
[phone]
Fire Sense®, Patio Sense,® Avalon Home,® Mojave Sun®, Vulcan®, Balkene Home® and Well Traveled Living® are registered trademarks of
Well Traveled Imports, Inc®. All assembly instruction presentations are the property of Well Traveled Imports, Inc.
® and are protected by
U.S. copyrights and trademarks. All rights reserved.
EXTEND YOUR WARRANTY
When you purchase a Fire Sense or Balkene Home product from any authorized retailer, you'll have peace
of mind in knowing that it comes with a one-year warranty. Extend your warranty for an additional year
when you review your item at balkenehome.com within 365 days of purchase.
Call toll-free [phone] 9 am – 9 pm, EST
Email [email protected]
Live chat balkenehome.com 9 am – 6 pm, EST, Mon – Fri
