Balkene Home LUCCA 64011 User manual

LUCCA
MEDIA CONSOLE
Item#: 64011
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE.
09292021
Questions, problems, missing parts?
Before returning to your retailer, our Florida-based customer service team is available:
ATTACH YOUR RECEIPT
Keep a copy of your proof of purchase
or order confirmation, which will be
needed if you need to contact us about
warranty coverage.
Purchase date:
Call toll-free [phone] 9 am – 9 pm, EST
Email [email protected]
Live Chat www.balkenehome.com 9 am – 6 pm, EST, Monday – Friday

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿ ¿¿¿¿¿¿Ç
INFORMATION
BEFORE YOU BEGIN
Before beginning assembly, make sure all parts are present. Compare parts
received with the "Parts List." If any part is missing or damaged, do NOT attempt
to assemble the product. Please read and understand this entire manual before
attempting to assemble this product. If you have any questions regarding the
product, please contact Customer Service.
GENERAL INFORMATION
This product is made of particle board and MDF. For safe assembly, work on a
dry, soft, secure, and clean surface. Do not clean with detergents or chemicals.
Do not sit or stand on the unit. Do not place damp or hot items such as coffee
cups directly on the surface of this item. Keep away from direct sunlight and
water. Do not drag the unit. For indoor use only.
SAFETY INFORMATION
WARNING
DO NOT sit or stand, or allow children to sit or stand on the assembled product.
Make sure connectors are securely in place. Perform periodic checks to ensure
the connectors remain secure and adjust if needed. Keep unassembled parts and
hardware away from children and infants. This package contains small parts and
sharp edges. Adult assembly required.
CAUTION
READ all instructions before beginning assembly. Failure to do so may result in
faulty assembly and potential injury. Assemble the item on a soft, nonabrasive
surface such as carpet or cardboard to avoid damaging the item.
Max safe load limit:
Top: 20 KG / 44 LB
Center Open Shelves: 10 KG / 22 LB (each)
Drawer: 5 KG / 11 LB
Cabinet Shelves: 8 KG / 17.5 LB (each)
Call toll-free [phone] 9 am – 9 pm, EST
Email [email protected]
Live Chat www.balkenehome.com 9 am – 6 pm, EST, Monday – Friday

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿ ¿¿¿¿¿¿Ã
PARTS LIST
PART DESCRIPTION QTY
ATop Panel
B
Left Side
C
Right Side
D
Left Divider
E
Right Divider
1
1
1
1
1
F
G
HCenter Top Shelf
1
1
1
ICenter Bottom Shelf 1
PART DESCRIPTION QTY
JInterior Shelf
KSide Backer
LCenter Backer
MBottom Backer
NLeft Face Frame
2
2
1
1
1
ORight Face Frame
PBase Panel
QBase Front
1
1
1
RBase Left Side 1
PART DESCRIPTION QTY
SBase Right Side
TBase Back
UDrawer Front
VLeft Drawer Panel
WRight Drawer Panel
1
1
1
1
1
XDrawer Back
YDrawer Bottom
ZLeft Door
1
1
1
+Right Door 1
I
A
C
D
B
F
G
H
M
N
O
Q
R
U
S
Y
V
W
X
T
P
E
K
K
L
J
J
Z
+
Top Face Frame
Door Rail

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿4
HARDWARE CONTENTS
1
Cam Bolt
6x35mm
Qty: 26
YOU WILL NEED FOR ASSEMBLY:
(not included)
Phillips-head screwdriver
Mallet or hammer
Power drill (to anchor unit to wall)
2
Cam Nut
Qty: 26
3
Dowel
6x30mm
Qty: 44
4
Shelf Bracket
Qty: 8
5
Screw
4x12mm
Qty: 2
6
Screw
4x35mm
Qty: 14
7
Screw
4x55mm
Qty: 10
9
Screw
3x12mm
Qty: 12
Backer Bracket
Qty: 12
Track Pin
Qty: 2
Runner
Qty: 2
Screw Bolt
4x10mm
Qty: 2
Qty: 6
Anchor Bracket
Qty: 2
Drywall Anchor
Qty: 2
Hex Bolt
Qty: 3
Screw Bolt
Qty: 4
3x16mm
Screw
Hanger Roller
Qty: 4
Hex Wrench
Qty: 1
6x18mm 4x12mm
Screw
Qty: 8
4x12mm
8
Screw
4x65mm
Qty: 2

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿5
ASSEMBLY
1
2
Insert Cam Bolts 1 into the indicated holes in the
Left/Right Face Frames N/O. Use a Phillips-head
screwdriver to tighten.
Hardware Required: 1 Cam Bolt x6
Place Dowels 3 in the 2nd and 4th holes on the
front edge of the Left/Right Sides D/E.
Insert the Cam Bolts 1 previously installed in
the Left Face Frames N into the corresponding
holes in the edge of the Left Side as shown.
Secure by inserting a Cam Nut 2 into each of
the adjoining holes in the Left Side. Use a
Phillips-head screwdriver to turn the Cam Nuts
clockwise to secure the Cam Bolts.
Attach the Right Face Frame O to the Right
Side E using the same method.
Hardware Required: 2 Cam Nut x6
3 Dowel x4
→→
2
1
1
NO
ASSEMBLY NOTE: Use a Phillips-head
screwdriver to tighten each Cam Bolt you
install until its threads are fully inserted.
2
2
D
E
N
O
3
3

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿6
ASSEMBLY
3Install the Drawer Runners ? on the Left and Right Dividers F/G.
FRONT BACK
Fully extend the runner to uncover the mounting
holes. After attaching the runner to the panel, push
runner back into the closed position.
FRONT
BACK
FRONT
BACK
FRONT
BACK
Hardware Required: 1 Cam Bolt x4
? Runner x2
? Screw (3x12mm) x6
Fully extend one Runner and align the inner section along the 3 small holes on the Left Divider F. Verify that
the orientation of the Runner matches the diagram, then fasten the Runner to the Divider using 3 Screws ?
positioned as shown. Once the Runner is attached, slide it back to the closed position.
Attach the second Runner to the Right Divider G following the same method, checking orientation before
inserting Screws.
Insert Cam Bolts 1 into the 2 indicated holes above the Runners on each Divider.
F
G
11
PANEL TOP
PANEL
BOTTOM
PANEL TOP
PANEL
BOTTOM
4Place Dowels 3 in the indicated holes on either side
of the Center Top Shelf H and Center Bottom Shelf I.
Insert the Cam Bolts 1 previously installed in the
Left Divider F into the corresponding holes in the
edge of the Bottom Shelf as shown. Secure by
inserting a Cam Nut 2 into each of the adjoining
holes in the underside of the Bottom Shelf. (HINT:
the small arrow on the flat side of the Cam Nut
should point toward the adjoining panel.) Use a
Phillips-head screwdriver to turn the Cam Nuts
clockwise to secure the Cam Bolts.
Attach the Right Divider G to the Bottom Shelf
using the same method.
Hardware Required: 2 Cam Nut x4
3 Dowel x8
2
F
G
I
3
3
H

7
ASSEMBLY
Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿

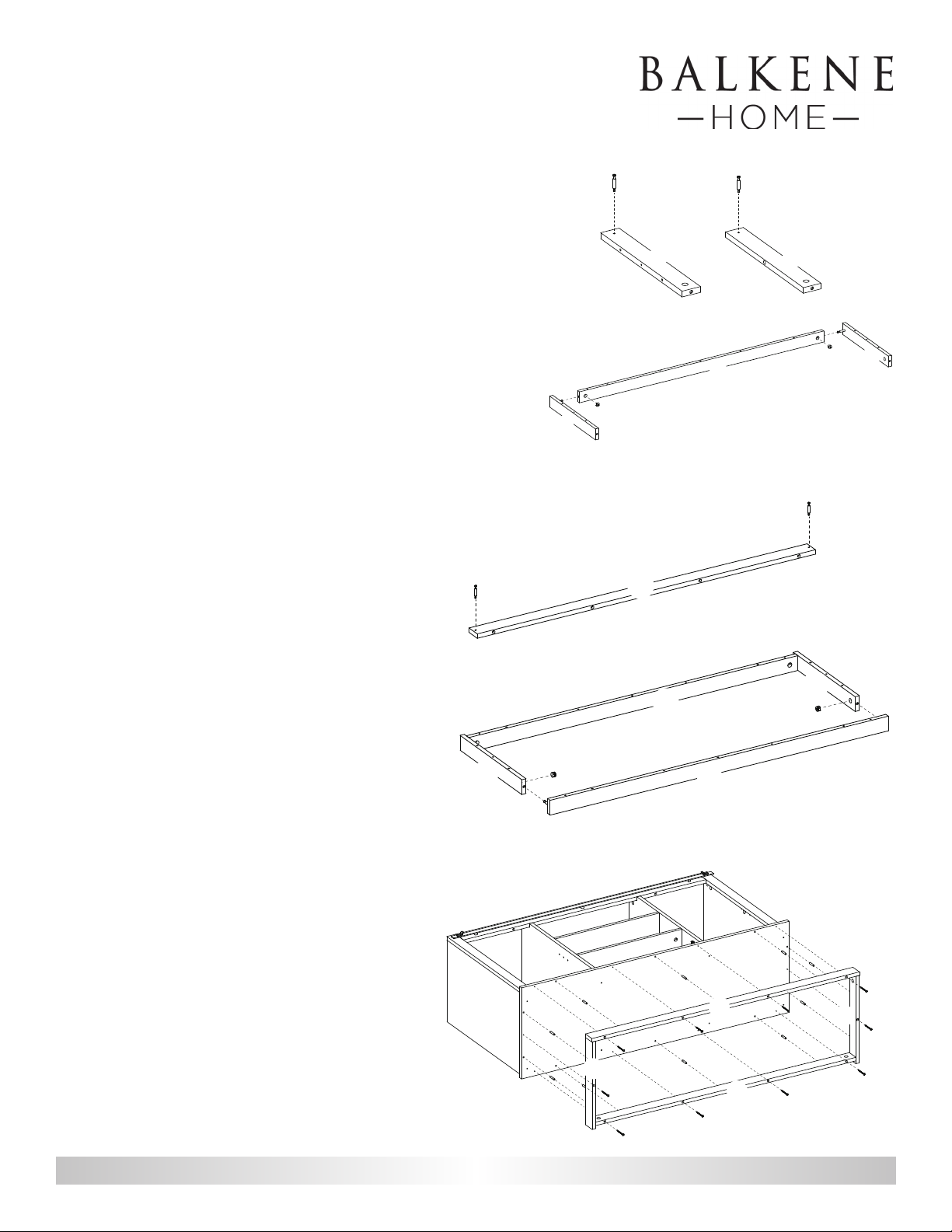

5Attach the Door Rail C to the Top Face Frame B
with 3 Hex Bolts ?. Use the Hex Wrench ? to
tighten the Hex Bolts.
Hardware Required: ? Hex Wrench
? Hex Bolt (6x18mm) x3
Insert 2 Dowels 3 into each end of the Top Face
Frame B.
Slide the Dowels on the left end of the Top Face
Frame into the corresponding holes on the Left
Face Frame attached to the Left Side D.
Lay the Top Face Frame in place across the top
of the center component, then slide the Dowels
on the right end of the Top Face Frame into the
corresponding holes in the Right Face Frame
attached to the Right Side E.
Hardware Required: 3 Dowel x4
Slide the Bottom Backer M into the groove
along the interior of the bottom center
compartment.
Insert Dowels 3 into the indicated holes on the
bottom edges of the vertical panels D/F/G/E.
Install the Base Panel P using 8 Screws 6 as
shown.
Hardware Required: 3 Dowel x8
6 Screw (4x35mm) x8
7
6
C
B
3
3
D
E
B
F
G
3
6
P
F
G
M
D
E

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿8
ASSEMBLY
8Install a Cam Bolt 1 in each Base Side R/S.
Insert the Cam Nut installed in the Left Base Side
11
2
R
R
S
S
T
2
Hardware Required: 1 Cam Bolt x2
2 Cam Nut x2
1
1
2
Q
Q
R
S
T
9Install 2 Cam Bolts 1 in the Base Front Q.
Insert the Cam Nuts into the front edges of the
Hardware Required: 1 Cam Bolt x2
2 Cam Nut x2
10
Place 10 Dowels 3 in the top edge of the
assembled base.
Hardware Required: 3 Dowel x10
7 Screw (4x55mm) x10
into the left edge of the Base Back T. Insert a Cam
Nut 2 in the adjoining hole and turn clockwise to
secure the Cam Bolt.
Base Left/Right Sides R/S. Insert a Cam Nut 2
into each of the adjoining holes and turn clockwise
to secure the Cam Bolts.
3
7
PQ
R
S
T
Secure the base to the unit by inserting 10 Screws
7 through the bottom edge of the joined base
pieces and into the bottom of the Base Panel P.

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿9
ASSEMBLY
in the underside of the Top Panel A.

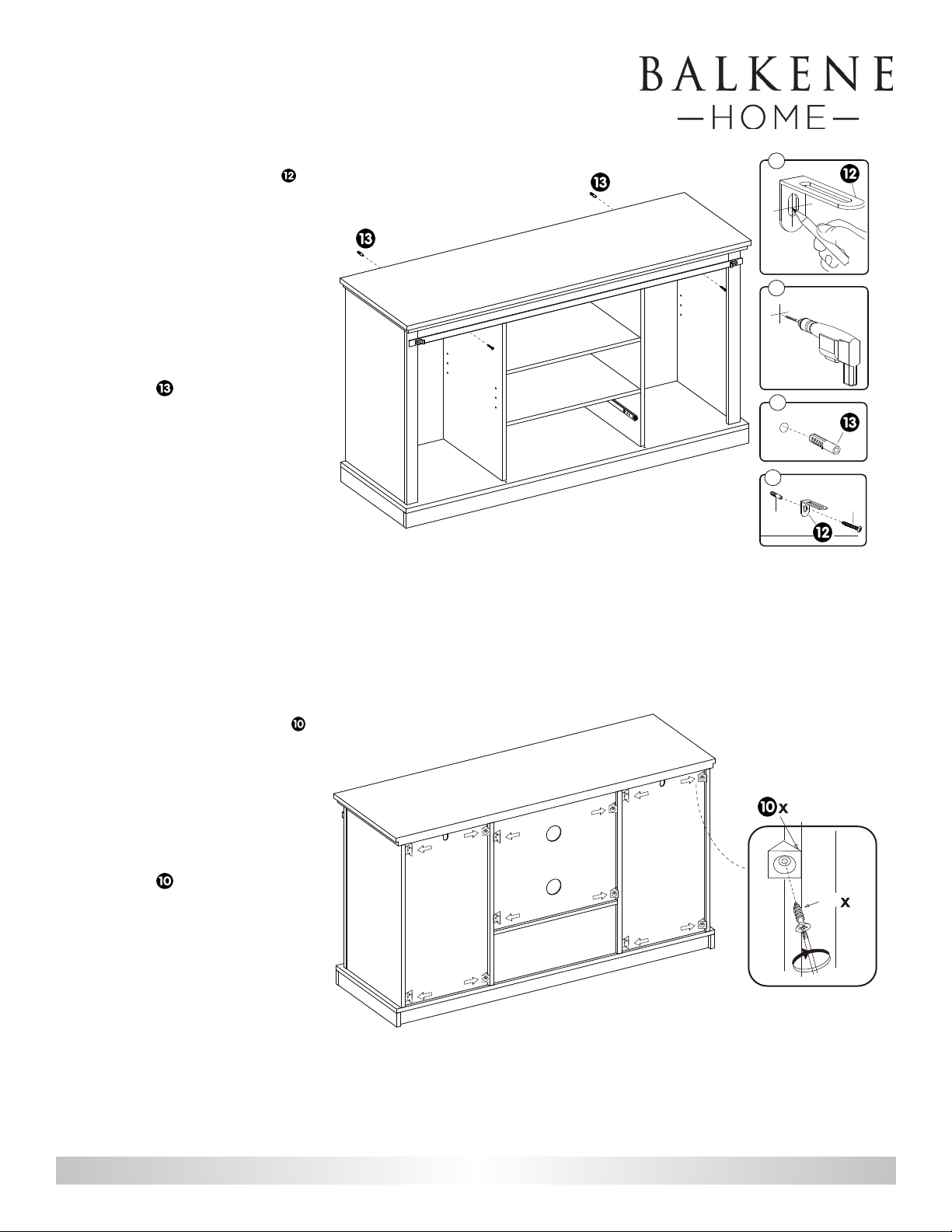

Attach each Anchor Bracket ? near the back edge of the
Top Panel using a Screw 5.
Hardware Required: 1 Cam Bolt x8
5 Screw (4x12mm) x2
? Anchor Bracket x2
5
edges of the Left Side D, Left Divider F,
12
Place 10 Dowels 3 as indicated in the top
Right Divider G, Right Side E, and Top Face
Frame B.
Slide the Side Backers K and Center Backer L
into place at the rear of the unit.
Lower the Top Panel A into place by inserting its
Cam Bolts 1 into the top edges of the vertical
panels. Secure by inserting a Cam Nut 2 into each
of the adjoining holes near the tops of the vertical
panels. Use a Phillips-head screwdriver to turn
the Cam Nuts clockwise to secure the Cam Bolts.
Insert 2 Screws 8 through the bottom of the Top
Face Frame and into the Top Panel. Tighten with
a Phillips-head screwdriver.
Hardware Required: 2 Cam Nut x8
3 Dowel x10
8 Screw (4x65mm) x2
11Insert a total of 8 Cam Bolts 1 into the indicated holes
A
1
5
A
D
E
B
2
3
8
K
K
L

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿10
ASSEMBLY
13
6 Screw (4x35mm) x2
? Drywall Anchor x2
a
b
c
d
6
Use the Anchor Brackets ? to
anchor the unit to the wall for
safety. The included hardware is
appropriate for drywall installation and
requires the use of a drill. If needed,
consult a qualified tradesperson or
online resources to safely anchor this
unit.
Hardware Required:
6
6
9
12
12
L
K
K
9 Screw (4x35mm) x12
? Corner Bracket x12
Install the Corner Brackets ? at
each corner of the Side Backers K
and Center Backer L. Fasten each
Corner Bracket using a Screw 9.
Hardware Required:
14

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿11
ASSEMBLY
15
Choose the desired height to install each Shelf J.
Insert the peg of each Shelf Bracket 4 into the
appropriate holes in the interior of the left and
right compartments of the unit, with the horizontal
tab rotated to the top.
Slide the Shelves J into place in the left and right
compartments.
4Shelf Bracket x8
16
4
Hardware Required:
J
J
D
E
4
W
X
6
V
6
With runner side facing out, attach the Left
Drawer Side V to the Drawer Back X using
Hardware Required: 1 Cam Bolt x4
6 Screw (4x35mm) x4
2
2
U
Y
V
W
1
U
2 Screws 6. Ensure that the narrow groove at
the bottom runs continuously along the inside of
both pieces.
Repeat to attach the Right Drawer Side W to the
Drawer Back.
Insert Cam Bolts 1 into the indicated holes in
the Drawer Front U. Use a Phillips-head
screwdriver to tighten the threads fully into the
panel.
17
Slide the Drawer Bottom Y into place in the
groove in the drawer panels.
Insert the Cam Bolts 1 into the front edges of
the Drawer Sides WV. Secure by inserting a
Cam Nut 2 into the adjoining holes on the
outside of the Drawer Sides. Use a Phillips-head
screwdriver to turn the Cam Nuts clockwise to
secure the Cam Bolts.
Hardware Required: 2 Cam Nut x4

12
ASSEMBLY
18
Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿
U
To install the drawer, fully extend both Drawer Runners ? and slide the drawer into place between
them. Secure the Runners to the sides of the Drawer using 2 Screw Bolts ?.
Hardware Required: ? Screw Bolt (4x10mm) x2
19 Attach 2 Hanger Rollers ? to each Door
Z/+ as shown using 2 Screws ? per
Hanger Roller.
Hardware Required: ? Hanger Roller x4
?Screw (4x12mm) x8
U
Z
+

13
ASSEMBLY
20
Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿

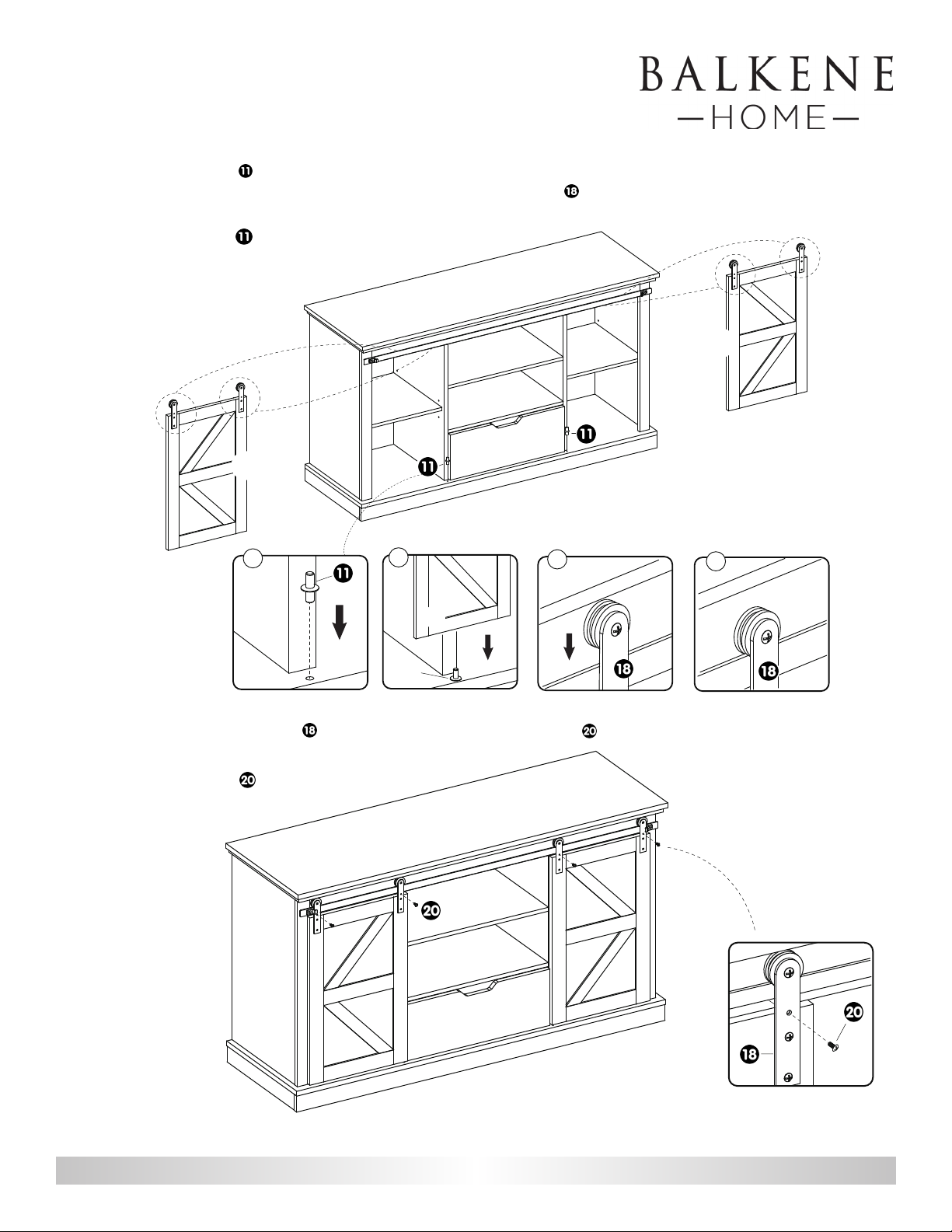

Insert a Track Pin ? into the holes in the Base Panel P just in front of the Left/Right Dividers F/G.
Hang the Doors Z/+ by resting the wheels of the Roller Hangers ? on top of the Door Rail C and settling the
track on the bottom edge of each door onto a Track Pin.
21
Hardware Required: ? Track Pin x2
Z
+
cd
b
a
Z
C
C
F
G
Secure each Roller Hanger ? to the Door Rail C using a Screw Bolt ? as shown.
Hardware Required: ? Screw Bolt (4x12mm) x4
Your Lucca Media Console is ready for use!

LIMITED WARRANTY
Customers in the Contiguous US
With proof of purchase from an authorized retailer, this product is warranted
for a period of 1 year from original purchase date against defects in materials
and workmanship under normal use. This warranty does NOT cover normal
wear/weathering, exposure to water, freezing temperatures, oils, fluids, or
chemicals OR use in a commercial context if the unit is not designated as a
commercial model. At Well Traveled Living’s sole discretion, products under
warranty will be repaired and/or replaced at no charge to the customer.
Returns sent back to Well Traveled Living must be sent via prepaid freight in
the original retail packaging.
For warranty service, contact Balkene Home/Well Traveled Living at the
address, phone numbers or website and email listed in this owner’s manual.
Be sure to have your sales receipt, date of purchase and catalogue/model
numbers available when calling. All warranty service will be coordinated by
Well Traveled Living's Amelia Island, Florida service center. This warranty is
extended only to the original owner. Proof of purchase will be required before
warranty service is rendered. The sales receipt is the only valid proof of
purchase. This warranty only covers failures due to defects in materials or
workmanship which occur during normal use. Failures and/or damage which
result from accident, negligence, misuse, abuse, neglect, mishandling,
alteration or modification, failure to maintain, improper assembly or
maintenance, service by unauthorized agency or use of unauthorized
components or damage that is attributable to acts of God are NOT covered.
This limited warranty gives you specific legal rights and you may also have
other rights which vary from jurisdiction to jurisdiction. The provisions of the
United Nations Convention on Contracts for the Sales of Goods shall not apply
to this limited warranty or the sale of products covered by this limited
warranty.
• THERE ARE NO EXPRESS WARRANTIES EXCEPT AS
LISTED.
• PURCHASER ASSUMES ALL RISKS IN THE
ASSEMBLY AND OPERATION OF THIS UNIT.
• FAILURE TO FOLLOW WARNINGS AND
OPERATIONAL INSTRUCTIONS CONTAINED IN
THIS MANUAL CAN RESULT IN SEVERE PROPERTY
DAMAGE AND/OR PERSONAL INJURY.
• IN NO EVENT WILL WELL TRAVELED LIVING, OR
ITS DIRECTORS, OFFICERS OR AGENTS BE LIABLE
TO THE PURCHASER OR ANY THIRD PARTY,
WHETHER IN CONTRACT, IN TORT, OR ON ANY
OTHER BASIS, FOR ANY INDIRECT, SPECIAL,
PUNITIVE, EXEMPLARY, CONSEQUENTIAL, OR
INCIDENTAL LOSS, COST, OR DAMAGE ARISING
OUT OF OR IN CONNECTION WITH THE SALE,
MAINTENANCE, USE, OR INABILITY TO USE THE
PRODUCT, EVEN IF WELL TRAVELED LIVING OR
ITS DIRECTORS, OFFICERS OR AGENTS HAVE BEEN
ADVISED OF THE POSSIBILITY OF SUCH LOSSES,
COSTS OR DAMAGES, OR IF SUCH LOSSES, COSTS,
OR DAMAGES ARE FORESEEABLE. IN NO EVENT
WILL WELL TRAVELED LIVING, OR ITS OFFICERS,
DIRECTORS, OR AGENTS BE LIABLE FOR ANY
DIRECT LOSSES, COSTS OR DAMAGES THAT
EXCEED THE PURCHASE PRICE OF THE PRODUCT.
• SOME JURISDICTIONS DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATION OR EXCLUSION MAY NOT APPLY TO
THE PURCHASER.
Important Notice
Do NOT return to place of purchase—for customer service and warranty issues: Distributed by:
Well Traveled Living
716 S 8th Street, Amelia Island, FL 32034
balkenehome.com
[email protected]
[phone]
Fire Sense®, Patio Sense,® Avalon Home,® Mojave Sun®, Vulcan®, Balkene Home® and Well Traveled Living® are registered trademarks of
Well Traveled Imports, Inc®. All assembly instruction presentations are the property of Well Traveled Imports, Inc.
® and are protected by
U.S. copyrights and trademarks. All rights reserved.
EXTEND YOUR WARRANTY
When you purchase a Fire Sense or Balkene Home product from any authorized retailer, you'll have peace
of mind in knowing that it comes with a one-year warranty. Extend your warranty for an additional year
when you review your item at balkenehome.com within 365 days of purchase.
Call toll-free [phone] 9 am – 9 pm, EST
Email [email protected]
Live chat balkenehome.com 9 am – 6 pm, EST, Mon – Fri
