Balkene Home SIENA 64014 User manual

SIENA
SIDEBOARD
Item#: 64014
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE.
09282021
Questions, problems, missing parts?
Before returning to your retailer, our Florida-based customer service team is available:
ATTACH YOUR RECEIPT
Keep a copy of your proof of purchase
or order confirmation, which will be
needed if you need to contact us about
warranty coverage.
Purchase date:
Call toll-free [phone] 9 am – 9 pm, EST
Email
Live Chat
[email protected]
www.balkenehome.com 9 am – 6 pm, EST, Monday – Friday

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿ ¿¿¿¿¿¿Ç
INFORMATION
BEFORE YOU BEGIN
Before beginning assembly, make sure all parts are present. Compare parts
received with the "Parts List." If any part is missing or damaged, do NOT attempt
to assemble the product. Please read and understand this entire manual before
attempting to assemble this product. If you have any questions regarding the
product, please contact Customer Service.
GENERAL INFORMATION
This product is made of particle board and MDF. For safe assembly, work on a
dry, soft, secure, and clean surface. Do not clean with detergents or chemicals.
Do not sit or stand on the unit. Do not place damp or hot items such as coffee
cups directly on the surface of this item. Keep away from direct sunlight and
water. Do not drag the unit. For indoor use only.
SAFETY INFORMATION
WARNING
DO NOT sit or stand, or allow children to sit or stand on the assembled product.
Make sure connectors are securely in place. Perform periodic checks to ensure
the connectors remain secure and adjust if needed. Keep unassembled parts and
hardware away from children and infants. This package contains small parts and
sharp edges. Adult assembly required.
CAUTION
READ all instructions before beginning assembly. Failure to do so may result in
faulty assembly and potential injury. Assemble the item on a soft, nonabrasive
surface such as carpet or cardboard to avoid damaging the item.
Max safe load limit:
Top: 20 KG / 44 LB
Middle Compartment & Open Shelves: 8 KG / 17.5 LB
Drawers: 5 KG / 11 LB
Call toll-free [phone] 9 am – 9 pm, EST
Email
Live Chat
[email protected]
www.balkenehome.com 9 am – 6 pm, EST, Monday – Friday

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿ ¿¿¿¿¿¿Ã

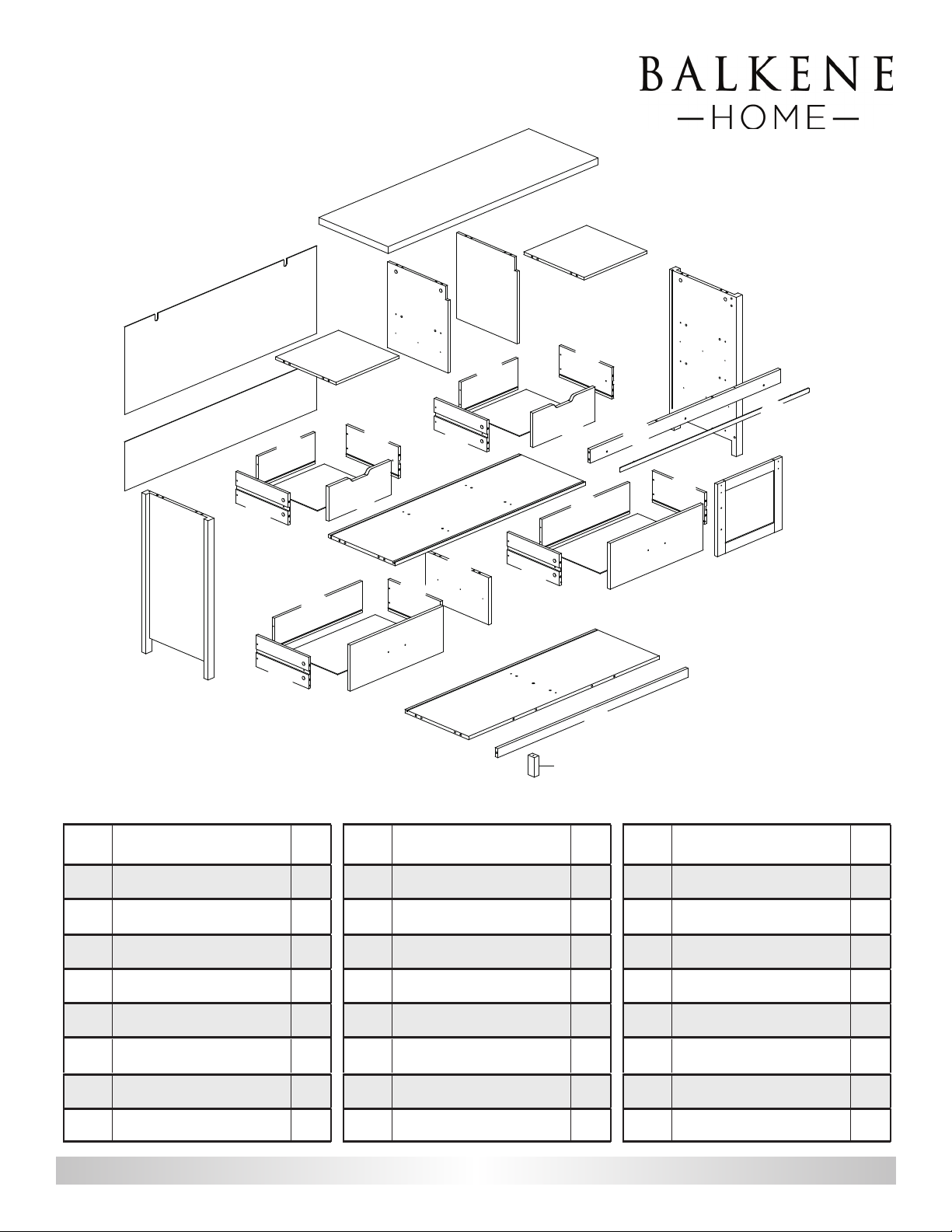

PARTS LIST
A
C
E
B
J
K
F
H
N
P
O
PART DESCRIPTION QTY
ATop Panel
BLeft Side
CRight Side
DLeft Divider
ERight Divider
1
1
1
1
1
FMiddle Shelf
GBottom Divider
HBase Panel
1
1
1
PART DESCRIPTION QTY
IBottom Face Frame
JSupport Leg
KShelf
LUpper Face Frame
MDoor Rail
1
1
2
1
1
NDoor
OTop Backer
PBottom Backer
1
1
1
PART DESCRIPTION QTY
QLeft Drawer Side
RRight Drawer Side
SSmall Drawer Front
TSmall Drawer Back
USmall Drawer Bottom
4
4
2
2
2
VLarge Drawer Front 2
WLarge Drawer Back 2
XLarge Drawer Bottom 2
D
G
I
K
LM
Q
R
R
R
R
S
S
T
T
Q
Q
Q
X
X
W
W
U
U
V
V

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿4

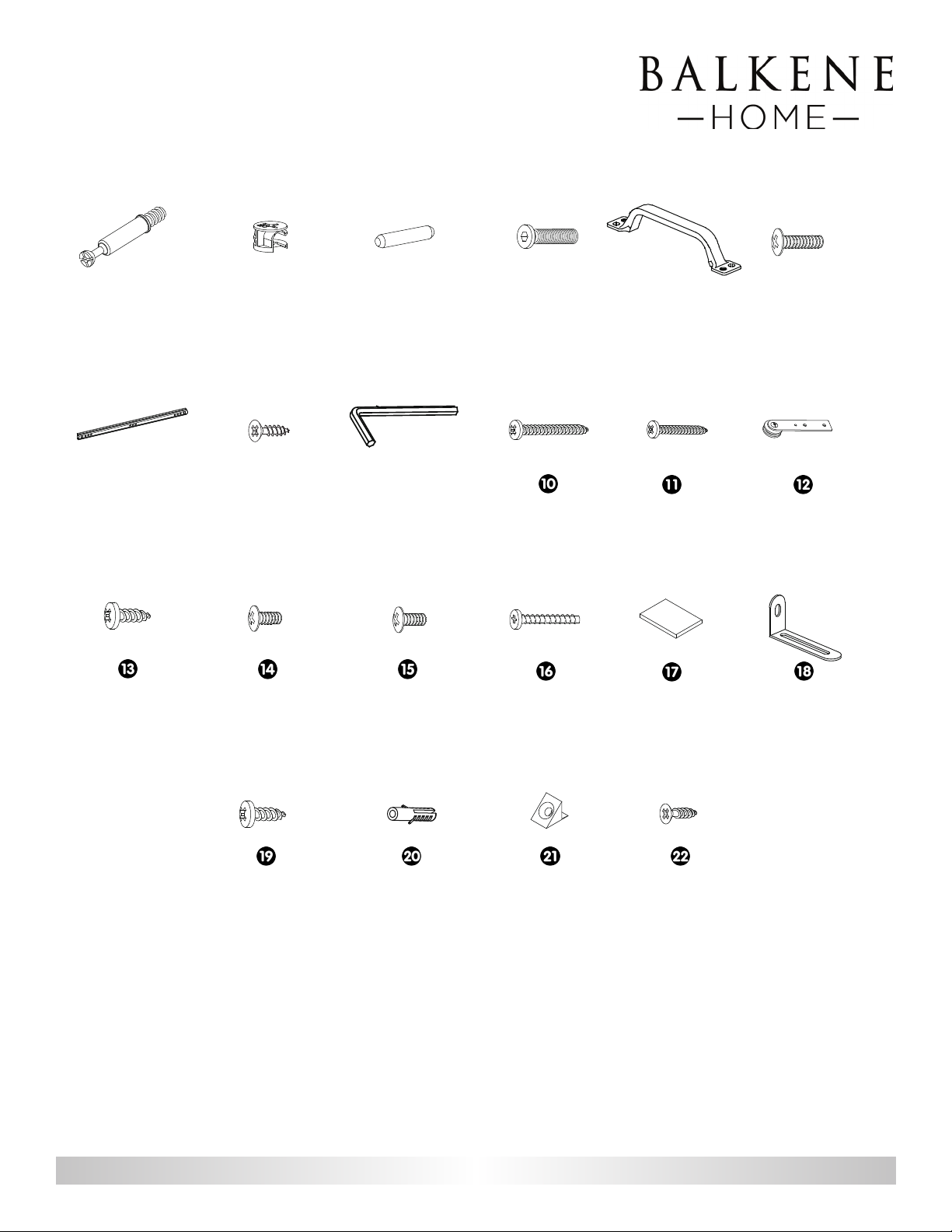

HARDWARE CONTENTS
1
Cam Bolt
6x35mm
Qty: 44
YOU WILL NEED FOR ASSEMBLY:
(not included)
Phillips-head screwdriver
Mallet or hammer
Power drill (to anchor unit to wall)
2
Cam Nut
Qty: 44
3
Dowel
8x30mm
Qty: 42
4
Hex Bolt
6x18mm
Qty: 3
5
Handle
Qty: 3
7
Drawer Runner
Qty: 8
8 9
Hex Wrench
Qty: 1
Screw
4x35mm
Qty: 24
Screw
4x12mm
Qty: 4
Screw Bolt
4x12mm
Qty: 2
Screw Bolt
4x10mm
Qty: 8
Screw
5x40mm
Qty: 1
Drywall Anchor
Qty: 2
Foot Pad
Qty: 5
6
Hanger Roller
Qty: 2
Anchor Bracket
Qty: 2
Screw Bolt
4x18mm
Qty: 6
Screw
3x12mm
Qty: 24
Screw
4x65mm
Qty: 2
Screw
4x12mm
Qty: 2
Screw
3x16mm
Qty: 8
Corner Bracket
Qty: 8

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿¿¿¿¿¿¿5
ASSEMBLY
1
Hardware Required: 1 Cam Bolt x4
7 Runner x2
8 Screw (3x12mm) x6
D
8
FRONT
BACK
7
Install Runners 7 on the Left Divider D and Right Divider E.
Fully extend one Runner and align the inner section along one set of 3 small holes on the Left Divider as shown.
Verify that the orientation of the Runner matches the diagram, then fasten the Runner to the Divider using 3
Screws 8 positioned as shown. Once the Runner is attached, slide it back to the closed position. Attach the
second Runner to the Right Divider following the same method, checking orientation before inserting Screws.
Insert 2 Cam Bolts 1 into the indicated holes above the Runners on each Divider. Use a Phillips-head
screwdriver to tighten the Cam Bolts into the panels.
18
8
7
FRONT BACK
BACK
FRONT
FRONT BACK
Install Runners 7 on both sides of the Bottom Divider G using the method described in Step 1. When installed,
both Runners should extend in the same direction.
Hardware Required: 7 Runner x2
8 Screw (3x12mm) x6
E
1
ASSEMBLY NOTE: Use a Phillips-
head screwdriver to tighten each
Cam Bolt you install until its
threads are fully inserted.
G
78
FRONT
BACK
FRONT
BACK
FRONT
BACK
FRONT
BACK
2
7
8

¿¿¿¿¿¿6
ASSEMBLY

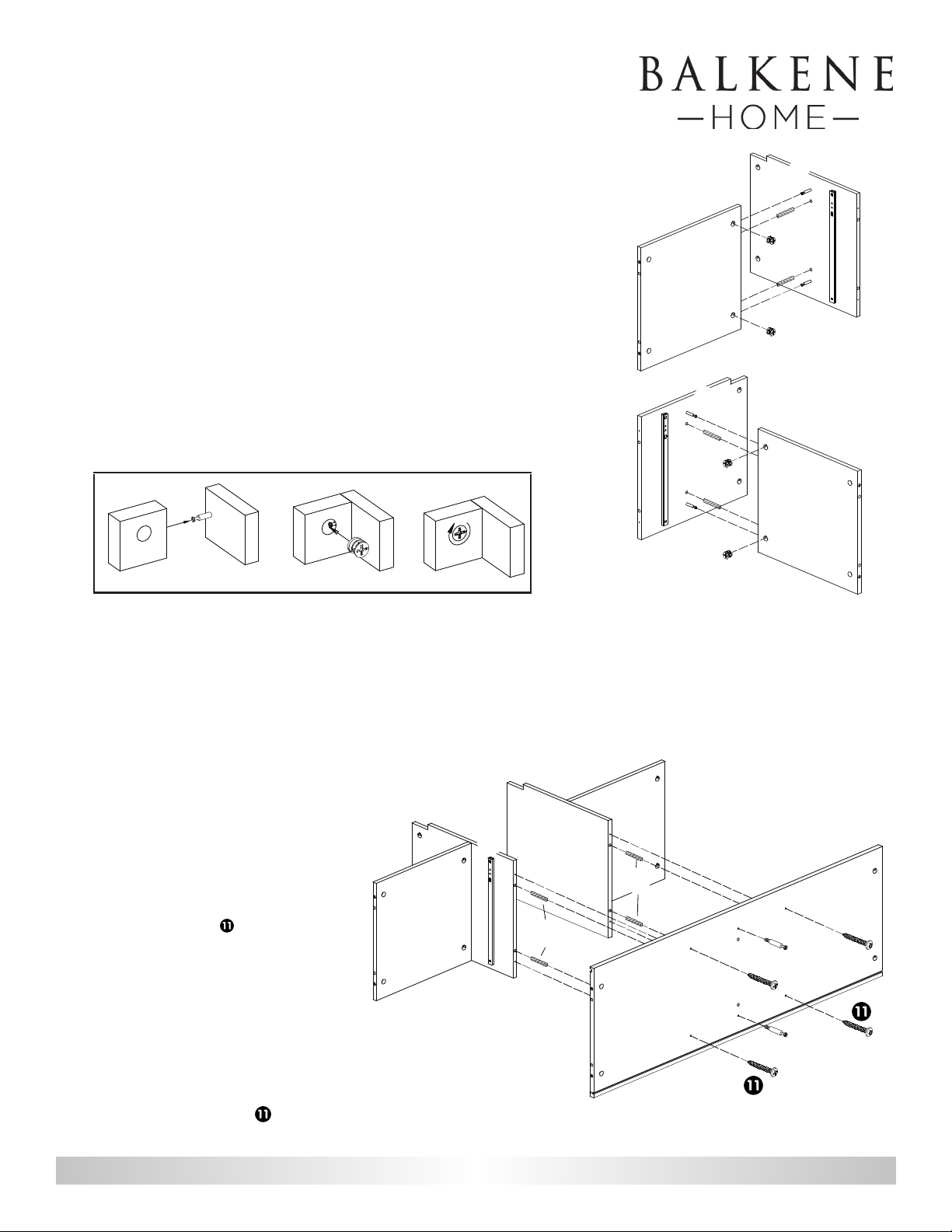

3Insert Dowels 3 into the 2 holes between the Cam
Bolts 1 in each Divider D/E.
Insert the hardware installed in the Left Divider
into the corresponding holes in the edges of one
Shelf K as shown.
Secure by inserting a Cam Nut 2 into each of the
adjoining holes in the underside of the Bottom
Shelf. (HINT: the small arrow on the flat side of the
Cam Nut should point toward the adjoining
panel.) Use a Phillips-head screwdriver to turn the
Cam Nuts clockwise to secure the Cam Bolts.
Attach the Right Divider to the second Shelf K in
the same manner.
Hardware Required: 2 Cam Nut x4
3 Dowel x4
→→
2
K
4
3
2
D
K
2
3
E
2
2
F
1
1
E
D
K3
3
K
Hardware Required:
Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿
Place Dowels 3 in the 2 indicated
holes on the bottom edge of each
Divider D/E.
Insert the installed Dowels into the
corresponding holes on the top
surface of the Middle Shelf F.
Secure the components together by
inserting 2 Screws ? through the
bottom of the Middle Shelf and into
each of the Dividers.
Insert Cam Bolts 1 into the 2
indicated holes on the bottom of the
Middle Shelf.
1 Cam Bolt x2
3 Dowel x4
? Screw (4x35mm) x4

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿¿¿¿¿7
ASSEMBLY

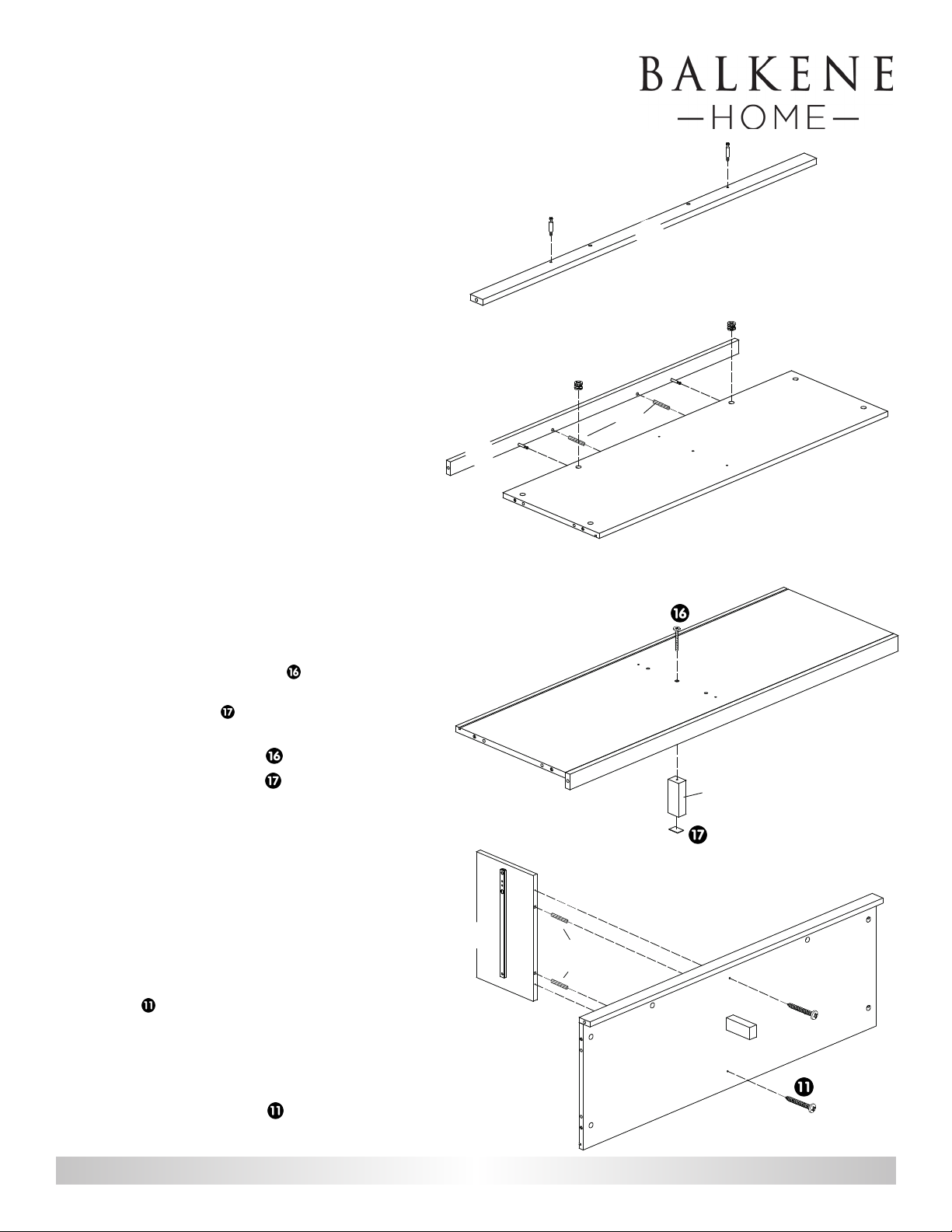

5
1
Insert Cam Bolts 1 into the 2 indicated holes in
the Bottom Face Frame I. Use a Phillips-head
screwdriver to tighten the threads into the
panels.
Hardware Required: 1 Cam Bolt x2
Insert Dowels 3 into the 2 remaining holes
in the Bottom Face Frame I.
Insert the hardware in the Bottom Face Frame
into the corresponding holes in the edge of the
Base Panel H as shown. Secure by inserting a
Cam Nut 2 into each of the adjoining holes in
the underside of the Base Panel. Use a Phillips-
head screwdriver to turn the Cam Nuts
clockwise to secure the Cam Bolts.
Hardware Required: 2 Cam Nut x2
3 Dowel x2
Install the Support Leg J on the bottom of the
Base Panel H using a Screw ? as shown.
Apply a Foot Pad ? to the bottom of the
Support Leg. Press firmly to adhere.
Hardware Required: ? Screw (5x40mm) x1
? Foot Pad x1
7
I
I
3
2
H
6
H
J
8
Hardware Required: 3 Dowel x2
? Screw (4x35mm) x2
Place Dowels 3 in the 2 indicated holes on the
bottom edge of the
Bottom Divider G.
Insert the installed Dowels into the corresponding
holes at the center of the Base Panel H.
Secure the components together by inserting 2
Screws ? through the bottom of the Bottom Panel
and into the Bottom Divider.
H
G
3

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿¿¿8
ASSEMBLY
9
F
Hardware Required: 2 Cam Nut x2
3 Dowel x2
Place Dowels 3 in the 2 indicated holes
between the Cam Bolts 1 in the bottom of the
Middle Shelf F.
Insert the installed Dowels and Cam Bolts into
the corresponding holes in the top edge of the
Bottom Divider G.
Secure by inserting a Cam Nut 2 into each of
the adjoining holes in the side of the Bottom
Divider. Use a Phillips-head screwdriver to turn
the Cam Nuts clockwise to secure the Cam
Bolts.
2
G
H
3
Hardware Required: 7 Runner x4
8 Screw (3x12mm) x12
Install Runners 7 on the Left Side B and Right Side C.
Fully extend one Runner and align the inner section along one set of 3 small holes on the Left Side as
shown. Verify that the orientation of the Runner matches the diagram, then fasten the Runner to the Divider
using 3 Screws 8 positioned as shown. Once the Runner is attached, slide it back to the closed position.
Attach the second Runner to the same Divider following the same method, checking orientation before
inserting Screws.
Follow the above instructions to attach 2 Runners to the Right Side.
10
8
FRONT
BACK
7
8
7
FRONT BACK
B1
1
1
C
1
1
1
Insert Cam Bolts 1 into the 6 indicated holes on each Side. Use a Phillips-head screwdriver to tighten the
Cam Bolts into the panels.
Attach Foot Pads ? to the bottom of all 4 legs. Press firmly to adhere.
Hardware Required: 1 Cam Bolt x12
? Foot Pad x4
BACK
FRONT
FRONT
BACK

¿¿9
ASSEMBLY
11
Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿
Attach the Door Rail M to the Top Face Frame L
using 3 Hex Bolts 4. Use the Hex Wrench 9 to
tighten each Hex Bolt.
Hardware Required: 4 Hex Bolt (6x18mm) x3
9 Hex Wrench
4
L
4
M
9
Insert 7 Dowels 3 into the Left Side B
as indicated.
Hardware Required: 2 Cam Nut x6
3 Dowel x7
12
3
B
2
2F
2
H
Insert 2 Dowels 3 into each end of the
Top Face Frame L. Slide the Top Face
Frame into place on the partially-
Hardware Required: 2 Cam Nut x6
3 Dowel x11
Attach the Left Side to the partially-
assembled unit by inserting the installed
Dowels and Cam Bolts 1 into the
corresponding holes in the left edges of the
partially-assembled unit.
Secure by inserting a Cam Nut 2 into the
adjoining holes on the undersides of each
horizontal panel. Use a Phillips-head
screwdriver to turn the Cam Nuts to secure
the Cam Bolts.
13
assembled unit as shown, inserting the Dowels
into corresponding holes on the Left Side.
Insert 7 more Dowels into the remaining holes in
the Right Side C.
Slide the Bottom Backer P into place in the
grooves between the Middle Shelf F and Base
Panel H.
Attach the Right Side to the partially-assembled
unit by sliding the Cam Bolts 1 into the
corresponding holes in the right end of the
Base Panel H while inserting the Dowels on the
free end of the Top Face Frame into the Right
Side panel. Secure by inserting a Cam Nut 2
into each of the 6 adjoining holes in the
undersides of the horizontal panels. Use a
Phillips-head screwdriver to turn the Cam Nuts
to secure the Cam Bolts.
C
3
3
L
K
F
H
2
P
3

10
ASSEMBLY
14
Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿
A
Insert a total of 8 Cam Bolts 1 into the indicated
holes in the underside of Top Panel A.
Attach each Anchor Bracket ? near the back
edge of the Top Panel using a Screw ?.
Hardware Required: 1 Cam Bolt x8
? Anchor Bracket x2
? Screw (4x12mm) x2
1
Hardware Required: 2 Cam Nut x8
3 Dowel x10
? Screw (4x65mm) x2
15
Place 10 Dowels 3 in the indicated holes in the top
edges of the Left Side B, Left Divider D, Right
Divider E, Right Side C, and Top Face Frame L.
Lower the Top Panel A into place by inserting the
Cam Bolts 1 into the remaining holes in the top
edges of the vertical panels. Secure by inserting a
Cam Nut 2 into each of the 8 adjoining holes near
the tops of the vertical panels. Use a Phillips-head
screwdriver to turn the Cam Nuts clockwise to
secure the Cam Bolts.
Insert 2 Screws ? through the bottom of the Top
Face Frame and into the Top Panel. Tighten with a
Phillips-head screwdriver.
AA
L
O2
3
C
E
D
B
3
Slide the Top Backer O into the groove along
the rear of the unit, with U-shaped cutouts
towards the top.

11
ASSEMBLY
16
Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿
x 2

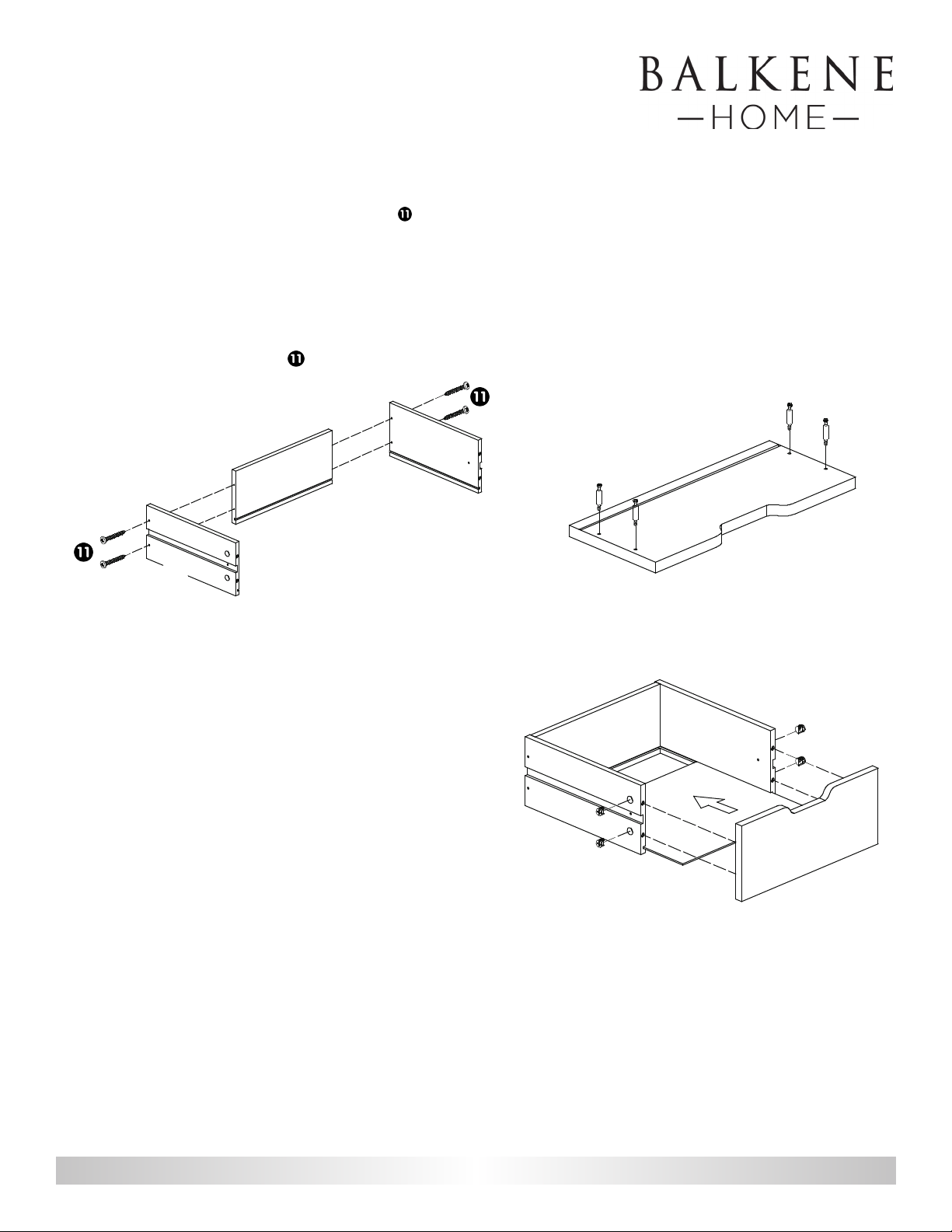

With runner side facing out, attach the Left Drawer Side Q to
the Small Drawer Back T using 2 Screws ?. Ensure that the
narrow groove at the bottom runs continuously along the
Hardware Required: ? Screw (4x35mm) x8
Insert Cam Bolts 1 into the indicated holes
in each Small Drawer Front S. Use a Phillips-
head screwdriver to tighten the threads fully
into the panels.
1 Cam Bolt x8
Hardware Required:
2
Q
1
1
2
U
S
S
R
T
x 2
x 2
Hardware Required: 2 Cam Nut x8
inside of both pieces.
Repeat to attach the Right Drawer Side R to the Drawer Back.
Begin assembling the second drawer using the same method.
Slide the Small Drawer Bottom U into place in the
groove in the drawer panels.
Insert the Cam Bolts in the Small Drawer Front S into
the front edges of the Drawer Sides. Secure by
inserting a Cam Nut 2 into each of the adjoining holes
on the outside of the Drawer Sides. Use a Phillips-head
screwdriver to turn the Cam Nuts clockwise to secure
the Cam Bolts.
Finish assembling the second small drawer using the
same method.

12
ASSEMBLY
17
Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿
With runner side facing out, attach the Left Drawer Side Q to
the Large Drawer Back W using 2 Screws ?. Ensure that the
narrow groove at the bottom runs continuously along the
Hardware Required: ? Screw (4x35mm) x8
Insert Cam Bolts 1 into the indicated holes in
each Large Drawer Front V. Use a Phillips-
head screwdriver to tighten the threads fully
into the panels.
Attach a Handle 5 to each Large Drawer
Front using 2 Screw Bolts 6.
1 Cam Bolt x8
5 Handle x2
6 Screw Bolt (4x18mm) x4
Hardware Required:
x 2
Hardware Required: 2 Cam Nut x8
inside of both pieces.
Repeat to attach the Right Drawer Side R to the Drawer Back.
Begin assembling the second drawer using the same method.
Slide the Large Drawer Bottom X into place in the
groove in the drawer panels.
Insert the Cam Bolts in the Large Drawer Front V into
the front edges of the Drawer Sides. Secure by
inserting a Cam Nut 2 into each of the adjoining holes
on the outside of the Drawer Sides. Use a Phillips-head
screwdriver to turn the Cam Nuts clockwise to secure
the Cam Bolts.
Finish assembling the second large drawer using the
same method.
x 2
6
Q
5
V
1
1
R
W
XV
2
2
x 2

13
ASSEMBLY
18
Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿
V
V
S
S
V/S
7
To install the first drawer, fully extend both Drawer Runners 7 in one drawer compartment and slide the
drawer into place between them. Secure the Runners to the sides of the Drawer using 2 Screw Bolts ?.
Follow the same method to install the remaining 3 drawers.
Hardware Required: ? Screw Bolt (4x10mm) x8
19 Attach a Handle 5 to the Door N using 2
Screw Bolts 6.
Attach 2 Hanger Rollers ? to the Door as shown
using 2 Screws ? per Roller.
Hardware Required: 5 Handle x1
6 Screw Bolt (4x18mm) x2
? Hanger Roller x2
?Screw (4x12mm) x4
N
6
5

14
ASSEMBLY
20
Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿
Hang the Door N by resting the wheels of the Roller Hangers ? on top of the Door Rail M and
settling the track pin on the bottom of the door into the bottom door track.
Secure the Door to the Door Rail by inserting a Screw Bolt ? as indicated in each Roller Hanger.
Hardware Required: ? Screw Bolt (4x12mm) x2
N
M
21
Install the Corner Brackets ? in each corner of the back of
the unit to secure the Top/Bottom Backers O/P. Fasten
each Corner Bracket using a Screw ?.
Hardware Required: ? Corner Bracket x8
? Screw (3x16mm) x8
O
P

15
ASSEMBLY
22
Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿
Use the Anchor Brackets ? to anchor the unit to the wall for safety. The included hardware is appropriate
for drywall installation and requires the use of a drill. If needed, consult a qualified tradesperson or online
resources for the appropriate steps to safely anchor this unit.
Hardware Required: 6 Screw (4x35mm) x2
? Drywall Anchor x2
a
b
c
d
Your Siena Sideboard is ready for use!

LIMITED WARRANTY
Customers in the Contiguous US
With proof of purchase from an authorized retailer, this product is warranted
for a period of 1 year from original purchase date against defects in materials
and workmanship under normal use. This warranty does NOT cover normal
wear/weathering, exposure to water, freezing temperatures, oils, fluids, or
chemicals OR use in a commercial context if the unit is not designated as a
commercial model. At Well Traveled Living’s sole discretion, products under
warranty will be repaired and/or replaced at no charge to the customer.
Returns sent back to Well Traveled Living must be sent via prepaid freight in
the original retail packaging.
For warranty service, contact Balkene Home/Well Traveled Living at the
address, phone numbers or website and email listed in this owner’s manual.
Be sure to have your sales receipt, date of purchase and catalogue/model
numbers available when calling. All warranty service will be coordinated by
Well Traveled Living's Amelia Island, Florida service center. This warranty is
extended only to the original owner. Proof of purchase will be required before
warranty service is rendered. The sales receipt is the only valid proof of
purchase. This warranty only covers failures due to defects in materials or
workmanship which occur during normal use. Failures and/or damage which
result from accident, negligence, misuse, abuse, neglect, mishandling,
alteration or modification, failure to maintain, improper assembly or
maintenance, service by unauthorized agency or use of unauthorized
components or damage that is attributable to acts of God are NOT covered.
This limited warranty gives you specific legal rights and you may also have
other rights which vary from jurisdiction to jurisdiction. The provisions of the
United Nations Convention on Contracts for the Sales of Goods shall not apply
to this limited warranty or the sale of products covered by this limited
warranty.
• THERE ARE NO EXPRESS WARRANTIES EXCEPT AS
LISTED.
• PURCHASER ASSUMES ALL RISKS IN THE
ASSEMBLY AND OPERATION OF THIS UNIT.
• FAILURE TO FOLLOW WARNINGS AND
OPERATIONAL INSTRUCTIONS CONTAINED IN
THIS MANUAL CAN RESULT IN SEVERE PROPERTY
DAMAGE AND/OR PERSONAL INJURY.
• IN NO EVENT WILL WELL TRAVELED LIVING, OR
ITS DIRECTORS, OFFICERS OR AGENTS BE LIABLE
TO THE PURCHASER OR ANY THIRD PARTY,
WHETHER IN CONTRACT, IN TORT, OR ON ANY
OTHER BASIS, FOR ANY INDIRECT, SPECIAL,
PUNITIVE, EXEMPLARY, CONSEQUENTIAL, OR
INCIDENTAL LOSS, COST, OR DAMAGE ARISING
OUT OF OR IN CONNECTION WITH THE SALE,
MAINTENANCE, USE, OR INABILITY TO USE THE
PRODUCT, EVEN IF WELL TRAVELED LIVING OR
ITS DIRECTORS, OFFICERS OR AGENTS HAVE BEEN
ADVISED OF THE POSSIBILITY OF SUCH LOSSES,
COSTS OR DAMAGES, OR IF SUCH LOSSES, COSTS,
OR DAMAGES ARE FORESEEABLE. IN NO EVENT
WILL WELL TRAVELED LIVING, OR ITS OFFICERS,
DIRECTORS, OR AGENTS BE LIABLE FOR ANY
DIRECT LOSSES, COSTS OR DAMAGES THAT
EXCEED THE PURCHASE PRICE OF THE PRODUCT.
• SOME JURISDICTIONS DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATION OR EXCLUSION MAY NOT APPLY TO
THE PURCHASER.
Important Notice
Do NOT return to place of purchase—for customer service and warranty issues: Distributed by:
Well Traveled Living
716 S 8th Street, Amelia Island, FL 32034
balkenehome.com
[email protected]
[phone]
Fire Sense®, Patio Sense,® Avalon Home,® Mojave Sun®, Vulcan®, Balkene Home® and Well Traveled Living® are registered trademarks of
Well Traveled Imports, Inc®. All assembly instruction presentations are the property of Well Traveled Imports, Inc.
® and are protected by
U.S. copyrights and trademarks. All rights reserved.
EXTEND YOUR WARRANTY
When you purchase a Fire Sense or Balkene Home product from any authorized retailer, you'll have peace
of mind in knowing that it comes with a one-year warranty. Extend your warranty for an additional year
when you review your item at balkenehome.com within 365 days of purchase.
Call toll-free [phone] 9 am – 9 pm, EST
Email [email protected]
Live chat balkenehome.com 9 am – 6 pm, EST, Mon – Fri
