Balt 27541 User manual

1234567890123456789012345678901212345678901234567890123456789012123456789012

#27541 Mobile Laptop

Charging Station

Assembly Instructions

P-1 Left Leg Welded 1 EA

P-2 Right Leg Welded 1 EA

P-3 Slotted End Panel 2 EA

P-4 Middle Panel 1 EA

P-5 Top Panel 1 EA

P-6 Bottom Panel 1 EA

P-7 Back Panel 1 EA

P-8 Shelf 9 EA

P-9 Left Door 1 EA

P-10 Right Door 1 EA

P-11 Caster Base 1 EA

Part Drawing Description Qty Part Drawing Description Qty

Hardware List

Mobile Laptop Charging Station

#27541

APhil Screw M6X15mm 20 EA

A1CS Phil Screw M6X50mm 18 EA

A2 Wood Screw M7x50mm 7 EA

A3 CS Wd Screw M3x12mm 12 EA

A4 Phil Pan Screw M4x12mm 4 EA

A5 Pan Wd Screw M4x18mm 10 EA

A6 Socket Screw M6x65mm 4 EA

BThreaded Post M6x16 4 EA

C1 Cam Lock 2 EA

C2 Cam Post 2 EA

D5” Locking Caster 2 EA

E5” Inline Caster 2 EA

FDoor Handle 2 EA

GWood Dowel 1 EA

(Door Knobs)

Part Drawing Description Qty Part Drawing Description Qty

Missing Parts or UPS Damaged Parts

For Your Convenience you can

EMAILusat

[email protected]

24HOURS 7 DAYSAWEEK

Do not use unless all screws are tight. At least every six months, check all screws to be sure

they are tight. If parts are missing, broken, damaged, or worn, stop use of the product until

repairs are made by your dealer using factory authorized parts.

JLock Catch 1 EA

K1 Lock Cylinder 2 EA

K2 Lock Washer 2 EA

K3 Lock Hex 2 EA

K4 Lock Retainer 2 EA

K5 ¼” Phil Head Lock Screw 2 EA

LKey 4 EA

M1 Grommet Sleeve 4 EA

M2 Grommet Cap 4 EA

NAllen Wrench 1 EA

Hardware List

P-12 Electrical Mount Cap 4 EA

P-13 Cord Wrap 2 EA

WARNING

In order to charge all 20 laptops simultaneously, two

separate 110-120 volt, 15-20 amp circuits are required.

Theseparts are

notused.

(2) #58188-12 Outlet Electrical Strips

To Assemble:

Identify and Separate all the Parts and Hardware.

Install 2 each Cam Posts (C2) in the 2 threaded

insert nuts in the Top Panel (P5)

as shown in illustration #1.

Illustration # 1

P-5

#27541 Mobile Laptop Charging Station

Assembly Diagram

Be sure that arrow on

top of Camlock (C1)

aligns with centerline

of Edge Drilled hole.

Phillips

Screwdriver

Centerline

of Edge

Drilled hole.

Arrow

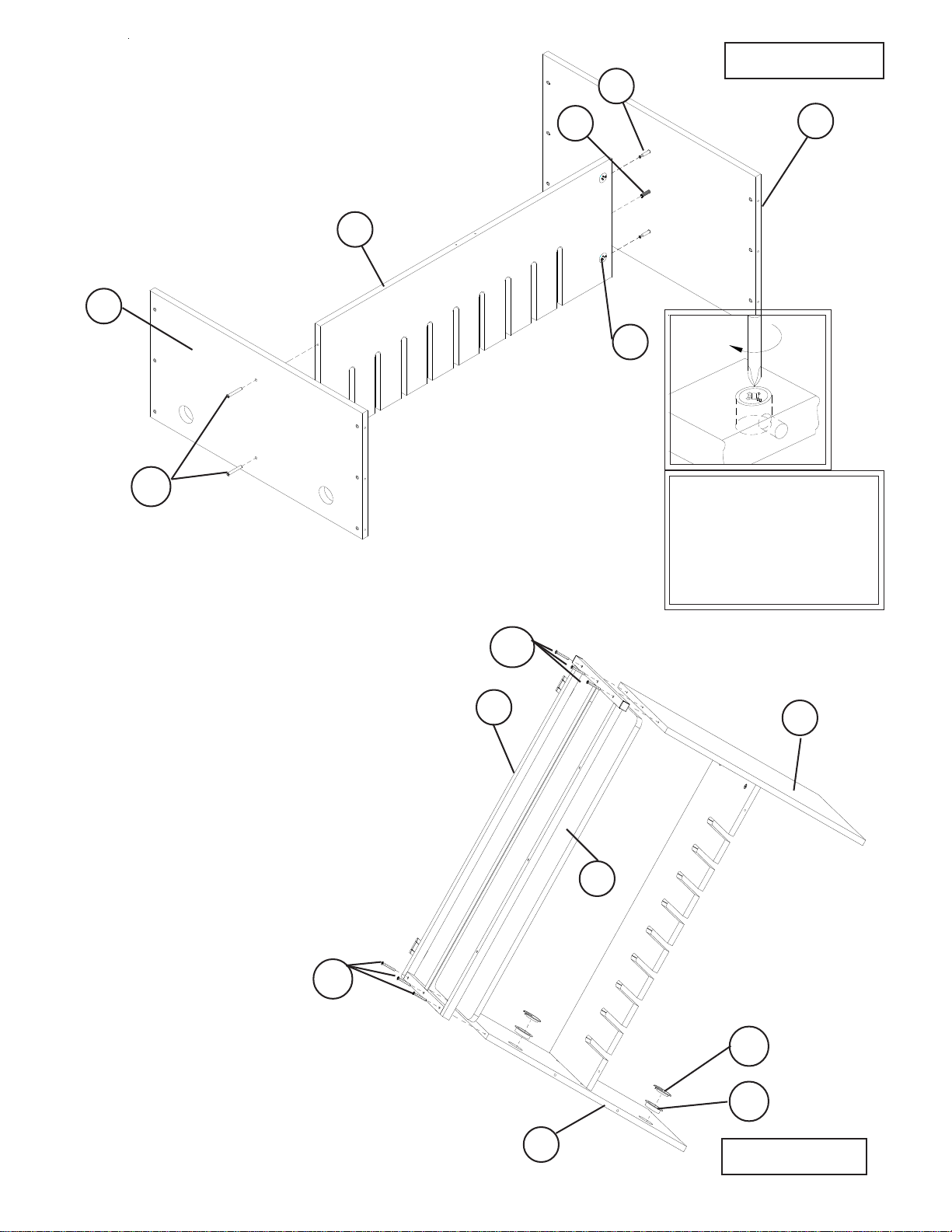

Install 2 Cam Locks (C1) into the 2

large holes in the Middle Panel (P4) as

shown in illustration #2

Illustration # 2

P-4

The Balt product you have purchased is guaranteed against material and workmanship defects. This

guarantee extends 1 year from date of purchase. Should this product fail to function satisfactorily under

normal use due to defect or imperfection, the defective part or product will be replaced. Damage caused

by common carriers during shipment is not included in this guarantee.

This guarantee sets forth all applicable guarantees and remedies. No other warranty, expressed

or implied shall apply. Failure to follow instructions found in Important Information Section of

Owner Sheet shall void the guarantee. Consequential or incidental damages and or costs are not

refundable.

Important

Install 1 Wood Dowel (G)

in the hole in the middle of the

Top Panel (P5)

Attach Middle Panel (P4) to the Top Panel

(P5) as shown in illustration #3. Secure by

turning the Cam Locks (C1) 1/4 Turn until

they lock.

Attach Bottom Panel (P6) to the Middle Panel (P-4)

using 2 Wood Screws (A2).

Illustration # 3

Illustration # 4

To Secure Cam Locks,

InsertLargePhillips

HeadScrewdriver and

turnCamLock1/4 turn

(90 degrees) clockwise.

AttachRight Leg Welded (P2) to theTop

and Bottom Panels (P5 & P6) using

6 CS Phil Screws (A1) as shown in

illustration #4. Just startthe CSPhil

Screws (A1) at this point and do not

tighten.

Press2 Grommet Sleeves (M1) in

roundopeningsin the Bottom

Panel (P6) as shown

in illustration #4.

Snap Grommet Cap (M2) over

top of Grommet

Sleeves (M1).

P2 P5

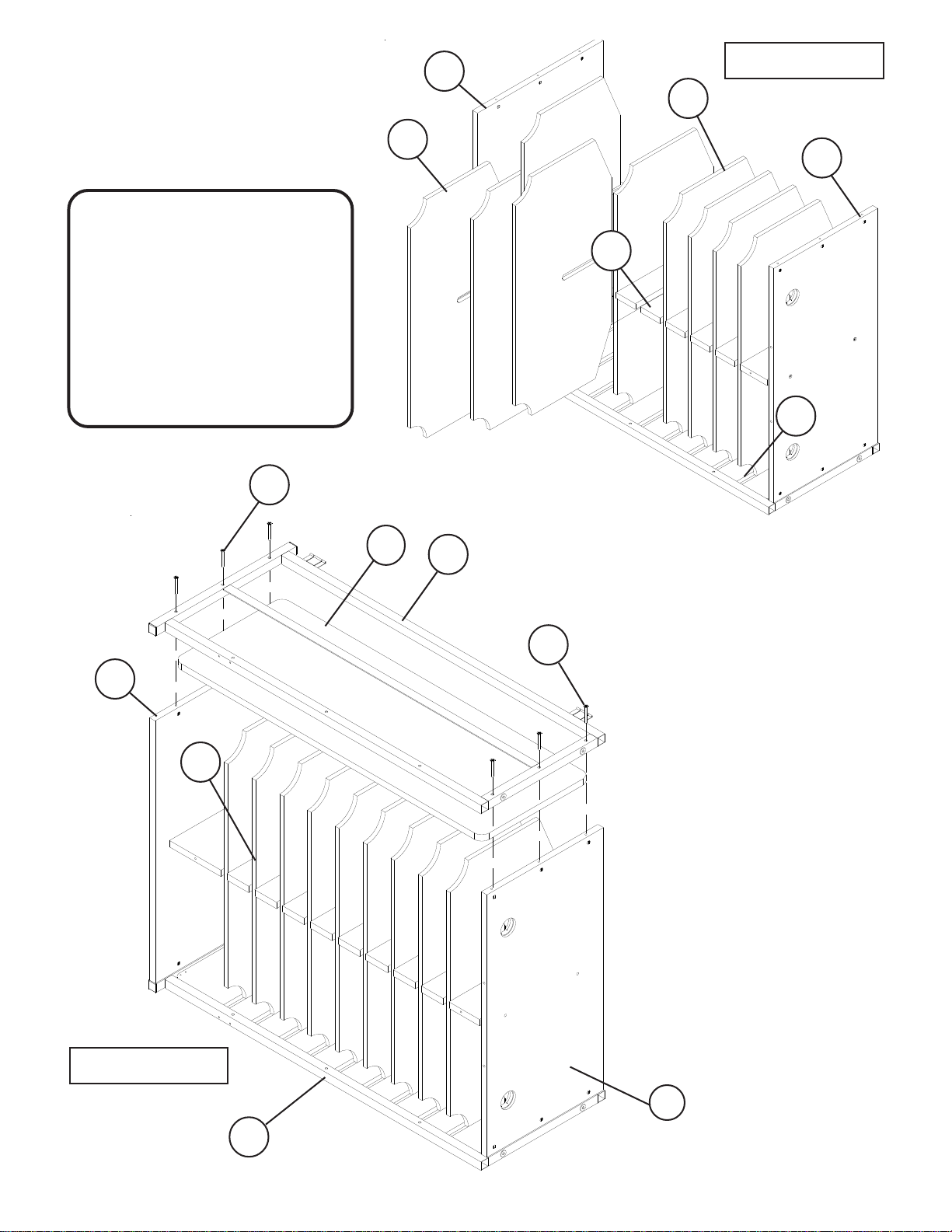

Place a Slotted End Panel (P3), large

space at top, in the recess inside the

Right Leg Welded (P2). .

Slide 9 Shelves (P8) over

Middle Panel (P4) and into

slots in Slotted End Panel (P3)

as shown in illustration #5.

Illustration # 5

Illustration # 6

Place Slotted End Panel (P3)

over the end of 9 Shelves

(P8) as shown in

illustration #6.

Attach Left Leg Welded (P1)

to the Top and bottom Panels

(P5 & P6) using

6 CS Phil Screws (A1) .

10.

11.

12.

Should you require assistance

during assembly,

please call our

Customer Service Department

Monday - Friday 8 a.m. - 5 p.m.

Central Standard Time

Toll-Free Customer Service

1-800-749-2258

Illustration # 7

P10

Illustration # 8

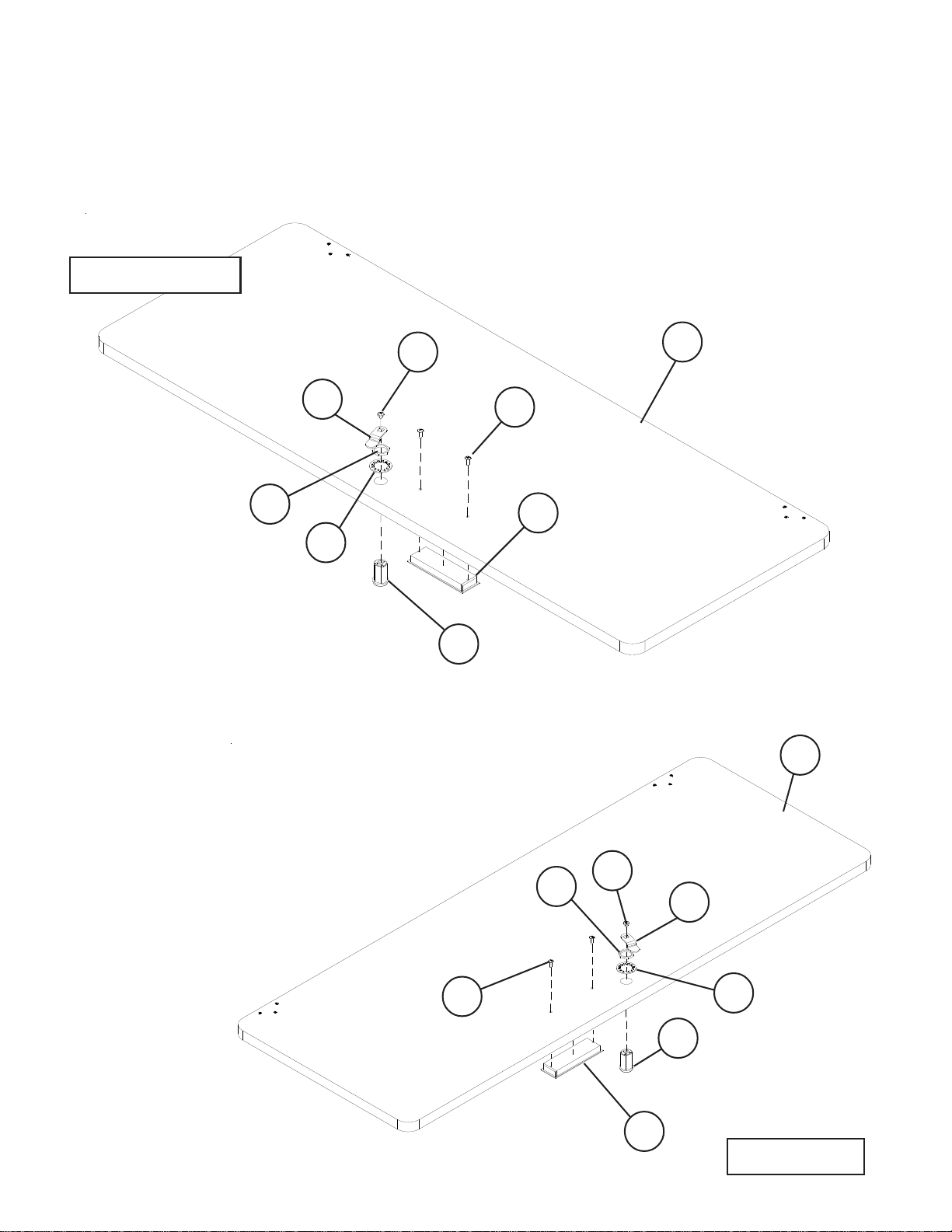

Place the Left Door (P9) with the Predrilled (for Hinges) holes facing up and Insert 1 each

Lock Cylinder (K1) through the hole in the Left Door (P9) as shown in illustration # 7.

Secure Lock Cylinder (K1) using the Lock Washer (K2) and the Lock Hex (K3).

(FINGER TIGHTEN ONLY.)

Attach 1 Door Handle (F)

to the Right Door (P10) using

2 Wood Screws (A4).

Slide Lock Retainer (K4) over the square end of Lock Cylinder (K1).

Secure using the ¼” Phil Head Lock Screw (K5).

Attach 1 Door Handle (F)

to the Left Door (P9) using 2

Wood Screws (A4).

17.

13.

14.

15.

16.Place the Right Door (P10) with the Predrilled holes facing

up and Insert 1 each Lock Cylinder (K1) through the hole in

the Right Door (P10). Secure Lock Cylinder (K1) using the

Lock Washer (K2) and the Lock Hex (K3).

(FINGER TIGHTEN ONLY.)

Slide Lock Retainer (K4) over the

square end of Lock Cylinder (K1).

Secure using the ¼” Phil Head Lock

Screw (K5).

18.

Press Grommet Sleeves (M1) in

round openings in the Back

Panel (P7) as shown

in illustration #9.

Illustration # 9

Illustration # 10

19.

Attach Back Panel (P7) to

the Left Leg Welded (P1),

and the Right Leg Welded

(P2) using 6 screws (A1) as

shown in illustration #10.

Secure Back Panel (P7) to

the Middle Panel (P4) and

the Bottom Panel (P6) using

4 Screws (A2).

22.

21.

Attach 2 Cord Wraps (P13) to

the Back Panel (P7) using 4 screws (A)

and 4 Threaded Posts (B)

as shown in illustration #9.

P13

20.

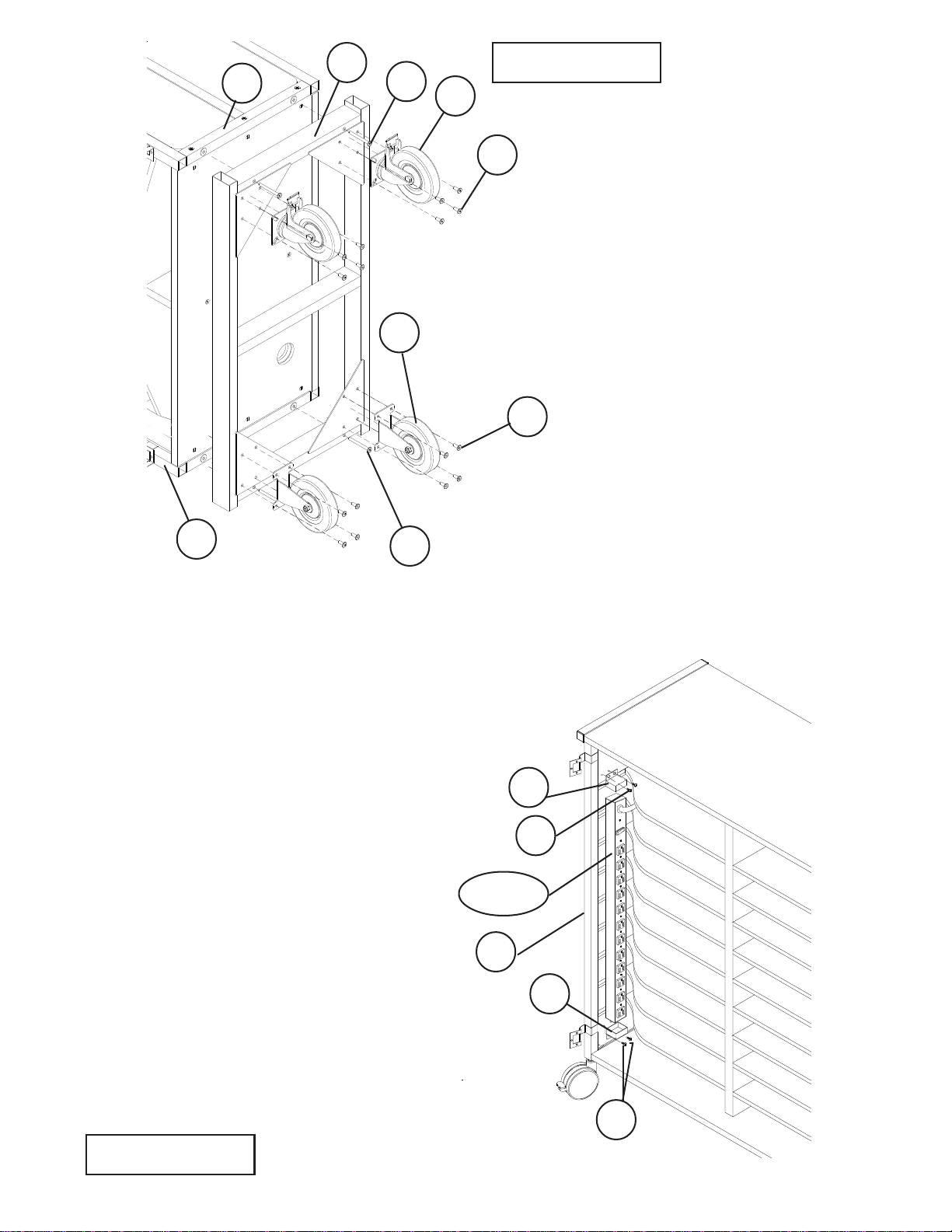

Attach Caster Base (P11) to the

Welded Legs (P1 & P2) using 4

each screws (A6) as shown in

illustration #11. Tighten these 4

Screws using Allen Wrench (R).

Attach 2 locking Casters (D)

and 2 Inline Casters (E) to metal

base (P-1)using 16 screws (A).

Tighten Screws Allen Wrench

(N) as shown in illustration #11.

Illustration # 11

Attach1 Electrical-12 Outlet(#58188) to the Slotted

Panel (P-3) on the Left Side using 4 each screws (A5)

throughanElectrical Mount Cap(P12) on eachend

asshowninillustration #12.

25.

P11

P2 D

Illustration # 12

23.

24.

58188

P12

Illustration # 13

26.

Illustration # 14

Route both electric cords acrooss

the top shelf and through the 2

Grommet Sleeves (M1) in the Back

Panel (P7) and out the back of the

unit as shown in illustration #14.

Snap Grommet Cap (M2) over top of

Grommet Sleeve (M1).

27.

28.

WARNING

In order to charge all 20 laptops simultaneously, two

separate 110-120 volt, 15-20 amp circuits are required.

Attach1 Electrical-12 Outlet(#58188) to the Slotted

Panel(P-3) on the Right Side using 4 each screws (A5)

throughanElectrical Mount Cap(P12) on eachend

asshowninillustration #13.

58188

P12

Illustration # 15

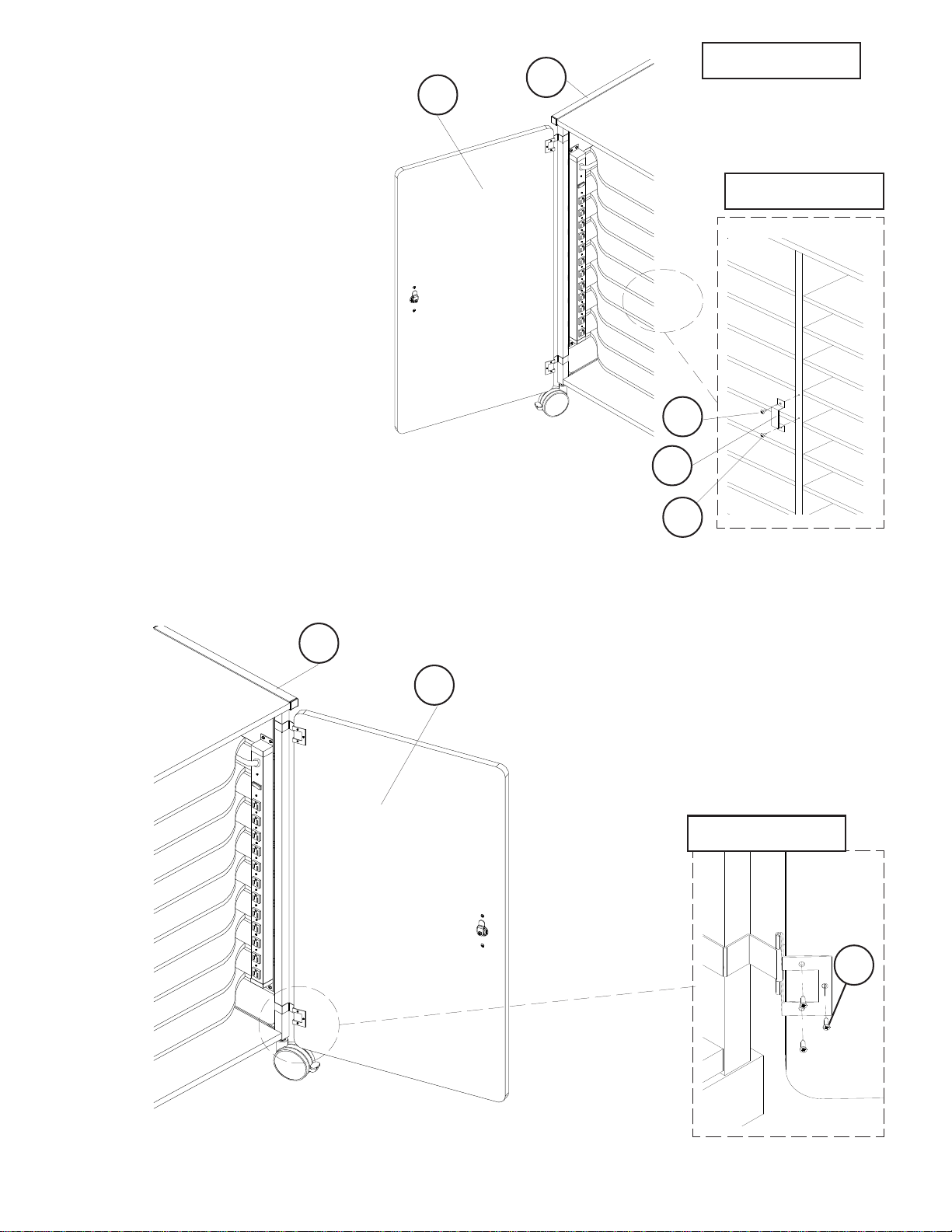

Attach Left Door (P9) to

Left Leg welded (P1)

using 6 screw (A3) as

shown inillustration#15

and Detail #16A.

Attach Lock Catch (J) to

Middle Panel (P4) using

2 screw (A5) . See

Detail #15A.

Attach Right Door (P10) to

Right Leg Welded (P2)

using 6 screw (A3) as

shown in illustration

#16 &16A.

29.

30.

31.

Detail # 16A

27541_03-07-13

Before tightening the Lock

Hex (K3) on either door,

insert the Key (L) and turn

lock. Be sure that Lock

Retainer (K4) turns 90

degrees and rotates behind

Door Stop (J).

TIGHTEN LOCK HEX (K3). SEE

ILLUSTRATION #7.

32.

P9 P1

Detail # 15A

P10

WWW.MYBINDING.COM
