Balt Alekto-3 User manual

1234567890123456789012345678901212345678901234567890123

ALEKTO-3

Adjustable Tri-Level Computer Workstation

Assembly Instructions

A Flat Head Screw 28 EA

A2 Long Wood Screw 4 EA

A3 Wood Screw 3 EA

B InteriorThreadedPost 20 EA

D 3” Locking Caster (for Front) 2 EA

E 3” Caster (for Back) 2 EA

F Allen Wrench 1 EA

G Caster Wrench 1 EA

M Slide 2 EA

N Flat Washer 4 EA

P Black Plastic Spacer 2 EA

Q Hex Nut 4 EA

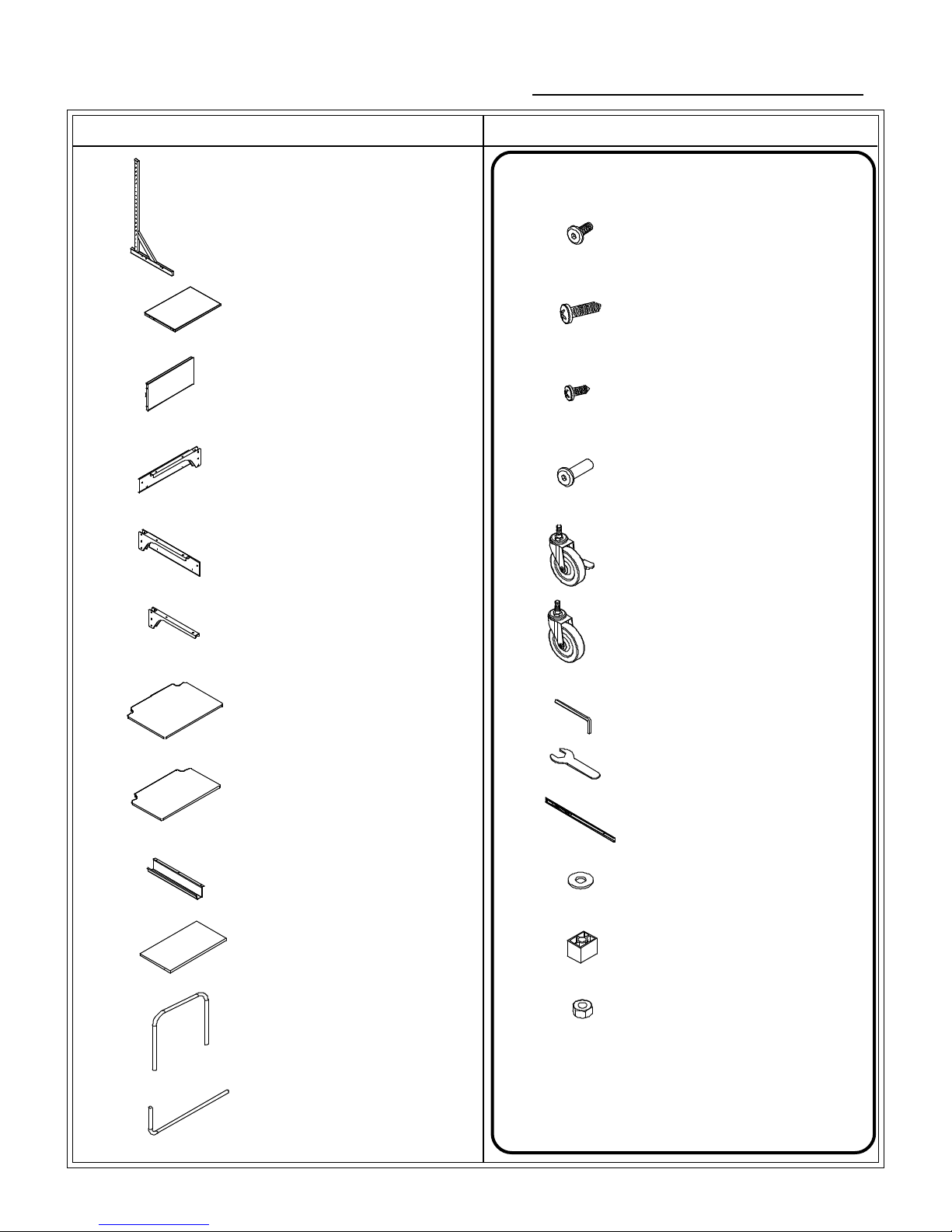

Part Drawing Description Qty Part Drawing Description Qty

ComputerWorkstation

ALEKTO-3

P1 Leg 2 EA

P2 Bottom Shelf 1 EA

P3 Stability Panel 1 EA

P4 Right Top Support 1 EA

P5 Left Top Support 1 EA

P6 Shelf Support 2 EA

P7 Top Panel 1 EA

P8 Shelf Panel 1 EA

P9 Cable Tray 1 EA

P10 Keyboard Shelf 1 EA

P11 CPU Sleeve 1 EA

P12 CPU Rod 2 EA

Hardware List

We recommend that you assemble

this unit on a table.

Tools required: Philips Head Screw Driver,

AdjustableCrescentWrench

ALEKTO-3

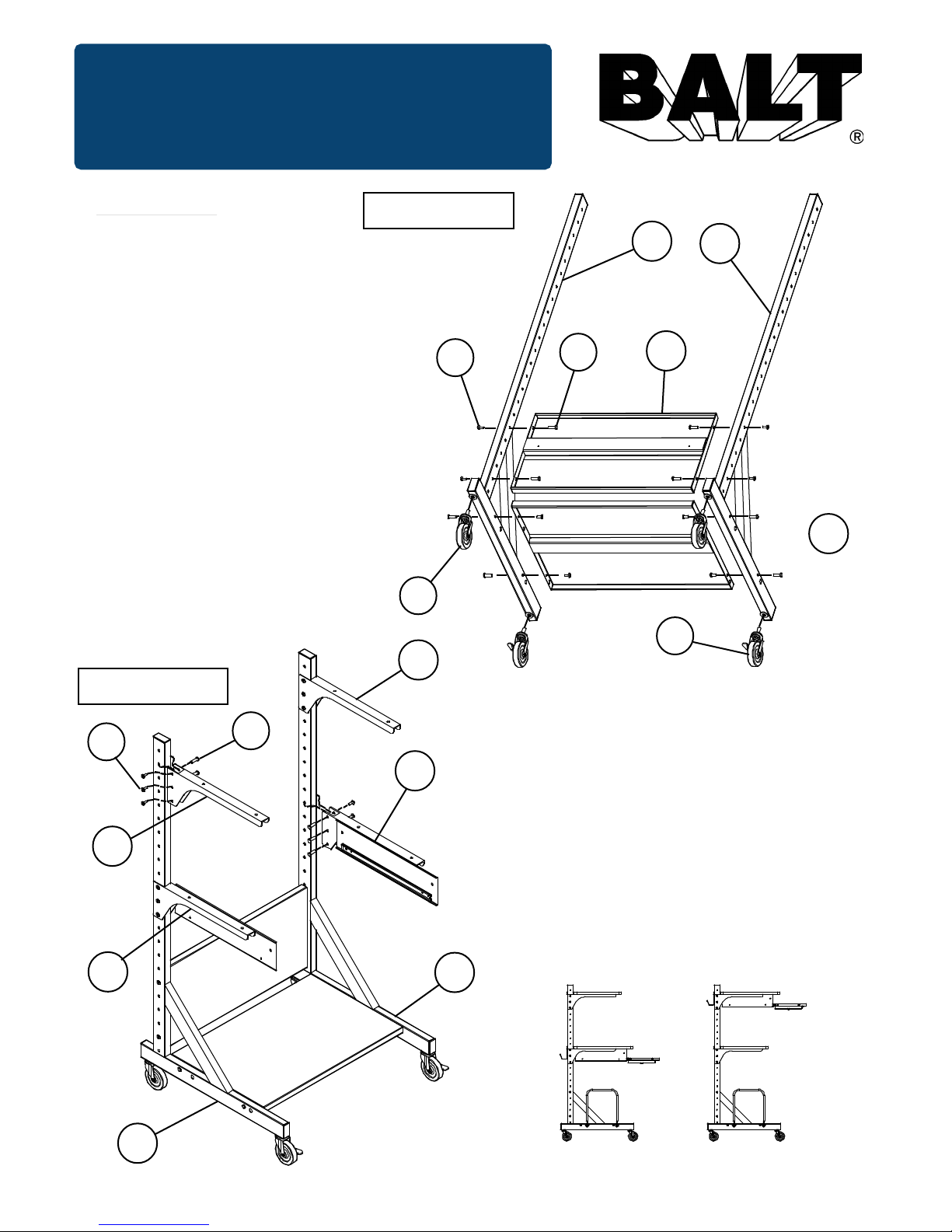

AssemblyDiagram

To Assemble:

1. Identify and Separate all the

Parts and Hardware.

2. Attach Bottom Shelf (P2) and

Stability Panel (P3) to 2 Legs

(P1) using 8 Flat Head

Screws (A) and 8 Interior

Threaded Posts (B) as shown in

Illustration # 1.

(Do not tighten screws all the way)

3. Attach Casters to 2 Legs (P1).

2 Locking casters (D) in the

front and 2 Casters (E) in the

back. Tighten Casters using

Caster Wrench (G).

Illustration # 2

Illustration # 1

4. Attach 1 Right Top Support (P4) and Left

Top Support (P5) to 2 Legs (P1) at

desired location (see Options below) using

6 Flat Head screws (A) and 6 Interior

Threaded Posts (B) as shown in

illustration # 2.

5. Attach 2 Shelf Suport (P6) to 2 Legs (P1)

at desired location using 6 Flat Head

screws (A) and 6 Interior Threaded

Posts (B) as shown in illustration.

Option # 1

TopPanel

Option # 2

Shelf Panel

P1 P1

Shelf Panel TopPanel

Use 2nd hole from

front of slide

Spring Clip goes to the

back of Keyboard Shelf.

P10

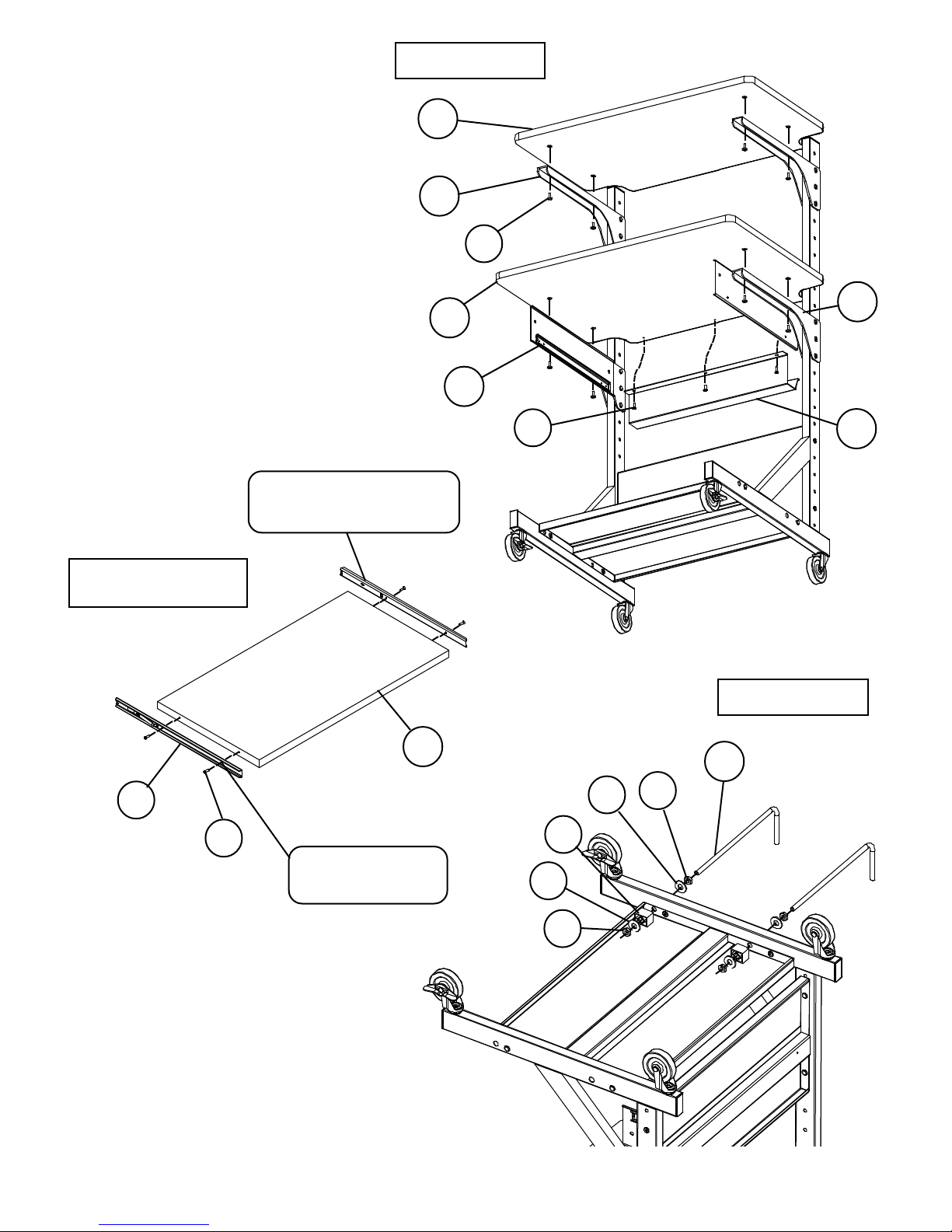

Illustration # 4

Keyboard Shelf

Illustration # 3

Illustration # 5

6. Attach Top Panel (P7) to the Top

Supports (P4 & P5), and Shelf

Panel (P8) to the Shelf Supports

(P6) using 8 Flat Head screws (A)

as shown in Illustration # 3.

7. Attach cable Tray (P9) to the Top

Panel (P7) using 3 Wood Screws

(A3).

8. Attach 2 slides (H) to Keyboard

Shelf (P10) using 4 Long Wood

Screws (A2) as shown in

illustration # 4.

9. Attach 2 CPU Rods (P11) to

the Right Leg or Left Leg as

shown in illustration #2.

Secure each Rod with 2 Hex Nuts

(Q), 2 Flat Washers (N), and

1 Black Plastic Spacer (P).

P12

Should you require assistance during assembly, please call our Customer Service Department

Monday - Friday 8 a.m. - 5 p.m. Central Standard Time

Toll-Free Customer Service

1-800-749-2258

Do not use unless all screws are tight. At least every six months, check all screws

to be sure they are tight. If parts are missing, broken, damaged, or worn, stop use

of the product until repairs are made by your dealer using factory authorized parts.

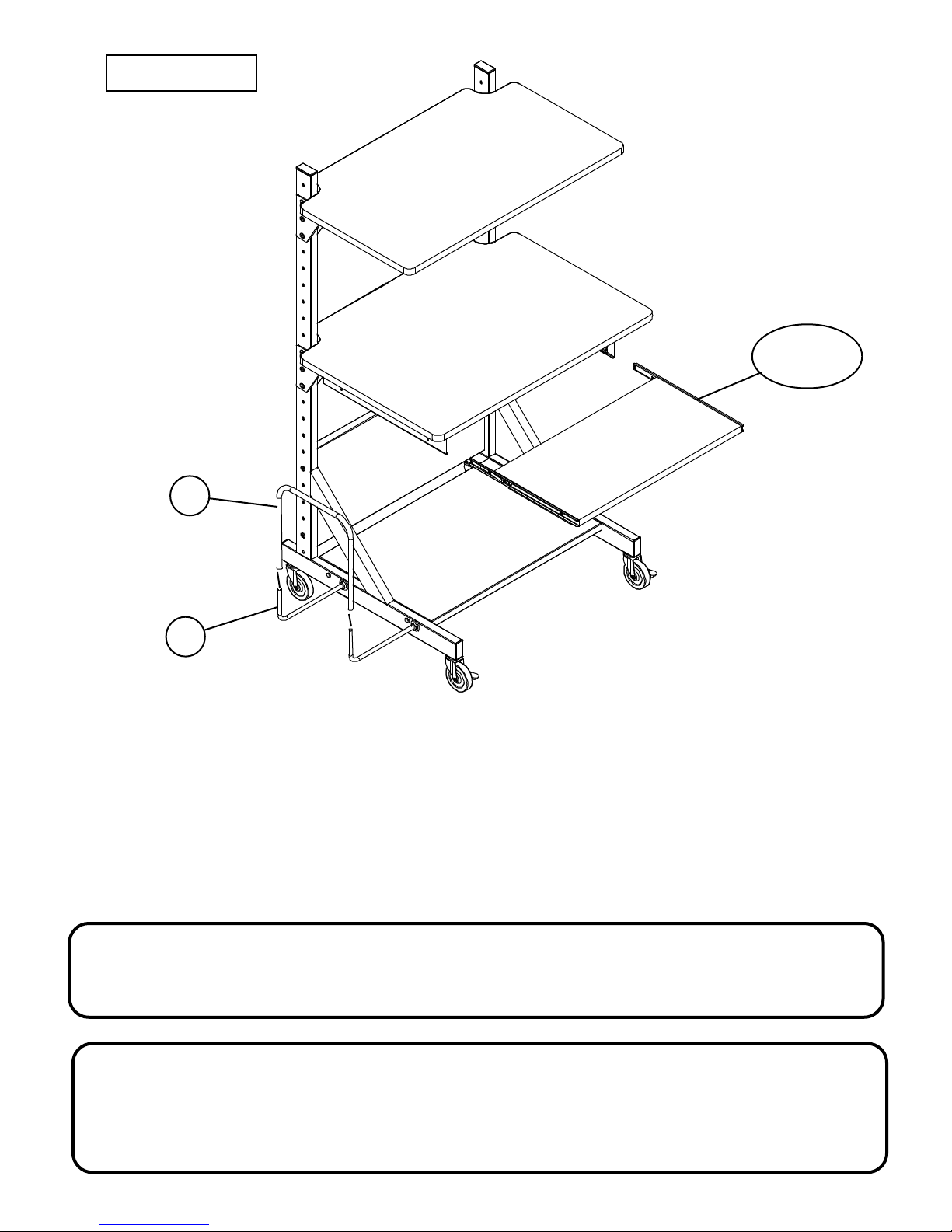

Pull Rollers on the Slide

forward to the front of

the unit before inserting the

Keyboard Shelf.

Illustration # 6

Keyboard

Shelf Assy.

10. Slide CPU Sleeve P11 over ends of CPU Rods (P12) as shown in illustration # 6.

11. Insert Keyboard Shelf Assembly and Pullout Shelf Assemly into the Right and Left Slide

Panels as shown in illustration # 6.

(Note: Pull Rollers on the Slide forward to the front of the unit before inserting the

Keyboard and Pullout Shelves).

12. Tighten all screws securely.

P11

P12

Alekto3_asm-03/13/00

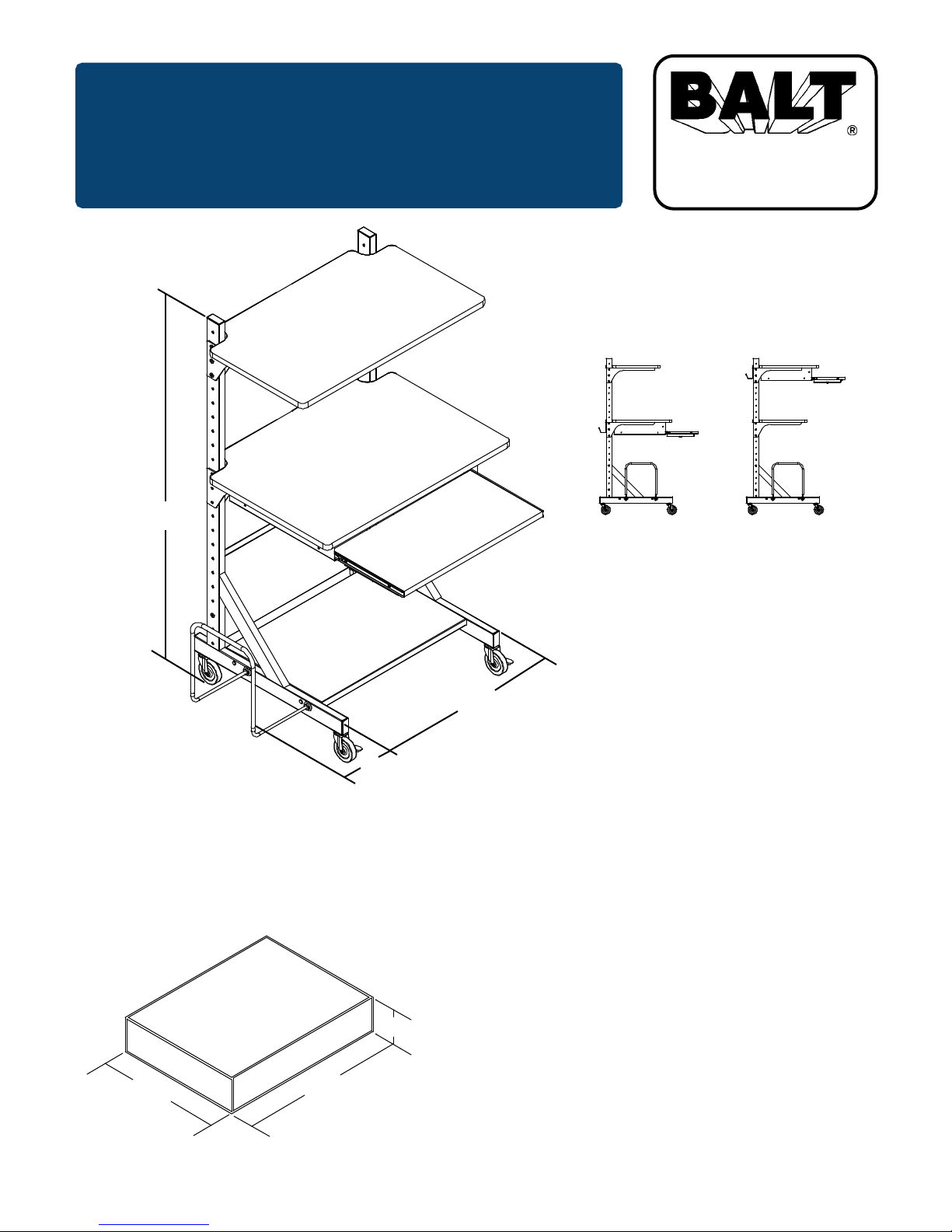

ALEKTO-3

AdjustableTri-Level

Computer Workstation

ShippingInformation

3.7 Cubic Feet

79lbs.

50”

29”

5”

Formore information

1-800-749-2258

Height adjustable ranging from 23½” to 47½”

for Keyboard shelf and 27½” to 51½” for

Monitor Shelf.

Keyboard Shelf pulls out for individual user

Comfort.

Includes CPU Holder and

3” Casters for mobility.

Availablein vacuum formed BlackLaminate

w/SilverFrame.

ShipsUPS.

Option # 1

TopPanel

Option # 2

Shelf Panel

Shelf Panel TopPanel

12x22-½"

8-10"

ADJ.

25-½"

18x30"

22x30"

15-½x23-½"

52"

Alekto3_asm.pm6-6/13/00
