Balt Wind-surfer 44162 User manual

1234567890123456789012345678901212345678901234567890123

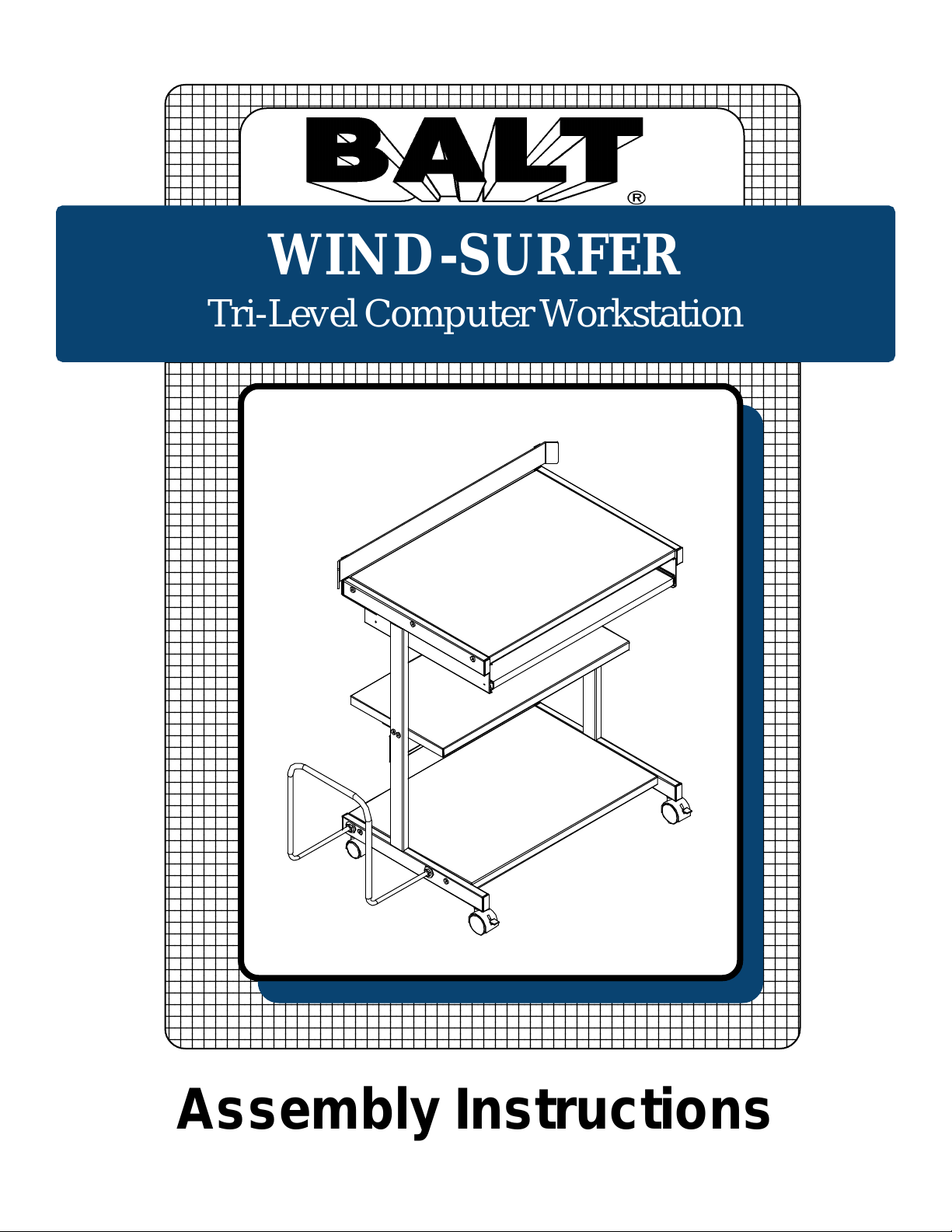

WIND-SURFER

Tri-Level Computer Workstation

Assembly Instructions

A 9/16” Flat Head Screw 8 EA

A1 1-7/8” Flat Head Screw 14 EA

B SquareNut 14 EA

C Sheet Metal Screw 2 EA

D 2” Locking Caster (for front) 2 EA

E 2” Caster (for Back) 2 EA

F AllenWrench 1 EA

G Caster Wrench 1 EA

H Hex Nut 4 EA

J Flat Washer 2 EA

K Black Plastic Spacer 2 EA

L Inner Slide 2 EA

M Long Screws 4 EA

Part Drawing Description Qty

Do not use unless all screws are tight. At least every six months, check all screws to be sure

they are tight. If parts are missing, broken, damaged, or worn, stop use of the product

until repairs are made by your dealer using factory authorized parts.

Part Drawing Description Qty

WOW Tri Level Computer Workstation

Wind-Surfer

EAD

HROUGH

NSTRUCTIONS

FROM

BEGINNING

END

BEFORE

STARTING

ASSEMBLE

UNIT

P-1 RightLeg 1 EA

P-2 Left Leg 1 EA

P-3 TopPlatform 1 EA

P-4 BottomShelf 1 EA

P-5 Stability Panel 1 EA

P-6 MiddleShelf 1 EA

P-7 KeyboardPlatform 1 EA

P-8 Monitor Rail 1 EA

P-9 CPU Sleeve 2 EA

P-10 CPURod 1 EA

Hardware List

Toolsrequired: PhillipsHeadScrew Driver

WIND-SURFER

AssemblyDiagram

Should you require assistance during assembly, please call our

Customer Service Department Monday - Friday 8 a.m. - 5 p.m. Central Standard Time

Toll-Free Customer Service - 1-800-749-2258

Illustration # 1

ToAssemble:

1. Separateand Identify all the Parts and Hardware.

2. PlaceTopPanel (P-3) upside down on floor or table and attach Right Leg (P-1)and Left Leg (P-2) using 6 Flat

Head Screws (A1) and 6 Square nuts (B) as shown in illustration # 1. (Hand tighten only)

3. Attach Middle Shelf (P-6) to Right Leg (P-1) and Left Leg (P-2) using 4 Flat Head Screws (A1) and 4 Square

nuts.

4. Attach Bottom Shelf (P-4) toRight Leg (P-1) and Left Leg (P-2) using 4 Flat Head Screws (A1) and4 Square

nuts (B).

5. Attach2 Locking Casters (D) to the front, and 2 Casters (E) to the back ofthe unit. Tightenall Casters using

Caster Wrench (G).

P-6

P-1

P-3

P-2

P-4

A-1

Wind new asm - 01/04/00

10. Attach Monitor Rail (P-8) to Right Leg (P-1) and Left Leg (P-2) using 4 Flat Head Screws (A) as

shown in illustration# 4. Tighten all the Screws securely using AllenWrench (F).

11. Attach 2 Inner slides (L) to the Keyboard

Platform (P-7) using 4 Long screws (M).

Insert Keyboard Assembly into the ‘Slides’

on the Right and Left Legs (P-1 & P-2) as

shown in illustration # 4.

( Before inserting Keyboard assembly,

pull the ‘Rollers’ to the front of the Slide.)

P-10 K

P-9

P-2

P-1

P-8

P-7

Pull the Rollers on

the Slide forward to

the front of the unit

before inserting the

Keyboard Shelf.

Illustration # 4

Illustration # 3

6. Attach Stability Panel (P-5) to

Right Leg (P-1) and Left Leg

(P-2) using 4 Flat Head

Screws (A).

7. Secure Middle Shelf (P-6) with

2 Sheet Metal Screws (C)

throughholes in Stability Panel

(P-5) as shown in illustration # 2.

P-1

P-2

P-6 P-5

Illustration # 2

Keyboard Assembly

8. Place 1 each Hex Nut (H), and 1 each Flat Washer

(J) on each CPU Rod (P-10). Insert 2 CPU Rods

through the Right Leg (P-1) or the Left Leg (P-2)

as shown in illustration # 3.

9. Place 1 each Black Plastic Spacer (K) over each

CPU Rod and secure each Rod with 1 each Hex

Nut (H). Slide CPU Sleeve (P-9) over ends of CPU

Rods as shown in illustration # 3.

Spring Clip goes to the

back of Keyboard Shelf.

Use 2nd hole from

front of slide
