Balt Lap-2c User manual

1234567890123456789012345678901212345678901234567890123

LAP-2C

Mobile Laptop Workstation

Assembly Instructions

A 9/16” Flat Head Screw 11 EA

A1 3/4” Flat Head Screw 4 EA

B 1-5/8” Flat Head Screw 1 EA

C 1-7/8” Flat Head Screw 6 EA

D 2-3/8” Flat Head Screw 2 EA

E Flat Washer 4 EA

F 1/2” PH Wood Screw 4 EA

G1 LargeKnob 1 EA

G2 Small Knob 1 EA

H 2” Locking Caster(for front) 2 EA

J 2”Caster(for Back) 2 EA

K AllenWrench 1 EA

L CasterWrench 1 EA

M Plastic Cap 1 EA

N PlasticSleeve 1 EA

P-12 Copyholder 1 EA

Part Drawing Description Qty

Do not use unless all screws are tight. At least every six months, check all screws to be sure

they are tight. If parts are missing, broken, damaged, or worn, stop use of the product

until repairs are made by your dealer using factory authorized parts.

Part Drawing Description Qty

WOW Mobile Laptop Workstation

LAP-2C

P-1 Lower Receiver 1 EA

P-2 Right Foot 1 EA

P-3 Left Foot 1 EA

P-4 Upper Insert 1 EA

P-5 Accessory Shelf 1 EA

P-6 TopPlatform 1 EA

P-7 LowerShelf 1 EA

P-8 Storage Rack 1 EA

P-9 C-Clamp 2 EA

P-10 TiltingBracket 1 EA

P-11 Security Stop 2 EA

Hardware List

Toolsrequired: PhillipsHeadScrew Driver

LAP-2C

AssemblyDiagram

EAD

HROUGH

NSTRUCTIONS

FROM

BEGINNING

END

BEFORE

STARTING

ASSEMBLE

UNIT

1.Identifyand Separateallthe PartsandHardware.

2. AttachLeft Foot(P-3) on the end of Lower Reciever

(P-1) with drill hole using 3 Flat Head screws (C).

Attach Right Foot (P-2) on opposite end of Lower

Receiver (P-1) using 3 Flat Head screws (C).

(Donot tighten screwsall theway.)

3. Insert 2 Locking Casters (H) and 2 Casters (J)

into Right Foot (P-2) and Left Foot (P-3) as

shownin illustration #1.

P-11

P-4

P-9

P-6

P-5

5. AlignTop Platform(P-6) andAccessory Shelf

(P-5) side by side as shown in illustration # 3.

6. AttachUpper Insert(P-4) tothe Accessory

Shelf (P-5) using 4 Flat Head Screws (A) as

shown in illustration # 3.

7. AttachTop Platform(P-6)to UpperInsert (P-4)

using 2 C-Clamps (P-9) and 4 Flat Head

screws (A) as shown in illustration # 3.

8. Attach 2 Security Stops (P-11) using 4 Wood

screws (F).

4. Attach Lower Printer Shelf (P-7) to the

Lower Receiver (P-1), using 2 Flat Head

screws (D) and 1 Flat Head screw (B) as

shown in illustration # 2.

(Tighten all screws securely)

P-7 Illustration # 2

Illustration # 3

P-3

P-2

Attach Left Foot (P-3) on

the end of Lowe Reciever

(P-1) with drill hole.

DrillHole

P-1

9. Attach Storage Rack (P-8) to the Accessory

Shelf (P-5) using 4 Flat Head screws (A1) and

4 Flat Washers (E) as shown in illustration # 4.

10.Attach TiltingBracket (P-10) tothe Top

Platform (P-6) using 2 Flat Head screws (A).

Secure Tilting Bracket to Upper Insert (P-4)

using the Large Knob (G1).

11.Pleaserefer to thedetails on nextpage for

assembling Plastic Cap (M), and

the Plastic Sleeve (N).

Lap2c_newasm-03/11/02

13. AttachCopyholder (P-12)to

Accessory Shelf (P-5) at desired

location and secure with bottom clamp

as shown in illustration # 6.

Illustration # 4

P-8

P-10

AP-5

P-4

P-5

P-12

G2 Illustration # 6

Illustration # 5

Should you require assistance during assembly,

please call our Customer Service Department

Monday - Friday 8 a.m. - 5 p.m.

Central Standard Time

Toll-Free Customer Service

1-800-749-2258

12.Insert UpperInsert Assembly into

Lower Receiver Assembly, adjust to desired

height and secure with the Small Knob (G2)

as shown in illustration # 5.

Lower Receiver

Assembly

Upper Insert

Assembly

P-6

DETAILS OF ASSEMBLING PLASTIC CAP ‘M’ & SLEEVE ‘N’

1. Slide Plastic Cap (M) [with Cutout on the same side as the tilting bracket on the Upper insert],

thenattach thePlastic sleeve (N)over theend of insert. Make sure that the hole on thePart N

and the hole on theUpper insert tube line up, thenattach it with a FlatHead screw (A).

2. InsertUpper insertinto theLower Receivertube, and slidePart Mdown, sothat it should be

restingon top ofthe Lower ReceiverTube. Adjust to the desired height and secure withthe

SmallKnob(G2) asshown inIllustration below.

Cut out on

PartM

Upper

Insert

Lower

Receiver

Table of contents

Other Balt Desktop manuals

Balt

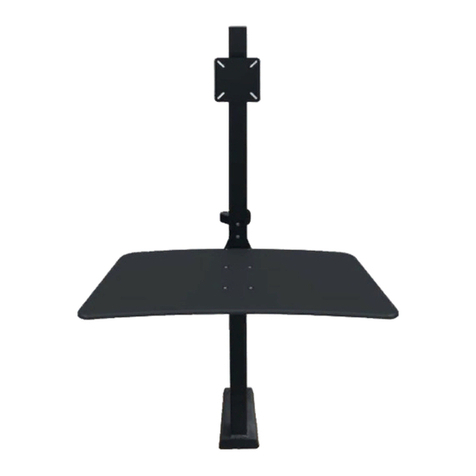

Balt 91113 User manual

Balt

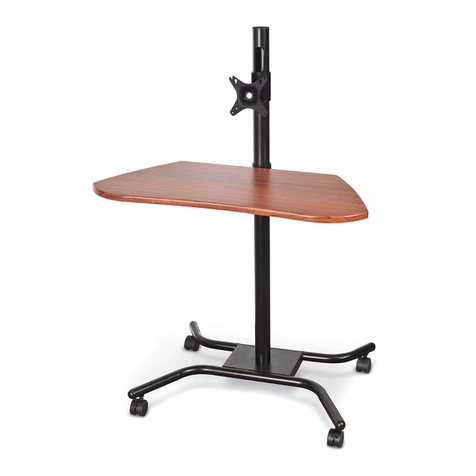

Balt WOW Flexi-Desk User manual

Balt

Balt WriteAngle-LT 82883 User manual

Balt

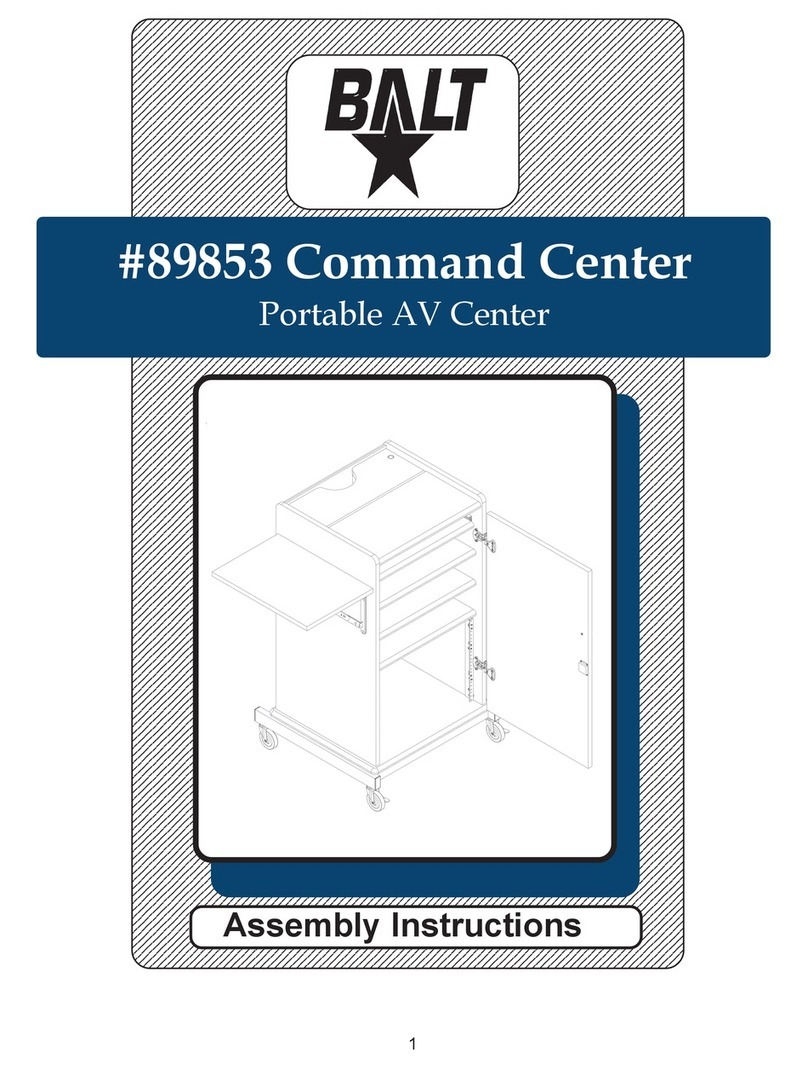

Balt 89853 User manual

Balt

Balt ALEKTO-3 User manual

Balt

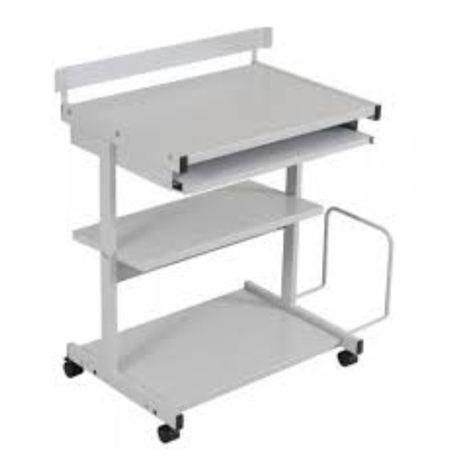

Balt Wind-Surfer 44162 User manual

Balt

Balt HI-LO-3 45972 User manual

Balt

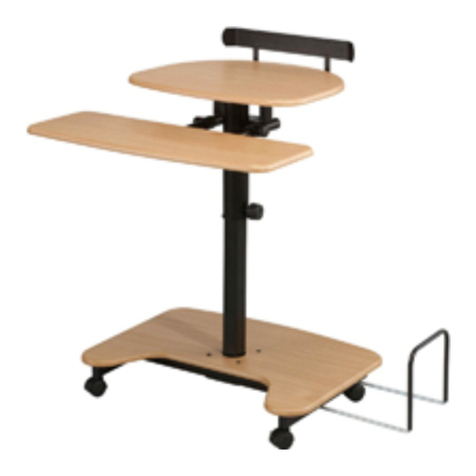

Balt 46572 HI-HILO-3 User manual

Popular Desktop manuals by other brands

Everex

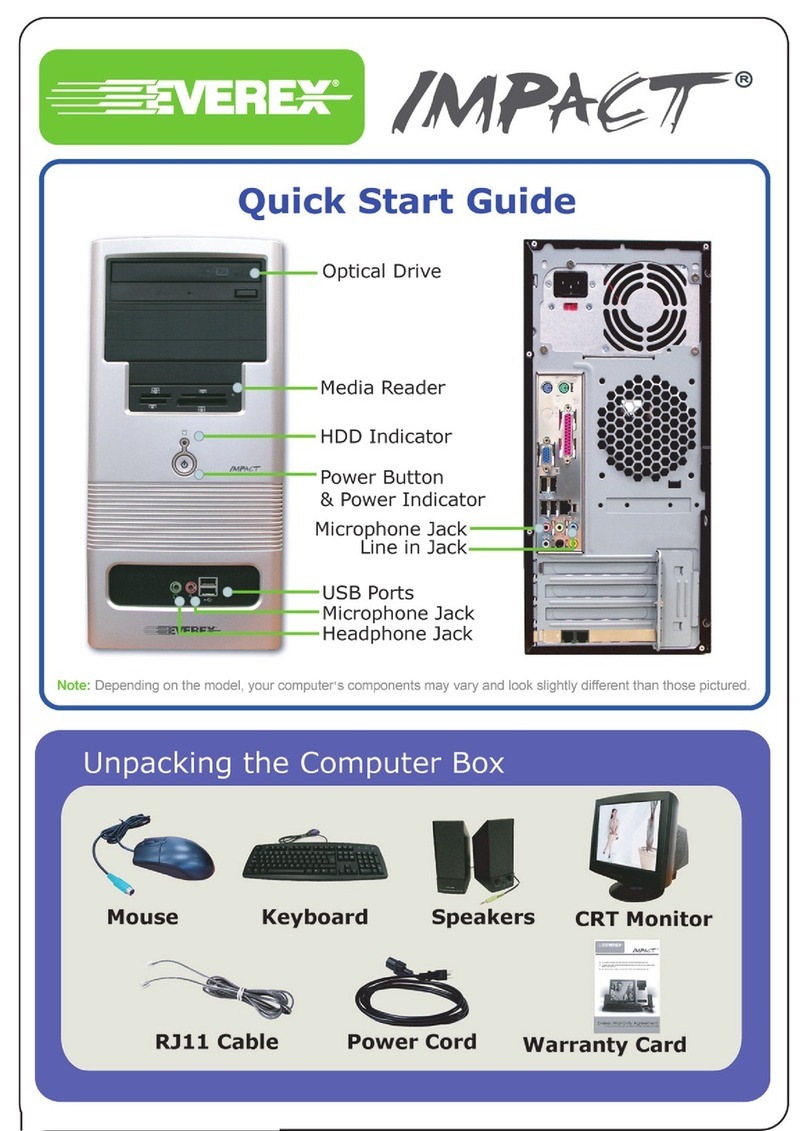

Everex Impact GC3500 quick start guide

Sony

Sony PCV-R545DS VAIO Computer User Guide (primary... user guide

Sony

Sony PCV-RZ14G Online Help Center (VAIO User... Service manual

Olivetti

Olivetti M20 Hardware reference guide

Siemens Nixdorf

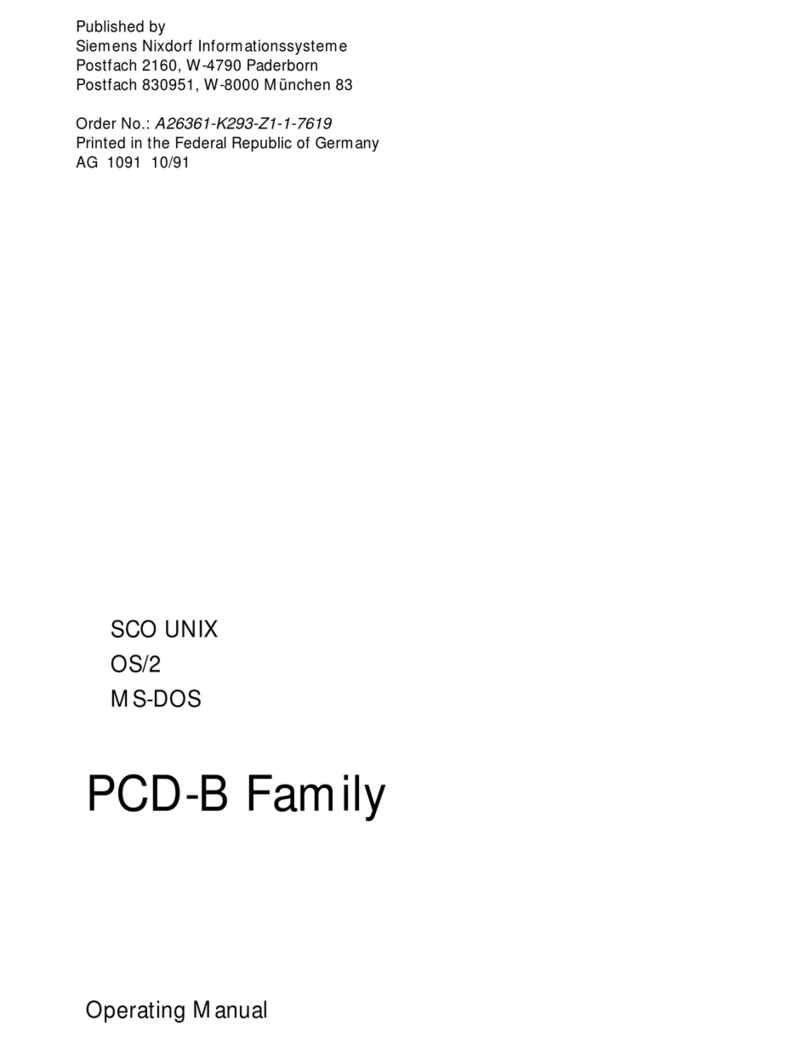

Siemens Nixdorf PCD-B series operating manual

Asus

Asus D820MT user guide

SWEDX

SWEDX SAB-200 user manual

HP Compaq d330 ST installation instructions

HP Series 200 Hardware Support Document

Fujitsu

Fujitsu 5000 Series user manual

HP Workstation xw4000 Series Getting started

Rockwell Automation

Rockwell Automation VersaView 5400 user manual

Intergraph

Intergraph TDZ 2000 GL2 Workstation Systems setup guide

Lenovo

Lenovo ThinkStation E30 Handboek voor de gebruiker

Lenovo

Lenovo ThinkCentre Edge 91z Guide d'utilisation

Commodore

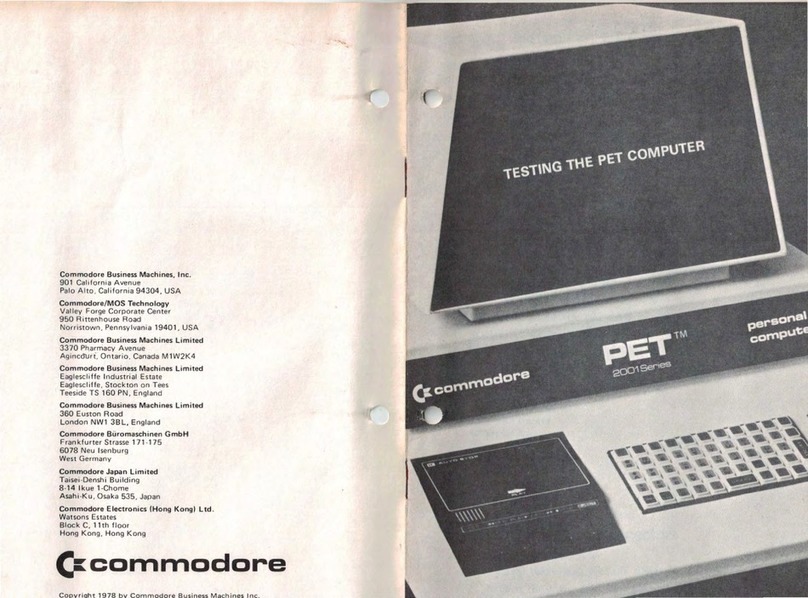

Commodore PET 2001 Series Testing Guide

HP Kayak XU Series 03 user guide

Vecow

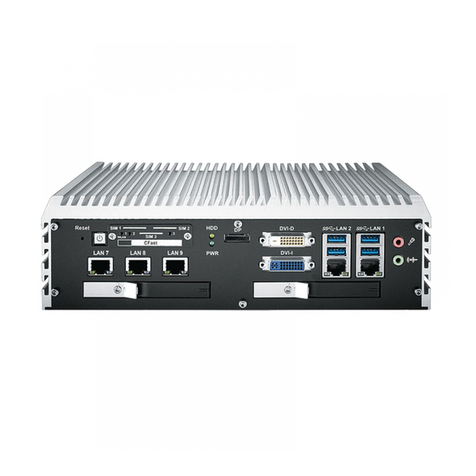

Vecow ECS-9000 user manual
