Balt 89855 champ User manual

Assembly Instructions

123456789012345678901234567890121234567890123456789012345678901212345678901234

#89855 Champ

AV/ Presentation Stand

Mahogany

P-1 Wood Base 1 EA

P-2 Large door Frame-tall 1 EA

P-3 Large door Frame-short 1 EA

P-4 Side Panel 1 EA

P-5 Side door Frame 1 EA

P-6 Top Platform-drilled 1 EA

P-7 Sliding Shelf 1 EA

P-8 Removable Shelf 2 EA

P-9 Lower Front Trim 1 EA

P-10 Upper Side Trim 2 EA

P-11Upper Front Trim 1 EA

ASocket Screw M6X30mm 12 EA

A1 Socket Screw M6X9mm 16 EA

A2 ¼” Phil Head Lock Screw 4 EA

A3 CS Wood Screw 22 EA

A4 PanHdScrew#8x1/2 6 EA

A5 Long Wood Screw 12 EA

A6 PanHdScrew#4x7/16 12 EA

BMagnetic Door Catch 3 EA

C3” Locking Plate Caster 2 EA

D3”PlateCaster 2 EA

EWoodDowel 25 EA

FShelfSupportPin 8 EA

GLockCylinder 4 EA

HLock Retainer 4 EA

JLock Plate 4 EA

Part Drawing Description Qty Part Drawing Description Qty

AV/Presentation Stand

#89855 Champ

Hardware List

Tools required: Phillips Head Screwdriver

Standard Flat Head Screwdriver

(ForSlide/FoldingBracket)

P-12 Left Shelf Slide 1 EA

P-13 Right Shelf Slide 1 EA

P-14 Slide Support 2 EA

P-15 Folding Shelf Bracket 2 EA

P-16 Side Shelf 1 EA

P-17 Metal Base 1 EA

KLockRing 4 EA

LLock Washer 4 EA

MLock Hex 4 EA

NKey 8 EA

RGrommet Sleeve 4 EA

SGrommet Cap 4 EA

TAllen Wrench 1 EA

Part Drawing Description Qty Part Drawing Description Qty

AV/Presentation Stand

#89855 Champ

Hardware List

Tools required:

PhillipsHeadScrewdriver

StandardFlatHeadScrewdriver

Lock Detail -B

Locked

Lock Detail -A

Unlocked

Do not use unless all screws are tight. At least every six months, check all screws to be

sure they are tight.If parts are missing, broken, damaged, or worn, stop use of the product

until repairs are made by your dealer using factory authorized parts.

Champ

Assembly Diagram

To Assemble:

IdentifyandSeparateallthePartsandHardware. Illustration # 1

P-2

Read through assembly instruction from beginning

to end before starting to assemble product.

Place the Large Door Frame Tall

(P-2)withthePredrilledholes

facing up and install 6 Wood

Dowels(E) into the drilled holesas

showninillustration # 1.

Insert1eachLock Cylinder(G)

throughtheLockPlate(J)and the

hole in the LargeTallDoor Frame (P-2).

SecureLockCylinder (G) using the Lock

Washer(L) and the Lock Hex (M).

(FINGER TIGHTEN ONLY.)

SlideLock Ring (K) andLock Retainer (H) overthe square end

ofLock Cylinder (G). Secure using the¼” Phil Head Lock Screw(A2).

BeforetighteningtheLockHex(P),InserttheKey(N)andturnlock.BesurethatLockRetainer (K)

Turns 90 degrees and rotates behind door frame as shown in Lock DetailsA& B(See page #3).

(TIGHTEN LOCK HEX (M)).

Place the Large Door Frame Short (P-3) with

thePredrilledholes facing up and install 6

WoodDowels(E) into the drilled holesasshown

inillustration#2.

Repeat Steps 2 and 3 to attach other door lock.

Besurethat Lock Retainer(K)Turns90 degrees

androtates behind door frame asshownin Lock

Details A& B(See page #3).

(TIGHTEN LOCK HEX (M)).

Illustration # 2

Caution:

When moving Door Frames,

Hold frame and door together so hinges

are not Damaged!

P-3

Place the Side Door Frame (P-5) with

thePredrilledholes facingup and install

1 Right Shelf Slide (P-13) using 3

Screws(A3)asshown in illustration # 3.

Insert1eachLock Cylinder(G)

throughtheLockPlate(J)and the

hole in the Side Door Frame (P-5).

SecureLockCylinder (G) using the Lock

Washer(L) and the Lock Hex (M).

(FINGER TIGHTEN ONLY.)

A3 A3

Slide Lock Ring (K) and Lock Retainer

(H)overthesquareend of Lock Cylinder

(G). Secureusingthe¼”PhilHead

Lock Screw (A2).

BesurethatLockRetainer (H)

Turns90 degrees and rotates

behind door frame as shown in Lock

DetailsA& B ( see page 3).

Place the Side Panel (P-4) with

thePredrilledholes facing up and

install 1 LeftShelf Slide (P-12)

using3 Screws (A3) as shownin

illustration#4.

Illustration # 3

Illustration # 4

Should you require assistance during assembly,

please call our Customer Service Department

Monday - Friday 8 a.m. - 5 p.m.

Central Standard Time

Toll-Free Customer Service

1-800-749-2258

P-4

10.

P-5

P-13

P-12

Illustration # 5

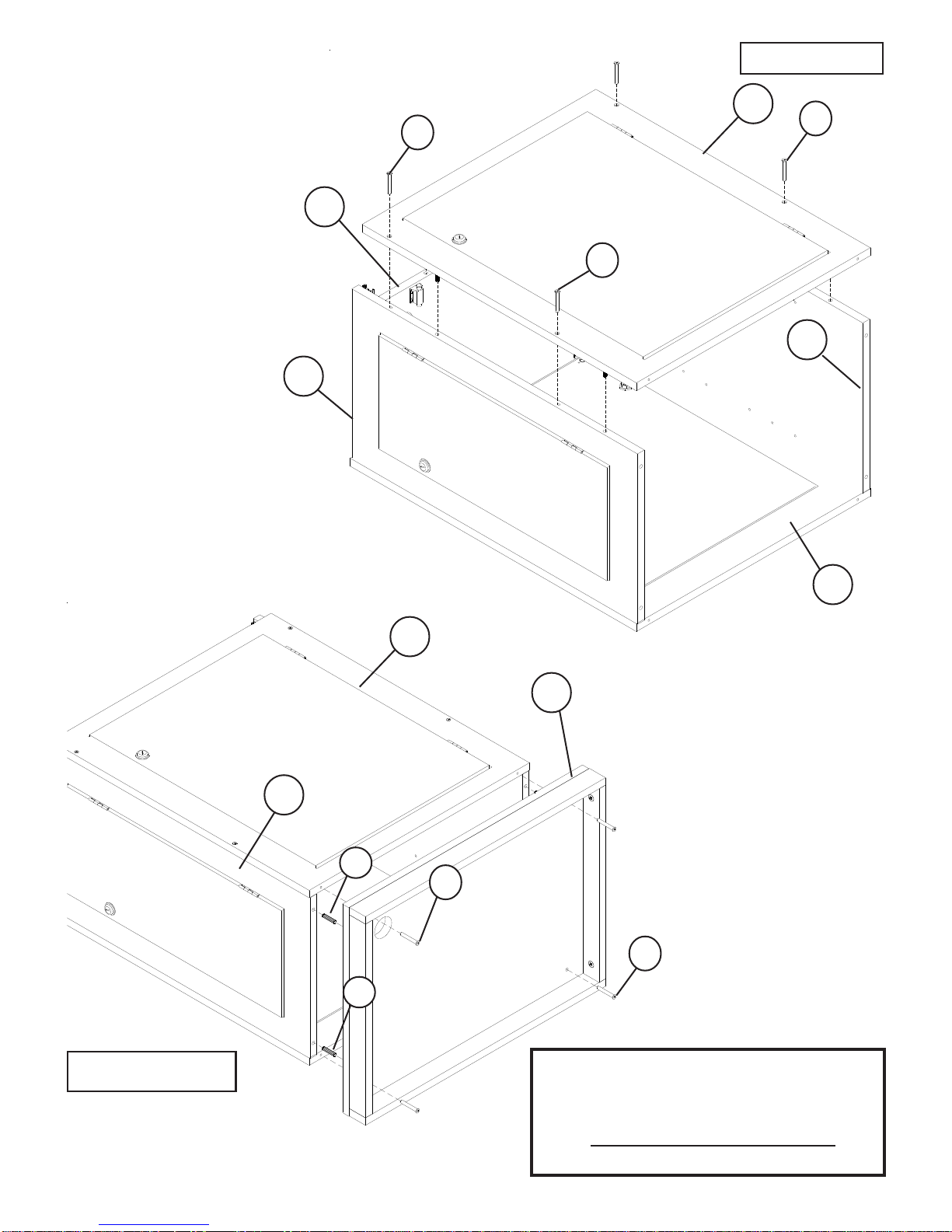

PlacetheTopPlatformDrilled(P-6)

withtheHolesfacing up. Attach3

each Magnetic Door Catches (B) to

Top PlatformDrilled(P-6) using 12

eachshortscrews(A6)as shown in

illustration#5.

Illustration # 6

SlidetheTop Platform

Drilled (P-6) over the 2

Dowels (E) in the

Large Door Frame Tall

(P-2)asshownin

illustration#6.

P-2

P-6

P-4

P-5

To install Grommet separateparts

andpressGrommetSleeve(R)in

roundopeninginTopPlatform

(P6)asshowninillustration#5.

Snap plastic Cap (S) over top of

Sleeveasshownin

illustration#5.

Slide the Side Door Frame (P-5)over the Dowels (E) in

theLarge Door FrameTall (P-2) asshown

in illustration#6.

P-6

Slide the Side Panel (P-4) over the 2

Dowels (E) in the Large Door Frame

Tall(P-2).

11.

12.

13.

14.

15.

16.

Illustration # 7

P-3

Secure the Large Door Frame

Short (P-3) using 4 Screws (A5)as

showninillustration # 7.

17.

P-5

Slide the 6 Dowels (E) in the Large Door Frame

Short(P-3)intotheholesintheTopPlatform

Drilled (P-6), the Side Door

Frame (P-5), and the Side

Panel(P-4)asshown

in illustration#7.

TightenScrews

usingAllen

Wrench(T).

Note: Besurethat

eachMagnetic

Door Catch (B) is

facing a door

frame,notthe Side

Panel(P-4).

Illustration # 8

Attach Wood Base (P-1) to

the Large Door Frame

Short(P-3)andthe Large

DoorFrameTall(P-2)using

4 each Dowels (E) and 4

each Screws (A5) as

showninillustration #8.

(DO NOT tighten until all

4 are installed.)

P-2

18.

19.

P-6

P-4

P-3

P-5

P-1

TightenScrewsusing

AllenWrench(T).

Missing Parts or UPS Damaged Parts

ForYourConvenienceyou can

EMAILus at

[email protected]

24HOURS 7 DAYSAWEEK

20.

22.

P-17

Attach1UpperFrontTrim(P-11)to

theSliding Shelf (P-7) using 2

Screws (A) and 1 Dowel (E) as

showninillustration #10.

Attach 2 Upper SideTrim (P-10) to

theSliding Shelf (P-7) using 4 each

Screws (A) and 2 Dowels(E) as

showninillustration #10.

(DO NOT tighten until all

3 Trims are installed.)

P-10

P-11

Illustration #10

24.

Attach 2 Locking Plate Casters

theMetalBase(P-17) using 16

screws(A1)asshowninillustra-

tion#9.

Illustration # 9

P-7

Carefullyrotateunit180degrees so that the

Large Door Frame Tall (P-2) is facing up.

Securethe Large DoorFrameTall (P-2)

using 4 Screws (A5)

asshown

in illustration#9.

Tighten Screws

usingAllen

Wrench(T).

P-2

23.

P-1

Attach Metal

Base (P-17) to

the Wood Base

(P-1)using6

screws (A4) as

shownin

illustration#9.

21.

Insert1each LockCylinder(G)through

theLockPlate (J) and theholein the Large

DoorFrame Tall(P-2) asshowninillustration#12.

SecureLockCylinder(G) using the Lock Washer(L)

andtheLockHex(M). (FINGER TIGHTEN ONLY.)

SlideLock Ring (K) andLock Retainer (H) overthe square end ofLock Cylinder (G). Secure

usingthe¼”PhilHeadLock Screw (A2). Before tightening the Lock Hex (M), Insert theKey(N)

andturnlock. Besure that Lock Retainer (H) turns 90degreesandpointsup.

(TIGHTEN LOCK HEX (M)).

25.

Illustration # 12

Attach1 Lower FrontTrim(P-9)tothe

SlidingShelf (P-7) using 2eachScrews

(A) and 2 Dowels (E) as shown

inillustration#11.

(Tightenall Screws)

P-2

A2 G

AP-14

P-15

26.

27.

28.

29.

P-9

Attach 2 Slide Supports

(P-14)tothe Sliding Shelf

(P-7) using 4 Screws (A)

and4 Dowels (E).

(Tightenall Screws)

Illustration # 11

P-7

Attach 2 Folding Shelf Bracket (P-15) to the Side Panel (P-4) using 6 Screws (A3)

asshowninillustration#12.

AttachSlidingShelf (P-7) to the Left

and Right Shelf Slide (P-12 & P-13)

using 4 Screws (A3) .

P-4

30.

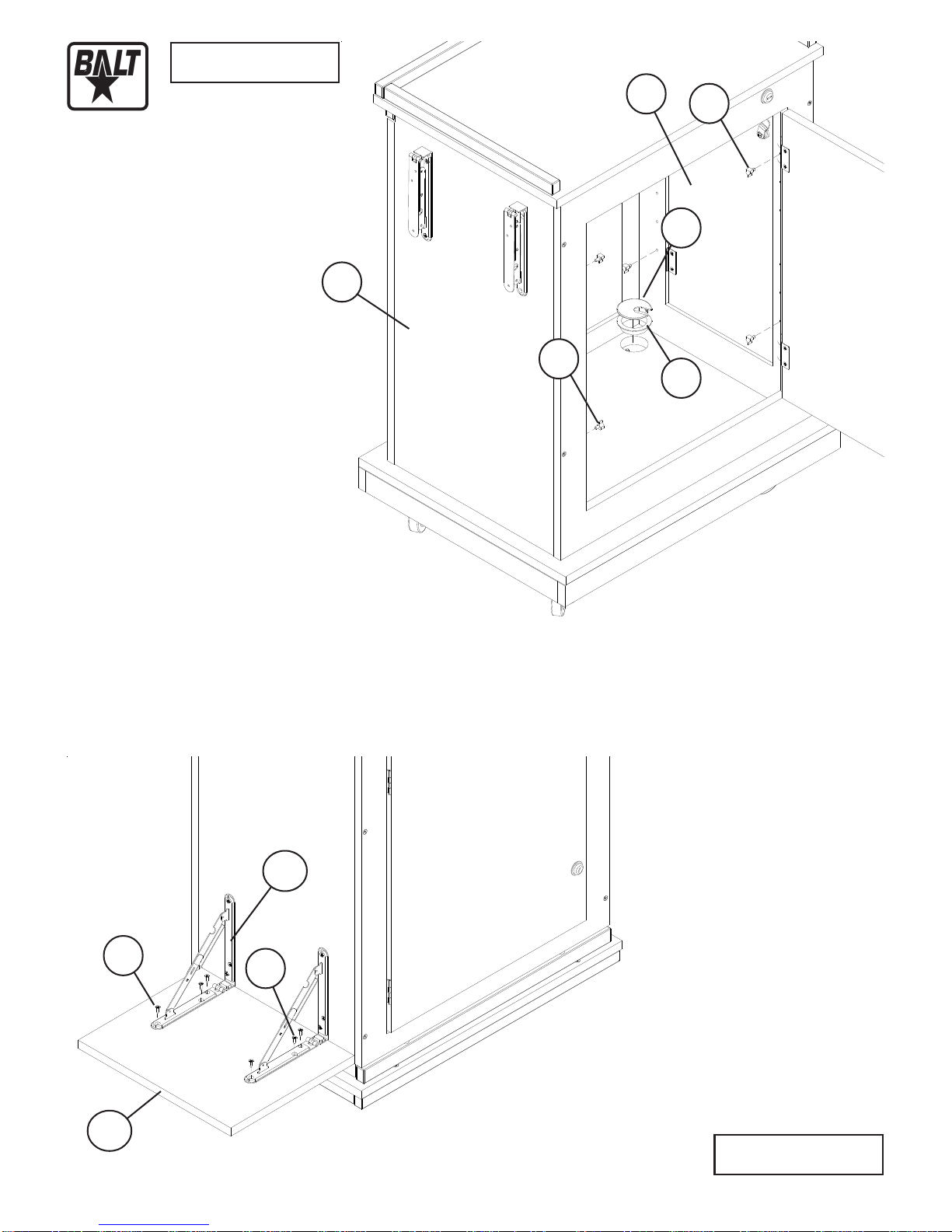

Insert8Shelf Support

Pins (F) in the Side Panel

(P-4) & the Side Door

Frame (P-5) at desired shelf

heightsasshownin

illustration#13.

Besurethat flatsurfaceof

Pin is facing Up.

To installGrommet, separatepartsand press

GrommetSleeve(R)inroundopeninginthe

Base(P1)as shown in illustration #13.

Snap plastic Cap (S) over the top of Sleeve.

31.

32.

Illustration # 14

P-4

Attach FoldingShelf(P-16)to the

2 Folding Shelf Brackets (P-15)

using6 short screws (A3) as

showninillustration #14.

33.

Illustration # 13

P-15

P-16

P-5

AngleRemovableShelves

(P-8)slightly, and slide them

throughoneof the large

doors. TwoShelvesshould

siton the flatside of 8 Shelf

SupportPins(F) as shown in

illustration#16.

P-8 F

P-8

36.

Illustration # 15

PlaceRemovableShelf(P-8)on

flatsurface. To installGrommet

separateparts and press Grom-

metSleeve(R)inroundopening

inasshowninillustration#15.

Snap plastic Cap (S) over top of

Sleeveasshownin

illustration#5.

34.

35.

Illustration # 16

P-6

89855C - 11/14/06
