Balt 27508 User manual

Assembly Instructions

123456789012345678901234567890121234567890123456789012345678901212345678901234

#27508 Floor Lectern

Mahogany w/3” Casters

P-1 Left Side Panel 1 EA

P-2 Right Side Panel 1 EA

P-3 Bottom Shelf 1 EA

P-4 Back Panel 1 EA

P-5 Slanted Top Panel 1 EA

P-6 Shelf Support 1 EA

P-7L Left Metal Bracket 1 EA

P-7R Right Metal Bracket 1 EA

P-8 Laptop Shelf 1 EA

P-9 Middle Shelf 1 EA

P-10 Side Shelf 1 EA

P-11 Book Stop 1 EA

P-12 Left Keyboard Slide 1 EA

P-13 Right Keyboard Slide 1 EA

A Pan Hd Screw #10x11/16 24 EA

A1 CS Wood Screw #6x5/8 4 EA

A2 Phil Screw M6 X32mm 2 EA

A3 ThumbScrew #6x 7/16 2 EA

B Wood Screw M7X50mm 4 EA

C CamLock 14 EA

D Cam Post 14 EA

E WoodDowel 16 EA

F 3” Locking Plate Caster 2 EA

G 3” Plate Caster 2 EA

H Grommet Sleeve 3 EA

J Grommet Cap 3 EA

K AllenWrench 1 EA

Part Drawing Description Qty Part Drawing Description Qty

#27508 Floor Lectern

Hardware List

Tools required: PhillipsHead Screwdriver

P14 Plastic Extrusion 1 EA

P15 Left Plastic endcap 1 EA

P16 Right Plastic endcap 1 EA

PlacetheRightSide Panel (P-2) with thePredrilled

holes facing up and install 7 each Cam Posts (D)

inthe 7threaded insertnuts(Pre-installed)

asshownin illustration#1.

Install8each WoodDowels(E)

intotheholes as shown

inillustration# 1.

P-2

P-1

Place the Left Side Panel (P-1) with

thePredrilledholes facingupand

install 7 each Cam Posts (D) in the 7

threadedinsertnuts (Pre-installed) as

showninillustration#2.

Install8 eachWood Dowels(E) intothe

holesasshown inillustration #2.

Illustration # 1

Illustration # 2

#27508 Floor Lectern

Assembly Diagram

To Assemble:

IdentifyandSeparate allthe Parts andHardware.

AttachLeft Keyboard Slide(P-12) to the

Right Side Panel (P-2) using 2 each

Screws(A) asshown inillustration #2.

P-13

P12

AttachRight Keyboard

Slide (P-13) to the Right Side

Panel(P-2) using2 each Screws

(A)as shown inillustration #1.

Note:

Camlocks can be

turnedwithAllen

Wrench,orLarge

PhillipsScrewdriver

Illustration # 4

P-1

Be sure that arrow on

top of Camlock (C)

alignswithcenterlineof

EdgeDrilledhole.

Phillips

Screwdriver

Centerlineof

EdgeDrilled

hole.

Arrow

10.

P-4

Illustration # 3

Placethe BackPanel (P-4) with the

Pre-drilledholes facingup and install6

each Cam Locks (C) in the 6 large holes

asshownin illustration# 3.

AttachRight Metal Bracket

(P-7R)to BackPanel (P-4) using

2Screws (A1) asshown

in illustration# 3.

Do not use unless all screws are tight. At least every six months, check all screws

to be sure they are tight. If parts are missing, broken, damaged, or worn, stop use

of the product until repairs are made by your dealer using factory authorized parts.

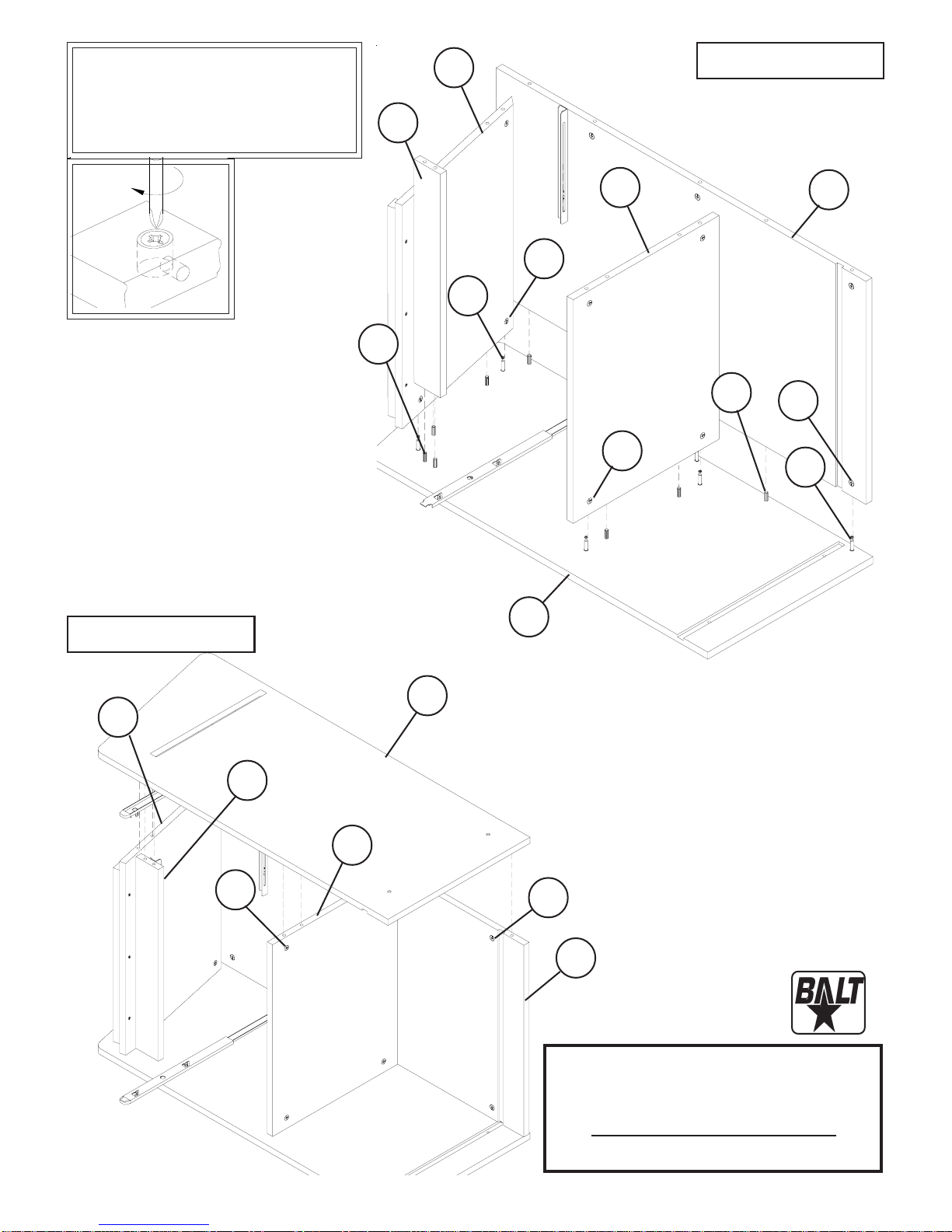

Placethe MiddleShelf (P-9)with the

Pre-drilledholes facingup and install4

each Cam Locks (C) in the 4 large holes as

showninillustration # 4.

Insert1GrommetSleeve (H)inRound

openingin MiddleShelf (P-9)as shownin

illustration#4.

Snap GrommetCap (J) into Grommet

Sleeve(H)as showninillustration #4.

LocateBottom Shelf(P-3) and Insert 1

GrommetSleeve (H) inround openingas

showninillustration#5.

Snap GrommetCap (J) into Grommet

Sleeve(H).

P-9

Illustration # 5

P-3

11.

12.

13.

14.

P-7R

15.

P-6

P-1

Be sure that arrow on

top of Camlock (C)

alignswithcenterlineof

EdgeDrilledhole.

Phillips

Screwdriver

Centerlineof

EdgeDrilled

hole.

Arrow

Illustration # 8

16.

17.

Illustration # 7

Placethe SlantedTopPanel (P-5) withthe

Pre-drilledholes facing up and install 4each Cam

Locks(C) inthe 4 large holes asshown inillustration # 6.

Attach Book Stop (P-11) to Slanted Top Panel (P-5)

using2 Screws (A2) as shown in illustration# 6.

InsertGrommetSleeve (H) inroundopening inSlanted

TopPlatform(P-5) asshown in illustration# 6.

Snap GrommetCap (J)into Grommet Sleeve(H) as

showninillustration # 6.

Placethe Shelf Support(P-6) withthe

Pre-drilledholes facing upand attach

Left Metal Bracket (P-7L) using 2 Screws (A1)

as shown in illustration# 7.

P-11

P-5

Illustration # 6

Slide1 Plasticextrusion

(P-14)over thefront of Laptop

Shelf(P-8) as shownin illustration# 8.

Attach 1 Left Plastic Endcap (P15)

and 1 Right Plastic Endcap (P-16).

20.

P-7L

P-14

P-8

P-16

P-15 Should you require assistance

during assembly,

please call our

Customer Service Department

Monday - Friday 8 a.m. - 5 p.m.

Central Standard Time

Toll-Free Customer Service

1-800-749-2258

18.

19.

Illustration # 9

P-4

P-9

P-1

23.

24.

SlideSlantedTopPanel (P-5),

Middle Shelf (P-9) and Back

Panel(P-4) overthe Wood

Dowels(E) and the Camposts

(D) in the Left Side Panel (P-1)

asshown in illustration #9.

Securebyturning the Cam

Locks(C)1/4 turnuntilthey lock.

P-5

P-6

Illustration # 10

P-2

P-4

P-6

P-9

P-5

Slide Wood Dowels (E), and

Camposts (D) in Right Side Panel

(P-2)into the holesin theSlantedTop

Shelf(P-5),Middle Shelf(P-9), Shelf

Support (P-6), and Back Panel(P-4)

asshownin illustration# 10.

Secureby turning theCam Locks

17.

ToSecure CamLocks, Insert

LargePhillips Head Screwdriver

andturn CamLock 1/4 turn (90

degrees)clockwise.

SlideShelf Support(P-6) over the Wood

Dowels(E) in the Left side Panel(P-1)

asshownin illustration# 9.

21.

22.

Missing Parts or UPS Damaged Parts

ForYourConvenienceyou can

EMAILusat

[email protected]

24HOURS 7 DAYSAWEEK

SlideSide Shelf(P-10) throughthe

slot in Right Side Panel (P-2) and

intothe MetalBrackets (P-7L&

P-7R)as shown in illustration#11.

Insert2thumbscrews(A3)through

theslot inMetal Brackets(P-7) and

intoSide Shelf (P-10).

Finger Tighten Only.

SlideBottom Shelf (P-3) in the

groovein the LeftSide Panel (P-1),

and the Right Side Panel (P-2) as

showninillustration #11.

SecureBottom Shelf(P-3) to the

LeftSide Panel (P-1) and theRight

Side Panel (P-2) using 4 Wood

Screws(B) asshown in

illustration# 11.

27508 - 05/30/06

AttachLaptopShelf(P-8) to Left Keyboard Slide

(P-12)andRightKeyboardSlide (P-13) using 4

WoodScrews(A)asshownin illustration # 12.

Tighten Screws(A)usingPhillipsScrewdriver.

Attach 2 Locking Plate Casters (F) and

2Plate Casters(G) to the Bottom shelf

(P-3)using 16screws (A) as shownin

illustration# 12.Tighten(A)Screws

usingPhillipsHead Screwdriver.

P-8

P-12

Illustration # 11

Illustration # 12

27.

26.

28.

25.

P-10

P-2

P-3

P-7R

30.

31.

29.

P-1

P-13
