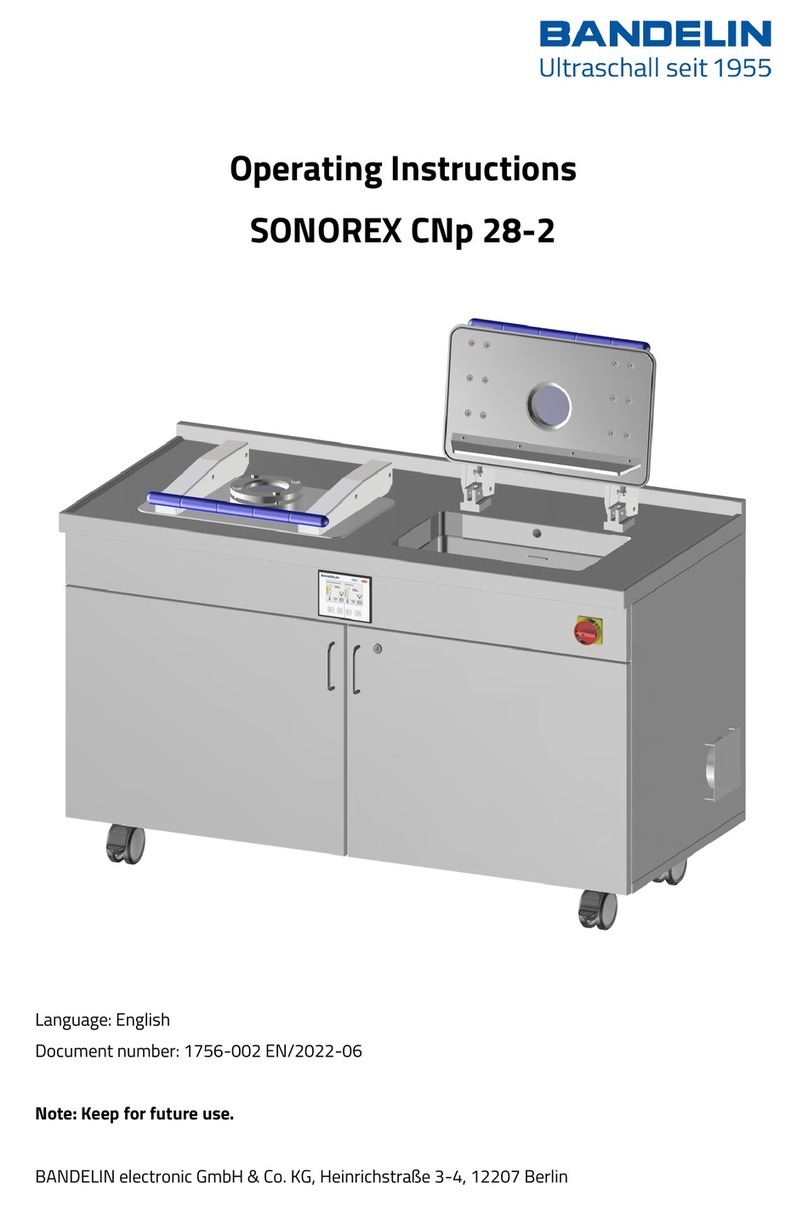

BANDELIN SONOREX CNp 28-2 User manual

SONOREX CNp
Ultrasonic baths with pulsed vacuum for aqueous fluids
1756-003 en/2023-07
Valid for:
SONOREX CNp 28-2
SONOREX CNp 28-2 L
Operating Manual
Translation of Operating Manual

2 / 46 1756-003 en/2023-07
© 2023
1 2 GmbH & Co. KG, Heinrichstraße 3 – 4, 12207 Berlin, Germany
Tel.: [phone] - 0, Fax: [phone], [email protected]
Certified in accordance with ISO 9001 and ISO 13485

1756-003 en/2023-07 3 / 46

4 / 46 1756-003 en/2023-07
Table of Contents
1 About these operating instructions ................................................................................................... 7
2 Safety ..................................................................................................................................................... 8
2.1 Use of the device .................................................................................................................................8
2.2 Obligations of the operator ..............................................................................................................9
2.3 Keep out of reach of children ...........................................................................................................9
2.4 Danger of electric shock ...................................................................................................................9
2.5 Harmful to health due to ultrasound noise .............................................................................. 10
2.6 Hazards due to high temperatures ............................................................................................. 10
2.7 Danger due to ultrasound ............................................................................................................. 10
2.8 Danger from agents used .............................................................................................................. 11
2.9 Disposal of sonication fluid ........................................................................................................... 11
2.10 Erosion of the oscillating tank ...................................................................................................... 12
2.11 Preventing damage to the device ............................................................................................... 12
2.12 Interference with wireless communication ............................................................................. 13
2.13 Safety stickers on the device ........................................................................................................ 13
2.14 Do not overload accessories ......................................................................................................... 13
2.15 Reasonably foreseeable misuse .................................................................................................. 14
2.16 Safety features ................................................................................................................................. 14
3 Design and function ...........................................................................................................................15
3.1 Structure ............................................................................................................................................. 15
3.2 Control panel ..................................................................................................................................... 17
3.3 Parameter settings ......................................................................................................................... 18

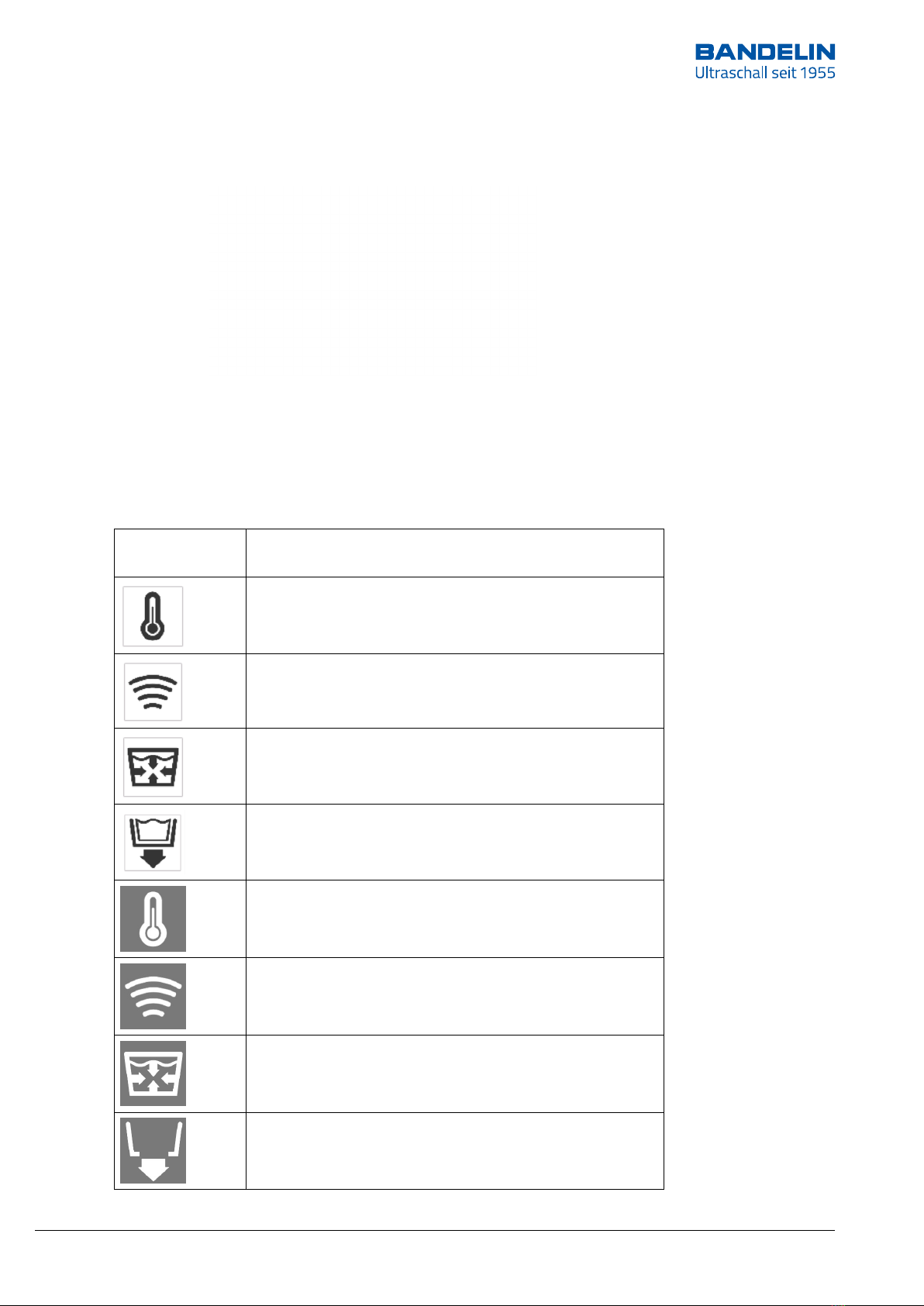

3.4 User interface icons (touchscreen) ............................................................................................. 18
3.5 Function .............................................................................................................................................. 20
3.6 Design and function of the safety device ................................................................................. 20

1756-003 en/2023-07 5 / 46
4 Preparation for operation ..................................................................................................................21
4.1 Installation site requirements ...................................................................................................... 21
4.2 Connecting the device .................................................................................................................... 23
4.3 Rinsing the tank ............................................................................................................................... 23
5 Operation .............................................................................................................................................24
5.1 Ultrasonic operation ........................................................................................................................ 24
5.2 Sonication fluid ................................................................................................................................. 24
5.3 Filling with sonication fluid ........................................................................................................... 25
5.4 Switching the heating on and off ................................................................................................ 26
5.5 Duration of sonication and cyclic vacuum ................................................................................ 27
5.6 Switching the ultrasound on and off .......................................................................................... 28
5.7 Starting and stopping the cleaning process ............................................................................ 28
5.8 Switching the cyclic vacuum on and off .................................................................................... 29
5.9 Insert objects to be treated .......................................................................................................... 30
5.10 Remove treated objects ................................................................................................................. 31
5.11 Emptying the oscillating tank ....................................................................................................... 31
5.12 Troubleshooting a malfunction .................................................................................................... 32
6 Maintenance ........................................................................................................................................33
6.1 Maintenance ...................................................................................................................................... 33
6.2 Cleaning and maintenance of the device .................................................................................. 33
6.3 Repair .................................................................................................................................................. 34
7 Decommissioning ...............................................................................................................................35
7.1 Switch off device .............................................................................................................................. 35
7.2 Shutting down the device (longer period) ................................................................................. 35

6 / 46 1756-003 en/2023-07
8 Disposal ................................................................................................................................................36
9 Device information .............................................................................................................................37
9.1 Technical data ................................................................................................................................... 37
9.2 Ambient conditions ......................................................................................................................... 39
9.3 CE conformity .................................................................................................................................... 39
10 Accessories ..........................................................................................................................................40
11 Agents ..................................................................................................................................................41
12 Appendix ..............................................................................................................................................42

1756-003 en/2023-07 7 / 46
1 About these operating instructions
These operating instructions contain necessary and useful information
on how to operate the device safely and efficiently.
• Read these operating instructions before using the device.
• Pay special attention to chapter 2 Safety.
• If you pass this device on to others, please enclose these operating instructions.
• Contact your specialist dealer or BANDELIN if any of your questions
are not answered in these operating instructions. Information on service
can be found in chapter 6.3 Repair.
The binding version of the document is the German-language original. Any deviations from
it in the translation are not binding and have no legal effect. In the event of any discrepancy
between the translation and the original version of this document, the original version shall
prevail.
BANDELIN accepts no responsibility or liability for damages caused by improper handling or
usage contrary to the intended purpose.
All images are provided as examples and are not true to size. Decorative elements are not
included in the scope of delivery.
About these operating instructions

8 / 46 1756-003 en/2023-07
2 Safety
The device is built in accordance with the current state of technology and recognised
safety regulations. In order to rule out danger to life and limb of the user, third parties
or the device when using it, use the device only for its intended purpose and in a clearly
flawless condition in terms of safety.
The device is for use in the commercial sector.
The operator is therefore subject to the legal obligations for occupational safety.
2.1 Use of the device
The device is intended for the sonication of aqueous fluids. The sonication of non-aqueous
or flammable liquids is not permitted. The device works on the basis of low-frequency
ultrasound and can be used in a variety of ways.
Their main application is the gentle and intensive cleaning of objects of diverse shapes,
types and sizes, in particular suitable for small volumes with vacuum support.
A solution made from water and a special agent for ultrasonic applications
is used as the sonication fluid. You will find information on the sonication fluid
in chapter 5.2 Sonication fluid.
Goods to be treated may not be placed on the bottom of the oscillating tank.
They must be placed in the sonication fluid in an inset basket or another suitable container.
An overview of suitable accessories can be found in chapter 10 Accessories.
Do not operate the device while unattended.
Safety

1756-003 en/2023-07 9 / 46
2.2 Obligations of the operator
The operator is obliged to use and provide only safe devices. The operator has a duty to
maintain the safety of the device throughout its entire lifespan. In order to ensure safety,
the operator is obliged, among other things, to ensure the following:
- The device may only be operated by authorised personnel.
- Dangerous working methods must be prohibited.
- Check of the personnel's work procedures.
- Confirmation by the personnel's signature that the instructions
for use have been read and understood.
- Complete and legible copy of the operating instructions must be available
in the close vicinity of the device.
- Legible warning symbols and instructions on the device.
- Personnel must wear PPE during activities with an increased risk of injury.
- Detailed definition of the areas of responsibility of the personnel.
2.3 Keep out of reach of children
Children cannot identify hazards posed by the device.
Therefore, keep the device out of the reach of children.
2.4 Danger of electric shock
The device is an electrical device. Failure to follow safety rules can result in a life-threatening
electric shock.
• Only transport the device when empty.
• Empty the device only after the cleaning programme has ended.
• Do not spray the device or expose it to splash water.
• Always disconnect the device from the mains before cleaning or maintenance.
• Only plug the device into a grounded mains socket that fits the ground contact
on the device plug.
• If you notice a defect in the device, disconnect the mains plug immediately.
Do not connect a defective device to the mains.
• Repairs should only be carried out by qualified personnel or by the manufacturer. See
chapter 6.3 Repair.
• Position the device so that it is easy to unplug the mains connection at any time
and without difficulty.
Safety

10 / 46 1756-003 en/2023-07
2.5 Harmful to health due to ultrasound noise
The ultrasound noise typical of the process can be perceived as very unpleasant.
Remaining within a radius of 5 m for an extended period of time may cause damage to health.
• Wear suitable hearing protection.
• Use the lid for noise reduction.
2.6 Hazards due to high temperatures
The device, the sonication fluid and the sonication objects can become hot during operation.
Contact with these products may cause burns. The temperature can be set at up to 75°C.
Ultrasound energy warms up the sonication fluid even without additional heating.
Prolonged ultrasound operation can lead to very high temperatures.
In a device with heating, the set temperature can be significantly exceeded
by the energy of the ultrasound.
• Observe the treatment times recommended by the manufacturer of the ultrasound agent.
Do not leave the ultrasound switched on for longer than necessary.
• Do not reach into the sonication fluid with your hand. Remove sonication objects
with the insert basket or forceps.
• Allow the sonication objects to cool before touching them.
• When lifting from the handles, the hands may touch the edge of the tank
which could be very hot.
In the case of high-boiling liquids, the bath temperature can rise to over 120 °C
due to the energy input of the ultrasound. This can lead to fires and severe burns.
• Do not use combustible, explosive, non-aqueous fluids (e.g. petrol, solvents)
or mixtures with combustible liquids (e.g. alcoholic solutions) directly in the stainless
steel oscillating tank.
2.7 Danger due to ultrasound
The strong ultrasound in the device destroys cell structures. If part of the body is immersed
in the sonication fluid during operation, this can cause damage to skin and also damage
to internal tissue. The periosteum of finger bones can be damaged.
• Do not reach into the sonication fluid during operation.
• Never sonicate living creatures.
Safety

1756-003 en/2023-07 11 / 46
2.8 Danger from agents used
Agents used in the device can be toxic or caustic. They can irritate the eyes,
skin and mucous membranes. The vapours and aerosols can also be dangerous.
• Wear gloves and safety goggles when handling hazardous agents.
• Do not ingest the agents and do not allow them to come into contact
with the eyes or skin. Do not lean over the device, in order to avoid vapours
from coming into contact with the eyes or from being inhaled.
• Close the lid when operating the device. Use an extraction system
if there are dangerous vapours.
• Observe the information on the label and in the safety data sheet for the agent.
• Keep the agents away from children and untrained persons.
2.9 Disposal of sonication fluid
Dispose of the sonication fluid in accordance with the specifications of the manufacturer
of the ultrasound agent used. The recommended ultrasound agents in the TICKOPUR
product line by DR. H. STAMM GmbH are biodegradable in accordance with the provisions
of Regulation (EC) No. 648/2004 (Detergents Regulation). If necessary, the sonication fluid
must be neutralised before disposal.
Depending on the type of contamination involved, water-polluting substances like oils
or heavy metal compounds may be introduced to the sonication liquid during cleaning.
If the threshold values for these substances are exceeded, the sonication liquid must be
processed or disposed of as special waste.
Observe local waste water regulations.
Safety

12 / 46 1756-003 en/2023-07
2.10 Erosion of the oscillating tank
The surface of the oscillating tank is subject to erosion. How quickly this erosion takes place
depends on the usage of the device. The erosion leads to leaks in the oscillating tank.
Bath liquid can thus leak into the interior of the device. Moisture on electrical components
can lead to an electric shock or fire.
• Stop using the device if you notice a leak. Disconnect the mains plug immediately.
Empty the oscillating tank.
You can extend the lifespan of the oscillating tank by observing the following instructions:
• Replace sonication fluid that is visibly contaminated by particles.
• Only use demineralised water (DI water) with an ultrasound-compatible agent.
• Do not use chemicals that contain or release chloride ions in the oscillating tank.
This is the case with some disinfectants, household cleaners and dishwashing detergents.
Chloride ions will corrode stainless steel.
• Only use the device with accessories that are suitable for the device and the objects to
be treated, e.g. a basket. Do not place any objects to be treated directly on the bottom
of the oscillating tank. An overview of suitable accessories can be found in chapter 10
Accessories.
2.11 Preventing damage to the device
• Replace contaminated sonication fluid immediately. Clean surfaces and wipe them dry.
• The use of highly acidic agents can corrode the ball of the ball valve.
The ball valve will leak. If the use of a strongly acidic detergent cannot be avoided,
use a stainless steel ball valve.
• Do not operate the device without sonication fluid in the oscillating tank.
The fill level must always be at or slightly above the filling level mark.
Safety

1756-003 en/2023-07 13 / 46
2.12 Interference with wireless communication
The ultrasound bath may interfere with other wireless communication ultrasound baths
in the immediate vicinity, such as:
• mobile phones,
• WLAN devices,
• Bluetooth devices.
If interference occurs with the operation of a wireless device, move it further away
from the device.
The device satisfies the requirements for class B devices according to EN 55011.
2.13 Safety stickers on the device
• Observe all safety labels on the device.
• Keep the safety stickers in legible condition. Do not remove them.
Replace them if they are no longer legible. To do so, please contact our Customer Service.
See chapter 6.3 Repair.
Symbol Meaning Explanation
Danger Denotes information that, if not observed, could pose
a risk to life and limb, especially from electric shock.
Warning Warning of hot surface.
2.14 Do not overload accessories
Observe the specified load-bearing capacity or resilience of the accessory used.
• Accessories include baskets and holders.
• The relevant information can be found in the appendix or in the dimension sheet.
If you do not have this data, contact the manufacturer.
Safety

14 / 46 1756-003 en/2023-07
2.15 Reasonably foreseeable misuse
Reasonably foreseeable misuse that poses hazards to personnel,
third parties, or the device are to be considered for all operating modes:
- Use of the device contrary to its intended use.
- Insertion of components that are not certified by the manufacturer.
- Operation of the device outside the physical limits of use.
- Changes to the device as well as attachments and conversions without prior
consultation with the company BANDELIN electronic GmbH & Co. KG.
- Use of the device contrary to the provisions of the instructions for use.
- Bypassing or decommissioning protective and safety devices.
- Operation of the device with obvious faults.
- Operating the device with vacuum selection and open lid.
2.16 Safety features
The device is fitted with various safety devices.
The safety devices serve to prevent hazards for personnel and material damage to the device.
Safety

1
2
3
4
5
6
8
7
Fig. 1 Overview of the device - front
1 Lid with gas pressure damper
2 Cleaning tank (lid open)
3 Rinse tank (lid closed)
4 User interface
5 Main switch/EMERGENCY STOP
6 Lock/key
7 Mains cable connection (rear)
8 Swivel feet/two lockable
1756-003 en/2023-07 15 / 46
3 Design and function
3.1 Structure
Design and function

1
2
4
3
Fig. 2 Overview of the device - rear
1 Supply and exhaust air openings
2 Tank outlet
3 Compressed air connection
4 Mains cable connection
1
2
3
4
5
Fig. 3 Overview of tanks, interior
1 Level sensor
2 Suction opening/vacuum
3 Maximum fill level
4 Minimum fill level
5 Outlet
16 / 46 1756-003 en/2023-07
Design and function

1
2
Fig. 4 Overview interior
1 Ultrasonic tanks
2 Control box
Fig. 5 Display
1 Settings menu (cogwheel)
2 Tank designation
3 Temperature display
4 Remaining program time
5 Emptying selection
6 Vacuum selection
7 Ultrasound selection
8 Heating selection
9 Stop button
10 Start button
2
1
3
4
5
6
7
8
9
10
1756-003 en/2023-07 17 / 46
Design and function
3.2 Control panel

Fig. 6 Parameter settings
18 / 46 1756-003 en/2023-07
3.3 Parameter settings
3.4 User interface icons (touchscreen)
Symbol Meaning
Heating deselected
Ultrasound deselected
Vacuum deselected
Drain closed
Heating selected
Automatic heating to preselected temperature
Ultrasound selected
Operation with program start
Vacuum selected.
Operation with program start.
Drain open.
Design and function

1756-003 en/2023-07 19 / 46
Design and function
Symbol Meaning
Operating temperature not yet reached.
Program start only possible with heating deselected.
(Adjustable temperature range: 50- 75°C)
Operating temperature reached.
Program start possible via Start button.
(Adjustable temperature range: 50- 75°C)
Program time remaining
Settings menu
Language selection menu
Operating hours display
Parameters

20 / 46 1756-003 en/2023-07
Design and function
3.5 Function
Ultrasonic system for cleaning using CNp procedure. Double tank version, each with a
cleaning tank and rinsing tank. Ultrasonic transducers at the bottom of the tanks generate
cavitation in the aqueous solution. The additional use of negative pressure in the cleaning
bath leads to the generation of bubbles, which amplify the cleaning effect of the ultrasound.
The SONOREX CNp 28-2 transfers the outstanding cleaning effect of the CNp process
into a compact, mobile cleaning system. The main component of the Plug and Clean system
is the powerful cleaning tank, which is filled with a suitable cleaning solution.
Residue-free rinsing of the cleaned components using the CNp process takes place
in the adjacent, identical rinsing tank, which can be filled with tap water or demineralised
water. Easy-to-use lids with large inspection glasses allow for easy loading and optional
process monitoring during cleaning and rinsing. The size of the two tanks is designed
so that standard 1/1 DIN insert baskets can be easily positioned and components
with a length of up to 570 mm can be cleaned.
3.6 Design and function of the safety device
In the event of a malfunction of the heating control and failure of the fill level sensor,
the attached heating elements must be safely switched off in order to avoid the tank
surface overheating by more than 150°C. To ensure reliable switch-off in the event
of permanent control of the heating elements and evaporation of the bath liquid,
the heating foils are provided with thermal fuses, which interrupt the power supply
to the heating elements from a temperature of 150°C.
