Banner BBT HD1+ User manual

Version 04/2020 1

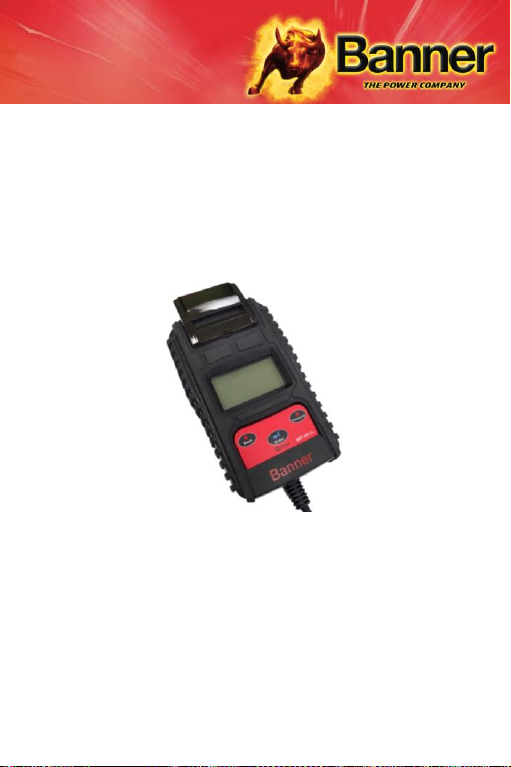

Banner Battery Tester BBT HD1+
BATTERY & ELECTRICAL SYSTEM ANALYZER
OWNER’S MANUAL
READ ENTIRE MANUAL BEFORE USING THIS PRODUCT

Version 04/2020 2
TEST PROCEDURES / OPERATING INSTRUCTIONS
IMPORTANT
1. For testing 6 and 12 volt batteries, and for testing 12 and 24 volt charging
systems.
2. Suggested operation range 0℃(32℉) to 50℃(122℉) in ambient
temperature.
WARNING
WARNING: This product can expose you to chemicals including arsenic, which is
known to the State of California to cause cancer.
For more information, go to www.P65Warnings.ca.gov.
1. Working in the vicinity of a lead acid battery is dangerous. Batteries generate
explosive gases during normal battery operation. For this reason, it is of
importance, if you have any doubts, before using your tester to read these
instructions very carefully.
2. To reduce risk of battery explosion, follow these instructions and those
published by the battery manufacturer and manufacturer of any equipment
you intend to use in the vicinity of the battery. Observe cautionary markings on
these items.
3. Do not expose the tester to rain or snow.
PERSONAL SAFETY PRECAUTIONS:
1. Someone should be within range of your voice or close enough to come to
your aid when you work near a lead acid battery.
2. Have plenty of fresh water and soap nearby in case battery acid contacts skin,
clothing or eyes.
3. Wear safety glasses and protective clothing.

Version 04/2020 3
4. If battery acid contacts skin or clothing, immediately wash with soap and water.
If acid enters eye, immediately flood eye with running cold water for at least
ten minutes and get medical attention.
5. NEVER smoke or allow a spark or flame in vicinity of battery or engine.
6. Be extra cautious to reduce risk of dropping a metal tool onto the battery. It
could spark or short-circuit the battery or other electricalparts and could cause
an explosion.
7. Remove personal metal items such as rings, bracelets, necklaces and
watches when working with a lead acid battery. It can produce a short circuit
current high enough to weld a ring or the like to metal causing a severe burn.
PREPARING TO TEST:
1. Be sure surrounded area of battery is well ventilated while battery is being
tested.
2. Clean battery terminals.
3. Inspect the battery for cracked or broken case or cover. If battery is damaged,
do not use tester.
4. If the battery is not sealed maintenance free, add distilled water in each cell
until battery acid reaches level specified by the manufacturer. This helps
purge excessive gas from cells. Do not overfill.
5. If necessary to remove battery from vehicle to test, always remove ground
terminal from battery first. Make sure all accessories in the vehicle are off to
ensure you do not cause any arcing.

Version 04/2020 4
OPERATION & USE:
Note: Each time you connect the tester to a battery, the tester will run a quick
cable verification to ensure a proper connection through the output cables to
sensors in the clamp jaws. If the connection checks out OK, the tester will
proceed to the Home Screen. If the connection is poor, the display will show
“CHECK CABLE”. In this case, check cable connections for visible signs of
damage, as you may need to re-connect the clamps to the battery or replace the
cable end.
HOW TO REPLACE CABLE END:
1. Detach the clamp lead when the replacement is necessary.
2. Make sure the new clamp lead is well connected.
NOTE that do not detach the cables unless it is needed to make sure
the pins are not rusted or corroded by the acid liquid.

Version 04/2020 5
BEFORE TESTING:
1. Before you test a battery in a vehicle, turn off the ignition, all accessories and
loads. Close all the vehicle doors and the trunk lid.
2. Make sure you have put 6 pcs 1.5V batteries into the battery chamber.
Oxyride batteries are not recommended because of the initial 1.7 Volt output.
If the 1.5V battery runs out of power, screen will show “POWER LOW”.
Replace those 6 pcs 1.5V batteries before starting the test.
Note that nothing will be seen on the display until the tester is
connected to a vehicle battery.
3. Make sure the battery terminals are clean. Brush them if necessary. Clamp the
black load lead to the vehicle negative battery terminal. Clamp the red load
lead to the vehicle positive battery terminal. Please clamp on the lead part of
the terminal only. Clamping on the iron part of the terminal will lead to wrong
test results.
4. Paper load:
Open the clear cover. Insert paper to the paper feeding for auto running the
paper into printer
PAPER REPLACEMENT:
A. Open the clear cover.
B. Insert replaced paper roll into thepaper feeding for auto running the paper into
the printer.
C. Pull the paper slowly and straightly from the paper roll in the chamber.

Version 04/2020 6
MAIN MENU:
You will view the following screens by pressing ◄ / ► to switch between all
functions and settings.
BATTERY TEST
XX.XX V
Press «ENTER» to do battery test.
SYSTEM TEST
XX.XX V
Press «ENTER» to do system test.
IN-VEHICLE TEST
XX.XX V
Press «ENTER» to do In-vehicle test.
PRINT LAST
RESULT
Press «ENTER» to print last result.
LANGUAGE
SELECT
Press «ENTER» to change language.
TEST COUNTER
Press «ENTER» to see how many times you
tested in battery / system / in-vehicle test.

Version 04/2020 7
2018/02/05
13:25:00
Press «ENTER» to start Date & Time Setting.
Then press ◄ / ► to adjust “Year”. Press
«ENTER» to finish Year. Please follow
previous step to finish Month, Day, Hour &
Minute.
BRIGHTNESS
Press «ENTER» to start adjusting brightness
of the screen.
CUSTOMIZE
Press «ENTER» to edit customized info.
BATTERY TEST:
1. Select BATTERY TEST. Press «ENTER».
BATTERY TEST
XX.XX V
2. Press the ◄ ► to select REGULAR/STD or START/STOP battery.
REGULAR/STD
START/STOP
* REGULAR/STD BATTERY:
FLOODED, AGM FLAT PLATE, AGM SPIRAL, VRLA/GEL
* START/STOP BATTERY:
AGM FLAT PLATE, EFB

Version 04/2020 8
3. Press the ◄ ► key to select the battery type:
BATTERY TYPE:
AGM FLAT PLATE
4. Press «ENTER» to confirm choice.
5. Press the ◄ ► key to select the battery rating:
CCA/SAE, EN, JIS, DIN, IEC, & CA/MCA.
SELECT RATING:
CCA/SAE
6. Press «ENTER» to confirm choice.
7. Press the ◄ ► key to input the battery
capacity.
CCA/SAE: 40~2000
EN: 40~1885
DIN: 25~1120
IEC: 30~1320
JIS: By Battery Type No.
CA/MCA: 50~2400
SET CCA:
560CCA/SAE
8. Press the ◄ ► key to confirm temperature.
ABOVE 32°F/0°C?
YES/NO
9. Press <<Enter>> to begin the test.
*Return Feature: Before the test is started, the user can always return to
the previous setting page by pressing <<ENTER>> for 2 seconds.
SURFACE CHARGE NOTICE:
The battery will hold a surface charge if the engine has been running or after
the battery has been charged. The tester may prompt you to remove the
surface charge.
A. Follow the instructions indicating when to turn the headlights on and off or
apply a load into the battery.

Version 04/2020 9
IN VEHICLE:
SURFACE CHARGE
IN VEHICLE? YES
TURN HEADLIGHTS
ON FOR 15 SECS
OUT OF VEHICLE:
SURFACE CHARGE
IN VEHICLE? NO
TESTING
B. The tester will resume testing after it detects
that the surface charge is removed.
TESTING
10.Test the battery for few seconds.
11. Press the ◄ ► key to select battery fully
charged or not if tester asks. Press «ENTER» to
confirm choice.
IS BATTERY
CHARGED?
YES/NO
12.When the test is completed, the display shows the actual volts and the actual
CCA and internal resistance. {Press the ◄ ► key to read: SOH (STATE OF
HEALTH) and SOC (STATE OF CHARGE)}.
13.One of the six test results will be displayed:
GOOD & PASS
*The battery is good and capable of holding a
charge.
GOOD & PASS
VOL: xx.xx V
CCA: xxxx CCA/SAE
IR: xx.xx mΩ
GOOD & RECHARGE
*The battery is good but needs tobe recharged.
GOOD &
RECHARGE
VOL: xx.xx V
CCA: xxxx CCA/SAE
IR: xx.xx mΩ

Version 04/2020 10
CAUTION
*The battery may be serviced but decrease the
capability of starting the engine gradually. The
battery may fail under extreme climate
conditions. There may be a poor connection
between the vehicle and the battery affect the
charging function. Please pay attention to the
battery for replacement consideration and
charging system checking.
CAUTION
VOL: xx.xx V
CCA: xxxx CCA/SAE
IR: xx.xx mΩ
RECHARGE & RETEST
*Battery is discharged, the battery condition
cannot be determined until it is fully charged.
Recharge & retest the battery.
RECHARGE &
RETEST
VOL: xx.xx V
CCA: xxxx CCA/SAE
IR: xx.xx mΩ
BATTERY USED
*The battery will not hold a charge.
BATTERY USED
VOL: xx.xx V
CCA: xxxx CCA/SAE
IR: xx.xx mΩ
BAD CELL
*The battery has at least one cell short circuit.
BAD CELL
VOL: xx.xx V
CCA: xxxx CCA/SAE
IR: xx.xx mΩ
LOAD ERROR
*The tested battery is bigger than
2000CCA/SAE or 200AH. Or the clamps are
not connected properly. Please fully charge the
battery and retest after excluding both previous
reasons. If reading is the same, the battery
should be replaced immediately.
LOAD ERROR

Version 04/2020 11
14.SOC & SOH Display: Press directional keys to see SOC & SOH:
GOOD & PASS
SOC: xx.xx V
■■■■■■■■■□ 90%
GOOD & PASS
SOH: xxxx CCA/SAE
■■■■■■■■■□ 90%
15.Test Code:
Press <Enter> to get Test Code.
CODE
xxxxxxxxxxxx
What is the ”Test Code”? How to use it?
A. Put the CD into CD or CD/DVD/BLUE RAY combination drive.
B. Follow the installation instructions and install the icon named “BT/RTxxx”
and the sheet below will pop up then input the “Test Code” into the chart
manually or by barcode scanner.
C. Test results will show up in the chart after decoding as below.
D. The test data can be stored in the PC.

Version 04/2020 12
PRINT 24V SYSTEM
RESULT? YES
NO
16.Press the ◄ ► key to select result printing:
YES or NO. Press «ENTER» to confirm your
choice.
PRINT RESULT?
YES/NO
*24V System Test Printing: The printer will
not function for 24 Volt batteries system
test printing. The 24V system test result
will be recorded till you hook up to a 12V
battery and the right screen shows up. Please select “YES” and press
enter key to print the result and then disconnect the clamps. The screen
will appear again after you reconnect the clamps. Please select “NO” and
press the enter key to go back to the main menu.
17.Press «ENTER» return to MAIN MENU or remove the test clamps from the
battery posts after completion of testing batteries to end test.
SYSTEM TEST:
1. Select “SYSTEM TEST” from the main menu.
SYSTEM TEST
xx.xx V
2. Turn off all vehicle accessory loads such as light,
air conditioning, radio, etc. Before starting the
engine.
TURN OFF LOADS
START ENGINE
3. When the engine is started, one of the three results will be displayed along
with the actual reading measured.
CRANKING VOLTS NORMAL
The system is showing normal draw. Press
«ENTER» to perform the charging system test.
CRANKING VOLTS
xx.xx V NORMAL

Version 04/2020 13
CRANKING VOLTS LOW
The cranking voltage is below normal limits,
troubleshoot the starter with manufacturers
recommended procedure.
CRANKING VOLTS
xx.xx V LOW
CRANKING VOLTS NOT DETECTED
The cranking voltage is not detected.
CRANKING VOLTS
NOT DETECTED
4. Press «ENTER» to begin charging system test.
PRESS ENTER
FOR CHARGING
TEST
MAKE SURE ALL
LOADS ARE OFF
5. Press the «ENTER» key, one of the three results will be displayed along with
the actual reading measured.
HIGH CHARGING VOLTS WHEN TEST AT
IDLE
The voltage output from the alternator to the
battery exceeds the normal limits of a functioning
regulator. Check to ensure there is no loose
connection and the ground connection is normal.
ALT. IDLE VOLTS
xx.xx V HIGH
If there is no connection issue, replace the regulator. Since most alternators
have the regulator built-in, this will require you to replace the alternator. The
normal high limit of a typical automotive regulator is 14.7 volts +/- 0.05. Check
manufacturer specifications for the correct limit, as it will vary by vehicle type
and manufacturer.
CHARGING SYSTEM NORMAL WHEN TEST
AT IDLE
The system is showing normal output from the
alternator. No problem is detected.
ALT. IDLE VOLTS
xx.xx V NORMAL

Version 04/2020 14
LOW CHARGING VOLTS WHEN TEST
AT IDLE
The alternator is not providing sufficient current
to the battery. Check the belts to ensure the
alternator is rotating with engine running.
ALT. IDLE VOLTS
xx.xx V LOW
If the belts are slipping or broken, replace the belts and retest. Check the
connections from the alternator to the battery. If the connection is loose or
heavily corroded, clean or replace the cable and retest. If the belts and
connections are in good condition, replace the alternator.
6. Press «ENTER» for the charging system with
accessory loads. Turn on the blower to high
(heat), high beam headlights, and rear defogger.
Do not use cyclical loads such as air conditioning
or windshield wipers.
TURN ON LOADS
PRESS ENTER
7. When testing older model diesel engines, the
users need to run up the engine to 2500 rpm for
15 secs.
RUN ENGINE UP
TO 2500RPM 15
SEC
8. Press «ENTER» to read the ripple from the charging system to the battery.
One of the three testing results will be displayed along with the actual testing
measured.
RIPPLE DETECTED NORMAL
Diodes function well in the alternator / starter.
RIPPLE
DETECTED
xx.xx V NORMAL
NO RIPPLE DETECT
Ripple is not detected.
NO RIPPLE DETECT
PRESS ENTER

Version 04/2020 15
EXCESS RIPPLE DETECTED
One or more diodes in the alternator are not
functioning or there is stator damage. Check to
ensure the alternator mounting is sturdy and
that the belts are in good shape and functioning
properly. If the mounting and belts are good,
replace the alternator.
RIPPLE
DETECTED
xx.xx V HIGH
9. Press the «ENTER» key to continue the charging system with accessory
loads. One of the three results will be displayed along with the actual testing
measured.
CHARGING SYSTEM HIGH WHEN
TEST WITH ACCESSORY LOADS
The voltage output from the alternator to the
battery exceeds the normal limits of a
functioning regulator.
ALT. LOAD VOLTS
xx.xx V HIGH
Check to ensure there are no loose connections and that the ground
connection is normal. If there are no connection issues, replace the regulator.
Since most alternators have the regulator built-in, this will require you to
replace the alternator.
CHARGING SYSTEM LOW WHEN TEST
WITH ACCESSORY LOADS
The alternator is not providing sufficient current
for the system’s electrical loads and the
charging current for the battery. Check the belts
to ensure the alternator is rotating with the
engine running. If the belts are slipping or
broken, replace the belts and retest.
ALT. LOAD VOLTS
xx.xx V LOW
Check the connections from the alternator to the battery. If the connection is
loose or heavily corroded, clean or replace the cable and retest. If the belts
and connections are in good working condition, replace the alternator.

Version 04/2020 16
CHARGING SYSTEM NORMAL WHEN TEST
WITH ACCESSORY LOADS
The system is showing normal output from the
alternator. No problem detected.
ALT. LOAD VOLTS
xx.xx V NORMAL
10.Press «ENTER» when charging system test is
completed. Turn all accessory loads and
engine off. Press «ENTER» to read the system
test results.
TEST OVER. TURN
OFF LOADS &
ENGINE
ALT. LOAD VOLTS
xx.xx V NORMAL
RIPPLE VOLTAGE
xx.xx V NORMAL
11. Press “ENTER” to press result or not.
CRANKING VOLTAGE
xx.xx V NORMAL
ALT. IDLE VOLTS
xx.xx V NORMAL
PRINT RESULT?
YES/NO
IN-VEHIVLE TEST
This is a combination test of both battery test & system test. Please refer to
above testing procedures or follow the instructions on the display of the tester.

Version 04/2020 17
TERMS AND CONDITIONS OF WARRANTY
Any battery tester defective in material or workmanship will be repaired or
replaced according to published defective return test repair procedures. The
existence of a defect shall be determined by the seller in accordance with
published procedures. The published test procedures are available upon request.
This warranty does not cover any unit that has been damaged due to accident,
abuse, alternation, use for a purpose other than that for which it was intended, or
failure to follow operating instructions. This warranty is expressly limited to
original retail buyers. This warranty is not assignable or transferable. Proof of
purchase is required for all alleged claims. Warranty cannot be authorized without
proof of purchase. Warranty claims must be sent pre-paid with dated proof of
purchase. Damage incurred during shipment is the responsibility of the shipper
(customer returning unit) If the returned unit qualifies for warranty, the shipper will
only incur shipping cost. The seller reserves the right to substitute or offer
alternative warranty options at its discretion.
The sole and exclusive remedy for any unit found to be defective is repair or
replacement, at the option of the seller. In no event shall the seller be liable for
any direct, indirect, special, incidental, or consequential damages (including lost
profit) whether based on warranty, contract, tort, or any other legal theory.

Version 04/2020 18
RETURN GOODS:
Pack with sufficient over-pack to prevent damage during shipment. Damage
incurred during return shipment is not covered under this warranty. Repair costs
for such damages will be charged back to shipper.
REMARK:
WHEN RETURNING GOODS, PLEASE SHOW “RETURN GOODS” ON ALL
INVOICES & RELATED SHIPPING DOCUMENTS TO PREVENT ANY EXTRA
CHARGE.”
Banner GmbH
Banner Straße 1
A-4021 Linz, Austria
www.bannerbatterien.com

Version 04/2020 19
Banner Testeur de batterie BBT HD1+
TESTEUR DE BATTERIE ET DU CIRCUIT DE CHARGE
MANUEL DE L'UTILISATEUR

Version 04/2020 20
PROCÉDURES D'ESSAI / MODE D'EMPLOI
IMPORTANT
1. Teste les batteries 6 &12 volts et teste du circuit de charge 12 & 24 volts.
(SEULEMENT 12 volts pour les batteries START & STOP)
2. Plage de fonctionnement conseillé : température ambiante de 0°C (32°F) à
50°C (122°F)
AVERTISSEMENT
AVERTISSEMENT: Ce produit peut vous exposer à des produits chimiques, y
compris l'arsenic, qui est connu dans l'État de Californie pour être une cause de
cancer.
Pour plus d'informations, consultez le site www.P65Warnings.ca.gov.
AVERTISSEMENT：
1. ll est dangereux de travailler près d'une batterie au plomb-acide. Lors du
fonctionnement normal d'une batterie, des gaz explosifs sont émis. Pour
cette raison il est primordial de lire et de suivre les instructions, chaque fois
que vous utilisez votre testeur.
2. Afin de réduire les risques d'explosion de la batterie, vous devez suivre
ces instructions ainsi que celles du fabricant de la batterie ou du fabricant
de tout équipement utilisé près de la batterie. Lisez les avertissements
apposés sur ces produits.
3. Ne pas exposer le testeur à la pluie ou a la neige.
PRÉCAUTIONS DE SÉCURITÉ：
1. Assurez-vous qu'il y a quelqu'un à portée de vue ou suffisamment près pour
vous venir en aide lorsque vous travaillez près d'une batterie au plomb-acide.
2. Assurez-vous d'avoir une bonne quantité d'eau fraîche et du savon à
proximité, au cas ou votre peau, vos yeux ou vos vêtements entreraient en
contact avec l'acide de la batterie.
