1. Welcome!
1. WELCOME!
1.1 About the product
Overview
The high-grade Coronis 5MP display system offers unsurpassed film-like images with ultra-high resolution,
luminance and contrast . The 21.3” LCD provides unequaled image quality without pixelization, a wide
viewing angle and perfect geometry.
Building on proven technology, Coronis 5MP provides ultimate precision and performance while main-
taining the highest brightness and contrast. The advanced 10-bit architecture ensures accurate image
representations with 1024 simultaneous shades of gray out of a palette of 4096.
CAUTION:Read all the important safety information before installing and operating your
Coronis 5MP. Please refer to the dedicated chapter in this user guide.
1.2 What’s in the box
Overview
Your Coronis 5MP comes with:
• the display
• a system tilt and swivel foot
• this Coronis 5MP user guide
• a system CD
• a DisplayPort cable
•aDVIcable
•anUSBcable
•anACpowercord
• an external power supply
If you ordered a Barco display controller, it’s also in the box together with its accessories. A dedicated
user guide is available on the system CD.
Keep your original packaging. It is designed for this display and is the ideal protection
during transport and storage.
B4100592 CORONIS 5MP 05/08/2014 1

1. Welcome!
2B4100592 CORONIS 5MP 05/08/2014

2. Parts, controls and connectors
2. PARTS, CONTROLS AND
CONNECTORS
2.1 Display front view
Overview
7
1 2 3 4 5 6
Image 2-1
Front view
1I-Luminate/Left key 2Right key
3Menu key 4Power on/off key
5Ambient light sensor 6Power LEDs
7Side downstream USB 2 & 3
B4100592 CORONIS 5MP 05/08/2014 3

2. Parts, controls and connectors

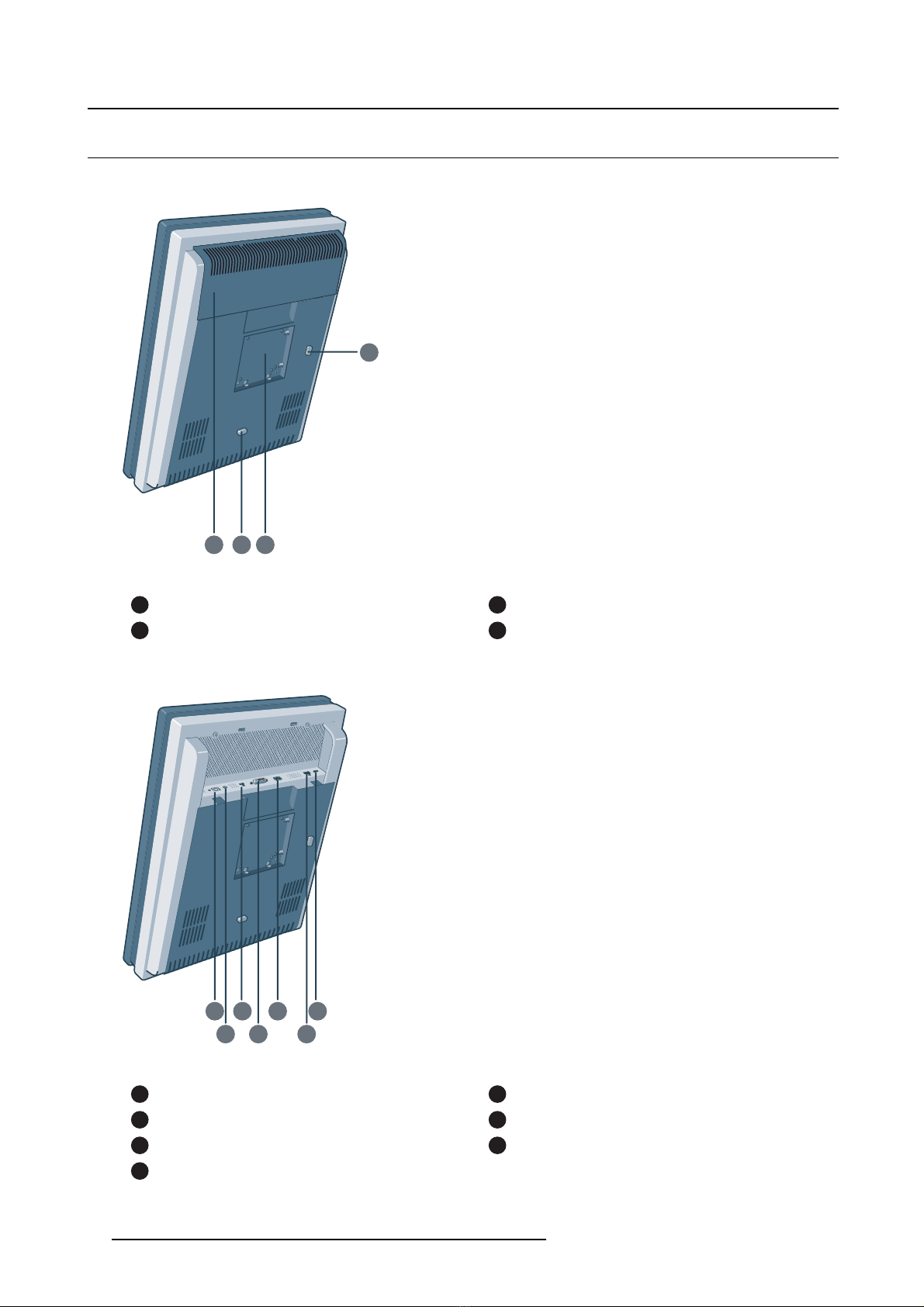

2.2 Display rear view
Connector compartment cover closed
12 3
4
Image 2-2
Rear view cover closed
1Connector compartment cover 2Display release button for portrait position
3Mounting anchor 4Display release button for landscape position
Connector compartment cover open
5
6
7
8
9
10
11
Image 2-3
Rear view cover open
524 Vdc power input 6+5 Vdc, 0.5 A power output
7Display Port video input 8DVI video input
9Ethernet connection (see note below) 10 USB upstream
11 USB downstream 1
4B4100592 CORONIS 5MP 05/08/2014

2. Parts, controls and connectors
The Ethernet connection is used for maintenance purposes and is not supported for
user application.

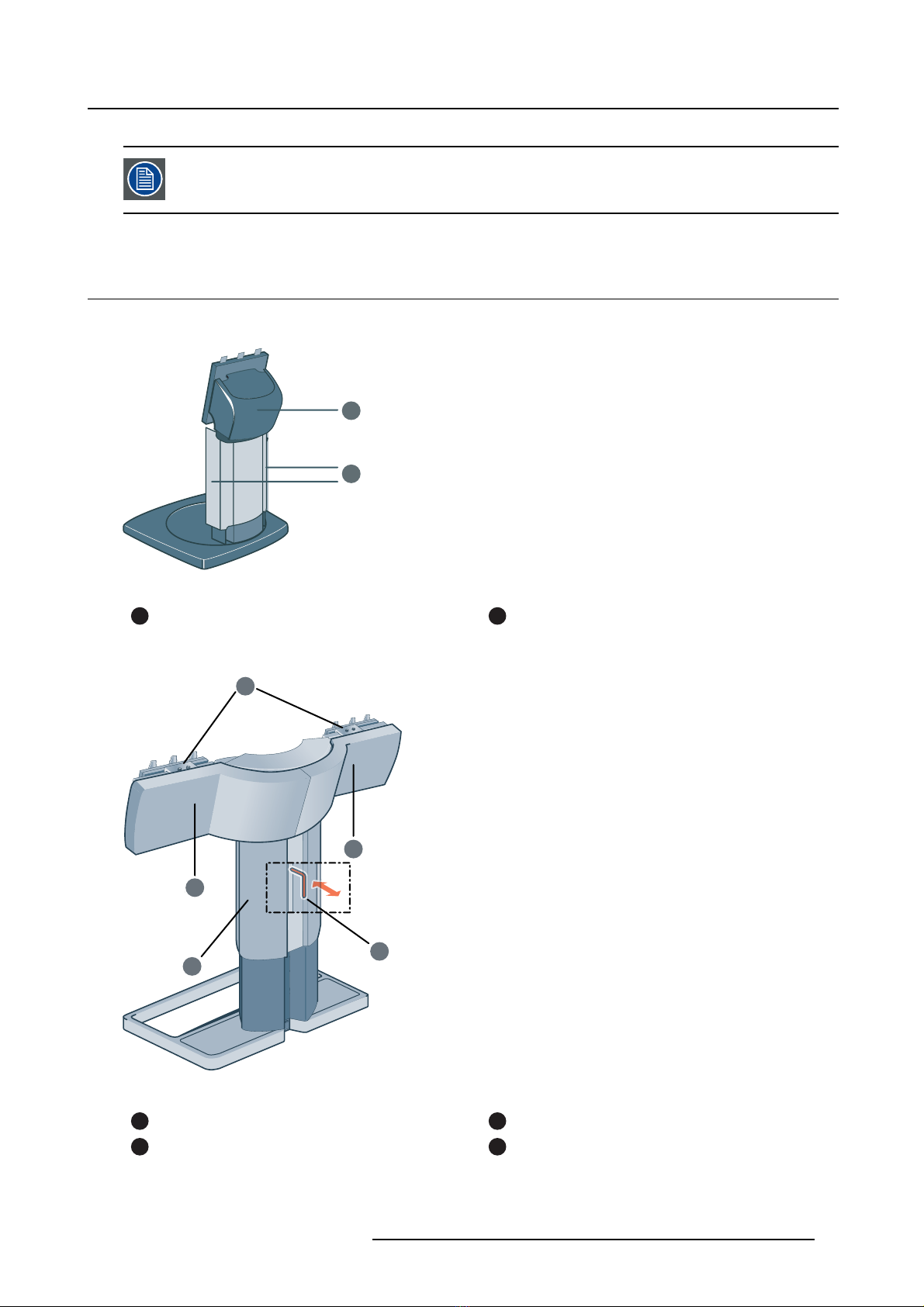

2.3 Foot
Single foot
1
2
Image 2-4
1Tilt & Swivel neck cover 2Cable duct covers
Dual foot
1
2
3
4
2
Image 2-5
Dual tilt and swivel foot
1Cable cover 2Left & right arm cover
3Foot lock clip (behind cable cover) 4Display positioning sliders
B4100592 CORONIS 5MP 05/08/2014 5

2. Parts, controls and connectors
6B4100592 CORONIS 5MP 05/08/2014

3. Display installation
3. DISPLAY INSTALLATION
Prior to installing your Coronis 5MP and connecting all necessary cables, make sure to
have a suitable display controller physically installed in your computer. If you are using
a Barco display controller, please consult the user guide delivered with it to do this.
3.1 Mounting the displays
WARNING:Do not change the display orientation by turning the panel when it is
mounted on its stand.
To change from landscape to portrait or the other way around, remove the panel from
its stand and use the appropriate mounting hooks as described above.
Using the single tilt & swivel foot (portrait orientation)
1. Unpack the single tilt & swivel foot and place it on a solid surface.
2. Unpack the display.
2
1
3
3. Hook the top gaps in the rear of the panel over the top anchors of the stand attachment plate (1).
4. Push the bottom of the panel firmly towards the stand so that the bottom anchors clip in the bottom
gaps (2).
5. Check that the panel is firmly attached to the stand.
6. Tilt and swivel the panel to the desired position and angle.
B4100592 CORONIS 5MP 05/08/2014 7

3. Display installation

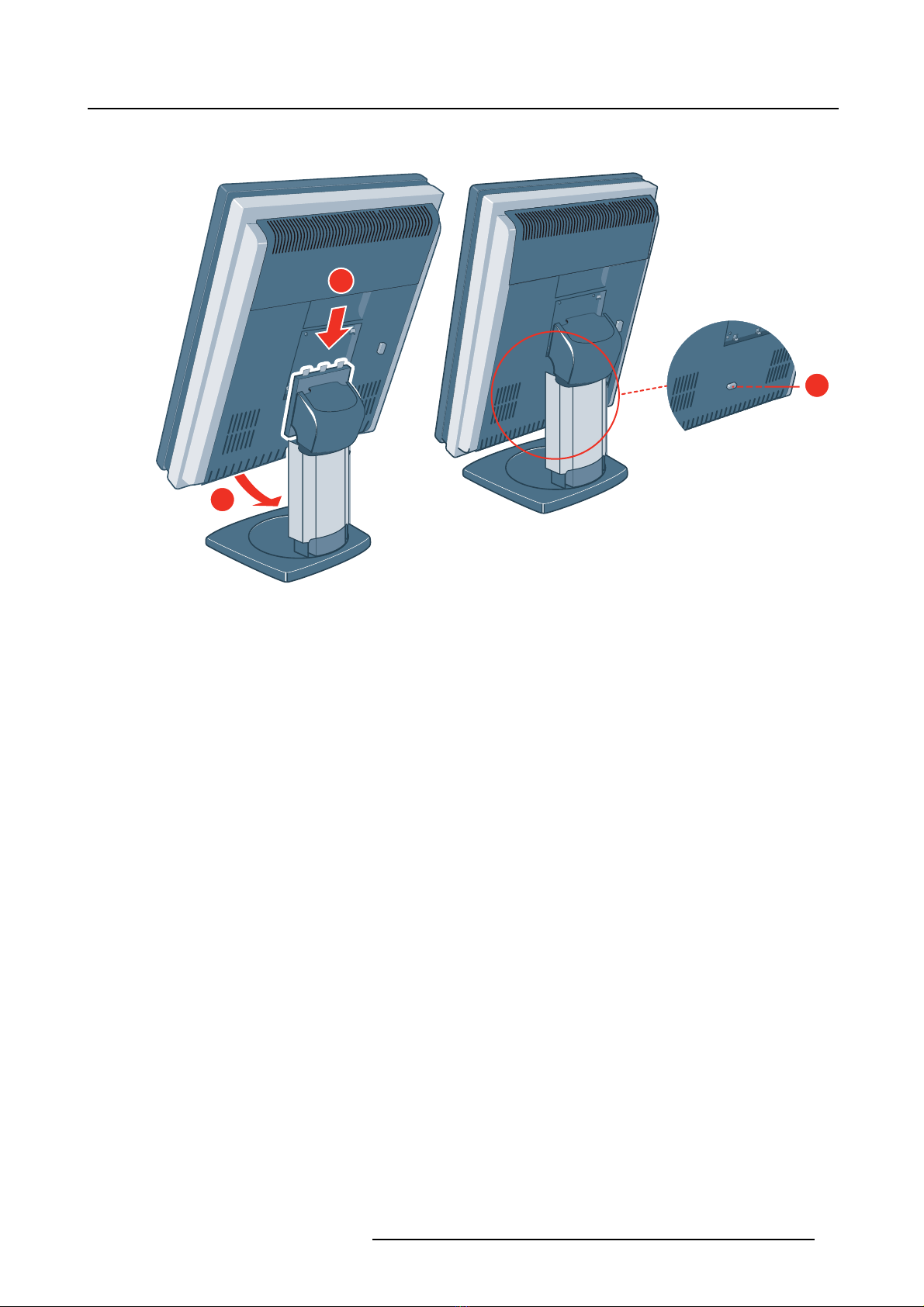

Using the single tilt & swivel foot (landscape orientation)
1. Follow the same steps as for the portrait installation but hold the display in landscape position to hook
the panel on the foot.
1
2
3
To release the panel from the display foot:
1. Push the push-button (3) at the rear of the panel.
8B4100592 CORONIS 5MP 05/08/2014

3. Display installation
2
1
3
2. Pull the bottom of the panel towards you and at the same time lift the panel from the stand attachment
plate.
Using the dual tilt & swivel foot
1. Unpack the dual tilt & swivel foot and place it on a solid surface.
2. Unpack the first display.
B4100592 CORONIS 5MP 05/08/2014 9

3. Display installation
1
2
3. Hold the display slightly angled with the logo downwards and position the top of the mounting anchor,
at the back of the display, perfectly aligned on the top of the mounting clamp of the foot.
4. Push the downside of the display gently backwards until the mounting clamp locks into the mounting
anchor.
5. Verify that mounting clamp and mounting anchor are perfectly fitting and that the display is firmly
mounted.
6. Repeat step 2 to 5 for the second display.
Caution: Limit transportation distances of the mounted displays and foot system.
7. Pull out the foot lock clip.
8. Retain the clip for possible further transportations.

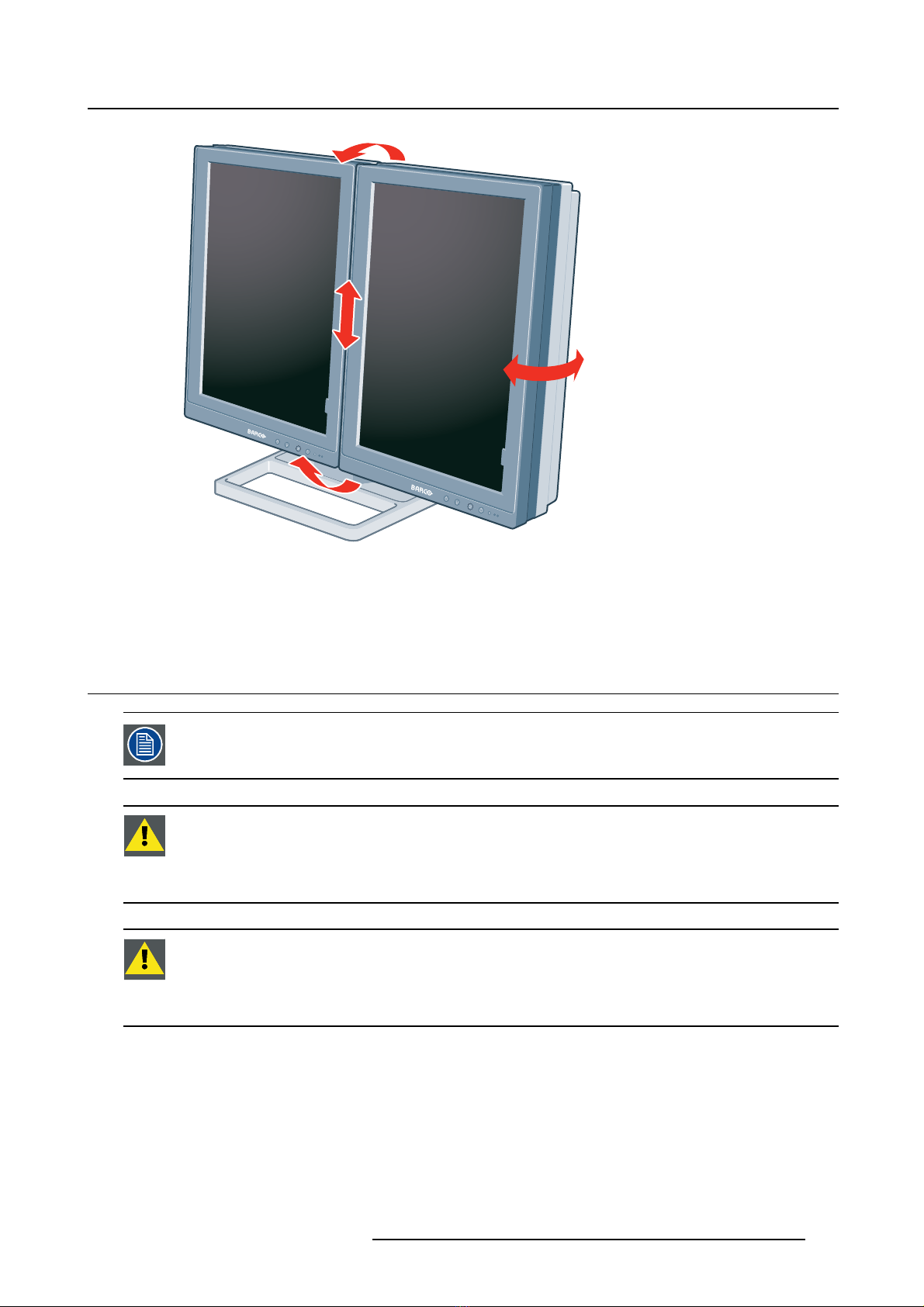

9. Now that the height-positioning is unlocked, you can adjust the position of the displays.
10 B4100592 CORONIS 5MP 05/08/2014

3. Display installation
Note: When both displays are not correctly aligned, minor corrections are possible in relative height
and relative angle, by loosening and tightening the opposite pairs of allen screws (opposite sides
or opposite diagonals) of the positioning sliders.
3.2 VESA-mount installation
The display mounting anchor is compatible with the VESA 100 mm standard.
WARNING:Never move a display attached to an arm by pulling or pushing the display
itself. Instead, make sure that the arm is equipped with a VESA approved handle and
use this to move the display.
Please refer to the instruction manual of the arm for more information and instructions.
WARNING:Use an arm that is approved by VESA (according to the VESA 100 mm stan-
dard).
Use an arm that can support the weight of the display. Refer to the technical specifica-
tions of this display for the applicable weight.
Overview
The display mounting anchor is compatible with the VESA 100 mm standard.

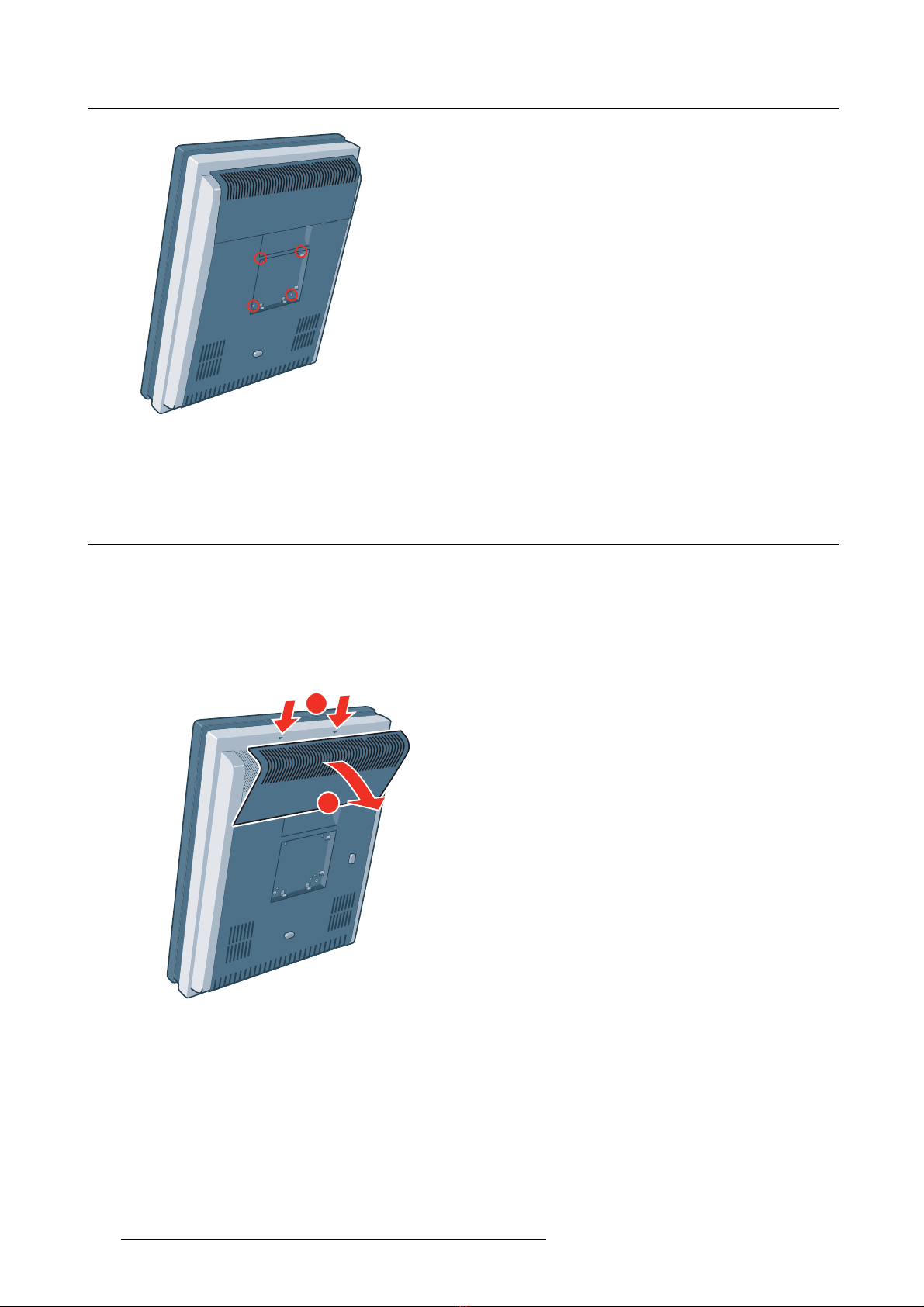

1. Unscrew the four fixation screws in the mounting anchor.
B4100592 CORONIS 5MP 05/08/2014 11

3. Display installation
2. Attach the display firmly to the VESA mounting bracket with 4 screws M4 x 10 mm. You should mount
the display in portrait position. Landscape position is not supported.
3.3 Removing the covers
Removal of the connector compartment cover
The connector compartment cover should be removed to get access to the connectors. To remove the
connector compartment cover, proceed as follows:
1. Gently push the two lips on top of the cover.
2. Pull the top of the cover slightly away from the display and lift the cover upwards.
1
2

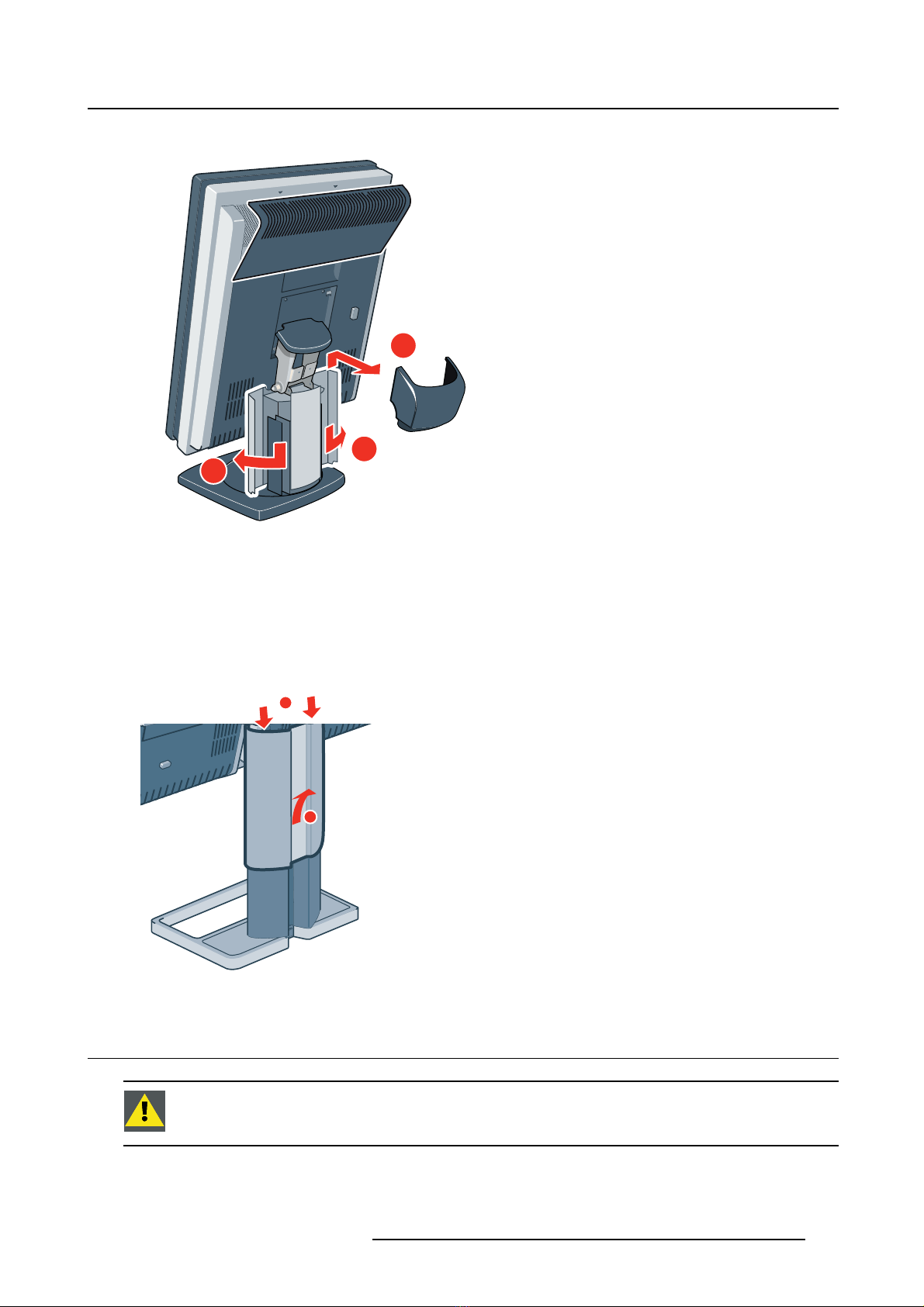

Removal of the cable covers of a single foot
To get access to the cable routing channel of a single foot, the cable covers should be removed. To remove
them, proceed as follows:
1. Remove the tilt & swivel neck cover (1). Therefore, first tilt the display panel in upright position. Then
lift and pull backward the neck cover.
2. Also to facilitate cable routing afterwards, open both cable duct covers (2).
12 B4100592 CORONIS 5MP 05/08/2014

3. Display installation
1
2
2
Removal of the cable cover of a dual foot
To get access to the cable routing channel of a dual foot, the display stand cable cover should be removed.
To remove this cover, proceed as follows:
1. Gently press and hold the lock clips at the inside of the top of the cover.
2. Slide the cover upwards on the shaft while holding the clips pressed.
It may be needed to tilt the displays if the arm is blocking the movement of the cover.
1
2
3.4 Connecting the signal cables
CAUTION:Only connect one of the two video links. Connecting both inputs simultane-
ously will result in driver errors.
B4100592 CORONIS 5MP 05/08/2014 13

3. Display installation

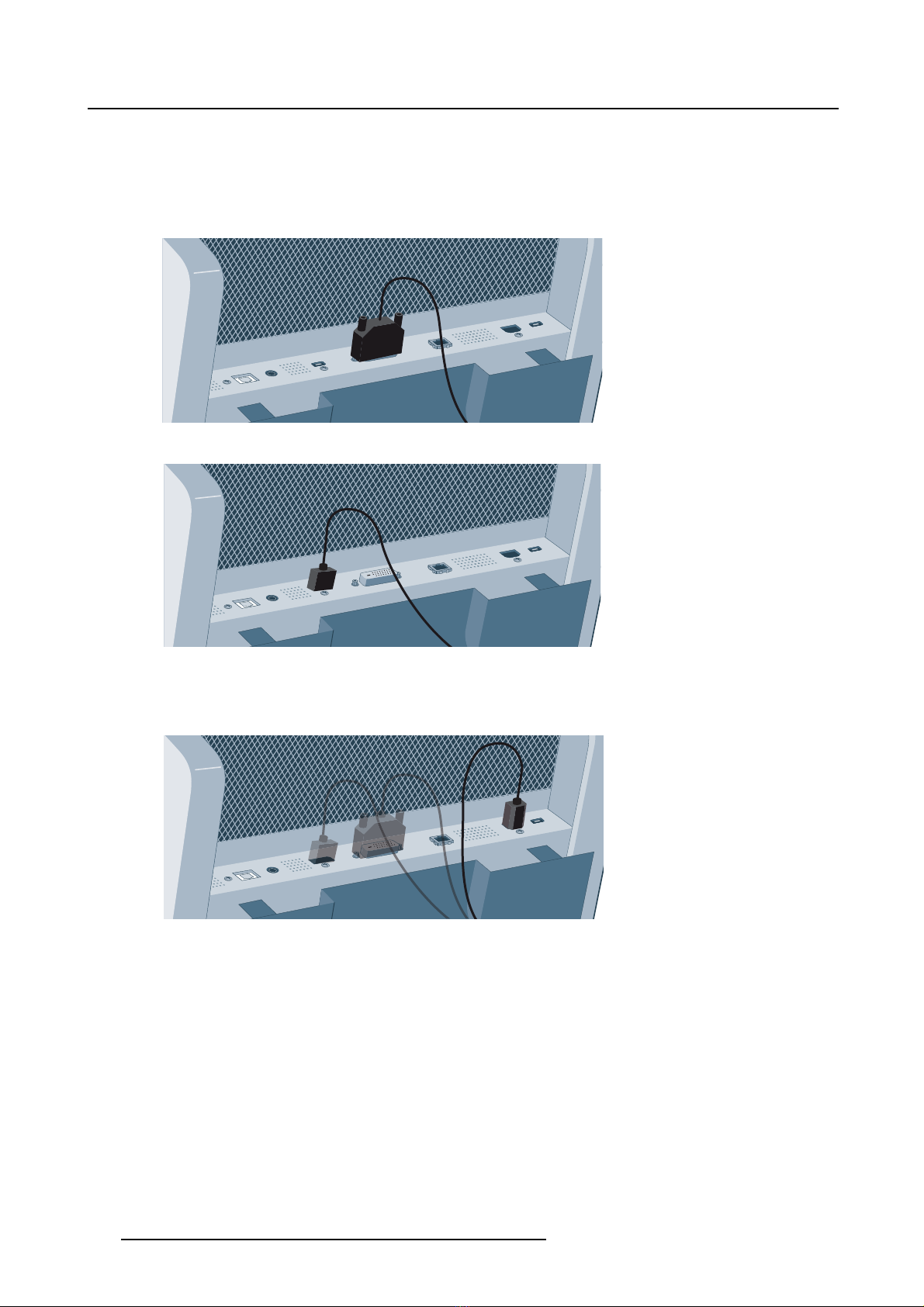

To connect the signal cables to the display:
You may connect the display to a display controller by using the DVI or the DP connection. The active
input can be selected in the OSD menu.
1. Connect the DVI or DP of the display controller to the DVI or DP connector of the display.
2. If you want to make use of the display’s USB downstream connectors, connect a PC USB downstream
connector to the display’s USB upstream connector.
3. If you have chosen to use the display’s USB downstream connectors, connect a USB device to one of
the downstream connectors.
4. Connect the supplied external DC power supply to the +24 VDC power input of the display.
14 B4100592 CORONIS 5MP 05/08/2014

3. Display installation
5. Plug the mains connector of the external DC power supply to a grounded power outlet by means of
the supplied power cable.
3.5 Routing the cables
To route the cables
1. Route the cables alongside the neck and in the cable ducts in the tilt & swivel foot.
2. Re-attach the connector compartment cover and neck cover. Close the cable duct covers. Push the
cable duct covers upwards to lock them.

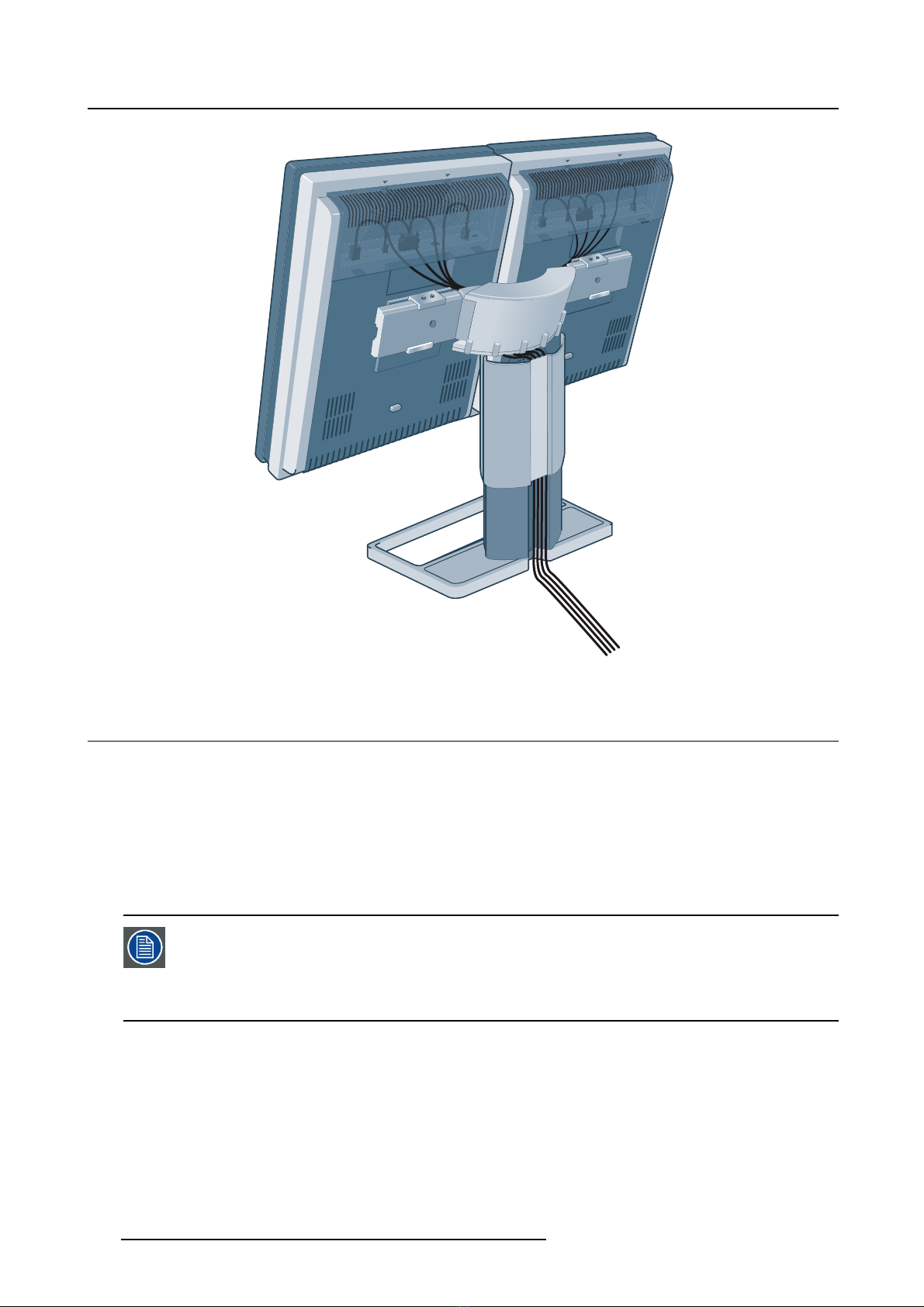

To route the cables on a dual foot
If the display is mounted on the system dual tilt & swivel foot, cables are best routed behind the arms and
through the cable channel in the foot shaft, as shown in the pictures below.
B4100592 CORONIS 5MP 05/08/2014 15

3. Display installation
3.6 First time starting up
Overview
You are now ready to start up your Coronis 5MP for the first time.
1. Switch on your Coronis 5MP as described in "Standby switching", page 18.
2. Turn on the computer connected to your display.
If you have properly installed your display and display controller, the Windows start-up messages will
appear once the boot procedure is finished.
Your Coronis 5MP will be running in a basic video mode at a default refresh rate when
first time starting up. If you are using a Barco display controller, please consult the user
guide delivered with it to install the drivers, software and documentation. When this
is done, your display will automatically detect the connected video input signal(s) and
apply the correct video mode and refresh rate.
16 B4100592 CORONIS 5MP 05/08/2014

4. Daily operation
4. DAILY OPERATION
4.1 Recommendations for daily operation
Optimize the lifetime of your display
Enabling the Display Power Management System (DPMS) of your display will optimize its diagnostic life-
time by automatically switching off the backlight when the display is not used for a specified period of time.
By default, DPMS is enabled on your display, but it also needs to be activated on your workstation. To do
this, go to “Power Options Properties” in the “Control Panel”.
Barco recommends setting DPMS activation after 20 minutes of non-usage.
Use a screen saver to avoid image retention
Prolonged operation of an LCD with the same content on the same screen area may result in a form of
image retention.
You can avoid or significantly reduce the occurrence of this phenomenon by using a screen saver. You
can activate a screen saver in the “Display properties” window of your workstation.
Barco recommends setting screen saver activation after 5 minutes of non-usage. A
good screen saver displays moving content.
In case you are working with the same image or an application with static image elements for several hours
continuously (so that the screen saver is not activated), change the image content regularly to avoid image
retention of the static elements.
Understand pixel technology
LCD displays use technology based on pixels. As a normal tolerance in the manufacturing of the LCD, a
limited number of these pixels may remain either dark or permanently lit, without affecting the diagnostic
performance of the product. To ensure optimal product quality, Barco applies strict selection criteria for its
LCD panels.
To learn more about LCD technology and missing pixels, consult the dedicated white
papers available at www.barco.com/healthcare.
Enhance user comfort
Every Barco multi-head display system is color matched with the highest specifications in the market.
Barco recommends keeping color-matched displays together. Furthermore, it is impor-
tant to use all displays of a multi-head configuration at the same rate to preserve color
matching throughout the economic lifetime of the system.
B4100592 CORONIS 5MP 05/08/2014 17

4. Daily operation
Maximize quality assurance
The ’MediCal QAWeb’ system offers online service for high-grade Quality Assurance, providing maximum
diagnostic confidence and uptime.
Barco recommends to install MediCal QAWeb Agent and apply the default QAWeb policy
at least. This policy includes calibration on regular intervals. Connecting to MediCal
QAWeb Server offers even more possibilities.
Learn more and sign up for the free MediCal QAWeb Essential level at
www.barco.com/healthcare/qa.
4.2 Key indicator lights
About the key indicator lights
By default, the indicator lights of the keys will be dimmed which makes the keys unavailable at that mo-
ment. To make the keys illuminate and available for further actions touch one of the keys. As a result, all
keys will be illuminated and are now available for further actions. However, if no further actions are taken
within the following 5 seconds, the keys will dim again.
The key auto-dim function can be disabled in the OSD menus. Please refer to "Key in-
dicator lights", page 22 for detailed instructions on how to do this.
4.3 Standby switching
About standby switching
The connected power supply also provides a switch that can be used to turn the power
completely off. To use the display, please make sure to switch on this power supply.
This can be done by pushing the on/off switch on the power supply into the “│” position.
Switching on the display while it is in standby mode or vice versa can be done by:
1. Illuminate the keys as previously described.
2. While the keys are illuminated, touch the standby key for approximately 2 seconds.
As a result, the display will switch on or will switch to standby mode. When the display is switched on,
the power LED is blue. When the display is in standby mode,thepowerLEDisorange.
The power LED can be disabled in the OSD menus. Please refer to "Power status indi-
cator light", page 22 for detailed instructions on how to do this.
18 B4100592 CORONIS 5MP 05/08/2014
