OVL-815 and OVL-808
80“ DLP™ LED-lit projection module
With the LED-lit OVL-815 and OVL-808 systems, Barco extends its successful LED-
based series of video walls. Enabled by the advanced cooling system Barco could lift
the LED illumination to a new level of brightness. The extreme brightness allows for
a complete range of seamless rear-projection video walls with a LED-based
illumination unit, that is truly ready for 24/7 use offering an ergonomically excellent
viewing experience, with bright, saturated colors in XGA (1024x768) and SXGA+
(1400x1050) resolution.
The OVL video walls have been designed for an entirely maintenance-free operation
over several years, without any need for consumables. Barco’s OVL video walls come
with Sense6, a unique sensor technology that provides brightness and color stability
over time and across the entire display. Sense6continuously measures brightness
and color and adjusts the color space to provide an image that is most convenient
for the human eye. This means that no maintenance or manual adjustments are
needed.
Thanks to the modular design of the OVL-projection engine the OVL-projector can
also be used to upgrade existing Barco rear-projection modules of the OverView D
series.
Excellent viewing ergonomics
•High brightness
at wide LED color gamut
•Razor sharp image
•No color break up
Maintenance-free
•Up to 80,000 h LED lifetime
•5 years service free runtime
•No color wheel needed
Green focus
•No wearing parts, no waste
•No mercury lamp
OVL_808_815_bro_- 15/03/11 08:03 Pagina 1

www.barc .c m/c ntr lr ms

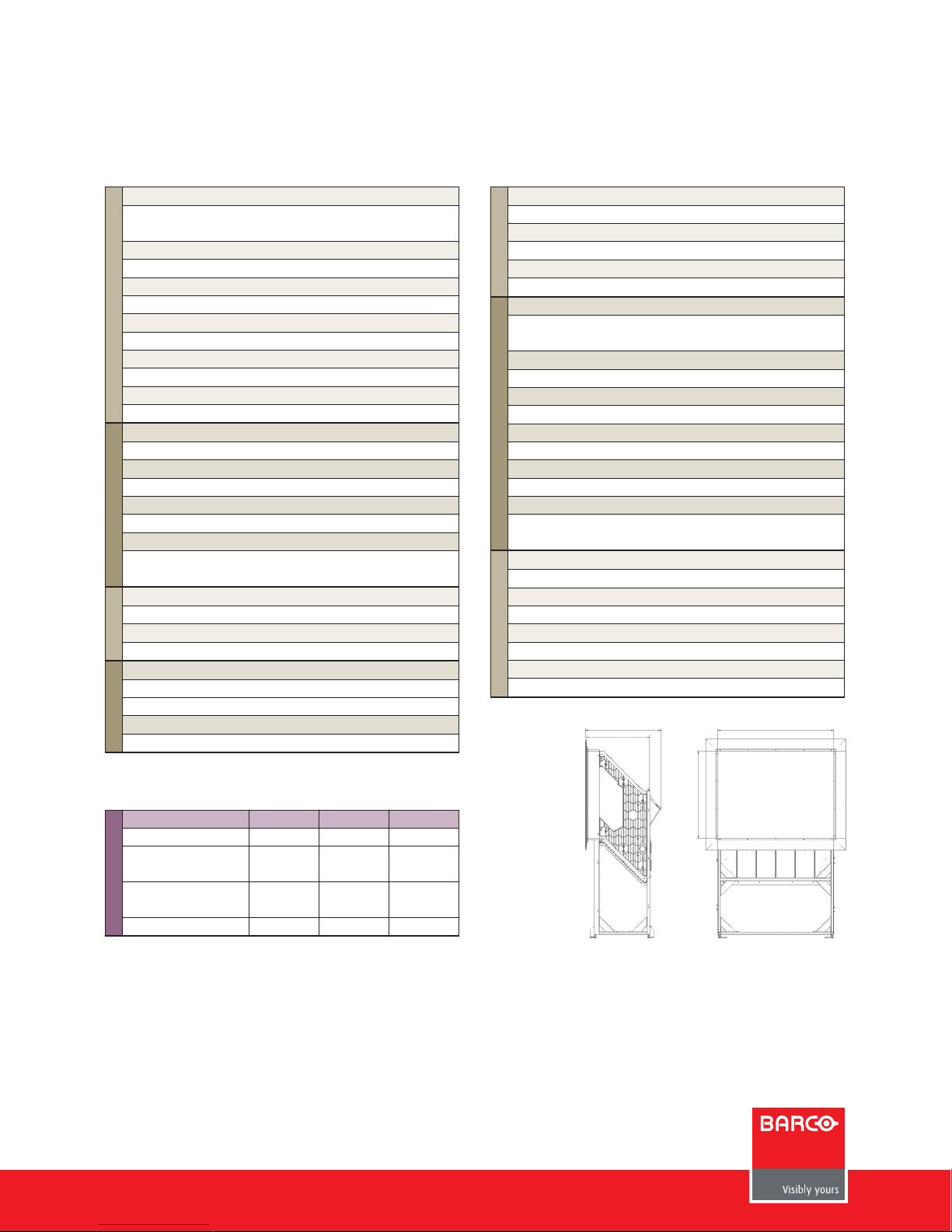

Technical speci ications o OVL-815 and OVL-808
M00401-R02-0311-DS March 2011
Barco is an ISO 9001 registered company.
The information and data given are typical for the equipment descri ed. However any individual item is su ject to change without any notice.
The latest version of this product sheet can e found on www. arco.com. The product is su ject to warranty of 2 years. Warranty for image
retention is su ject to certain conditions of use.
Display capabilities
Resolution
OVL-815 SXGA+, 1400x1050, native
OVL-808 XGA, 1024x768
Brightness
Lumineous flux typ 750 lumens(1)
Dynamic contrast
1,200,000 :1
Color
Up to 165% EBU
White Point
3200k, 6500k and 9300k
Uni ormity
Typ 95% ANSI 13
Screen
Screen
BB, FXS, High Gain
Screen gap
< 0.2mm stitched, < 2mm modular
Color stability
Self calibrating with spectrometer based Sense6
Dimensions (WxHx(D1)D2)
1,600 x 1,200 x (862,5) 1,023 mm
63.0 x 47.2 x (34.0) 40.3”
LED
Light source
3x six fold redundant LED block
LED li etime
> 60,000 h, > 80,000 h (eco)
Operati n
Recommended maintenance interval
> 5 years
No burn-in, no image retention
Conditions or Operation
10°C-40°C, 50°F-104°F, 80% humidity (nc)
(1) high rightness mode, (Z) availa le on request
Barco nv
Pres. Kennedypark 35, B-8500 Kortrijk
Europe, Middle-East, Africa: [phone]
USA: [phone]
Latin America: [phone]
Japan: [phone]
China: [phone]
Or mail to sales.controlrooms@ arco.com
Screens
Type BB FXS High gain(2)
Half gain angle H/V 35° | 35° 34° | 33° 35° | 10°
Luminance in high 105 Cd/m² 210 Cd/m² 520 Cd/m²
brightness mode
Luminance in EBU/ 90 Cd/m² 185 Cd/m² 455 Cd/m²
REC 709 mode
Luminance in ECO mode 65 Cd/m² 130 Cd/m² 315 Cd/m²
P wer
AC input voltage
90 – 240 V, 50-60Hz
Power (typical, maximum, eco mode)
230 W, 350 W, 170 W
Heat dissipation (typical, maximum, eco mode)
785 BTU/h, 1,195 BTU/h, 580 BTU/h
Signal
Signal input/output
2x Dual link DVI in
2x Dual link DVI out
Pixel Clock
320 Hz
Input Frequency
24 – 62 Hz
Genlock
49 – 61 Hz
Minimum rame delay
1 frame
Signal processing
Loop through up to 10 cubes
Free cropping, free scaling
C mmunicati ns
Direct ethernet access
Build in web server
Graphical user inter ace
All settings and operational parameters
Integration o third party equipment
Web based API
Warranty
Two years
W
H
D2
D1
