Thank you for purchasing a Baridi product from the Dellonda range. Manufactured to a high standard,
this product will, if used according to these instructions, and properly maintained, give you years of
trouble free performance.
DH77 Issue 1 26/05/2021

2
Important Information
Please read these instructions carefully and note any safe operational requirements, warnings &
cautions. Use the product correctly and with care for the purpose for which it is intended. Failure
to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.
• ELECTRICAL SAFETY
• WARNING! It is the user’s responsibility to
check the following:
• Check all electrical equipment and appliances
to ensure that they are safe before using.
Inspect power supply leads, plugs and all
electrical connections for wear and damage.
Dellonda recommend that an RCD (Residual
Current Device) is used with all electrical
products. You may obtain an RCD by
contacting your local domestic stockist.
If the product is used in the course of
business duties, it must be maintained in a
safe condition and routinely PAT (Portable
Appliance Test) tested.
• Electrical safety information: It is important
that the following information is read and
understood.
• Ensure that the insulation on all cables and on
the appliance is safe before connecting it
to the power supply.
• Regularly inspect power supply cables and
plugs for wear or damage and check all
connections to ensure that they are secure.
• Important: Ensure that the voltage rating on
the appliance suits the power supply to be
used and that the plug is tted with the correct
fuse - see fuse rating in these instructions.
• DO NOT pull or carry the appliance by the
power cable.
• DO NOT pull the plug from the socket by the
cable.
• DO NOT use worn or damaged cables, plugs or
connectors.
• Ensure that any faulty item is repaired or
replaced immediately by a qualied electrician.
•
This product is tted with a BS1363/A 13 Amp
• 3 pin plug. If the cable or plug is damaged
during use, switch off the electricity supply
and remove from use. Ensure that repairs are
carried out by a qualied electrician.
• Replace a damaged plug with a BS1363/A 13
amp 3 pin plug. If in doubt contact a qualied
electrician.
A) Connect the GREEN/YELLOW
earth wire to the earth terminal ‘E’.
B) Connect the BROWN live wire to the
live terminal ‘L’.
C) Connect the BLUE neutral wire to
the neutral terminal ‘N’.
• Ensure that the cable outer sheath extends
inside the cable restraint and that the restraint
is tight.
• Dellonda recommend that repairs are carried
out by a qualied electrician.
• GENERAL SAFETY
• DO NOT store explosive substances such as
aerosol cans with a ammable propellant in
this appliance.
• WARNING: Ensure the supply cord is not
trapped or damaged.
Replacement fuse rating:
13A
Refer to
instructions
Indoor use
only

3
• WARNING: DO NOT locate multiple portable
socket-outlets or portable power supplies at
the rear of the appliance.
• This appliance is intended to be used in
household and similar applications such as
staff kitchen areas in shops, ofces and other
working environments; holiday homes, hotels
and other residential settings; and catering
and similar non-retail applications.
• This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of knowledge and
experience if they have been given supervision
or instruction concerning the use of the
appliance in a safe way and understand the
hazards involved. Children shall not play with
the appliance. Cleaning and user maintenance
shall not be made by children without
supervision.
• INTRODUCTION
• Add style to your kitchen with this 15cm slim
built-under wine cooler! Fits under standard
height worktops with a door at a perfect height
to sit above standard height kick panels.
Digital temperature control between 5-20°C
allowing you to chill up to 7 bottles of wine to
the perfect temperature for you. Reversible
door and adjustable feet. Stylish stainless
steel door, door handle and internal LED light.
Super quiet compressor cooling with a noise
level of just 41dB.
• SPECIFICATION
• Model no: ...................................... DH76
• Capacity: ........................................ 7 bottle
• Max. bottle height: ........................ 330mm
• Volume: ................................................. 20L
• Temperature range: ......................... 5-20°C
• Power rating: ....................................... 55W
• Voltage: .............................................. 230V
• Frequency: .......................................... 50Hz
• Rated current: ....................................... 0.8A
• Energy: consumption: ....... 92KWh/annum
• Energy: efciency class: ........................... G
• Noise level: ......................................... 41dB
• Dimensions: ................150 x 520 x 870mm
• Refrigerant ............................... R600a (12g)
• Gas: ....................................... Cyclopentane
• Cable length .........................................1.5m
•
• DESCRIPTION
• DOOR HANDLE ASSEMBLY
• The door handle is supplied unattached and
will require assembling onto the door.
• 1) Gently pull the door seal away from the door
behind the location of the handle screw holes.
• 2) Line up the handle on the face of the door
• 3) Pass the screws through the door and
screw them into the handle.
• 4) Tighten the screws and carefully push the
seal fully back into the door channel.

4
• INSTALLATION
• The unit is designed to be free-standing.
Ventilation Space - a minimum space of 50mm
is required for the rear of the fridge and 30mm
for the top and both sides. This will maximise
the efciency, performance and the life of the
fridge and also ensure that there is sufcient
space for the hinge to operate effectively.
• Locate the unit away from direct sunlight or
sources of heat i.e. radiator, stove etc. Extreme
or cold ambient temperatures may also
prevent the unit working effectively.
• DO NOT locate the unit in a damp location.
• Ensure that the oor surface is strong and
stable enough to support the unit when it is
fully loaded.
• Level the unit when in location by using the
adjustable levelling feet in each corner.
• Once in position allow the unit to rest for an
hour before turning it on.
•

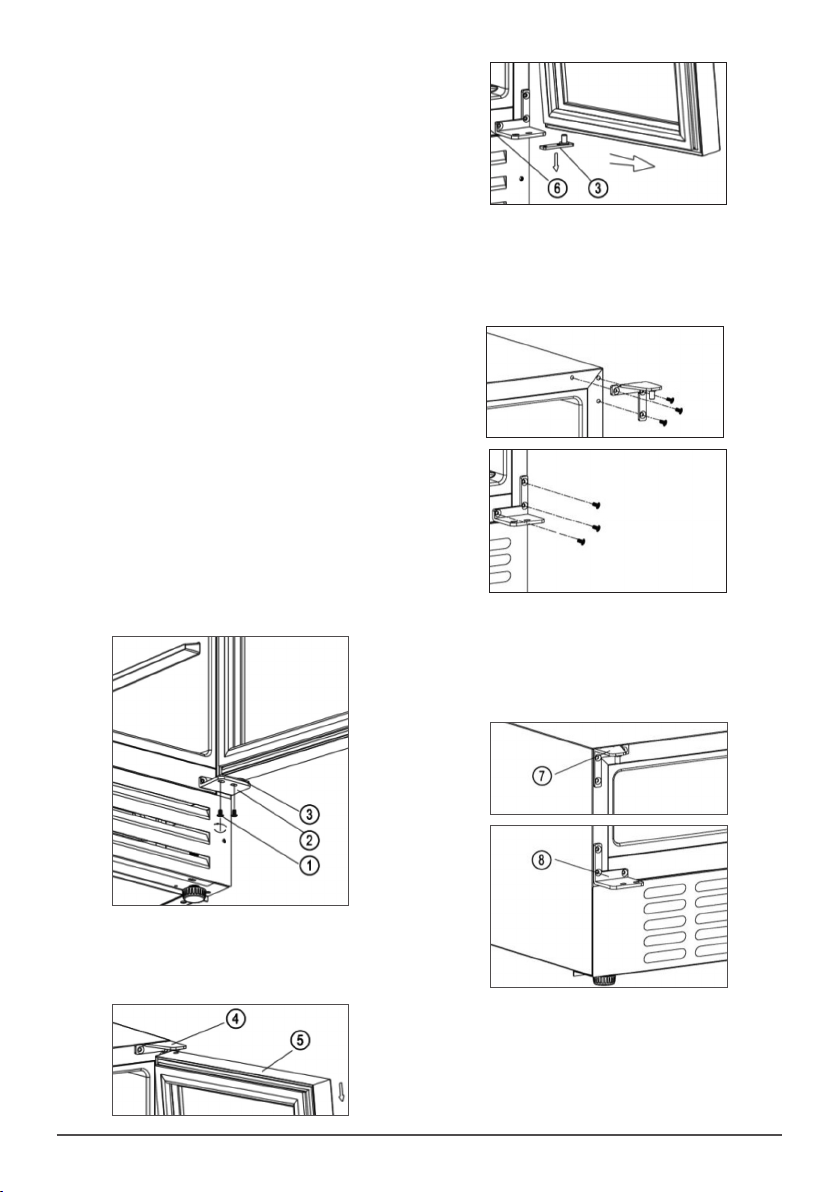

• REVERSING THE DOOR HINGE
• Your chiller is supplied hinged on the right as
you view it, if you want to reverse the door
follow the sequence below.
1)
• Open the door to 90° and hold it steady.
Unscrew the lower hinge screws (1+2) from
the pivot bracket (3).
2)
• Pull the base of the door away (arrow) until it
clears the bottom hinge (3) and drop the door
slightly to release from the top hinge plate (4).
Lift the door away from fridge unit.
3)
• Unscrew the top and bottom hinge mounting
plates from the face of the chiller (retain these
should you need to change the hinge back at a
later date).
4)
• Take the new (Left hand) hinge mounting
brackets and screw them to the left side upper
and lower mounting locations as shown (7+8)
as supplied with the unit.
•

5
• Rotate the chiller door through 180°, lift the
door with the hinge pin into the top hinge
bracket.
• Slide the lower hinge pin into the door and
carefully lift the base of the door onto the
lower mounting bracket lining up the xing
holes as you go.
• Screw the two lower hinge xing screws in
place.
• The door will now hinge from the opposite
side.
• OPERATION
• Starting Operation, Before you turn on your
chiller ensure the cabinet has been cleaned.
• Allow the installed chiller to stand for at least
30 minutes prior to use.
• Check around the unit for damage.
• Ensure the unit is level, all feet adjusted
correctly and taking the weight evenly.
• When powered up the chiller should chill within
1 hour, if not check the power supply.

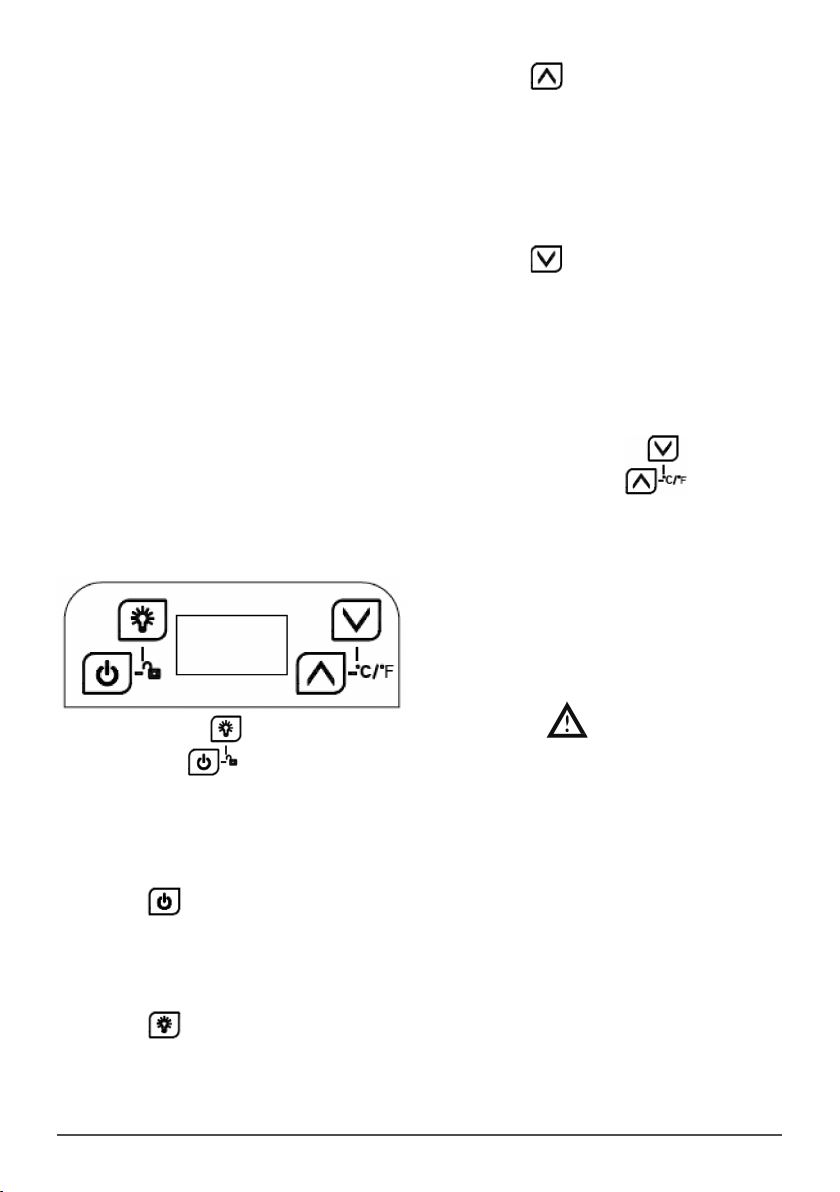

• Control Panel
• Lock/Unlock
• The unit will be in lock mode when turned on.
• Press and hold the On/Off and Light buttons
simultaneously for 3 seconds to unlock.
• Repeat this if you want to engage the child
lock mode.
• On/Off
• Press and hold for 3 seconds to release from
stand by mode
• Press and hold for 3 seconds to go into stand
by mode.
• Light
• Press the light switch to turn the lights in the
chiller on or off (this function does not work in
stand by mode).
• Up
• Press the Up key once and the display will
show the current SET temperature
• Keep pressing to increase the current SET
temperature. (1 press = 1°C increase).
• The new SET temperature will ash for
5 seconds and then return the current
temperature in the chiller.
• Down
• Press the Up key once and the display will
show the current SET temperature
• Keep pressing to decrease the current SET
temperature. (1 press = 1°C decrease).
• The new SET temperature will ash for
5 seconds and then return the current
temperature in the chiller.
• Temperature display
• Switch from Celsius to Fahrenheit by pressing
and holding down the Up and Down arrows
simultaneously for 3 seconds.
• Suggested settings
• Red Wine ...............15-18°C
• White wine .............. 9-14°C
• Rose wine ............. 10-11°C
• Champagne .............. 5-8°C
• Attention
• The default factory setting for the chiller is
12° C.
• The chiller temperature can be set between
5-20°C.
• If a malfunction occurs an audible alarm will
sound, press any key on the keypad to turn the
alarm off.
• If the temperature sensor fails the error code
E1 will show on the display for an open circuit
and E2 will show for a short circuit.
• Try to use the shelf in front of the fan last to
help with airow.
• MAINTENANCE
• Remove the power plug from the supply when
performing cleaning or maintenance.
• DO NOT use abrasive or chemical cleaning
materials on any surface of the unit.

Dellonda Limited, Sole UK Distributor of Baridi
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757575 [email protected] www.dellonda.co.uk
Troubleshooting
Environment Protection, Waste Electrical and Waste
Electronic Equipment Regulations (WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or has
reached the end of its useful life, please dispose of in an environmentally friendly way.
Drain any uids (if applicable) into approved containers, in accordance with local waste
regulations. It is our policy to continually improve products and we reserve the right to alter
data, specications and parts without prior notice. No liability is accepted for incorrect use
of this product. Guarantee is 12 months from purchase date, proof of which is required for
any claim.
Symptom Solution
Unit does not operate. Not plugged in.
Fuse/circuit breaker failure.
Turns on and off frequently.
Poor cooling.
Room temperature higher than normal.
Door opened too often.
Door not properly closed.
Temperature control incorrectly set.
Door gasket not sealing.
Not enough space around unit.
Vibrations Check to assure unit is level.
Ensure the unit is correctly spaced on all sides.
Noisy unit Contraction/expansion of panels.
Unit not level or feet need adjusting.
Check fan operation.
Check heat pump.
Door will not close properly Unit not level.
Door gasket distorted.
Internals out of position.
• Wipe interior and exterior surfaces with a
damp cloth and dry thoroughly with a clean
dry cloth.
• For more soiled surfaces use a neutral
detergent, wipe down with a clean damp cloth
and dry thoroughly with a clean dry cloth.
• It is recommended that the appliance be
turned off if not being used.
