Bartec LUMEN X4 User manual

4,3" Industry Mobile Computer Type B7-A2P4-..../........
Lumen X4 User Manual
ATEX / IECEx Zone 2 and 22 CSA Class I Division 2

BARTEC GmbH
Contact:
Max-Eyth-Straße 16
Phone: [phone]
[e-mail]
97980 Bad Mergentheim
Fax: [phone]
Download:
Germany
www.bartec.de/automation-download
User Manual - Translation
4.3" Industry Mobile Computer - Lumen X4
Type B7-A2P4-…./……..
ATEX / IECEx Zone 2 / 22
CSA Class I Division 2
Document No.: B1-A2P4-7D0001 /391871
Revision 0 / Status: 23 March 2016
Proviso:Subject to technical changes. Changes, mistakes and printing errors do
not substantiate any claim to damages.
Content Page
English 1-70

Table of Content 4.3" Industry Mobile Computer - Lumen X4
Type B7-A2P4-.…/……..
Subject to technical changes.
03/2016
1. Basic safety information.............................................................................................................................................................1
1.1 Information on this User Manual........................................................................................................................1
1.1.1 Languages .........................................................................................................................................................2
1.1.2 Changes in the document..................................................................................................................................2
1.1.3 Registered trademarks.......................................................................................................................................2
1.2Handling the product..........................................................................................................................................2
1.3 Intended use ......................................................................................................................................................2
1.3.1 Exclusive purpose..............................................................................................................................................2
1.3.2 Unintended use..................................................................................................................................................3
1.4 Duties of the operator ........................................................................................................................................3
1.5 General safety information.................................................................................................................................3
1.6 Maintenance ......................................................................................................................................................3
1.6.1 Servicing ............................................................................................................................................................3
1.6.2 Inspection...........................................................................................................................................................4
1.6.3 Repairs...............................................................................................................................................................4
1.6.4 Commissioning ..................................................................................................................................................4
1.7 Labelling, test certificate and standards ............................................................................................................4
1.8 Warranty.............................................................................................................................................................4
1.9 Co-applicable documents - set of documents....................................................................................................5
1.10 Definition of terms..............................................................................................................................................6
1.11 Configuration......................................................................................................................................................6
2. Product description.....................................................................................................................................................................7
2.1 Lumen X4...........................................................................................................................................................7
2.2 Structure ............................................................................................................................................................7
2.3 Purpose of use...................................................................................................................................................9
3. Technical data............................................................................................................................................................................10
3.1 Explosion protection NI....................................................................................................................................10
3.2 Applicable standards........................................................................................................................................11
3.3 Features...........................................................................................................................................................12
3.3.1 Performance features ......................................................................................................................................12
3.3.2 Physical features..............................................................................................................................................13
3.3.3 User environment.............................................................................................................................................13
3.3.4 Voice and data transmission Wi-Fi (Wireless LAN).........................................................................................14
3.3.5 Voice and data transmission Wireless WAN ...................................................................................................14
3.3.6 Voice and data transmission Bluetooth ...........................................................................................................14
3.3.7 Camera ............................................................................................................................................................14
3.3.8 Barcode scan options ......................................................................................................................................15
3.3.9 Decodable barcode type options .....................................................................................................................15
3.3.10 Decode range ..................................................................................................................................................16
3.3.11 RFID.................................................................................................................................................................16
3.4 Battery..............................................................................................................................................................17
3.5 External interfaces ...........................................................................................................................................18
3.6 Product labelling ..............................................................................................................................................18
3.7 Laser labels......................................................................................................................................................20
4. Transport and storage...............................................................................................................................................................21
4.1 Transport..........................................................................................................................................................21
4.2 Storage.............................................................................................................................................................21
5. Commissioning..........................................................................................................................................................................22
5.1 Scope of delivery .............................................................................................................................................22
5.1.1 Optional accessories........................................................................................................................................22
5.2 Requirements in potentially explosive atmosphere .........................................................................................23
5.3 Handling accessories.......................................................................................................................................24
5.4 First steps ........................................................................................................................................................24
5.4.1 Insert SIM card and Micro SD card..................................................................................................................25
5.4.2 Insert battery ....................................................................................................................................................26
5.4.3 Charge battery .................................................................................................................................................26
5.4.4 Turning On and Off the Lumen X4 Industry Mobile Computer ........................................................................27
5.4.5 Resetting the Lumen X4 to factory defaults.....................................................................................................28
5.4.6 Remove/replace screen protector....................................................................................................................29
5.5 RFID HF / NFC ................................................................................................................................................29

4.3" Industry Mobile Computer - Lumen X4
Type B7-A2P4-.…/…….. Table of Content
Subject to technical changes.
03/2016
6. Operation....................................................................................................................................................................................30
6.1 Final inspection................................................................................................................................................30
6.2 Care and cleaning............................................................................................................................................30
6.2.1 Care .................................................................................................................................................................30
6.2.2 Cleaning...........................................................................................................................................................30
6.2.3 Suitable materials for cleaning.........................................................................................................................31
6.3 Operation, recommendations and requirements .............................................................................................32
6.3.1 Basic safety and health protection requirements.............................................................................................32
6.3.2 Information on the use of wireless devices......................................................................................................34
6.3.3 Equipment of the laser devices........................................................................................................................35
6.3.4 LED devices.....................................................................................................................................................35
6.3.5 Restrictions in the case of wireless devices ....................................................................................................35
6.4 Operating frequency - FCC and IC ..................................................................................................................36
6.5 Electromagnetic fields......................................................................................................................................38
6.6 Use the Android 4.2 Operating System ...........................................................................................................39
6.6.1 Wake up the phone..........................................................................................................................................39
6.6.2 Use the touch screen.......................................................................................................................................39
6.6.3 Use the Home screen ......................................................................................................................................40
6.6.4 Personalize the home screen ..........................................................................................................................40
6.6.5 Use the On-Screen Keyboard..........................................................................................................................44
6.6.6 Edit text ............................................................................................................................................................45
6.6.7 Set the display .................................................................................................................................................46
6.6.8 Set the audio profile.........................................................................................................................................46
6.6.9 Adjust volume ..................................................................................................................................................46
6.6.10 Set language and keyboard.............................................................................................................................47
6.6.11 USB debugging setting ....................................................................................................................................48
6.6.12 Use the phone..................................................................................................................................................48
6.6.13 Messaging........................................................................................................................................................49
6.6.14 About the phone...............................................................................................................................................50
6.6.15 Screenshot capture..........................................................................................................................................50
6.7 Connection to mobile networks and devices ...................................................................................................50
6.7.1 Check the network (GPRS/3G) connection .....................................................................................................50
6.7.2 Turn on the data service..................................................................................................................................51
6.7.3 Connect to Wi-Fi networks...............................................................................................................................51
6.8 Connection to Bluetooth devices .....................................................................................................................52
6.8.1 Turn Bluetooth on or off ...................................................................................................................................52
6.8.2 Connect / disconnect to Bluetooth devices......................................................................................................52
6.9 Connection / disconnection via USB................................................................................................................53
6.10 Use the camera................................................................................................................................................55
6.10.1 Open the camera .............................................................................................................................................55
6.10.2 Take a picture ..................................................................................................................................................55
6.10.3 Record a video.................................................................................................................................................56
6.10.4 Open the galery ...............................................................................................................................................56
6.11 Use RFID NFC/HF ...........................................................................................................................................56
6.11.1 Enable RFID HF/NFC ......................................................................................................................................56
6.11.2 Daten mit Punkt zu Punkt (P2P) Verbindung übertragen ................................................................................57
6.11.3 Use Read / Write Function...............................................................................................................................58
6.12 1D/2D Imager...................................................................................................................................................59
6.12.1 General information .........................................................................................................................................59
6.12.2 WDC – Data Capture Tool...............................................................................................................................59
7. Faults and Troubleshouting .....................................................................................................................................................66
7.1 Troubleshooting ...............................................................................................................................................66
8. Service, Inspection, Repair.......................................................................................................................................................67
8.1 Service intervalls..............................................................................................................................................67
8.2 Inspection.........................................................................................................................................................67
8.3 Service and repair work ...................................................................................................................................67
8.3.1 Information on sending in for repairs ...............................................................................................................67
9. Disposal......................................................................................................................................................................................68
10. Forwarding and packaging information..................................................................................................................................68
11. Accessories................................................................................................................................................................................69
12. Additional Information ..............................................................................................................................................................70
12.1 Links.................................................................................................................................................................70

- empty -

4.3" Industry Mobile Computer - Lumen X4
Type B7-A2P4-.…/…….. Basic Safety Information
Subject to technical changes.
03/2016 EN 1/70
1. Basic safety information
1.1 Information on this User Manual
Read carefully before putting the devices into operation.
The User Manual is a fixed part of the product. It must be kept in the direct vicinity of the
device
and the installation, operating and service staff must have access to it at all
times.
The User Manual contains important information, safety instructions and test certificates
which are necessary for the perfect function of the device in operation.
The Us
er Manual is directed at all individuals concerned with the commissioning,
handling and servicing of the product. The applicable guidelines and standards for areas
with gas and dust atmosphere (99/92/EG, EN/IEC 60079-17 and EN/IEC 60079-19)
must be observed when conducting this work.
Knowledge of the safety and warning information in this User Manual and the strict
compliance with it is essential for safe installation and commissioning. Accidents, injuries
and material damage can be avoided by circumspect h
andling and systematically
following the instructions.
The examples, tables, and figures provided in this User Manual are for illustration
purposes. Due to the different requirements of the respective application, the BARTEC
company cannot assume responsib
ility or liability for actual use based on the examples
and figures.
The BARTEC company reserves the right to carry out technical changes at any time.
In no event will BARTEC company be responsible or liable for indirect or consequential
damages resulting from the use or application of this User Manual.
Safety and warning information is particularly emphasized in this User Manual and
marked by symbols.
DANGER
DANGER
describes a directly imminent danger. If not avoided, death or severe injury
will be the consequence.
WARNING
WARNING
describes a possibly imminent danger. If not avoided, death or severe
injury may be the consequence.
CAUTION
CAUTION
describes a possibly imminent danger. If not avoided, mild or slight injury
may be the consequence.
ATTENTION
ATTENTION describes a possibly damaging situation. If not avoided, the plant or
objects in its vicinity may be damaged.
Important information on effective, economical & environmentally compliant handling.

Basic Safety Information 4.3" Industry Mobile Computer - Lumen X4
Type B7-A2P4-.…/……..
EN 2/70 Subject to technical changes.
03/2016
1.1.1 Languages
The original User Manual with safety information is written in German. All other available
languages are translations of the original User Manual.
The User Manual is available in German and English. If further languages are required,
these must be requested from BARTEC or stated on placing an order.
1.1.2 Changes in the document
BARTEC reserves the right to change the content of this document without notification.
No warranty is assumed for the correctness of the information. In cases of doubt, the
German safety instructions apply because it is not possible to rule out errors of translation
or printing. In the case of legal disputes, the “General Terms and Conditions of Business”
of the BARTEC Group also apply.
The current versions of the datasheets, operating instructions, certificates and EC
declarations of conformity can be downloaded from www.bartec.de under Products in the
product area “Automation & Enterprise Mobility” or may be requested directly from
BARTEC GmbH.
1.1.3 Registered trademarks
ARM® is a registered trademark of ARM Limited
Android is a registered trademark of Google Inc.
Bluetooth® is a registered trademark of Bluetooth Special Interest Group
Winmate is a registered trademark of Winmate Communication, Inc.
1.2 Handling the product
The product described in this User Manual left the factory in a perfect and tested state in
terms of safety. To maintain this state and to achieve a perfect and safe operation of this
product, it may only be operated in the manner described by the manufacturer. In
addition, the perfect and safe operation of this product requires correct transportation,
proper storage and careful operation.
The safe and perfect handling of the Industry Mobile Computer is a prerequisite for its
perfect and correct functioning.
1.3 Intended use
1.3.1 Exclusive purpose
The Industry Mobile Computer series is a handheld piece of electrical equipment. It
serves the purpose of the mobile recording, processing and/or radio transmission of data
within potentially explosive atmospheres.
It is used exclusively in combination with devices which comply with the requirements
placed on the overvoltage category I.
The admissible operating data of the device used must be considered.

4.3" Industry Mobile Computer - Lumen X4
Type B7-A2P4-.…/…….. Basic Safety Information
Subject to technical changes.
03/2016 EN 3/70
1.3.2 Unintended use
Any other use is unintended and may lead to damage and accidents. The manufacturer
shall not be liable for any use extending beyond the exclusive purpose.
1.4 Duties of the operator
The operator undertakes to only permit persons to work with the Industry Mobile
Computer who:
are acquainted with the basic regulations on safety and accident prevention, and who
have been inducted in the use of the Industry Mobile Computer,
have read and understood the documentation, the safety chapter and the warnings.
The operator checks that the safety and accident prevention regulations applicable to the
respective case of use have been observed.
1.5 General safety information
Do not dry wipe or clean devices in potentially explosive atmospheres!
Do not open devices in potentially explosive atmospheres.
Do not replace or charge battery in potentially explosive atmospheres.
General statutory provisions or guidelines on occupational health and safety,
accident prevention provisions and environmental protection laws must be heeded,
e.g. Operational Safety Ordinance (BetrSichV) and nationally applicable ordinances.
Use suitable clothing and shoes with respect to the danger of hazardous electrostatic
charges.
Avoid heat influences outside the specified temperature range.
Protect device from external influences! Do not expose device to caustic/aggressive
liquids, vapours or spray. In the case of malfunction or damaged enclosure, remove
the device immediately from the potentially explosive atmosphere and bring it to a
safe place.
1.6 Maintenance
The pertinent erection and operating provisions for electrical systems must be observed!
(E.g. Directive 99/92/EC, Directive 94/9/EC, BetrSichV and nationally applicable
ordinances EN 60079-14 and the series DIN VDE 0100)!
Observe the national waste disposal regulations when disposing of the devices.
1.6.1 Servicing
No constant servicing will be necessary if operated correctly under consideration of the
assembly instructions and environmental conditions. See Chapter “Service, inspection,
repair” in this respect.

Basic Safety Information 4.3" Industry Mobile Computer - Lumen X4
Type B7-A2P4-.…/……..
EN 4/70 Subject to technical changes.
03/2016
1.6.2 Inspection
According to EN/IEC 60079-17 and EN/IEC 60079-19, the operator of electrical systems
in potentially explosive atmospheres is obliged to have these inspected by an electrician
to ensure correct condition.
1.6.3 Repairs
Repairs to explosion-protected devices may only be performed by authorised personnel
with original spare parts and according to the state of the art. The applicable provisions
must be observed in this respect.
1.6.4 Commissioning
It must be checked that all components and documents are available before
commissioning.
1.7 Labelling, test certificate and standards
Labels on explosion protection and the test certificate are attached to the Industry Mobile
Computer. See Chapter 3 “Technical data” with respect to labelling.
The guidelines and standards applicable to the Industry Mobile Computer for devices and
protected systems for intended use in potentially explosive atmospheres are provided in
Chapter 3 “Technical data”.
1.8 Warranty
WARNING
No changes or retrofits may be made without the written consent of the
manufacturer.
If non-
specified components are used, the explosion protection will no longer be
guaranteed. In the case of externally procured parts, it is not guaranteed that these
have been designed and manufactured in accordance with their load and requisite
safety.
Contact the manufacturer before any changes or retrofits to receive a release.
Only use original spare and wearing parts.
The manufacturer shall exclusively assume the complete warranty only for spare parts
ordered from him.

4.3" Industry Mobile Computer - Lumen X4
Type B7-A2P4-.…/…….. Basic Safety Information
Subject to technical changes.
03/2016 EN 5/70
Our “General Terms and Conditions of Sale and Delivery” shall apply in principle. These
shall be made available to the operator on signing of contract at the latest. Warranty and
liability claims in the case of injury and damage to property shall be excluded if they are
attributable to one or several of the following causes:
−Unintended use of the Industry Mobile Computer.
−Incorrect handling.
−Failure to observe the information in the User Manual with respect to transport,
storage, commissioning, operation and service.
−Independent structural changes.
−Faulty monitoring of parts subject to wear and tear.
−Incorrectly performed repairs.
−Cases of disaster through the impact of foreign bodies and force majeure.
The BARTEC company grants a warranty period of three years starting from the date of
delivery from the Bad Mergentheim factory on the Industry Mobile Computers (exception:
battery 6 months). The warranty period for accessories is one year starting from the date
of delivery from the Bad Mergentheim factory. This warranty covers all parts of the
delivery and shall be restricted to the free replacement or repair of the defective parts in
our Bad Mergentheim factory. For this purpose, any packaging supplied must be kept
where possible. In the case of warranty, the goods must be returned to us after written
agreement using an RMA form. There shall be no claim to repair at the sight of erection.
The information contained herein refers to the explosion-protected version of the Lumen
X4 Industry Mobile Computer series.
This User Manual contains all important information on the subject of explosion protection.
A Quick Start Guide and further product information on handling and commissioning are
similarly available.
1.9 Co-applicable documents - set of documents
−User Manual for the Lumen X4 Industry Mobile Computer series:
The use, commissioning and settings of the explosion-protected version of the
Industry Mobile Computer series are described in this User Manual.
−Quick Start Guide for the Lumen X4 Industry Mobile Computer series:
The safety relevant information, initial use and further data on the explosion-protected
version of the Industry Mobile Computer series are described in this Quick Start
Guide.
−Technical Datasheet for the Lumen X4 Industry Mobile Computer series:
This Technical Datasheet contains the most important explosion-relevant technical
data as well as general technical data.

Basic Safety Information 4.3" Industry Mobile Computer - Lumen X4
Type B7-A2P4-.…/……..
EN 6/70 Subject to technical changes.
03/2016
1.10 Definition of terms
A few abbreviations are used in the documentation.
NI = Non Incendive =>
is used as generic term for Zone 2 and Division 2 version
Lumen X = stands for the entire explosion-protected product series
1.11 Configuration
The devices are only supplied with preinstalled operating system.
-Android 4.2.1 (Jelly Bean)
Customer software or further applications are not contained in the delivery.
This User Manual refers to the following configurations:
Configuration
Version
Processor
ARM® Cortex™-A7 Quad Core 1.5 GHz
System memory
1 GB SDRAM
Main memory
4 GB eMMC
Expandable memory
Micro SD card, supports up to 32 GB
Display
4,3" with 480 x 800 Pixel resolution
Touch function
projective-capacitive multi-touchscreen
WLAN
IEEE 802.11 a/b/g/n
Bluetooth
Version 3.0 + EDR
WWAN
3.75G - only data transfer
GSM / GPRS / EDGE / WCDMA / HSDPA / HSUPA
GPS
integrated
Kamera
−8 MP camera on the back
−2 MP camera on the front
Scanner
(optional)
1D/2D Imager
RFID HF/NFC
−13,56 MHz
−ISO 15693 (Read)
−ISO 14443-A (Read)
−ISO 18092 (Read/Write)

4.3" Industry Mobile Computer - Lumen X4
Type B7-A2P4-.…/…….. Product Description
Subject to technical changes.
03/2016 EN 7/70
2. Product description
2.1 Lumen X4
Lumen X4 Industry Mobile Computers are tough Mobile Computers, which have been
designed for use in the industrial environments and especially developed by BARTEC for
use in potentially explosive atmospheres.
The Lumen X4 Industry Mobile Computer is based on the ARM Cortex-A7 Quad Core
processor running at 1.5GHz. The 4.3-inch capacitive multi-touch display offers 480 x 800
pixel WVGA resolution.
The Lumen X4 Industry Mobile Computer owns a large number of international
certifications and can be used worldwide. It is approved for ATEX/IECEx Zone 2 / 22 and
CSA Class I Division 2. Further country approvals are available on request.
Because of its numerous functions, the Lumen X4 Industry Mobile Computer is perfect for
stock management, transport, maintenance technicians, operating personnel, engineers,
and project managers afield and in industry.
2.2 Structure
Front and side view

Product Description 4.3" Industry Mobile Computer - Lumen X4
Type B7-A2P4-.…/……..
EN 8/70 Subject to technical changes.
03/2016
Position
Designation
Description
1
Earpiece
Use to listen during phone conversation
2
Barcode Scan
Window
Barcode Scan Window
(will change to black lens when without barcode)
3
Webcam
2 MP to capture a front view picture and use for
Video call
4
Proximity & Light
Sensor
Proximity function is used specifically towards near
field proximity applications. In mobile phones, the
proximity detection can detect when the user
positions of mobile phone is close to their ear
Light sensor detects the availability of light and
automatically controls the brightness of a screen
backlight intensity
5
nc
6
LED indicator
LED indicator indicates the battery power or
charging status
7
Power Button
Press and hold the button for 3 seconds to turn on
the Industry Mobile Computer.
Press to turn on/off the screen.
Press and hold the button for 3 seconds to select:
•Power Off - to turn off the Industry Mobile
Computer. Press button for 8 sec to force
system power off.
•Airplane mode - to disable all wireless
connections.
•Silent mode - to disable all the sounds except
for the alarms.
•Vibration mode - to vibrate all the notifications
across the entire device.
•Normal mode - Return to the user setting
mode.
8
Function Key
Use to trigger the barcode reader for Industry Mobile
Computer series with barcode reader (differs by
product type).
9
Volume Up/Down
Increases or decreases the call volume when a call
is in progress. In other applications, it controls the
volume of music or other audio.
10
4.3” Touch screen
Display all information needed to operate the
Industry Mobile Computer.
11
Opens the home screen with a single touch.
12
Opens a menu with items that affects the current
screen or application.
13
Opens the previous screen and closes the onscreen
keyboard if it is open and returns to the previous
action.
14
Opens the search widget for searching the web,
applications, and contacts.
15
Micro USB
Use for charging and communication
16
Microphone
Use for making a phone call or voice recordings

4.3" Industry Mobile Computer - Lumen X4
Type B7-A2P4-.…/…….. Product Description
Subject to technical changes.
03/2016 EN 9/70

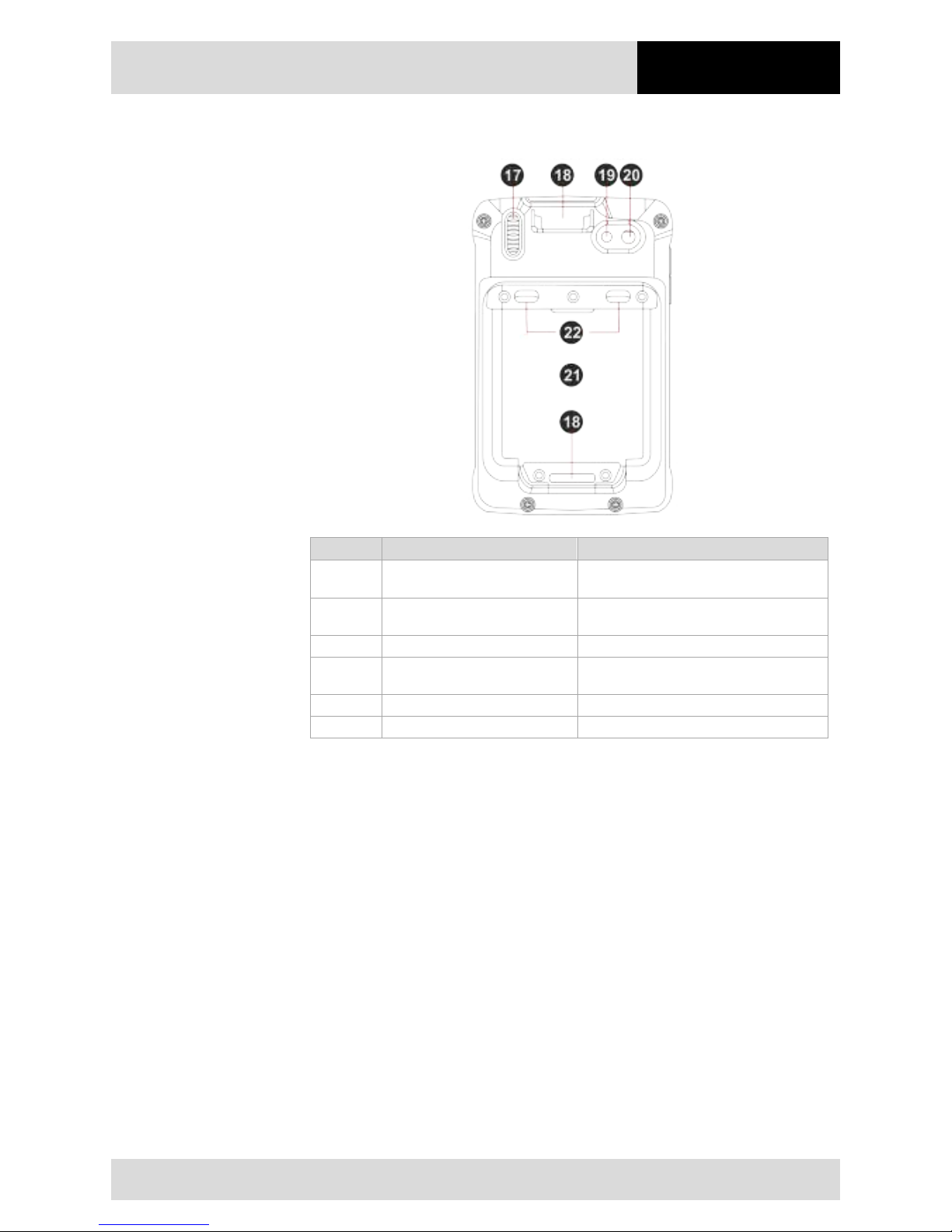

Rear view
Position
Designation
Description
17
Speaker
Provides audio output for music and
video.
18
Hand Strap Slot
Place the hand strap through the hand
strap slot intended for it.
19
LED
Use it as a flashlight.
20
8 MP camera with auto focus
and LED flash
Takes photos or record videos.
21
Battery
Removeable
22
2 x Battery Locking
2 locking for battery lock and unlock
2.3 Purpose of use
The Lumen X4 Industry Mobile Computers are handheld electrical devices. They serve
the purpose of entry, processing and (radio) transmission of data within potentially
explosive atmospheres.
The Lumen X4 Industry Mobile Computer is used exclusively in combination with devices
which comply with the requirements placed on the overvoltage category I.
The Lumen X4 Industry Mobile Computers, Type B7-A2P4-…./…….., have been
modified for use in the following potentially explosive atmospheres:
-ATEX / IECEx Zone 2 and Zone 22
-CSA Class I Division 2
The Lumen X4 Industry Mobile Computers, Type B7-A2P4-…./…….., may not be used in
the following zones:
-ATEX / IECEx Zone 0, 1 and 21
-Class II Division 2
-Class I, II Division I
-Class III

Technical Data 4.3" Industry Mobile Computer - Lumen X4
Type B7-A2P4-.…/……..
EN 10/70 Subject to technical changes.
03/2016
3. Technical data
3.1 Explosion protection NI
ATEX Zone 2 and 22
TypeB7-A2P4-.…/…….. Lumen X4
Labelling II 3G Ex ic IIC T5 Gc
II 3D Ex ic IIIB T100°C Dc IP54
-20 °C ≤ Ta ≤ +50 °C
Test certificate EPS 16 ATEX 1 039 X
Standards EN 60079-0:2012 + A11:2013
EN 60079-11:2012
Guidelines ATEX 94/9/EG
EMV 2004/108/EG
R&TTE 1999/5/EG
RoHS 2002/95/EG
IECEx Zone 2 and 22
TypeB7-A2P4-.…/…….. Lumen X4
Labelling Ex ic IIC T5 Gc
Ex ic IIIB T100°C Dc IP54
-20 °C ≤ Ta ≤ +50 °C
Test certificate EPS 16.0016X
Standards IEC 60079-0:2011 Edition 6.0
IEC 60079-11:2011 Edition 6.0
CSA Class I Division 2
Type
B7-A2P4-.…/…….. Lumen X4
Labelling Class I Div. 2 Groups A, B, C and D T5
Test certificates USA and Canada CSA Certificate: 70043322
Standards ANSI/ISA 12.12.01-2013
CAN/CSA C22.2 No. 213-M1987
X -
labelling (special conditions of use for secure operation within the potentially
explosive atmosphere)
The ambient temperature range is -20 °C bis +50 °C.*
The device must be protected from impact with high impact energy, from intense
UV-irradiation, and strongly charge generating processes.
It is not allowed to use connectors inside the potentially explosive atmosphere.*
It is not allowed to remove, change and/or charge the battery inside the potentially
explosive atmosphere.
*See individual chapter on the points in the User Manual.

4.3" Industry Mobile Computer - Lumen X4
Type B7-A2P4-.…/…….. Technical Data
Subject to technical changes.
03/2016 EN 11/70
3.2 Applicable standards
Explosion protection
EN 60079-0:2012
+ A11:2013
Explosive atmospheres - Part 0:
Equipment - General requirements
EN 60079-11:2012
Explosive atmospheres - Part 11:
Equipment protection by intrinsic safety "i"
IEC 60079-0:2011
Explosive atmospheres - Part 0:
Equipment - General requirements
IEC 60079-11:2011 Explosive atmospheres - Part 11:
Equipment protection by intrinsic safety "i"
ANSI/ISA 12.12.01
ANSI/ISA-12.12.01-2013 Nonincendive Electrical Equipment for
Use in Class I and II, Division 2 and Class III, Divisions 1 and 2
Hazardous (Classified) Locations
CAN/CSA C22.2
No. 213-M1987
Non-Incendive Electrical Equipment for Use in Class I, Division 2
Hazardous Locations
Electrical safety
IEC 60950-1
(ed.2); am1
Einrichtungen der Informationstechnik – Sicherheit
Teil 1: Allgemeine Anforderungen
CSA22.2 No.
60950-1-07 General Requirements – Canadian Electrical Code, Part II
UL 60950-1: 2nd
Ed. 2014
Information Technology Equipment – Safety Part 1: General
Requirements - Second Edition
Radio specification - WLAN / Bluetooth
EN 300 328
V1.8.1: 2012
Electromagnetic compatibility and radio spectrum matters (ERM)
– wideband transmission systems – data transmission
equipment operating in the 2.4 GHz ISM band and using
wideband modulation techniques
Safety specification - Specific Absorption Rate (SAR)
EN 62209-2:2010
Human exposure to radio frequency fields from hand-held and
body-mounted wireless communication devices – Human
models, instrumentation and procedures – Part 2: Procedure to
determine the specific absorption rate (SAR) for wireless
communication devices used in close proximity to the human
body
RSS-132 Issue 3
January 2013
Industry Canada: Cellular Telephone Systems Operating in the
Bands 824-849 MHz and 869-894 MHz
RSS-133 Issue 6
January 2013
Industry Canada: 2 GHz Personal Communications Services
RSS-139 Issue 2
February 2009
Industry Canada: Advanced Wireless Services (AWS)
Equipment Operating in the Bands 1710-1780 MHz and 2110-
2180 MHz
RSS-210 Issue 8
December 2010
Industry Canada: Licence-exempt Radio Apparatus (All
Frequency Bands): Category I Equipment
Safety specification - Laser and/or LED Products
EN 60825-1
Safety of laser products – Equipment classification and
requirements

Technical Data 4.3" Industry Mobile Computer - Lumen X4
Type B7-A2P4-.…/……..
EN 12/70 Subject to technical changes.
03/2016
Electromagnetic compatibility (EMC)
EN 300 440-1
V1.6.1:2010
Electromagnetic compatibility and radio spectrum matters
(ERM) – short range devices – radio equipment to be used in
the 1 GHz to 40 GHz frequency range – Part 1: Technical
characteristics and test methods
EN 300 440-2
V1.4.1:2010
Electromagnetic compatibility and radio spectrum matters
(ERM) – short range devices – radio equipment to be used in
the 1 GHz to 40 GHz frequency range – Part 2: Harmonised EN
covering essential requirements of article 3.2 of the R&TTE
Directive
EN 50566:2013
Product standard to demonstrate compliance of radio frequency
fields from handheld and body-mounted wireless
communication devices used by the general public (30 MHz -
6 GHz)
EN 55022: 2010
Information technology equipment – radio disturbance
characteristics – limits and methods of measurement
EN 55024: 2010
Information technology equipment – radio disturbance
characteristics – limits and methods of measurement
EN 61000-3-2:2006
+A1:2009+A2:2009
Limits – Limits for harmonic current emissions (equipment input
current <= 16 A per phase)
EN 61000-3-3:2008
Limits – limitation of voltage charges, voltage fluctuations and
flicker in public low-voltage supply systems, for equipment with
rated current <=16 A per phase and not subject to conditional
connection
FCC Part 15 Class B
EMC requirements in the USA:
Testing for compliance with limits for a digital device of Class B
IC ICES-003
EMC requirements in Canada:
Testing for compliance with limits for a digital device of Class B
3.3 Features
3.3.1 Performance features
Processor
ARM® Cortex™-A7 Quad Core 1.5 GHz
RAM
4 GB eMMC
Main memory
1 GB SDRAM
Extension slot
Micro SD card slot supports up to 32 GB
It is not allowed to insert or change the card inside
the potentially explosive atmosphere!
Audio 1 x integrated microphone
1 x Speaker (1 x 1,2 Watt)
Interfaces
1 x Micro SD card slot
1 x SIM card Slot
Interfaces via desktop docking
station
1 x Micro USB Type B (OTG Host)
1 x Pogo Pin
Operating system
Android 4.2 (Jelly Bean)
Application availability
Google App Store is pre-installed

4.3" Industry Mobile Computer - Lumen X4
Type B7-A2P4-.…/…….. Technical Data
Subject to technical changes.
03/2016 EN 13/70
Software development
Own development possible with standard Google
Android SDK.
Additional are the OS image, SDK and drivers
available as download.
3.3.2 Physical features
Dimensions in mm/in
Length x Width x Height
132.7 x 82 x 25.7 mm
(5.22 x 3.23 x 1.01 inch)
Weight (with standard battery)
280 g (0.62 lb)
Display
size
4.3"
backlight
IPS LED
resolution
480 x 800 pixels
Brightness
400 cd/m²
touch
projective capacitive multi-touch
Interactive sensor technology
-Light sensor
-G sensor
-Proximity sensor
-Digital compass
Keys on front side
(see also chapter 2.2 "Structure") -1 x Power on/off button
-1 x Function button
-1 x Volume up/down button
-4 x Home, Menue, ESC, Search
function
3.3.3 User environment
Operating temperature
in potentially explosive atmosphere
at start (in battery mode)
in battery mode
-10 °C to +50 °C / 14 °F to +122 °F
-20 °C to +50 °C / -4 °F to +122 °F
Operating temperature
outside potentially explosive atmosphere -20 °C to +60 °C / -4 °F to +140 °F
Operating temperature
during charging 0 °C to +40 °C / +32 °F to +104 °F
Storage temperature
(without battery) -30 °C to +60 °C / -22 °F to +140 °F
Air humidity 5 % to 95 % (non-condensing)
Class of protection (EN 60529) IP 54 (non-Ex IP65)

Technical Data 4.3" Industry Mobile Computer - Lumen X4
Type B7-A2P4-.…/……..
EN 14/70 Subject to technical changes.
03/2016
3.3.4 Voice and data transmission Wi-Fi (Wireless LAN)
Wi-Fi connections are realised with the assistance of ARM® Cortex™-A7 Quad Core
1.5 GHz processor.
WLAN radio module
Radio standard
IEEE 802.11a/b/g/n
Data rate IEEE802.11a: up to 54 Mbit/Sec
IEEE802.11b: up to 11 Mbit/Sec
IEEE802.11g: up to 54 Mbit/Sec
IEEE802.11n: up to 65 Mbit/Sec
Frequency range
(country dependant) IEEE802.11a: 5 GHz
IEEE802.11b: 2,4 GHz
IEEE802.11g: 2,4 GHz
IEEE802.11n: 2,4 GHz and 5 GHz
Operating channels
The actual operating channels and frequencies are
subject to the applicable rules and the certification
authorities in the respective country.
Wi-Fi alliance
Wi-Fi certified for 802.11a, 802.11b, 802.11g,
802.11n
Roaming
Supports seamless roaming between the respective
access points (802.11b, 802.11g, 802.11a/b/g und
802.11a/b/g/n)
Aerial
internal
3.3.5 Voice and data transmission Wireless WAN
WWAN radio module
GSM / GPRS / EDGE /
WCDMA / HSDPA / HSUPA
3.75G
GPS
integrated
3.3.6 Voice and data transmission Bluetooth
Bluetooth-Verbindungen connections are realised with the assistance of ARM®
Cortex™-A7 Quad Core 1.5 GHz processor.
Bluetooth
3.0 with EDR
Aerial
internal
3.3.7 Camera
Front Side
2 MP
Rear Side 8 MP with LED auxiliary light
(Auto Focus)
