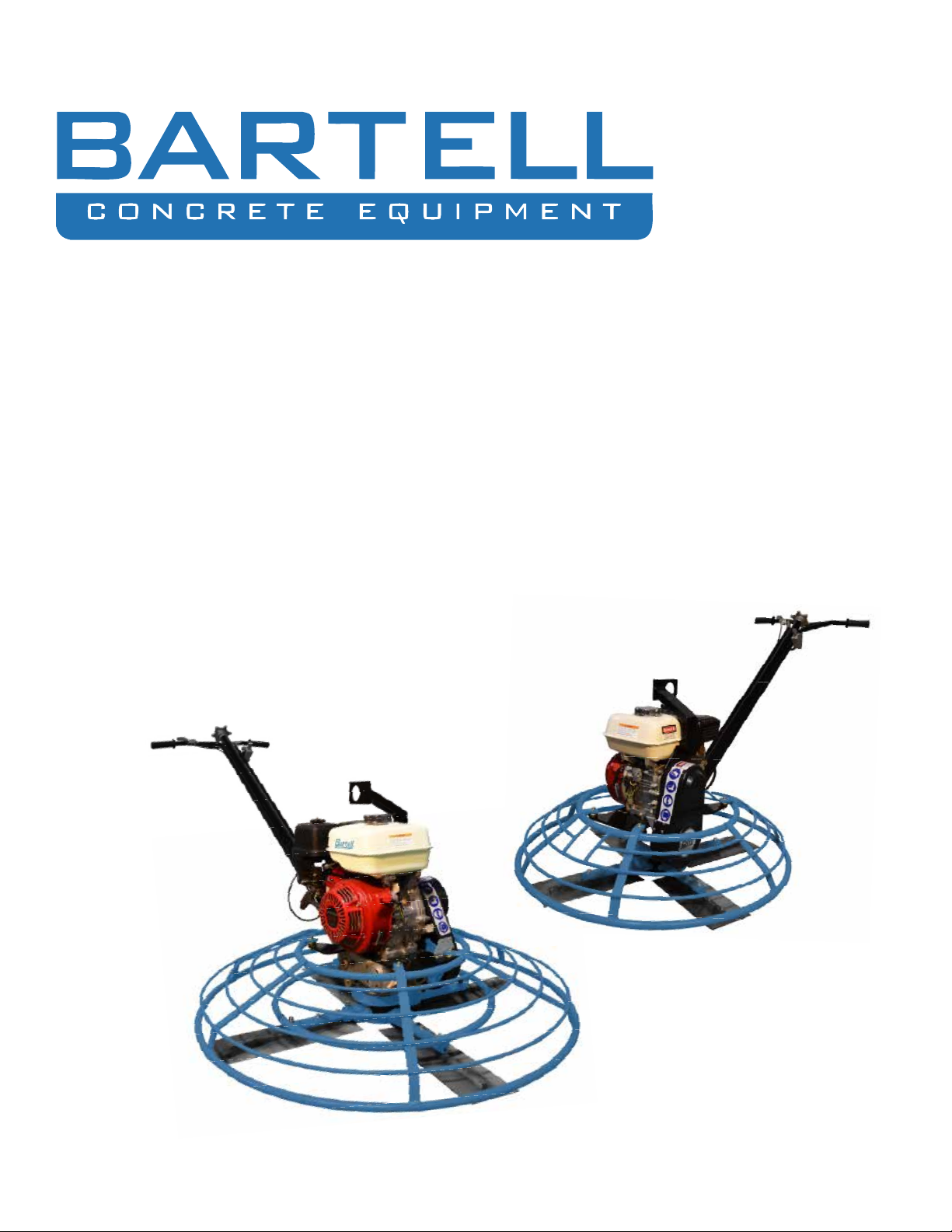

Bartell BC90 User manual

CREATED: 07/04
REVISED: 06/14
WALK-BEHIND
POWER TROWELS
BC90/BC436
BC120/BC446
Doc. # OI-B09001
Orig. Rel. - 05-2012
Curr. Rev. - 00
Rev. Date - 05-2012
Bartell Morrison Inc.
375 Annagem Blvd.,
Mississauga, ON, Canada
L5T 2A7
Toll Free (N.A.): 1 866 501 1683
Local: [phone]
Fax: [phone]
OWNER’S
MANUAL
BARTELL MORRISON INC.
artell
ORIGINAL
LANGUAGE
OWNER’S MANUAL
AND PARTS BOOK
BC90/BC436
BC120/BC446
Doc. # OI-B09032
Orig. Rel. - 05-2012
Curr. Rev. - 14
Rev. Date - 03/2015

Bartell Morrison Inc. Bartell Morrison (USA) LLC
375 Annagem Blvd. 12 Industrial Drive,
Mississauga, Ontario, Canada Keyport, New Jersey, USA
L5T 3A7 07735
Toll Free (N.A.): [phone] Toll Free: 888-999-1570
Phone: [phone] Phone: [phone]
Facsimile: [phone] Facsimile: [phone]
www.bartellmorrison.com www.bmiamerica.com
ORIGINAL LANGUAGE OPERATING INSTRUCTIONS FOR
BARTELL WALK-BEHIND POWER TROWELS
© 2010 Bartell Morrison Inc.
No part of this work may be reproduced or transmitted in any
form or by any means, electronic or mechanical, including
photocopying and recording, or by any information storage or
retrieval system without the prior written permission of Bartell
Morrison Inc. unless such copying is permitted by federal
copyright laws.
Address inquiries or reference permissions care of:
Bartell Morrison Inc.,
375 Annagem Blvd.,
Mississauga, Ontario,
Canada, L5T 3A7
Revision Date Description Approved by.
0 05/2010 Initial release RL
2014
Revision Date Description Approved by:
00 05/2012 Initial release. AL
01 07/2012 Spiderplate assembly part number update. AL
02 08/2012 BC90 and BC120 throttle cables updated. AL
03 05/2013 Warranty information updated. AL
04 06/2013 Assembly instructions updated. AL
05 06/2013 BC90/BC436 complete handle assembly updated. AL
06 06/2013 Part number and diagram updates. AL
07 07/2013 Part number and diagram updates. AL
08 09/2013 Part number and diagram updates. AL
09 10/2013 Warranty revision. AL
10 04/2014 Cover page updated. AL
11 06/2014 Address Update AL
12 07/2014 Part description updated. AL
13 07/2014 Part number and diagrams added. AL
Bartell Morrison (USA) LLC
200 Commerce Drive,
Freehold, New Jersey, USA
07735
Toll Free: 888-999-1570
Phone: [phone]
Facsimile: [phone]
www.bmiamerica.com
Bartell Morrison (USA) LLC
375 Annagem Blvd.
Mississauga, Ontario, Canada
L5T 3A7
Toll Free (N.A.): [phone]
Phone: [phone]
Facsimile: [phone]
www.bartellmorrison.com

CREATED: 07/04
REVISED: 07/14
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX [phone]
WALK BEHIND POWER TROWEL INSTRUCTION MANUAL
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX [phone]
CREATED: 07/04
REVISED: 05/10
SAFETY PRECAUTIONS
DANGER
EXPLOSION HAZARD
Never operate the machine in an
explosive atmosphere, near
combustible materials or where
ventilation does not clear exhaust
fumes.
WARNING
BURN HAZARD
Never come into contact with the
engine or muffler when engine is
operating or shortly after it is
turned off. Serious burns may
occur.
CAUTION
ROTATING HAZARD
Never place hands or feet inside
safety guard rings. Serious injury
will result from contact with rotating
blades.
CAUTION
MOVING PARTS
Before starting the machine ensure
that all guards and safety devices
are in place and functioning
properly.
ATTENTION
READ OWNERS MANUAL
Read and understand operator's
manual before using this machine.
Failure to follow operating
instructions could result in serious
injury or death.
!
!
!
!

CREATED: 07/04
REVISED: 07/14
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX [phone]
WALK BEHIND POWER TROWEL INSTRUCTION MANUAL
TABLE OF CONTENTS
QUALITY ASSURANCE/MACHINE BREAK-IN .......................................................................................................4
WALK-BEHIND POWER TROWEL WARRANTY ....................................................................................................5
MAINTENANCE RECORD ........................................................................................................................................6
ROUTINE SERVICE INTERVALS .............................................................................................................................7
FOREWORD..............................................................................................................................................................9
SAFETY PRECAUTIONS ..........................................................................................................................................9

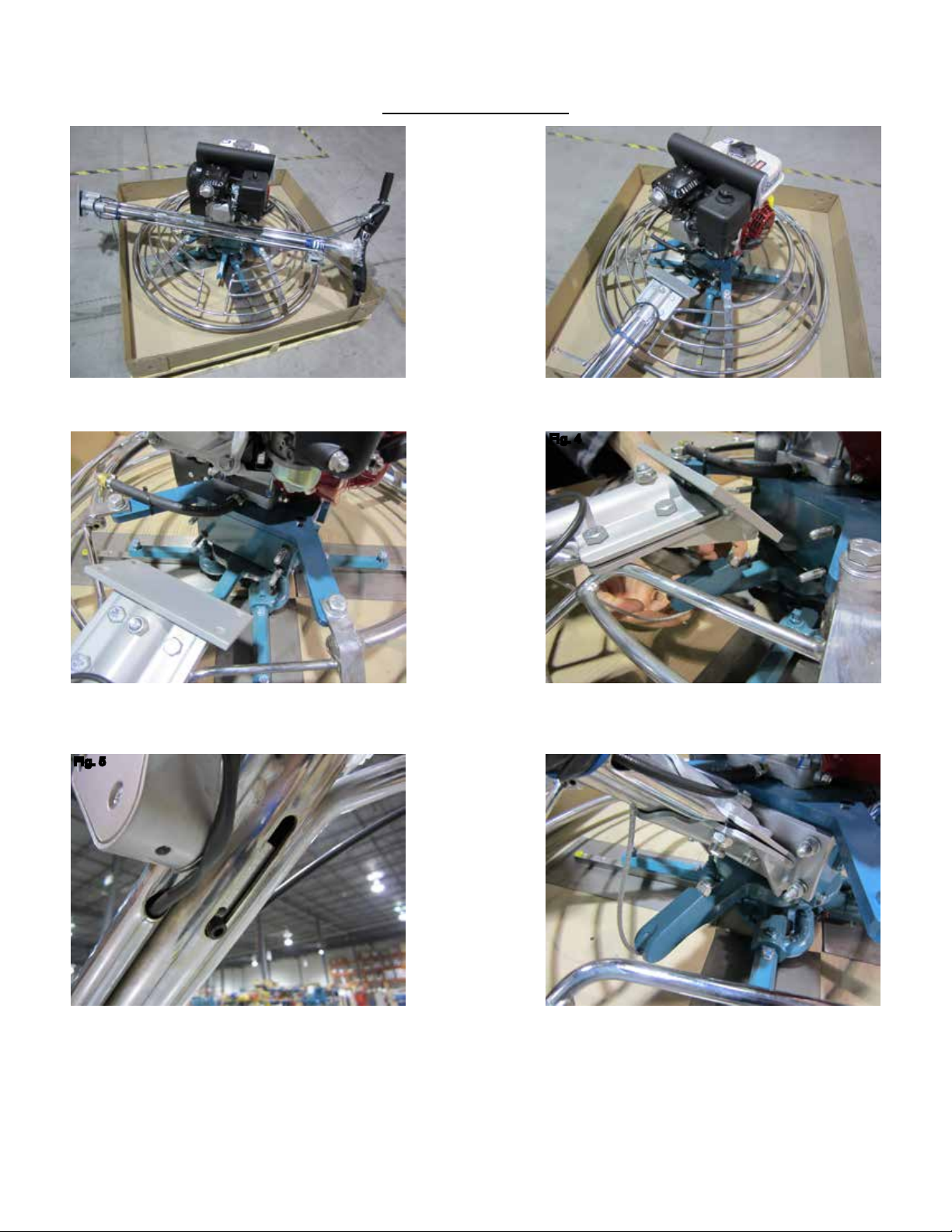

ASSEMBLY INSTRUCTIONS ...................................................................................................................................9
1. TROWELS .............................................................................................................................................................9
2. STABILIZER RING.................................................................................................................................................9
3. HANDLE ASSEMBLY ............................................................................................................................................9
4. STATIONARY RING ..............................................................................................................................................9

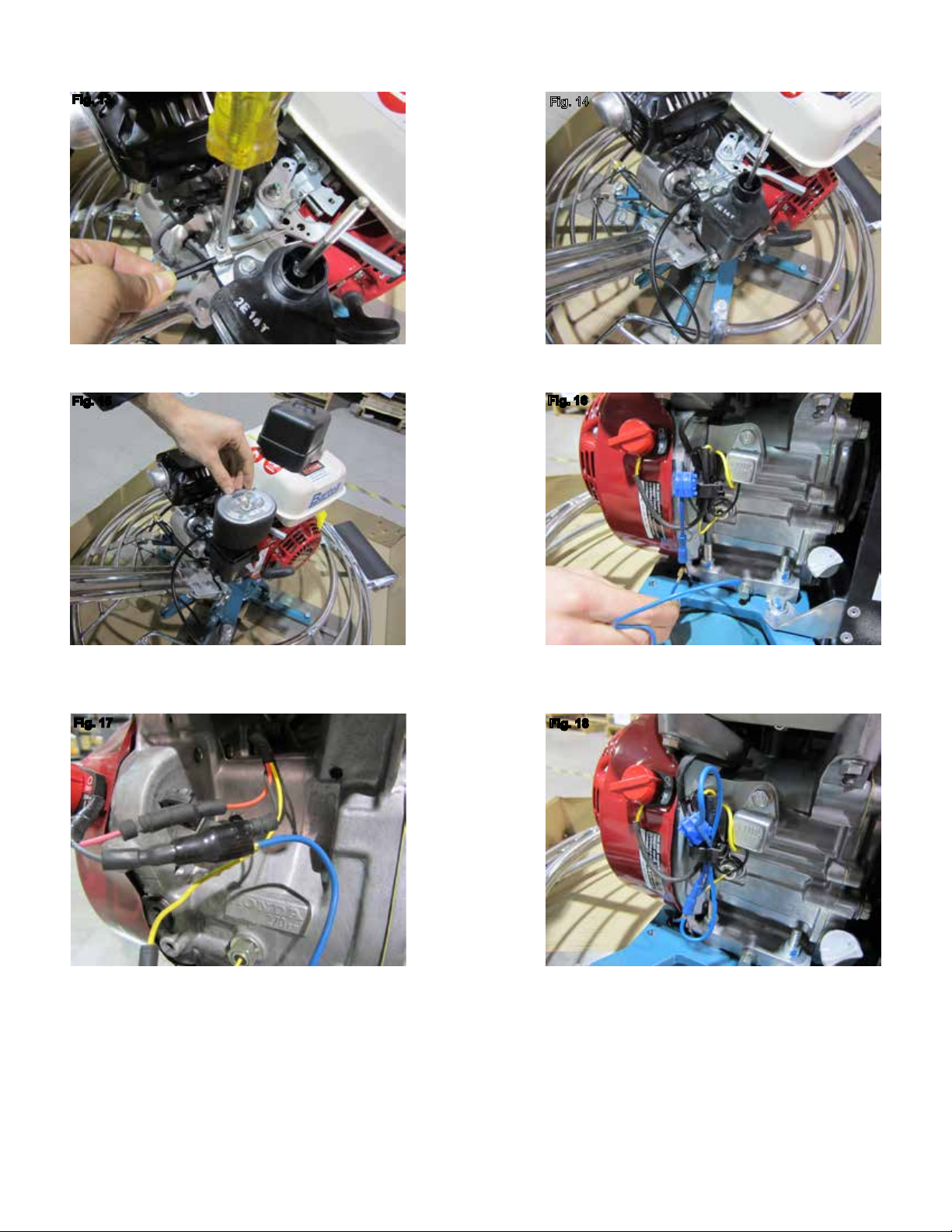

5. ENGINE CONTROLS ............................................................................................................................................9
6. BELT GUARD ........................................................................................................................................................9
DIAGRAM 1 .............................................................................................................................................................10
OPERATION (FLOATING) ......................................................................................................................................11
OPERATION (FINSHING) .......................................................................................................................................11
1. STARTING PROCEDURES - WARM TEMPERATURES ...................................................................................11
2. STARTING PROCEDURES - COLD TEMPERATURES.....................................................................................11
3. STOPPING PROCEDURES ................................................................................................................................11
LUBRICATION ........................................................................................................................................................11
1. ENGINE OIL.........................................................................................................................................................11
2. SPIDER PLATE ...................................................................................................................................................11
3. GEARBOX ...........................................................................................................................................................11
4. GEARBOX OIL CHANGE ....................................................................................................................................11
5. GREASE FITTINGS.............................................................................................................................................11
ENGINE OIL SPECIFICATIONS..............................................................................................................................11
STORAGE................................................................................................................................................................12
MAINTENANCE.......................................................................................................................................................12
1. AIR CLEANER .....................................................................................................................................................12
2. LUBRICATION .....................................................................................................................................................12
3. SPARK PLUG ......................................................................................................................................................12
4. BELT TENSION ...................................................................................................................................................12
ELECTRIC POWER TROWEL OPERATION..........................................................................................................13
SETTING UP THE ELECTRIC POWER TROWEL .................................................................................................14
STARTING THE ELECTRIC POWER TROWEL ....................................................................................................14
ELECTRIC POWER TROWEL WIRING DIAGRAM ...............................................................................................16

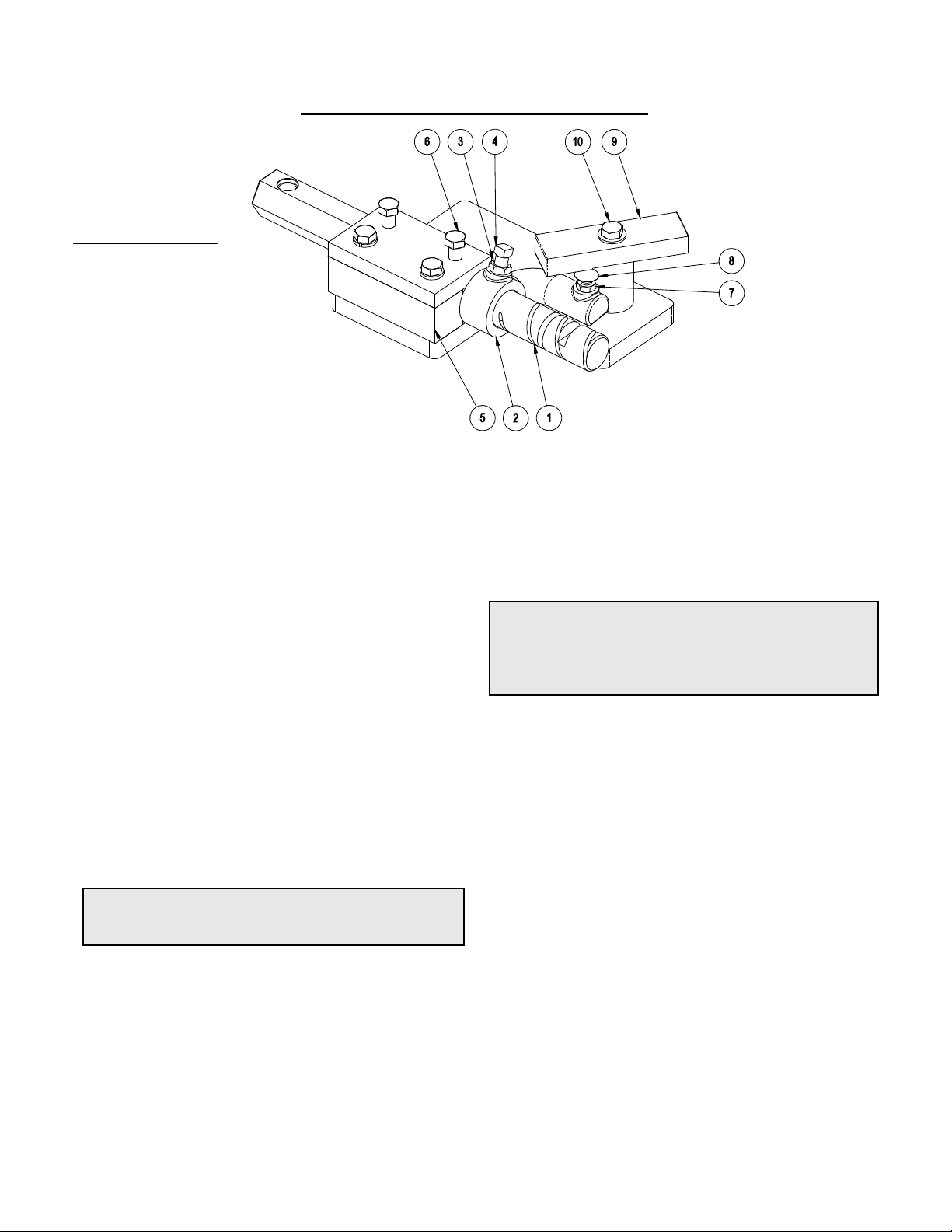

TROWEL ARM ADJUSTMENT FIXTURE ..............................................................................................................17
1. ADJUSTMENT PROCEDURE .............................................................................................................................17
TROUBLESHOOTING.............................................................................................................................................18
SPECIFICATIONS ...................................................................................................................................................19
COMPANY INFORMATION ....................................................................................................................................20
NOTES.....................................................................................................................................................................22
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX [phone]
CREATED: 07/04
REVISED: 05/10
QUALITY ASSURRANCE MACHINE BREAK-IN ...................................................................................................
WALK-BEHIND POWER TROWEL WARRANTY ...................................................................................................
MAINTENANCE RECORD ......................................................................................................................................
ROUTINE SERVICE INTERVALS ...........................................................................................................................
SAFETY PRECAUTIONS ........................................................................................................................................
ASSEMBLY INSTRUCTIONS .................................................................................................................................
1. TROWELS ...........................................................................................................................................................
2. STABILIZER RING ..............................................................................................................................................
3. HANDLE ASSEMBLY ..........................................................................................................................................
4. STATIONARY RING ............................................................................................................................................
5. ENGINE CONTROLS ..........................................................................................................................................
SETUP PROCEDURE .............................................................................................................................................
OPERATION (FLOATING) ......................................................................................................................................
OPERATION (FINISHING) ......................................................................................................................................
1. STARTING PROCEDURES - WARM TEMPERATURES ....................................................................................
2. STARTING PROCEDURES - COLD TEMPERATURES .....................................................................................
3. STOPPING PROCEDURES ................................................................................................................................
LUBRICATION ........................................................................................................................................................
1. ENGINE OIL ........................................................................................................................................................
2. SPIDER PLATE ...................................................................................................................................................
3. GEARBOX ...........................................................................................................................................................
4. GEARBOX OIL CHANGE ....................................................................................................................................
5. GREASE FITTINGS ............................................................................................................................................
ENGINE OIL SPECIFICATION ................................................................................................................................
STORAGE ...............................................................................................................................................................
MAINTENANCE ......................................................................................................................................................
1. AIR CLEANER .....................................................................................................................................................
2. LUBRICATION .....................................................................................................................................................
3. SPARK PLUG ......................................................................................................................................................
4. BELT TENSION ...................................................................................................................................................
TROWEL ARM ADJUSTMENT FIXTURE ..............................................................................................................
1. ADJUSTMENT PROCEDURE .............................................................................................................................
PARTS MANUAL (BC90/BC436) ...........................................................................................................................

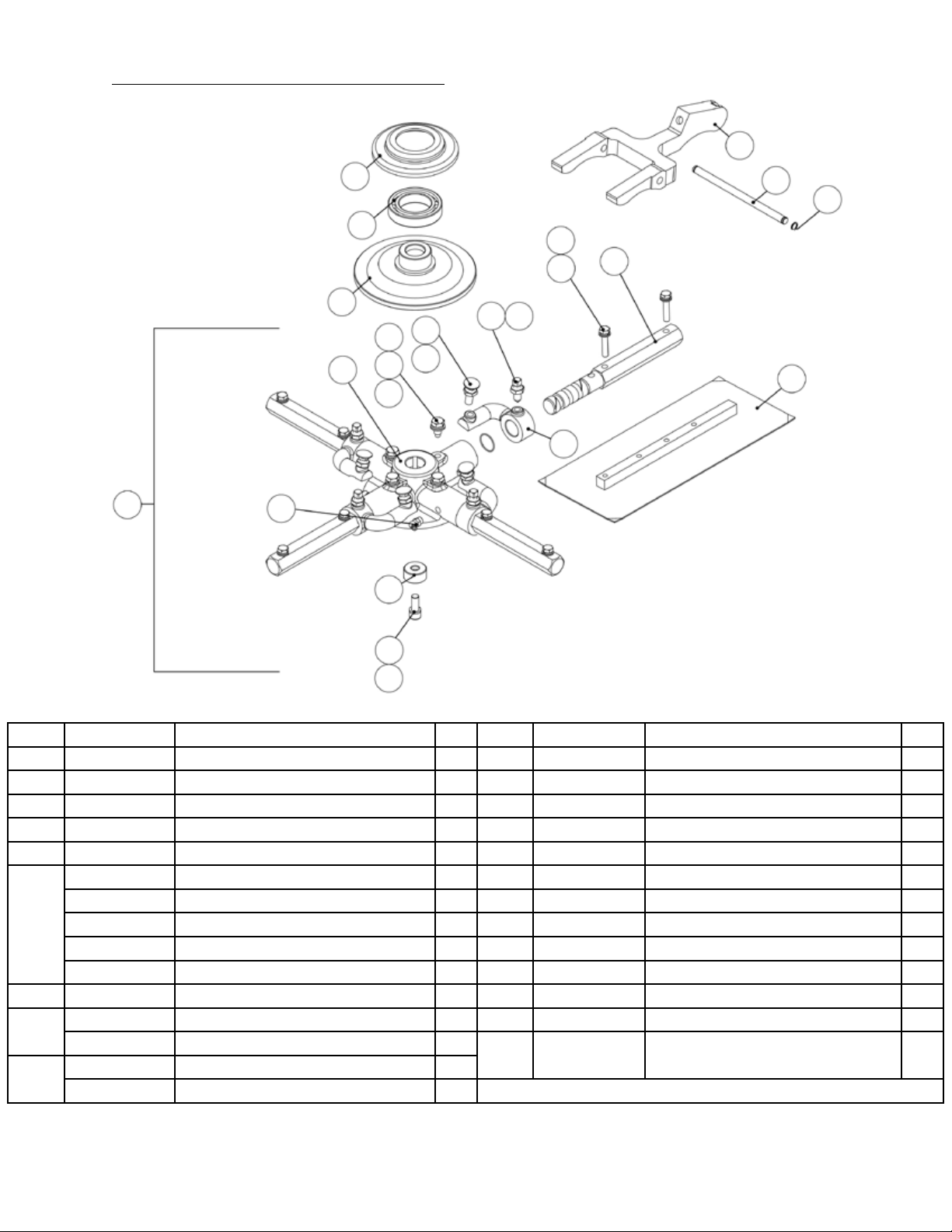

SPIDERPLATE ASSEMBLY (BC90/BC4336) ..........................................................................................................
HANDLE ASSEMBLY - COMPLETE (BC90/BC436) ...............................................................................................
GEARBOX ASSEMBLY - COMPLETE (BC90/BC436).............................................................................................
SAFETY RING ASSEMBLY/MTG PLATE (BC90/BC436)........................................................................................
ENGINE/CLUTCH/HOIST HOOK ASSEMBLIES (BC90/BC436).............................................................................
PARTS MANUAL (BC120/BC446) .........................................................................................................................
SPIDERPLATE ASSEMBLY (BC120/BC446) ..........................................................................................................
HANDLE ASSEMBLY - BLACK, COMPLETE (BC120/BC446) ...............................................................................
HANDLE ASSEMBLY - CHROME, COMPLETE (BC120/BC446) ...........................................................................
GEARBOX ASSEMBLY - COMPLETE (BC120/BC446)...........................................................................................
SAFETY RING ASSEMBLY/MTG PLATE (BC120/BC446)......................................................................................
ENGINE/CLUTCH/HOIST HOOK ASSEMBLIES (BC120/BC446)...........................................................................
TROUBLESHOOTING ............................................................................................................................................
SPECIFICATIONS ...................................................................................................................................................
COMPANY INFORMATION ....................................................................................................................................
NOTES ....................................................................................................................................................................
4
5
6
7
9
9
9
9
9
9
9
10
13
13
13
13
13
13
13
13
13
13
13
13
14
14
14
14
14
14
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
32
33

CREATED: 07/04
REVISED: 07/14
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX [phone]
WALK BEHIND POWER TROWEL INSTRUCTION MANUAL
QUALITY ASSURANCE / MACHINE BREAK IN
The Bartell Walk-Behind Power Trowel is the product of extensive engineering
development designed to give long life and unmatched performance. The Walk-Behind
Power Trowels are shipped partially assemble, and only require filling with fuel and a brief
check of lubricant levels in preparation for operation.
You can help ensure that your Power Trowel will perform at top levels by observing a
simple routing on first use. Consider that your new Power Trowel is like a new car. Just
as you would break in a new car to the road or any new machine to the job, you should
start gradually and build up to full use. Learn what your machine can do and how it will
respond. Refer to the engine manufacturer’s manual for run-in times. Full throttle and
control may be used after this time period, as allowed by material. This will serve to
further break in the machine on your specific application, as well as provide you with
additional practice using the machine.
We thank you for the confidence you have placed in us by purchasing a Bartell Walk-
Behind Power Trowel and wish you many years of satisfied use.
artell
4
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX [phone]
CREATED: 07/04
REVISED: 05/10
4

CREATED: 07/04
REVISED: 07/14
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX [phone]
WALK BEHIND POWER TROWEL INSTRUCTION MANUAL
WALK-BEHIND POWER TROWEL WARRANTY
All products sold by Bartell Morrison Inc. and Bartell Morrison (USA) LLC (the “Company”) are warranted
against defects in materials and/or workmanship; excluding normal wear on wearing components and
components covered by a separate original manufacturers warranty, for a period of 24 months from the
date of sale to the original end user purchaser provided that certain conditions have been met.
Conditions:
1. The equipment serial number has been registered with the Company or its approved dealers,
distributors, representatives or agents.
2. The equipment has been operated in an appropriate manner by qualified individuals.
3. The equipment has been properly maintained as per the instructions included in the Owner’s
Manual.
4. All claims for warranty must be filed on proper forms and include the serial number of the
equipment along with proof of purchase.
Any evidence of failure to meet these conditions may result in a denial of the warranty claim.
Consideration of warranty claims will be at the sole discretion of the Company, or its authorized dealers,
distributors, representatives or agents.
The Company may, at its discretion, request that the equipment to be considered for warranty be returned
at the owner’s expense to an authorized repair facility for inspection.
Under this warranty we may, at our discretion, repair or replace a part or the whole of the defective
component or equipment.
Our Warranty coverage is limited to the cost to repair or replace the defective portion of the equipment and
a reasonable (as determined by the Company) amount of labour to conduct the repair or replacement.
Under no circumstances shall the Company be liable for any additional or exceptional costs beyond the
cost to repair or replace the defective portion of the equipment. The Company shall not be held
accountable for; costs associated with travel to inspect or repair defective equipment, costs for transporting
defective equipment to or from an authorized repair facility, costs incurred to repair or replace the defective
equipment at any facility other than one authorized by the Company or ancillary damage caused by or as a
result of the defective equipment.
Under no circumstances shall equipment be returned to the Company or its authorized dealers, distributors,
representatives or agents without the approval of the Company as evidenced by a Returned Goods
Number. To obtain a Returned Goods Number contact the factory or your authorized dealer, distributor,
representative or agent.
This warranty is for the sole benefit of the original end user purchaser and is not transferable to any other
company or person.
5
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX [phone]
CREATED: 07/04
REVISED: 05/10
All products sold by Bartell Morrison Inc. and Bartell Morrison (USA) LLC (the “Company”) are warranted
against defects in material and/or worksmanship; excluding normal wear on wearing components and
components covered by a separate manufacturers warranty, for a period of 12 months for machine from the
date of asle to the original end user purchaser provided that certain conditions have been met.
WALK BEHIND POWER TROWEL INSTRUCTION MANUAL
WALK-BEHIND POWER TROWEL WARRANTY
All products sold by Bartell Morrison Inc. and Bartell Morrison (USA) LLC (the “Company”) are warranted
against defects in materials and/or workmanship; excluding normal wear on wearing components and
components covered by a separate original manufacturers warranty, for a period of 24 months from the
date of sale to the original end user purchaser provided that certain conditions have been met.
Conditions:
1. The equipment serial number has been registered with the Company or its approved dealers,
distributors, representatives or agents.
2. The equipment has been operated in an appropriate manner by qualified individuals.
3. The equipment has been properly maintained as per the instructions included in the Owner’s
Manual.
4. All claims for warranty must be filed on proper forms and include the serial number of the
equipment along with proof of purchase.
Any evidence of failure to meet these conditions may result in a denial of the warranty claim.
Consideration of warranty claims will be at the sole discretion of the Company, or its authorized dealers,
distributors, representatives or agents.
The Company may, at its discretion, request that the equipment to be considered for warranty be returned
at the owner’s expense to an authorized repair facility for inspection.
Under this warranty we may, at our discretion, repair or replace a part or the whole of the defective
component or equipment.
Our Warranty coverage is limited to the cost to repair or replace the defective portion of the equipment and
a reasonable (as determined by the Company) amount of labour to conduct the repair or replacement.
Under no circumstances shall the Company be liable for any additional or exceptional costs beyond the
cost to repair or replace the defective portion of the equipment. The Company shall not be held
accountable for; costs associated with travel to inspect or repair defective equipment, costs for transporting
defective equipment to or from an authorized repair facility, costs incurred to repair or replace the defective
equipment at any facility other than one authorized by the Company or ancillary damage caused by or as a
result of the defective equipment.
Under no circumstances shall equipment be returned to the Company or its authorized dealers, distributors,
representatives or agents without the approval of the Company as evidenced by a Returned Goods
Number. To obtain a Returned Goods Number contact the factory or your authorized dealer, distributor,
representative or agent.
This warranty is for the sole benefit of the original end user purchaser and is not transferable to any other
company or person.
5
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX [phone]
CREATED: 07/04
REVISED: 05/10
5

CREATED: 07/04
REVISED: 07/14
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX [phone]
WALK BEHIND POWER TROWEL INSTRUCTION MANUAL
MAINTENANCE RECORD
PREVENTATIVE MAINTENANCE AND ROUTINE SERVICE PLAN
This Walk-Behind Power Trowel has been assembled with care and will provide years of service. Preventative
maintenance and routine service are essential to the long life of your Power Trowel. Your dealer is interested in
your new machine and has the desire to help you get the most value from it. After reading through this manual
thoroughly, you will find that you can do some of the regular maintenance yourself. However, when in need of parts
or major service, be sure to see your Bartell dealer. For your convenience we have provided this space to record
relevant data about your Walk-Behind Power Trowel. When in need of parts or service be prepared to provide your
Trowel serial number. Locate the serial number now and record in the space below.
Date Purchased:
Type of Machine:
Dealer Name: Model:
Dealer Phone: Serial Number:
REPLACEMENT PARTS USED MAINTENANCE LOG
PART NO. QUANTITY COST DATE DATE OPERATION
6
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX [phone]
CREATED: 07/04
REVISED: 05/10
6

CREATED: 07/04
REVISED: 07/14
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX [phone]
WALK BEHIND POWER TROWEL INSTRUCTION MANUAL
Routine Service
Intervals
Each
use
After 1.5
months
or
50 hrs
Each 3
months
or
100 hrs
Each 6
months
or
200 hrs
Each 9
months
or
300 hrs
Each 12
months
or
400 hrs
General Inspection:
Guards Check o o o o o
Warning stickers Check o o o o o
Test run: Check operation o o o o o
Controls:
Dead-man switch operation Check o o o o o o
Check o o o o o o
Pitch control
Lubricate o o o o o
Engine:
Check Level o o o o o o
Engine oil
Change o o o
Engine oil filter Replace o o
Oil cooler Clean o o o o
Cooling Fins Clean o o o o o
Check - clean o o o o o o
Air cleaner
Replace o
Check o
Air Intake Line
Replace 2 yrs
Check tightness o o
Drive Belt
Replace 500 hrs
Valve clearance Check-adjust o o
Check & Clean o o o o
Fuel filter
Replace o o
Fuel Tank Clean 500 hrs
Engine wiring Check o
7
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX [phone]
CREATED: 07/04
REVISED: 05/10
7

CREATED: 07/04
REVISED: 07/14
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX [phone]
WALK BEHIND POWER TROWEL INSTRUCTION MANUAL
Routine Service Intervals
Due to the nature and environment of use, Walk-Behind Power Trowels could be exposed to severe
operating conditions. Some general maintenance guidelines will extend the useful life of your trowel.
The initial service for your power trowel should be performed after 25 hours of use, at which time your
mechanic (or authorized repair shop) should complete all of the recommended checks in the schedule
above. The chart on page 6 (six) is handy for keeping a record of the maintenance performed and the parts
used for servicing your trowel.
Regular service according to the schedule above will prolong the life of the Walk-Behind Power Trowel and
prevent expensive repairs.
Keeping your Walk-Behind Power Trowel clean and free from debris is the single most important regular
maintenance operation, over and above the checks in the service schedule above, that can be performed.
After each use your Walk-Behind Power Trowel should be cleaned to remove any dust and debris from the
undercarriage and surrounding components. Use of a power washer will make clean up quick and easy,
especially if a non-stick coating was applied prior to use.
In the Service Schedule above, items that should be checked, replaced or adjusted are indicated by “o” in
the appropriate column. Not all Walk-Behind Power Trowel models include the same features and options
and as such not all service operations may have to be performed. For ease of recording place a checkmark
(√ ) through the “o” when the item is complete. If an item is not required or not completed place an “x”
through the “o” in the box.
All Walk-Behind Power Trowels have governed engine speed of 3600 rpm. See engine manufacturer’s
manual for exact specifications. Care should be used when making any adjustments to the Walk-Behind
Power Trowel not to change the governed speed.
Failure to have your Walk-Behind Power Trowel regularly serviced and properly maintained in accordance
with the manufacturer’s instructions will lead to premature failure and void the warranty.
8
artell
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX [phone]
CREATED: 07/04
REVISED: 05/10
8

CREATED: 07/04
REVISED: 07/14
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX [phone]
WALK BEHIND POWER TROWEL INSTRUCTION MANUAL
SAFETY PRECAUTIONS
Always keep unauthorized, inexperienced, untrained
people away from this machine.
Rotating and moving parts will cause injury if
contacted. Make sure guards are in place. Keep
hands and feet away from moving parts.
Fuel the machine only when the engine is stopped,
using all necessary safety precautions.
The engine must always be stopped before
attempting any repair or adjustments. Ignition switch
should be off.
Be careful not to come in contact with the muffler
when the engine is hot, serious burns may result!
ASSEMBLY INSTRUCTIONS
Your new Bartell Walk-Behind Power Trowel has been
shipped to you partially assembled. Filling the fuel tank
and a brief check of lubricant levels in preparation for
operation is required. To complete the assembly the
following instructions will be helpful.
1. TROWELS – Attach trowel blades with screws and
lock washers supplied. See (A) and (B) Fig. 1. Be
careful that adjusting screw (C) does not protrude
below arm when attaching blades. This could cause
the machine to jump and promote excessive wear in
operation.
2. STABILIZER RING – (if supplied) Install using
screws, bushings and lock washers supplied. See
Fig. 1 (D)
3. HANDLE ASSEMBLY – Put cable end Fig. 2 (A)
through hole in yoke (B) and secure with nut (C),
then install handle bracket on gearbox. To get
proper cable tension, turn control knob Fig. 3,
counter-clockwise to stop position. Guide screw (B)
will now be at the bottom slot. Tighten nut Fig. 4 (A)
until slack is removed from point (B) as indicated. If
more than 2 or 3 threads show through, then nut
should be turned back.
Guide screw, Fig. 3 (B) should be moved to next
lower hole in slide bushing and cable re-adjusted as
above. Turn hand knob completely clockwise and
check for clearance between yoke and gearbox at
point (C) Fig. 4. There should be enough space to
pass a business card through.
4. STATIONARY RING – Install stationary ring as
shown in Fig. 5 with the side bar on engine recoil
side. (May not be exactly as shown). Install rubber
bushings (A) on top and bottom of mounting plate.
Install metal caps (B). Place ring on top and run
screw (C) through caps and rubbers. Tighten lock nut
(D) securely on bottom. It is best to start nuts on all 4
corners before tightening.
5. ENGINE CONTROLS – Attach throttle control to
handle with screws provided. See DIAGRAM 1 below
for your engine model hook-up. For safety switch
connection, attach wire to terminal provided at
“ON/OFF” location.
The throttle cable must be cut and formed to fit. Feed
the cable through the cable clamp on the engine. Pull
the cable through the clamp until it forms a smooth
arc from the handle to the engine. Mark the cable at
the clamp and pull the cable back from the casing at
the throttle. Without cutting the cable, Cut casing at
the mark and push the cable back through fresh cut
end. Form a small “L” bend in the cable, hook the
inner cable into the throttle block and tighten cable
clamp down onto the casing. With thumb lever and
throttle block in the fully open position, cut the inner
cable by the thumb lever, leaving enough wire
exposed to secure to the lever. Insert the cable into
the fitting and tighten the screw. Restore throttle to
idle position.
6. BELT GUARD – Install after machine has been
tested, taking care that it does not touch clutch or
pulley.
9
DANGER:
Never operate the machine in an explosive
atmosphere, near combustible materials or where
ventilation does not clear exhaust fumes. Repair
fuel leaks immediately. Refer to your engine
owner’s manual for more safety instructions.
IMPORTANT:
Before running machine with belt installed, ensure
that engine idles properly and that the safety -switch
shuts off the engine.
ATTENTION:
For any information regarding engine adjustments,
please refer to the engine manual supplied.
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX [phone]
CREATED: 07/04
REVISED: 05/10
STATIONARY RING - Install stationary ring as shown
in Fig. 5 with the side bar on engine recoil side (may
not be exactly as shown). install rubber bushings (A)
on top and bottom of mounting plate. Install metal caps
(B). Placing ring on top and run screw (C) through caps
and rubbers. Tigthen lock nut (D) securely on bottom.
It is best to start nuts on all 4 corners before tigthening.
WALK BEHIND POWER TROWEL INSTRUCTION MANUAL
SAFETY PRECAUTIONS
Always keep unauthorized, inexperienced, untrained
people away from this machine.
Rotating and moving parts will cause injury if
contacted. Make sure guards are in place. Keep
hands and feet away from moving parts.
Fuel the machine only when the engine is stopped,
using all necessary safety precautions.
The engine must always be stopped before
attempting any repair or adjustments. Ignition switch
should be off.
Be careful not to come in contact with the muffler
when the engine is hot, serious burns may result!
ASSEMBLY INSTRUCTIONS
Your new Bartell Walk-Behind Power Trowel has been
shipped to you partially assembled. Filling the fuel tank
and a brief check of lubricant levels in preparation for
operation is required. To complete the assembly the
following instructions will be helpful.
1. TROWELS – Attach trowel blades with screws and
lock washers supplied. See (A) and (B) Fig. 1. Be
careful that adjusting screw (C) does not protrude
below arm when attaching blades. This could cause
the machine to jump and promote excessive wear in
operation.
2. STABILIZER RING – (if supplied) Install using
screws, bushings and lock washers supplied. See
Fig. 1 (D)
3. HANDLE ASSEMBLY – Put cable end Fig. 2 (A)
through hole in yoke (B) and secure with nut (C),
then install handle bracket on gearbox. To get
proper cable tension, turn control knob Fig. 3,
counter-clockwise to stop position. Guide screw (B)
will now be at the bottom slot. Tighten nut Fig. 4 (A)
until slack is removed from point (B) as indicated. If
more than 2 or 3 threads show through, then nut
should be turned back.
Guide screw, Fig. 3 (B) should be moved to next
lower hole in slide bushing and cable re-adjusted as
above. Turn hand knob completely clockwise and
check for clearance between yoke and gearbox at
point (C) Fig. 4. There should be enough space to
pass a business card through.
4. STATIONARY RING – Install stationary ring as
shown in Fig. 5 with the side bar on engine recoil
side. (May not be exactly as shown). Install rubber
bushings (A) on top and bottom of mounting plate.
Install metal caps (B). Place ring on top and run
screw (C) through caps and rubbers. Tighten lock nut
(D) securely on bottom. It is best to start nuts on all 4
corners before tightening.
5. ENGINE CONTROLS – Attach throttle control to
handle with screws provided. See DIAGRAM 1 below
for your engine model hook-up. For safety switch
connection, attach wire to terminal provided at
“ON/OFF” location.
The throttle cable must be cut and formed to fit. Feed
the cable through the cable clamp on the engine. Pull
the cable through the clamp until it forms a smooth
arc from the handle to the engine. Mark the cable at
the clamp and pull the cable back from the casing at
the throttle. Without cutting the cable, Cut casing at
the mark and push the cable back through fresh cut
end. Form a small “L” bend in the cable, hook the
inner cable into the throttle block and tighten cable
clamp down onto the casing. With thumb lever and
throttle block in the fully open position, cut the inner
cable by the thumb lever, leaving enough wire
exposed to secure to the lever. Insert the cable into
the fitting and tighten the screw. Restore throttle to
idle position.
6. BELT GUARD – Install after machine has been
tested, taking care that it does not touch clutch or
pulley.
9
DANGER:
Never operate the machine in an explosive
atmosphere, near combustible materials or where
ventilation does not clear exhaust fumes. Repair
fuel leaks immediately. Refer to your engine
owner’s manual for more safety instructions.
IMPORTANT:
Before running machine with belt installed, ensure
that engine idles properly and that the safety -switch
shuts off the engine.
ATTENTION:
For any information regarding engine adjustments,
please refer to the engine manual supplied.
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX [phone]
CREATED: 07/04
REVISED: 05/10
9
WALK-BEHIND TROWEL INSTRUCTION MANUAL

CREATED: 07/04
REVISED: 07/14
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX [phone]
WALK-BEHIND TROWEL INSTRUCTION MANUAL
SETUP PROCEDURE
Step 1: Trowel shown with handle separate. (Fig. 1) Step 2: Lay handle on ring to prepare for assembly.
(Fig. 2 and 3)
Step 3: Install pitch control cable to yoke and install locknut loosely
(Fig. 4). If needed, turn pitch control knob counter-clockwise until the
stop screw is at the lowest position (Fig. 5).
Step 4: Lift and install handle to position using the supplied four sets of lockwashers and nuts.
Do not torque greater than 18ft-lb. At the yoke; tighten the locknut for pitch control cable (Fig. 6).
If the cable is too loose or tight, the pitch control range position can be moved by changing the
position of the stop screw (Fig. 5). The factory default is the middle position. Turn the pitch control
knob completely clockwise and check for maximum pitch possible. This is possible when the clear-
ance between the yoke and underside of the gearbox is enough to pass a business card through.
Fig. 1 Fig. 2
Fig. 3 Fig. 4
Fig. 5 Fig. 6
10

CREATED: 07/04
REVISED: 07/14
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX [phone]
WALK-BEHIND TROWEL INSTRUCTION MANUAL
Step 5: Unwrap throttle control and engine safety shut-off wires to
prepare for their assembly. (Fig. 7 and 8)
Step 6: Remove air lter cover and air lter. (Fig. 9) Step 7: Check for free moving engine throttle control
lever and loosen pivot nut if necessary (Fig. 10)
Step 8: Push handle throttle lever all the way
forward for idle position (Fig. 11). If necessary, the
tension screw can be adjusted for smooth operation
while holding throttle position.
Step 9: Install the throttle control wire into the
throttle control lever. (Fig. 12)
Fig. 7 Fig. 8
Fig. 9 Fig. 10
Fig. 11 Fig. 12
11

CREATED: 07/04
REVISED: 07/14
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX [phone]
WALK-BEHIND TROWEL INSTRUCTION MANUAL
Step 10: Secure the wire to the cable clamp while
pushing with slight pressure forward. (Fig. 13)
Step 11: Check operation of throttle control lever.
(Fig. 11 and 14)
Step 12: Reinstall air lter and cover (Fig. 15) Step 13: Route engine safety shut-off wire around
engine and install. There are two types that may be
available with the machines. (Fig. 16 and 17)
Step 14: Wrap and secure engine safety shut-off
wire. (Fig. 18)
Step 15: Refer to Owner’s Manual before operating
the trowel.
Fig. 13 Fig. 14
Fig. 15 Fig. 16
Fig. 17 Fig. 18
12

CREATED: 07/04
REVISED: 07/14
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX [phone]
WALK BEHIND POWER TROWEL INSTRUCTION MANUAL
OPERATION (Floating)
When the slab has set sufficiently firm that the
operator’s footprint leaves a very slight depression on
the surface of the slab, it is ready for the floating
operation.
Under normal operating conditions the machine should
cover as much as 1000 sq. ft. in about 15 minutes. It is
recommended that a slight tension on the trowel control
cable, (but not a definite tilt), during the floating
operation will cause the machine to operate much
smoother. After the floated slab has set sufficiently, it is
ready for the finishing operation.
OPERATION (Finishing)
When starting the finishing operation, never set the
trowels up over 1/4” pitch. This is important. Guiding the
machine on the slab is very simple, a slight upward lift of
the handle causes the machine to travel to the left.
Holding the handle in the neutral position, will slowly
cause the machine to spin in one spot. Slight downward
pressure on the handle causes the machine to travel to
the right. Best results are obtained by covering
approximately 4” on each turn. In other words, let the
machine move right or left, backwards or forwards,
approximately 4” with each revolution of the trowels. To
fill a hole or cut down a hump, move the unit back and
forth over the problem area.
After the first pass over the slab, the waiting time
between operations is determined in the same manner
as if you were hand troweling. To repeat; the entire
application and action of the troweling machine in regard
to getting on the slab, and the correct pitch of the
trowels, is determined in the same manner as would be
used by a cement finisher when troweling by hand.
STARTING PROCEDURE: *WARM CLIMATE
Open fuel valve on gas tank. Set throttle lever to “Fast”
idle position, set choke to closed position, start engine.
Open choke slightly to prevent flooding. Move to “Open”
or “Run” position when engine is warm, increase throttle
to maximum operation position (3600 rpm).
STARTING PROCEDURE: *COLD CLIMATE
Follow same procedure as above but allow longer
warm-up period – 3 to 5 minutes. In cold weather, oil is
much heavier to move and requires more time to work
its way into the moving parts. If maximum power is not
attained, allow further warm-up time. Fill fuel tank with
clean gasoline, use safety approved gas containers.
DO NOT MIX OIL WITH GASOLINE – USE UNLEADED
GAS ONLY.
STOPPING PROCEDURE
1. Throttle engine down.
2. Turn off stop switch.
LUBRICATION
1. ENGINE OIL
The long life and successful operation of any piece of
machinery is dependent on frequent and thorough
lubrication.
Before using the trowel, always check your engine for
oil. Use proper engine oil as recommended in the
engine manufacturer’s manual. Fill crankcase to
levels as recommended.
ENGINE OIL SPECIFICATIONS
2. SPIDER PLATE
There are 4 (four) grease fittings on the spider plate,
each must be greased daily. THE SPIDER PLATE
MUST BE GREASED EVERY TIME MACHINE IS
USED.
3. GEARBOX
Check the oil level sight plugs on both gearboxes
daily to ensure the oil is half way on the site glass.
Top up with Agma 8 compounded gear oil only.
Gearbox capacity 16 oz. to 19 oz. (473ml. To 562ml.)
Example: Esso/Exxon Cylesstic TK680.
4. TO CHANGE GEARBOX OIL
Place a pan beneath the drain plug to catch the oil.
Remove the drain plug and the filler plug from the
gearbox. After the oil has drained completely, replace
the drain plug and tighten. Fill the gearbox through
the filler plug with 16 oz. to 19 oz. (473ml. To 562ml.)
of Agma 8 compounded gear oil. Replace the filler
plug and tighten.
11
CAUTION:
Do not let the machine stand in one spot on the
soft cement. Lift from the slab when the floating
operation is complete.
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX [phone]
CREATED: 07/04
REVISED: 05/10
WALK BEHIND POWER TROWEL INSTRUCTION MANUAL
OPERATION (Floating)
When the slab has set sufficiently firm that the
operator’s footprint leaves a very slight depression on
the surface of the slab, it is ready for the floating
operation.
Under normal operating conditions the machine should
cover as much as 1000 sq. ft. in about 15 minutes. It is
recommended that a slight tension on the trowel control
cable, (but not a definite tilt), during the floating
operation will cause the machine to operate much
smoother. After the floated slab has set sufficiently, it is
ready for the finishing operation.
OPERATION (Finishing)
When starting the finishing operation, never set the
trowels up over 1/4” pitch. This is important. Guiding the
machine on the slab is very simple, a slight upward lift of
the handle causes the machine to travel to the left.
Holding the handle in the neutral position, will slowly
cause the machine to spin in one spot. Slight downward
pressure on the handle causes the machine to travel to
the right. Best results are obtained by covering
approximately 4” on each turn. In other words, let the
machine move right or left, backwards or forwards,
approximately 4” with each revolution of the trowels. To
fill a hole or cut down a hump, move the unit back and
forth over the problem area.
After the first pass over the slab, the waiting time
between operations is determined in the same manner
as if you were hand troweling. To repeat; the entire
application and action of the troweling machine in regard
to getting on the slab, and the correct pitch of the
trowels, is determined in the same manner as would be
used by a cement finisher when troweling by hand.
STARTING PROCEDURE: *WARM CLIMATE
Open fuel valve on gas tank. Set throttle lever to “Fast”
idle position, set choke to closed position, start engine.
Open choke slightly to prevent flooding. Move to “Open”
or “Run” position when engine is warm, increase throttle
to maximum operation position (3600 rpm).
STARTING PROCEDURE: *COLD CLIMATE
Follow same procedure as above but allow longer
warm-up period – 3 to 5 minutes. In cold weather, oil is
much heavier to move and requires more time to work
its way into the moving parts. If maximum power is not
attained, allow further warm-up time. Fill fuel tank with
clean gasoline, use safety approved gas containers.
DO NOT MIX OIL WITH GASOLINE – USE UNLEADED
GAS ONLY.
STOPPING PROCEDURE
1. Throttle engine down.
2. Turn off stop switch.
LUBRICATION
1. ENGINE OIL
The long life and successful operation of any piece of
machinery is dependent on frequent and thorough
lubrication.
Before using the trowel, always check your engine for
oil. Use proper engine oil as recommended in the
engine manufacturer’s manual. Fill crankcase to
levels as recommended.
ENGINE OIL SPECIFICATIONS
2. SPIDER PLATE
There are 4 (four) grease fittings on the spider plate,
each must be greased daily. THE SPIDER PLATE
MUST BE GREASED EVERY TIME MACHINE IS
USED.
3. GEARBOX
Check the oil level sight plugs on both gearboxes
daily to ensure the oil is half way on the site glass.
Top up with Agma 8 compounded gear oil only.
Gearbox capacity 16 oz. to 19 oz. (473ml. To 562ml.)
Example: Esso/Exxon Cylesstic TK680.
4. TO CHANGE GEARBOX OIL
Place a pan beneath the drain plug to catch the oil.
Remove the drain plug and the filler plug from the
gearbox. After the oil has drained completely, replace
the drain plug and tighten. Fill the gearbox through
the filler plug with 16 oz. to 19 oz. (473ml. To 562ml.)
of Agma 8 compounded gear oil. Replace the filler
plug and tighten.
11
CAUTION:
Do not let the machine stand in one spot on the
soft cement. Lift from the slab when the floating
operation is complete.
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX [phone]
CREATED: 07/04
REVISED: 05/10
SAE 10W-30
All Seasons
13

CREATED: 07/04
REVISED: 07/14
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX [phone]
WALK BEHIND POWER TROWEL INSTRUCTION MANUAL
STORAGE
The following steps should be taken to prepare your
Walk-Behind Power Trowel for extended storage.
1. Close fuel shut off valve.
2. Siphon excess gasoline from tank.
3. Start engine until it stops from lack of fuel. This will
use up all the fuel in the carburetor and prevent
formation of deposits due to evaporation of fuel.
4. Remove spark plug and pour 2 oz. of SAE
10W 30 motor oil into the cylinder. Slowly crank the
engine 2 or 3 times to distribute the oil throughout
the cylinder. This will help prevent rust during
storage. Replace spark plug.
5. Store the unit in an upright position in a cool, dry,
well ventilated area.
MAINTENANCE
Maintaining your Walk-Behind Power Trowel will insure
long life to the machine and its components.
AIR CLEANER - Keep air filter clean at all times. Wash
away dust and debris using a non-oil based cleaning
solvent. Let the filter dry before re-installing.
LUBRICATION – Check engine oil regularly. Use
proper engine oil as recommended. See previous
chart. Fill crankcase to levels as recommended in
manufacture’s engine manual.
SPARK PLUG – Check and clean spark plugs
regularly. A fouled, dirty or carboned spark plug causes
hard starting and poor engine performance. Set spark
plug gap to recommended clearance. Refer to engine
manual.
BELT TENSION – IMPORTANT!
If there is excessive belt play, there will be a decrease
in the power transmission capability which could lead to
premature wear and failure of the belt. The normal belt
play should be 1/2” to 5/8” which is attained by
depressing one side of the belt at the mid-point of the
span between pulleys. Tighten all engine mount
fasteners.
CHART FOR MINIMUM WIRE SIZE OF EXTENSION CORD
Nameplate AMPS CORD LENGTH
25’ 50’ 100’ 150’
0-6 18 AWG 16 AWG 16 AWG 14 AWG
6-10 18 AWG 16 AWG 14 AWG 12 AWG
10-12 16 AWG 16 AWG 14 AWG 12 AWG
12-16 14 AWG 12 AWG (NOT RECOMMENDED)
12
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX [phone]
CREATED: 07/04
REVISED: 05/10
14

CREATED: 07/04
REVISED: 07/14
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX [phone]
WALK BEHIND POWER TROWEL INSTRUCTION MANUAL
The trowel arm adjustment fixture (20801) is reversible.
By rotating the arm clamping fixture and the ring bolt,
both left hand and right hand trowel arms may be
adjusted. Before attempting adjustment, determine
whether the trowel arm is right handed or left handed.
When adjusting left hand trowel arms use the side of the
fixture marked “L”. When adjusting right hand trowels
arms use the opposite side. The adjustment bar will be
set on “36” for the Walk-behind trowel arm.
ADJUSTMENT PROCEDURE
1. Remove all trowel arm assemblies (1 & 2 arm and
attached lift lever) from suspected maladjusted spider
plate.
2. Remove lift lever (2) from trowel arm (1) by first
loosening jam nut (3) then square head screw (4). If
upon inspection (method left to discretion of
serviceman) any trowel arm (1) is found to be in a
bent condition, it must either be brought back to its
original straight condition (method left to the
serviceman’s discretion) or replaced with new part.
3. Replace lift levers (2) on new or straightened arms
(1) by reversing procedure as described above.
4. Place trowel arm assembly (1 and 2) in fixture (5)
with lift lever (2) butting up against fixture. Clamp in
place with bolts (6).
5. Loosen locknut (7) and screw carriage bolt (8) down
to full depth allowable. This will provide for ample
clearance to swing precision ground adjustment bar
(9) over head of carriage bolt.
Adjustment bar (9) is stamped for appropriate size of
machine. Swing appropriate side directly over carriage
bolt (8) and secure in place with bolt (10).
6. Adjust carriage bolt (8) upwards until contact is made
with adjustment bar (9); holding carriage bolt in
position with one wrench, tighten locknut (7) to secure
in position with second wrench.
7. This same procedure is to be followed with ALL arms
from spider plate assembly, and will ensure correct
and exact adjustment.
TROWEL ARM ADJUSTMENT SCREW
The trowel arm adjustment screw is to be used for field
adjustment of blade level, in the event of a damaged
trowel arm, to enable completion of the job. At the end of
the job repairs should be made to eliminate the damage.
When assembling trowel blades to trowel arms, the
adjustment screw should NEVER protrude below the
under-side surface of a trowel arm.
If the adjustment screw is not flush with the underside of
the trowel arm, then this will cause the power trowel to
bounce and vibrate especially at high speed. This will
also cause the trowel blades to leave an uneven finish to
the concrete due to the blades not being level to one
another.
Make certain that the adjusting screw is held firmly in
place while tightening the bolt which secures the blade to
the trowel arm.
17
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX [phone]
CREATED: 07/04
REVISED: 05/10
TROWEL ARM ADJUSTMEN T FIXTURE
PART #20801
Ex: Unit 36” (B436)
1)10810A – Trowel arm
2)10817A – Lift lever
3)10808 – Jam nut
4)10809 – Set screw
5)10824 – Block top
6)10507 – Bolt
7)10808 – Jam nut
8)10807 – Carriage bolt
9)10832 – Adjustment bar
10) 10507 – Bolt
Figure 5a.
NOTE: IT IS IMPORTANT THAT WHEN TIGHT -
ENING SQUARE HEAD NUT (4), IT SEATS ITSELF
SECURELY INTO DIMPLE MACHINED IN ARM.
NOTE: IT IS VITALLY IMPO RTANT TO ENSURE
THAT ONCE THE CARRIAGE BOLT IS ADJUSTED
TO THE CORRECT HEIGHT, IT DOES NOT MOVE
BEFORE, OR DURING THE TIGHTENING OF
LOCKNUT.
1) Trowel arm
2) Lift lever
3) Jam nut
4) Set screw
5) Block top
6) Bolt
7) Jam nut
8) Carriage bolt
9) Adjustment bar
10) Bolt
15

CREATED: 07/04
REVISED: 07/14
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX [phone]
BC90/BC436
ASSEMBLY DRAWINGS AND PARTS
LIST
16

CREATED: 07/04
REVISED: 07/14
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX [phone]
WALK BEHIND POWER TROWEL INSTRUCTION MANUAL
23
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX [phone]
CREATED: 07/04
REVISED: 05/10
Item Part Number Description Qty. Item Part Number Description Qty.
27 10897 Flat Washer, 10mm 4 52 10755 Square head set screw, M10, 1.5 lg 4
31 11621 Lockwasher, M10 2 53 10867 Hex Jam Nut, M10-1.5 4
32 10200 Yoke Arm, sm 1 54 10757 Carriage Bolt 4
35 10349 Yoke Arm Pin 1 55 10758 Blade lock bolts 4
36 10743 Lock Pin, 10mm 1 56 10000 Spiderplate 1
47
20646 Finish Blade - 15cm x 35cm metric 4 57 10681 Lift Lever, sm 1
20415 Clip on Float - 10”x14” 4 58 10059 SHCS, M10-1.5x25mm lg 1
20483 Combo Blade - 20cm x 35cm metric 4 59 10760 Cap Plug 1
20414 Finish Blade, 6”x14” - imperial 4 60 10761 Grease Fitting 4
20479 Combo Blade, 8”x14” - imperial 4 61 10660 Pressure Plate 1
48 10001 Trowel Arm 4 62 10664 Thrust Bearing 6009-2RS 1
49 10452 HHCS, M8-1.25x10mm - metric 4 63 10668 Press Plate Cap 1
10401 HHCS, 5/16-18”x1 1/2” lg - imperial 4 108 10286 Spiderplate assembly (blades and
hardware not included) 1
50 11614 Lockwasher, M8 4
10402 Lockwasher - 5/16, med. split - imperial 4
SPIDERPLATE ASSEMBLY (BC90/BC436)
63
62
61
56
55
31
27
54
53
52 53
49
50 48
47
32
35
36
57
31
58
59
60
108
17

CREATED: 07/04
REVISED: 07/14
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX [phone]
WALK BEHIND POWER TROWEL INSTRUCTION MANUAL
23
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX [phone]
CREATED: 07/04
REVISED: 05/10
Item Part Number Description QTY Item Part Number Description QTY
1 10684 Handle Grips (ea) 2 18 14448 Lockwasher, 6mm 1
2 21728 PHMS, M5-0.8x8mm 2 19 10345 Slide bushing 1
3 10703 Lockwasher, 5mm, internal 2 20 10696 Spring pin, 5mm-30 1
4 10508 Throttle Assembly 1 21 10291 Pitch control cable 1
5 10711 HHCS, M5-0.8x12mm LG 2 22 10346 Pulley 1
6 10703 Lockwasher, 5mm, internal 2 23 10697 Pin, 6mm 1
7 10342 Handle (tube only), powdercoated 1 24 10680 Cable support block 1
8 20713 Deadman switch 1 25 10347 Handle clamp 1
9 10343 Pitch control knob 1 26 10077 HHCS, M10-2.5x35mm lg 1
10 10689 Pin, 5x50mm 1 27 10897 Flat washer, 10mm 1
11 10609 Bearing 51204 1 28 13349 HHCS, M10-1.5x70mm lg 1
12 10683 Pitch control bushing 1 29 10348 Handle clamp 1
13 10798 Wave washer, 18mm 1 30 11802 Lock nut, M10-1.5x16mm 6
14 10692 Flat washer, 20mm x 34mm x 3mm 1 31 11621 Lockwasher, 10mm 5
15 10693 Lock pin, 18mm 1 32 20714 Safety Switch Wire 1
16 10344 Screw shaft 1 107 20650 Handle assembly (complete) 1
17 10694 SHCS, M6-1.0x6mm lg 1 1
HANDLE ASSEMBLY - COMPLETE (BC90/BC436)
1
2
3
4
5
6
789
10
11
12
13
14
15
16 17
19
20
17 18
21
107
22
23
24
25
26
27
27
28
29
30
31
27
30
18
32

CREATED: 07/04
REVISED: 07/14
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX [phone]
WALK BEHIND POWER TROWEL INSTRUCTION MANUAL
23
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX [phone]
CREATED: 07/04
REVISED: 05/10
GEARBOX ASSEMBLY - COMPLETE (BC90/BC436)
Item Part Number Description Qty. Item Part Number Description Qty.
27 10897 Flat washer, 10mm 1 67 10764 Flange 1
31 11621 Lockwasher, M10 2 68 10682 Sight glass/oil gauge 1
33 10741 Stud 1 69 10765 Gearbox (casing only) 1
34 11834 SHCS, M10-1.5x16mm 70 11802 Locknut, M10-1.5, nylon insert 1
37 10284 Countershaft w/worm 1 71 10767 Key 1
38 10744 Bearing 32004 1 72 10232 Mainshaft 1
39 10745 Gasket 2 73 10768 Bearing 6206 1
40 10746 O-ring 2 74 10769 Woodruff key 1
41 10747 Flange, sm 1 75 10285 Main gear 1
42 10748 SHCS, M6-1.0x16mm 16 76 10770 Bearing 30305 1
43 10749 Oil seal 20408 1 77 10771 Washer 1
44 10350 Pulley 1 78 10772 M10x2.5 Hex Screw 1
45 10759 SHSS, M8-1.25x10mm 1 79 10773 Gasket 1
46 10751 Key, 5mm x 35mm 1 80 10774 Gearbox cover 1
64 10762 Oil seal 274710 1 81 10775 Release valve 1
65 10763 Bolt, oil drain 1 109 10100 Gearbox assembly (complete) 1
66 31272 Bearing 6004 1
81
42
80
79 78
77
76
75
74
73
71
72
68 69
42 67
66
40
39
65
64 37
38
39
40 41
42 43
45
44 46
109
33
70 31 27
34 31 27
19
