Barthelme CHROMOFLEX PRO GLASS TOUCH User manual

GEBRAUCHS-
ANWEISUNG
FÜR
CHROMOFLEX PRO
GLASS TOUCH
BITTE AUFMERKSAM LESEN UND
AUFBEWAHREN!
1. EINFÜHRUNG
Der CHROMOFLEX Pro ist eine Weiterent-
wicklung des CHROMOFLEX I, II und RC. Die
Version Pro enthält bis zu 4 Kanäle (für mo-
derne R-G-B-W LEDs - Art. 66000034) und
erhält sämtliche Steuersignale per Funk.
Zur Steuerung und Einstellung werden da-
her entweder das CHROMOFLEX Pro Glass
Touch RGBW (Art.66000336,66000337),
die CHROMOFLEX Pro Fernbedienung
(Art., 66000045), der CHROMOFLEX
Pro USB-Dongle (für PC/Art.66000036)
Glass Touch RGBW black
Artikelnr. 66000336
Glass Touch RGBW white
Artikelnr. 66000337
verwendbar für folgende
CHROMOFLEX Pro | Pro File Module:
66000033; 66000034; 66000043; 66000044;
66000343; 66000344; 66000347; 66000348
oder ein CHROMOFLEX Pro Taster
(Art.66000373) benötigt.
Der CHROMOFLEX Pro wurde so konstru-
iert, dass bereits ohne Programmierung
anspruchsvolle Beleuchtungsaufgaben
im Dekorations- und Wellness-Bereich
gelöst werden können. Die Geräte ent-
halten werkseitig bereits eine Anzahl von
Lichteekten: Von festen Farben, über
beruhigende Wellness-Farbwechsel, bis
zur Show-Beleuchtung. Per Funk können
diese teilweise verändert oder als Stan-
dard-Eekte gespeichert werden.
3. TECHNISCHE DATEN
Betriebsspannung: 8 V bis 24 V DC
Stromaufnahme: 2 - 10 mA
Schutzklasse: III
Maße (L|B|H): 80 | 80 | 23 mm
Umgebungstemperatur:
0°C - max. + 50 °C (Betrieb nur in trocke-
nen Innenräumen, nicht betauend)
Funkfrequenz:
868,3 MHz (lizenzfrei in der EU, Schweiz,
Norwegen und Island).
Hersteller:
Josef Barthelme GmbH & Co. KG
2. BESTIMMUNGSGEMÄSSE
VERWENDUNG
Das Glass Touch erlaubt die Einstellung
von Farben oder das Aufrufen von Eek-
ten auf den CHROMOFLEX Pro Modulen.
Die getätigten Einstellungen können auf
den CHROMOFLEX Pro Modulen gespei-
chert werden, so dass beim erneuten Ein-
schalten der Versorgungsspannung der
gewünschte Eekt oder die gewünschte
Farbe automatisch startet. Die Steuerung
verwendet kontaktlose, berührungsemp-
findliche Bereiche und einen berührungs-
empfindlichen Schieberegler.
Die CHROMOFLEX Pro Serie verwendet die
in der EU, Schweiz, Norwegen und Island
lizenzfreie Funkfrequenz 868,3 MHz.
4. SICHERHEITSHINWEISE
Das Modul verfügt intern über einen Ver-
polungsschutz (mit begrenzter Leistungs-
fähigkeit), trotzdem kann Verpolung (auch
kurzzeitig) das Gerät zerstören. Bei nicht
bestimmungsgemäßen Betrieb, Verpolung,
bei Umbau des Gerätes, bei Sach- oder
Personenschäden, die durch unsachge-
mäße Handhabung oder Nichtbeachten
der Sicherheitshinweise verursacht wer-
den, übernehmen wir keinerlei Haftung
und der Garantieanspruch erlischt voll-
ständig. Dieses Produkt ist kein Spielzeug
und gehört nicht in Kinderhände
5. BETRIEB
Betreiben Sie das Produkt nur, wenn es
einwandfrei funktioniert. Im Fehlerfall
schalten Sie das Produkt sofort aus und
betreiben es erst wieder nach Überprü-
fung durch eine Elektrofachkraft. Dies ist
der Fall, wenn:
•
sichtbare Beschädigungen auftreten
•
das Produkt nicht einwandfrei arbeitet
•
es qualmt, raucht, oder bei hörbaren
Knistergeräuschen
•
eine Überhitzung zu erkennen ist
Nahezu beliebig viele Module können per
Funk miteinander vernetzt werden. In-
nerhalb eines Netzwerkes können sämt-
liche Farbwechsel automatisch synchron
ablaufen (außer den Zufallseekten). So
lassen sich mit minimalem Aufwand
anspruchsvolle Aufgaben erledigen. Die
Reichweite hängt stark von den räum-
lichen Gegebenheiten ab; im freien Feld
sind bis zu 300 Meter möglich, im Innen-
bereich ist normalerweise ein zuverlässi-
ger Betrieb über 20-50 Meter problemlos
möglich.

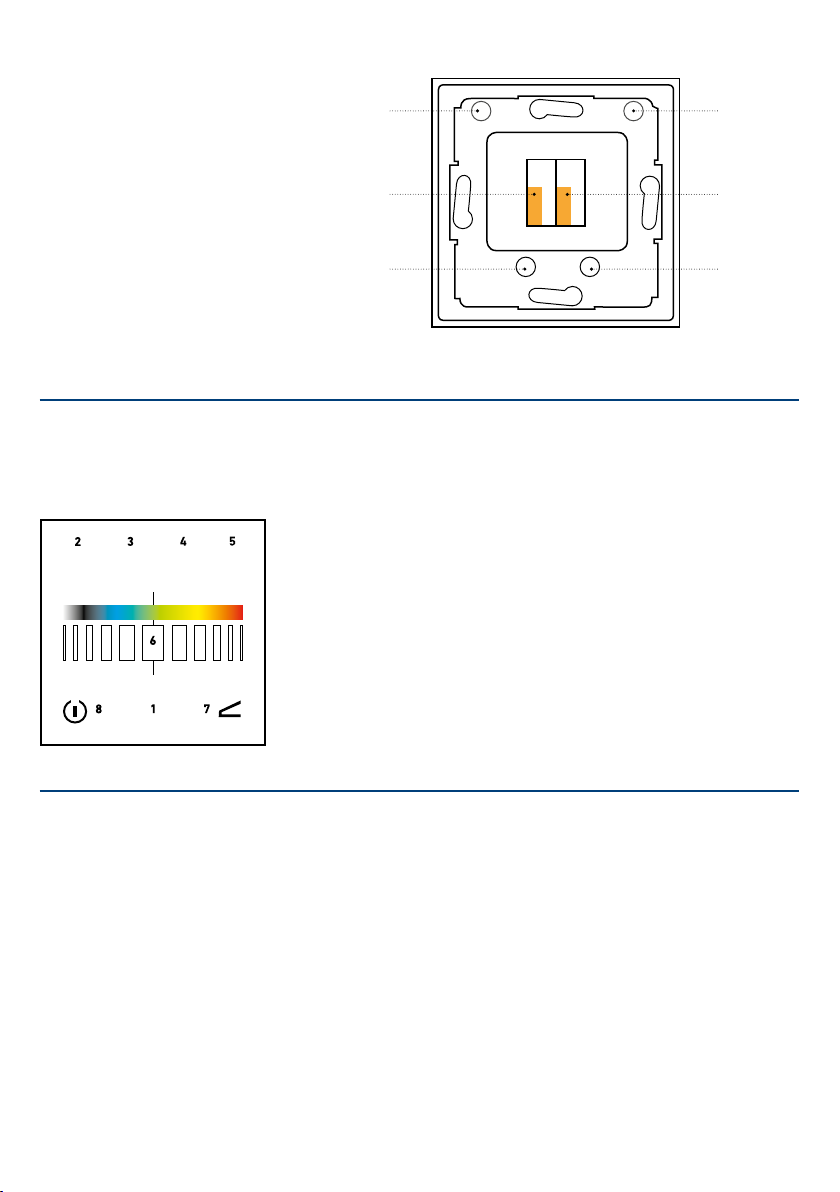

5.1 MONTAGE UND INBETRIEBNAHME
Das Gerät kann in jede handelsübliche
Unterputz- oder Hohlwanddose eingesetzt
werden. Entfernen Sie zu diesem Zweck
den Glass Touch Aufsatz vom Montagerah-
men indem Sie die vier Madenschrauben
(Abb. 1) mit dem mitgelieferten Imbus-
schlüssel lösen.
Befestigen Sie den Montagerahmen,
schließen Sie das Glass Touch an die
Spannungsversorgung an und befestigen
Sie den Aufsatz wieder mit den Maden-
schrauben.
Mit der Pause-Tastekann das aktuelle Pro-
gramm, in der aktuellen Farbe, angehalten
werden. Bei nochmaliger Betätigung wird
das Programm wieder gestartet. Wenn
die Pause Taste länger als 3 Sek gedrückt
wird, werden die Steuergeräte ausge-
schaltet. Hinzu kann durch langen Druck
der Taste (länger als 10 Sek) das aktuelle
Programm als Startprogramm nach Anle-
gen der Versorgungsspannung hinterlegt
werden, hierbei schalten sich die Steuer-
geräte ab.
5.2. TASTENBELGUNG UND FUNKTION
DIE TASTEN DES GLASS TOUCH SIND
NACH FOLGENDEM SCHEMA BELEGT:
ABB.: 1
ABB.: 2
Wird der Schieberegler ohne vorherige
Betätigung einer Funktionstaste bewegt,
wird eine Festfarbe aus der hinterlegten
Farbtabelle aufgerufen. Diese Farbtabel-
le kann mit der Software „ProCEd“ und
USB-Dongle geändert werden.
Wird erst eine Farbfunktionstaste (z.B. rot
) gedrückt, wird mit dem Schieberegler
die Helligkeit dieser Farbe geregelt; diese
Funktion bleibt für ca. 3 Sekunden nach
Betätigung dieser Funktionstaste aktiv –
zu erkennen an der blinkenden Status LED.
Bei kurzem Druck auf dieDimm-Taste wird
der Schieberegler zur Dimmerleiste, zu
erkennen an der blinkenden Status LED.
Dieser Dimmwert gilt dann auch für die
Farbprogramme.
Madenschraube
Anschlussklemme +Anschlussklemme -
Madenschraube
MadenschraubeMadenschraube
Zugleich werden bei kurzem Druck auf
die Dimm-Taste die Farbtasten als Funk-
tionstasten geschaltet, die Belegung ist
wie folgt:
• Funktionstaste weiß »Programm plus
(ist über Software einstellbar)
• Funktionstaste blau »Programm minus
(ist über Software einstellbar)
• Funktionstaste grün »Colour +
(ist über Software einstellbar)
• Funktionstaste rot »Colour -
(ist über Software einstellbar)
FOLGEND DIE PROGRAMMLISTE:
1. Gespeicherte Festfarbe (Fixed Colour)
2. Normaler Farbwechsel (Normal Col.
Ch.)
3. Mittelschneller Farbwechsel (Medium
Col. Ch.)
4. Langsamer Farbwechsel (Slow Col.
Ch.)
5. Aufblendende Basisfarben (Blob)
6 Wechselnde Basisfarben (LSD)
7. Feuer-Simulation (Fire)
8. Blitze (Flashes)
9. Schnell aufblendende Basisfarben
(Bursts)
10. Benutzer-Eekt #1
(einstellbar via Software ProCEd)
11. Benutzer-Eekt #2
(einstellbar via Software ProCEd)
12. Benutzer-Eekt #3
(einstellbar via Software ProCEd)
WBGR
1 Status LED
2 Vorwahl Weiß bzw. 2. Funktion
Standard: Programm +
3 Vorwahl Blau bzw. 2. Funktion
Standard: Programm -
4 Vorwahl Grün bzw. 2. Funktion
Standard: Color +
5 Vorwahl Rot bzw. 2. Funktion
Standard: Color -
6 Schieberegler
7 Vorwahl Dimmen bzw.
Aktivierung 2. Funktion
8 Kurzer Druck Pause
Langer Druck Aus

ABB.: 3

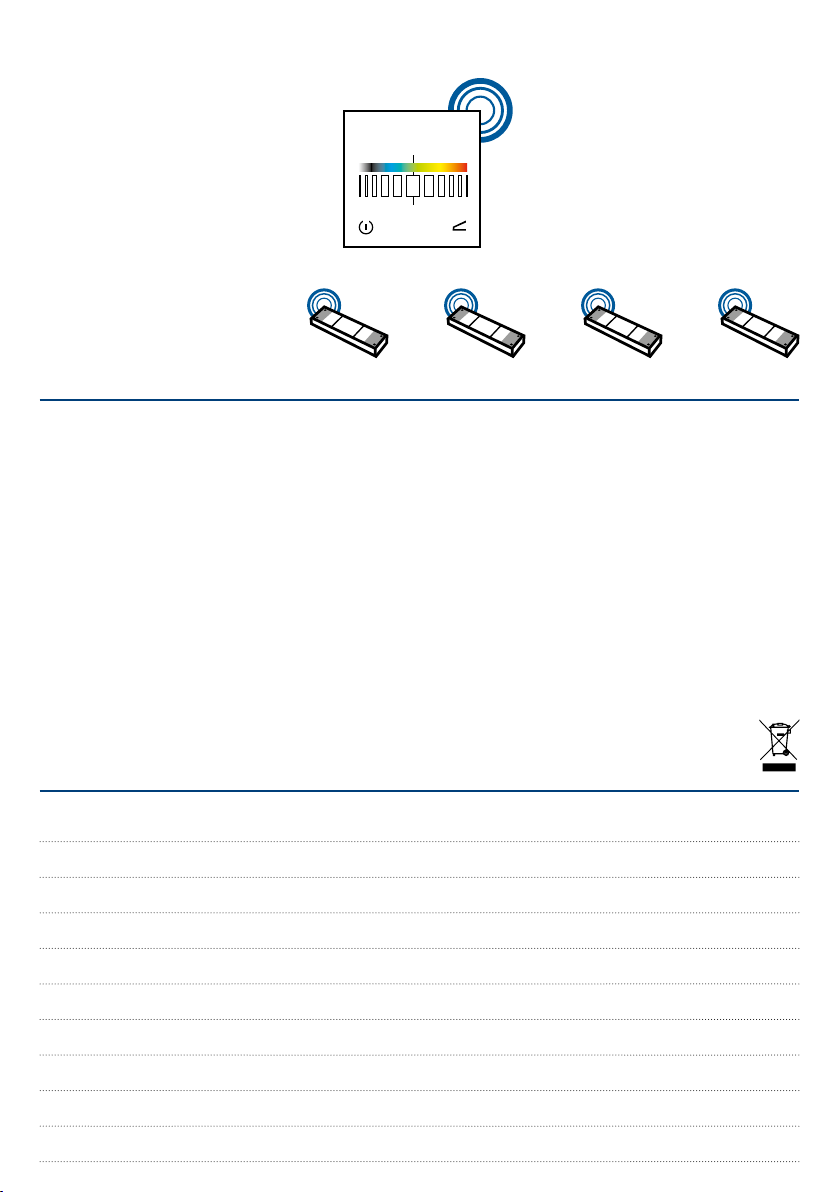

Glass Touch steuert alle sich in
Reichweite befindeten Geräte.
8. LIEFERUMFANG UND ZUBEHÖR
Jedes CHROMOFLEX Pro Glass Touch
RGBW wird mit (dieser) Anleitung ge-
liefert. Sie ist Bestandteil des Lieferum-
fangs für das Gerät und muss dem End-
verbraucher ausgehändigt werden.
Die CHROMOFLEX Pro Module (66000033;
66000034; 66000043; 66000044;
66000343; 66000347; 66000348) und
der CHROMOFLEX Pro USB-Dongle
(66000036) sind optionales Zubehör.
WICHTIG:
Sämtliche Anleitungen zu CHROMOFLEX
sind im Internet unter www.barthelme.de
herunterladbar. Bitte informieren Sie sich
vor Verwendung über Aktualisierungen!
KONTAKT
Josef Barthelme GmbH & Co. KG
Oedenberger Str. 149
90491 Nürnberg | Germany
T: +49 911 42 476 0
www.barthelme.de
TECHNISCHE ÄNDERUNGEN
VORBEHALTEN.
STAND 06|2016
6. VERNETZUNG
Im einfachsten Fall wird nur ein einzelnes
Modul betrieben: Die Fernbedienung muss
daher nur mit einem einzigen Modul kom-
munizieren. Die Werkseinstellungen sind
so, dass jedes Modul auf jede Fernsteue-
rung mit Werkseinstellung reagiert (Netz
10). Mithilfe der PC Software „ProCEd“ und
dem USB-Dongle können Gruppen gebil-
det werden, so lassen sich mehrere Netze
unabhängig voneinander betreiben.
Die Fernbedienung spricht immer alle
Geräte in Reichweite an, sollte der Master
nicht dabei sein, wird dieser immer wieder
seine Einstellungen weitergeben. Daher ist
es wichtig, dass der Master in Reichweite
der Fernbedienung ist.
WBGR
ANMERKUNG ZUR REICHWEITE:
Das Glass Touch verwendet eine (schwä-
chere) interne Antenne als die CHRO-
MOFLEX Pro Module oder der USB-Dong-
le. Die Reichweite des Glass Touch ist
daher geringer als die der Module. Je
nach Einbauart und Beschaenheit der
Wand kann sich die Reichweite eventuell
verringern.
NOTIZEN

INSTRUCTION
MANUAL
FOR
CHROMOFLEX PRO
GLASS TOUCH
PLEASE READ THIS MANUAL CAREFULLY
AND KEEP IT IN A SAVE PLACE!
3. TECHNICAL DATA
Operating voltage: 8 V to 24 V DC
Current consumption: 2 - 10 mA
Protection class: III
Measures (L| B|H): 80 | 80 | 23 mm
Ambient temperature:
0°C - max. +50°C
(in dry conditions only, non-condensing)
Radio frequency:
868.3MHz (licence-free in EC, Switzerland,
Norway and Iceland).
Manufacturer:
Josef Barthelme GmbH & Co. KG
2. USAGE
By using the Glass Touch you can control
colours and eects of the CHROMOFLEX
Pro . Settings being made can be stored on
the CHROMOFLEX Pro. After reconnecting
the supply voltage, the desired colour or
eect is set as start programme. For ope-
ration the remote control is equipped with
solid-state touch buttons / slider.
CHROMOFLEX Pro series operates on a
frequency of 868.3 MHz (licence-free in EU,
Switzerland, Norway and Iceland).
Several CHROMOFLEX Pro can be linked
in a network, whereas all colour chan-
ges/scenes (except. random eects) are
in sync within the network automatically.
Therefore sophisticated illuminations can
be attained with a minimum of eort. Ope-
rating range depends on room conditions.
Operation of up to 300 metres should be
possible outdoors. Indoors an operating
range of 20- 50 metres should be unpro-
blematic.
4. SAFETY INSTRUCTIONS
The unit is equipped with a built-in protec-
tion against reverse polarity. Connecting
the power in reverse polarity can destroy
the module, even if connected for a short
time only.
Please remove and replace empty batte-
ries because they could leak.
We decline any liability, loss or damage
caused by improperly used modules! Gu-
arantee is also lost in such cases.
This product is not a toy, keep away from
children!
1. INTRODUCTION
CHROMOFLEX Pro is an advancement of
CHROMOFLEX I, II and RC. The PRO version
consists of up to 4 channels (for modern
R-G-B-W LEDs - Art. 66000034) and is to-
tally radio controlled.
For control and settings either CHRO-
MOFLEX Pro Glass Touch RGBW (item
66000336, 66000337), CHROMOFLEX Pro
remote control (item 66000045), CHRO-
MOFLEX Pro USB-Dongle (for PC/item
Glass Touch RGBW black
Item no. 66000336
Glass Touch RGBW white
Item no. 66000337
usable with the following
CHROMOFLEX Pro | Pro File modules:
66000033; 66000034; 66000043; 66000044;
66000343; 66000344; 66000347; 66000348
66000036) or a CHROMOFLEX Pro Push
button (item 66000373) is necessary.
CHROMOFLEX Pro was designed so that
sophisticated illuminations in the field of
decoration and wellness can be attained
even without programming. The unit is
equipped with various colour eects by
default such as: colours, calming colour
changes, even show eects. Some of them
can be edited or set as standard eect by
radio control.
5. OPERATION
Please operate this unit only when it is
working properly.
In case of an error, switch o the unit im-
mediately. Do not operate the unit, until the
unit was verified electronically by a quali-
fied electrician.
A case of error is:
•
Visible signs of damage on the unit
•
The unit is not operating properly
•
fume rising or crackling sounds from the
unit
•
Visible signs of overheating

5.1 INSTALLATION AND START-UP
The device can be used in any standard
flush or cavity wall box. Remove the glass
touch attachment from the mounting fra-
me by loosening the four allen screws (Fig.
1) with the supplied allen wrench.
Attach the mounting frame, connect the
glass touch to the power supply and attach
the cover again using the allen screws.
t
The programme running can be stopped
by pressing the pause button . By pressing
the pause button again, the programme
will continue. When the pause button is
pressed for more than 3 seconds, the con-
troller will be turned o.
The start programme can be stored by
pressing the pause button for more than
10 seconds, after the supply voltage is at-
tached. In this case the controllers will be
turned o.
5.2. KEY ASSIGNMENTS | FUNCTIONS
DIE TASTEN DES GLASS TOUCH SIND
NACH FOLGENDEM SCHEMA BELEGT:
FIG.: 1
ABB.: 2
When the slider is used, without having
pressed one of the select buttons, a colour
from the colour templates can be chosen.
This colour template can be edited using
“ProCEd” software and USB dongle.
When a select button (e.g. red ) is pressed
first, the slider will control the brightness
of this colour. This feature will remain acti-
vated for 3 seconds –status LED is blinking
A short press on thedim button and the
dim feature is activated on the slider
which can be noticed by a blinking LED.
This dim value also applies for the colour
Allen screw
Connection terminal +Connection terminal -
Allen screw
Allen screwAllen screw
changes.
A short press of the dim button also
activates the feature buttons. Keypad
configuration as follows:
• Select button white»programme plus
(editable via software)
• Select button blue »programme minus
(editable via software)
• Select button green »colour+
(editable via software)
• Select button red »colour –
(editable via software)
PROGRAMMES:
1. Fixed colours
2. Normal colour change
3. Medium colour change
4. Slow colour change
5. „Blob“-
randomly up lighted/dimmed colours
6. „LSD“- randomly changing colours
7. „Fire“ -Fire simulation
8. Flashes
9. „Bursts“: Randomly selected,
non-synchronised flashes
10. User eect #1
(adjustable via Software ProCEd)
11. User eect #2
(adjustable via Software ProCEd)
12. User eect #3
(adjustable via Software ProCEd)
WBGR
1 Status LED
2
Select button white resp. 2. Feature
Standard: Programm +
3
Select button blue resp. 2. Feature
Standard: Programm -
4
Select button green resp. 2. Feature
Standard: Color +
5
Select button red resp. 2. Feature
Standard: Color -
6 Slider
7 Select button dim or
activates 2. feature
8 Short press PAUSE
Long press OFF

WBGR
FIG.: 3
Glass Touch responds to all units witin
radio range.
NOTE ABOUT THE RANGE:
The Glass Touch has a less strong anten-
na than the CHROMOFLEXPro units or the
USB dongle. Normally the range of the
Radio Remote Control is below the range
of the master to the other units.
Depending on the installation type and
condition of the wall, the range may pos-
sibly decrease.
6. NETWORKING
A basic application is using one CHRO-
MOFLEX Pro and either remote control
or USB dongle. Both units have to be set
on the same net. This is also the default
factory setup mode (default: network 10).
When using the software “ProCEd”, various
groups can be set to control several nets
independently.
The remote control responds to all units
within radio range. If the master is out of
this range, it will proceed sending his set-
tings to the slaves. Therefore, it is import-
ant that the master is within the range of
the remote control.
8. CONTENTS
Every CHROMOFLEX Pro Glass Touch is
shipped with this manual. The instruc-
tions are an integral part of the equip-
ment to which they relate and must be
handed to the user.
CHROMOFLEX Pro USB dongle (66000036)
and CHROMOFLEX Pro units (66000033;
66000034; 66000043; 66000044; 66000343;
66000344; 66000347; 66000348) are optio-
nal accessories.
IMPORTANT NOTE:
Complete manuals for any CHROMOFLEX
can be downloaded at www.barthelme.de
Please look for updates before installation.
CONTACT
Josef Barthelme GmbH & Co. KG
Oedenberger Str. 149
90491 Nuremberg | Germany
T: +49 911 42 476 0
www.barthelme.de
SUBJECT TO TECHNICAL
CHANGES.
VERSION 06|2016
NOTES
Table of contents
Languages:
Other Barthelme Lighting Equipment manuals
Popular Lighting Equipment manuals by other brands

Excelitas Technologies
Excelitas Technologies XLED1 quick start guide

Martin
Martin MAC 2000 Wash XB user manual

Omron
Omron FLV-DL Series instruction sheet

Foxfury Lighting Solutions
Foxfury Lighting Solutions TAKER B30 product manual

Tribe
Tribe LUMIPAR6UQ user manual

Parkside
Parkside PASL 4000 B2 Operation and safety notes
