(165IO) 42”, 52" LADDER WITH REMOVABLE STEPS ENGLISH SIZE: 7.5” X 10.3” PANTONE 295U 09/16/2010
English
OWNER’S MANUAL

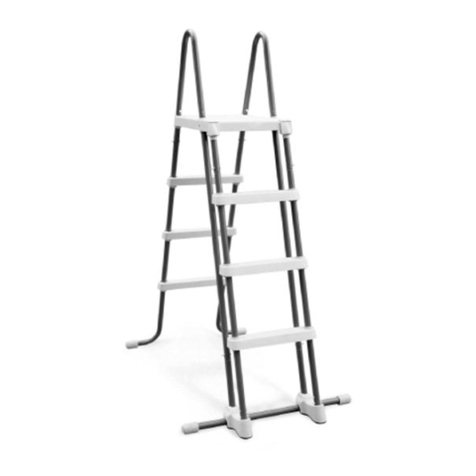

Ladder with
Removable Steps
Owner’s Manual For:
42in (107 cm) & 52in (132 cm) models
IMPORTANT
SAFETY RULES
Read, Understand, and Follow all
Instructions Carefully before
Installing and using this Product.
Don’t forget to try these other fine Intex products: Pools, Pool Accessories,
Inflatable Pools and In-Home Toys, Airbeds and Boats available at fine
retailers or visit our website.
165IO-A0-1109
©2010 Intex Marketing Ltd. - Intex Development Co. Ltd. - Intex Trading Ltd.
- Intex Recreation Corp.
All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle
Rechte vorbehalten. Printed in China/Imprimé en Chine/Impreso en China/Gedruckt in China.
®™ Trademarks used in some countries of the world under license from/®™ Marques utilisées dans certains pays sous
licence de/Marcas registradas utilizadas en algunos países del mundo bajo licencia de/Warenzeichen verwendet in einigen
Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Trading Ltd., Intex Development Co. Ltd., G.P.O
Box 28829, Hong Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European
Union by/Distribué dans l’Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union
durch/Intex Trading B.V., P.O. Box nr. 1075 – 4700 BB Roosendaal – The Netherlands
For illustrative purposes only. 52 in (132cm) Shown

165
IO
SAVE THESE INSTRUCTIONS Page
(165IO) 42”, 52" LADDER WITH REMOVABLE STEPS ENGLISH SIZE: 7.5” X 10.3” PANTONE 295U 09/16/2010
English
2
TABLE OF CONTENTS
Warnings............................................................................. 3
Parts List & References..................................................... 4-6
Setup Instructions............................................................. 7-12
Long Term Storage............................................................. 13
General Aquatic Safety..................................................... 13
Intex Service Center Locations........................................ 14
SAVE THE CARTON FOR STORAGE AND THE INSTRUCTIONS
FOR RE-ASSEMBLY

165
IO
SAVE THESE INSTRUCTIONS Page 3
(165IO) 42”, 52" LADDER WITH REMOVABLE STEPS ENGLISH SIZE: 7.5” X 10.3” PANTONE 295U 09/16/2010
English
SAFETY RULES
IMPORTANT SAFETY RULES
Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product.
• Supervise children and those with disabilities at all times.
• Always assist children when they use the ladder to avoid falls and/or
serious injury.
• Never dive or jump from this ladder.
• Locate the ladder on a level, solid base.
• One person on this ladder at a time.
• Maximum load: 336 lbs (153 kg).
• Face the ladder at all times for entry/exit of pool.
• Remove and secure ladder when pool is not occupied.
• Do not swim under, through or behind ladder.
• Check all nuts and bolts regularly to ensure ladder stays sturdy.
• If swimming at night use artificial lighting to illuminate all safety
signs, ladders, pool floor and walkways.
• Assembly and disassembly by adults only.
• This ladder is designed and manufactured for a specific pool wall
height and/or deck of the pool. Do not use with other pools.
•The non-respect of the maintenance instruction may result in huge
risk for health, particularly for children.
• Only use this ladder for the purposes described in this manual.
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN
BROKEN BONES, ENTRAPMENT, PARALYSIS, DROWNING OR
OTHER SERIOUS INJURY.
These product warnings, instructions and safety rules provided with the
product represent some common risks of water recreation devices and
do not cover all instances of risk and danger. Please use common
sense and good judgment when enjoying any water activity.
WARNING

165
IO
SAVE THESE INSTRUCTIONS Page 4
(165IO) 42”, 52" LADDER WITH REMOVABLE STEPS ENGLISH SIZE: 7.5” X 10.3” PANTONE 295U 09/16/2010
English
PARTS LIST
1 2
PARTS LIST
3
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to
scale.
4 5 6
7 8 9
10 11 12
13 14 15
Estimated assembly time 30-60 minutes. (Note the assembly time is only
approximate and individual assembly experience may vary.)

165
IO
SAVE THESE INSTRUCTIONS Page 5
(165IO) 42”, 52" LADDER WITH REMOVABLE STEPS ENGLISH SIZE: 7.5” X 10.3” PANTONE 295U 09/16/2010
English
PARTS REFERENCE
PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
2
1
3
4
5
9
7
8
6
10
12
11
13
14
15
2
1
3
4
5
9
7
8
6
10
12
11
13
14
15
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to
scale.
52in (132 cm) model
42in (107 cm) model

165
IO
SAVE THESE INSTRUCTIONS Page 6
(165IO) 42”, 52" LADDER WITH REMOVABLE STEPS ENGLISH SIZE: 7.5” X 10.3” PANTONE 295U 09/16/2010
English
PARTS REFERENCE
REF. NO.
DESCRIPTION
LADDER SIZE &
QUANTITIES
SPARE PART NUMBER
42in (107cm)
52in (132cm) 42in (107cm) 52in (132cm)
1
U-SHAPED TOP RAIL
2 2
11334 11346
2
TOP PLATFORM
1 1
11336 11348
3
SHORT FASTENER FOR U-SHAPED TOP RAIL (WITH 1 EXTRA)
5 5
10228 10810
4
LONG FASTENER FOR TOP PLATFORM (WITH 1 EXTRA)
55
10810 10227
5
STEP MOUNTING PIN (WITH 2 EXTRA)
26 34
10913 10913
6
STEP
68
10914 10914
7
A SIDE - UPPER SIDE LEG (MARKED “A1 & B1”)
22
11341 11353
8
A SIDE - LOWER U- LEG (MARKED “A1” )
11
11342 11354
9
A SIDE - LOWER U- LEG (MARKED “B1” )
11
11343 11355
10
B SIDE - UPPER SIDE LEG (MARKED “A2 & B2”)
22
11339 11351
11
B SIDE - LOWER SIDE LEG (MARKED “A2 & B2”)
22
11340 11352
12
C SIDE - UPPER SIDE LEG (MARKED “C”)
2 2
11337 11349
13
C SIDE - LOWER J-SHAPED SIDE LEG (MARKED “C”)
11
11338 11350
14
SUPPORT BASE
22
11344 11356
15
CLASP
22
11345 11345
IMPORTANT
IT IS VERY IMPORTANT TO LAY OUT THE PARTS CORRECTLY AND IDENTIFY WHICH PARTS CONNECT TOGETHER BEFORE STARTING THE ASSEMBLY. ALTHOUGH SOME PARTS LOOK ALIKE, THEY ARE NOT ALWAYS INTERCHANGEABLE. REFER TO THE PARTS LIST.

165
IO
SAVE THESE INSTRUCTIONS Page 7
(165IO) 42”, 52" LADDER WITH REMOVABLE STEPS ENGLISH SIZE: 7.5” X 10.3” PANTONE 295U 09/16/2010
English
SETUP INSTRUCTIONS
LADDER SETUP
These assembly instructions are the same for the 3-step and 4-step
ladders. The assembly drawings show the 4-step ladder.
TOOLS REQUIRED: One (1) Phillips screwdriver
One (1) pair of pliers or a small adjustable wrench
IMPORTANT: Do not fully tighten fasterners until last assembly operation.
WARNING
ASSEMBLE THE LEGS BEFORE INSTALLING THE LADDER STEPS.
FAILURE TO ASSEMBLE THE LEGS BEFORE INSTALLING THE
STEPS MAY ALLOW THE LEGS TO SEPARATE FROM THE LADDER
DURING USE, POSSIBLY RESULTING IN SERIOUS INJURY OR
DEATH.
INCORRECTLY CONNECTED PARTS MAY RESULT IN AN UNSTABLE
LADDER OR LADDER FAILURE WHICH CAN CAUSE FALLING AND
PERSONAL INJURY OR DEATH.
1. SIDE C LEGS ASSEMBLY (refer to figures 1.1 through 1.4):
IMPORTANT: Make sure the legs are securely connected and locked. Check
the spring pins have snapped out before proceeding to the next step.
C
C
C
C
13
14
13
14
CC
Spring pin
1.1 1.2
C
1
2
C
C
C
13
12
Press,
hold and
insert
1.3 1.4

165
IO
SAVE THESE INSTRUCTIONS Page 8
(165IO) 42”, 52" LADDER WITH REMOVABLE STEPS ENGLISH SIZE: 7.5” X 10.3” PANTONE 295U 09/16/2010
English
SETUP INSTRUCTIONS
LADDER SETUP (continued)
2. SIDE A LEGS ASSEMBLY (refer to figures 2.1 through 2.4):
A1 B1
Press,
hold and
insert
$
%
$
%


2.1
7
9
8
2.2
6
Spring pin
IMPORTANT: Make sure the legs are securely connected and locked. Check
the spring pins have snapped out before proceeding to the next step. Ensure
the J-shaped legs are pointing outwards before installing the steps.
A1
A1 B1
B1
A
B
2.4
2.3
56
IMPORTANT: Make sure all pins are securely locked.

165
IO
SAVE THESE INSTRUCTIONS Page 9
(165IO) 42”, 52" LADDER WITH REMOVABLE STEPS ENGLISH SIZE: 7.5” X 10.3” PANTONE 295U 09/16/2010
English
SETUP INSTRUCTIONS
LADDER SETUP (continued)
3. SIDE B LEGS ASSEMBLY (refer to figures 3.1 through 3.4):
A2
B2
Press,
hold and
insert
$
%

$
%
3.1
10
11
3.2
6
Spring pin
3.3 3.4
6
IMPORTANT: Make sure the legs are securely connected and locked. Check
the spring pins have snapped out before proceeding to the next step.
A
B
5
A2
A2
B2
B2

165
IO
SAVE THESE INSTRUCTIONS Page 10
(165IO) 42”, 52" LADDER WITH REMOVABLE STEPS ENGLISH SIZE: 7.5” X 10.3” PANTONE 295U 09/16/2010
English
SETUP INSTRUCTIONS
LADDER SETUP (continued)
4. TOP PLATFORM INSTALLATION (refer to figure 4):
4
4
2
5. U-SHAPED TOP RAIL INSTALLATION (refer to figure 5.1 through 5.2):
5.1
3
1


5.2
4
3
B1
B1
A1
A1
B1 A1
C
C
IMPORTANT: One side at a time. Do not attach the other side of the ladder
until the U-shaped top rail is installed. Make sure all nuts and bolts are
securely tightened.

165
IO
SAVE THESE INSTRUCTIONS Page 11
(165IO) 42”, 52" LADDER WITH REMOVABLE STEPS ENGLISH SIZE: 7.5” X 10.3” PANTONE 295U 09/16/2010
English
LADDER SETUP (continued)
SETUP INSTRUCTIONS
6.SIDE B LEGS INSTALLATON (refer to figure 6.1 through 6.2):
6.1

2
3
6.2
WARNING
BEFORE EACH USE, ENSURE THE REMOVABLE STEPS SIDE IS ANCHORED
INTO THE SUPPORT BASE AND SECURELY LOCKED IN THE CLASPS
LOCATED AT THE FRONT EDGE OF THE TOP PLATFORM.
7
7. MAINTENANCE (refer to figure 7):
Regularly check all nuts, bolts, step
mounting fixtures and step mounting
pins to ensure all parts are secured
properly and the ladder is sturdy.

165
IO
SAVE THESE INSTRUCTIONS Page 12
(165IO) 42”, 52" LADDER WITH REMOVABLE STEPS ENGLISH SIZE: 7.5” X 10.3” PANTONE 295U 09/16/2010
English
LADDER SETUP (continued)
SETUP INSTRUCTIONS
8. BEFORE USE OF LADDER (refer to figure 8):
With all parts now in place, verify that all fasteners/screws are fully
tightened and apply downward pressure to each step to be sure they
are fully anchored in place.
IMPORTANT: The removable steps side must be located outside of the
pool.
8
9.AFTER USE OF LADDER (refer to figure 9.1 through 9.2):
9.1
Press
and
Pull
Press
and
Pull
9.2

165
IO
SAVE THESE INSTRUCTIONS Page 13
(165IO) 42”, 52" LADDER WITH REMOVABLE STEPS ENGLISH SIZE: 7.5” X 10.3” PANTONE 295U 09/16/2010
English
SAFETY GUIDELINES
LONG TERM STORAGE
1. Remove the “removable steps” as shown in the After Use of Ladder
section, see figure 9.1 and 9.2.
2. Remove the ladder from the pool, and make sure the ladder and the
removable steps are thoroughly dry before long term storage.
3. Bring the ladder and all its components indoors and store in a safe and
dry area, preferably between 32° F (0° C) and 104° F (40° C).
4. Be sure the ladder and all components are stored in a safe place away
from children reach.
WARNING
WHEN NOT IN USE, LADDER SHOULD BE KEPT IN SAFETY
POSITION.
REMOVE THE FRONT STEPS SIDE WHEN THE POOL IS NOT IN
USE OR OCCUPIED. STORE THE REMOVABLE STEPS SIDE IN
A SAFE PLACE AWAY FROM CHILDREN REACH. CLOSE THE
CLASPS BACK.
GENERAL AQUATIC SAFETY
Water recreation is both fun and therapeutic. However, it involves
inherent risks of injury and death. To reduce your risk of injury, read and
follow all product, package and package insert warnings and
instructions. Remember, however, that product warnings, instructions
and safety guidelines cover some common risks of water recreation, but
do not cover all risks and or dangers.
For additional safeguards, also familiarize yourself with the following
general guidelines as well as guidelines provided by nationally
recognized Safety Organizations:
• Demand constant supervision. A competent adult should be appointed as
a “lifeguard” or water watcher, especially when children are in and around
the pool.
• Learn to swim.
• Take the time to learn CPR and first aid.
• Instruct anyone who is supervising pool users about potential pool hazards
and about the use of protective devices such as locked doors, barriers, etc.
•Instruct all pool users, including children what to do in case of an emergency.
• Always use common sense and good judgement when enjoying any water
activity.
• Supervise, supervise, supervise.

165
IO
SAVE THESE INSTRUCTIONS Page 14
(165IO) 42”, 52" LADDER WITH REMOVABLE STEPS ENGLISH SIZE: 7.5” X 10.3” PANTONE 295U 09/16/2010
English
AREAS LOCATION AREAS LOCATION
For service questions or to order replacement parts, please contact the appropriate office
listed below or visit www.intexdevelopment.com for answers to most frequently asked
questions.
• ARGENTINA JARSE INDUSTRIAL Y COMERCIAL S.A
MANUEL GARCIA Nº124, PARQUE PATRICO,
BUENOS AIRES, ARGENTINA
TEL: [phone] (interno 106);
TEL: [phone]( interno 145)
E-mail: Martín Cosoleto: [email protected]
E-mail: Daniel Centurion: [email protected]
Website: www.jarse.com.ar
• PERU COMEXA S.A.
AVENIDA COMANDANTE ESPINAR 142,
MIRAFLORES, LIMA, PERÚ
TEL: [phone]
• SAUDI ARABIA SAUDI ARABIAN MARKETING &
AGENCIES CO. LTD.
PRINCE AMIR MAJED STREET,
AL-SAFA DISTRICT. JEDDAH,
KINGDOM OF SAUDI ARABIA
TEL: [phone]
FAX: [phone]
E-mail: [email protected]
Website: www.samaco.com.sa
• AUSTRIA STEINBACH VERTRIEBSGMBH
AISTINGERSTRAßE 2
4311 SCHWERTBERG
TEL: 0820 - 200 100 200
(0,145€/min aus allen Netzen)
FAX: + 43 (7262) 61439
E-mail: [email protected]
Website: www.intexcorp.at
• CZECH REPUBLIC / INTEX TRADING S.R.O.
EASTERN EUROPE BENESOVSKA 23,
101 00 PRAHA 10,
CZECH REPUBLIC
TEL: [phone]
FAX: [phone]
E-mail: [email protected]
• BELGIUM N.V. SIMBA-DICKIE BELGIUM S.A.
MOESKROENSESTEENWEG 383C,
8511 AALBEKE, BELGIUM
TEL: [phone]
FAX: [phone]
E-mail: [e-mail]
E-mail: [e-mail]
Website: www.nicotoy.be/downloads.htm
• DENMARK K.E. MATHIASEN A/S
SINTRUPVEJ 12, DK-8220
BRABRAND, DENMARK
TEL: [phone]
FAX: [phone]
E-mail: [email protected]
Website: www.intexnordic.com
• SWEDEN LEKSAM AB
BRANDSVIGSGATAN 6,
S-262 73 ÄNGELHOLM,
SWEDEN
TEL: [phone]
FAX: [phone]
E-mail: [email protected]
Website: www.intexnordic.com
• NORWAY NORSTAR AS
PINDSLEVEIEN 1,
N-3221 SANDEFJORD,
NORWAY
TEL: [phone]
FAX: [phone]
E-mail: [e-mail]
Website: www.intexnordic.com
• FINLAND NORSTAR OY
SUOMALAISTENTIE 7,
FIN-02270 ESPOO,
FINLAND
TEL: [phone]
FAX: [phone]
E-mail: [e-mail]
Website: www.intexnordic.com
• RUSSIA LLC BAUER
KIEVSKAYA STR., 20,
121165 MOSCOW, RUSSIA
TEL: [phone]/9802
FAX: [phone]
E-mail: [email protected]
Website: www.intex.su
• POLAND KATHAY HASTER
UL. LUTYCKA 3, 60-415 POZNAN
TEL: [phone]
FAX: [phone]
E-mail: [e-mail]
Website: www.intexpoland.pl
• HUNGARY RECONTRA LTD./RICKI LTD.
H-1113 BUDAPEST, DARÓCZI ÚT 1-3,
HUNGARY
TEL: [phone]
FAX: [phone]
E-mail: [email protected]
• BRASIL KONESUL MARKETING & SALES LTDA
RUA ANTONIO DAS CHAGAS,
1.528 - CEP. 04714-002,
CHÁCARA SANTO ANTONIO - SÃO
PAULO - SP - BRASIL
TEL: [phone]
FAX: [phone]
E-mail: [email protected]
• ISRAEL ALFIT TOYS LTD
MOSHAV NEHALIM,
MESHEK 32, 49950, ISRAEL
TEL: [phone]
FAX: [phone]
E-mail: [email protected]
• ASIA INTEX DEVELOPMENT CO. LTD.
9TH FLOOR,
DAH SING FINANCIAL CENTRE,
108 GLOUCESTER ROAD,
WANCHAI, HONG KONG
TEL: [phone]
FAX: [phone]
E-mail: [email protected]
Website: www.intexdevelopment.com
• EUROPE INTEX TRADING B.V.
POSTBUS 1075, 4700 BB ROOSENDAAL,
THE NETHERLANDS
TEL: [phone]
FAX: [phone]
E-mail: [email protected]
Website: www.intexcorp.nl
• FRANCE UNITEX / INTEX SERVICE FRANCE S.A.S
52, ROUTE NATIONALE,
39190 BEAUFORT, FRANCE
TEL: [phone] (0,15€/min)
FAX: [phone]
Website: www.intex.fr
• GERMANY STEINBACH VERTRIEBSGMBH
C/O WEBOPAC LOGISTICS GMBH
INTER-LOGISTIK-PARK 1-3
87600 KAUFBEUREN
TEL: [phone]
(0,14€/min aus dem Festnetz, Mobilfunk max. 0,42€/min)
FAX: + 43 (7262) 61439
E-mail: [email protected]
Website: www.intexcorp.de
• ITALY A & A MARKETING SERVICE
VIA RAFFAELLO SANZIO
20058 VILLASANTA (MI)
TEL: [phone]
FAX: [phone]
E-mail: [email protected]
Website: www.intexitalia.com
• UK TOY BROKERS LTD
MARKETING HOUSE,
BLACKSTONE ROAD,
HUNTINGDON, CAMBS.
PE29 6EF. UK
TEL: [phone]
FAX: [phone]
E-mail: [email protected]
Website: www.intexspares.com
• SWITZERLAND GWM AGENCY
GARTEN-U. WOHNMÖBEL,
RÄFFELSTRASSE 25,
POSTFACH,
CH-8045 ZURICH/SWITZERLAND
TEL: [phone] or [phone]
FAX: [phone]
E-mail: [email protected]
Website: www.gwm.ch, www.gwmsale.ch
• SPAIN / PORTUGAL Nostrum Iberian Market S.A.
Av. de la Albufera, 321
28031 Madrid, Spain
TEL: [phone]
FAX for Spain: [phone]
Email for Spain: [email protected]
FAX for Portugal: [phone]
Email for Portugal: [email protected]
Website: www.intexiberian.com
• AUSTRALIA HUNTER PRODUCTS PTY LTD
LEVEL 1, 225 BAY STREET,
BRIGHTON, VICTORIA,
AUSTRALIA
TEL: [phone] or 1800-224-094
FAX: [phone]
E-mail: [email protected]
Website: www.hunterproducts.com.au
• NEW ZEALAND HAKA NEW ZEALAND LIMITED
UNIT 4, 11 ORBIT DIVE, ALBANY,
AUCKLAND 0757, NEW ZEALAND
TEL: [phone]
FAX: [phone]
E-mail: [email protected]
Website: www.hakanz.co.nz
• MIDDLE EAST FIRST GROUP INTERNATIONAL
REGION AL MOOSA GROUP BUILDING, 1ST
FLOOR, OFFICE 102 & 103, UMM HURAIR
ROAD, KARAMA, DUBAI, UAE
TEL: [phone]INTEX(46839) / [phone]
FAX: [phone]
E-mail: [email protected].
Website: www.firstgroupinternational.com
• SOUTH AFRICA WOOD & HYDE
15-17 PACKER AVENUE, INDUSTRIA 2,
CAPE TOWN, SOUTH AFRICA 7460
TEL: [phone]
FAX: [phone]
E-mail: [email protected]
• CHILE / URUGUAY COMEXA S.A.
EL JUNCAL 100, PARQUE INDUSTRIAL PORTEZUELO,
QUILICURA, SANTIAGO, CHILE.
TEL: [phone]
E-mail: [email protected]
