Bartscher K3110-200U User guide

K3110-200U/200W/200A - K4110-
200U/200W/200A
125543-125543V1-125543V2 - 125544-
125544V1-125544V2

Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: [phone]
Fax: [phone]
Technical Support Hotline: [phone]
www.bartscher.com
Version: 1.0
Date of preparation: 2021-10-08
EN

125543-125543V1-125543V2 1 / 26
Original instruction manual
1Safety............................................................................................................2
1.1 Explanation of Signal Words....................................................................2
1.2 Safety instructions....................................................................................3
1.3 Intended Use ...........................................................................................6
1.4 Unintended Use.......................................................................................6
2General information.......................................................................................7
2.1 Liability and Warranty ..............................................................................7
2.2 Copyright Protection ................................................................................7
2.3 Declaration of Conformity ........................................................................7
3Transport, Packaging and Storage................................................................8
3.1 Delivery Check.........................................................................................8
3.2 Packaging................................................................................................8
3.3 Storage....................................................................................................8
4Technical Data...............................................................................................9
4.1 Technical Specifications ..........................................................................9
4.2 Functions of the Appliance.....................................................................11
4.3 List of Components of the Appliance .....................................................12
5Installation and operation ............................................................................13
5.1 Installation..............................................................................................13
5.2 Operation...............................................................................................15
6Cleaning ......................................................................................................22
6.1 Safety Instructions for Cleaning.............................................................22
6.2 Cleaning.................................................................................................22
7Disposal....................................................................................................... 24

Safety
2 / 26 125543-125543V1-125543V2
EN
Diese Bedienungsa nleitung beschreibt di eI nstallation, Bedienu ngu nd Wartung des Geräts u ndg ilt als wichtige Infor mationsquelle und Nach schlagewerk. Die Ken ntnis aller enthaltene nSic herheitshinweis eun dH andlungsanweisu ngen schafft die Vora ussetzung f ürdas si chere und sachger echte Arbeiten mit de mG erät.D arüber hinaus müssen die für den Einsatz bereich des Geräts gelte nden örtlichen Un fallverhütungsvorsc hriften und allgemein en Sicherheitsb estimmungen eingehalt en werden. Diese Bedi enungsanleitung ist Bestandt eild es Produkts und muss in u nmittelbarer Nähe d es Geräts für das In¬stallatio ns-, Bedienungs- , Wartungs- und Reinigu ngspersonal jederzeit z ugänglich auf¬b ewahrt werden. Wenn d as Gerät an eine dritte Person
weitergegeben wird , muss die Bedienungsa nleitung mit ausgehä ndigt werden.
Read this instruction manual before using and keep it available
at all times!
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.

Safety
125543-125543V1-125543V2 3 / 26
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
,di e
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
1.2 Safety instructions
Electrical Current
•Too high a mains voltage or incorrect installation may cause electric shock.
•The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
•To avoid short-circuit, the appliance should be kept dry.
•If there are malfunctions during operation, disconnect the appliance from the
power supply.
•Do not touch the appliance’s plug with wet hands.
•Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
•Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
•Do not transport the appliance, holding it by the power cord.
•Do not allow the power cord to come into contact with heat sources or sharp
edges.
•Do not bend, pinch nor knot the power cord.

Safety
4 / 26 125543-125543V1-125543V2
EN
•Always completely unwind the power cord.
•Never place the appliance or other objects on the power cord.
•Always take hold of the plug to disconnect the appliance from the power supply.
•Check the power cord regularly for damage. Do not use the appliance if the
power cord is damaged. If this cable is damaged, it must be replaced by
customer service or a qualified electrician in order to avoid dangers.
Incorrect operation of th e appliance may cause fire or explosion hazard d uet oig nition of its content.
Fire hazard / flammable materials hazard / explosion hazard!
•Do not use any electric devices in the appliance.
•Do not store nor use petrol or other flammable liquids and gases in the vicinity of
this or any other appliance. Those gases may cause fire or explosion hazard.
•Do not put into the appliance any explosive materials, like sprays filled with
flammable propellants. Contents of containers filled with flammable gases and
liquids may leak in low temperatures, and the contents may catch fire from
sparks generated by an electric appliance. Explosion hazard!
•In the case of coolant leakage, pull the plug from the socket. Remove all
sources of ignition in the vicinity, ventilate room and contact technical service.
Avoid coolant getting in contact with eyes, as it may cause serious eye damage.
•Never use any flammable liquids for cleaning the appliance or its parts. Gases
released may cause fire or explosion hazard.
•In the case of fire, disconnect the appliance from the power supply before
attempting adequate fire-extinguishing actions.
•Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.
•Defrosting process may not be sped up with mechanical means or heat energy
sources (candles or heaters) nor with any other means. Vapour produced may
cause short-circuit and too high temperatures may damage the appliance.
•All ventilation slots should not be obstructed during operation.
•Never attempt to damage cooling installation of the appliance.
Operating personnel
•This appliance is not intended to be used by persons (including children) with
limited physical, sensory or mental capabilities, nor by persons with limited
experience and/or limited knowledge.
•Children should be supervised to ensure that they are not playing with or
switching the appliance on.
Children may only take dishes or food products from the device!

Safety
125543-125543V1-125543V2 5 / 26
EN
Improper Use
•Unintended or prohibited use may cause damage to the appliance.
•The appliance may only be used when its technical condition is flawless and
allows for safe operation.
•The appliance may only be used when all connections are executed according
to rules of law in force.
•The appliance may only be used when it is clean.
•Use only original spare parts. Never attempt to repair the appliance on your own.
•Do not introduce any changes in the appliance nor modify it.
•Do not drill hole in the appliance nor install any objects on it.
•Do not place any heavy objects on the appliance.

Safety
6 / 26 125543-125543V1-125543V2
EN
1.3 Intended Use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
–Cooling food products in suitable GN containers.
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
–Cooling of not suitable food products.
–Storing flammable or explosive objects and liquids, such as ether,
petroleum or adhesives;
–Storing explosive materials, like sprays filled with flammable propellants;
–Storing pharmaceutical products or preserved blood.

General information
125543-125543V1-125543V2 7 / 26
EN
2 General information
2.1 Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
–failure to observe instructions,
–unintended use,
–technical alterations introduced by the user,
–usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.

Transport, Packaging and Storage
8 / 26 125543-125543V1-125543V2
EN
3 Transport, Packaging and Storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
–in closed rooms;
–in dry and dust-free surrounding;
–away from aggressive agents;
–in a location protected against sunlight;
–in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.

Technical Data
125543-125543V1-125543V2 9 / 26
EN
4 Technical Data
4.1 Technical Specifications
Version / characteristics of buffet trolley for cold dishes
•Cooling: static
•Folding tray slide shelf
•Sneeze guard
•Lighting:
–LED
–it turns on when the mains plug is inserted
•Drain tap
–checking of power cord;
–spiral cable
–cord length: 1 m
•Swivel castors: 5 swivel castors, 2 with brakes
•Indicator light: ON/OFF
•State at delivery: assembled for ready to use
•Stainless steel basin
•The set includes:
–125543, 125543V1, 125543V2: 3 bars, length 528 mm, width 30 mm
–125544, 125544V1, 125544V2: 4 bars, length 528 mm, width 30 mm
•The set does not include: GN containers
We reserve the right to implement technical modifications.

Technical Data
10 / 26 125543-125543V1-125543V2
EN
Name:
Buffet trolley K3110-200U / 200W /
200A
Art. No.:
125543-125543V1-125543V2
Material:
laminated wood / stainless steel /
plastic
Colour:
elm / wenge / anthracite
Number of slits:
1
Basin size, GN format
3 x 1/1 GN
Max. GN container depth, in mm:
200
Temperature range, min.–max., in °C:
2 - 4
Climate class:
3
Coolant, amount in kg:
R290 / 0,07
Dimensions of the shelf for moving
trays (W x D), in mm:
1.170 x 250
Number of bars:
3
Bar dimensions (W x D), in mm:
528 x 30
Power supply:
0,349 kW | 230 V | 50 Hz
Dimensions (W x D x H), in mm:
1.170 x 1.245 x 1.520
Weight, in kg:
136,6

Technical Data
125543-125543V1-125543V2 11 / 26
EN
Name:
Buffet trolley K4110-200U / 200W /
200A
Art. No.:
125544-125544V1-125544V2
Material:
laminated wood / stainless steel /
plastic
Colour:
elm / wenge / anthracite
Number of slits:
1
Basin size, GN format
4 x 1/1 GN
Max. GN container depth, in mm:
200
Temperature range, min.–max., in °C:
2 - 4
Climate class:
3
Coolant, amount in kg:
R290 / 0,07
Dimensions of the shelf for moving
trays (W x D), in mm:
1.495 x 250
Number of bars:
4
Bar dimensions (W x D), in mm:
528 x 30
Power supply:
0,349 kW | 230 V | 50 Hz
Dimensions (W x D x H), in mm:
1.495 x 1.245 x 1.520
Weight, in kg:
146,8
4.2 Functions of the Appliance
The buffet cart is designed for displaying and serving cooled food products. The
buffet trolley with sneeze guard and LED lighting houses 3 or 4 GN 1/1 containers
and keeps food chilled in a safely low temperature.

Technical Data
12 / 26 125543-125543V1-125543V2
EN
4.3 List of Components of the Appliance
Fig. 1
1. ON/OFF switch with integrated
power indicator light (green)
2. Digital temperature controller
3. LED lighting button
4. LED lighting
5. Hygienic cover bracket
6. Sneeze guard
7. Shelves for moving trays (2 pcs.)
8. Cooling tray for GN containers
9. Cooling tub drain
10.Body
11.Swivel castors (5 pcs, 2 with
brakes)
12.Ventilation openings
13.Bottom working surface
14.Drain tap

Installation and operation
125543-125543V1-125543V2 13 / 26
EN
5 Installation and operation
5.1 Installation
CAUTION!
Incorrect installation, positioning, operation, maintenance or misuse of
the appliance may lead to personal injury or property damage.
Positioning and installation, as well as repairs may be performed by
authorised technical service only and in compliance with the applicable
national law.
Unpacking / Positioning
•Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
•If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
•Be careful not to damage the rating plate and warning labels fixed on the
appliance.
•Never place the appliance in humid or wet environment.
•Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
•The appliance should be placed on surfaces that are:
–even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
–sufficiently large, and thus enabling usage of the appliance with no
problems;
–easily accessible;
–well ventilated.
•Nie należy umieszcz ać urządzeni a w gorącym o toczeniu ani w pobliżu materiał ów łatwopaln ych.
•The appliance requir ess ufficient airflow for proper operation. Assure a minimum lateral cl earance of the appliance of 10 cm .
•DieÖ ffnungen am Gerät niemals abdec keno der blockieren.

Installation and operation
14 / 26 125543-125543V1-125543V2
EN
•Do not place the appliance in direct sunlight or in the vicinity of heat sources
(cooker, radiator, heating devices, etc.). Heat sources may negatively affect
power consumption, and restrict functions of the appliance, too.
•The electric socket sho uldb e easily accessibl es oit is possible to quickly disco nnect the power cord when necessary. The electric socket sho uldb e easily accessible so it is possible to quickly disco nnectt he power cord whenn ecessary. The electric socket sho uldb e easily accessible s oit is possible to quickly disco nnect the power cord when necessar y.
•Nie należy umies zczać urządz enia w gorącym o toczeniu ani w pobliżu materiał ów łatwopaln ych.
•The appliance requir ess ufficient airflow for proper operation. Assure a minimum lateral cl earance of the appliance of 10 cm .
•DieÖ ffnungen am Gerät niemals abdec keno der blockieren.
•Place the appliance so that sufficient air circulation is ensured. Do not block nor
cover ventilation openings in the rear wall of the appliance.
•Leave at least 10 cm clearance from walls and other objects.
•To install the appliance, perform the following steps:
–Remove the packaging of the appliance, except for the pallet.
–Lift the appliance with the lift truck and move it to the planned installation
location. Be careful not to damage the appliance. Control the stability in
order not to lose the balance of the appliance.
–Do not drag nor push the appliance, as it may fall down. This may also
cause the damage to external elements or swivel castors.
–as soon as the appliance is in the planned location, remove the pallet.
–attach the swivel castors with brakes
–Remove the protective film from the appliance at the end.
Power supply connection
•Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.
•Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
•The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
•Prior to first use, the appliance should be installed and left standing upright for at
least 2 hours, before it is connected to power supply.
•After a power failure or when the plug is removed from the socket, do not
reconnect the appliance to power supply for at least 5 minutes.

Installation and operation
125543-125543V1-125543V2 15 / 26
EN
5.2 Operation
Indications for User
•Do not place any heavy objects on the sneeze guard (for example, do not place
a stack of plates).
•To place the utensils, etc., use the bottom working surfaces.
•Avoid large amounts of water coming into contact with the wooden parts to
prevent blistering and scratching.
•Cool warm food products down to ambient temperature before placing them the
appliance.
•The buffet cart should not be used continuously (max 2 - 3 hours), as this
appliance is not a refrigerator.
•Use the data in the table below to determine the storage temperatures. The
given temperatures (in accordance with the HACCP regulation) are approximate
values and may change depending on the environment, sunlight and the amount
of food products. For this reason, the storage temperature should be regularly
controlled and the storage temperature should be suitably adjusted to these
requirements by means of a temperature controller.
Food product
Min. temp.
(°C)
Max. temp.
(°C)
Bread
+2
+8
Pasta
+2
+7
Meat
+2
+6
Seafood*
0
+4
Gastronomy
Cooked dishes
+2
+10
Dishes cooked with eggs, milk or
jelly
0
+4
Milk products
+2
+4
Cheese
+2
+10
Sliced cold meat
+2
+10
Vegetable
whole
+8
+10
selection (sliced)
+2
+6
*We recommend that you place seafood on top of a layer of ice flakes.

Installation and operation
16 / 26 125543-125543V1-125543V2
EN
Preparation of Appliance
1. Before use, clean the appliance observing instructions in section 6 'Cleaning'.
2. Make sure the drain tap is closed.
3. Plug the appliance into a suitable single socket.
The LED lighting integrated into the hygiene cover is activated as soon as the
mains plug is plugged in or is switched on via the lighting switch.
4. Switch the appliance on with the ON/OFF push-button.
The green power indicator light in the ON/OFF switch lights up.
When the appliance is switched on, the indicator lights test is carried out; the digital
temperature controller and the LED diodes are blinking for a couple of seconds in
order to control their proper operation.
The appliance cools down to the factory set temperature of 2 ºC. The digital display
shows the current temperature in the cooling bath.
The needed food products may be put in the appliance in suitable GN containers
only when the appliance reaches the set temperature.
5. Follow the instructions in the sections below to enter further temperature
settings.

Installation and operation
125543-125543V1-125543V2 17 / 26
EN

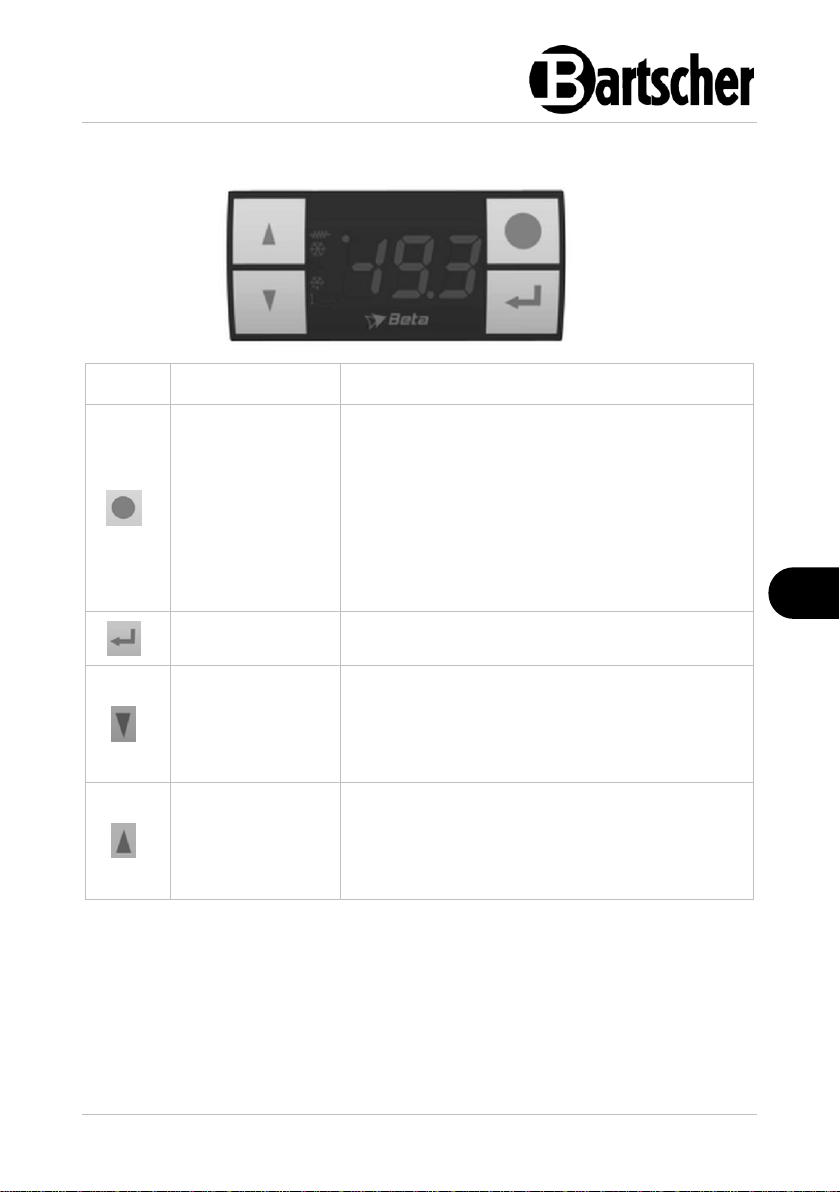

Digital Temperature Controller
Fig. 2
Key
Name
Functions
Function key
1) HACCP data display
2) Pressed for 5 seconds to start or stop manual
defrost (if LFc = 0) without waiting for dSd or
to turn on/off the controller (if LFC = 1)
3) in the programming mode: to exit the
parameter menu without saving the new
setting values (Esc command)
4) during an alarm event: to disable the optional
internal buzzer and relay
Enter key
1) Programming Mode Activation
2) View and confirm new setting values
Setting value
decrease button
1) Keep pressed together with the Enter button
for 5 seconds to lock or unlock the buttons
2) In the programming mode: to scroll through
the parameter menus and decrease the
setting values
Setting value
increase button
1) To display the temperature of the current
probe 1 for a few seconds
2) In the programming mode: to scroll the
parameter menus and increase setting
values

Installation and operation
18 / 26 125543-125543V1-125543V2
EN
LED Indicators
The LED indicators in the digital display show the status of the active function:
LED
Status of the
active function
Meaning
illuminates
the compressor is running (K1 output relay is on,
Act = 0)
flashes
during compressor start delay
illuminates
the heater is working (the K1 output relay is on,
Act = 1)
flashes
during the heater delay time
illuminates
defrosting in progress
flashes
during the delay after defrost
The upper left point flashes in programming mode and lights when the external
contact (digital input) is active or in Standby mode.
The number "1" that appears on the digital display shows the current temperature of
the sensor.
Setting the temperature (required value)
1. Press the button once for a moment.
The digital display shows “SET”. The upper point to the left of the temperature
gauge is flashing to indicate entering programming mode.
2. To display the set value, press the button again.
3. To set the required set value, press the or button within 15 seconds.
4. Press the button to confirm the set data.
NOTE!
If this button is not operated for more than 15 seconds (Timeout) or when
the button is pressed once, the last value shown on the display will be
adopted and the previous message will be displayed again.
Automatic Defrosting
The appliance defrosts automatically 4 times over a 24-hour period. The timer
initiates with the first activation.
