Bartscher 110.135G User manual

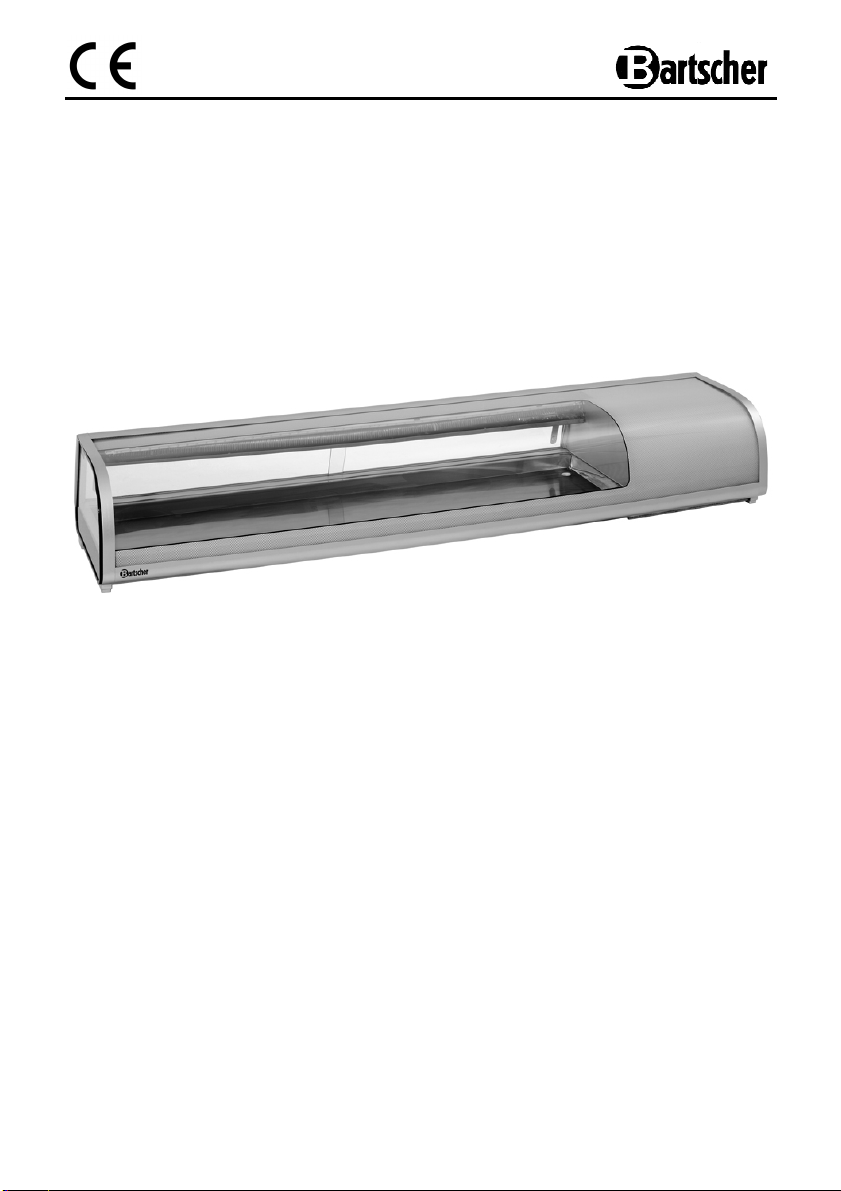

Bartscher Sushi Bar 5x 1/2 GN
110.135G
V1/1012

- 17 -
1. General information................................................................................................ 18
1.1 Information about the instruction manual ............................................................ 18
1.2 Key to symbols.................................................................................................... 18
1.3 Liability and Warrantees...................................................................................... 19
1.4 Copyright protection............................................................................................ 19
1.5 Declaration of conformity..................................................................................... 19
2.Safety ........................................................................................................................ 20
2.1 General information............................................................................................. 20
2.2 Safety instructions for use of the device.............................................................. 20
2.3 Intended use ....................................................................................................... 21
3. Transport, packaging and storage......................................................................... 22
3.1 Delivery check..................................................................................................... 22
3.2 Packaging ........................................................................................................... 22
3.3 Storage................................................................................................................ 22
4. Technical data......................................................................................................... 23
4.1 Technical specification........................................................................................ 23
4.2 Overview of parts ................................................................................................ 24
5. Installation and operation....................................................................................... 25
5.1 Safety instructions............................................................................................... 25
5.2 Installation and connection.................................................................................. 26
5.3 Operation ............................................................................................................ 27
6. Cleaning and maintenance..................................................................................... 29
6.1 Safety advice....................................................................................................... 29
6.2 Cleaning.............................................................................................................. 29
6.3 Safety instructions for maintenance .................................................................... 30
7. Possible Malfunctions ............................................................................................ 31
8. Waste disposal........................................................................................................ 32
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten phone: [phone]
Germany fax: [phone]
Keep this instruction manual
ready to hand at the product!
GB/UK

- 18 -
1. General information
1.1 Information about the instruction manual
This instruction manual contains information about the installation, operation and
maintenance of the device and should be consulted as an important source of
information and reference guide.
Awareness of the safety instructions and instructions for use in this manual will ensure
the safe and correct use of the device.
In addition to the information given here, you should comply with any local Health and
safety Controls and generally applicable safety regulations.
The instruction manual forms part of the product and should be kept near the device
and easily accessible for anyone carrying out the installation, servicing, maintenance or
cleaning.
1.2 Key to symbols
In this manual, symbols are used to highlight important safety instructions and any
advice relating to the device. The instructions should be followed very carefully to avoid
any risk of accident, personal injury or material damage.
WARNING!
This symbol highlights hazards, which could lead to injury.
Please follow the instructions very carefully and proceed with particular attention
in these cases.
WARNING! Electrical hazard!
This symbol draws attention to potential electrical hazards. If you do not follow
the safety instructions, you may risk injury or death.
CAUTION!
This symbol highlights instructions, which should be followed to avoid any risk of
damage, malfunctioning and/or breakdown of the device.
NOTE!
This symbol highlights tips and information, which have to be followed for
an efficient and trouble-free operation of the device.

- 19 -
1.3 Liability and Warrantees
All the information and instructions in this manual take into account standard safety
regulations, current levels of technical engineering as well as the expertise and
experience we have developed over the years.
The instruction manual was translated with all due care and attention. However, we do
not accept liability for any translation errors. The German version of this instruction
manual is definitive.
If the delivery consists of a special model, the actual scope of delivery may differ from
the descriptions and illustrations in this manual. This is also the case for special orders
or when the device has been modified in line with new technology. If you have any
questions, you should contact the manufacturer.
NOTE!
Read the instruction manual carefully before using the device. The manufacturer
does not accept liability for any damage or malfunction resulting from not
following the instructions for use.
The instruction manual should be kept near the device, easily accessible for anyone
wishing to work with or using it. We reserve the right to make technical changes for
purposes of developing and improving the useful properties.
1.4 Copyright protection
The instruction manual including any texts, drawings, images or other illustrations is
copyright. No part of this publication may be reproduced, transmitted or used in any
form or by any means without permission in writing from the manufacturer. Any person
who commits any unauthorized act in relation to this publication shall be liable to claims
for damages. All rights reserved.
NOTE!
The contents, texts, drawings, pictures and any other illustrations are copyright
and subject to other protection rights. Any person unlawfully using this
publication is liable to criminal prosecution.
1.5 Declaration of conformity
The device complies with the current standards and directives of the EU.
We certify this in the EC declaration of conformity.
If required we will be glad to send you the according declaration of conformity.

- 20 -
2.Safety
This section provides an overview of all important safety aspects.
In addition every chapter provides precise safety advice for the prevention of dangers
which are highlighted by the use of the above mentioned symbols.
Furthermore, attention should be paid to all pictograms, markers and labels on the
device, which must be kept in a permanent state of legibility.
By following all the important safety advice you gain an optimal protection against all
hazards as well as the assurance of a safe and trouble-free operation.
2.1 General information
This device is designed in accordance with the presently applicable technological
standards. However, the device can pose a danger if handled improperly and
inappropriately.
Knowing the contents of the instruction manual as well as avoiding mistakes and thus
operating this device safely and in a fault-free manner is very essential to protect
yourselves from the hazards.
To prevent hazards and to ensure optimum efficiency, no modifications or alterations to
the device that are not explicitly approved by the manufacturer may be undertaken.
This device may only be operated in technically proper and safe condition.
2.2 Safety instructions for use of the device
The specifications regarding the industrial safety are based on the Regulations of the
European Union applicable at the time of manufacturing the device.
If the device is used commercially, the user is obliged to ensure that the said industrial
safety measures concur with the state of the rules and regulations applicable at the time
in question for the entire period of use of the device and to comply with the new
specifications.
Outside the European Union, the industrial safety laws applicable at the place of
installation of the device and the regional territorial provisions must be complied with.
Besides the industrial safety instructions in the instruction manual, the general safety and
accident prevention regulations as well as environment protection regulations applicable
for area of application of the device must be followed and complied with.

- 21 -
CAUTION!
oThe device is not intended for use by individuals (including children) with physical or
mental disabilities, insufficient experience, and/or insufficient knowledge unless such
persons are under the care of a person responsible for their safety or have received
instructions regarding appropriate use of the device.
oChildren should be observed to ensure that they are not playing with the device.
oPreserve this manual safely. When passing on/selling the device to a third party, the
manuals must be handed over along with the device.
oEvery person using the device must act in accordance to the manuals and under
consideration of the safety advice.
oThe device is to be used indoors only.
2.3 Intended use
CAUTION!
The device has been designed and constructed only for commercial use and
should be operated by qualified personnel.
Safe operation is only guaranteed when using the device for its intended purpose.
Any technical interventions, as well as assembly and maintenance are to be made by a
qualified customer service only.
The Bartscher Sushi Bar is intended only for cooling appropriate food products in
appropriate GN containers.
The Bartscher Sushi Bar cannot be used for storing:
-flammable or explosive materials such as ether, alcohol, oil or glue;
-pharmaceutical products or blood products.
CAUTION!
Any use going beyond the intended purpose and/or any different use of the
device is forbidden and is not considered as conventional.
Any claims against the manufacturer or his authorized representative as a
consequence of experiencing damages resulting from unconventional use are
impossible.
The operator is liable for all damages resulting from inappropriate use.

- 22 -
3. Transport, packaging and storage
3.1 Delivery check
Please check the delivery upon completeness and transport damage immediately
after receipt. In case of visible damage do not accept or accept the delivery with
reservation only.
Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint.
Hidden damages should be reclaimed immediately after notice, as claims for damages
can only be asserted within the effective period for complaints.
3.2 Packaging
Please do not throw away the covering carton of your device as it might be useful for
storage purposes, when moving or, in case of damages, when the device must be sent
back to a repair center. The outer and inner packing material should be removed
completely from the device before installation.
NOTE!
If you liked to dispose the packing, consider the regulations applicable in your
country. Supply re-usable packing materials to the recycling.
Please inspect the device upon completeness. In case any part is missing please
contact our customer service center immediately.
3.3 Storage
Keep the package closed until installation and under consideration of the outside
indicated positioning- and storage markings.
Packages should be stored under consideration of the following:
-Do not store outdoors.
-Keep it dry and dust-free.
-Do not expose it to aggressive media.
-Do not expose it to direct sunlight.
-Avoid mechanical shocks and vibration.
-In case of longer storage (> 3 months) make sure you check
the state of the packaging and the parts regularly.
If required refresh or renew.

- 23 -
4. Technical data
4.1 Technical specification
Name Bartscher Sushi Bar 5x 1/2 GN
Article no.:
110.135G
Construction: Housing: plastic, silver; Work surface: CNS 18/10
Working temperature: 2 °C to 7 °C
Capacity: 5x 1/2 GN, up to 40 mm D***
Coolant / quantity R600a / 95 g
Energy class: N
Power: 230 V 50 Hz 180 W
Dimensions: W 1800 x D 425 x H 295 mm
Weight: 45 kg
Equipment: 1 support beam (length: 325 mm, width 30 mm)
We reserve the right to make technical changes!
***GN containers not supplied
Features:
•round panoramic front shield
•sliding glass door at rear enabling quick service
•electronic controls
•static cooling with additional upper evaporator pipe
•automatic defrost function
•separately installed energy-efficient LED lighting
A perfect compliment: Bartscher CNS 18/10 steel food service containers
- 1/2 GN, 20 mm D (art. no. A122.020) or
- 1/2 GN, 40 mm D (art. no. A122.040)

- 24 -
4.2 Overview of parts
①
Ventilation ducts
②
Power cable
③
Control switches
④
Drain hose
⑤
Feet
⑥
Housing
⑦
Surface for placing GN
⑧
Sliding glass door (at rear)
⑨
LED lighting strip
⑩
Round panoramic front shield
③
②
①
⑩
④
⑥
⑤
⑦
⑧
⑨

- 25 -
5. Installation and operation
5.1 Safety instructions
WARNING! Risk of electric shock!
The device must only be connected to a properly installed single socket with
protective contact.
Never remove the power cable by pulling the cable itself; always grab the plug
housing.
•Never allow the power cable to come into contact with heat sources or sharp edges.
The power cable should not hang over the side of the working surface. Ensure that no
one can step on or trip over the cable.
•The power cable must not be folded, bent or tangled, and must always remain fully
unrolled.
•Never place the device or other objects on the power cable.
•Do not use the device in case it does not function properly, has been damaged or
dropped.
•Do not use any accessory or spare parts that have not been recommended by the
manufacturer. These can be dangerous for the user or lead to damages of the
device or personal injury, and further, the warranty expires.
•Do not lay the cable over carpets or heat insulations. Do not cover the cable. Keep
away the cable from operating range and do not dunk it into water.
•Do not move or tilt the device when in operation.
WARNING! Hazard via electrical current!
The device can cause injuries due to improper installation!
Before installation the local power grid specification should be compared with
that of the device (see type label).
Connect the device only in case of compliance!
Take note of the security advice!

- 26 -
5.2 Installation and connection
CAUTION!
Installation and connection of the device should be performed only by a qualified
specialist.
Setup
•Unpack the device and remove all packing material. Remove the protective film from
the device.
•Put the device in a safe place capable of supporting its weight.
•Never put the device on a flammable surface (e.g. tablecloth, carpet, etc.).
•To avoid damage to the compressor, when setting up or transporting the device do
not tilt it to a degree in excess of 45º.
•Do not place the device near sources of open flame, electric ovens, electric heaters
or other heat sources such as direct sunlight. High temperatures may damage the
device's surface and have a negative impact on cooling efficiency and energy use.
•The device should be set up to ensure adequate air circulation. Ensure a distance
of 10 cm at the sides and 30 cm overhead. Ensure sufficient space for personnel to
work behind the device.
•Never cover the device's ventilation ducts.
•Never place the device in locations with high ambient humidity. Too much moisture
may damage the device.
•Do not drill any holes or mount any objects on or in the device.
•Do not place any heavy objects on the device.
Connecting the device
•If the device was not transported in vertical position, wait at least 2 hours before
connecting it to an electricity source.
•In the event of a power outage or if the device is unplugged, do not reconnect
the device to the power network for at least 5 minutes.
•The electrical circuit of the socket must be secured to at least 16A. Only connect
the device to a wall outlet; do not use any extension cords or power strips.
•Place the device so that the plug is easily accessible so as to quickly disconnect the
device if the need arises.

- 27 -
5.3 Operation
•After unpacking the device but before connecting it to the power source, wash it.
GN containers should be washed prior to use. (see 6.2 "Cleaning”).
•Open the sliding door and place the appropriate 1/2 GN containers in the cooling
cabinet.
•Connect the device to a single grounded outlet.
•Turn the device on by using the ON/OFF switch. A red control light will come on by
the ON/OFF switch.
•The digital display will show the set temperature value and the LED cooling indicator
will come on.
•The device should reach the desired temperature before food products in GN
containers are placed inside.

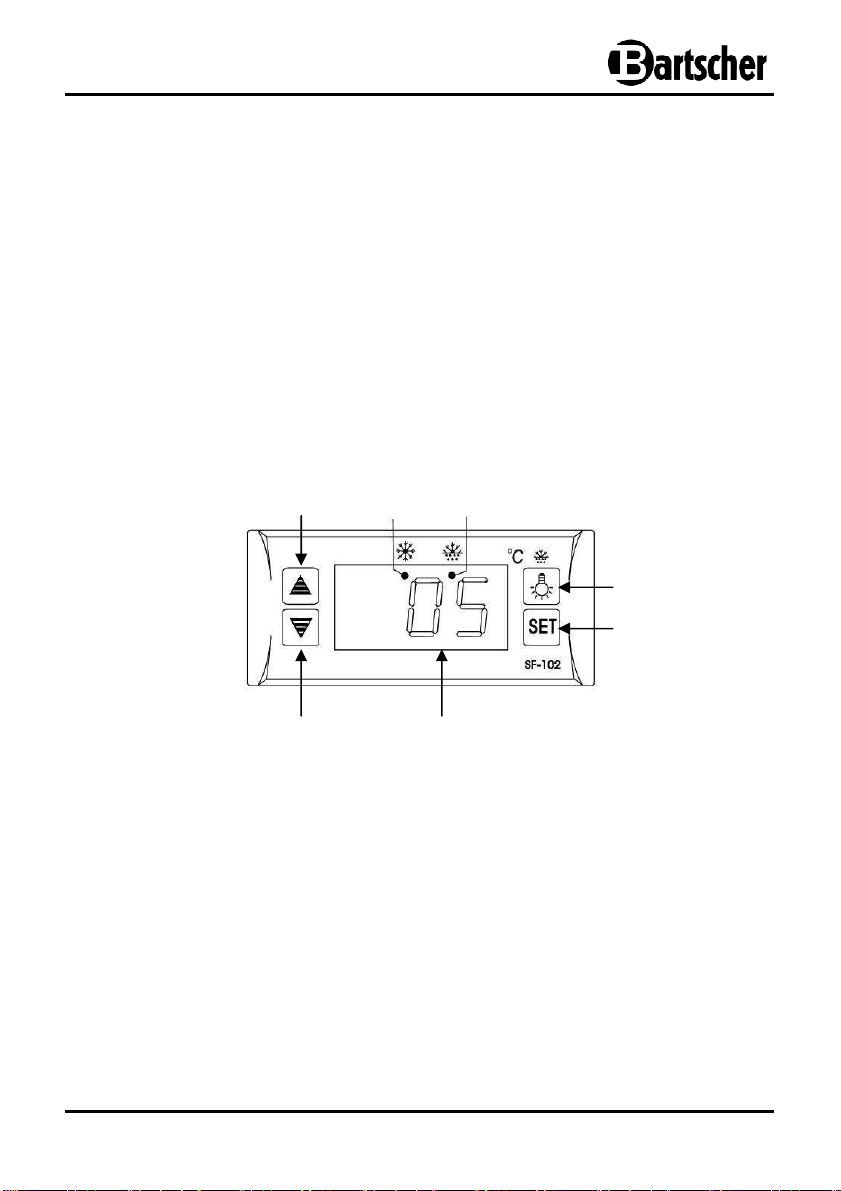

Digital temperature regulator
⑪
Temperature increase button
⑫
LED cooling indicator
⑬
LED defrost indicator
⑭
LED lighting button
⑮
Settings adjust/save button
⑯
Digital display
⑰
Temperature reduce button
⑭
⑰
⑮
⑯
⑪
⑬
⑫

- 28 -
LED indicators
LED cooling indicator
This indicator comes on when the compressor is activated,
goes off when the desired internal temperature is reached
and flashes during delays.
LED defrost indicator
This indicator comes on during the defrost process,
goes off when the defrost process is finished and flashes during
extended defrost.
Setting the desired temperature (desired value)
•The device's temperature can be set within a range from 2 °C to 7 °C.
•To set or change the desired value:
press the button labeled ; the current value will begin flashing;
 raise or lower the temperature as desired by pressing the buttons labeled
and ;
confirm the set temperature by pressing the button labeled .
Turning lighting on/off
•LED internal lighting can be turned on as needed by pressing the button labeled
.
•To turn the lighting off, press the button labeled again.
Automatic defrost
The device has an automatic defrost function. It is optimally set to cool sushi, tapas, etc.
Cooling food products
•When the device's interior has reached the desired temperature, the LED cooling
indicator will go off and the device is ready for food products to be placed inside. To do
this, first open the glass door at the rear of the device.
•Food products (e.g. sushi, tapas) ready to be served should be placed in appropriate
GN containers, which are then placed in the cooling cabinet.

- 29 -
NOTE!
Do not place hod food inside the cooling cabinet, but let it cool first.
•Do not overfill the cooling cabinet, so as to avoid disrupting air circulation inside
the device.
•To avoid losses during the cooling process, do not keep the glass door open longer
than is necessary.
•After removing the desired food products, close the device's glass door.
•If the device is to remain unused for a period of time, turn it off using the ON/OFF
switch and remove the device's plug from its socket.
6. Cleaning and maintenance
6.1 Safety advice
oBefore beginning with repair or cleaning works make sure the device has been
disconnected from power supply and has cooled down.
oDo not use any acid agents and make sure no water ingresses the device.
oTo protect yourself from electric shock, never immerse the device, its cables and
the plug in water or other liquids.
CAUTION!
The device is not suited for direct washing via water jets.
Therefore, you must not use any kind of pressure water jet for cleaning the device!
6.2 Cleaning
oAt the end of the day the device should be thoroughly cleaned.
oDisconnect the device from its socket by removing the plug.
oRemove all food from inside the device and place it in a refrigerator, to avoid spoilage.
oIf condensation has gathered on the surface for placing GN containers, remove is
using the drain hose. First, remove the cover from the drain hose, then pour the
water into a container. Close the drain hose.
oRegularly clean the interior of the cooling cabinet with a disinfectant approved for
food service use and a soft cloth.

- 30 -
oTo make cleaning easier, the glass door can be removed. Clean it using a mild
cleaning agent and soft cloth, then dry thoroughly.
oWash the exterior of the device with a soft cloth and warm water, with a small
amount of mild detergent.
oRinse all the washed surfaces with clean water to remove leftover cleaning agents.
oWash the GN containers thoroughly.
oNever use harsh cleaning chemicals, such as scouring powder, alcohol-based
substances or solvents, which may damage the device's surface.
oDry the device thoroughly. Use a soft, dry cloth for drying and polishing the device's
surface.
6.3 Safety instructions for maintenance
oInspect the power cable regularly for damage. Never use the device if the cable is
damaged. If the power cable is damaged, have an authorised service center or
qualified electrician replace it.
oIn case of damage or malfunction, please contact your stockist or our customer
service centre. Pay attention to the troubleshooting tips in pt. 7.
oOnly a qualified technician and using original spare parts and accessories should
carry out repairs and maintenance of the device. Do not attempt to repair the
device yourself.

- 31 -
7. Possible Malfunctions
Problem Cause Solution
No cooling
•Power cable improperly
connected
•Safety fuse has been
activated.
•Power outage
•Damaged temperature
regulator.
•Remove plug and connect it
again.
•Check safety fuse, check
the device by connecting it to
another socket.
•Check the power supply
•Contact a sales agent
Weak cooling
•Heat source too close or
device exposed to direct
sunlight.
•Poor air circulation in the
device.
•Temperature set
improperly.
•Device is overfilled.
•Ensure sufficient space
between device and heat
source.
•Ensure sufficient space
between device's walls and
other objects
•Check settings, set a lower
temperature.
•Do not overfill device, remove
excess products.
The aforementioned problems are only examples. If these or other problems
appear, turn the device off immediately and stop using it. Ask for help from
qualified specialist personnel in examining and repairing the device.
The following are not examples of damage:
1. The sound of flowing water: this happens during normal use, and results from the
flow of coolant trough the device.
2. Condensation drops on side glass panes are normal when the ambient humidity is
high. Remove the water with a soft, dry cloth.

- 32 -
8. Waste disposal
Discarding old devices
At the end of its service life the discarded device has to be disposed in accordance with
the national regulations. It is advisable to contact a company which is specialized in
waste disposal, or just contact the local disposal service in your community.
WARNING!
To exclude any abuse and the dangers involved make the waste device unfit for
use before disposal. For that purpose disconnect device from mains supply and
remove mains connection cable from the device.
NOTE!
For the disposal of the device please consider and act
according to the national and local rules and
regulations.
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten phone: [phone]
Germany fax: [phone]
