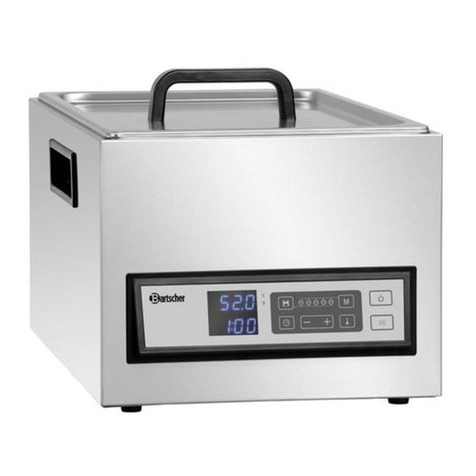

Bartscher SV G25L User guide

SV G25L - SV G16L
115130 - 115131

Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: [phone]
Fax: [phone]
Technical Support Hotline: [phone]
www.bartscher.com
Version: 3.0
Date of preparation: 2020-03-18
EN

115130 1 / 26
Original instruction manual
1Safety............................................................................................................2
1.1 Explanation of signal words.....................................................................2
1.2 Safety instructions....................................................................................3
1.3 Intended use............................................................................................5
1.4 Unintended use........................................................................................5
2General information.......................................................................................6
2.1 Liability and warranty...............................................................................6
2.2 Copyright protection.................................................................................6
2.3 Declaration of conformity.........................................................................6
3Transport, packaging and storage.................................................................7
3.1 Delivery check .........................................................................................7
3.2 Packaging................................................................................................7
3.3 Storage....................................................................................................7
4Technical data...............................................................................................8
4.1 Technical specifications...........................................................................8
4.2 Functions of the appliance.......................................................................9
4.3 List of components of the appliance.......................................................10
5Installation and operation ............................................................................11
5.1 Installation..............................................................................................11
5.2 Operation............................................................................................... 12
6Cleaning ......................................................................................................19
6.1 Safety Instructions for cleaning..............................................................19
6.2 Cleaning.................................................................................................20
7Possible malfunctions..................................................................................22
8Disposal....................................................................................................... 24

Safety
2 / 26 115130
EN
Diese Bedienungsa nleitung beschreibt di eI nstallation, Bedienu ngu nd Wartung des Geräts u ndg ilt als wichtige Infor mationsquelle und Nach schlagewerk. Die Ken ntnis aller enthaltene nSic herheitshinweis eun dH andlungsanweisu ngen schafft die Vora ussetzung f ürdas si chere und sachger echte Arbeiten mit de mG erät.D arüber hinaus müssen die für den Einsatz bereich des Geräts gelte nden örtlichen Un fallverhütungsvorsc hriften und allgemein en Sicherheitsb estimmungen eingehalt en werden. Diese Bedi enungsanleitung ist Bestandteil des Pro dukts und muss in u nmittelbarer Nähe des Ger äts für das In¬stallations- , Bedienungs-, Wartungs- und Reinigu ngspersonal jed erzeitz ugänglich auf¬b ewahrt werden. Wenn d as Gerät an eine dritte Pers on
weitergegeben wird , muss die Bedienungsa nleitung mit ausgehä ndigt werden.
Read this instruction manual before using and keep it available
at all times!
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of signal words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.

Safety
115130 3 / 26
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
,di e
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
1.2 Safety instructions
Electrical current
•Too high a mains voltage or incorrect installation may cause electric shock.
•The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
•To avoid short-circuit, the appliance should be kept dry.
•If there are malfunctions during operation, disconnect the appliance from the
power supply.
•Do not touch the appliance’s plug with wet hands.
•Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
•Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
•Do not transport the appliance, holding it by the power cord.
•Do not allow the power cord to come into contact with heat sources or sharp
edges.
•Do not bend, pinch nor knot the power cord.
•Always completely unwind the power cord.

Safety
4 / 26 115130
EN
•Never place the appliance or other objects on the power cord.
•Always take hold of the plug to disconnect the appliance from the power supply.
Flammable materials
•Never subject the appliance to contact with high temperature sources, e.g.:
oven, furnace, open flame, heat generating devices, etc.
•To avoid fire hazard, clean the appliance regularly.
•Do not cover the appliance with, e.g., aluminium foil or cloths.
•Use the appliance only with materials designated to this end and with correct
temperature settings. Materials, groceries and left-overs remaining in the
appliance may catch fire.
•Never use the appliance near flammable or inflammable materials, e.g.: petrol,
spirit, alcohol, etc. High temperature triggers evaporation of these materials,
and, as a result of contact with sources of ignition, an explosion may occur.
•In case of fire, disconnect the appliance from the power supply before
attempting suitable fire-extinguishing actions.
•Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.
Hot surfaces
•Surfaces of the appliance become hot during operation. Burning hazard! High
temperature remains for some time after switching the appliance off.
•Do not touch any hot surfaces of the appliance. Use the provided handling
elements and holders.
•You may transport and clean the appliance after it cools down entirely.
•It is prohibited to sprinkle hot surfaces with cold water or flammable liquids.
Operating personnel
•The appliance may only be operated by qualified personnel and trained
specialist personnel.
•This appliance may not be operated by persons (including children) with limited
physical, sensory or mental capabilities, nor by persons with limited experience
and/or limited knowledge.
•Children should be supervised to ensure that they are not playing with or
switching on the appliance.
Improper use
•Unintended or prohibited use may cause damage to the appliance.

Safety
115130 5 / 26
EN
•The appliance may only be used when its technical condition is flawless and
allows for safe operation.
•The appliance may only be used when all connections are executed according
to rules of law in force.
•The appliance may only be used when it is clean.
•Use only original spare parts. Never attempt to repair the appliance on your
own.
•Do not introduce any changes in the appliance nor modify it.
1.3 Intended use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
–Heat processing in water bath of vacuum packed food products.
1.4 Unintended use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.

General information
6 / 26 115130
EN
2 General information
2.1 Liability and warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
–failure to observe instructions,
–unintended use,
–technical alterations introduced by the user,
–usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.

Transport, packaging and storage
115130 7 / 26
EN
3 Transport, packaging and storage
3.1 Delivery check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
–in closed rooms;
–in dry and dust-free surrounding;
–away from aggressive agents;
–in a location protected against sunlight;
–in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.

Technical data
8 / 26 115130
EN
4 Technical data
4.1 Technical specifications
Version / characteristics of the appliance for sous-vide cooking
•Temperature control: in 0.1 °C increments
•Timer
•Digital display
•Dry-run protection
•Control: electronic
•Memory function with 5 memory slots for data input
•Programmable time setting
•Acoustic timer
•The set includes: holder/frame for vacuum bags
Name:
Sous-Vide cooker SV G25L
Art. No.:
115130
Material:
Stainless steel
Number of tanks:
1
Basin dimensions (W x D x H):
300 x 500 x 200
Temperature range, min.–max., in °C:
25 - 90
Temperature control every °C:
0,1
Time setting, in min.:
0 - 99
Time setting intervals, in min.:
1
Power supply:
2 kW / 220-240 V / 50 Hz
Dimensions (W x D x H) in mm:
345 x 575 x 317
Weight in kg:
9,5

Technical data
115130 9 / 26
EN
Name:
Sous-Vide cooker SV G16L
Art. No.:
115131
Material:
Stainless steel
Number of tanks:
1
Basin dimensions (W x D x H):
300 x 330 x 200
Temperature range, min.–max., in °C:
25 - 90
Temperature control every °C:
0,1
Time setting, in min.:
0 - 99
Time setting intervals, in min.:
1
Power supply:
2 kW / 220-240 V / 50 Hz
Dimensions (W x D x H) in mm:
345 x 400 x 317
Weight in kg:
7,5
We reserve the right to implement technical modifications!
4.2 Functions of the appliance
The appliance may be used for preparation of vacuum pack food products in water
bath, with utmost precision, preserving nutritional values and full flavour by
individually setting time and temperature.

Technical data
10 / 26 115130
EN
4.3 List of components of the appliance
Fig. 1
1. Lid handle
2. Lid
3. Carrying handle (2 pcs)
4. Water drain with valve
5. Feet (4 pcs)
6. Control panel
7. Housing
8. Cable holders / drain hose
9. Basin
10.Grip
11.Frame for vacuum bags
12.Water outlet
13.Water inlet filter
14.Water inlet

Installation and operation
115130 11 / 26
EN
5 Installation and operation
5.1 Installation
Unpacking / Positioning
•Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
•If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
•Be careful not to damage the rating plate and warning labels fixed on the
appliance.
•Never place the appliance in humid or wet environment.
•Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
•The appliance should be placed on surfaces that are:
–even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
–sufficiently large, and thus enabling usage of the appliance with no
problems;
–easily accessible;
–well ventilated.
•Maintain sufficient clearance from table edges. The appliance might turn over
and fall down.

Installation and operation
12 / 26 115130
EN
Power supply connection
•Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.
•Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
•The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
•Do not use the appliance with an external timer or remote control.
5.2 Operation
WARNING!
Risk of burns!
The appliance housing and the lid heat up considerably during
operation.
Do not touch hot surfaces.
Use designated operating elements and handles only to operate the
appliance.
Risk of burns!
Hot steam is released while opening the lid during the operation, and
hot condensate accumulates under the lid.
Use oven mitts for removing the lid.

Installation and operation
115130 13 / 26
EN
Preparation of the appliance
1. Before operating the appliance clean it according to the instructions in section 6
'Cleaning'.
2. Fill the appliance with water before use, paying
attention to the 'MIN' mark on the basin back wall.
When the water level is below the “MIN” mark, the
sensors installed below detect it and the appliance
does not start. The digital display shows E001 error
message.
3. Always fill the appliance with water above the
“MIN” mark.
Fig. 2
4. Connect the appliance to a single mains socket with protective contact.
5. Start the appliance by pressing the ON/OFF key (1, Fig. 3).
The 'click' sound is heard. The digital display shows the current water temperature
in the basin.

Installation and operation
14 / 26 115130
EN
Control panel / functions off keys and displays
Fig. 3
1
ON/OFF key
Press and hold the key for 1 second to turn the appliance on.
The LED indicator comes on and indicates that the appliance is connected
to the power supply.
2
Program key
When pressed, the key allows for selecting a saved program (M1–M5).
3
M1–M5 LED indicator lights
Appropriate LED indicator light comes on after selecting a saved program.
4
'Save' key
When pressed, the key allows for saving the entered settings.
5
Digital temperature display
Shows current water temperature in the basin.
6
Digital time display
Shows time remaining to the end of thermal processing.
7
Time setting key
Allows for setting time between 00:00 and 99:00 hours.
The default time is: 02:00.

Installation and operation
115130 15 / 26
EN
8
Setting key for decreasing temperature or time
9
Setting key for increasing temperature or time
10
Temperature setting key
The temperature may be set within the range from 25 °C to 90 °C.
The default temperature is 60 °C.
11
Start/Stop key
When pressed, the key starts and stops thermal processing.
Settings
Temperature
The default temperature is 60 °C. Temperature may be set in the range from 25 °C
to 90 °C.
1. Press the temperature setting key (10) once, to set the desired temperature.
The blinking default temperature appears in the upper part of the digital display.
When the temperature indicator blinks, press the '-' (8) or '+' (9) keys, to allow for
decreasing or increasing the preset value.
Pressing and holding the key during the first 2 °C allows for setting with 0.1 °C
increments, and then with 1.0 °C increments.
2. Press 'Save' key (4) and hold it for 6 seconds to save the set temperature.
NOTE!
The appliance is set for temperature measurement in °C (Celsius) by
default.
To switch it to °F (Fahrenheit) press the temperature setting key (10) until
the digital display shows °F.
Cooking Time
It is preset to 02:00 hours by default. It is possible to set the cooking time in the
range of 0 minutes –99 hours.
1. Press the time setting key (7), to set the desired time of thermal processing.
In the lower part of the digital display a default time of 02:00 hours will be shown
and will blink. When the cooking time indicator blinks, '-' (8) or '+' (9) keys allow for
decreasing or increasing the preset value.
Below are the following intervals of setting the cooking time:
–0–0.30 h in 1-minute intervals;
–0.30–3 h in 10-minute intervals;

Installation and operation
16 / 26 115130
EN
–3–99 h in 30-minute intervals.
2. Press 'Save' key (4) and hold it for 6 seconds to save the set cooking time.
When the set cooking time elapses the appliance turns off and after 5 seconds the
digital display returns to the temperature indicator.
When the appliance is switching off, the digital display counts down 10 seconds
before complete switch-off.
Programs
It is possible to set up to 5 programs (M1–M5).
The desired program should be set the following way:
1. Press 'M' program key (2) once.
The M1 LED indicator light comes on.
2. Now, select free program for inputting data.
3. After selecting the free program, press 'Save' key (4).
Note: to select another free program and input data press 'M' program key (2),
and depending on free program observe:
M2 –program 2 —2 times
M3 –program 3 —3 times
M4 –program 4 —4 times
M5 –program 5 —5 times
In case of accidental pressing of 'M' (2) program key six times, the LED indicator
lights will go off. To return to data entering press 'M' program key again.
4. To input data into the individual free programs, press 'M' program key (2) again
to save the required temperature and cooking settings in program M1.
The M1 LED indicator light comes on.
5. Press the temperature setting key (10).
The temperature indicator blinks.
6. When the temperature indicator blinks, '-' (8) or '+' (9) keys allow for setting the
desired temperature in the range from 25 °C to 90 °C.
7. To end with, press 'Save' key (4).
The LED indicator light for M1 program is on and the cooking time may be set.
8. Press the time setting key (7).
The cooking time indicator blinks and the desired cooking time may be decreased
or increased with use of '-' (8) or '+' (9) keys.
9. To end with, press 'Save' key (4).

Installation and operation
115130 17 / 26
EN
10.After setting of M1 program, press 'M' program key (2) twice to select free M2
program and input data for it.
Setting of all subsequent programs should be executed in the same way as for M1
program.
Cooking Food
1. After entering the required temperature and time settings, press Start/Stop key
(11) to heat water in the basin, to reach the preset temperature.
2. In order to use of previously set programs, press 'M' (2) program key depending
on the program to be used (e.g., three times for M3 program).
3. Then press Start/Stop key (11) to heat water in the basin, to reach the preset
temperature.
When the appliance starts heating the acoustic signal is generated.
After reaching the preset temperature, 3 - 5 acoustic signals are generated.
The time indicator blinks.

Installation and operation
18 / 26 115130
EN
4. Using the handle, carefully remove the lid.
5. Place frame in the holder and insert the
prepared vacuum packed food products
into the frame.
6. Using the handles, put the frame with
holder and food products in the heated
water in the basin bottom.
7. Larger portions of food products in vacuum
bags should be put directly into the basin
next to the frame (Fig. to the left).
Fig. 4
ATTENTION!
Always make sure that vacuum bags in the basin are fully immersed in
water. Otherwise use pliers to press them down.
8. Put the lid back on the basin.
9. Press Start/Stop key (11).
The cooking process starts and will be executed according to the entered settings.
The cooking time is counted down.
10.To read the remaining time during cooking, press the time setting key (7).
The cooking time is shown in the lower part of the digital display.
When the cooking time elapses, the acoustic signal is generated.
11.Using the holder or pliers, carefully remove the lid and take the prepared food
products out of the basin.
