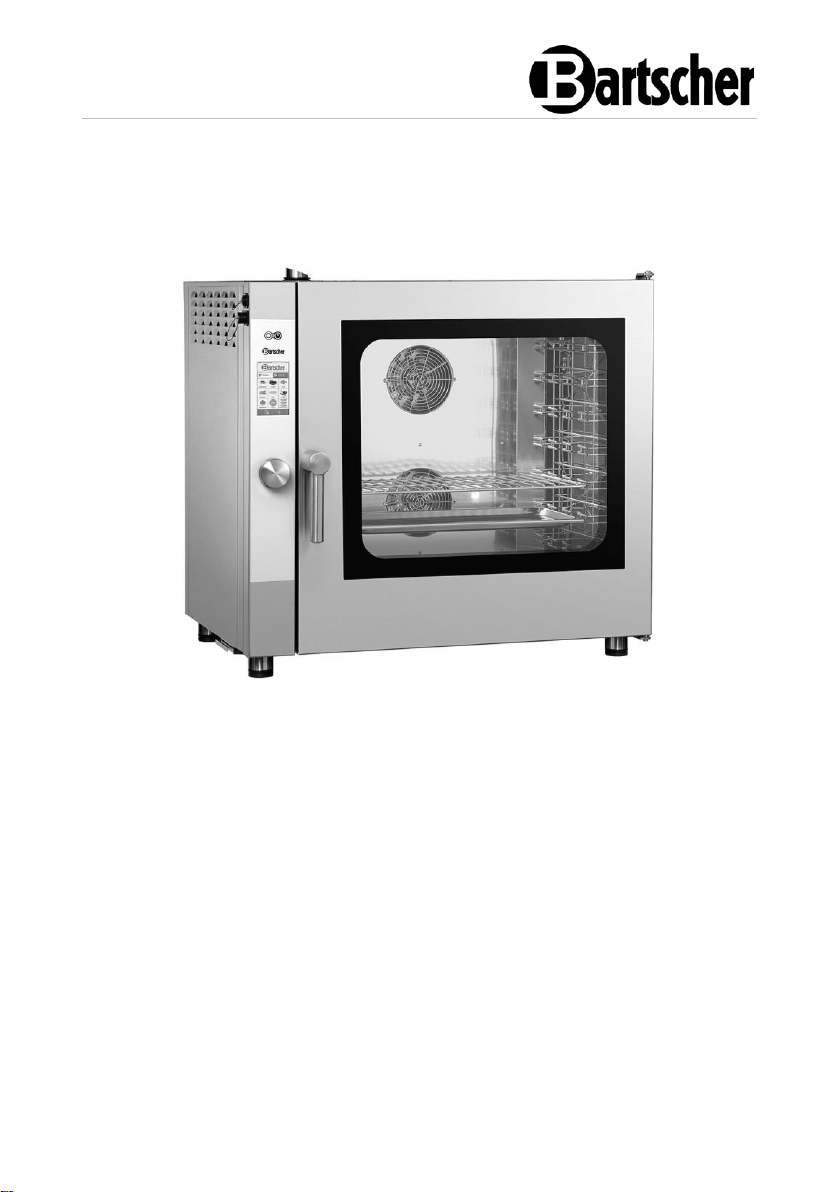

Bartscher Silversteam 5230D User manual

Silversteam 5230D - 5110D - 7110D
- 10110D
117623 - 117625 - 117627 - 117630

Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: [phone]
Fax: [phone]
Technical Support Hotline: [phone]
www.bartscher.com
Version: 1.0
Date of preparation: 2021-02-03
EN

117623 1 / 66
Original instruction manual
1Safety............................................................................................................2
1.1 Explanation of Signal Words....................................................................2
1.2 Safety instructions....................................................................................3
1.3 Intended Use ...........................................................................................6
1.4 Unintended Use.......................................................................................6
2General information.......................................................................................7
2.1 Liability and Warranty ..............................................................................7
2.2 Copyright Protection ................................................................................7
2.3 Declaration of Conformity ........................................................................7
3Transport, Packaging and Storage................................................................8
3.1 Delivery Check.........................................................................................8
3.2 Packaging................................................................................................8
3.3 Storage....................................................................................................8
4Technical Data...............................................................................................9
4.1 Technical Specifications ........................................................................10
4.2 Functions of the Appliance.....................................................................14
4.3 List of Components of the Appliance .....................................................15
5Installation Instructions................................................................................16
5.1 Installation..............................................................................................16
5.2 Inspections and Commissioning Test ....................................................21
6Operating Instruction...................................................................................23
6.1 Operation............................................................................................... 26
6.2 Thermal processing ...............................................................................30
6.3 Functions menu .....................................................................................56
7Cleaning and Maintenance..........................................................................59
7.1 Safety Instructions for Cleaning.............................................................59
7.2 Cleaning.................................................................................................60
7.3 Maintenance ..........................................................................................62
8Possible Malfunctions..................................................................................63
9Disposal....................................................................................................... 64

Safety
2 / 66 117623
EN
Diese Bedienungsa nleitung beschreibt di eI nstallation, Bedienu ngu nd Wartung des G erätsu ndg ilt als wichtige Infor mationsquelle und Nach schlagewerk. Di e Kenntnis aller enthalt enenSic herheitshinw eiseu nd Handlungs anweisungen schafft die V oraussetzung für das sich ere und sachg erechte Arbeite n mitd emG erät. Darüber hin aus müssen die für den Eins atzbereich des Geräts gelt enden örtlichen Unfall verhütungsvorsc hriften und allgem einen Sicherheitsb estimmungen eingeh alten werden. Diese Bedi enungsanleitung ist Bestandteil des Pro dukts und m ussi n unmittelbarer Nähe d es Geräts für das In¬stall ations-, Bedienungs- , Wartungs- und Reinigu ngspersonal jed erzeitz ugänglich auf¬b ewahrt werden. Wenn d as Gerät an eine dritte Pers on
weitergegeben wird , muss die Bedienungsa nleitung mit ausgehä ndigt werden.
Read this instruction manual before using and keep it available
at all times!
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.

Safety
117623 3 / 66
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
,di e
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
1.2 Safety instructions
Electrical Current
•Too high a mains voltage or incorrect installation may cause electric shock.
•The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
•To avoid short-circuit, the appliance should be kept dry.
•If there are malfunctions during operation, disconnect the appliance from the
power supply.
•Do not touch the appliance’s plug with wet hands.
•Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
•Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
•Do not transport the appliance, holding it by the power cord.
•Do not allow the power cord to come into contact with heat sources or sharp
edges.
•Do not bend, pinch nor knot the power cord.

Safety
4 / 66 117623
EN
•Always completely unwind the power cord.
•Never place the appliance or other objects on the power cord.
•Always take hold of the plug to disconnect the appliance from the power supply.
•Check the power cord regularly for damage. Do not use the appliance if the
power cord is damaged. If this cable is damaged, it must be replaced by
customer service or a qualified electrician in order to avoid dangers.
Flammable Materials
•Never subject the appliance to contact with high temperature sources, e.g.:
oven, furnace, open flame, heat generating devices, etc.
•To avoid fire hazard, clean the appliance regularly.
•Do not cover the appliance with, e.g., aluminium foil or cloths.
•Use the appliance only with materials designated to this end and with correct
temperature settings. Materials, groceries and left-overs remaining in the
appliance may catch fire.
•Never use the appliance near flammable or inflammable materials, e.g.: petrol,
spirit, alcohol, etc. High temperature triggers evaporation of these materials,
and, as a result of contact with sources of ignition, an explosion may occur.
•In case of fire, disconnect the appliance from the power supply before
attempting suitable fire-extinguishing actions.
•Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.
Hot Surfaces
•Surfaces of the appliance become hot during operation. Burning hazard! High
temperature remains for some time after switching the appliance off.
•Do not touch any hot surfaces of the appliance. Use the provided handling
elements and holders.
•You may transport and clean the appliance after it cools down entirely.
•It is prohibited to sprinkle hot surfaces with cold water or flammable liquids.
Operating Personnel
•The appliance may only be operated by qualified personnel and trained
specialist personnel.
•This appliance may not be operated by persons (including children) with limited
physical, sensory or mental capabilities, nor by persons with limited experience
and/or limited knowledge.

Safety
117623 5 / 66
EN
•Children should be supervised to ensure that they are not playing with or
switching on the appliance.
Supervised Usage only
•Only supervised appliance may be used.
•Always remain in an immediate vicinity of the appliance.
Improper Use
•Unintended or prohibited use may cause damage to the appliance.
•The appliance may only be used when its technical condition is flawless and
allows for safe operation.
•The appliance may only be used when all connections are executed according
to rules of law in force.
•The appliance may only be used when it is clean.
•Use only original spare parts. Never attempt to repair the appliance on your own.
•Do not introduce any changes in the appliance nor modify it.

Safety
6 / 66 117623
EN
1.3 Intended Use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
–Preparation of suitable food.
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.

General information
117623 7 / 66
EN
2 General information
2.1 Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
–failure to observe instructions,
–unintended use,
–technical alterations introduced by the user,
–usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.

Transport, Packaging and Storage
8 / 66 117623
EN
3 Transport, Packaging and Storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
–in closed rooms;
–in dry and dust-free surrounding;
–away from aggressive agents;
–in a location protected against sunlight;
–in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.

Technical Data
117623 9 / 66
EN
4 Technical Data
Version / Characteristics of Combi Steamers 117623, 117625, 117627,
117630
•Series: Silversteam
•Operating mode: electric
•Appliance connection: ready to plug in (117623) / 3NAC (117625, 117627,
117630)
•Functions:
–convection
–steaming
–combi steaming
–low temperature thermal processing
–reversing motor direction (fan wheels)
–steam production by means of direct injection
–Rack Control function
•Temperature control: stepless
•Type of guide rails: crosswise
•Continuous operation
•Thermal core probe connection: side
•USB port
•Fume extractor
•Internal lighting
•LED display:
–steam injection
–Delta-T thermal processing
–thermal processing phases
–core temperature
–fan speed
–program
–temperature
–time
•Control: touch
•Features:
–Rounded baking chamber
–Removable guide rails

Technical Data
10 / 66 117623
EN
–Double door glazing, easy opening of internal door for cleaning
–LED lighting in door
–Socket (500 W) for connection of an extractor hood (except 117623)
•Important Indication: For water hardness exceeding 5° dH we expressly
recommend using a suitable upstream water softener and keeping water
pressure to maximum 3 bar.
4.1 Technical Specifications
Name:
Combi steamer Silversteam 5230D
Art. No.:
117623
Material:
CNS 18/10
Thermal processing chamber material:
CNS 18/10
Number of guide rail pairs:
5
Rail format:
2/3 GN
Distance between guide rail pairs, in mm:
74
Temperature range, min.–max., in °C:
50 - 300
Time setting, from–to, in min.:
0 - 599
Number of thermal processing
programmes:
99
Number of thermal processing phases:
8
Number of motors:
1
Number of stages of fan speed:
3
Water connection:
3/4“
Connected load:
3,3 kW / 230 V / 50 Hz
Dimensions (W x D x H), in mm:
620 x 775 x 675
Weight, in kg:
58,6
We reserve the right to implement technical modifications.
The set includes:
–1 grate 2/3 GN
–1 tray 2/3 GN
–1 PVC discharge tube

Technical Data
117623 11 / 66
EN
–1 water supply tube
Name:
Combi steamer Silversteam 5110D
Art. No.:
117625
Material:
CNS 18/10
Thermal processing chamber material:
CNS 18/10
Number of guide rail pairs:
5
Rail format:
1/1 GN, 600 x 400
Distance between guide rail pairs, in mm:
74
Temperature range, min.–max., in °C:
50 - 300
Time setting, from–to, in min.:
0 - 599
Number of thermal processing
programmes:
99
Number of thermal processing phases:
8
Number of motors:
1
Number of stages of fan speed:
3
Water connection:
3/4“
Connected load:
6,3 kW / 400 V / 50 Hz
Dimensions (W x D x H), in mm:
885 x 835 x 675
Weight, in kg:
87,2
We reserve the right to implement technical modifications.
The set includes:
–1 grate 1/1 GN
–1 tray 1/1 GN
–1 PVC discharge tube
–1 water supply tube

Technical Data
12 / 66 117623
EN
Name:
Combi steamer Silversteam 7110D
Art. No.:
117627
Material:
CNS 18/10
Thermal processing chamber material:
CNS 18/10
Number of guide rail pairs:
7
Rail format:
1/1 GN, 600 x 400
Distance between guide rail pairs, in mm:
74
Temperature range, min.–max., in °C:
50 - 300
Time setting, from–to, in min.:
0 - 599
Number of thermal processing
programmes:
99
Number of thermal processing phases:
8
Number of motors:
2
Number of stages of fan speed:
3
Water connection:
3/4“
Connected load:
9,6 kW / 400 V / 50 Hz
Dimensions (W x D x H), in mm:
890 x 830 x 865 mm
Weight, in kg:
106,8
We reserve the right to implement technical modifications.
The set includes:
–1 grate 1/1 GN
–1 tray 1/1 GN
–1 PVC discharge tube
–1 water supply tube

Technical Data
117623 13 / 66
EN
Name:
Combi steamer Silversteam
10110D
Art. No.:
117630
Material:
CNS 18/10
Thermal processing chamber material:
CNS 18/10
Number of guide rail pairs:
10
Rail format:
1/1 GN, 600 x 400
Distance between guide rail pairs, in mm:
74
Temperature range, min.–max., in °C:
50 - 300
Time setting, from–to, in min.:
0 - 599
Number of thermal processing
programmes:
99
Number of thermal processing phases:
8
Number of motors:
2
Number of stages of fan speed:
3
Water connection:
3/4“
Connected load:
12,6 kW / 400 V / 50 Hz
Dimensions (W x D x H), in mm:
890 x 830 x 1.065
Weight, in kg:
120,2
We reserve the right to implement technical modifications.
The set includes:
–1 grate 1/1 GN
–1 tray 1/1 GN
–1 PVC discharge tube
–1 water supply tube

Technical Data
14 / 66 117623
EN
Protective Measures
The combi steamer is equipped with the following safety and protective
mechanisms:
Protective thermostat in thermal processing chamber:
if temperature in the thermal processing chamber reaches 350°C, the
thermostat interrupts the supply circuit of the appliance's heaters.
WARNING!
That protection must be reactivated by technical service personnel as its
operation indicates that other elements must be inspected.
Appliance door contact switch:
interrupts the appliance operation after opening the door —either the heating
system or the fan are switched off. When the appliance door is closed, the
operation is resumed.
4.2 Functions of the Appliance
The Silversteam series combi steamer with electronic control is designed for
preparation of food and keeping it warm with the use of suitable accessories.
Thanks to the Rack Control function various dishes may be prepared irrespective of
various preparation time.

Technical Data
117623 15 / 66
EN
4.3 List of Components of the Appliance
Fig. 1
1. Housing
2. Control panel
3. Ventilation openings
4. Thermal core probe connection
5. USB connection
6. Fume extractor
7. Fan (2 pcs)
8. Guide rails
9. Door
10.Door handle
11.Height-adjustable feet (4 pcs)
12.Drain tray
13.Grate
14. GN container
15.Thermal processing chamber
16.Door latch
17.Contact switch
18.Control panel ventilation filter

Installation Instructions
16 / 66 117623
EN
5 Installation Instructions
5.1 Installation
CAUTION!
Incorrect installation, positioning, operation, maintenance or misuse of
the appliance may lead to personal injury or property damage.
Positioning and installation, as well as repairs may be performed by
authorised technical service only and in compliance with the applicable
national law.
NOTE!
The manufacturer disclaims all liability and provides no warranty for
damages, which may be attributed to non-observance of regulations or
incorrect installation.
Place of Installation
•The appliance is designed to operate in closed rooms and may not be used in
open air nor subject to unfavourable atmospheric conditions.
•The appliance may be used in properly ventilated room in order to avoid
excessive accumulation of harmful substances in the air.
•We recommend positioning the appliance under a fume extractor hood or to
remove hot vapours and odours from the thermal processing chamber outside.
•The surface under the appliance must feature load-bearing capacity suitable for
the appliance's weight with maximum load.
•Place the appliance on a stable, even, dry surface that features water resistance
and high temperature resistance.
•The installation place must be easily accessible and sufficiently spacious to
allow easy operation of the appliance.

Installation Instructions
117623 17 / 66
EN
•The appliance must be transported to the installation location in packaging, on
its dedicated wooden pallet.
•Transportation must be executed with the use of pallet trolley, observing all
safety precautions, in order to avoid the risk of tipping it over. Also, following the
operation period, the oven must be transported on a pallet and manipulate with
the highest caution, in order to avoid the risk of tipping it over.
Unpacking / Positioning
•Remove the external packaging (wooden crate and/or carton box) and utilize it
according to regulations in force in the country of installation.
CAUTION!
Choking hazard!
Prevent children from accessing packaging materials, for instance: plastic
bags and EPS elements.
•Check if the appliance is undamaged.
•Before positioning the appliance, check the dimensions and exact positions of
the electric, water, and extraction connections.
•Position the appliance vertically —to
this end, the height of adjustable feet
is set with a spirit level, as indicated
in Fig. 2.
ATTENTION!
Differences in height or tilting may
negatively influence the
appliance's functionality.
Fig. 2
•If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.

Installation Instructions
18 / 66 117623
EN
•Be careful not to damage the rating plate and warning labels affixed to the
appliance.
•Remove all accessories, information materials, and plastic bags from the
appliance.
•Check if ventilation openings and fume extractor are not covered nor obstructed
in any way.
•Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
•Never place the appliance directly next to walls, low walls, division walls kitchen
furniture, or other surfaces made of flammable materials. Unconditionally
observe fire-fighting regulations in force.
•Maintain minimum clearance of at
least 50 mm at the rear and sides
between the appliance and walls or
other objects (Fig. 3).
•Leave a clearance of 500 mm
between the left side of the appliance
and other objects for the purpose of
facilitating installation and
maintenance of the appliance.
Fig. 3
•When it is not possible to maintain the recommended clearance, employ
appropriate protective measures (e.g. a foil made of a heat-resistant material)
that will ensure keeping the wall temperature within the safe range (up to 60°C).
