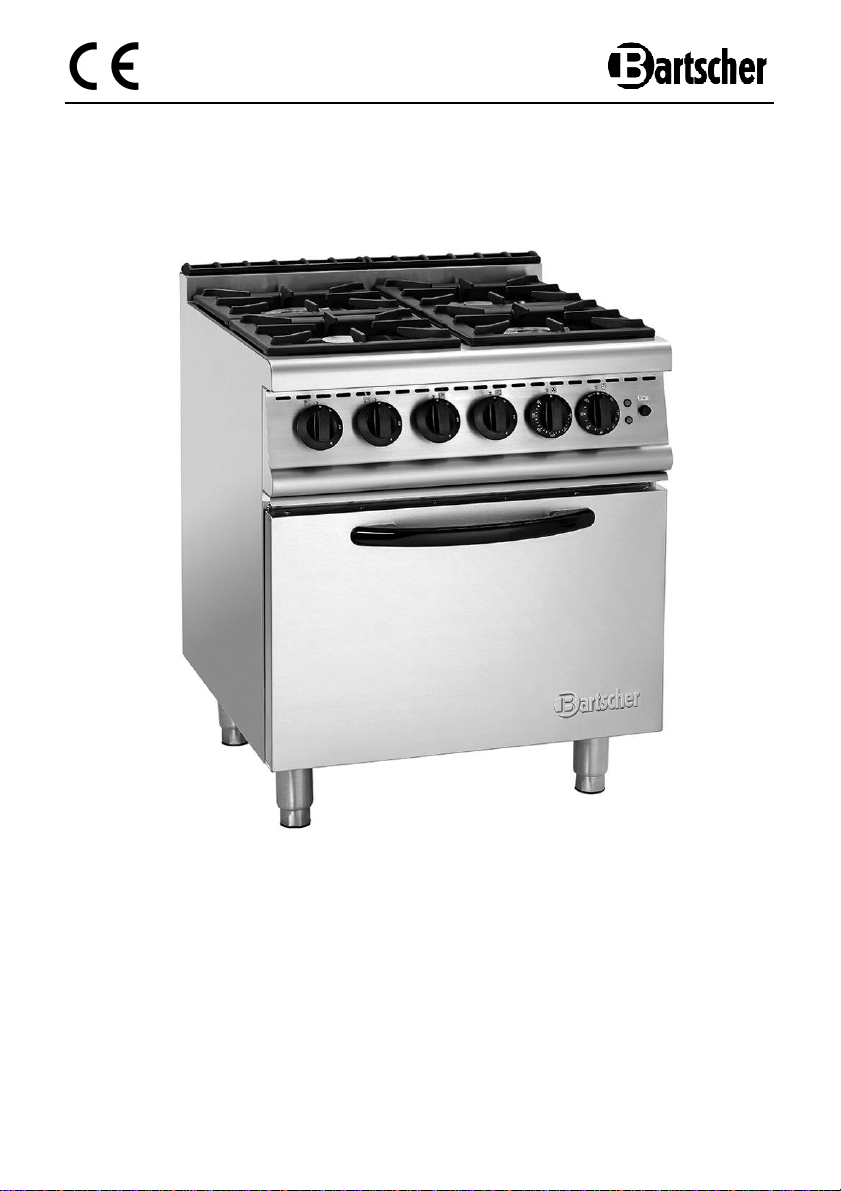

Bartscher GHU 4110 User guide

1008 CP 2777
GHU 4110
2819991
V1/0415

- 25 -
ENGLISH
Translation of the original instruction manual
Table of contents
1.Safety ........................................................................................................................ 26
1.1 Safety instructions................................................................................................ 26
1.2 Key to symbols..................................................................................................... 27
1.3 Hazard sources.................................................................................................... 28
1.4 Intended use......................................................................................................... 29
2. General information................................................................................................ 30
2.1 Liability and Warrantees....................................................................................... 30
2.2 Copyright protection ............................................................................................. 30
2.3 Declaration of conformity...................................................................................... 30
3. Transport, packaging and storage......................................................................... 31
3.1 Delivery check...................................................................................................... 31
3.2 Packaging............................................................................................................. 31
3.3 Storage................................................................................................................. 31
4. Technical data......................................................................................................... 32
4.1 Overview of parts ................................................................................................. 32
4.2 Technical specification ......................................................................................... 33
5. Installation and operation....................................................................................... 35
5.1 Installation instructions....................................................................................... 35
5.1.1 Installation............................................................................................... 36
5.1.2 Electric connection.................................................................................. 37
5.1.3 Gas connection ....................................................................................... 38
5.2 Instructions for the user ..................................................................................... 42
5.2.1 First start-up............................................................................................ 42
5.2.2 Operation elements................................................................................. 42
5.2.3 Gas stove................................................................................................ 43
5.2.4 Electric oven............................................................................................ 44
6. Cleaning and maintenance..................................................................................... 46
7. Waste disposal........................................................................................................ 48
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten phone: [phone]
Germany fax: [phone]
GB/UK

- 26 -
Read this instruction manual before using and
keep them available at all times!
This instruction manual contains information about the installation, operation and
maintenance of the device and should be consulted as an important source of
information and reference guide.
Awareness of the safety instructions and instructions for use in this manual will ensure
the safe and correct use of the device.
In addition to the information given here, you should comply with any local Health and
safety Controls and generally applicable safety regulations.
The instruction manual forms part of the product and should be kept near the device
and easily accessible for anyone carrying out the installation, servicing, maintenance or
cleaning. When passing on/selling the device to a third party, the manuals must be
handed over along with the device.
1.Safety
This device is designed in accordance with the presently applicable technological
standards. However, the device can pose a danger if handled improperly and
inappropriately.
All persons using the device must follow the recommendations and instructions
in this instruction manual.
1.1 Safety instructions
•This device may only be operated in technically proper and safe condition.
•The device is not intended for use by individuals (including children) with physical or
mental disabilities, insufficient experience, and/or insufficient knowledge unless such
persons are under the care of a person responsible for their safety or have received
instructions regarding appropriate use of the device.
•Children should be observed to ensure that they are not playing with the device.
•Only a qualified technician and using original spare parts and accessories should
carry out repairs and maintenance of the device. Do not attempt to repair the
device yourself.
•Do not use any accessory or spare parts that have not been recommended by the
manufacturer. These can be dangerous for the user or lead to damages of the device
or personal injury, and further, the warranty expires.

- 27 -
•To prevent hazards and to ensure optimum efficiency, no modifications or alterations
to the device that are not explicitly approved by the manufacturer may be undertaken.
•Never allow the power cable to come into contact with heat sources or sharp edges.
The power cable should not hang over the side of the working surface. Ensure that no
one can step on or trip over the cable.
•The power cable must not be folded, bent or tangled, and must always remain fully
unrolled.
•Never place the device or other objects on the power cable.
•Never leave the device unattended during its operation.
•Do not move the device during its operation when it is hot.
•In case of any irregularities during the operation disconnect the device from the
electric power supply and cut off the gas supply (close the main gas valve).
Contact the service company or the vendor.
1.2 Key to symbols
In this manual, symbols are used to highlight important safety instructions and any
advice relating to the device. The instructions should be followed very carefully to avoid
any risk of accident, personal injury or material damage.
DANGER!
This symbol highlights hazards which could lead to injury.
WARNING!
This symbol highlights dangerous situations which could lead to injury or death.
CAUTION!
This symbol highlights dangerous situations which could lead to light
injuries, or damage, malfunction, and/or destruction of the device.
NOTE!
This symbol highlights recommendations and information aimed for effective
and trouble-free device operation.

- 28 -
1.3 Hazard sources
DANGER! Electric shock hazard!
In order to avoid electric hazard it is required to follow the safety instructions below.
Do not use the device in case of incorrect operation, damages, or dropping on
the floor.
Periodically inspect the electric supply cable for damages. Do not use the device
with the damage symptoms. In order to avoid the hazard the electric supply cable
should be replaced by the service company or qualified electrician.
Never open the device housing, Touching of live connections and wires may
cause the electric shock.
Never immerse the electric supply cable in water or other liquids.
Never operate the device with wet or moist hands.
Disconnect the device from the electric power supply:
-when the device is not used,
-in case of anomalies during operation,
-before cleaning.
Do not clean the device with water jets or pressure washer. Water may penetrate
the housing, damage the electric elements, and cause electric shock.
DANGER! Suffocation hazard!
To avoid the hazard results follow the instructions below.
Prevent access of children to the package materials like plastic bags
and foamed polystyrene elements.
WARNING! Burn hazard!
To avoid burns follow the instructions below.
Never touch hot surfaces of the electric oven and gas burners. Use the
protective clothes or gloves.
During the device operation keep the children away.

- 29 -
WARNING! Fire hazard!
To avoid the fire hazard follow the instructions below.
Do not leave the device unattended when the oils or fats are heated as the
ignition may occur.
Do not place any flammable objects in the vicinity of the device.
NEVER extinguish the flame or fire with water, deactivate the electric oven,
close the cut-off gas valve, and cover the flame with cover or fire-resistant
blanket.
1.4 Intended use
CAUTION!
The device has been designed and built for commercial use and should be
operated only by qualified personnel in kitchen facilities.
Safe operation is only guaranteed when using the device for its intended purpose.
Any technical interventions, as well as assembly and maintenance are to be made by
a qualified customer service only.
The gas stove with electric oven with air circulation is designed only for preparing
the appropriate food.
Do not use the device for heating the rooms.
CAUTION!
Any use going beyond the intended purpose and/or any different use of the
device is forbidden and is not considered as conventional.
Any claims against the manufacturer or his authorized representative as a
consequence of experiencing damages resulting from unconventional use
are impossible.
The operator is liable for all damages resulting from inappropriate use.

- 30 -
2. General information
2.1 Liability and Warrantees
All the information and instructions in this manual take into account standard safety
regulations, current levels of technical engineering as well as the expertise and
experience we have developed over the years.
The instruction manual was translated with all due care and attention. However, we do
not accept liability for any translation errors. The German version of this instruction
manual is definitive.
If the delivery consists of a special model, the actual scope of delivery may differ from
the descriptions and illustrations in this manual. This is also the case for special orders
or when the device has been modified in line with new technology.
NOTE!
Read this manual carefully and thoroughly before any operation
of the device, and especially before turning it on!
Manufacturer is not liable for any damages or faults caused by:
-not following the instructions for installation, operation, and cleaning;
-use other than designed;
-alterations made by user;
-use of inadequate spare parts.
We reserve the right to make technical changes for purposes of developing and improving
the useful properties.
2.2 Copyright protection
The instruction manual including any texts, drawings, images or other illustrations is
copyright. No part of this publication may be reproduced, transmitted or used in any
form or by any means without permission in writing from the manufacturer. Any person
who commits any unauthorized act in relation to this publication shall be liable to claims
for damages. All rights reserved.
NOTE!
The contents, texts, drawings, pictures and any other illustrations are
copyright and subject to other protection rights. Any person unlawfully
using this publication is liable to criminal prosecution.
2.3 Declaration of conformity
The device complies with the current standards and directives of the EU.
We certify this in the EC declaration of conformity. If required we will be
glad to send you the according declaration of conformity.

- 31 -
3. Transport, packaging and storage
3.1 Delivery check
Please check the delivery upon completeness and transport damage immediately
after receipt. In case of visible damage do not accept or accept the delivery with
reservation only.
Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint.
Hidden damages should be reclaimed immediately after notice, as claims for damages
can only be asserted within the effective period for complaints.
3.2 Packaging
Please do not throw away the covering carton of your device as it might be useful for
storage purposes, when moving or, in case of damages, when the device must be sent
back to a repair center. The outer and inner packing material should be removed
completely from the device before installation.
NOTE!
If you liked to dispose the packing, consider the regulations applicable in
your country. Supply re-usable packing materials to the recycling.
Please inspect the device upon completeness. In case any part is missing please
contact our customer service center immediately.
3.3 Storage
Keep the package closed until installation and under consideration of the outside
indicated positioning- and storage markings.
Packages should be stored under consideration of the following:
-Do not store outdoors.
-Keep it dry and dust-free.
-Do not expose it to aggressive media.
-Do not expose it to direct sunlight.
-Avoid mechanical shocks and vibration.
-In case of longer storage (> 3 months) make sure you check
the state of the packaging and the parts regularly.
If required refresh or renew.

- 32 -
4. Technical data
4.1 Overview of parts
B A A 3,5 kW
A B B 7,0 kW
①
Cast iron grate
⑦
Adjustable feet
②
Gas burners (4)
⑧
Grate – shelf
③
Operation elements
⑨
Baking tray
④
Shelves guides
⑩
Housing
⑤
Oven door
⑪
Steam extractor
⑥
Oven door handle
③
⑤
④
⑥
⑨
⑦
⑩
①
②
⑧
⑪

- 33 -
4.2 Technical specification
Name
4-burner gas stove GHU 4110 with electric
oven 1/1 GN with air circulation
Code-no.:
2819991
Material: CrNi 18/10, heavy cast iron grate,
high grade stainless steel feet
Realization:
gas stove
gas burners with safety pilot
manual ignition
4 cooking fields 2 x 3.5 kW / 2 x 7.0 kW
preset to natural gas H, propane jets are enclosed
electric oven with air circulation
designed for 1/1 GN
4 guide levels
steam extractor
temperature adjustment range: 50 °C – 300 °C
time controller 0 – 120 minutes
internal space dimensions: W 560 x D 390 x
H 340 mm
Gas power: 21.0 kW
Electric power supply: 3.1 kW / 220-240 V 50/60 Hz
Dimensions: W 750 x D 700 x H 850-910 mm
Weight: 65.0 kg
Equipment: 2 shelves, high grade stainless steel, 2 baking trays
We reserve the right to make technical changes!
Protective devices
Overheating protection
The device is equipped with the
overheating protection
.
Whet the temperature in the oven chamber is too high, the oven
is turned off by the protection.
Leave the device for cooling down.
In order to reactivate the oven after cooling down press RESET
button, located on the control panel. Remove the plug to do this.

- 34 -
Protection of gas burners ignition
The ignition protection of the gas burners allows to avoid the uncontrolled gas
leaks, leading to deflagration or explosions.
In case of accidental flame extinguishing (e.g. draught, spillage, etc.) the safety valve
will operate and cut off the gas supply.
Table 1 Use of gas categories and pressures in various countries
Categories Gas type Gas pressure Country
I
2H
G20 20 mbar AT, BG, CH, CY, CZ, DK, EE, ES,
FI, GB, GR, IE, IT, LT, LV, NO, PT,
RO, SE, SI, SK
I
2E
G20 20 mbar DE, LU, PL, RO
I
3+
G30/G31 (28 - 30/37) mbar BE, CH, CY, CZ, ES, FR, GB, GR,
IE, IT, LT, PT, SI, SK
I
3B/P
G30 30 mbar BE, BG, CY, DK, EE, FI, FR, GB,
HR, HU, IS, IT, LT, MT, NL, NO,
RO, SE, SI, SK
I
3B/P
G30 50 mbar AT, CH, DE, SK
II
2H3+
G20
G30/G31 20 mbar
(28 - 30/37) mbar CH, CY, CZ, ES, GB, GR, IE, IT, LT, PT, SI, SK
II
2H3B/P
G20
G30 20 mbar
30 mbar AT, CH, CY, CZ, DK, EE, FI, GR, IT, LT, NO, RO, SE, SI, SK
In case of deviations from the indicated values the device must not be
commissioned. The correct device operation is not possible.

- 35 -
Table 2 Properties of nozzles and burners
Gas type
Gas
pressure
(mbar)
Main burner
nozzle
(Ø mm)
Setting for
primary air
(mm)
Ignition
burner nozzle
(Ø mm)
Gas burner 3.5 kW
G20 20 1,45 6 0,35
G30 50 0,85 6 0,20
G30/G31 30/37 0,90 6 0,20
Gas burner 7.0 kW
G20 20 2,00 4 0,35
G30 50 1,10 4 0,20
G30/G31 30/37 1,25 4 0,20
5. Installation and operation
5.1 Installation instructions
CAUTION!
All installation, connection, and maintenance works for the device,
ventilation, and combustion gas extraction devices must be performed
by the qualified and authorized technician according to the valid
international, national and local regulations.
•Read through these instructions carefully before the installation and operation.
•After receiving the device make sure that it has not been damaged during transport
and the package is not damaged. In case of damages or deficiency in parts it is
required to inform the carrier or manufacturer immediately and specify the article
number and serial number (on the rating plate on the right external side of the
device) and attach the photographic documentation.
•Make sure that there are no elements blocking the way to the installation place
through the doors, corridors, or other communication routes.
•CAUTION: The device may overturn during transport, which may damage the device
itself, other objects or cause the injuries. Use the means appropriate for the device
weight. The device should not be dragged or tilted, but lifted perpendicularly to the
ground and handled in the horizontal direction.

- 36 -
5.1.1 Installation

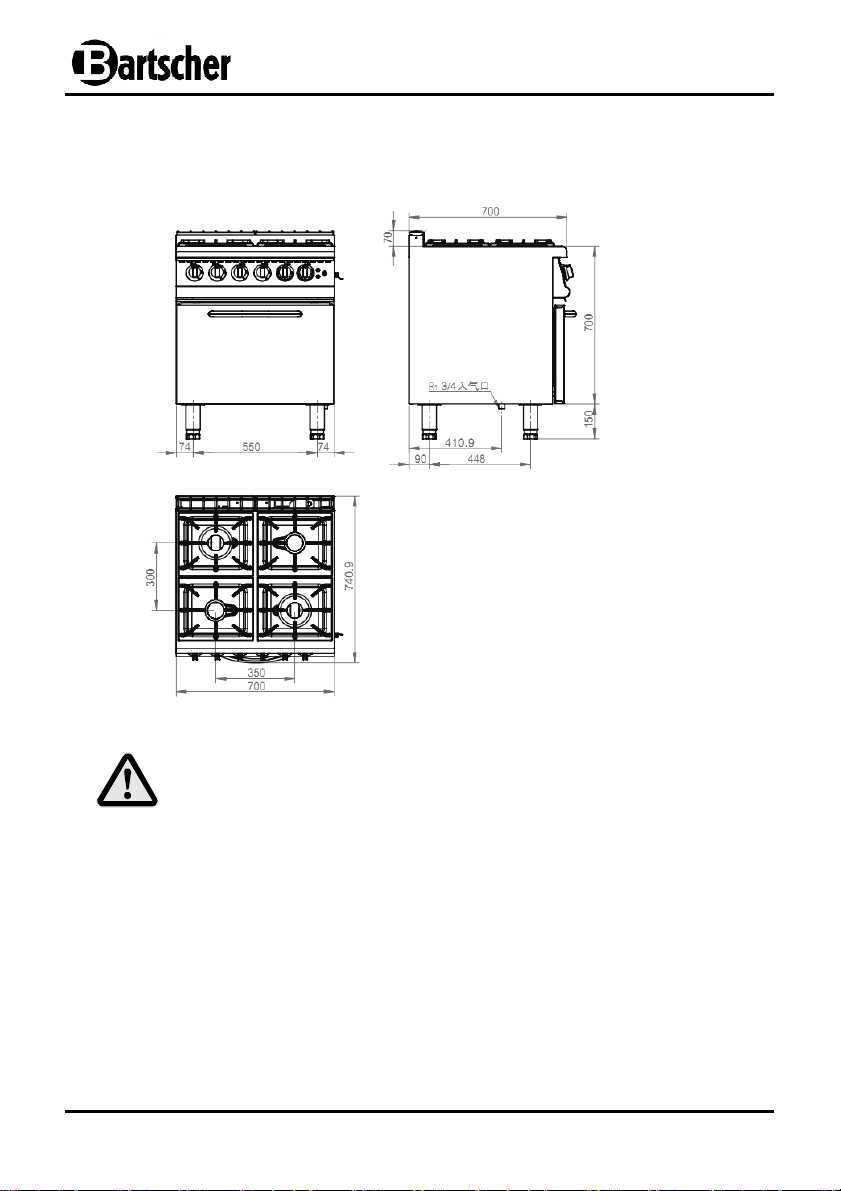

Dimensions required for positioning
Installation instructions
CAUTION!
In order to avoid the concentration of the harmful combustion products in
the installation room the device must be installed only in properly ventilated
rooms according to the regulations.
•The installation room must consist as much air as required for appropriate
combustion of gas. For appropriate combustion the intake air flux must not be
lower than 2 m
3
/h per kW of the rated device power (see rating plate on the
device). Moreover follow the safety regulations.
•Air must be taken directly from outside environment through the permanently
opened gaps or intake ducts connected with fresh air area.

- 37 -
•The device belongs to the following design type:
A1: The device without fans or connection for devices removing the combustion
products from the rooms. The combustion air and combusted gases are
mixed in the same room.
•Before positioning the device check the dimensions and exact positions of the
electric and gas connections.
•Unpack the device and utilize all package material according to the valid regulations.
CAUTION!
Never remove the rating plate and any warning signs from the device.
•Position the device in safe place of load capacity sufficient for weight of the device
with maximum load of prepared food.
•Never place the device on a flammable surface or one sensitive to high temperatures.
•Never place the device directly next to walls, furniture or other objects made of
flammable materials. Keep a minimum distance of 200 mm from the sides and rear.
Keep a minimum distance of 600 mm between the upper surface of the device and
surfaces located above it. Proceed according to relevant fire safety regulations.
•If it is not possible to observe the above distances, apply protective measures
(e.g. heat-resistant coatings) that can resist temperatures of at least 90 °C .
•Regulate the level and height of the device with the adjustable legs. Large differences
in height or level may have a negative impact on the device's functioning.
5.1.2 Electric connection
DANGER! Electric shock hazard!
The device can cause injuries due to improper installation!
Before installation and connecting the local power grid specification
should be compared with that of the device (see rating plate).
Connect the device only in case of compliance!
•Before connecting the device make sure that the voltage and frequency values on
the rating plate are consistent with the existing electric installation.
The allowable voltage deviation is ±10%.

- 38 -
•Connect the device to the electric installation according to the valid international,
national, and local regulations.
•The device is equipped with the electric cable of type H07RN-F 5G2.5 CE14 without
the plug.
•The device must be connected to the potential levelling circuit (ground).
The connection terminal is located under the left side of the device at sign .
5.1.3 Gas connection
WARNING!
The device installation and any adaptation to different gas type must be
performed only according to the valid regulations and by the qualified
professional personnel.
The device should be inspected by the professional personnel at least
once a year. In case of fire immediately close the gas valve and use the
appropriate fire extinguisher!
•The device is designed and certified for operation with the gas type specified on
the rating plate. Before the installation make sure that the local gas supply system
(gas type and pressure) conforms to the device preset.
•The gas connection is located on the left side of the device and is marked
“GAS ENTRY”.
•The device must be connected to the gas system only by the qualified gas installer
according to the local regulations.
•In generally accessible installation locations follow the safety regulations, as well as
fire and panic protection standards.
•The certified gas cut-off valve must be located in easily accessible place between
the gas system and the device allowing for quick gas supply cutting off.
•Make sure that the gas hose does not touch hot oven parts.
CAUTION!
After the installation make sure that the connections are properly fixed.
Never use open flame for checking the tightness of the gas pipes, only the
soap solution or special foaming product for leak detection.

- 39 -
Operation in case of gas consistent with the device preset
Check if the gas type specified on the rating plate conforms to the supplied gas type.
Correct data are specified in Table 1 “Use of gas categories and pressures in
various countries” on page 34.
In case of no data for the supplied gas type, gas category, or pressure for
comparing with the rating plate contact the local gas supplier.
CAUTION!
The device operates correctly only when the pressure in the gas system is
in range for different gas categories specified in Table 1 “Use of gas
categories and pressures in various countries” on page 34.
Main burner control
•Activate the device according to the instructions in section 5.2.3 “Ignition of gas
burners”, ignite the individual burners and see if the flame, ignition, and setting
of the smallest flame operate correctly. If not, check nozzles and setting of
primary air.

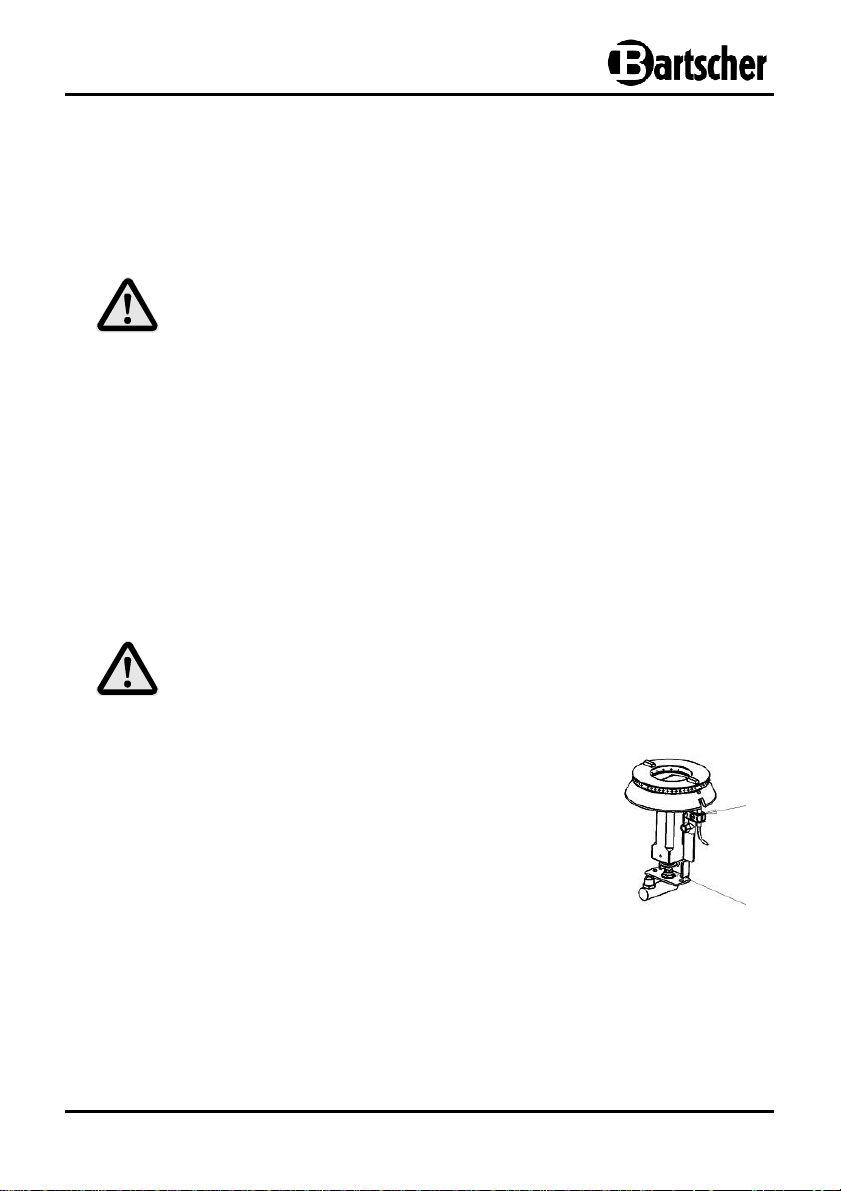

Changing the gas type / settings
CAUTION!
Change of gas type must be performed by the qualified gas installer.
•The device is designed and certified for operation with
the gas type specified on the rating plate (natural gas).
•When required, the device should be modified by the
qualified technician. In order to make modifications
replace the main burner nozzles (no. 2) and the ignition
burner (no. 1) and make required adjustments.
The delivery range includes nozzles for LPG.
1
2

- 40 -
a) Replacement of main burner nozzle
•In order to obtain access to the nozzles brackets remove the cast iron grates,
burners covers, burners bodies, and dripping trays.
•Unscrew the fixing bolt for the primary air adjustment.
•Replace the removed nozzle with the one designed for a given gas type (nozzle
data are in Table 2 “Properties of nozzles and burners” on page 35).
•Modify all burners according to the above instructions.
b) Replacement of ignition burner nozzle
•Use 11 mm wrench to unscrew the closing bolt of the ignition burner.
•Use the flat screwdriver to remove the ignition burner nozzle.
•Replace the removed nozzle with the one designed for a given gas type and
make required adjustments (nozzle data are in Table 2 “Properties of nozzles
and burners” on page 35).
•Modify all ignition burners according to the above instructions.
c) Setting of primary air
•Adjust the primary air according to Table 2 “Properties of nozzles and
burners” on page 35).
•When the primary air is adjusted correctly the flame is stable, so there will be no
interruptions when the burner is cold or back burning when the burner is hot.
d) Ignition burner adjustment
•Adjust the ignition burner and see if the flame is correct and covers the
thermal element. If not, see if correct nozzles are installed (Table 2
“Properties of nozzles and burners” on page 35).

- 41 -
e) Setting of the smallest flame
•After switching to the different gas type it is required to change the small flame
settings for the individual burners.
Adjust it in the following way:
•Ignite the burner according to the instructions in section 5.2.3 “Ignition of gas
burners”.
•Turn the flame adjustment knob clockwise to the small flame position “ “.
•Remove the adjustment knob.
•
When switching from the natural gas to LPG the fine
adjustment screw F(on the right) should be turned
clockwise with use of small screwdriver until obtaining
the required flame power.
•When switching from PLG to the natural gas the fine
adjustment screw F(on the right) should be turned
counterclockwise with use of small screwdriver until
obtaining the required flame power.
•Replace the knob and quickly turn it from the maximum position to the minimum
position and check the flame. Make sure that it still allows for correct heating of
the thermal element. If not, correct it. Make adjustments for all burners.
•After the replacement or adjustment of the nozzles always make sure that the
flame is blue, stable, does not separate from the burner, and there is no back
burning while changing from the large flame to the small one.
CAUTION!
•After switching to the different gas type always check tightness with use of
appropriate spray or water with soap (never use the open flame!).
•After all replacement or adjustment activities reinstall all previously removed
parts to make the device ready for operation.
•After the modification remove the plate with the adjustment values and replace
it with the new one for the new gas type.

- 42 -
5.2 Instructions for the user
CAUTION!
Carefully read the manual below as it includes the safety and operation
instructions.
Keep the instruction in easily accessible place. When the device is transferred
to the third party, this operation manual should be transferred as well.
The defective installation, operation errors and maintenance and cleaning
mistakes as well as any modifications may cause the incorrect operation,
damages and injuries.
5.2.1 First start-up
•Make sure that there are no objects left in the electric oven and on the cooking
surface (equipment, package foils, manuals).
•Before the start-up carefully remove the protective foil from the device and use
the lukewarm water or appropriate solvent to remove the glue residuals.
•Before the start-up check the correctness of the installation, stability, and levelling
of the device, and if the electric and gas connections are correct.
•Do not cover the ventilation slots.
•The device elements removed during the installation and connecting must be
replaced.
•Before the device operation clean it according to the instructions in section
6 “Cleaning and maintenance”.
5.2.2 Operation elements
1.
Burner adjustment knob (4) 4. Heating indicator (orange)
2.
Oven temperature controller knob 5. Operation indicator (green)
3.
Oven time controller knob 6.
RESET button
2
3
4 6
1
5

- 43 -

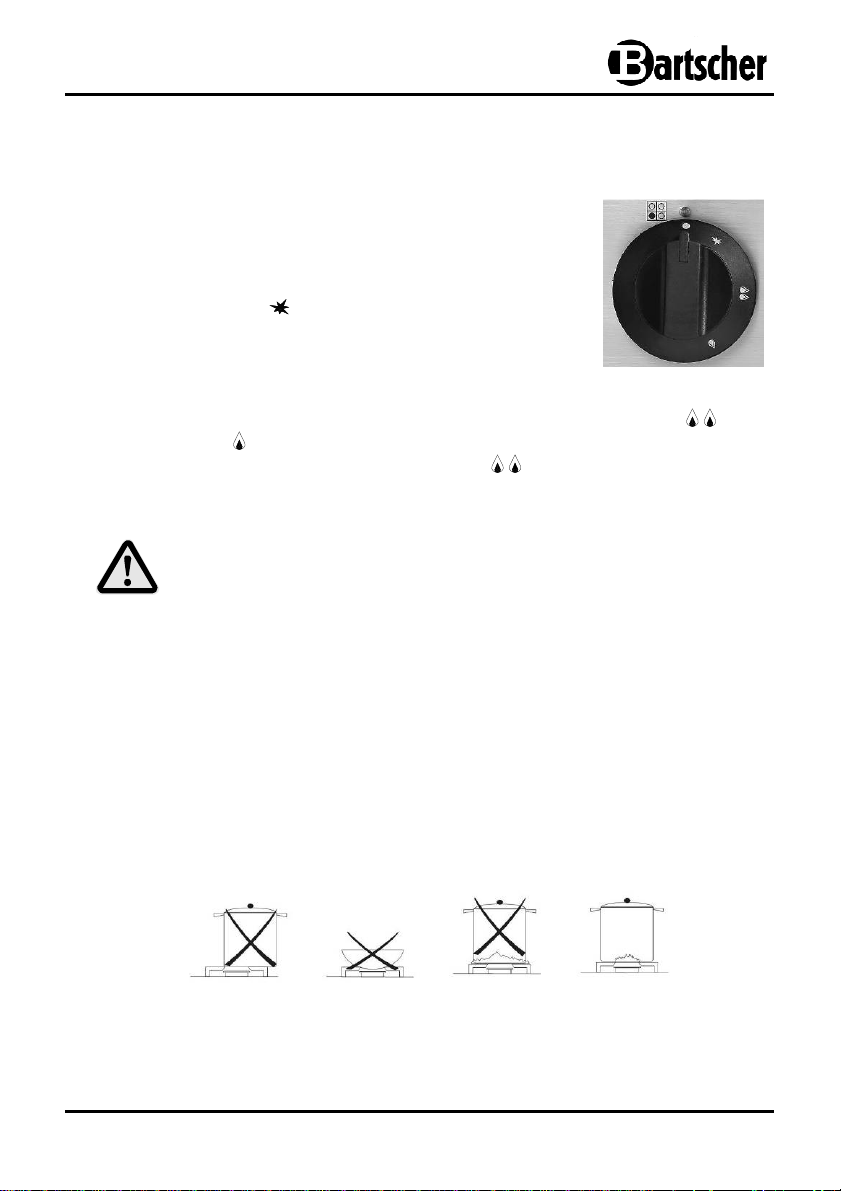

5.2.3 Gas stove
Ignition of burners
•
Make sure that all knobs are in “ ● ”(OFF) position.
•Open the gas valve before the device.
•In order to ignite the burner press appropriate knob
and rotate it counterclockwise to the position with the
ignition flame symbol .
•Hold the knob pressed for 3-4 seconds and ignite the
flame with the igniter.
•Hold the knob pressed for a few more seconds to obtain the flame continuity.
•Adjust the flame as required by turning the knob towards the large flame “ ” or
the small flame “ ”, whereas the knob must be positioned in the range between
those points and never between the large flame “ ” and “ ● ”(OFF) positions.
•In order to put out the flame turn the knob to “ ● ”(OFF) position.
•At the end of the work day close the gas cut-off valve.
CAUTION!
In case of longer standstill or damage of the device close the main gas
valve before the device.
Instructions and advices
•Avoid the flame exceeding the pot (frying pan) edge.
•When the food starts to boil reduce the flame to the lowest level so it will not be
extinguished by the boiling over food.
•Never leave the device unattended during heating of fats and oils as they may
ignite when overheated. There is the fire hazard!
•Use only pots with flat bottom.
•Place the pots on the grate in such way that the flame is located in the centre.
