Batribike Granite Pro User manual

Owner
Manual
Pro Spec Models
Pro
GRANITE Pro
DIAMOND Pro

2
Pro
IMPORTANT PLEASE READ THIS MANUAL FULLY BEFORE USE
For your safety and to ensure a long and trouble free life of your Batribike
bicycle, check the operation of brakes, lights, bell and gears,
and check tyre pressures are correct.
Also check all fasteners, including quick release mechanisms,
before every ride.
DEALERSTAMP
Diamond Pro
Granite Pro
ORANGE
BLUE
SILVER
B
B
BICYCLE SERIAL NUMBER:-
FW
BATTERY SERIAL NUMBER:-
MODEL:-
/
/ 20
PURCHASE DATE:-
DAY MONTH YEAR
DATATAG ID:-
DATATAG ETCH NUMBER:-
Register your BATRIBIKE
Warranty online at
batribike.com/warranty-
registration
Register your DATATAG online at
datatag.co.uk/cycle/validate.php

3
Pro
Thank you for purchasing a BATRIBIKE Electric Bicycle
With care and correct usage your bicycle
will give many years of service.
Important
PLEASE CHARGE THE BATTERY
BEFORE FIRST USING THE BICYCLE
Even though the battery indicator will show charge this cannot be
relied upon until the battery has had the initial full charge.
1 ELECTRIC BICYCLE
1 BATTERY with 2 Keys
1 BATTERY CHARGER with UK Mains Lead
1 MANUAL
1 WARRANTY CARD
1 DATATAG Regiistration Certificate
Contents
Parts Identification ............................................ PAGE 4
Battery Care & Charging ...................................PAGE 6
Using the Power Assistance ............................. PAGE 8
Cycle Computer Functions ............................... PAGE 16
Standard Bicycle Functions .............................. PAGE 18
Datatag ............................................................. PAGE 22
Maintenance Schedule ..................................... PAGE 24
Special Battery Features .............................. PAGE 26
Warranty ........................................................... PAGE 28
Specifications ................................................... PAGE 30
PACKAGE
CONTENTS

4
Pro
LCD (Display)
1
Thumb Throttle
2
Rear Brake Lever
3
Front Brake Lever
4
Motor Cutout Switch
5
Gear Selector Levers
6
Bell
7
Gear Indicator
8
9
10
11
Front Tyre 26 x 1.75
Front LED Light
Front Vee Brake
Battery Security Lock
Suspension Forks
Battery
12
Battery Power Switch
13
Charging Socket
14
15
Controller Box
16
17
18
19
Fuse 35A
20
21
USB Socket
22
Datatag Label
Bicycle Serial Number
Battery Serial Number
Side Stand
Rear Hub Motor
7 Spd Shimano Gears
Rear Tyre 26 x 1.75
23
Seat Height Adjuster
24
Suspension Seat Post
25
26
Rear LED Light
27
28
29
Rear Vee Brake
30
PARTS IDENTIFICATION
We continually strive to ensure that we provide you with
the best possible products, therefore
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
5
3
7
5
4
1
2
6
8
5
3
7
5
4
1
2
6
8
18
20
17
16
UNDERSIDE VIEW
OF BATTERY
DISPLAY
POWER
SWITCH

5
Pro
VIEW OF BATTERY WHEN
REMOVED FROM BIKE
19
15
13
28
21
30
29
10
9
12
11
23
14
UNDERSIDE OF FRAME
BENEATH CRANK
OTHER
SIDE
20
15
13
28
21
30
29
10
9
12
11
23
14
UNDERSIDE
OF FRAME
BENEATH CRANK
OTHER
SIDE
25
24
26
27
16
25
24
26
27
16
22
22

6
Pro
BATTERY CARE & CHARGING
Your Batribike Electric Bicycle uses a Lithium battery for it's power and the
following points will directly affect battery life and performance.
Storage
Batteries do not like to be stored in very hot or very cold conditions or to be
subject to conditions of high moisture. They also do not like to be left in a fully
discharged state. If Lithium batteries are left flat for an extended period they may
no longer be functional.
• Store your battery between 15º C and 25º C
in a dry area. (The conditions found in a
normal domestic house).
• If your Batribike is not in use for an extended
period it is imperative that you charge the
battery before storage and then charge the
battery once a month to prevent deterioration.
Charging
Lithium batteries do not like to be left discharged.
It is good practice to recharge as soon as is
reasonably possible after the battery goes flat.
We recommend charging after every ride, that
way your electric bike is always ready for your
next outing.
• Do not charge at temperatures below 0º C
• Switch off the battery before charging, using
power switch located under rear of battery.
• Battery can be charged on or off the bike.
• Always make sure the battery and charger
are on a non-flammable, dry surface away
from sources of heat, humidity and flammable
materials.
• Do not cover the battery or charger whilst
charging.
• Only use the charger supplied with your
battery.
• Even if not in use recharge your battery a
minimum of once a month.
Removing the Battery
To remove the battery,
switch off at the power
switch underneath the rear
of the battery and then
unlock by turning the key
anti-clockwise and holding
there whilst sliding out the
battery from the rear of the
carrier. A handy set of
finger grips are provided to
make this easier.
For Your Safety
• Keep battery away
from children
• Do not dismantle
• Do not pierce or crush
• Do not immerse in liquid
• Do not expose to
temperatures over 60ºC
• Do not short circuit the
battery connections
• Do not leave unattended
whilst charging
• Do not sleep near a
battery that is charging

7
Pro
Using the Charger
Two types of battery charger are
used by BATRIBIKE. (Only one will
be supplied). Both have a charge
light which will display RED when
charging and change to GREEN
when the battery is charged.
The alternative type charger also has a second light
which shows RED when mains power is applied.
• Ensure the battery is switched off.
• Plug the charging lead into the battery.
The charging lead plugs into the charging socket
located beneath the rubber cover on the underside rear
of the battery casing.
• Plug the charger into the mains socket and
switch on at the wall outlet.
• The lights on the charger will illuminate after a
few seconds.
When charging is complete the RED charge light will
change to GREEN. May take up to 6 hrs for flat battery.
• Once charged, switch off at the wall outlet and unplug.
• Disconnect the charging lead from the battery and
replace the cover over the charging socket.
The battery does not have to be completely discharged before it is recharged. The
Lithium battery has no "memory" and therefore can be charged at any time. It is
perfectly acceptable to recharge the battery after a short ride so that the battery is
fully charged before the next ride.
NOTE: If the battery is charged
and the charger left switched
on for an extended period the
alternative type charger will enter
a low power state, indicated by
both the RED and ORANGE/
GREEN LEDs flashing slowly.
Switch off and unplug as above.
IMPORTANT
Plug the charger into the battery
before switching on at the mains.
Similarly, switch off at the mains before
unplugging the charger from the battery.
DO NOT LEAVE PERMANENTLY
CONNECTED

8
Pro

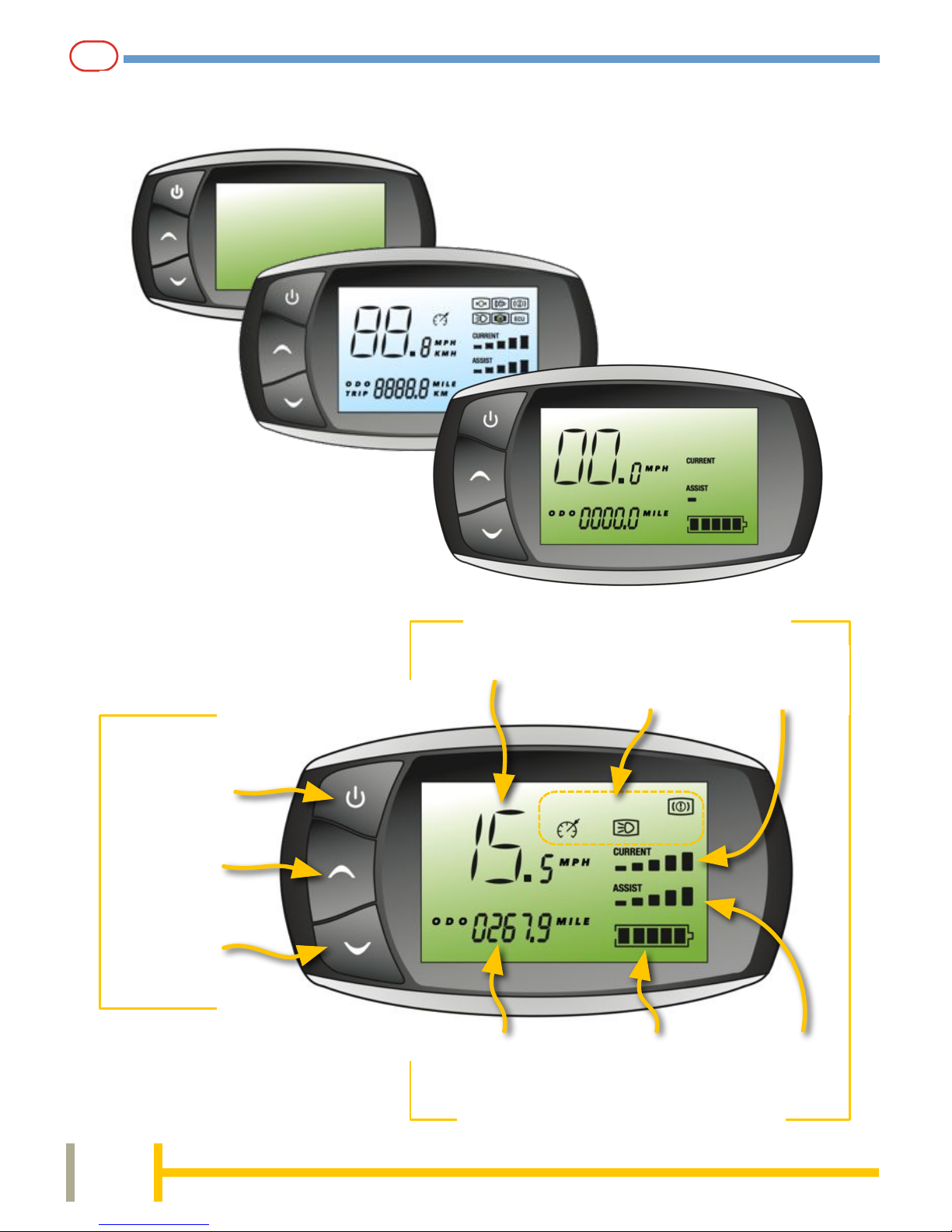

Your BATRIBIKE Electric
Bicycle can be used as a normal
pedal cycle by simply not
switching on the battery.
(or using in Zero
Assist - see below)
Usage
Buttons
Display Information Areas
UP
POWER
DOWN
CYCLE
COMPUTER
STATUS
ICON AREA
BATTERY
STATUS
POWER
USAGE
Display Information Areas
ASSIST
LEVEL
SPEED

9
Pro
To use under electric power, switch on at
the main power switch under the rear of the
battery, then press the POWER button on
the handlebar LCD display.
Control Buttons
By means of the three buttons, POWER, UP and
DOWN, on the handlebar mounted display unit,
the various functions of the power controller and
Cycle Computer can be utilised.
See the following sections for details.
To turn off the LCD and the power to the
bike, press and hold the POWER button for
2 seconds.
If the power is left on for an extended period
and the bike is not used, then the power will
automatically be turned off.
Switching Off
Switching On
ELECTRIC BICYCLE FUNCTIONS

10
Pro
The LCD has a backlight for
night time use. This is
switched on by momentarily
pressing the POWER button.
To turn the backlight off,
again momentarily press the
POWER button.

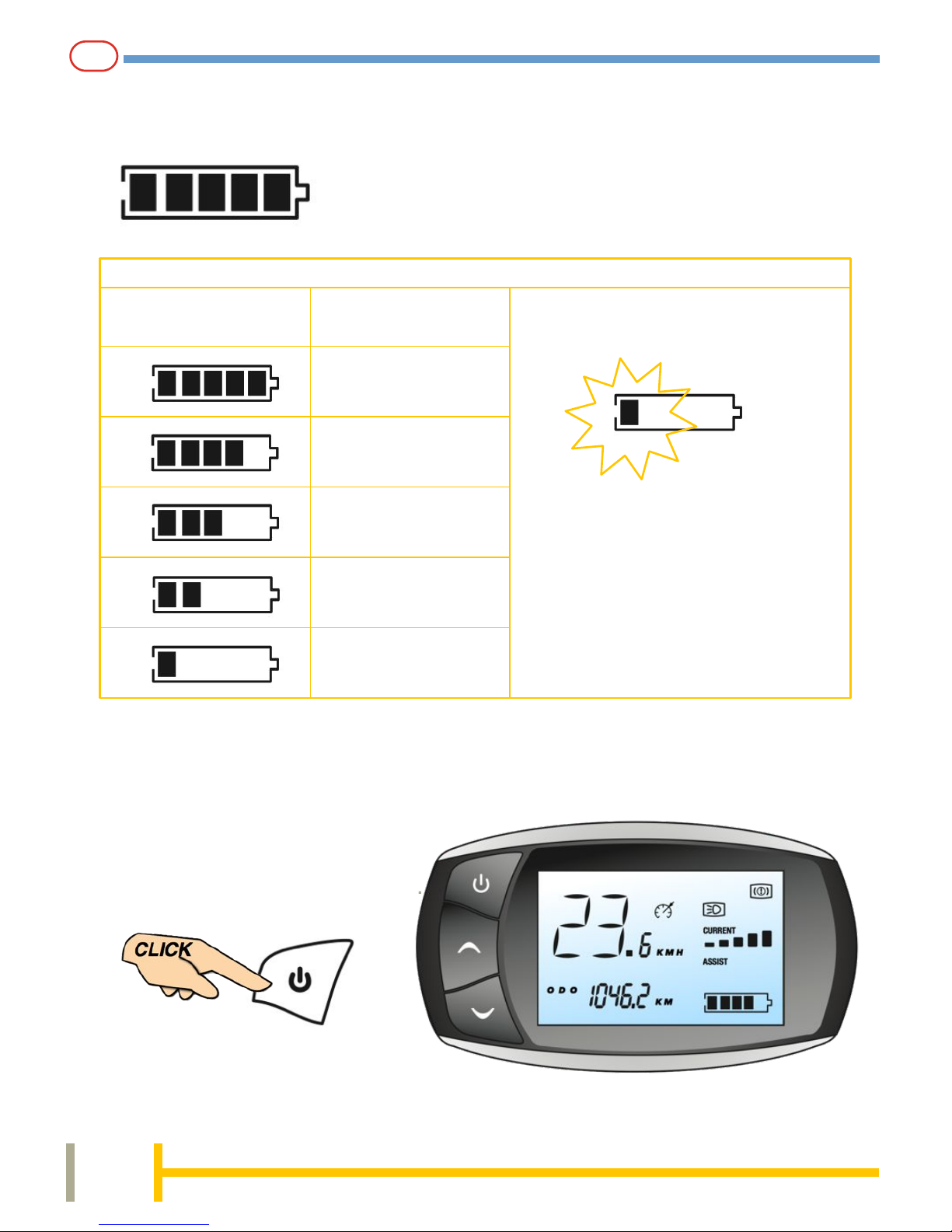

The LCD shows the charge remaining in the
battery in the lower right of the display. The
indicators will gradually go out as the battery
power is used up. Refer to the table below
for details.
Battery Meter
Display Backlighting - Night Mode
70 - 100%
SYMBOL
DISPLAYED
CHARGE
REMAINING
BATTERY METER DISPLAYS THE CHARGE REMAINING IN THE BATTERY
BATTERY IS
EXHAUSTED AND
SHOULD BE
RECHARGED AS
SOON AS POSSIBLE
50 - 70%
30 - 50%
15 - 30%
0 - 15%
FLASHING

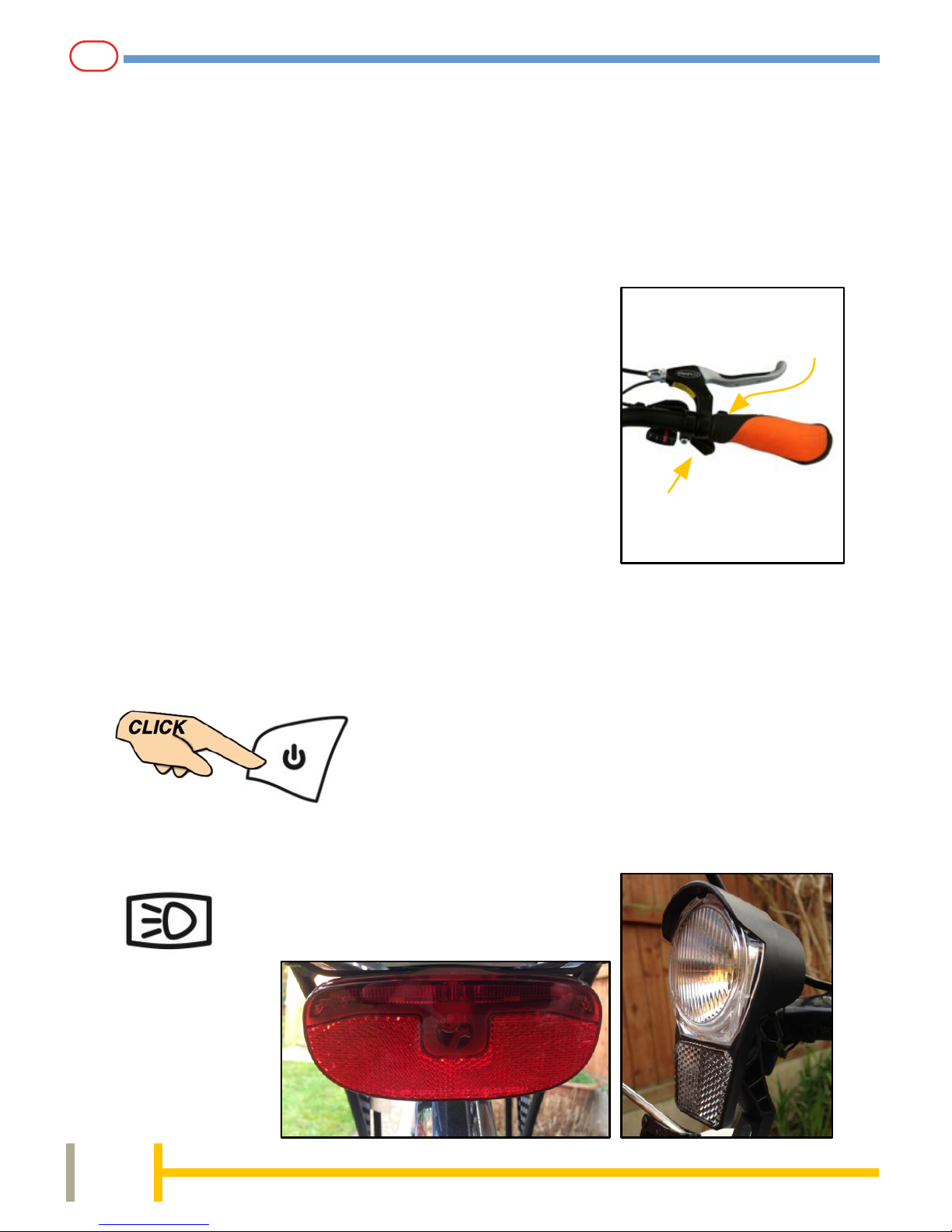

Note: This also operates the front
and rear LED lights.

11
Pro

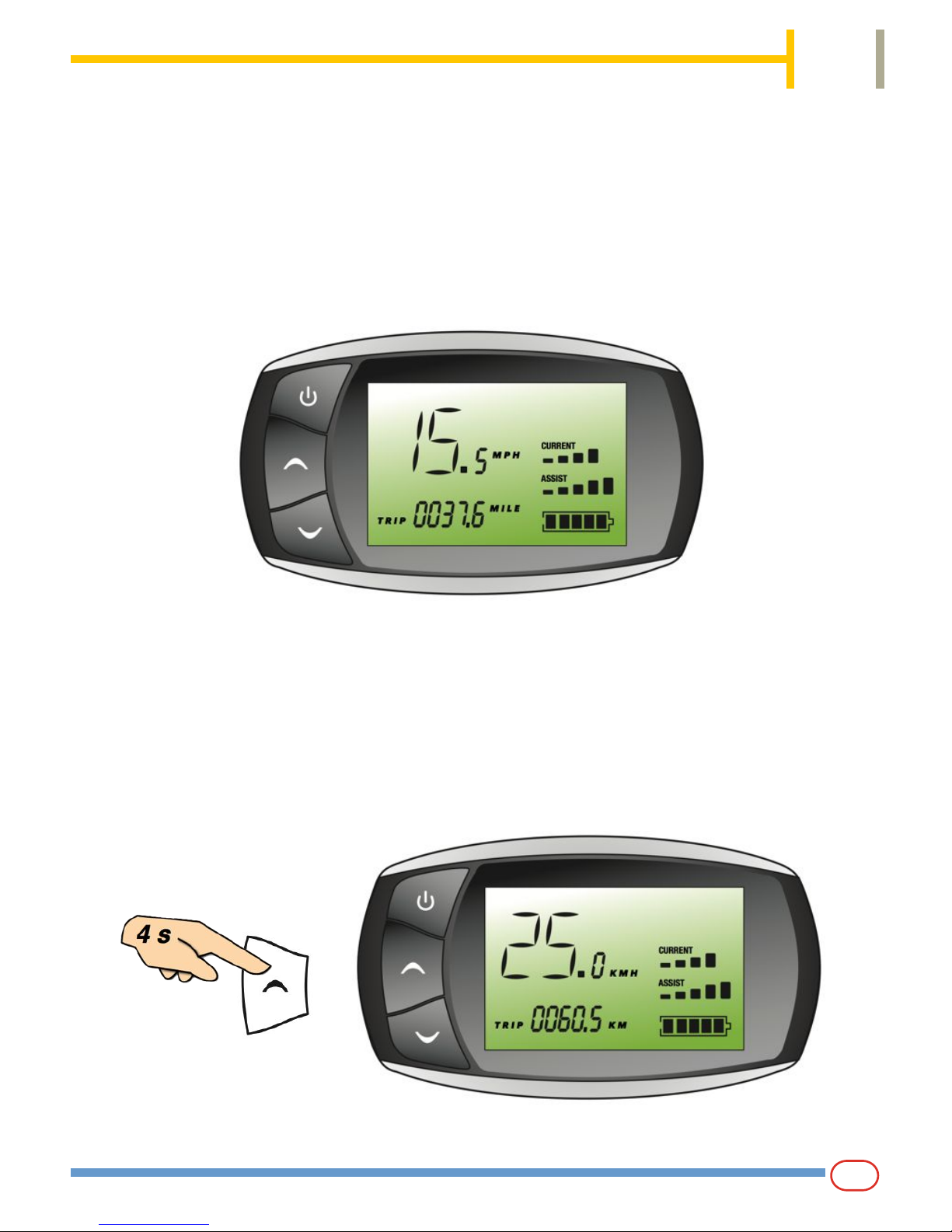

The centre large digits will normally display the current speed of
the bicycle. For the UK market this is set to show miles per hour
(MPH). The display is accurate to about 10% when the wheel size
is correctly calibrated and the tyre inflated as per the
manufacturers recommendations.
Speed Display
The display can be changed to show kilometres per hour (KMH)
by pressing and holding the UP button for 4 seconds. To return to
MPH repeat this process.

12
Pro
PEDAL ASSISTANCE FROM THE MOTOR
28 miles
15.5 MPH
35 miles
12 - 15 MPH
40 miles
10 - 15 MPH
60 miles
9 - 12 MPH
untested
6 MPH
LEVEL
PERFORMANCE
Provides maximum power when
negotiating hills and head winds.
Great when needing to simply get from
A to B as fast as possible.
Great for commuting to work.
EXAMPLE OF USAGE
Normal Use Mode.
These are the levels to use for everyday
cycling. Gives good performance whilst
maximising usable range per charge.
Best for Leisure Use.
Use these lower power levels when
negotiating busy cycle paths and
crowded areas. Also use when setting
off and gradually increase through the
levels for a smoother performance.
Ideal for negotiating obstacles.

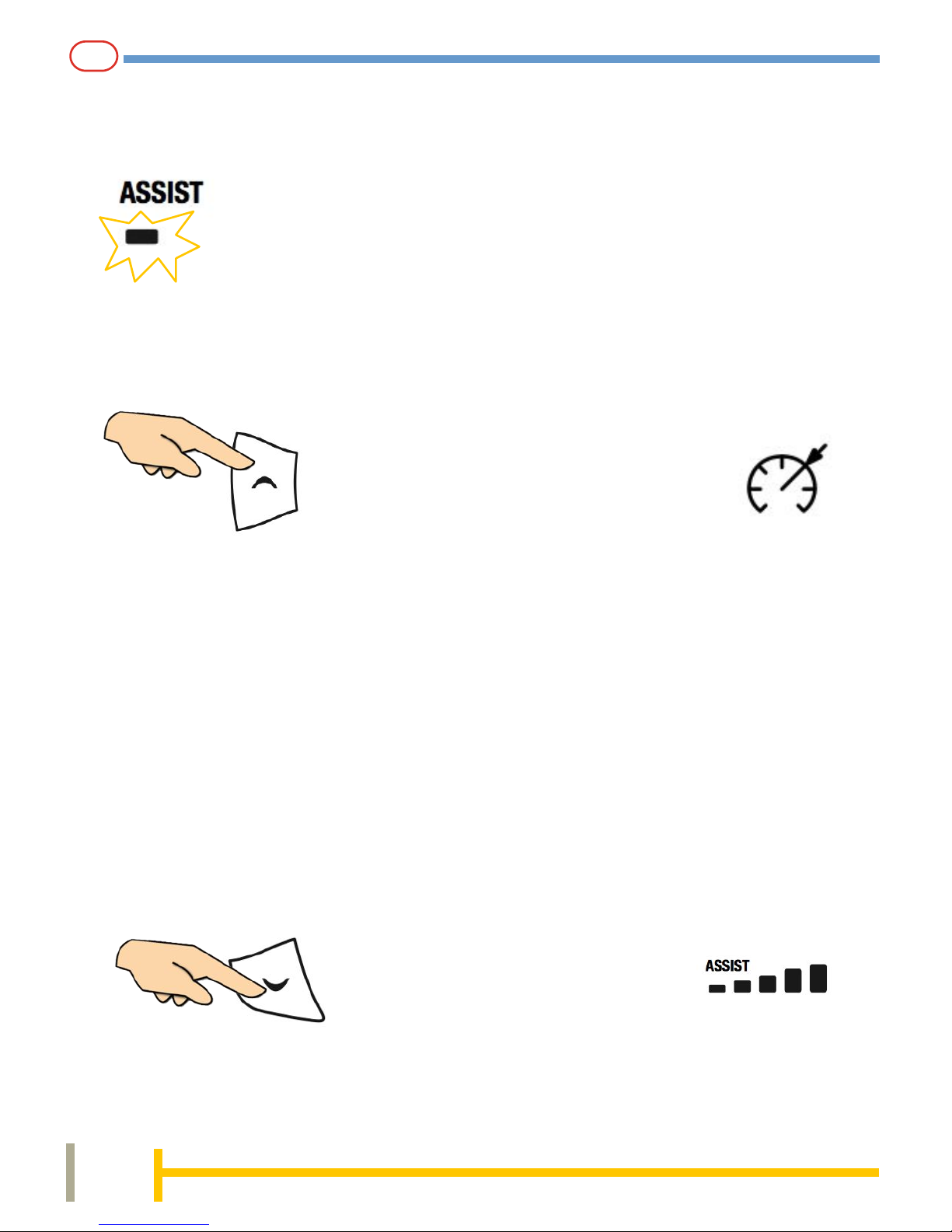

There are 5 levels of pedal
assistance available from the motor.
Using the UP and DOWN buttons
you can select from LOW (1 bar), to
HIGH (5 bars). The motor will then be activated upon
pedalling. There is a rotation sensor located near the
crank which senses when the pedals are being used.
Pedal Assistance
Please remember that the above values are provided as a guide.
Due to manufacturing tolerances the speeds & distances may vary.

13
Pro
Weather and terrain will affect the performance. In hilly areas, or
when the bike is heavily loaded, there will be a significant increase
in the power used from the battery and hence the range will
decrease accordingly. A lightly loaded bike will achieve higher
performance levels. (These results were obtained by test riders in
optimal conditions - 75kg rider, level ground, no wind).
Other Functions
The Display will also show
control status information
in the status icon area at
the top right of the screen.
When the brakes
are used the
brake symbol will
light.
When the lights are operated the light symbol will show.
When the throttle is operational the throttle icon will light.
If any other indicators show or the brake indicator remains active
when the brakes are not used then a malfunction may have
occured and you should refer to your BATRIBIKE dealer.

14
Pro
If the assistance level is set to ZERO (one bar
flashing), then the motor will not be turned on. Your
BATRIBIKE will now act and feel like a normal bicycle.
This is useful when you are feeling fit at the start of a
journey or using your bike for exercise purposes.
Power is still only a button press away.
No Assistance - Normal Pedal Bicycle
To activate the throttle, repeatedly
press the UP button, continuing
through the levels until the throttle
symbol is displayed after level 5. In
this mode the thumb throttle on the
left handlebar is now live. In all
other assistance levels the throttle is not functional.
You can still pedal the bike but power will not be applied until the
throttle is activated. To activate, push the thumb lever downwards.
Use the throttle control gently. A small push will apply a small
amount of power. Pushing more will increase the power until the
control is fully rotated, at which point full motor power is applied.
Throttle assistance can also be used without pedalling.
A handy way to use the throttle is to pull away from junctions, or
when starting on inclines as the rider will pull away easier and is
less likely to wobble.
To exit throttle mode and
return to pedal assist mode,
simply press the down button.
Using the Throttle - Country Specific
PLEASE NOTE:
The throttle control is not activated for some countries due to legal
restrictions. Please refer to your dealer for help and advice.
REPEAT

15
Pro
BS EN15194 Compliance
The BATRIBIKE Pro range is compliant with BS EN15194.
For the British market, the addition of a throttle control has
rendered this not compliant in some countries.
●You are recommended to seek advice from the relevant
authorities in the country you are visiting before travelling.

16
Pro
CYCLE COMPUTER
The Pro models have useful Cycle Computer functions built in.
There is a built in sensor and pickup located in the rear hub which
activates the speed and distance readings.
When first turned on
the display shows the
Trip Distance (TRIP) in
the bottom left. The
Speed is always
shown in the upper left
section of the display.
The assistance level
(ASSIST) is set to the
lowest level, (1 bar), and the readout is set to display speed in
MPH and Trip/Odometer distances in MILES.
Normal Display
To change the display to show the Odometer
Distance (ODO), simply press the DOWN
button for 4 seconds. Repeat to return to
TRIP display.
Total Distance (Odometer)

17
Pro
To reset the TRIP distance at the start of a
journey, simply press and hold the UP and
DOWN buttons simultaneously, and hold for
6 seconds.
Resetting the Trip
TOGETHER
The Odometer distance displays the total distance travelled by the
bicycle since leaving the factory and cannot be reset.

18
Pro
STANDARD BICYCLE FUNCTIONS
Gears
The DIAMOND Pro and GRANITE Pro are provided with 7
speed Shimano Altus gears. To change gear you use the right
handlebar mounted Quick Shift selectors.
Gear number 1 is low for hills and rough
terrain and gear 7 is high for normal road use.
An indicator window shows the selected gear.
To increase the gear simply pull/squeeze the
upper lever with your right index finger.
To decrease the gear push the lower lever
away from you with your thumb.
You must be pedalling forwards as you
change gears.
Lights
Lights are provided on your BATRIBIKE
bicycle. These are power efficient LED
units which are powered from the main
battery.
To turn on the front and rear lights, ensure
that the power is on and momentarily press the POWER button.
The Lights
icon will
show on the
display.
PUSH to
change DOWN
SQUEEZE to
change UP
FRONT & REAR LIGHTS
WITH BUILT IN REFLECTORS

19
Pro
Braking
To stop, release the throttle and pull the brake
levers. The brake icon will be shown on the
handlebar mounted display.
Bell
A bell is incorporated into the left hand (rear)
brake lever. It is designed to be operated with
the left index finger.
Side Stand
To put the bicycle on its stand:-
1) While holding the bicycle
upright, push the stand downwards to its full extent.
2) Lean the bicycle over onto the stand.
Do not sit on the bicycle whilst the stand is down. It is
designed to take the weight of the bicycle and not the
additional weight of the rider.
Luggage Rack
The luggage rack provided is designed to carry a maximum
load of 25kg. Make sure that any items carried are securely
strapped and nothing is able to get caught in the rear wheel.
All other operation of your BATRIBIKE Electric Bicycle is as per
a normal pedal cycle.
BELL
lever

20
Pro

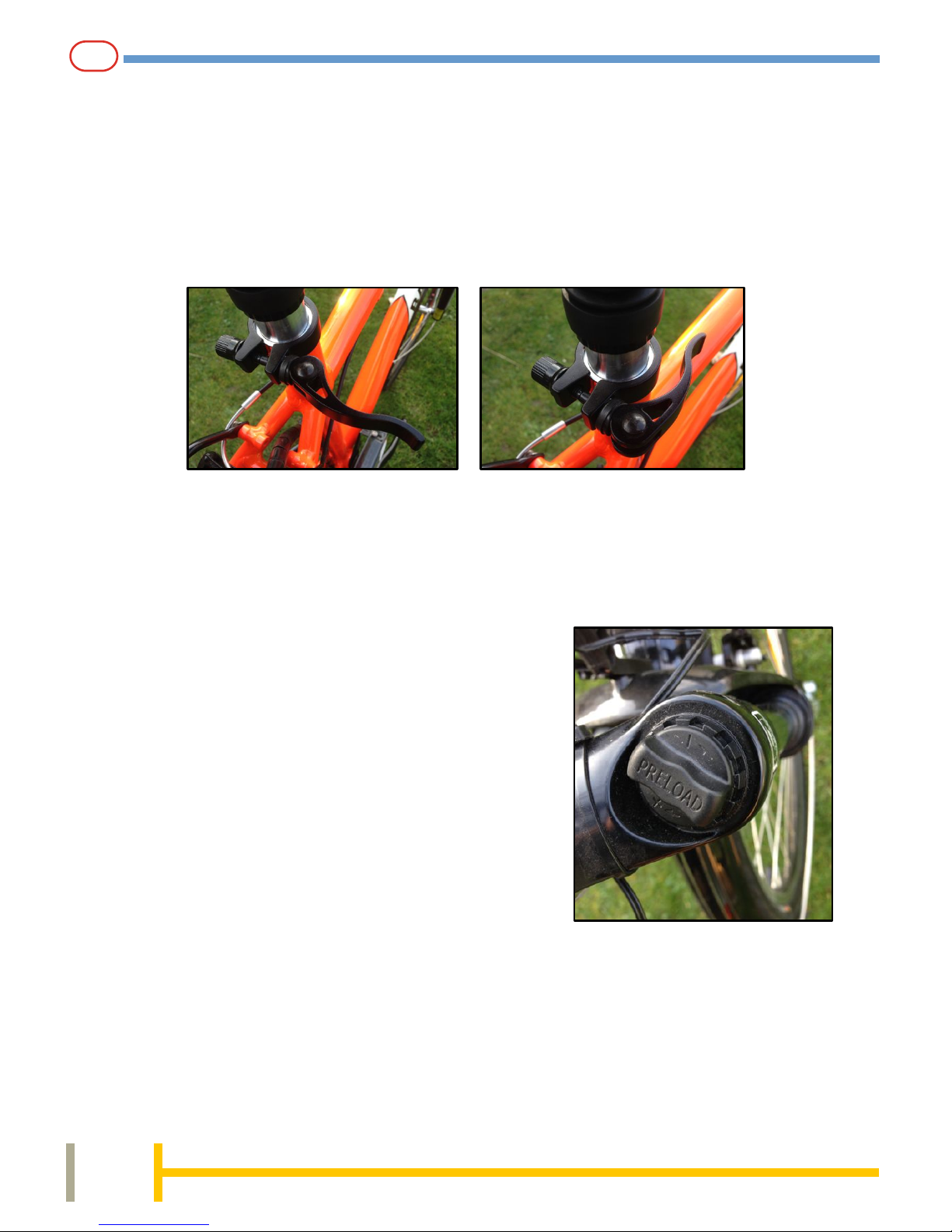

Quick Release fittings for Seat Height Adjustment
With the locking lever in the loose position, tighten the nut until
finger tight. The final tightening is done by moving the lever to the
locked position. To undo move the lever to the loose position to
enable height adjustment.
Loose
Locked
Suspension Forks Pre-Load Adjustment
The front suspension forks can be adjusted for pre-load to suit the
rider and environment the bike is used in.
To stiffen the forks turn the adjuster
clockwise.
To soften the forks turn the adjuster
anti-clockwise.
