Batribike Breeze User manual

®
Owner
Manual

MODEL:-
BREEZE
SERIAL NUMBER:-
PURCHASE DATE:-
DAY MONTH YEAR
B B B
/ /
IMPORTANT PLEASE READ THIS MANUAL FULLY
PRIOR TO ASSEMBLY AND USE
For your safety and to ensure a long and trouble free life of your Batribike
bicycle, check the operation of brakes, lights, bell and gears,
and check tyre pressures are correct.
Also check all fasteners, including quick release mechanisms,
before every ride.
DEALER STAMP

3
Thank you for purchasing a BATRIBIKE Electric Bicycle
With care and correct usage your bicycle
will give many years of service.
PACKAGE CONTENTS
1 ELECTRIC BICYCLE
1 BATTERY
1 BATTERY CHARGER with UK Mains Lead
1 MANUAL
Contents
Parts Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 4
Battery Charging .............................................................. PAGE 6
Using the Power Assistance ..............................................PAGE 8
Standard Bicycle Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 14
Maintenance Schedule. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 18
Warranty ... . .. . .. . .. . .. ... .. . .. . .. . .. . .. . .. . .. .. . .. . .. . .. . .. . .. . .. . .. .. . .. . .. . . PAGE 20
Specifications ..................................................................... PAGE 22
Important
PLEASE CHARGE THE BATTERY
BEFORE FIRST USING THE BICYCLE
Even though the battery indicator will show charge this cannot be
relied upon until the battery has had the initial full charge.

4
PARTS IDENTIFICATION
We continually strive to ensure that we provide you with the best possible products, therefore
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
1 Display 13 Battery 25 Tipping Saddle
2 Twist Grip Throttle 14 Battery Power Switch 26 Front LED Light
3 Rear Brake Lever 15 Charging Socket 27 Rear LED Light
4 Front Brake Lever 16 Rear Hub Motor 28 Folding Pedals
5 Motor Cutout Switch 17 Controller Box 29 Seat Tip Lever
6 Gear Selector 18 Luggage Rack 30 Rear Vee Brake
7 Bell 19 6 Speed Shimano Gears 31 Front Vee Brake
8 Handlebar Adjustment 20 Front Tyre 20 x 1.75 32 Chainwheel 44 T
9 Handlebar Folding Lock 21 Rear Tyre 20 x 1.75 33 LED Capacity Meter
10 Frame Folding Clamp 22 Assist Level Button 34 Battery Fuse
12 Suspension Forks 24 Seat Height Adjuster 36 Charging Socket Cover
11 Power Button 23 Chainwheel Guard 35 Battery Meter
3
7 2
4
5
1
5
6
11
33
Detail view of
Handlebar
Mounted Display
22

5
25
18
16
13
20
24 26
10
8
17
21
15
14
24
34
9
29
31
12
28
19
27
Detail views of
Battery Components
32
23
35
36
30

6
CHARGING THE BATTERY
The battery can be charged on or off the bike.
To remove the battery, unlock by pushing the key
and turning anti-clockwise.
Tilt or remove the seat.
(to tilt the seat, lift the lever located under
the rear of the seat and lift the back of the seat. Press the seat down to
lock back into position).
To remove the battery, unfold the handle and slide the battery upwards.
When refitting the battery ensure that it is fully seated and lock back into position
using the key.
Switch off the battery at the Key Switch before
charging,
Plug the charging lead into the battery.
The charging lead is plugged in to the charging
socket located behind the slide cover on the
battery.
IMPORTANT
It is important to plug the charger into the
battery before switching on at the mains.
Similarly, switch off at the mains before
unplugging the charger from the battery.

7
Plug the charger into the mains socket and switch on at the wall outlet. The lights on the
charger will illuminate after a few seconds.
The RED light indicates that mains power is applied. The other light
will show RED whilst charging is taking place. This may take up to
six hours for a flat battery.
When the battery is charged the RED light will change to GREEN.
Once charged, switch off at the wall outlet and unplug. Unplug the charging lead from the
battery and slide the cover back over the charging socket.
The battery does not have to be completely discharged before it is recharged. The
Lithium battery has no ‘memory’ and therefore can be charged at any time. It is perfectly
acceptable to recharge the battery after a short ride so that the battery is fully charged
before the next ride.
If your BATRIBIKE is not in use for an extended period it
is imperative that you charge the battery before storage
and then charge the battery once a month to prevent
deterioration.
When not in use, store the battery in a warm, dry place.
If Lithium batteries are left flat for
an extended period then they may
no longer be functional and a new
replacement will be required.
With correct User Care as outlined above your battery should have a
lifetime of around 1000 charges.
FAILURE TO FOLLOW
THIS PROCEDURE WILL
INVALIDATE YOUR
BATTERY WARRANTY
USE ONLY THE CHARGER SUPPLIED
CHARGE POWER
CHARGE POWER
CHARGE POWER

8
Usage
Your BATRIBIKE Electric Bicycle can be used as a normal pedal cycle by
simply not switching on the battery.
Alternatively switch on at the battery (Key Switch), but do not switch on at the
handlebars.
ELECTRIC BICYCLE FUNCTIONS
Switching On
To use under electric power, switch on at the key switch located on the battery
beneath the rear of the seat.
Then press the ON/OFF button on the handlebar LCD display.
Initial Display
All the lights on the display will initially come on in sequence and then
momentarily go out. The lights will then display power assistance level and
power remaining in the battery.
The assistance level will be set at
LOW when the bike is first turned on.
The power to the throttle will also be
on.
ON/OFF
For safety, It is important not to operate the
key switch whilst riding the bike.

9
Switching Off
To turn off the Display and the power to the bike, press the
ON/OFF button, the lights will turn off.
If the power is left on for an extended period and the bike is not used, then the
power will automatically be turned off.
ON/OFF
Battery Meter
The LED shows the charge remaining in the
battery in the upper right of the display. The
indicators will gradually go out as the battery
power is used up. Refer to the table below for
details.
BATTERY METER DISPLAYS THE CHARGE REMAINING IN THE BATTERY
SYMBOL
DISPLAYED
CHARGE
REMAINING
SYMBOL
DISPLAYED
CHARGE
REMAINING
50-100% 10-30%
30-50% 0-10%
BATTERY IS EXHAUSTED AND
SHOULD BE RECHARGED AS SOON
AS POSSIBLE
Capacity indicatorCapacity indicator
Capacity indicator
Capacity indicator
Capacity indicator

10
Pedal Assistance
There are 3 levels of pedal assistance from the motor. Using the
assist button you can select from L (low) M (medium) and H (high).
Pressing the button will scroll through the levels, pressing the assist button when
in H (high) mode will return to L (low) assist.
The motor will then be activated upon pedalling. There is a rotation sensor
located near the crank which senses when the pedals are being used.
The speed and power will vary as the level is changed. Refer to the table below
PEDAL ASSISTANCE FROM THE MOTOR
LEVEL PERFORMANCE *EXAMPLEOFUSAGE
HIGH 25 Miles
13-15 MPH Provides maximum power when negoti-
ating hills and head winds.
Great when needing to simply get from A
to B as fast as possible.
Great for Commuting to work.
MEDIUM 40 Miles
7-10 MPH Normal Use Mode.
These are the levels to use for everyday
cycling. Gives good performance whilst
maximising usable range per charge.
Best for Leisure Use.
LOW Range Not Tested
5-6 MPH
Use these lower power levels when ne-
gotiating busy cycle paths and crowded
areas. Also use when setting off and
gradually increase through the levels for
a smoother performance.
Ideal for negotiating obstacles.
*Please remember that the above values are provided as a guide. Due to manufacturing tolerances
the speeds and distances may vary.
Weather and terrain will affect the performance. In hilly areas or when the bike is heavily loaded
there will be a significant increase in power used from the battery and hence the range will decrease
accordingly. A lightly loaded bike will achieve higher performance levels.
(These results were obtained by test riders in optimal conditions—75kg rider, level ground, no wind).
L M H
ASSIST
L M H
ASSIST
L M H
ASSIST
ASSIST

11
No Assistance—Normal Pedal Bicycle
If you turn the battery on but do not press the power button on the display your
Batribike Breeze will now act and feel like a normal cycle. This is useful when
you are feeling fit at the start of a journey or using your bike for exercise
purposes. Power is still only a button press away.

12
Using the Twist Grip Throttle—Country Specific
The throttle is available all the time the power is switched on at the handlebar
display.
The throttle can be used whilst pedalling in any of the assist modes to give extra
help as required.
The throttle is not limited by the assistance level selected and is available to give
up to maximum power at all times.
Use the throttle control gently. A small twist will apply a small amount of power.
Twisting more will increase the power until the control is fully rotated when full
motor power will be applied.
Throttle assistance can also be used without pedalling.
A handy way of using the throttle is to pull away from junctions, or when starting
on inclines as the rider will pull away easier and is less likely to wobble. It can
also be useful when used to pull out and overtake slower cyclists smoothly and
quickly.
Care should be taken not to twist the throttle when mounting/dismounting the
bicycle. It is good practice to turn off the power before getting off or on the bike
also to hold one or both of the brakes to maintain stability. Holding the brake
cuts the power to the throttle and will stop the bike moving if the throttle is
accidentally twisted.
It is not advisable to twist the throttle and then release the brake as this will
cause a power surge which may cause damage to the bicycle and/or risk of
personal injury.
Using the throttle at maximum level at all times will use more battery power than
when using it with discretion.
PLEASE NOTE:
The throttle control is not fitted for some countries due to legal restrictions.
Please refer to your dealer for help and advice.

13
BS EN15194 Compliance
The BATRIBIKE
Breeze is tested and certified to BS EN15194.
For the British market, the addition of a twist grip throttle has rendered this not
compliant in some countries.
 You are recommended to seek advice from the relevant authorities in the
country you are visiting before travelling.
Additional Battery Meter on Battery
A display mounted on the top of the battery can be used to show
the charge state of the battery when it is not connected to the
bike. (The meter can be used when on the bike, but will not be as
accurate as the handlebar display is when the bike is in motion
and under power).
To use the meter, turn on the battery power with the key and
press the button on the display. The power level will display on
the 3 LED’s.
2 Green LEDs indicates a charged battery
1 Green LED indicates a partially charged
battery
1 Red LED indicates that the battery is
low in power and should be charged at
the earliest opportunity.
This battery meter is particularly useful when more than one battery has been
removed for charging, It is easy to ascertain which battery to charge.

14

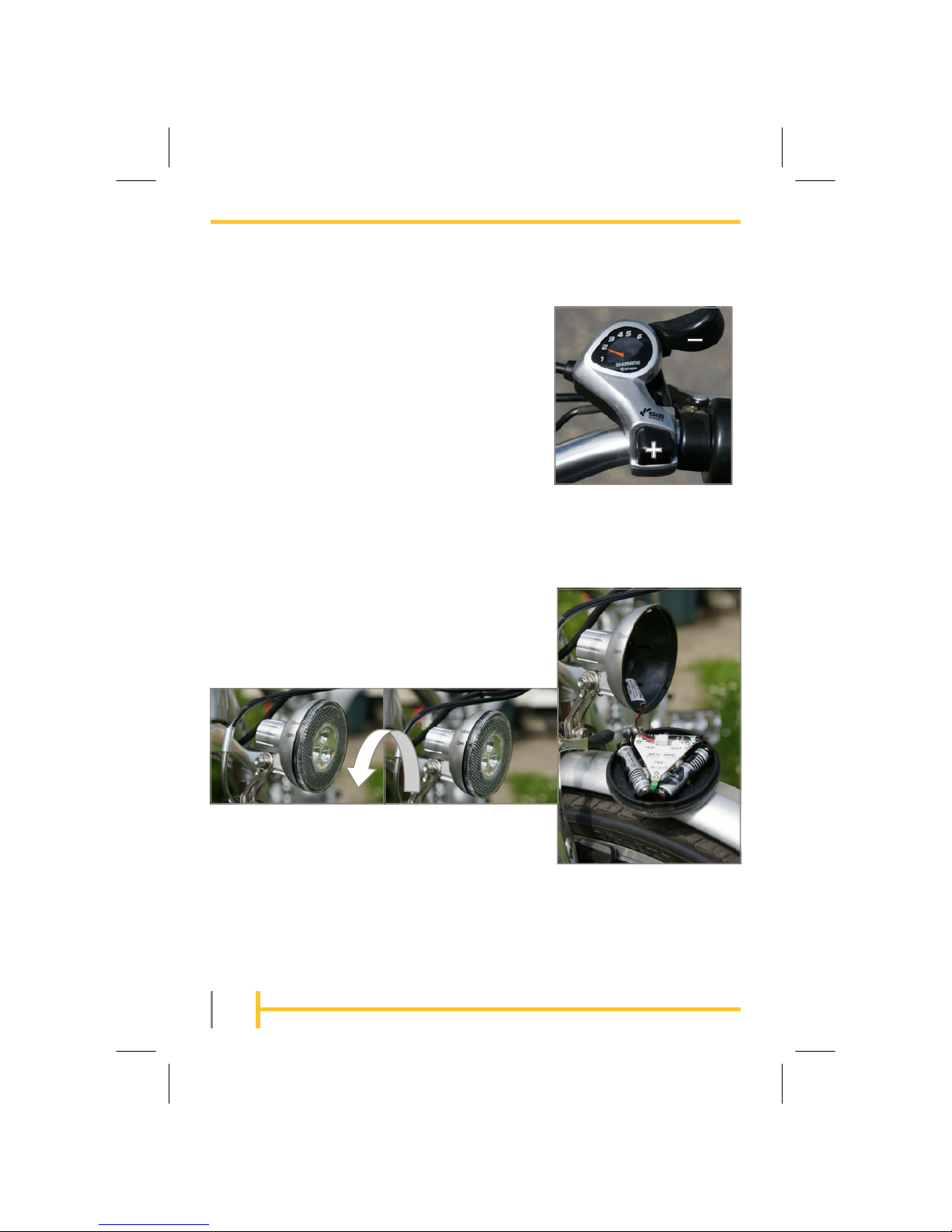

STANDARD BICYCLE FUNCTIONS
Gears
The
Breeze is provided with 6 speed Shimano
gears. To change gear you use the right handlebar
mounted selector. Gear number 1 is low for hills
and rough terrain and gear 6 is high for normal road
use. To increase the gear simply press the + button
with your right thumb. To decrease the gear push
the black lever away from you with your thumb. You
must be pedalling forwards as you change gears.
Lights
Lights are provided on your BATRIBIKE bicycle. These are power efficient
LED units which achieve a long life on each set of batteries.
SAFETY FEATURE - The power for the
front and rear lights is kept separate from the
main power supply so that in the event that
the battery is exhausted you will still have
lights for safety.
The front light is powered by 3 AAA size batteries
and is switched on by the black push button switch
at the rear of the unit.
To replace the batteries simply twist the lens anti-clockwise and pull free.
There is a small warning light on top of the front lamp unit. This lights to show
that the batteries are getting low and should be replaced.

15
The rear light requires 2 AA batteries. You will require a small Philips
screwdriver to take off the red lens for battery replacement. It is switched on and
off by the small red push button switch on the underside of the unit.
Braking
To stop, release the throttle and pull the brake levers.
Side Stand
To put the bicycle on its stand:-
1) While holding the bicycle upright, push the stand to its full
extent.
2) Lean the bicycle over onto the stand.
Make sure bicycle is on solid ground.
Do not sit on the bicycle whilst the stand is down. It is
designed to take the weight of the bicycle and not the
additional weight of the rider.

16
Quick Release fittings for Seat Height Adjustment
With the locking lever in the loose position, tighten the nut until finger tight.
The final tightening is done by moving the lever to the locked position. To
undo move the lever to the loose position to enable height adjustment.
Loose Locked
Folding the Bicycle
Fold pedals by squeezing in as
per photo, and turning through
90 degrees.
Turn the pedals to a suitable position so they are not trapped when folding
the frame.
Release centre frame lock as follows:-
Fold frame front to back. Then Fold down the handlebars as follows:-
FlipcatchTurntosideLiftupleverto
release pin from
frame

17
1. Release clamp by lifting lever upwards.
2. Rotate lever downwards to release from slot.
3. Slide lever sideways to release pin from hole.
4. Fold handlebars taking care not to trap wires and cables.
Reverse procedure to return bicycle to riding position.
Adjusting the Handlebars
The handlebars can be adjusted for height to suit the rider. Hex keys, (not
supplied), will be required to carry out these adjustments.
Luggage Rack
The luggage rack provided is designed to carry a maximum load of 25kg.
Make sure that any items carried are securely strapped and nothing is
able to get caught in the rear wheel.
All other operation of your BATRIBIKE Electric Bicycle is
as per a normal pedal cycle.
HANDLEBAR FOLDING
1 2 3 4

18
MAINTAINANCE SCHEDULE
Maintaining your bicycle ensures you’ll get the most out of every ride and out of
the entire life of your BATRIBIKE electric bike. How much of your bike’s
maintenance you can do yourself will depend on your knowledge, skill,
experience and whether you have the necessary tools for the job.
Beyond this manual, it is good to consult your BATRIBIKE dealer for advice if
you are at all unsure about any of the procedures described. Normal
maintenance is not covered under the warranty and this service may be
chargeable.
Before every ride
 Mechanical safety checks, use a fully charged battery, visual inspection
for damages.
After every ride (or WEEKLY)
 Clean the bike, including chain rings and sprocket. Clean and lightly oil
the chain and gears.
 This must be carried out after every ride in dusty, marine or winter
conditions due to the salt laden atmosphere.
Every 20 - 30 hours of riding (or MONTHLY)
 Squeeze the brakes and rock the bike to check for any looseness of the
headset or brake mechanisms with each forward of backward movement.
If any are loose, have your dealer check it.
 Lift the front wheel and turn handlebars left and right to check for tightness
of steering. If tightness is detected it may be necessary to lubricate
bearings and/or adjust the headset.
 Check and adjust the brakes, replace if worn out.
 Squeeze spokes in adjoining pairs between your thumb and index finger.
They all should have the same tension. Have your dealer re-spoke or true
the wheel if necessary.
 Check cables for rust, kinks and fraying, have your dealer replace them if
necessary.
 Check bottom bracket for play and adjust if necessary.
 Check wheel bearings for play and adjust/lubricate if necessary

19
After 3,000 miles (5,000 km) (or YEARLY)
 Hub motor and general inspection
We recommend you arrange to have a thorough inspection of your
bicycle by a BATRIBIKE dealer. This includes opening up the hub
motor to inspect and lubricate the gears.
Tyre Pressures
The tyres should be pumped up to within the range stated on the sidewall.
This should be regularly checked as running with the correct pressures
will ensure maximum range from the battery.
Repairing a punctured tyre
If you have a punctured tyre, we recommend that you get a specialist to carry
out the repairs. You can always of course consult a specialist and carry out the
repairs on your own if you are confident that you have the necessary skills.
As there are no electronic components on the front wheel, its removal follows
standard procedures as with normal bicycles.
Removing the Rear Wheel
If you need to remove the rear wheel, for
example, to replace the rear tyre, then the
motor can be unplugged to aid
disassembly. The plug is located on the
lower rear arm of the frame as shown,
(Left).
Remember to ensure that the cable is
suitably secured to the bicycle frame upon
re-assembly.
Be mindful of the tightening assembly sequence of washers, nuts and spacers.
Battery Fuse
If the battery will not operate or charge correctly, firstly check the battery fuse
(rated 30A) located on the side of the battery beneath the screw cover. Use a
large flat bladed screwdriver or a small coin to remove the cover.
MOTOR PLUG

20
WARRANTY CONDITIONS
The following warranty conditions are in addition to your legal rights.
Requirements for Warranty
As the makers, we guarantee against possible material or construction defects.
Provided the following conditions are satisfied :
 Please retain your receipt as this is your proof of purchase and entitle-
ment to Warranty. The guarantee starts on the date of purchase.
 Warranty is non transferable and applies only to the original owner.
 The Frame of your new BATRIBIKE
Breeze is guaranteed for 1 year
from date of purchase.
 The Motor and Electronics are guaranteed for 1 year from date of pur-
chase.
 Other main cycle parts have a warranty of 1 year.
 The battery is covered for 1 year.
Exclusions from Warranty
 When the bicycle is used negligently or results in damage due to traffic
accident.
 Damage ascribed to normal wear and tear.
 Poor maintenance, or modifications that no longer complies with regula-
tions or original technical specifications.
 Damage due to external causes.
 The bicycle is put up for hire.
 The battery pack is used incorrectly or tampered with. This also applies
during charging.
 Compensatory costs arising from damages or accidents.
 Cost incurred by loss of the bicycle’s usage.
Brake blocks/pads, tyres, lights and cables etc. are considered as
consumables and replacements are available from BATRIBIKE or may be ob-
tained from your local cycle shop.
Please take note of the Battery Care information
contained in this manual to ensure your
battery life is maximised,
and to comply with the Warranty Conditions
