Batribike Diamond User manual

Owner
Manual
LS Models
Diamond
Granite

2
Diamond
Granite
MODEL:-
SERIAL NUMBER:-
PURCHASE DATE:-
DAY MONTH YEAR
IMPORTANT PLEASE READ THIS MANUAL FULLY
PRIOR TO ASSEMBLY AND USE
For your safety and to ensure a long and trouble free life of your Batribike
bicycle, check the operation of brakes, lights, bell and gears,
and check tyre pressures are correct.
Also check all fasteners, including quick release mechanisms,
before every ride.
DEALERSTAMP
B
B
/
/

3
Thank you for purchasing a BATRIBIKE Electric Bicycle
With care and correct usage your bicycle
will give many years of service.
Important
PLEASE CHARGE THE BATTERY
BEFORE FIRST USING THE BICYCLE
Even though the battery indicator will show charge this cannot be
relied upon until the battery has had the initial full charge.
PACKAGE CONTENTS
1 ELECTRIC BICYCLE
1 BATTERY
1 BATTERY CHARGER with UK Mains Lead
1 MANUAL
Contents
Parts Identification ............................................ PAGE 4
Battery Charging ............................................... PAGE 6
Using the Power Assistance ............................. PAGE 8
Standard Bicycle Functions .............................. PAGE 13
Maintenance Schedule ..................................... PAGE 18
Warranty ........................................................... PAGE 20
Specifications ................................................... PAGE 22

4
Detail view of
Battery Connections
13
14
6
3
5
5
4
1
7
2
LED Display
1
Thumb Throttle
2
Rear Brake Lever
3
Front Brake Lever
4
Motor Cutout Switch
5
Gear Selector
6
Bell
7
Handlebar Adjustment
8
-
9
-
10
Front Forks
11
Battery
12
Battery Power Plug
13
Charging Socket
14
Front Hub Motor
15
Controller Box
16
Luggage Rack
17
3 Speed Nexus Gears
18
Front Tyre 26 x 1.75
19
-
20
Rear Tyre 26 x 1.75
21
-
22
Chain Guard
23
Seat Height Adjuster
24
Suspension Seat Post
25

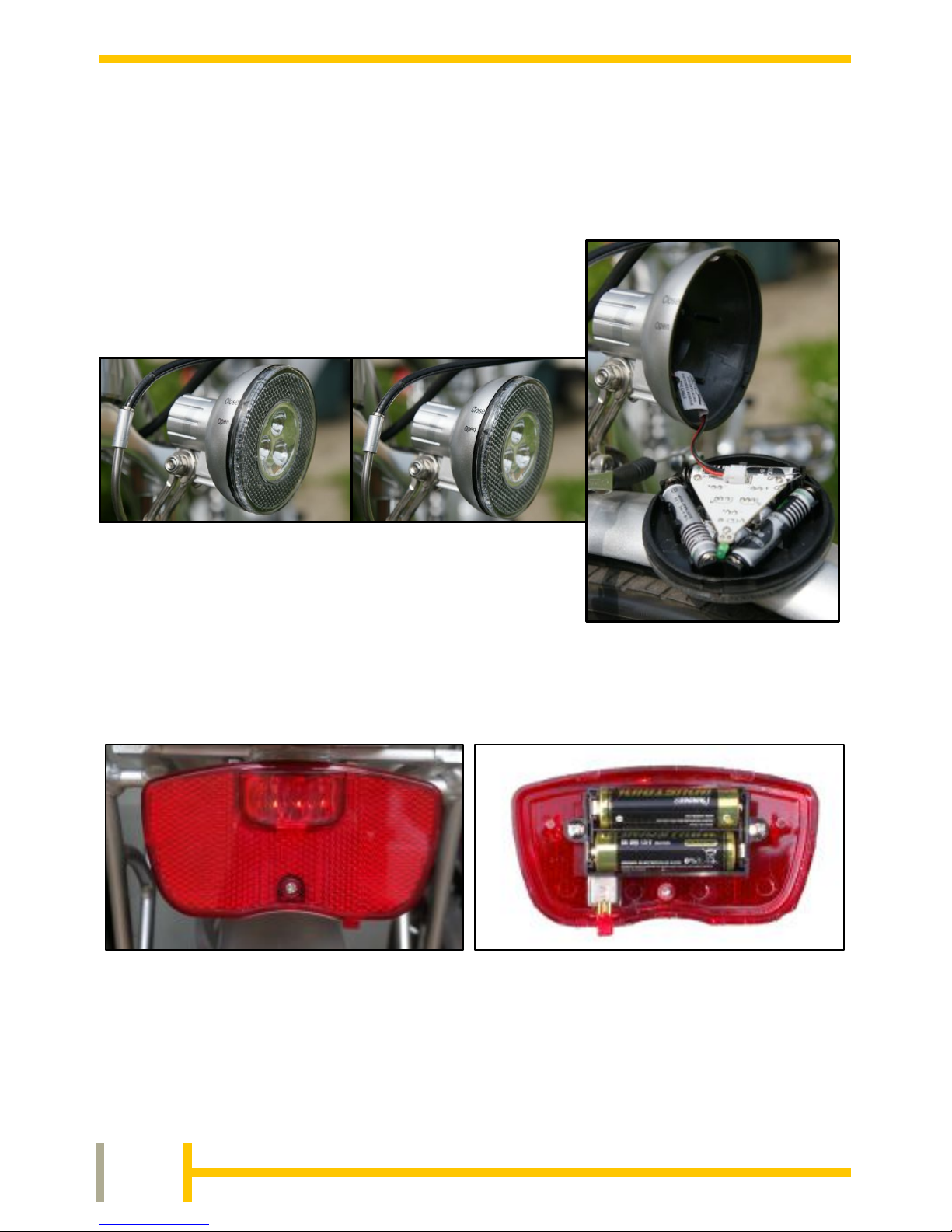

Front LED Light
26
Rear LED Light
27
-
28
Pedals
29
Rear Vee Brake
30
Front Vee Brake
31
Chainwheel
32
-
33

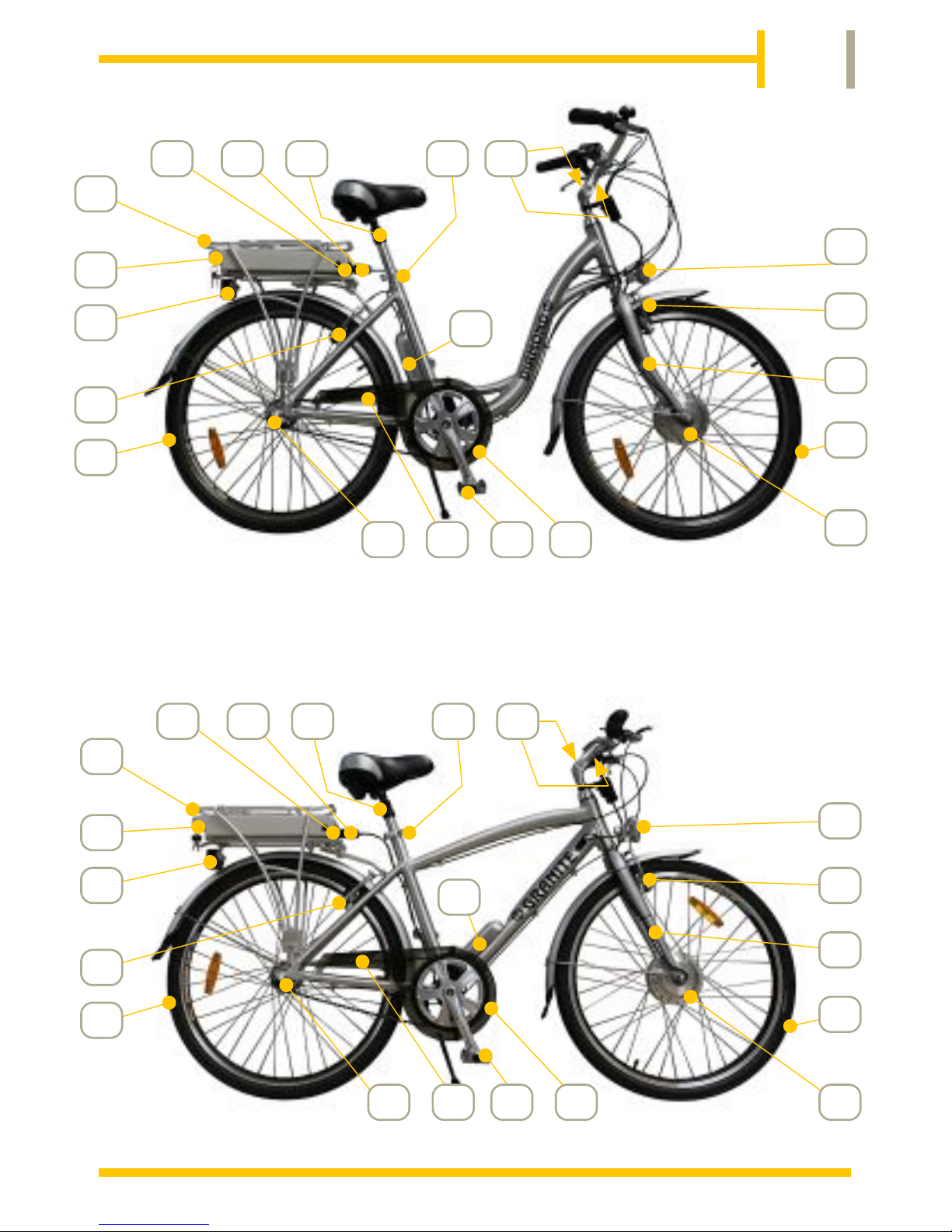

PARTS IDENTIFICATION
We continually strive to ensure that we provide you with the best possible products, therefore
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE

5
17
14
13
12
27
30
18
23
21
15
29
16
26
31
11
19
8
25
24
17
14
13
12
27
30
18
23
21
15
32
16
8
25
24
26
31
11
19
32
29

6
WARNING
Ensure that charging socket
cover is CLOSED before
removing or inserting the battery.
Failure to do so will result in
breakage of the cover.
USE ONLY THE CHARGER SUPPLIED
Power
Charge
CHARGING THE BATTERY
The battery can be charged on or off the bike.
To remove the battery, unplug the battery from the
bike. (Blue Plug).
(To remove the Blue Plug slide the silver locking
tab backwards and rotate the plug anti-clockwise,
then pull out of the socket).
then unlock with one of the two keys provided. Hold down the plastic securing
tab and slide out the battery from the rear of the carrier. Insertion is the reverse
of the above procedure.
The charging lead is plugged into the charging socket located behind the slide
cover on the battery.
Unplug the
battery from
the bike
(Blue Plug)
before
charging,
then plug in
the charging lead
IMPORTANT
It is important to plug the charger into the
battery before switching on at the mains.
Similarly, switch off at the mains before
unplugging the charger from the battery.
Securing Tab

7
If your BATRIBIKE is not in use for an extended period it is
imperative that you charge the battery before storage and then
charge the battery once a month to prevent deterioration.
When not in use, store the battery in a warm, dry place.
If Lithium batteries are left flat for an
extended period then they may no
longer be functional and a new
replacement will be required.
With correct User Care as outlined above your battery should have a lifetime of
around 1000 charges.
FAILURE TO FOLLOW
THIS PROCEDURE WILL
INVALIDATE YOUR
BATTERY WARRANTY
Plug the charger into the mains socket and switch on at the wall outlet.
The lights on the charger will illuminate after a few seconds.
The RED light indicates that mains power is applied. The
other light will show ORANGE/RED whilst charging is taking
place. This may take up to six hours for a flat battery.
When the battery is charged the ORANGE/RED light will
change to GREEN.
Once charged, switch off at the wall outlet and unplug. Unplug the charging lead
from the battery and slide the cover back over the charging socket.
NOTE: If the battery is charged and the charger left switched
on for an extended period the charger will enter a low power
state, indictaed by both the RED and ORANGE/GREEN LEDs
flashing slowly. Switch off and unplug as above.
Alternative Charger Type
An alternative type of charger may be supplied with one light instead of the two
described above. In this case the light is RED when Charging, and GREEN
when the charge cycle is complete.
The battery does not have to be completely discharged before it is recharged.
The Lithium battery has no "memory" and therefore can be charged at any time.
It is perfectly acceptable to recharge the battery after a short ride so that the
battery is fully charged before the next ride.
Power
Charge
Power
Charge
Power
Charge
CHARGE
CHARGING IN
PROGRESS
CHARGE
COMPLETE
Power
Charge
CHARGING
CHARGED

8
Your BATRIBIKE Electric Bicycle can be used as a normal pedal
bicycle by simply not switching on the battery.
To use under electric power, plug in the battery with the blue plug
located on the end of the battery beneath the rear of the seat.
Switching On
ELECTRIC BICYCLE FUNCTIONS
Usage
ON/OFF
ON/OFF
Then press the ON/OFF button on the handlebar
display.
Initial Display
All the lights on the display will initially come on in sequence and
then momentarily go out. The lights will then display power
assistance level and power remaining in the battery.
The assistance level will
be set at LOW when the
bike is first turned on.
The power to the throttle
will also be on.
To turn off the Display and the power to the bike, press
the ON/OFF button, the lights will turn off.
Switching Off

9
The LED shows the charge remaining in
the battery in the upper right of the
display. The indicators will gradually go
out as the battery power is used up.
Refer to the table below for details.
If the power is left on for an extended period and the bike is not
used, then the power will automatically be turned off.
Battery Meter
BATTERY METER DISPLAYS THE CHARGE REMAINING IN THE BATTERY
Capacity Indicator
Capacity Indicator
Capacity Indicator
Capacity Indicator
Capacity Indicator
SYMBOL
DISPLAYED
CHARGE
REMAINING
BATTERY IS EXHAUSTED AND
SHOULD BE RECHARGED AS
SOON AS POSSIBLE
50-100%
30-50%
10-30%
0-10%
SYMBOL
DISPLAYED
CHARGE
REMAINING

10
PERFORMANCE *
*Please remember that the above values are provided as a guide. Due to manufacturing tolerances
the speeds and distances may vary.
Weather and terrain will affect the performance. In hilly areas or when the bike is heavily loaded
there will be a significant increase in the power used from the battery and hence the range will
decrease accordingly. A lightly loaded bike will achieve higher performance levels.
(These results were obtained by test riders in optimal conditions - 75kg rider, level ground, no wind).
There are 3 levels of pedal assistance from the
motor. Using the ASSIST button you can select from
L (Low) M (Medium) and H (High).
Pedal Assistance
20+ Miles
LEVEL
PEDAL ASSISTANCE FROM THE MOTOR
Provides maximum power when negotiating
hills and head winds.
Great when needing to simply get from A to B
as fast as possible.
HIGH
ASSIST
ASSIST
ASSIST
ASSIST
Pressing the button will scroll through the levels. Pressing the
ASSIST button when in H (High) mode will return to L (Low) assist.
The motor will then be activated upon pedalling. There is a rotation
sensor located near the crank which senses when the pedals are
being used.
The speed and power will vary as the level is changed. Refer to the
table below
EXAMPLE OF USAGE
Up to 40 miles
MEDIUM
LOW
Range Not Tested
Normal Use Mode.
This is the level to use for everyday cycling.
Gives good performance whilst maximising
usable range per charge.
Best for everyday use.
Use this lower power level when negotiating
busy cycle paths and crowded areas. Also use
when setting off and gradually increase through
the levels for a smoother performance.
Ideal for negotiating obstacles.

11
No Assistance - Normal Pedal Bicycle
If you plug in the battery but do not press the power button on the
display your Batribike will now act and feel like a normal bicycle.
This is useful when you are feeling fit at the start of a journey or
using your bike for exercise purposes. Power is still only a button
press away.

12
The throttle is available all the time the power is switched on at the
handlebar display.
The throttle can be used whilst pedalling in any of the assist modes
to give extra help as required.
The throttle is not limited by the assistance level selected and is
available to give up to maximum power at all times.
Use the throttle control gently. A small twist will apply a small
amount of power. Twisting more will increase the power until the
control is fully rotated when full motor power will be applied.
Throttle assistance can also be used without pedalling.
A handy way of using the throttle is to pull away from junctions, or
when starting on inclines as the rider will pull away easier and is
less likely to wobble. It can also be useful when used to pull out
and overtake slower cyclists smoothly and quickly.
Care should be taken not to twist the throttle when mounting/
dismounting the bicycle. It is good practice to turn off the power
before getting off or on the bike also to hold one or both of the
brakes to maintain stability. Holding the brake cuts the power to the
throttle and will stop the bike moving if the throttle is accidentally
twisted.
It is not advisable to twist the throttle and then release the brake as
this will cause a power surge which may cause damage to the
bicycle and/or risk of personal injury.
Using the throttle at maximum level at all times will use more
battery power than when using it with discretion.
Using the Throttle - Country Specific
PLEASE NOTE:
The throttle control is not activated for some countries due to legal
restrictions. Please refer to your dealer for help and advice.

13
BS EN15194 Compliance
The BATRIBIKE LS range conforms to BS EN15194.
For the British market, the addition of a throttle control has
rendered this not compliant in some countries.
●You are recommended to seek advice from the relevant
authorities in the country you are visiting before travelling.
STANDARD BICYCLE FUNCTIONS

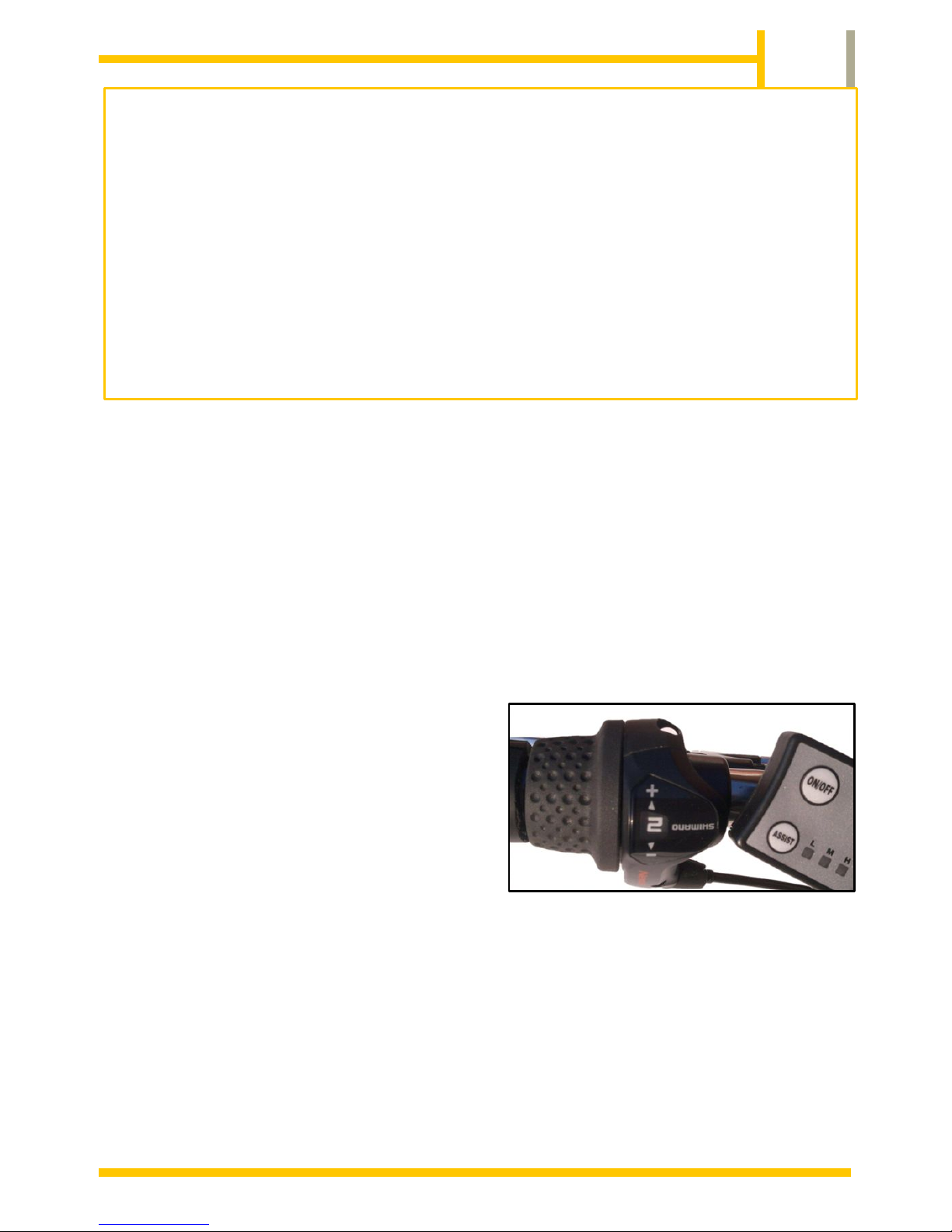

Gears—3 Speed Nexus Hub
Gear number 1 is low and makes it easier to pedal (for hills and rough terrain).
Gear number 3 is high and helps you to go faster (for use on level ground).
To change gear use the selector mounted
on the left handlebar. Twist the inner
portion of the handlebar grip to change up
or down through the gears. The gear
number is displayed in a small window as
shown above.
Braking
To stop, release the throttle and pull the brake levers.

14
Lights
Lights are provided on your BATRIBIKE bicycle. These are power efficient
LED units which achieve a long life on each set of batteries.
SAFETY FEATURE - The power for the
front and rear lights is kept separate from
the main power supply so that in the event
that the battery is exhausted you will still
have lights for safety.
The front light is powered by 3 AAA size batteries
and is switched on by the black push button switch
at the rear of the unit.
To replace the batteries simply twist the lens anti-clockwise and pull free.
There is a small warning light on top of the front lamp unit. This lights to show
that the batteries are getting low and should be replaced.
The rear light requires 2 AA batteries. You will require a small Philips
screwdriver to take off the red lens for battery replacement. It is switched on and
off by the small red push button switch on the underside of the unit.

15
Centre Stand (where fitted)
To put the bicycle on its stand:-
1) While holding the bicycle upright, place your foot behind the
stand.
2) Pull the bicycle backwards until the stand is in place.
Make sure bicycle is on solid ground.
Side Stand (where fitted)
To put the bicycle on its stand:-
1) While holding the bicycle upright, push the stand to its full
extent.
2) Lean the bicycle over onto the stand.
Make sure bicycle is on solid ground.
Do not sit on the bicycle whilst the stand is down. It is
designed to take the weight of the bicycle and not the
additional weight of the rider.

16
Quick Release fittings for Seat Height Adjustment
With the locking lever in the loose position, tighten the nut until finger tight. The
final tightening is done by moving the lever to the locked position. To undo move
the lever to the loose position to enable height adjustment.
Loose Locked
Adjusting the Handlebars
The handlebars can be adjusted for height
and angle to suit the rider. Hex keys, (not
supplied), will be required to carry out
these adjustments.
Adjust the height by loosening 'A' and
pulling the handlebar stem upwards. Take
care not to exceed the limit marked on the
stem.
Adjust the rake angle by loosening 'B'
and gently moving the bars to the
required angle.
Adjust the bar rotation angle by
loosening with the two 'C' bolts shown.
Items shown as 'D' should not need adjustment.
Ensure all bolts are secured properly after adjustment. If in doubt, refer to
your dealer.
VIEW FROM ABOVE
VIEW FROM BELOW
D
B
A
C
A
D
B
HEIGHT
ADJUSTMENT
RAKE ANGLE
ADJUSTMENT

17
Luggage Rack
The luggage rack provided is designed to carry a maximum load of 25kg.
Make sure that any items carried are securely strapped and nothing is
able to get caught in the rear wheel.
All other operation of your BATRIBIKE Electric Bicycle is as per a normal
pedal cycle.
Battery Fuse
If the battery will not operate or charge correctly, firstly check the battery fuse
(rated 30A) located on the side of the battery beneath the screw cover. Use a
large flat bladed screwdriver or a small coin to remove the cover.

18
MAINTAINANCE SCHEDULE
Maintaining your bicycle ensures you’ll get the most out of every ride and out of
the entire life of your BATRIBIKE electric bike. How much of your bike’s
maintenance you can do yourself will depend on your knowledge, skill,
experience and whether you have the necessary tools for the job.
Beyond this manual, it is good to consult your BATRIBIKE dealer for advice if
you are at all unsure about any of the procedures described. Normal
maintenance is not covered under the warranty and this service may be
chargeable.
Before every ride
●Mechanical safety checks, (see notes on page 2). Use a fully
charged battery. Visual inspection for damages.
After every ride (or WEEKLY)
●Clean the bike, including chain rings and sprocket. Clean and
lightly oil the chain and gears.
●This must be carried out after every ride in dusty, marine or
winter conditions due to the salt laden atmosphere.
Every 20 - 30 hours of riding (or MONTHLY)
●Squeeze the brakes and rock the bike to check for any
looseness of the headset or brake mechanisms with each forward of
backward movement. If any are loose, have your dealer check it.
●Lift the front wheel and turn handlebars left and right to check for
tightness of steering. If tightness is detected it may be necessary to
lubricate bearings and/or adjust the headset.
●Check and adjust the brakes, replace if worn out.
●Squeeze spokes in adjoining pairs between your thumb and
index finger.
They all should have the same tension. Have your dealer re-spoke or
true the wheel if necessary.
●Check cables for rust, kinks and fraying, have your dealer
replace them if necessary.
●Check bottom bracket for play and adjust if necessary.
●Check wheel bearings for play and adjust/lubricate if necessary

19
After 3,000 miles (5,000 km) (or YEARLY)
●Hub motor and general inspection
We recommend you arrange to have a thorough inspection of
your bicycle by a BATRIBIKE dealer. This includes opening up
the hub motor to inspect and lubricate the gears.
Tyre Pressures
The tyres should be pumped up to within the range stated on the sidewall.
This should be regularly checked as running with the correct pressures
will ensure maximum range from the battery.
Repairing a punctured tyre
If you have a punctured tyre, we recommend that you get a specialist to carry
out the repairs. You can always of course consult a specialist and carry out the
repairs on your own if you are confident that you have the necessary skills.
As there are no electronic components on the rear wheel, its removal follows
standard procedures as with normal bicycles.
Removing the Front Wheel
If you need to remove the front wheel, for
example, to replace the front tyre, then the
motor can be unplugged to aid disassembly.
The plug is located on the right arm of the
forks as shown, (Left).
Take care when re-assembling the plug to
ensure that the two arrows are aligned
correctly.
Remember to ensure that the cable is
suitably secured to the bicycle frame
upon re-assembly.
Be mindful of the tightening assembly sequence of washers, nuts and spacers.
MOTOR
PLUG
MOTOR
PLUG

20
WARRANTY CONDITIONS
The following warranty conditions are in addition to your legal rights.
Requirements for Warranty
As the makers, we guarantee against possible material or construction defects.
Provided the following conditions are satisfied :
●Please retain your receipt as this is your proof of purchase and
entitlement to Warranty. The guarantee starts on the date of purchase.
●Warranty is non transferable and applies only to the original owner.
●The Frame of your new BATRIBIKE Granite LS & Diamond
LS is guaranteed for 3 years from date of purchase.
●The Motor and Electronics are guaranteed for 2 years from date of
purchase.
●Other main cycle parts have a warranty of 1 year.
●The battery is covered for 1 year.
Exclusions from Warranty
●When the bicycle is used negligently or results in damage due to
traffic accident.
●Damage ascribed to normal wear and tear.
●Poor maintenance, or modifications that no longer complies with
regulations or original technical specifications.
●Damage due to external causes.
●The bicycle is put up for hire.
●The battery pack is used incorrectly or tampered with. This also
applies during charging.
●Compensatory costs arising from damages or accidents.
●Cost incurred by loss of the bicycle’s usage.
Brake blocks/pads, tyres, lights and cables etc. are considered as consumables
and replacements are available from BATRIBIKE or may be obtained from your
local cycle shop.
Please take note of the Battery Care information
on pages 6 & 7 of this manual to ensure your
battery life is maximised,
and to comply with the Warranty Conditions
