Batribike TEN S45 User manual

Owner
Manual
batribike.com
Hand Built in Europe
ELECTRIC BICYCLES

2
DEALERSTAMP
DATATAG ETCH №:-
Register your DATATAG online at
datatag.co.uk/cycle/validate.php
IMPORTANT PLEASE READ THIS MANUAL FULLY BEFORE USE
For your safety and to ensure a long and trouble free life of your Batribike
bicycle, check the operation of brakes, lights, bell and gears,
and check tyre pressures are correct.
Also check all fasteners, including quick release mechanisms,
before every ride.
Register your BATRIBIKE Warranty online at
batribike.com/warranty-registration
STANDARD
(10.4 Ah)
BATTERY:-
S45
Step-Through
X52
Cross-Bar
/
/
PURCHASE DATE:-
DAY MONTH YEAR
DATATAG ID:-
BATTERY SERIAL №:-
LONG RANGE
(12.8 Ah)
BICYCLE SERIAL №:-

3
Thank you for purchasing a BATRIBIKE Electric Bicycle
With care and correct usage your bicycle
will give many years of service.
Important
PLEASE CHARGE THE BATTERY
BEFORE FIRST USING THE BICYCLE
Even though the battery indicator will show charge this cannot be
relied upon until the battery has had the initial full charge.
1 ELECTRIC BICYCLE
1 BATTERY with Keys
1 BATTERY CHARGER with UK Mains Lead
1 MANUAL
1 DATATAG Registration Certificate
Contents
Parts Identification ............................................ PAGE 4
Battery Care & Charging ...................................PAGE 6
Using the Power Assistance ............................. PAGE 8
Troubleshooting................................................. PAGE 17
Standard Bicycle Functions .............................. PAGE 18
Adjusting to Suit the Rider ................................ PAGE 20
Removing the Battery ................................... PAGE 22
Datatag ............................................................. PAGE 24
Maintenance Schedule ..................................... PAGE 26
Warranty ........................................................... PAGE 28
Specifications ................................................... PAGE 30
Certificate of Compliance ................................. PAGE 31
PACKAGE
CONTENTS

4
PARTS IDENTIFICATION
We continually strive to ensure that we provide you with the best possible products, therefore
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
Display (Centre LCD)
1
2
Rear Brake Lever
3
Front Brake Lever
4
Rear Carrier (Max 25kg)
5
Gear Selector (Twin Lever) x 9
6
Bell
7
Gear Indicator
8
9
10
11
Front Tyre 28 x 1.60 (Schwalbe)
Front Hydraulic Disk Brake
Battery
12
Handlebar Adjust Safety Lock
13
Battery Lock
14
15
16
19
20
21
Lights ON/OFF Button
22
23
24
Mode Button
Bicycle Serial Number Label
Centre (Crank) Motor
9 Speed Rear Derailleur Gears
Rear Tyre 28 x 1.60 (Schwalbe)
25
Seat Adjust (Height) - Clamp
26
27
28
Suspension Lock Out
29
30
31
Rear Hydraulic Disk Brake
32
14
Power UP Button
34
33
Charging Socket
17
Throttle (Pedalling Only)
Datatag Label
Power ON/OFF Button
Suspension Seat Post
Power DOWN Button
ACROSS
FRAME
Gear Change Sensor
Rear LED Light
12
10
9
8
11
1
2
4
5
16
17
15
INSIDE
FRAME
Battery Finger Pull & Securing Tab
Suspension Forks
7
6
3
Side Stand
Handlebar Adjust Lever
Front LED Light
13
UNDERSIDE
OF BATTERY
35
18

5
2
33
34
6
35
7
5
SWITCH UNIT
CONNECTION
OTHER
SIDE
19
22
23
20
21
24
25
26
28
29
18
31
32
30
27

6
First time use
Your battery will be supplied in a state of sleep from the factory. The first time you
use the battery it requires activation by being fully charged.
Storage
Batteries do not like to be stored in very hot or
very cold conditions or to be subject to conditions
of high moisture. They also do not like to be left in
a fully discharged state. If Lithium batteries are
left flat for an extended period they may no longer
be functional.
• Store your battery between 15º C and 25º C
in a dry area. (The conditions found in a
normal domestic house).
• If your Batribike is not in use for an extended
period it is imperative that you charge the
battery before storage and then charge the
battery once a month to prevent deterioration.
Charging
Lithium batteries do not like to be left discharged.
It is good practice to recharge as soon as is
reasonably possible after the battery goes flat.
We recommend charging after every ride, that
way your electric bike is always ready for your
next outing.
• Do not charge at temperatures below 0º C
• Switch off the battery before charging.
• Battery can be charged on or off the
bike.
• Always make sure the battery and
charger are on a non-flammable, dry
surface away from sources of heat,
humidity and flammable materials.
• Do not cover the battery or charger
whilst charging.
• Only use the charger supplied.
• Even if not in use recharge your
battery a minimum of once a month.
For Your Safety
• Keep battery away
from children
• Do not dismantle
• Do not pierce or crush
• Do not immerse in liquid
• Do not expose to
temperatures over 60ºC
• Do not short circuit the
battery connections
• Do not leave unattended
whilst charging
• Do not sleep near a
battery that is charging
Failure to adhere to these
Battery Care instructions
can allow the battery to
deteriorate and may pose
a serious risk of Fire
BATTERY CARE & CHARGING
Your Batribike Electric Bicycle uses a Lithium battery for it's power and the
following points will directly affect battery life and performance.
Removing the Battery
To remove the battery, turn off at the
handlebar display, unlock the battery
using the key provided. Push the
battery locking tab downwards away
from the battery and using the finger
insert pull the lower part of the
battery downwards and angle the
battery out of the frame. Note that
the key cannot be removed in the
unlock position. (See page 21)

7
Using the Charger
Two types of battery charger are
used by BATRIBIKE. (Only one will
be supplied). Both have a charge
light which will display RED when
charging and change to GREEN
when the battery is charged.
The alternative type charger also has a second light
which shows RED when mains power is applied.
• Ensure the battery is switched off.
• Plug the charging lead into the battery.
The charging lead plugs into the charging socket
located on the underside of the battery. It can only be
inserted one way.
• Plug the charger into the mains socket and
switch on at the wall outlet.
• The lights on the charger will illuminate after a
few seconds.
When charging is complete the RED charge light will
change to GREEN. May take up to 6 hrs for flat battery.
• Once charged, switch off at the wall outlet and unplug.
• Disconnect the charging lead from thebattery and replace
the cover over the charging socket.
The battery does not have to be completely discharged before it is recharged. The
Lithium battery has no "memory" and therefore can be charged at any time. It is
perfectly acceptable to recharge the battery after a short ride so that the battery is
fully charged before the next ride.
NOTE: If the battery is charged
and the charger left switched
on for an extended period the
alternative type charger will enter
a low power state, indicated by
both the RED and ORANGE/
GREEN LEDs flashing slowly.
Switch off and unplug as above.
IMPORTANT
Plug the charger into the battery
before switching on at the mains.
Similarly, switch off at the mains before
unplugging the charger from the battery.
DO NOT LEAVE PERMANENTLY
CONNECTED

8
Usage

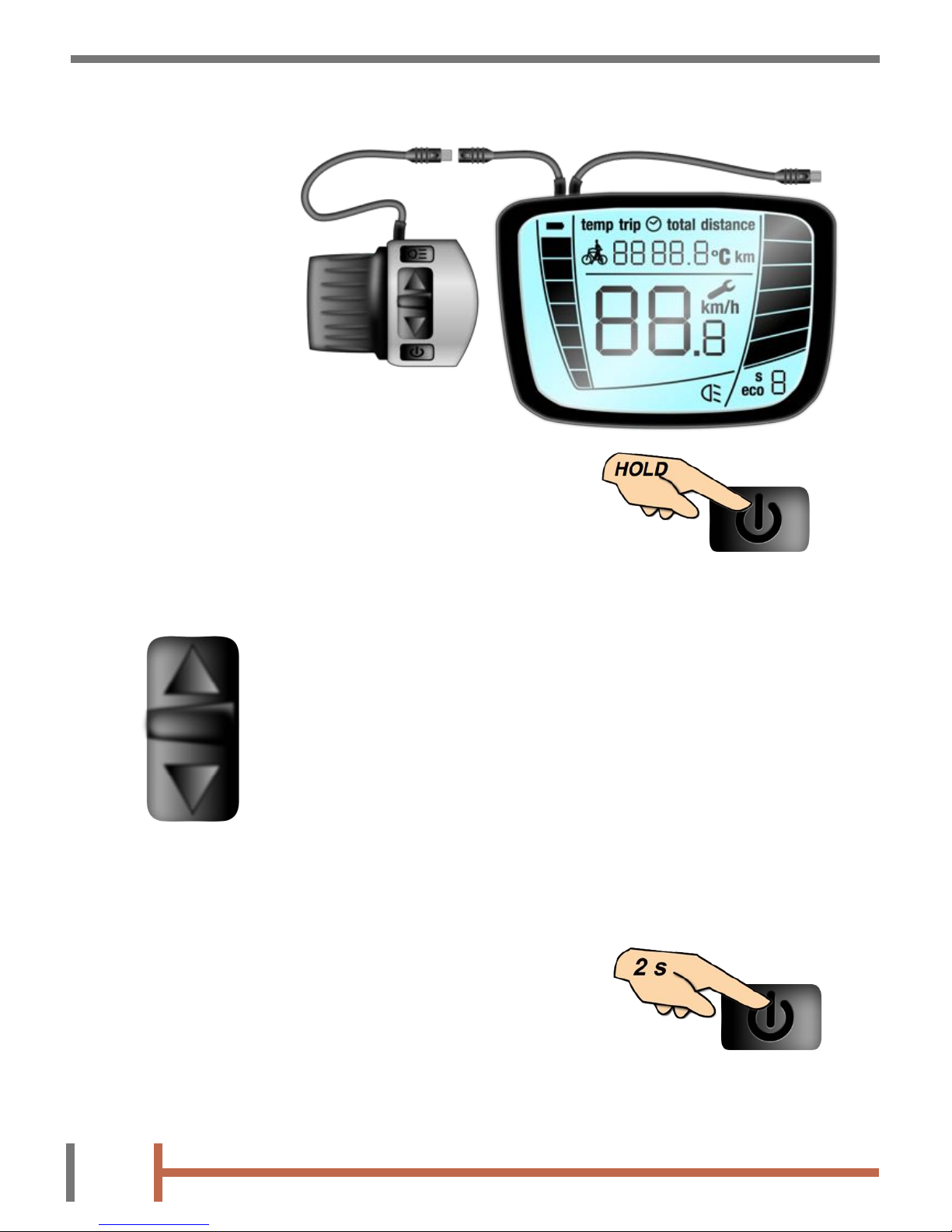

To use under electric power, switch on at
the battery if required, (bike model specific),
then press and hold the POWER button on
the handlebar unit until the display lights.
Switching On
To turn off the LCD and the power to the bike, press and hold the
POWER button for 2 seconds.
If the power is left on for an extended
period and the bike is not used, then
the power will automatically be turned off.
Switching Off
Control Buttons
By means of the three buttons, UP, DOWN and
MODE, on the handlebar mounted display unit,
the various functions of the power controller can
be utilised.
See the following sections for details.

9
Bicycle Lights
Your BATRIBIKE Electric Bicycle is supplied with powerful LED
lights on the front and rear. These are switched on by pressing and
holding the LIGHT button. The LCD backlight will also dim when
the lights are on so as not to be too bright at night.
When the lights are ON the
LIGHT symbol will be displayed.
To turn the lights off, again press and
hold the LIGHT button.
To the left of LCD is the battery meter which
shows the charge remaining in the battery.
The indicators will gradually go out as the
battery power is used up. Refer to the table
below for details.
Battery Meter
85 - 100%
SYMBOL and CHARGE REMAINING
BATTERY METER DISPLAYS THE CHARGE REMAINING IN THE BATTERY
BATTERY IS
EXHAUSTED AND
SHOULD BE
RECHARGED AS
SOON AS POSSIBLE
70 - 85%
55 - 70%
40 - 55%
0 - 15%
EMPTY
25 - 40%
15 - 25%
OR

10
There are 5 levels of pedal assistance available from the
motor. Using the UP and DOWN buttons you can select
from Level 1 (Lowest), to Level 5 (Highest). The motor will
then be activated upon pedalling.
Pedal Assistance
Please remember that the above values are provided as a guide.
Due to manufacturing tolerances the performance may vary.
PEDAL ASSISTANCE FROM THE MOTOR
RANGE / SPEED
Provides maximum power when
negotiating hills and head winds.
Great when needing to simply get
from A to B as fast as possible.
Great for commuting to work.
EXAMPLE OF USAGE
Normal Use Mode.
These are the levels to use for
everyday cycling. Gives good
performance whilst maximising
usable range per charge.
Best for Leisure Use.
Use these lower power levels when
negotiating busy cycle paths and
crowded areas. Also use when
setting off and gradually increase
through the levels for a smoother
performance.
Ideal for negotiating obstacles.
up to 28 miles / 15 mph
up to 32 miles / 12 mph
up to 45 km / 25 km/h
up to 50 km / 20 km/h
RANGE VALUES
QUOTED ASSUME THAT
THE STANDARD SIZE
BATTERY IS FITTED
up to 48 miles / 8 mph
up to 38 miles / 10 mph
up to 60 km / 16 km/h
up to 77 km / 13 km/h
up to 60 miles / 6 mph
up to 100 km / 10 km/h

11
Weather and terrain will affect the performance. In hilly areas, or
when the bike is heavily loaded, there will be a significant increase
in the power used from the battery and hence the range will
decrease accordingly.
A lightly loaded bike
will achieve higher
performance levels.
(These results were
obtained by test riders
in optimal conditions -
75kg rider, level
ground, no wind).
Your BATRIBIKE bicycle has a twist grip throttle.
This is designed to be used to control the power
whilst pedalling right up to the maximum of 15 mph,
regardless of the level selected. If the rider is not
pedalling the throttle is disabled.
Throttle Mode
If the assistance level is set to ZERO, then the motor will
not be turned on. Your BATRIBIKE will now act and feel
like a normal bicycle. This is useful when you are feeling
fit at the start of a journey or using your bike for exercise
purposes. Power is still only a button press away.
No Assistance - Normal Pedal Bicycle
BS EN15194 Compliance
The Throttle Operation conforms to BS EN15194.
DECREASE
INCREASE
T
W
I
S
T

12
CYCLE COMPUTER
The BATRIBIKE Centre LCD has useful Cycle Computer functions
built in.
Within a couple of
seconds it then shows
the Speed in the lower
part of the display, and
the Trip Distance in the
upper part.
The assistance level is set to the lowest level (1) at initial power on.
Initial Display (SPEED and TRIP DISTANCE)

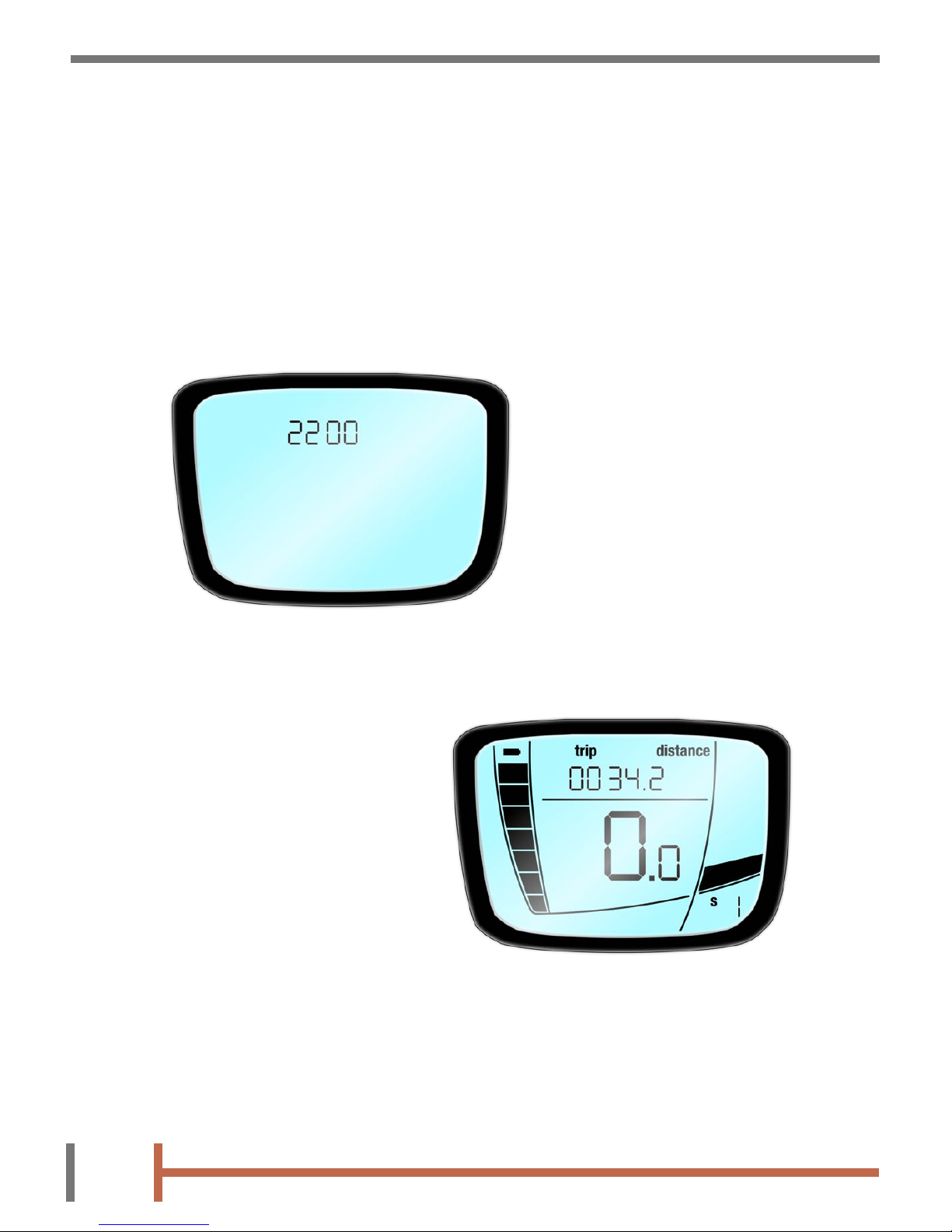

When first turned on
the display briefly
shows the current value
of the Wheel Size
Setting. (See page 29
for details).

13
To change the display to show the Total Distance, simply press the
MODE button. Repeat to return to the Trip Distance display.
Trip Distance
To reset the Trip Distance at the start of a journey simply press and
hold the MODE button until the Trip display resets to zero.
Resetting the Trip
The Odometer distance displays the total distance travelled by the
bicycle since leaving the factory and cannot be reset.

14
When you change the display the tyre size will need to be set to
suit the tyre circumference. This will ensure that the speed and
distance readouts are as accurate as possible.
Setting Wheel Size (Circumference)

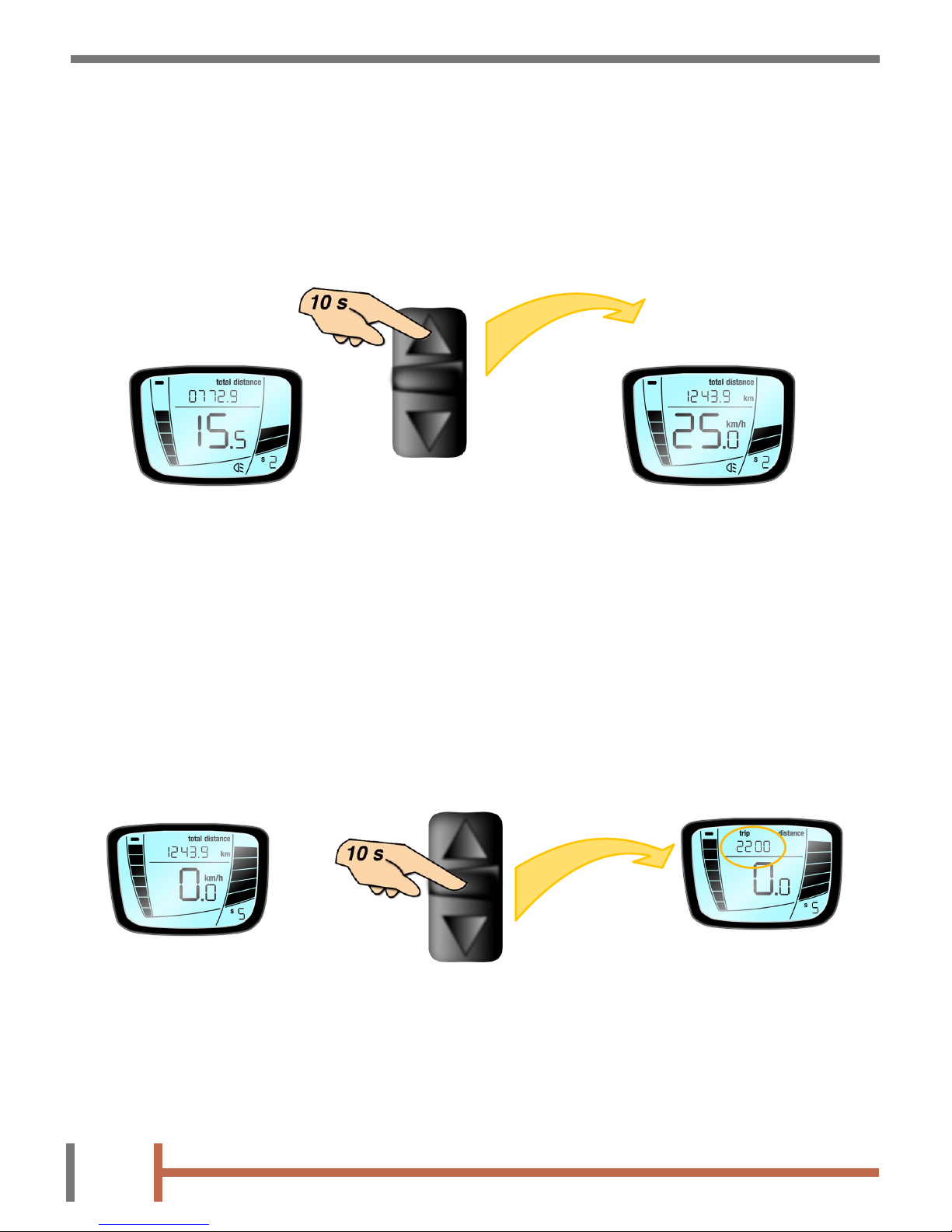

The display can be changed to show distances and speeds in Miles
or Kilometres. To change simply press and hold the UP button for
10 seconds. Repeat to change the units back again.
Setting Distance Units (Miles or Km)
Press and hold the MODE button for 10 seconds to display the
currently set value.

15
Value for TEN with standard tyre is 2180
(Schwalbe 42-622 Tyrago)
OR
Set first digit
Set second digit
Set third digit
Confirm to return
to normal display
To change the value, press the MODE button once more to set the
first digit.
Set fourth digit
Enter Setting Mode
Use UP and DOWN
buttons to change value

16
Start with the valve at the bottom.
Roll the wheel along the ground and
measure the distance when the valve
returns to the bottom again.
CIRCUMFERENCE VALUE (in mm)
Measuring the Circumference
If you have a non-standard tyre fitment you can determine the value
to use by measuring the circumference as follows:-

17
TROUBLESHOOTING
Diagnostic Error Messages
If an error occurs the Centre LCD display will show a code as in the
example shown. Make a note of the error number and turn off the
bicycle power at the handlebar mounted power switch. After 2
minutes turn on the power again. If the code re-occurs contact your
dealer for assistance.
Error No.
Error Type
Error Type
2
Power
Consumption Error
Contact Dealer for Assistance
3
Controller Error
Check throttle returns
correctly, if all OK contact
Dealer for Assistance
4
Throttle Error
5
Brake Sensor Error
8
Low Battery Voltage
9
Battery Error
Contact Dealer for Assistance
Charge the Battery
Contact Dealer for Assistance
Check brake lever returns
fully, if all OK contact Dealer
for Assistance

18
STANDARD BICYCLE FUNCTIONS
Gears
Your BATRIBIKE is provided with 9 speed Shimano derailleur
gears with twin lever gear changers. To change gear you use the
right handlebar levers for the rear 9 speed.
Gear number 1 is low for hills and rough terrain and gear 9 is high
for normal road use. An indicator window shows the selected gear.
To increase the gear simply push the rear selectors with your
thumb. To decrease the gear squeeze the front most selector lever
with your index finger.
You must be pedalling as you change gears.
DOWN
INDICATOR
WINDOW
UP
SQUEEZE
WITH FINGER
PUSH WITH
THUMB
Rear (Derailleur) Gears x 9

19
Braking
To stop, cease pedalling and pull the brake levers. Also ensure
that the throttle is not operated. Remember that the TEN is
equipped with powerful hydraulic brakes and will stop quickly.
Braking will be less effective in wet conditions and your riding style
should be adjusted accordingly.
Bell
A bell is attached to the handlebars.

20
Seat & Handlebar Adjustments
The height of the saddle can be adjusted to suit the rider. If you do
not feel confident with making these adjustments then your
BATRIBIKE Dealer will be able to set up the bike initially.
The saddle can also be
adjusted frontwards or
backwards on its
mount. Take care with
all fasteners after
adjustment to ensure
that they are safely
tightened to avoid
movement and
potential injury whilst
riding. A 6 mm hex key
will be required.
The saddle height is adjusted
by loosening the seat post
clamp and moving the post up
or down as desired. A 5 mm
hex key will be required.
Take care not to exceed the
limit marked on the post.
