Batribike FALCON User manual

Owner
Manual
Crank Motor
FALCON

2
DEALERSTAMP
/
/ 20
PURCHASE DATE:-
DAY MONTH YEAR
DATATAG ID:-
DATATAG ETCH NUMBER:-
Register your DATATAG online at
datatag.co.uk/cycle/validate.php
BICYCLE SERIAL NUMBER:-
IMPORTANT PLEASE READ THIS MANUAL FULLY BEFORE USE
For your safety and to ensure a long and trouble free life of your Batribike
bicycle, check the operation of brakes, lights, bell and gears,
and check tyre pressures are correct.
Also check all fasteners, including quick release mechanisms,
before every ride.
Falcon

3
Thank you for purchasing a BATRIBIKE Electric Bicycle
With care and correct usage your bicycle
will give many years of service.
Important
PLEASE CHARGE THE BATTERY
BEFORE FIRST USING THE BICYCLE
Even though the battery indicator will show charge this cannot be
relied upon until the battery has had the initial full charge.
1 ELECTRIC BICYCLE
1 BATTERY with 2 Keys
1 BATTERY CHARGER with UK Mains Lead
1 MANUAL
1 DATATAG Regiistration Certificate
Contents
Parts Identification ............................................ PAGE 4
Battery Care & Charging ...................................PAGE 6
Using the Power Assistance ............................. PAGE 8
Programmable Functions ..................................PAGE 15
Cycle Computer Functions ............................... PAGE 18
Troubleshooting................................................. PAGE 21
Standard Bicycle Functions .............................. PAGE 22
Datatag ............................................................. PAGE 26
Maintenance Schedule ..................................... PAGE 28
Special Battery Features .................................. PAGE 30
Warranty ........................................................... PAGE 32
Specifications ................................................... PAGE 34
Certificate of Compliance ................................. PAGE 35
PACKAGE
CONTENTS

4
PARTS IDENTIFICATION
We continually strive to ensure that we provide you with
the best possible products, therefore
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
LCD (Display)
1
Handlebar Adjust (rotate)
2
Rear Brake Lever
3
Front Brake Lever
4
Motor Cutout Switch
5
Gear Selector (twist)
6
Bell
7
Gear Indicator
8
9
10
11
Front Tyre 20 x 1.75
Safety Lock Lever
Front Vee Brake
Battery
12
Battery Power Switch
13
Battery Lock
14
15
Controller Box
16
19
20
21
Foldings Pedals
22
23
24
Datatag Label
Bicycle Serial Number
Battery Serial Number
Side Stand
Centre (Crank) Motor
7 Spd Shimano Gears
Rear Tyre 20 x 1.75
25
Seat Height Adjuster
26
27
28
Wheel Quick Release
29
30
31
Rear Vee Brake
32
1
2
3
4
8
6
15
11
9
10
UNDERSIDE VIEW
OF BATTERY
DISPLAY
POWER
SWITCH
TOP VIEW OF
BATTERY
4
METER ON TOP
OF BATTERY
Frame Fold Lever
34
Handlebar Fold Lever
33
Charging Socket
Fuse 5A (ORANGE)
17
18
35
14
END VIEW OF
BATTERY
5
7
Handlebar Adjust (height)
Fuse 20A (YELLOW)
12
13
17
16
Battery Power Meter
Warranty Label
Battery Care Label
METER
POWER
SWITCH

5
11
19
20
6
21
22
23
18
ON BOTTOM
BRACKET HOUSING
27
26
31
25
34
32
29
24
24
28
30
33
35
ON TOP
OF FRAME

6
BATTERY CARE & CHARGING
Your Batribike Electric Bicycle uses a Lithium battery for it's power and the
following points will directly affect battery life and performance.
Storage
Batteries do not like to be stored in very hot or very cold conditions or to be
subject to conditions of high moisture. They also do not like to be left in a fully
discharged state. If Lithium batteries are left flat for an extended period they may
no longer be functional.
• Store your battery between 15º C and 25º C
in a dry area. (The conditions found in a
normal domestic house).
• If your Batribike is not in use for an extended
period it is imperative that you charge the
battery before storage and then charge the
battery once a month to prevent deterioration.
Charging
Lithium batteries do not like to be left discharged.
It is good practice to recharge as soon as is
reasonably possible after the battery goes flat.
We recommend charging after every ride, that
way your electric bike is always ready for your
next outing.
• Do not charge at temperatures below 0º C
• Switch off the battery before charging, using
switch located on the underside of the battery.
• Battery can be charged on or off the bike.
• Always make sure the battery and charger
are on a non-flammable, dry surface away
from sources of heat, humidity and flammable
materials.
• Do not cover the battery
or charger whilst charging.
• Only use the charger
supplied with your battery.
• Even if not in use recharge
your battery a minimum of
once a month.
Removing the Battery
To remove the battery, turn off at the
handlebar display, battery and power meter
switches located on the battery, then turn the
key anti-clockwise. Whilst holding the key in
the unlock position, slide out the battery from
the rear of the carrier. Useful finger grips are
provided on the underside of the battery.
For Your Safety
• Keep battery away
from children
• Do not dismantle
• Do not pierce or crush
• Do not immerse in liquid
• Do not expose to
temperatures over 60ºC
• Do not short circuit the
battery connections
• Do not leave unattended
whilst charging
• Do not sleep near a
battery that is charging
Failure to adhere to these
Battery Care instructions
can allow the battery to
deteriorate and may pose
a serious risk of Fire

7

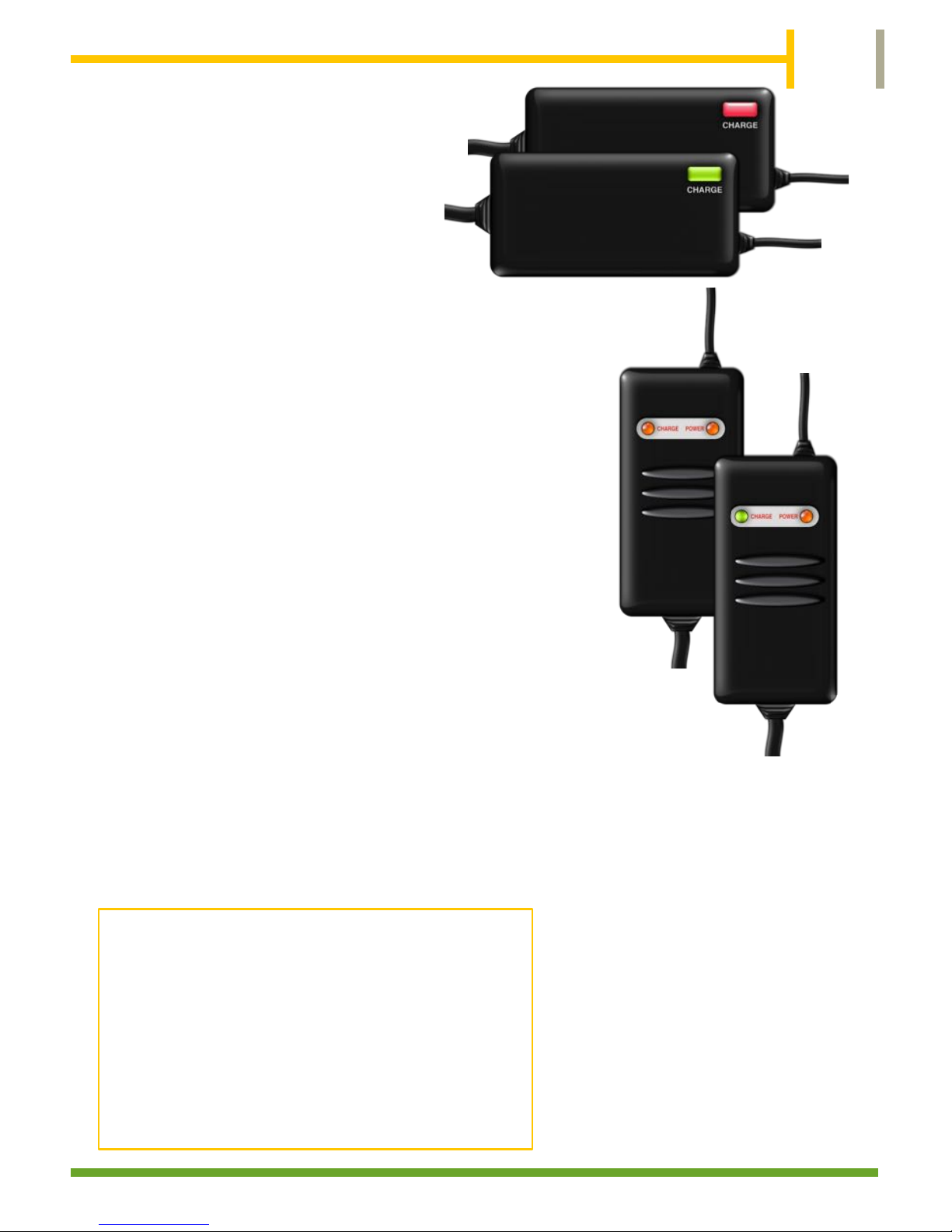

Using the Charger
Two types of battery charger are
used by BATRIBIKE. (Only one will
be supplied). Both have a charge
light which will display RED when
charging and change to GREEN
when the battery is charged.
The alternative type charger also has a second light
which shows RED when mains power is applied.
• Ensure the battery is switched off.
• Plug the charging lead into the battery.
The charging lead plugs into the charging socket
located beneath the rubber cover on the underside of
the battery casing. It can only be inserted one way.
• Plug the charger into the mains socket and
switch on at the wall outlet.
• The lights on the charger will illuminate after a
few seconds.
When charging is complete the RED charge light will
change to GREEN. May take up to 6 hrs for flat battery.
• Once charged, switch off at the wall outlet and unplug.
• Disconnect the charging lead from the battery and
replace the cover over the charging socket.
The battery does not have to be completely discharged before it is recharged. The
Lithium battery has no "memory" and therefore can be charged at any time. It is
perfectly acceptable to recharge the battery after a short ride so that the battery is
fully charged before the next ride.
NOTE: If the battery is charged
and the charger left switched
on for an extended period the
alternative type charger will enter
a low power state, indicated by
both the RED and ORANGE/
GREEN LEDs flashing slowly.
Switch off and unplug as above.
IMPORTANT
Plug the charger into the battery
before switching on at the mains.
Similarly, switch off at the mains before
unplugging the charger from the battery.
DO NOT LEAVE PERMANENTLY
CONNECTED

8
Your BATRIBIKE Electric
Bicycle can be used as a normal
pedal cycle by simply not
switching on the battery.

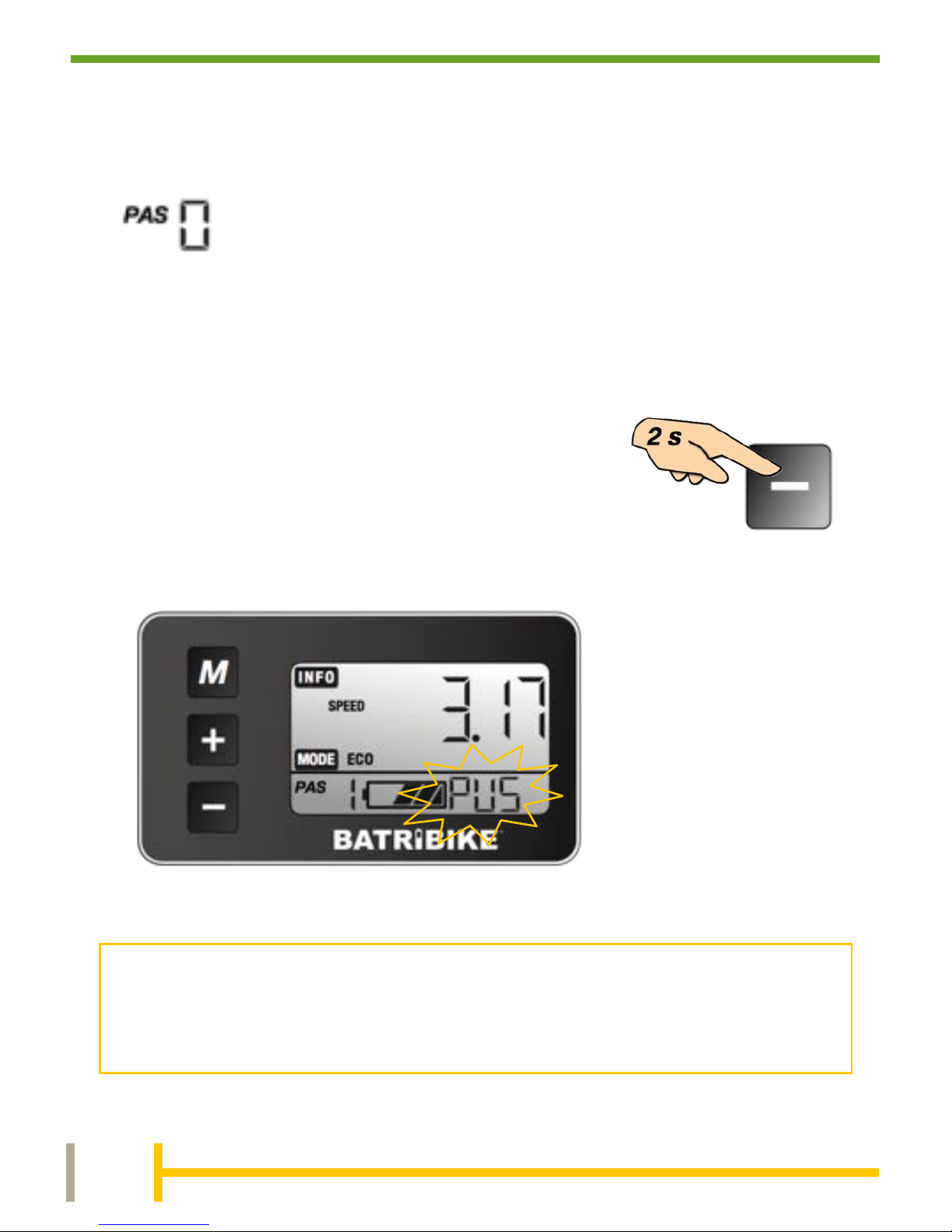

(or using in Zero
Assist - see below)
Usage
Buttons
Display Information Areas
UP
POWER
DOWN
CYCLE
COMPUTER
FUNCTION
TYPE
BATTERY
STATUS
POWER
USAGE
Display Information Areas
ASSIST
LEVEL
DATA AREA
/ASSIST LEVEL

9
To use under electric power, switch on at
the power switch on the underside of the
battery, turn on the power meter by
pressing the button on the top of the
battery, then press the POWER button on
the handlebar LCD display.
Control Buttons
Switching On
ELECTRIC BICYCLE FUNCTIONS

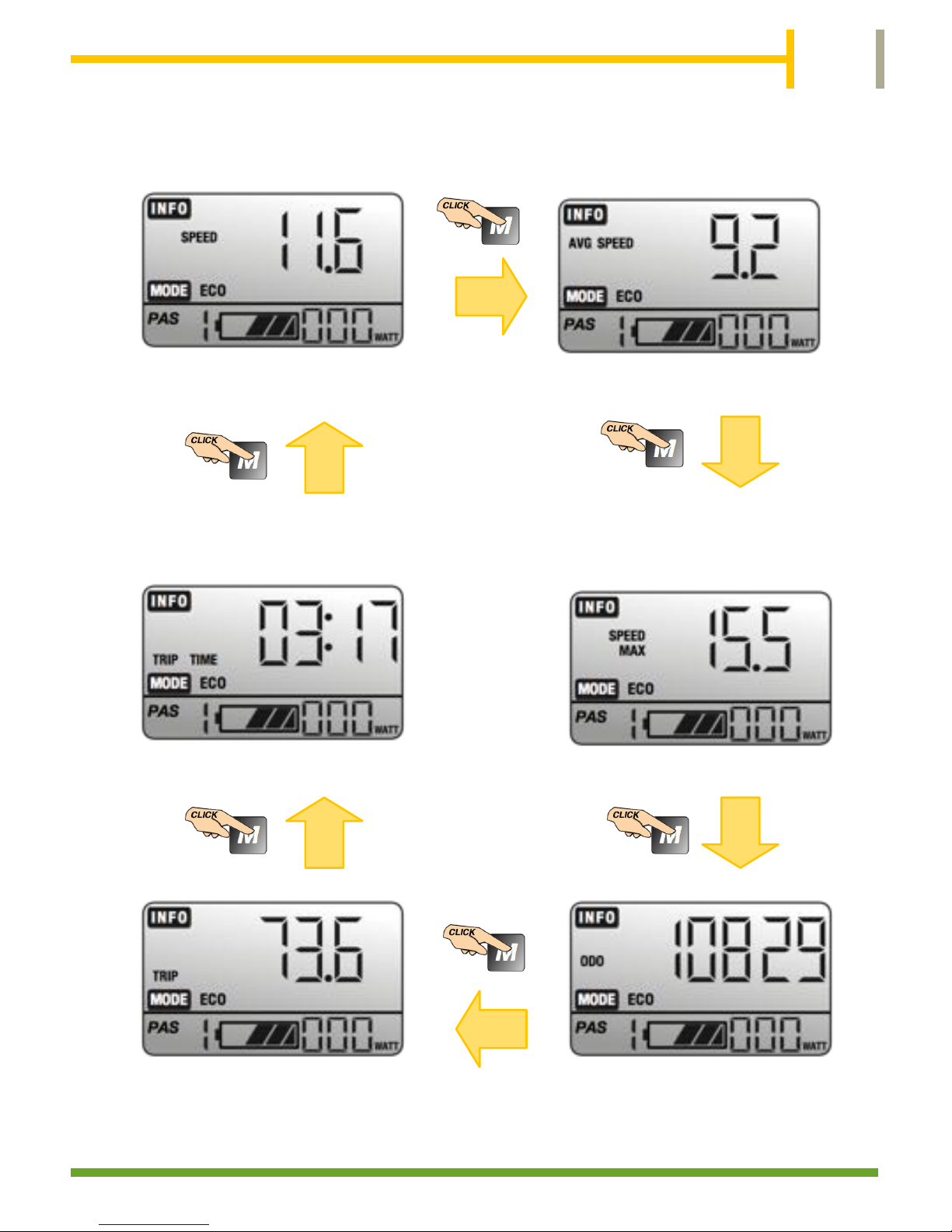

By means of the three buttons, MODE, UP and
DOWN, on the handlebar mounted display unit,
the various functions of the power controller and
Cycle Computer can be utilised.
See the following sections for details.
To turn off the LCD and the power to the bike, press and hold the
POWER button for 2 seconds.
If the power is left on for an extended
period and the bike is not used, then
the power will automatically be turned off.
To fully turn off the power press and hold the battery meter power
button, located on the top of the battery, and also switch off at the
power switch on the underside of the battery.
Switching Off

10
The LCD shows the charge remaining in the
battery in the lower right of the display. The
indicators will gradually go out as the battery
power is used up. Refer to the table below
for details.
Battery Meter
70 - 100%
SYMBOL
DISPLAYED
CHARGE
REMAINING
BATTERY METER DISPLAYS THE CHARGE REMAINING IN THE BATTERY
BATTERY IS
EXHAUSTED AND
SHOULD BE
RECHARGED AS
SOON AS POSSIBLE
50 - 70%
30 - 50%
15 - 30%
0 - 15%
FLASHING

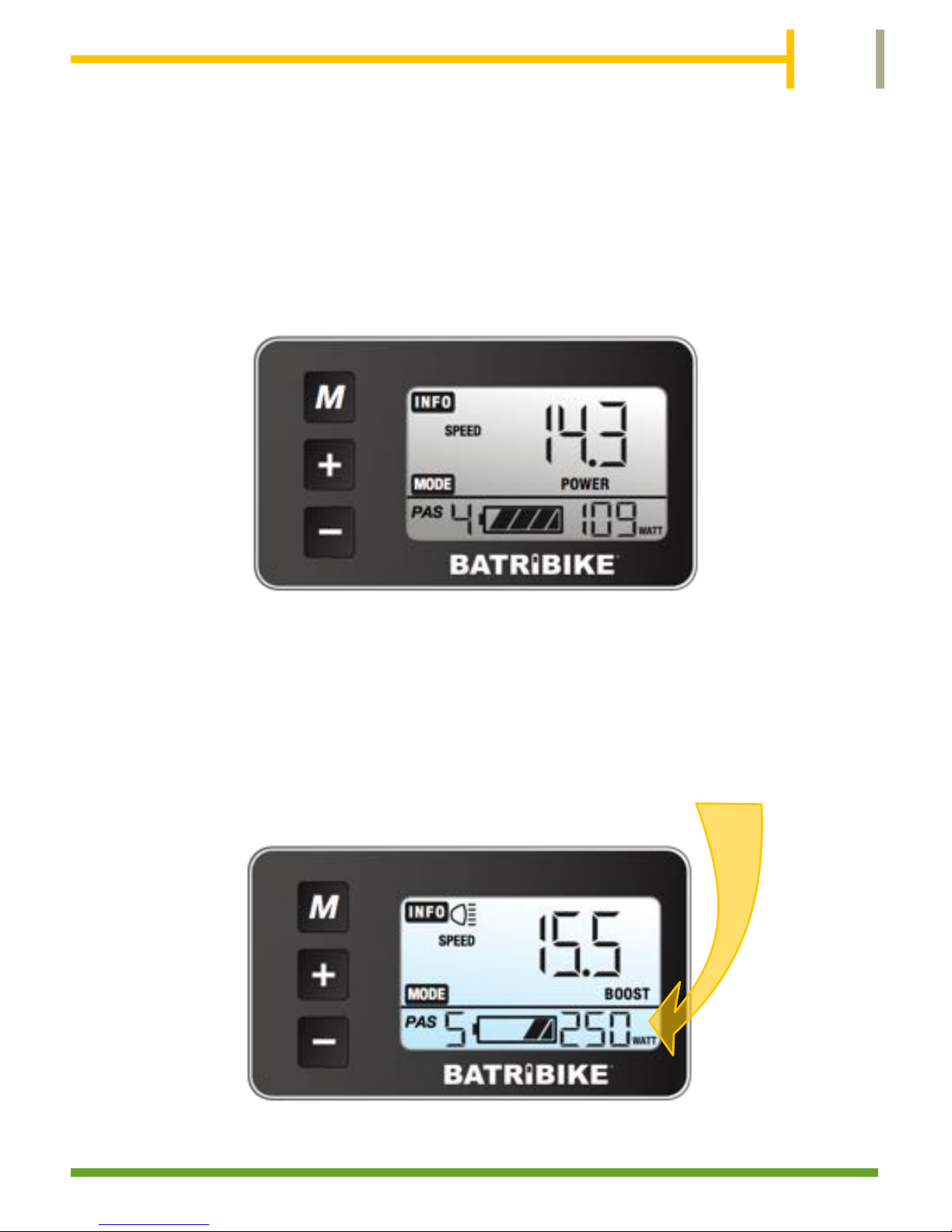

Display Backlighting - Night Mode
The LCD has a backlight for night time use. This is switched on by
pressing and holding the UP (+) button.
To turn the backlight off,
again press and hold the
UP (+) button.

11
The top right large digits will normally display the current speed of
the bicycle. For the UK market this is set to show miles per hour
(MPH). The display is accurate to about 10% when the wheel size
is correctly calibrated and the tyre inflated as per the
manufacturers recommendations.
Speed Display
During normal use the display will also show the amount of power
(WATTS) being used by the motor.
This is shown in the lower right of the display.
Power Usage

12
There are 5 levels of pedal
assistance available from the motor.
Using the UP and DOWN buttons
you can select from Level 1 (ECO),
to Level 5 (BOOST). The motor will
then be activated upon pedalling. There is a rotation
sensor located near the crank which senses when the
pedals are being used.
Pedal Assistance
Please remember that the above values are provided as a guide.
Due to manufacturing tolerances the performance may vary.
PEDAL ASSISTANCE FROM THE MOTOR
LEVEL
RANGE (up to)
Provides maximum power when
negotiating hills and head winds.
Great when needing to simply get from
A to B as fast as possible.
Great for commuting to work.
EXAMPLE OF USAGE
Normal Use Mode.
These are the levels to use for everyday
cycling. Gives good performance whilst
maximising usable range per charge.
Best for Leisure Use.
Use these lower power levels when
negotiating busy cycle paths and
crowded areas. Also use when setting
off and gradually increase through the
levels for a smoother performance.
Ideal for negotiating obstacles.
28 miles
32 miles
48 miles
60 miles
38 miles

13
Weather and terrain will affect the performance. In hilly areas, or
when the bike is heavily loaded, there will be a significant increase
in the power used from
the battery and hence
the range will decrease
accordingly. A lightly
loaded bike will achieve
higher performance
levels. (These results
were obtained by test
riders in optimal
conditions - 75kg rider,
level ground, no wind).

14
Your BATRIBIKE bicycle has a Walk Assist
Mode. This is designed to propel the bike
under power at a low speed of 6 km/h (4
MPH) and is ideal to help you when pushing
the bike up steep hills. It is not designed for
prolonged use or whilst riding.
Assisted Walking Mode (PUS)
THEN HOLD
PUS flashes
whilst in Walk
Assist mode.
BS EN15194 Compliance
The BATRIBIKE Falcon conforms to BS EN15194.
If the assistance level is set to ZERO, then the motor
will not be turned on. Your BATRIBIKE will now act
and feel like a normal bicycle. This is useful when you
are feeling fit at the start of a journey or using your
bike for exercise purposes. Power is still only a button
press away.
No Assistance - Normal Pedal Bicycle

15
As delivered the BATRIBIKE Falcon is set up to use straight away
in the most popular configuration, but there are a number of
functions which can be tailored to suit the individual rider. These
are user set as per the following sections.
Programmable Functions
TOGETHER
User Settings
To enter the User Settings press and hold
the UP (+) and DOWN (-) buttons
together for 2 seconds.
Press the Mode (M) button to select the
desired function and use the Up and
DOWN buttons again to select the
required value. A long press of the Mode
button will activate the setting and return
to normal bike display .
Two settings are available to the user:-
1. Backlight Level
2. Speed Max
When in the settings mode the display will show SET
in the bottom right of the display.
Use of these settings is explained on the following pages.

16

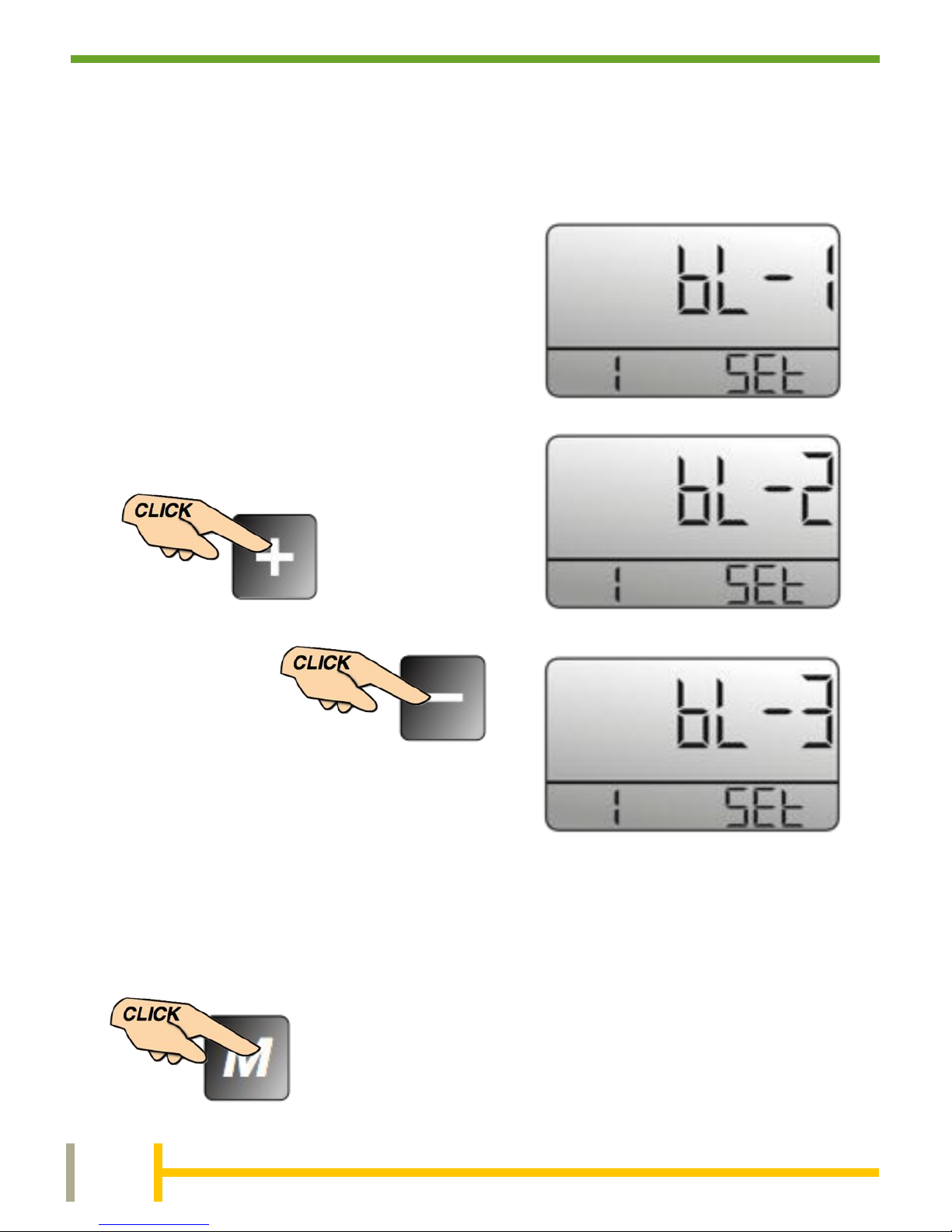

Backlight Contrast
The backlight of the display can be set to one of three values. level
3 is the brightest, level 2 medium and level 1 is the lowest setting.
Adjust to suit for night time riding.
To change the level use the UP and
DOWN buttons. The display will show
the level at the top right of the
display.
TO CONFIRM SETTING
The display will
now change to the
next settings mode
OR
When the desired level is reached, press the MODE button to
accept and move to the next settings menu.

17

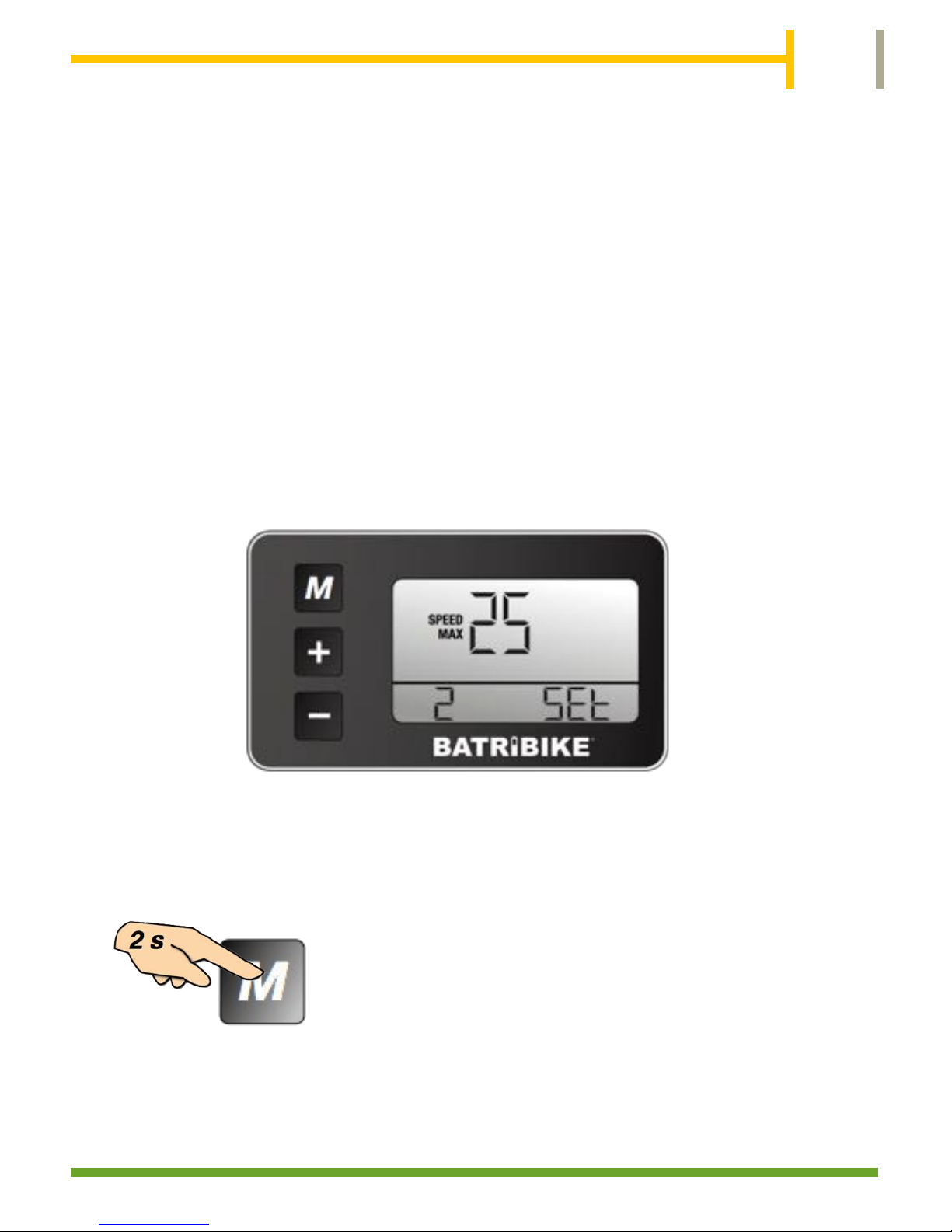

There is a Max Speed setting available on the User Menus.
Setting values above 25 has no effect on the performance of
the bike as the system hardware has been internally set to cut
off the motor assistance at 25 km/h and cannot be overridden.
The default setting is 25 to comply with UK and EU Electric Bike
Regulations.
The maximum speed can be set from 12 to 25 to suit the user.
Please note that these values are in km/h even though the
cycle computer functions are set to MPH for the UK market.
Max Speed
TO EXIT
SETTINGS
The changes you made in the
settings screens will be saved
and the display will return to
normal operating mode
THIS ACTION CAN BE PERFORMED FROM ANY OF THE SETTINGS SCREENS
Exit User Settings Speed

18
CYCLE COMPUTER
The BATRIBIKE Pro Range has useful Cycle Computer functions
built in. There is a built in sensor and pickup located in the rear
wheel and frame which activates the speed and distance readings.
When first turned on
the display shows the
Speed (in MPH) in the
top right.
The assistance level
(PAS) is set to the
lowest level, (1 ECO).
To change the display to show the Average Speed, simply press
the MODE button. Repeat to show the other available functions as
shown below. The display will eventually return to SPEED display.
Display Sequence
Initial Display (SPEED)
After a short time of inactivity the screen will return to showing the
default display, SPEED, no matter which cycle computer function is
currently being displayed.

19
Current Speed in MPH
Average Speed since
last reset
Maximum Speed since
last reset
Total Distance in Miles
(Cannot be reset)
Trip Time since last reset
Trip Distance in Miles

20
To reset the TRIP Distance and Trip Time at the start of a
journey, ensure that either TRIP or TRIP TIME is showing on the
display and simply press and hold the MODE and DOWN buttons
simultaneously, and hold for 2 seconds.
Average Speed and Maximum Speed reset automatically on
power down.
Resetting the Trip
The Odometer distance displays the total distance travelled by the
bicycle since leaving the factory and cannot be reset.
TOGETHER
