Batribike Delta User manual

Owner
Manual
batribike.com
Hand Built in Europe
ELECTRIC BICYCLES

2
STANDARD
(10.2 Ah)
LONG RANGE
(12.8 Ah)
BATTERY:-
COLOUR:-
ARRANT
BLACK
DISPLAY:-
LED
MINI LCD
CENTRE
LCD
DEALERSTAMP
IMPORTANT PLEASE READ THIS MANUAL FULLY BEFORE USE
For your safety and to ensure a long and trouble free life of your Batribike
bicycle, check the operation of brakes, lights, bell and gears,
and check tyre pressures are correct.
Also check all fasteners, including quick release mechanisms,
before every ride.
Register your BATRIBIKE Warranty online at
batribike.com/warranty-registration
/
/
PURCHASE DATE:-
DAY MONTH YEAR
BATTERY SERIAL №:-
BICYCLE SERIAL №:-

3
Thank you for purchasing a BATRIBIKE Electric Bicycle
With care and correct usage your bicycle
will give many years of service.
Important
PLEASE CHARGE THE BATTERY
BEFORE FIRST USING THE BICYCLE
Even though the battery indicator will show charge this cannot be
relied upon until the battery has had the initial full charge.
1 ELECTRIC BICYCLE
1 BATTERY with Keys
1 BATTERY CHARGER with UK Mains Lead
1 MANUAL
Contents
Parts Identification ............................................ PAGE 4
Battery Care & Charging ...................................PAGE 6
Using the Power Assistance ............................. PAGE 8
Troubleshooting................................................. PAGE 17
Standard Bicycle Functions .............................. PAGE 18
Adjusting to Suit the Rider ................................ PAGE 20
Removing the Battery ................................... PAGE 22
Maintenance Schedule ..................................... PAGE 24
Warranty ........................................................... PAGE 26
Specifications ................................................... PAGE 28
Certificate of Compliance ................................. PAGE 29
PACKAGE
CONTENTS

4
PARTS IDENTIFICATION
We continually strive to ensure that we provide you with the best possible products, therefore
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
Display (Mini LCD shown)
1
2
Rear Brake Lever
3
Front Brake Lever
4
Motor Connector (On Right Chainstay)
5
Front Gear Selector (Twin Lever) x 3
6
Bell
7
Front Gear Indicator
8
9
10
11
Front Tyre 29 x 2.25 (Schwalbe)
Front Hydraulic Disk Brake
Battery
12
3 Speed Chainwheel
13
Battery Lock
14
15
16
19
20
21
Lights ON/OFF Button (NOT USED)
22
23
24
Mode Button
Bicycle Serial Number Label
Rear Hub Motor
9 Speed Rear Derailleur Gears
Rear Tyre 29 x 2.25 (Schwalbe)
25
Seat Adjust (Height) - Quick Release
26
27
28
Suspension Lock Out
29
30
31
Rear Hydraulic Disk Brake
32
11
Power UP Button
34
33
Charging Socket
17
18
LCD Information Area
10
Throttle (Pedalling Only) / Walk Assist
Power ON/OFF Button
Seat Adjust (Position - Front/Back)
Blanking Plug (NOT USED)
Power DOWN Button
ON INSIDE OF
FRAME (Chainstay)
Rear Gear Indicator
Rear Gear Selector (Twin Lever) x 9
9
5
7
6
8
1
2
3
4
13
14
12
INSIDE
FRAME
Battery Finger Pull & Securing Tab
Suspension Forks

5
OTHER
SIDE
HANDLEBAR DISPLAY
OPTIONS
STANDARD FITMENT
(Mini LCD)
SHOWN LEFT
CENTRE LCD
(NOT SHOWN)
ALSO AVAILABLE
AS UPGRADE
15
19
16
17
20
21
22
11
14
27
25
26
24
23
28
10
29
31
32
33
30
34
5
NOT USED
ON DELTA
NOT USED
ON DELTA

6
First time use
Your battery will be supplied in a state of sleep from the factory. The first time you
use the battery it requires activation by being fully charged.
Storage
Batteries do not like to be stored in very hot or
very cold conditions or to be subject to conditions
of high moisture. They also do not like to be left in
a fully discharged state. If Lithium batteries are
left flat for an extended period they may no longer
be functional.
• Store your battery between 15º C and 25º C
in a dry area. (The conditions found in a
normal domestic house).
• If your Batribike is not in use for an extended
period it is imperative that you charge the
battery before storage and then charge the
battery once a month to prevent deterioration.
Charging
Lithium batteries do not like to be left discharged.
It is good practice to recharge as soon as is
reasonably possible after the battery goes flat.
We recommend charging after every ride, that
way your electric bike is always ready for your
next outing.
• Do not charge at temperatures below 0º C
• Switch off the battery before charging.
• Battery can be charged on or off the
bike.
• Always make sure the battery and
charger are on a non-flammable, dry
surface away from sources of heat,
humidity and flammable materials.
• Do not cover the battery or charger
whilst charging.
• Only use the charger supplied.
• Even if not in use recharge your
battery a minimum of once a month.
For Your Safety
• Keep battery away
from children
• Do not dismantle
• Do not pierce or crush
• Do not immerse in liquid
• Do not expose to
temperatures over 60ºC
• Do not short circuit the
battery connections
• Do not leave unattended
whilst charging
• Do not sleep near a
battery that is charging
Failure to adhere to these
Battery Care instructions
can allow the battery to
deteriorate and may pose
a serious risk of Fire
BATTERY CARE & CHARGING
Your Batribike Electric Bicycle uses a Lithium battery for it's power and the
following points will directly affect battery life and performance.
Removing the Battery
To remove the battery, turn off at the
handlebar display, unlock the battery
using the key provided. Push the
battery locking tab downwards away
from the battery and using the finger
insert pull the lower part of the
battery downwards and angle the
battery out of the frame. Note that
the key cannot be removed in the
unlock position. (See page 22)

7
Using the Charger
Two types of battery charger are
used by BATRIBIKE. (Only one will
be supplied). Both have a charge
light which will display RED when
charging and change to GREEN
when the battery is charged.
The alternative type charger also has a second light
which shows RED when mains power is applied.
• Ensure the battery is switched off.
• Plug the charging lead into the battery.
The charging lead plugs into the charging socket
located on the underside of the battery. It can only be
inserted one way.
• Plug the charger into the mains socket and
switch on at the wall outlet.
• The lights on the charger will illuminate after a
few seconds.
When charging is complete the RED charge light will
change to GREEN. May take up to 6 hrs for flat battery.
• Once charged, switch off at the wall outlet and unplug.
• Disconnect the charging lead from thebattery and replace
the cover over the charging socket.
The battery does not have to be completely discharged before it is recharged. The
Lithium battery has no "memory" and therefore can be charged at any time. It is
perfectly acceptable to recharge the battery after a short ride so that the battery is
fully charged before the next ride.
NOTE: If the battery is charged
and the charger left switched
on for an extended period the
alternative type charger will enter
a low power state, indicated by
both the RED and ORANGE/
GREEN LEDs flashing slowly.
Switch off and unplug as above.
IMPORTANT
Plug the charger into the battery
before switching on at the mains.
Similarly, switch off at the mains before
unplugging the charger from the battery.
DO NOT LEAVE PERMANENTLY
CONNECTED

8
Usage
Your BATRIBIKE electric bicycle has a choice of display options
available. For the DELTA the Mini LCD type is fitted as standard to
the bike.
Mini LCD
See page 10 for operation
The operation of the Mini LCD system has four selectable POWER
levels. Level 1 gives 25% of the power, level 2 - 50% up to level 4,
100% power. Speed range is from 0 to 15 mph in all levels.

9
Centre LCD
See separate manual for this upgrade.
The Centre LCD system provides more power levels than the Mini
LCD and a larger display makes it easier to read. This is available
as an easy to fit upgrade.
Display Options

10

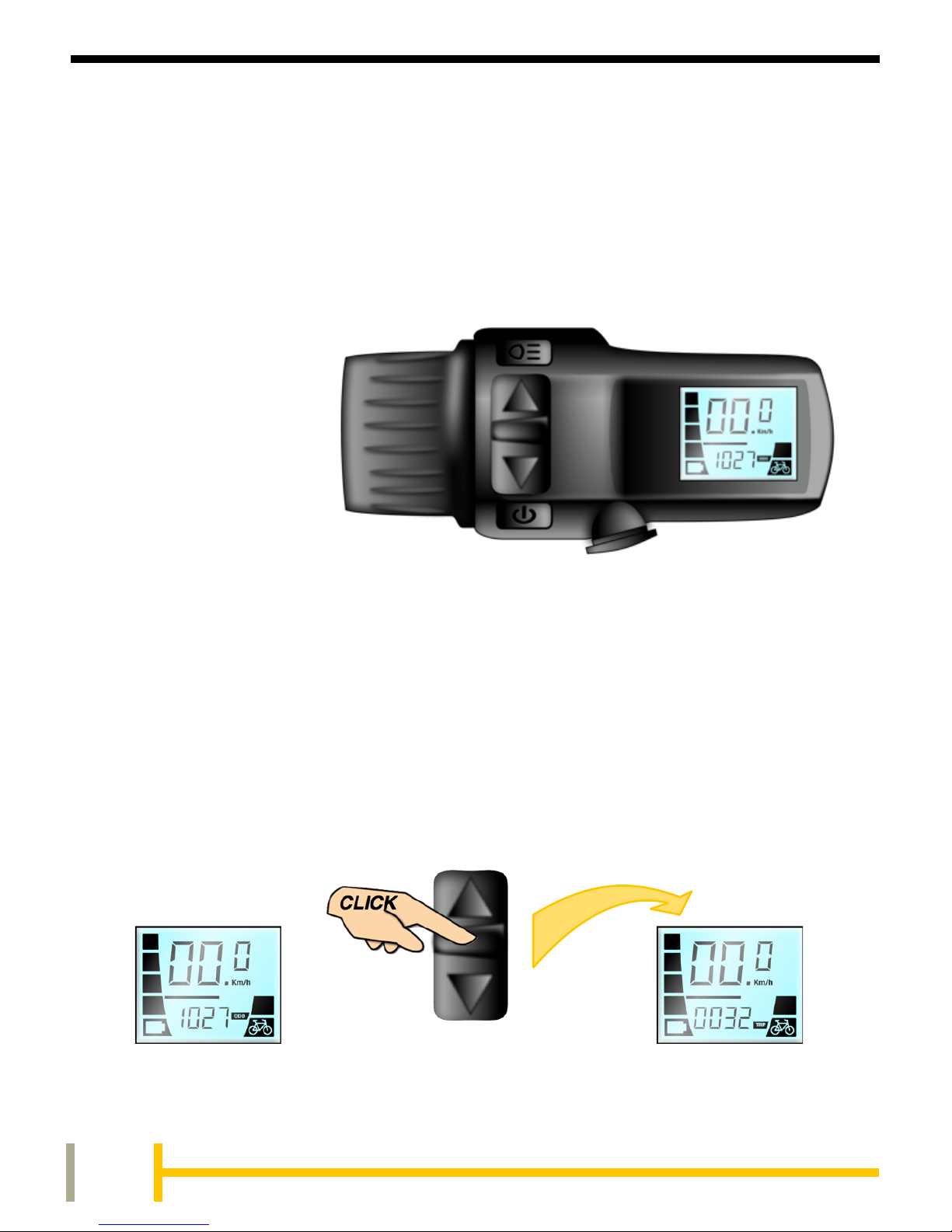

Mini LCD Operation
To use under electric power, switch on by
pressing and holding the POWER button on
the handlebar unit until the display lights.
Switching On
To turn off the LCD and the power to the bike, press and hold the
POWER button for 2 seconds.
If the power is left on for an extended
period and the bike is not used, then
the power will automatically be turned off.
Switching Off
Control Buttons
By means of the three buttons, UP, DOWN and
MODE, on the handlebar mounted display unit,
the various functions of the power controller can
be utilised.
See the following sections for details.

11
To the left of the LCD is the battery meter
which shows the charge remaining in the
battery. The indicators will gradually go out
as the battery power is used up. Refer to the
table below for details.
Battery Meter
70 - 100%
SYMBOL
CHARGE REMAINING
BATTERY METER DISPLAYS THE CHARGE REMAINING IN THE BATTERY
BATTERY IS
EXHAUSTED AND
SHOULD BE
RECHARGED AS
SOON AS POSSIBLE
50 - 70%
30 - 50%
15 - 30%
0 - 15%
EMPTY

12
There are 4 levels of pedal assistance available from the
motor. Using the UP and DOWN buttons you can select
from Level 1 (Lowest), to Level 4 (Highest). The motor will
then be activated upon pedalling.
Pedal Assistance
Please remember that the above values are provided as a guide.
Due to manufacturing tolerances the performance may vary.
PEDAL ASSISTANCE FROM THE MOTOR
RANGE SHOWN WITH
STANDARD BATTERY
LEVEL / RANGE
Provides maximum power when
negotiating hills and head winds.
Great when needing to simply get from
A to B as fast as possible.
Great for commuting to work.
EXAMPLE OF USAGE
Normal Use Mode.
These are the levels to use for everyday
cycling. Gives good performance whilst
maximising usable range per charge.
Best for Leisure Use.
Use these lower power levels when
negotiating busy cycle paths and
crowded areas. Also use when setting
off and gradually increase through the
levels for a smoother performance.
Ideal for negotiating obstacles.
up to 22 miles
up to 32 miles
up to 50 miles
up to 41 miles
up to 36 km
up to 52 km
up to 66 km
up to 80 km
Full Power
75% Power
50% Power
25% Power

13
Weather and terrain will affect the performance. In hilly areas, or
when the bike is heavily loaded, there will be a significant increase
in the power used from the battery and hence the range will
decrease accordingly.
A lightly loaded bike
will achieve higher
performance levels.
(These results were
obtained by test riders
in optimal conditions -
75kg rider, level
ground, no wind).
Your BATRIBIKE bicycle has a Walk Assist feature
which utilises a twist grip throttle. This is designed to
propel the bike under power at a low speed of 6 km/h
(4 MPH) and is ideal to help you when pushing the
bike up steep hills.
It is also designed to be used to control the power
whilst pedalling right up to the maximum of 15 mph,
regardless of the level selected. If the rider is not pedalling this will
only work up to 4 mph.
Throttle Mode - Assisted Walking (6 km/h)
If the assistance level is set to ZERO, then the motor will
not be turned on. Your BATRIBIKE will now act and feel
like a normal bicycle. This is useful when you are feeling
fit at the start of a journey or using your bike for exercise
purposes. Power is still only a button press away.
No Assistance - Normal Pedal Bicycle
BS EN15194 Compliance
The Throttle Operation conforms to BS EN15194.
DECREASE
INCREASE
T
W
I
S
T

14
CYCLE COMPUTER
The BATRIBIKE mini LCD has useful Cycle Computer functions
built in.
When first turned
on the display
shows the Speed
in the top of the
display, and the
Total Distance
(ODO) in the lower
part.
The assistance level is set to the lowest level (1) at initial power on.
Initial Display (SPEED and ODO)
To change the display to show the Trip Distance, simply press the
MODE button. Repeat to return to the ODO display.
Trip Distance

15
To reset the Trip Distance at the start of a journey simply press and
hold the MODE button until the Trip display resets to zero.
Resetting the Trip
The Odometer distance displays the total distance travelled by the
bicycle since leaving the factory and cannot be reset.
The display can be changed to show distances and speeds in Miles
or Kilometres. To change simply press and hold the DOWN button
for 10 seconds. Repeat to change the units back again.
Setting Distance Units (Miles or Km)

16
TOGETHER
If you change the tyre size then the display will need to be reset to
suit the new circumference. This will ensure that the speed and
distance readouts are as accurate as possible.
Setting Wheel Size (Circumference)
Value for DELTA with standard tyre is L230
(Schwalbe 57-622 Rapid Rob)
Start with the valve at the bottom.
Roll the wheel along the ground and
measure the distance when the valve
returns to the bottom again.
CIRCUMFERENCE VALUE (in cm)
OR
Set first digit
Set second digit
Set third digit
Confirm to return
to normal display
Measuring the Circumference
Values can range from L150 to L250

17
TROUBLESHOOTING
Error Number Shown
Diagnostic Error Messages
If an error occurs the Mini LCD display will show a code as in the
example shown. Make a note of the error number and turn off the
bicycle power at the LCD. After 2 minutes turn on the power again.
If the code re-occurs contact your dealer for assistance.
Error No.
Error Type
Error Type
E02
Motor Error
Check Motor Plug, if all OK
contact Dealer for Assistance
E03
Controller Error
Check throttle returns
correctly, if all OK contact
Dealer for Assistance
E04
Throttle Error
E05
Brake Sensor Error
E08
Low Battery Voltage
E09
Battery Error
Contact Dealer for Assistance
Charge the Battery
Contact Dealer for Assistance
Check brake lever returns
fully, if all OK contact Dealer
for Assistance

18
STANDARD BICYCLE FUNCTIONS
Gears
Your BATRIBIKE is provided with 27 speed Shimano derailleur
gears with twin lever gear changers. To change gear you use the
right handlebar levers for the rear 9 speed and the left handlebar
levers for the front 3 speed (chainwheel).
Gear number 1 is low for hills and rough terrain and gear 27 is high
for normal road use. An indicator window shows the selected gear.
To increase the gear simply push the rear selectors with your
thumb. To decrease the gear squeeze the front most selector lever
with your index finger.
You must be pedalling as you change gears.
DOWN
INDICATOR
WINDOW
UP
SQUEEZE
WITH FINGER
PUSH WITH
THUMB
Front (Chainwheel) Gears x 3

19
Braking
To stop, cease pedalling and pull the brake levers. Also ensure
that the throttle is not operated. Remember that the DELTA is
equipped with powerful hydraulic brakes and will stop quickly.
Braking will be less effective in wet conditions and your riding style
should be adjusted accordingly.
Bell
A bell is attached to the handlebars.
DOWN
INDICATOR
WINDOW
UP
SQUEEZE
WITH FINGER
PUSH WITH
THUMB
Rear (Derailleur) Gears x 9

20
Seat Height
The height of the saddle can be adjusted to suit the rider. If you do
not feel confident with making these adjustments then your
BATRIBIKE Dealer will be able to set up the bike initially.
The saddle can also be
adjusted frontwards or
backwards on its
mount. Take care with
all fasteners after
adjustment to ensure
that they are safely
tightened to avoid
movement and
potential injury whilst
riding.
The saddle height is adjusted
by loosening the Quick
Release seat post clamp and
moving the post up or down as
desired.
Take care not to exceed the
limit marked on the post.
If the clamp tension needs to be
adjusted, then with the lever in the
open position, tighten the Allen Bolt
(5 mm) until finger tight. The final
tightening is done by moving the
lever to the closed position. Only
small adjustments should be made
and the tension checked. Repeat as
necessary.
