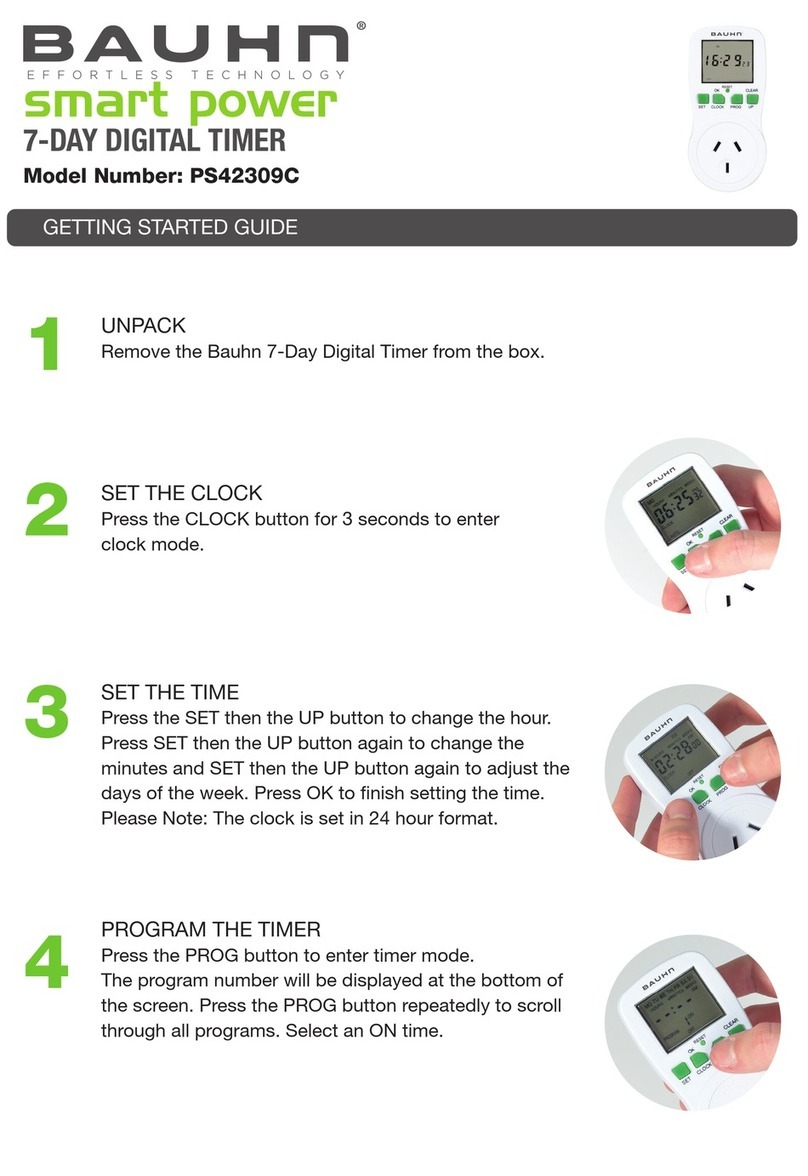

Bauhn PS42309C User manual

7-Day Digital Timer
Model Number: PS42309C
After Sales Support - Help Desk
Telephone: [phone]
Internet: www.winplus.com.au
INSTRUCTION MANUAL

Description goes here
The product is guaranteed to be free from defectsin workmanship and parts for a period
of 12 months from
the date of purchase. Defectsthat occur within this warranty period,
under normal use and care, will be repaired, replaced or refunded
at our discretion. The
benefits conferred by this warrantyare in addition to all rights and remediesin respect of
the product that the consumer has under the Competition and Consumer Act 2010 and
similar state and territory laws.
Our goodscome with guarantees that cannot be excluded under the Australian
Consumer Law.You are entitled to a replacement or refund for a major failure and for
compensation for any other reasonably foreseeable loss or damage.You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and
the failure doesnot amount to a major failure.
7-Day Digital Timer
Warranty Details
The product is guaranteed to be free from defects in workmanship and
parts for a period of 12 months from the date of purchase. Defects that
occur within this warranty period, under normal use and care, will be
repaired, replaced or refunded at our discretion. The benets conferred
by this warranty are in addition to all rights and remedies in respect of the
product that the consumer has under the Competition and Consumer Act
2010 and similar state and territory laws.
Our goods come with guarantees that cannot be excluded under the
Australian Consumer Law. You are entitled to a replacement or refund for
a major failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does
not amount to a major failure.

3
After Sales Support - Help Desk
Telephone: [phone]
Internet: www.winplus.com.au
Contents
Warranty 2
Contents 3
Welcome 4
General Safety Instructions 5
Product Features 6
Parts List / Technical Specications 7
Product Setup 8
Product Operation 11
FAQ’S 17
Repair and Refurbished Goods or Parts Notice 19

4After Sales Support - Help Desk
Telephone: [phone]
Internet: www.winplus.com.au
Welcome
Congratulations on choosing to buy a BAUHN product. By doing so you
now have the assurance and peace of mind that comes with purchasing a
product made by one of the leading manufacturers. All products brought to
you by BAUHN are manufactured to the highest standards of performance
and safety and, as part of our philosophy of customer service and
satisfaction, are backed by our comprehensive 1 Year Warranty. We hope
you will enjoy using your purchase for many years to come.
®
®

5
After Sales Support - Help Desk
Telephone: [phone]
Internet: www.winplus.com.au
Read this manual thoroughly before rst use and keep it in a safe place for
future reference, along with the warranty card, purchase receipt and carton.
The safety precautions enclosed herein reduce the risk of re, electric shock
and injury when correctly adhered to. Follow all instructions and take notice
of all warnings to reduce the risk of re or electric shock.
• Do not expose this product to water, rain, moisture or dust. Electronic
products of this kind should never be subjected to moisture or extreme
temperatures.
• Do not attempt to open the product housing. There are no user-
serviceable parts inside this product.
• Do not repair the unit yourself. If your device is not functioning
correctly, disconnect the product from power, and contact after sales
support.
• Supervise young children to ensure they do not play with the product.
• Do not expose to water, dust, moisture, chemicals, oils, or other liquids.
• Do not expose to naked ames or other heat sources.
• Do not drop or subject the device to undue shock.
• Keep device away from magnets at all times.
• Keep away from direct sunlight. Indoor use only.
• Unplug this device during lightning storms or when unused for long
periods of time
• Do not operate or control heat producing devices connected to the
Digital Timer unattended.
General Safety Instructions

6After Sales Support - Help Desk
Telephone: [phone]
Internet: www.winplus.com.au
Product Features
• 4 big buttons for easy operation
• Large LCD display
• 24 hour, 7 day programming
• 16 Programmable On/Off cycles, up to 112 cycles per week
• Reset function
• Real time display
• Easy changeover for daylight savings time
• Random function
Control Buttons
Power Socket
Reset Button
WE
Day of the Week
Time Display
Large LCD Display

7
After Sales Support - Help Desk
Telephone: [phone]
Internet: www.winplus.com.au
Technical Specications
– Voltage: 240V AC 50Hz
– Max load current: 10A
– Total load must not exceed 2400W
– Working temperature: 0-50°C
– Timer range: 1 minute – 168 hours (7days)
Parts List
• BAUHN 7-Day Digital Timer
• Getting Started Guide
• Warranty Card
• Warranty Stickers
• Instruction Manual
1. Current/Selected Day
2. Hours / Minutes / Weeks Indicator
3. Current/Selected Time
4. Clock / Program Indicators
5. Operating Mode
6. Countdown
7. Daylight Savings Status
8. Random Mode Indicator
MO TU WE TH FR SA SU
HOURS MINUTES WEEKS
CLOCK
AUTO ON OFF COUNTDOWN
RANDOM
SUMMER
PROGRAM
1
2
3
48
7
65
Digital Display - Quick Guide

8After Sales Support - Help Desk
Telephone: [phone]
Internet: www.winplus.com.au
Product Setup
Installation
1. Plug the BAUHN 7-Day Digital Timer into an available power outlet.
2. Plug the desired appliance into the BAUHN 7-Day Digital Timer.
3. Switch the power point on.
Note: You may nd it easier to set the unit’s time and timer
programmable functions before plugging it into the wall.
Warning: Do not operate or control heat producing devices
connected to the digital timer unattended.

9
After Sales Support - Help Desk
Telephone: [phone]
Internet: www.winplus.com.au
Setting the Time
1. Press the CLOCK button for 3 seconds to enter clock mode.
2. Press the SET button, the arrow next to HOURS will begin to ash.
3. Press the UP button to set the hour.
4. Press the SET button again to conrm, the arrow next to MINUTES will
begin to ash.
5. Press the UP button to set the minutes.
6. Press the SET button again to conrm, the arrow next to WEEKS will
begin to ash.
7. Press the UP button to set the day of the week, the selected day will be
highlighted on the display.
8. When you have nished, press the OK button to nish.
Tip: Press CLOCK & PROG buttons at the same time to set 24hr
or 12hr time.

10 After Sales Support - Help Desk
Telephone: [phone]
Internet: www.winplus.com.au
Daylight Savings Time
1. Press the SET and CLOCK buttons at the same time to set SUMMER or
WINTER time.
Note: During daylight savings, SUMMER is displayed on the
bottom right of the screen. In winter mode, there is no special
indicator on screen.

11
After Sales Support - Help Desk
Telephone: [phone]
Internet: www.winplus.com.au
Operating Modes
1. The current operating mode is displayed on the bottom left of the
screen.
2. Press the SET button to cycle through the operating modes.
3. The digital timer has 3 operating modes:
a. On: Always on mode, no timers are active. Power will run to
connected device.
b. Off: Always off mode, no timers are active. Power will not run to
connected device.
c. Auto: On / Off cycles will be controlled by the timer settings.
Product Operation

12 After Sales Support - Help Desk
Telephone: [phone]
Internet: www.winplus.com.au
Timer Settings
1. Press the PROG button to enter timer mode. You can set up to 16 timers
(on/off cycles).
2. The program cycle number will be displayed at the bottom of the screen.
Press the PROG button repeatedly to scroll through all timers. Current
settings for each timer are displayed on the screen.
3. Select the time you want to edit, press the SET button to edit the timer.
The arrow next to HOURS will begin to ash.
4. Press the UP button to set the hour for the timer.
5. Press the SET button again to conrm, the arrow next to MINUTES will
begin to ash.
6. Press the UP button to set the minutes.
7. Press the SET button again to conrm, the arrow next to WEEKS will
begin to ash.
8. Use the UP button to cycle through the days of the week, and the days
of the week cycles. You can choose from the following options:
- MO
- TU
- WE
- TH
- FR
- SA
- SU
- MO TU WE TH FR
- SA SU
- MO TU WE TH FR SA
- MO WE FR
- TU TH SA
- MO TU WE
- TH FR SA
- MO TU WE TH FR SA SU

13
After Sales Support - Help Desk
Telephone: [phone]
Internet: www.winplus.com.au
9. When your desired day cycle is shown on the screen, press the PROG
button to exit the programming mode.
10. You can set the next timer function by repeating steps 2 – 9.
11. Once you have set all your timers, press the OK button to return to the
main screen.
Tip: To clear a timer setting, press the CLEAR button when it
is displayed on screen. The display will clear the setting, and
show --:-- where the time once was.

14 After Sales Support - Help Desk
Telephone: [phone]
Internet: www.winplus.com.au
Random Function
When the Random Function is active, the Digital Timer will automatically turn
the connected device on or off during the hours of 6pm to 6am.
1. Press the SET & UP buttons at the same time to turn ON the random
function. Random will be highlighted on the display.
2. Press the SET & UP buttons at the same time to turn OFF the random
function. RANDOM will no longer be highlighted on the display.
3. Press the Set button until AUTO appears on the screen. Note the
Random Function will only operate in AUTO mode.
Note: When active, the Random Function will override all timer
settings from the hours of 6pm to 6am. Timer functions will
operate as programmed outside of these hours.

15
After Sales Support - Help Desk
Telephone: [phone]
Internet: www.winplus.com.au
Countdown Timer
The Digital Timer can be programmed to turn a device ON or OFF after a
specied time using the Countdown Timer function
Note: Countdown timer only works in ON or OFF mode. Random
function should be turned OFF.
If the digital timer is in ON mode when the countdown is
activated, at the end of the countdown, the power will be
switched to OFF.
If the digital timer is in OFF mode when the countdown is
activated, at the end of the countdown, the power will be
switched to ON.
1. Press the UP and PROG buttons at the same time to enter countdown
mode.
2. Press the SET button, the arrow next to HOURS will begin to ash.
3. Use the UP button to set the number of hours desired for the
countdown. You may select between 0 – 99 hours.
4. Press the SET button to conrm the number of hours, the arrow next to
MINUTES will begin to ash.
5. Press the UP button to set the number of minutes between 0 – 59.
6. Press the OK button to conrm. The countdown will begin.
COUNTDOWN will be highlighted on the display, and the time remaining
in the countdown is shown on screen.
7. To cancel the countdown manually, press the UP and PROG buttons
at the same time. COUNTDOWN will no longer be highlighted on the
display.

16 After Sales Support - Help Desk
Telephone: [phone]
Internet: www.winplus.com.au
Resetting the Timer
If you experience any problems or there is no response from the Digital Timer
press the RESET button using a pen or pencil tip.

17
After Sales Support - Help Desk
Telephone: [phone]
Internet: www.winplus.com.au
Frequently Asked Questions
Question Answer
My timers are not turning off or on Ensure you have set the timer to AUTO
mode. Press the SET button to cycle
through ON/OFF/AUTO modes.
How can I temporarily turn off my
timers?
Set the timer to OFF mode. Press the SET
button to cycle through ON/OFF/AUTO
modes.
Can I use the BAUHN 7 Day Digital
Timer with a power board?
Yes, you can use the BAUHN 7-Day
Digital Timer with a power board as long
as the total rated maximum load through
the timer does not exceed 2400W.
Note: Do not exceed your power
board’s total maximum rated load.
Please refer to the rating plate on
your power board for its total rated
maximum load.
How much power does the BAUHN
7-Day Digital Timer use in standby?
The BAUHN 7 Day Digital Timer will
use about 1.3W while in standby mode,
recharging the internal battery.
How do I exit Countdown Mode? Press the PROG and UP buttons to exit
Countdown mode.
The Bauhn 7-Day Digital Timer is no
longer responding
Press the reset button to reset the timer to
default settings.

18 After Sales Support - Help Desk
Telephone: [phone]
Internet: www.winplus.com.au
Notes

19
After Sales Support - Help Desk
Telephone: [phone]
Internet: www.winplus.com.au
Description goes here
The product is guaranteed to be free from defectsin workmanship and parts for a period
of 12 months from
the date of purchase. Defectsthat occur within this warranty period,
under normal use and care, will be repaired, replaced or refunded
at our discretion. The
benefits conferred by this warrantyare in addition to all rights and remediesin respect of
the product that the consumer has under the Competition and Consumer Act 2010 and
similar state and territory laws.
Our goodscome with guarantees that cannot be excluded under the Australian
Consumer Law.You are entitled to a replacement or refund for a major failure and for
compensation for any other reasonably foreseeable loss or damage.You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and
the failure doesnot amount to a major failure.
7-Day Digital Timer
