Baumatic BHG725SS User manual

el 1
BHG620SS / BHG690SS /
BHG625SS / BHG695SS /
BHG720SS / BHG725SS /
BHG790SS
Gas hobs

User Manual for your Baumatic
BHG620SS / BHG625SS / BHG690SS /
BHG695SS
60 cm 4 Burner gas hob
BHG720SS / BHG725SS / BHG790SS
70 cm 5 Burner gas hob
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
JW 02/05/13
2

3
Contents
Environmentalnote 4
Important safety information 5 – 7
Specifications 8 – 13
BHG620SS / BHG690SS 8
BHG625SS / BHG695SS 9
BHG720SS / BHG725SS / BHG790SS 10
Electricaldetails 11
Gasdetails 11
Gas hob surface layout 11 - 12
Using the gas hob 13 - 15
Beforefirstuse 13
Switchingthehobon 13
Automatic ignition with flame failure device 13 - 14
Energysavingtips 14
Cleaning 15 - 16
Cleaning the hob top 15
Aftereachuse 15
Cleaning the hob burners 15 - 16
Maintaining the cast iron pan stands 16
Installation 16 - 27
Positioning 17-18
Unpacking the appliance 18
Installing the appliance 18 – 21
Gasconnection 21
Ventilation requirements 22
Gas Safety (Installation and Use) Regulations 23
Gas Adjustment (Conversion to LPG) 24
Minimum flow adjustment for hob gas taps 25
Gastapmaintenance 26
Electricalconnection 27
Replacing the mains supply cable 27
My appliance isn’t working correctly 28
Baumatic consumables 29
Contactdetails 31

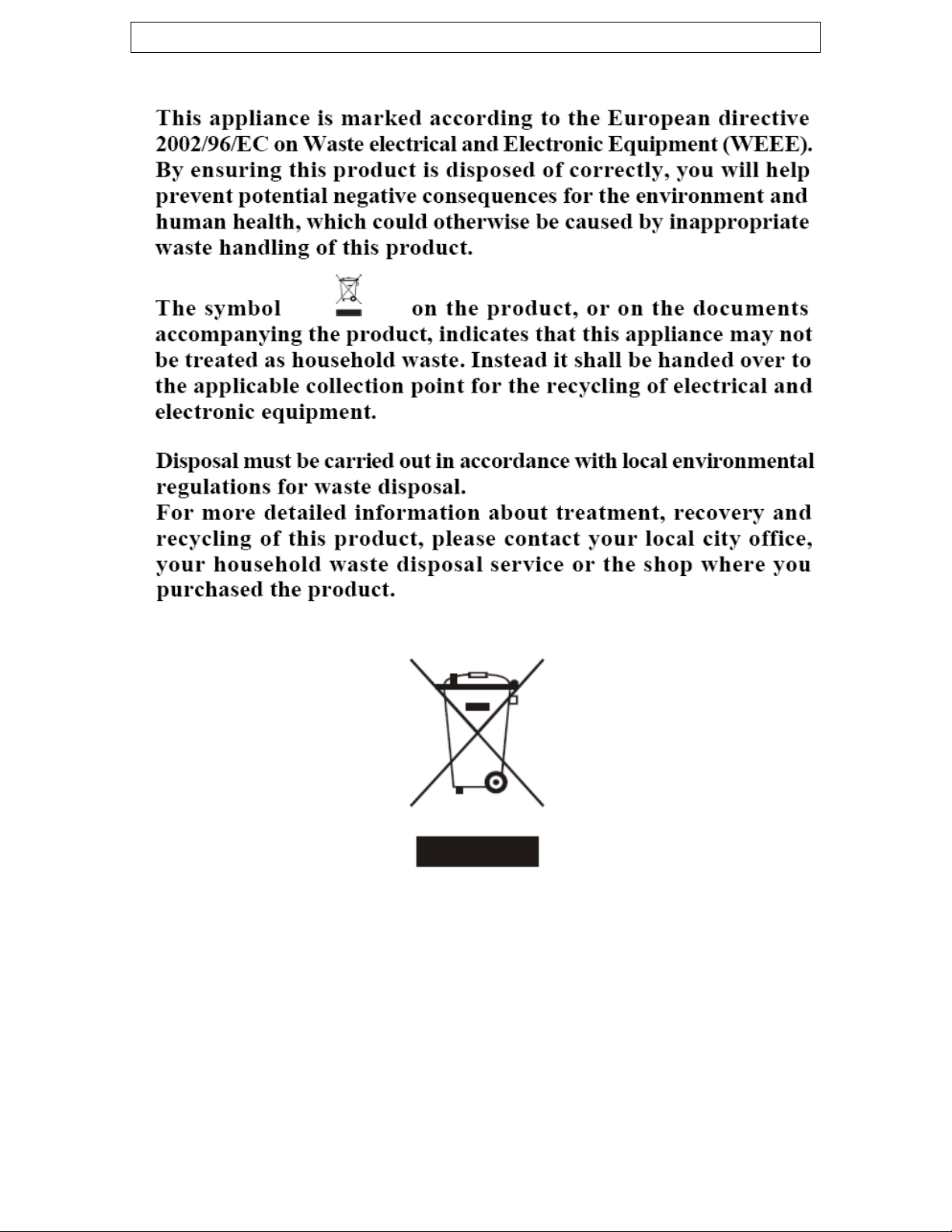

Environmental note
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
all packaging material with due regard for the
environment.
oPlease discard
4

5
Important safety information
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
ooklet, please contact the Baumatic Advice Line.
ehold use and for
ambient temperature of the
scolouration at
of this temperature limit, will be the liability of
Guarantee. The foregoing does not
t of Baumatic Ltd.
ld not use this appliance to store items on or as a work
kept away
atic service
rs or their authorised service agent.
b
General Information
This appliance is designed for domestic housothe cooking and frying of domestic foodstuffs.
oIMPORTANT: The adjacent furniture and all materials used in
the installation must be able to withstand a minimum
temperature of 85°C above the
room it is located in, whilst in use.
oCertain types of vinyl or laminate kitchen furniture are
particularly prone to heat damage or di
temperatures below the guidelines given above.
oAny damage caused by the appliance being installed in
contravention
the owner.
oYour new appliance is guaranteed against electrical or
mechanical defects, subject to certain exclusions that are noted
in Baumatic’s Conditions Of
affect your statutory rights.
oThe use of this appliance for any other purpose or in any other
environment without the express agreemen
will invalidate any warranty or liability claim.
oYou shou
surface.
oNo modifications to the appliance are permitted by Baumatic Ltd.
oYou should not store or place flammable or highly flammable
liquids/materials on top of or near the appliance. Items made
from aluminium, plastic or plastic film should also be
from the appliance, as they may fuse to the surface.
oRepairs may only be carried out by Baum
enginee

6
hild Safety
ce at any time. During and after use, all
surfaces will be hot.
se ensure that they are kept under close supervision
at all times.
uld only be allowed to utilise the appliance
when supervised.
eneral Safety
e installed and connected by a
GASSAFE registered installer.
uild the appliance into, meet with the relevant
standards.
uring use
hob surface when it
is delivered should be removed before use.
the appliance, otherwise
there is a risk of burns being caused.
t with the hob surface when it is hot or any hot
cookware.
ng with fat and oil the appliance should
not be left unattended.
sure that all of the cooking zones are switched off after
use.
C
oBaumatic strongly recommend that babies and young children
are prevented from being near to the appliance and not allowed
to touch the applian
oIf it is necessary for younger family members to be in the
kitchen, plea
oOlder children sho
G
oThe appliance should only b
oCare should be taken to ensure that the units and work surfaces
that you b
D
oAny film or stickers that are present on the
oCare should be used when utilising
oYou should not allow the electrical connection cables to come
into contac
oIf fat and oil overheats, then it can ignite extremely quickly. For
this reason, when cooki
oMake

7
leaning
Cleaning of the hob should be carried out on a regular basis.
appliance, it
should be disconnected from the mains and cool.
using this appliance and when
following the cleaning procedure.
other high pressure
cleaning equipment to clean the appliance.
ion of this booklet that refers to
installation.
a result of improper
use or installation of this appliance.
ion
Vehicle, the requirements of N 721 MUST be followed.
t this appliance is
installed on any type of marine vessel.
eclaration of conformity
This appliance complies with the following European Directives:
sion
/128/EEC This appliance is suitable to come in
-2004/108/CE Electromagnetic compatibility
liance must be used by a
ained person for domestic purposes only.
C
o
oIMPORTANT: Before attempting to clean the
oGreat care should be taken whilst
oYou should not use a steam jet or any
Installation
This appliance must be correctly installed by a
GASSAFE registered installer, strictly in
accordance with the manufacturer’s instructions
and the relevant British Standards. Please see the
specific sect
oBaumatic Ltd. declines any responsibility for injury or
damage, to person or property, as
oIf the appliance is being used in a Leisure Accommodat
oBaumatic Ltd. DO NOT recommend tha
D
-2006/95/CE General regulations / Low ten
-2009/142/CE Concerning gas appliances
-1935/2004/CE 90
contact with food
The manufacturer declares that the hob is built using certified
materials and requires the appliance to be installed in accordance with
the standards currently in force. This app
tr

8
pecificationsS
BHG6
Width: 560 mm
rs
oLPG conversion jets
20SS / BHG690SS
Product dimensions: Aperture dimensions:
Depth: 510 mm Depth: 480 mm
Width: 600 mm
Height: 40 mm
Product specifications:
o1 x 3.00 kW rapid burner
o2 x 1.75 kW semi-rapid burne
o1 x 1.00 kW auxiliary burner
oFront control operation
Automatic ignitiono
oHeavy duty cast iron pan stands
oFlame failure safety device on each burner
Standard accessories:

9
HG625SS / BHG695SS
roduct dimensions: Aperture dimensions:
Width: 560 mm
eight: 40 mm
roduct specifications:
urner
rs
1 x 1.00 kW auxiliary burner
tion
oFlame failure safety device on each burner
tandard accessories:
ion jets
oWok stand
B
P
Depth: 510 mm Depth: 480 mm
Width: 600 mm
H
P
o1 x 3.80 kW triple crown (wok) b
o2 x 1.75 kW semi-rapid burne
o
oFront control opera
oAutomatic ignition
oHeavy duty cast iron pan stands
S
oLPG convers

10
HG720SS / BHG725SS / BHG790SS
roduct dimensions: Aperture dimensions:
Width: 560 mm
eight: 40 mm
Product specifications:
wok) burner
rs
1 x 1.00 kW auxiliary burner
tion
Flame failure safety device on each burner
tandard accessories:
ion jets
oWok stand
B
P
Depth: 510 mm Depth: 480 mm
Width: 700 mm
H
o1 x 3.80 kW triple crown (
o1 x 3.00 kW rapid burner
o2 x 1.75 kW semi-rapid burne
o
oFront control opera
oAutomatic ignition
oHeavy duty cast iron pan stands
o
S
oLPG convers

11
lectrical details
Supply Connection: tched fused outlet with
gap)
ains Supply Lead: 3 core x 0.75mm² (Type RR-F <HAR> marked)
as details
Alternative LPG G30 (28-30/37 mbar)
good idea to record
is information before you install your appliance.
odel Number ……………………………….
erial Number ……………………………….
ate of Purchase ……………………………….
as hob surface layout
HG620SS / BHG690SS
ary burner
= Control panel
E
Rated Voltage: 220 - 240 Vac 50 / 60 Hz
3A (double pole swi
3mm contact
Max Rated Inputs: 0.0008 kW
M
G
Connection: Rp ½ (ISO R7)
Type: Natural Gas (20 mbar)
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The rating plate of your hob is located on
the underneath of the appliance. Therefore it is a
th
M
S
D
G
B
A = 3.00 kW rapid burner
B= 1.75 kW semi-rapid burner
C= 1.00 kW auxili
D

12

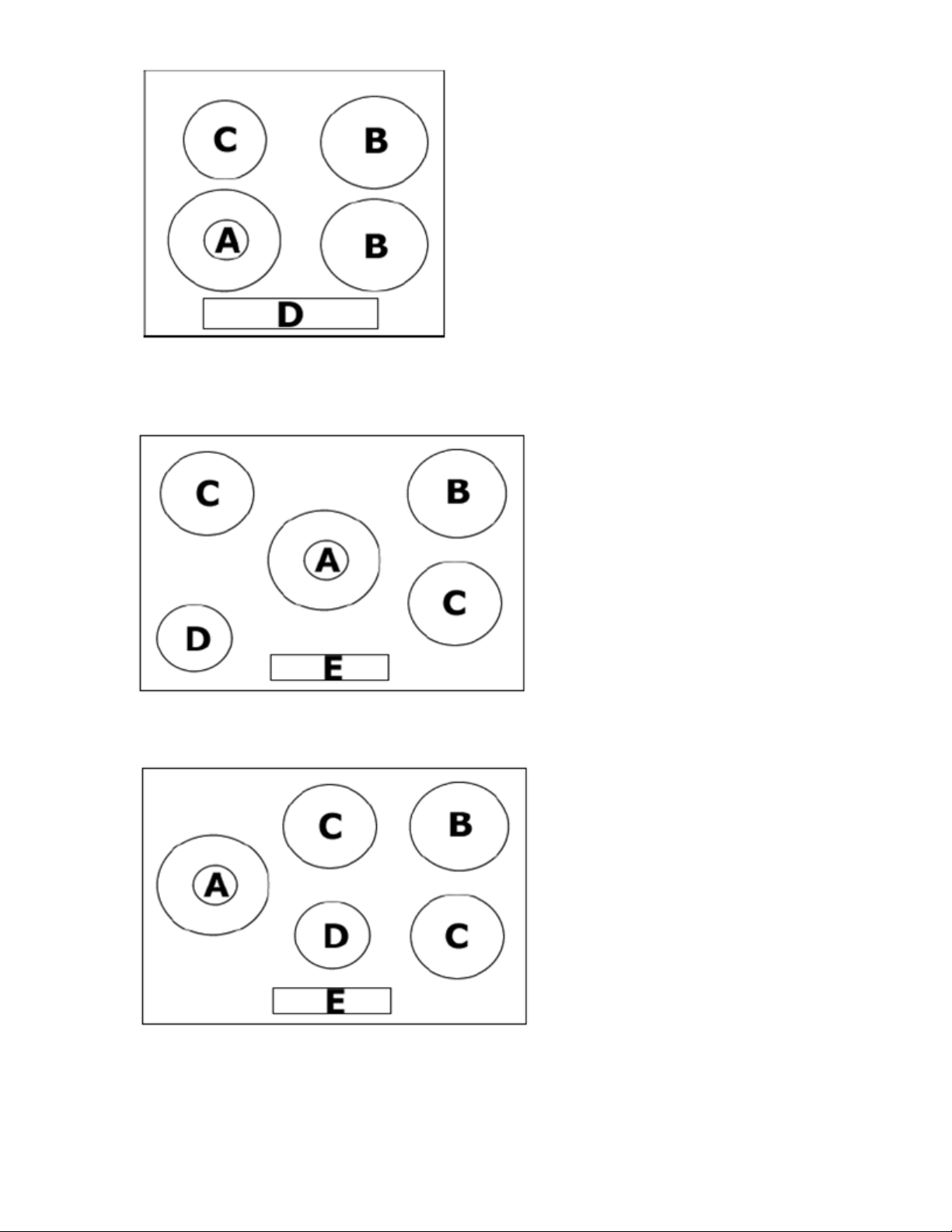

HG625SS / BHG695SS
triple crown (wok)
B = 1.75 kW semi-rapid
ary burner
= Control panel
HG720SS / BHG790SS
crown
semi-rapid
auxiliary
= Control panel
BHG725SS
crown
semi-rapid
auxiliary
= Control panel
B
A = 3.80 kW
burner
burner
C= 1.00 kW auxili
D
B
A = 3.80 kW triple
(wok) burner
B= 3.00 kW rapid burner
C= 1.75 kW
burner
D= 1.00 kW
burner
E
A = 3.80 kW triple
(wok) burner
B= 3.00 kW rapid burner
C= 1.75 kW
burner
D= 1.00 kW
burner
E

13
sing the gas hobU
Before first use
IMPORTANT: You should clean the hob surface (see
symbols will appear on the control panel, next to each
“Cleaning and maintenance” section).
Switching the hob on
The following
control knob:
= gas off
Large flame: maximum setting
Small flame: minimum setting
The minimum setting is at the end of the anti-clockwise rotation of
ns must be selected between the maximum and
lect a knob position between the maximum and off
xt to the control knob will
the flow of gas to the burner head in
e going out.
u wish to light and
nob depressed, the automatic ignition for
control knob for 20 seconds after the
uired
setting between the maximum and minimum setting symbols.
othe control knob.
All operation positioominimum position.
Never seoposition.
The symbol on the control panel, neoindicate which gas burner it operates.
Automatic ignition with flame failure safety device
The appliance is fitted with a flame failure safety device on each
burner, which is designed to stop
the event of the flam
To ignite a burner:
Press in the control knob of the burner that yooturn it anti-clockwise to the maximum position.
If you keep the control kothe burner will operate.
You should hold down theoflame on the burner has lit.
oAfter this 20 second interval, turn the control knob to your req

oTo switch the burner off, turn the control knob fully clockwise to the
gas off position.
oIn case of power failure, the burners can be lit by carefully using a
match.
Energy saving tips
PANSBURNERS
Minimum
diametre
Maximum
diametre
Wok 220 mm 260 mm
Rapid 180 mm 220 mm
Semi-rapid 120 mm 200 mm
Auxiliary 80 mm 160 mm
oThe diametre of the bottom of the pan should correspond to that of
the burner.
oThe burner flame must never extend beyond the diametre of the
pan.
oUse flat bottomed pans only.
oWhen possible, keep a lid on the pan whilst cooking.
oCook vegetables with as little water as possible, to reduce cooking
times.
IMPORTANT: Always place pans centrally over the hob burners and
position them so that the handles cannot get accidentally caught or
knocked off. You should also make sure that the handle is not over one
of the other hob burner flames.
14

Cleaning
Cleaning operations must only be carried out when the
hob is cool.
The appliance should be disconnected from your mains
supply before commencing any cleaning process.
Cleaning the hob top
Any residues that are left on the hob top surface from cleaning
agents will damage it. You should remove any residues with
warm soapy water.
Abrasive cleaners or sharp objects will damage the hob surface;
you should clean it using warm soapy water.
Although it is easier to clean some deposits whilst the
hob surface is still warm. Make sure that the hob surface,
pan supports and hob burners have all cooled sufficiently
before you attempt to touch them.
After each use
oRemove the pan stands and wipe the appliance over with a soft,
damp cloth that has been put into warm soapy water. The cloth
should be wrung out after being taken out of the soapy water.
oDry the appliance by rubbing the surface with a soft, clean cloth.
oWe would recommend that an appropriate stainless steel cleaner
and polish is regularly used on the stainless steel surfaces of this
appliance.
Cleaning the hob burners
The hob burners should be cleaned once a week or more frequently if
they get soiled.
oIMPORTANT: Make sure that the hob surface, pan stands and
hob burners have cooled before you attempt to touch them.
oRemove the hob burners by pulling them upwards and away
from the hob top.
oSoak them for about ten minutes in hot water and a little
detergent.
15

oAfter cleaning and washing them, wipe and dry them carefully.
oBefore placing the burners back on the hob top, make sure that
the gas jet is not blocked.
oIMPORTANT: Make sure that you reassemble the burners in the
original way.
Maintaining the cast iron pan stands
oIMPORTANT: Make sure that the hob surface and pan stands
have cooled before you attempt to touch them.
oWipe the pan stands over with a soft, damp cloth that has been
put into warm soapy water. The cloth should be wrung out after
being taken out of the soapy water.
oUsing a paper towel, thoroughly dry the pan stands.
oTo maintain the appearance of the cast iron pan stands, we
would recommend that you rub a small amount of olive oil into
the pan stands, after you have finished cleaning them.
Installation
The installation must be carried out by a GASSAFE
registered installer, in accordance with the current
version of the following.
oGas Safety Regulations (Installation & Use)
oBuilding Regulations (issued by the Department of Environment)
oBuilding Standards (Issued by the Scottish Development
Department)
oIEE Wiring Regulations
oElectricity at Work Regulations BS 6172
oInstallation of Domestic Gas Cooking Appliances (if necessary,
BS 5482 Installation of Domestic LPG Appliances)
oBS 5440 Installation of Flues and Ventilation for Gas Appliances
oBaumatic Ltd Installation Instructions
16

Positioning
The adjacent furniture must be able to withstand a
minimum temperature rise of 85°C above the ambient
temperature of the room it is located in, during
periods of use.
*600 mm (BHG620SS / BHG690SS / BHG625SS / BHG695SS)
* 700 mm (BHG720SS / BHG725SS /BHG790SS)
oThis appliance can be located in a kitchen, a kitchen diner or a bed
sitting room. IMPORTANT: The appliance must not be installed in a
bathroom or shower room.
This appliance is classified as Class 3 and therefore is to be built into a
kitchen unit (depending on size) or 600mm worktop, providing the
following minimum distances are allowed:
oThe edges of the hob must be a minimum distance of 55 mm from
a side or rear wall.
o700 mm between the highest point of the hob surface (including the
burners) and the underside of any horizontal surface directly above
it.
o400 mm between the hob surface, providing that the underside of
the horizontal surface is in line with the outer edge of the hob. If
the underside of the horizontal surface is lower than 400 mm, then
it must be at least 50 mm away from the outer edges of the hob.
17

o50 mm clearance around the appliance and between the hob
surface and any combustible materials.
Unpacking the appliance
When unpacking the appliance please check that the following items
are contained within the packaging:
1 x Baumatic hob
Pan stands
Burner assemblies
Instruction manual
Baumatic warranty card
Fixing screws
Clamps
Sealing strip
LPG conversion jets
Self-adhesive label for amending the gas category on the appliance’s
rating plate (required if the LPG conversion jets are used).
Installing the appliance
BHG620SS / BHG690SS
18

BHG625SS / BHG695SS
BHG720SS / BHG725SS / BHG790SS
oCut a hole in the worktop that corresponds with the relevant
drawing for your hob on pages 18 - 19.
19

All models
oIMPORTANT: You must have a gap of at least 25 mm between
the underneath of the appliance and any surface that is below it.
oCarefully turn the hob upside down and place it on a cushioned
mat.
oApply the sealing strip (A) provided around the edge of the
appliance.
oThe protective covering must be removed from both sides.
oDo not leave a gap in the sealing agent or overlap the thickness.
oIMPORTANT: Do not use a silicon sealant to seal the appliance
against the aperture. This will make it difficult to remove the hob
from the aperture in future if it needs to be serviced.
(A) Sealing strip
(B) Clamp
(C) Screw
20
