Baumatic BHI100-AUS User manual

BHI100-AUS
Multi-Function Induction Hob
Baumatic*

User Manual for your Baumatic
Baumatic 3
BHI100-AUS
Thank you for purchasiong the Baumatic induction hob . Please read this instrution
manual carefully before using and keep it cautiously in order to refer to in future.

TABLE OF CONTENTS
IMPORTANT SAFEGUARDS
AD DITIONAL SAFEGUARS
Product Introduction .
Designations of parts .
Performance Parameters.
Operation Instructions.
Suitable cookware.
Cleaning and Maintenance ....
Trouble shooting.
Special Declaration.
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be
followed including the following. This appliance does not take into consideration
the following situations: — use by children or disabled people without supervision;
— children treating it as a toy.
1. N e v er heat foods in sealed containers, such as compressed products, cans, or coffee
pots, to avoid explosion caused by heat expansion.Indoor use only.
2. T o avoid affecting product performance and to prevent injury, do not heat empty pots.
When in use, do not leave the appliance without supervision for a long time.
When leaving the appliance without supervision, make sure there is enouqh
water in the pot.
3. D o not heat iron items on the induction cooker heating plate to avoid danger
caused by high temperatures.
4 To avoid injuries such as scalding, do not let children operate the
appliance alone.
5-To avoid danger, do not insert any foreign object, such as iron wire, nor block
the air ventilation opening or air entry port.
6. T o avoid danger, do not place paper, aluminium foil, cloth or other unsuitable
articles onto the induction cooker heating plate for indirect heating.
7. W hen using the induction cooker, do not put it on any metal platform (such as iron,
stainless steel, aluminium), or place a non-metal pad less than 10cm thick on
the heating plate.
8. T o avoid danger, if the power cord is damaged, have it replaced by agents of
department or specialized personnel from a similar department.
9. D o not touch the cooker plate with sharp tools to avoid cracking or damaging the plate.
If cracking is found on the cooker plate, turn off the appliance to avoid any electrical
shock that might occur.
10. D o not directly rinse this induction cooker under water. Do not spill water or soup into
the internal parts of the induction cooker.
11. T o avoid accidents, do not place the induction cooker, when in use, on a
gas stove (the magnetic lines can heat the metal parts of the gas stove).
12. T h e cooker cannot be overloaded.Overloading the plate may damage the plastic
cover and cooker plate.
13. T h e utensils provided for the induction cooker can only be used for cooking with it.
These cooking utensils cannot be used on both induction cooker and gas stove.
1

14. U n p l u g the power cord from the outlet after use to avoid fire and/or
damaging the electronic components, caused by prolonged lectrical connection.
15. P e op l e with heart pacemakers should consult a doctor. Only use the
appliance after confirming that it does not affect the pacemaker.
1 6 . T 0 avoid damage, avoid causing impacts on the heating plate. If damaged, please
stop using it and take it to a maintenance and repair site to have it replaced.
17. W hen using the induction cooker, place it horizontally and allow at least 10cm of free
space between the sides and back of the induction cooker and the wall. Do not use the
induction cooker in narrow spaces. To avoid hindering release of heat, donotcover •
the ventilation opening.
18. D o not use the induction cooker near a gas stove, kerosene stove, gas cooker or in
any space with an open fire or an environment with high temperature.
19. Do not use the induction cooker by putting it onto a carpet, tablecloth or thin paper to
avoid blocking the air inlet opening or air outlet opening, which results in
influencing heat emission.
20. W hen using the induction cooker or after use, please keep it clean. Protect the induction
cooker from bugs, dust and humidity. Avoid letting cockroaches etc fall into the
internal parts of the induction cooker and causing a short circuit of the electrical
board. When not in use for a long period, please clean it and put it into a plastic bag to
store it.
21 . W hen operating the appliance or after moving the pot, the cooking area will remain
hot for a period of time. Do not touch it, be careful of scalding caused by the high temperature.
22. M etal objects, such as knives, forks,spoons and lids, should not be put on the surface
of the cooking area, since they can become heated.
23. P l e ase use a dedicated and high quality power outlet, with high power rating, equal to
or above 10A. Do not use poor quality outlets. Do not share the power outlet with electrical
appliances with high power ratings,such as air conditioners,electrical stoves etc to
avoid fires caused by overburdening the outlet.
Save These Instructions.
ADDITIONAL SAFEGUARDS
DO NOT OPERATE APPLIANCE IF THE LINE CORD SHOWS ANY DAMAGE, OR
IF APPLIANCE WORKS INTERMITTENTLY OR STOPS WORKING ENTIRELY.
1. A short power-supply cord should be used to reduce the risk resulting
from becoming entangled in or tripping over a longer cord.
2. Longer extension cords are available and may be used if care is
exercised in their use.
3. If a longer extension cord is used:
1) The marked electrical rating of the cord set or extension cord should be
at least as great as the electrical rating of the appliance;
2) The cord should be arranged so that it will not drape over the countertop
or tabletop where it can be pulled on by children or tripped over unintentionally.
4. T h e hotplate after use ceramic plate surface will produce heat, do not touch!
5.If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard.
6.Metallic objects such as knives, forks, spoons and lids should not be placed
on the hotplate since they can get hot.
2

Product Introduction
Baumatic BHI100 series multi-function induction hob .with
micro-computerized control and complete functions,are able to meer
warious kinds of cuisine demands by electromagnetic heating,really
the optimal choice.
Designations of parts
Airvent
—
Model
Applied
voltage/frequency
Rated
power
Dimension
(mm)
Weight
(kg)
BHI100-AUS
220-240V ~ 50/60HZ
2000W
340*280*60
2.33
Operation Instructions
1. Put the pot on the cooker
Put the pot which has food on the center of the ceramic plate.
Make sure the air vent and the air entry are not blocked and there are
not metallic objects around the cooker
3

2. Plug in
• The“ON/STANDBY” indicator and the LED indicator flashes and the display
shows”0000”, indicating that the unit is in standby mode.
3. Turn on
• When the “ON/STANDBY” button is pressed, the buzzer sounds. The “ON/STANDBY”
indicator lamp light up, t he induction hotplate finishes self-checking, and ready for
heating.
4. Function
• Under the state of 3, press the button, the buzzer sounds, the
‘‘ON/STANDBY” and “W” indicator lamp light up, the hotplate entering the heating
working state.Then press the “TEMP” button, the buzzer sounds, the “ON/STANDBY"
and “°C” indicator lamp light up, the hotplate entering the temperature
working state.
• Under the heating or temperature working state, the default power level
shall be level 7, you can make a regulation by pressing the “+” or button.
5. Timer:
• In working state, after the "Timer" key is pressed, the buzzer gives out a
sound, the “MIN” indicator lamp light up, the nixie tube flashes and displays
the “ 0:00 ’’.indicating that the induction cooker enters timing working
state. Each time the "+” or is pressed, the time can increase or
decrease by 1 minute. If it is held, the time will increase or decrease
minutes quickly with 10 minutes as an increment.
• After timing period is set, the time stabilizes after the nixie tube flashes for
5 seconds to confirm the period to be effective.
• In the timing working state, pressing the timer button again will cancel the
timing.
• When the working time reaches, the cooker will shut down automatically.
• The degault time of each level are as follow:
Heating level
1 2 3
4 5 6
7
8 9
Defalut time for
turn off(hours)
2 2 2
2
2 2
2 2
2
6-Stop heating
• After using, please press the “ON/STANDBY” button, the induction hotplate
will stop heating.
• The fan will run for a while to cool the induction hotplate down.
4

Suitable cookware
Iron oil frying Stainless steel por Iron pan Iron kettle
pan
Enamel stainless Enamel cooking Iron plate
steel kettle utensil
1. Please use the pots sold along with the unit by recommend. It is better
not to use other alternatives so as to avoid any unfavorable influence
on the operational performance. If using other pots, please observe the
following conditions:
• Requirement for pot materials: containing magnetic inducting materials;
• Shape requirement: plat bottom, with the diameter within the range of
12 cm and 18 cm.
2. After first use, some white spots would appear at the bottom of the pot.
This is normal. Please pour some vinegar into the pot, heat it at about
60-80°C, then wipe the spots away with brush.
3. The induction cooker can identify mostly pot except the non-magnetism
steels.
4. If the have no cookerware or the unsuitability cookerware. The buzzer
sounds about 10 seconds, it will turn off.
Please pull out the plug and wait the remain heat is cool before maintenance.
1. Ceramic panel and control panel
Slight stains: Please wipe off plate with soft moistened cloth .
Tough stains: Please clean with soft moistened cloth dipped in little
toothpaste or neutral liquid cleaner and clean with soft moistened cloth
until no residue exists.
During the cleaning, never clean the cooker surface with a rigid brush.
2. The induction cooker body shall be cleaned lightly with soft dry cloth.
The dust around the air entry and air outlet can be cleaned with a
flexible brush or cleaner.
5

Trouble shooting
1. Power cord replacement
If the supply cord is damaged, it must be repaired by the manufacturer or
authorized service agent.
2. Trouble shooting
Problem
Possible cause
After power is supplied, the
“ON/STANDBY” indicator lamp
fails to light up.
■ Whether the plug is inserted tightly.
■ Whether the switch, socket, fuse and power cord are
in good condition.
The “ON/ STANDBY"
indicator lamplights up,
but heating does not start.
■ Whether the pot materials are acceptable.
■ For other reasons, please contact the special
maintenance department.
Heating stops suddenly
during operation.
■ Whether the ambient temperature is too high.
■ Whether the air entry or the air vent is blocked.
■ Whether the timing period reaches.
■ The system protection functions, and conduct
energizing test.
Code of failure
E3, E6
■ Wait a moment and press the “ON/ STANDBY ”
button when the temperature of the hotplate becomes
normal, the induction hotplate will operate as usual.
E7> E8
■ Wait a moment when the voltage becomes normal,
the induction hotplate will operate as usual.
El > E2,
E4> E5>
Eb> EC
■ Please contact the special maintenance department.
Special Declaration
All the contents in this material have been subjected to careful check. For any
mistakes and omissions in printing or misunderstanding of the contents, the
company keeps the right to interpretation.
Addition: any technical improvements shall be placed in the revised manual
without notice; for any changes in appearance and color, those of the actual
product shall prevail.
6

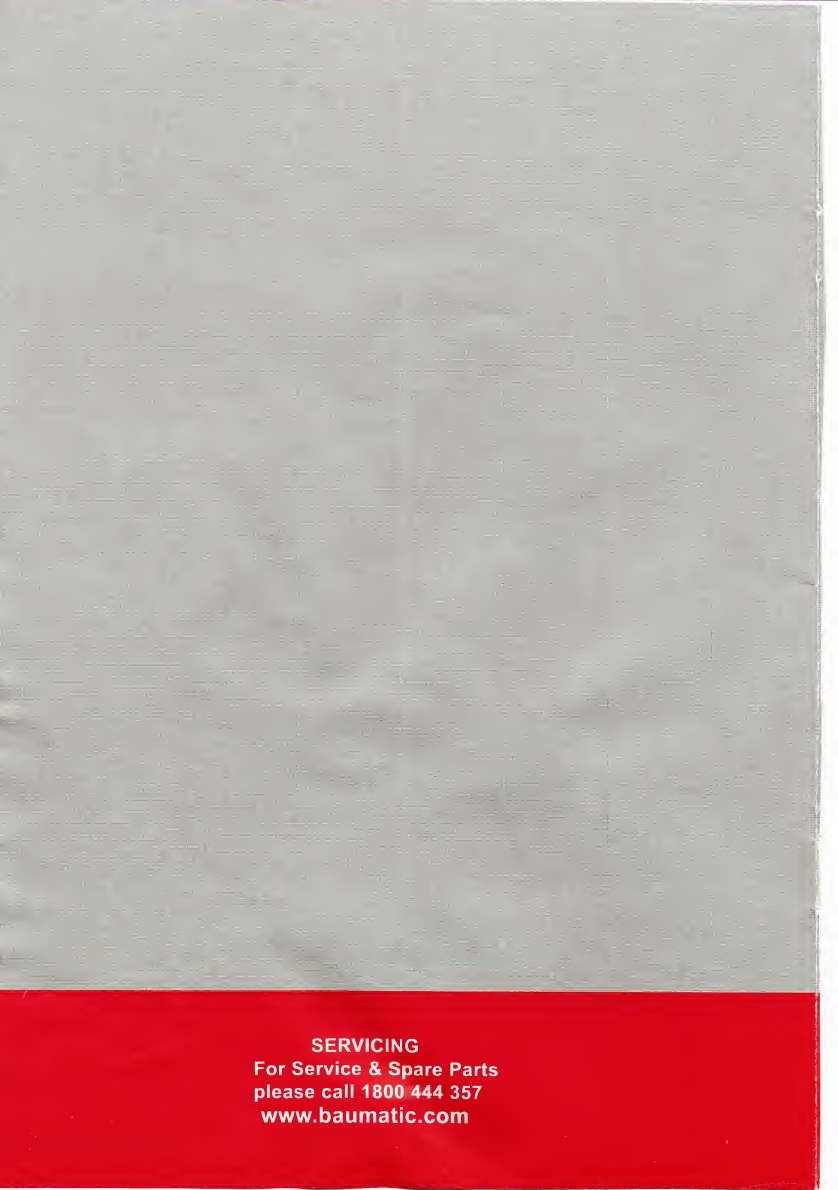

SERVICING
For Service & Spare Parts
please call 1800 444 357
www.baumatic.com
