Baumatic BO455TS User manual

1
BO455TS
46 cm compact
multifunction oven

User Manual for your Baumatic
BO455TS
46 cm High, compact multifunction
built in oven
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
GS 11/07/12
2

3
Contents
Environmentalnote 4
Important safety information 5–7
Specifications 8-10
Product and aperture dimensions 8
Productspecifications 8-9
Controlpanel 10
Usingyouroven 11-21
Beforefirstuse 11
Initial start up and setting the operating language 11-12
Settingthetimeofday 12
Turning the appliance on 12
Demonstrationmode 12
Theovenlight 13
Thesafetylock 13
Setting the minute minder 14
Setting the cooking time function 14-15
Setting the end of cooking time function 15
Setting the start and end of cooking time function 16
Cancelling a timer function 17
Ovenfunctions 17-19
Selecting a cooking function and temperature 19-20
Residualheat 20
Preheating 20
Cooking guidelines 20-21
Warnings 21
Auto-recipes 22-25
Selecting a preset or saved personal recipe 22-23
Preset recipe table 23-24
Savingapersonalrecipe 24
Deletingpersonalrecipes 25
Cleaning and maintenance 25-28
Removing the oven door for cleaning 26-27
Replacing the oven bulb 28
Installation 29-33
Electricalconnection 29
Installing the oven into the kitchen cabinet 30-31
Ventilation requirements 32-33
My appliance isn’t working correctly 33-35
Baumatic consumables 36
Contactdetails 37

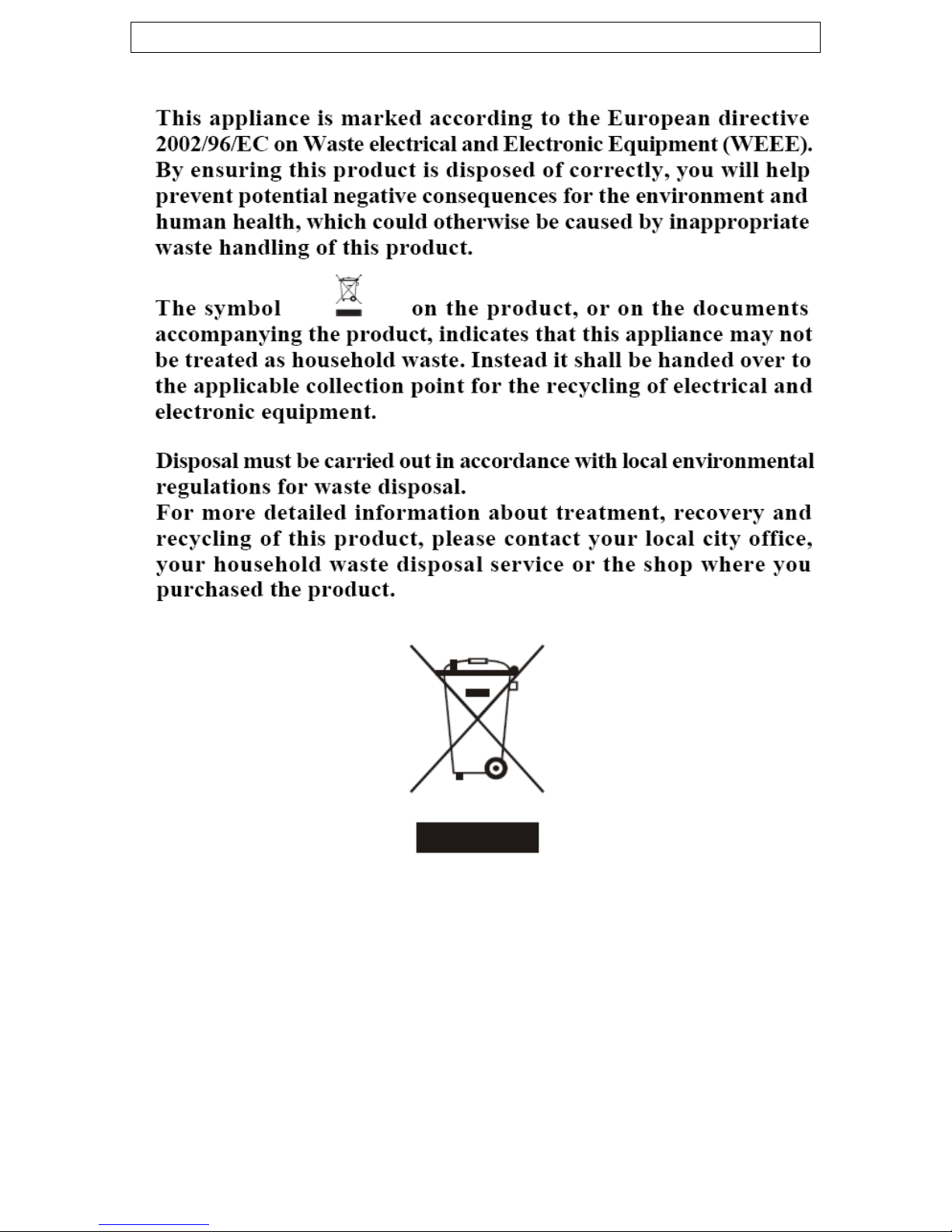

Environmental note
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
all packaging material with due regard for the
environment.
oPlease discard
4

5
IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
ooklet, please contact the Baumatic Advice Line.
eneral Information
ambient temperature
scolouration at
han 4mm to the appliance, will be the
ormation given in the installation instructions
t of Baumatic Ltd.
Guarantee. The foregoing does not
affect your statutory rights.
atic Service
Engineers or their authorised service agent.
b
G
oThis appliance is designed for domestic household use and can
be built into a standard kitchen cabinet or housing unit.
oIMPORTANT: The adjacent furniture or housing and all
materials used in the installation must be able to withstand a
minimum temperature of 85°C above the
of the room it is located in, whilst in use.
oCertain types of vinyl or laminate kitchen furniture are
particularly prone to heat damage or di
temperatures below the guidelines given above.
oAny damage caused by the appliance being installed in
contravention of this temperature limit, or by placing adjacent
cabinet materials closer t
liability of the owner.
oFor use in leisure accommodation vehicles, please refer to
the appropriate inf
for this appliance.
oThe use of this appliance for any other purpose or in any other
environment without the express agreemen
will invalidate any warranty or liability claim.
oYour new appliance is guaranteed against electrical or
mechanical defects, subject to certain exclusions that are noted
in Baumatic’s Conditions Of
oRepairs may only be carried out by Baum

6
arning and safety instructions
ill
become hot during use and retain heat after operation.
hild Safety
appliance and not allowed
to touch the appliance at any time.
se ensure that they are kept under close supervision
at all times.
eneral Safety
en it is open, as this can cause damage to the oven
door hinges.
oDo not leave heated oil or fat unattended, as this is a fire risk.
ly on the base of the
oven cavity, or line it with aluminium foil.
to come into contact
with areas on the appliance that get hot.
e appliance to heat the room it is located in or to
dry clothing.
oDo not install the appliance next to curtains or soft furnishings.
e appliance
or result in injury to the person lifting the appliance.
leaning
oCleaning of the oven should be carried out on a regular basis.
using this appliance and when
following the cleaning procedure.
W
oThis appliance complies with all current European safety
legislation. Baumatic do wish to emphasise that this compliance
does not remove the fact that the appliance surfaces w
C
oBaumatic strongly recommend that babies and young children
are prevented from being near to the
oIf it is necessary for younger family members to be in the
kitchen, plea
G
oDo not place heavy objects on the oven door or lean on the
oven door wh
oDo not place pans or baking trays direct
oDo not allow electrical fittings or cables
oDo not use th
oDo not attempt to lift or move cooking appliances by using the
oven door or handle, as this may cause damage to th
C
oGreat care should be taken whilst

7
oIMPORTANT: The appliance must be disconnected from the
fore following the cleaning procedure.
stalled by a
uitably qualified person, strictly in accordance
ith the manufacturer’s instructions.
sibility for injury or
damage, to person or property, as a result of improper
ventilated. If the appliance is going to be used for
prolonged periods of time, then additional ventilation may be
oPlease consult with your qualified installer if you are in any doubt
ntilation that you will require.
uropean Directives:
C regarding “electromagnetic disturbances”
-Regulation (EC) N° 1935/2004 regarding “materials in contact
oThe above directives comply with 93/68/EEC regarding CE
in
accordance with the standards currently in force. This appliance
must be used by a trained person for domestic purposes only.
mains be
Installation
This appliance must be correctly in
s
w
oBaumatic Ltd. declines any respon
use or installation of this appliance.
oHeat, steam and moisture will be created during use of the
appliance, take care to avoid injury and ensure that the room is
adequately
required.
about the amount of ve
Declaration of conformity
This appliance complies with the following E
-2006/95/EC regarding “low voltage”
-2004/108/E
with food”
marking.
oThe manufacturer declares that the oven is built using certified
materials and requires the appliance to be installed

8
pecS ifications
mm
mm Width: 560 mm Depth: 560 mm
oNet oven capacity
o12 oven functions
ment only
on oven
en with fan
fan
t
play (English, German, Dutch, Italian,
nish, Polish and Russian)
Product Dimensions Apertur imensionse D
Height: 445 mm Height: 460 mm MIN
Width: 594
Depth: 557
Specifications
oEnergy efficiency class: A
oGross oven capacity: 35 litres
: 34 litres
:
Light control
Lower ele
Convencti
Half grill
Full grill
Fan oven
Convenction ov
Grill and
Pizza function
Defrost
Prehea
Auto-recipes
oTouch control operation
roLCD full programme
Multi language textodis
French, Portuguese, Spa

9
al recipes
ble thermostat
oTriple-glazed removable door
ing
o1 x Shallow stainless steel baking tray
t shelves for baking trays
ne
Rated Voltage: ble pole switched fused
m contact gap)
:
ains Supply Lead:3 x 1.5 mm²

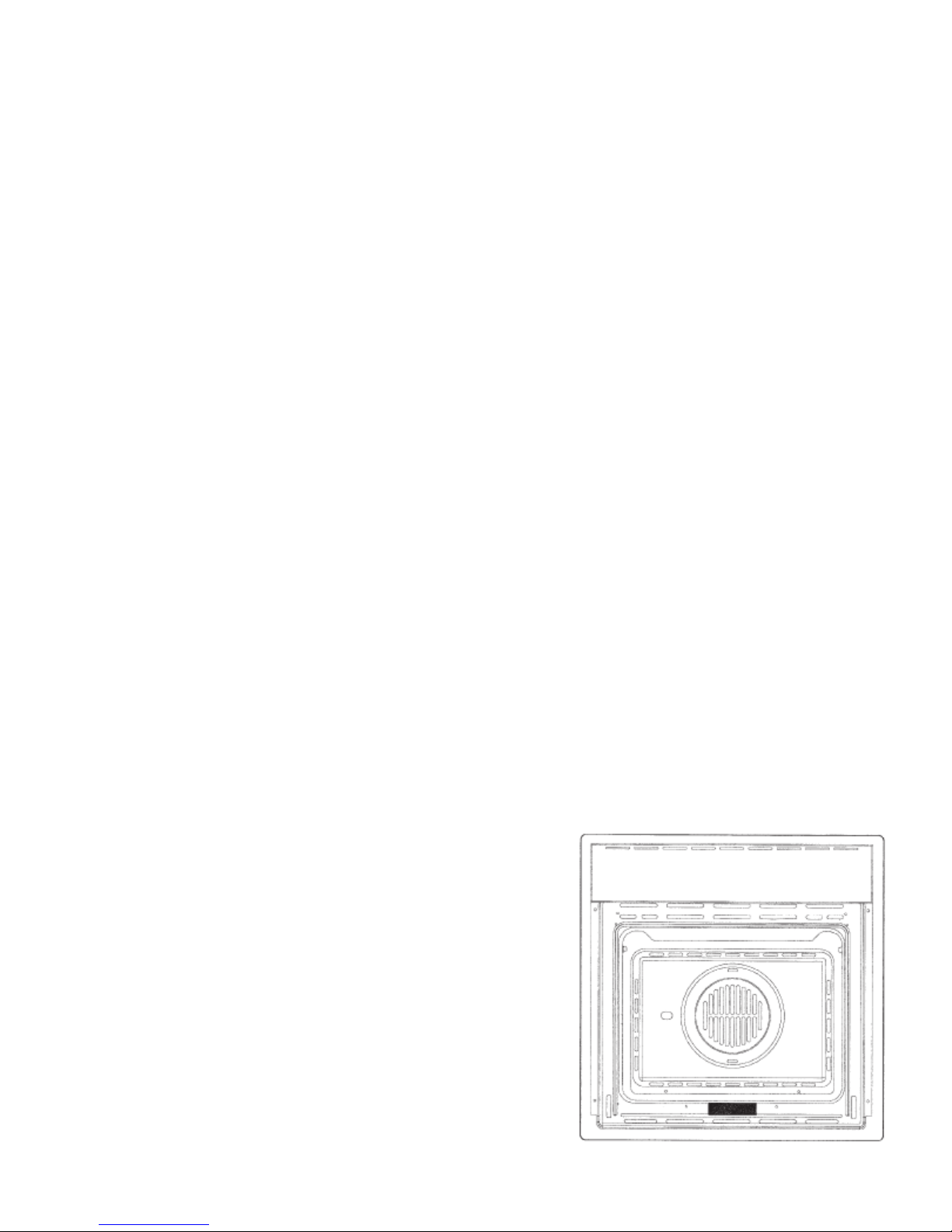

ven Light Bulb:25 W/300°C screw type pygmy
sales invoice. The rating plate for your oven can be
cated by opening the oven door an
ven chassis.
ate of Purchase ……………………………….
o30 preset recipes
o100 person
oElectronically controlla
oCooling fan
oStainless steel cavity
oSafety lock
oMark resistant coat
Standard accessories
o1 x Safety shelf
o1 x Deep stainless steel baking tray
o2 x Suppor
Optional extra
oBPS2 Pizza sto
Electrical details
220 - 240 Vac 50 Hz
Supply Connection: 13A (dou
outlet with 3m
Max Rated Inputs 1.95 kW
M
O
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your
lo d looking on the lower edge of the
o
Model Number ……………………………….
Serial Number ……………………………….
D

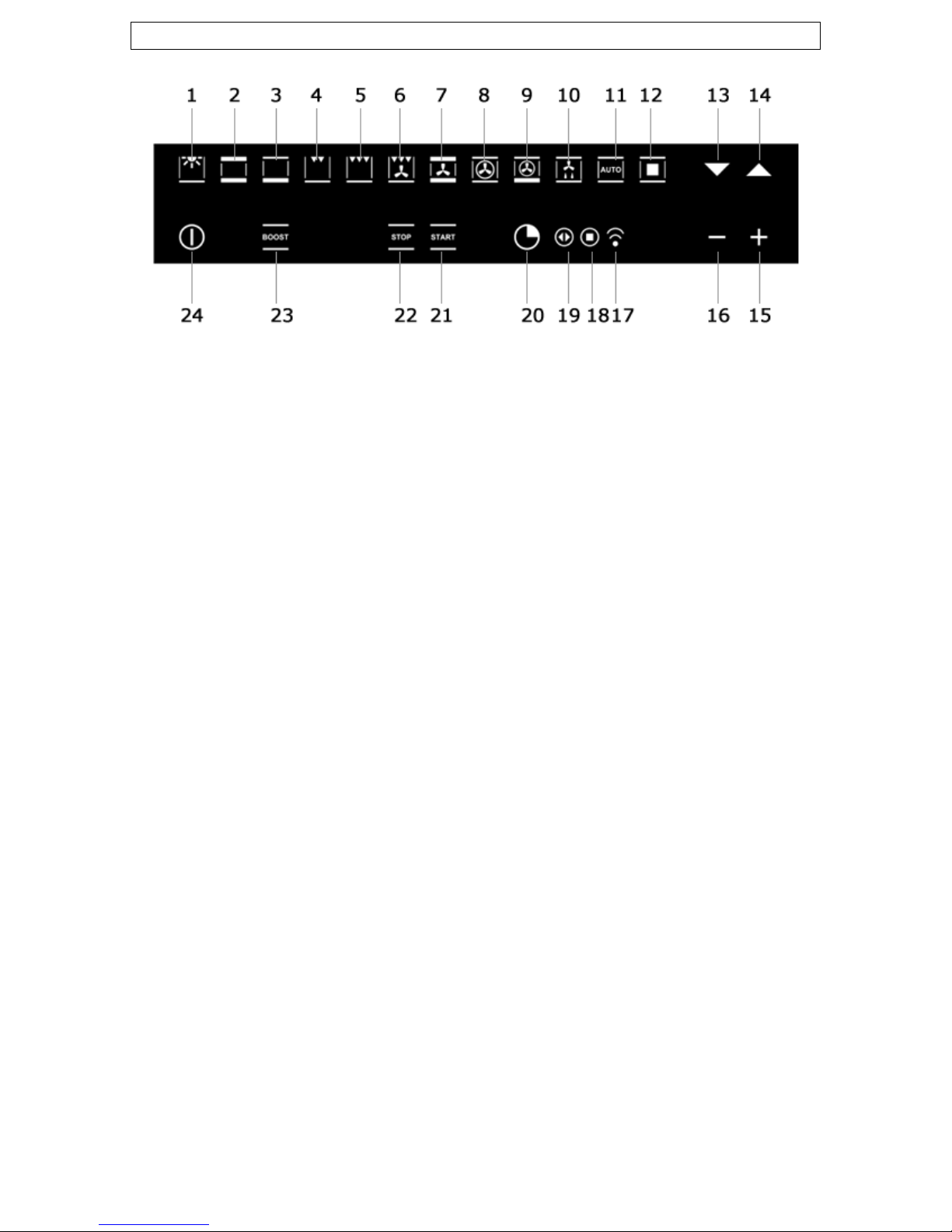

Control Panel
1) Oven light button
2) Convenction oven
10
button
utton
n fan button
n
tton
n
symbol
23) Preheating button
24) Power button
3) Lower element b
4) Half grill button
5) Full grill button
6) Grill and fan butto
7) Convenction oven and
8) Fan oven button
9) Pizza function button
10) Defrost button
11) Auto-recipes butto
12) Confirm button
13) Decrease bu
14) Increase butto
15) Plus button
16) Minus button
17) Minute minder symbol
18) End of cooking symbol
19) Cooking time
20) Timer button
21) Start button
22) Stop button

11 11
sing your ovenU
Before first use
oTo remove any residue from the oven that may have been left
from the manufacturing process, you should select the fan oven
or convenction oven function and set it to its maximum
ectly normal for a smell to be produced during this
at any windows in the room are left
ain in the room whilst the
ld leave the oven on maximum setting for about 30
r a sponge or soft cloth. No abrasive
cavity before connecting your
ed. The installation MUST be completed
Initial st
will light up and ask you to select the operating
langua
French,
the display
press the confirm button to select and set it.
temperature setting.
oIt is perf
process.
oYou should make sure th
open during this process.
oIt is advisable for you not to rem
burning off process is taking place.
oYou shou
minutes.
oAfter the oven cavity has cooled, it should then be
disconnected from the mains supply and cleaned with warm
soapy water, using eithe
cleaners should be used.
oYou should then dry the oven
appliance to your mains supply.
oIMPORTANT: The installation instructions contained in this
booklet MUST be follow
by a qualified installer.
art up and setting the operating language
oWhen the appliance is initially connected to the power supply,
the display
ge.

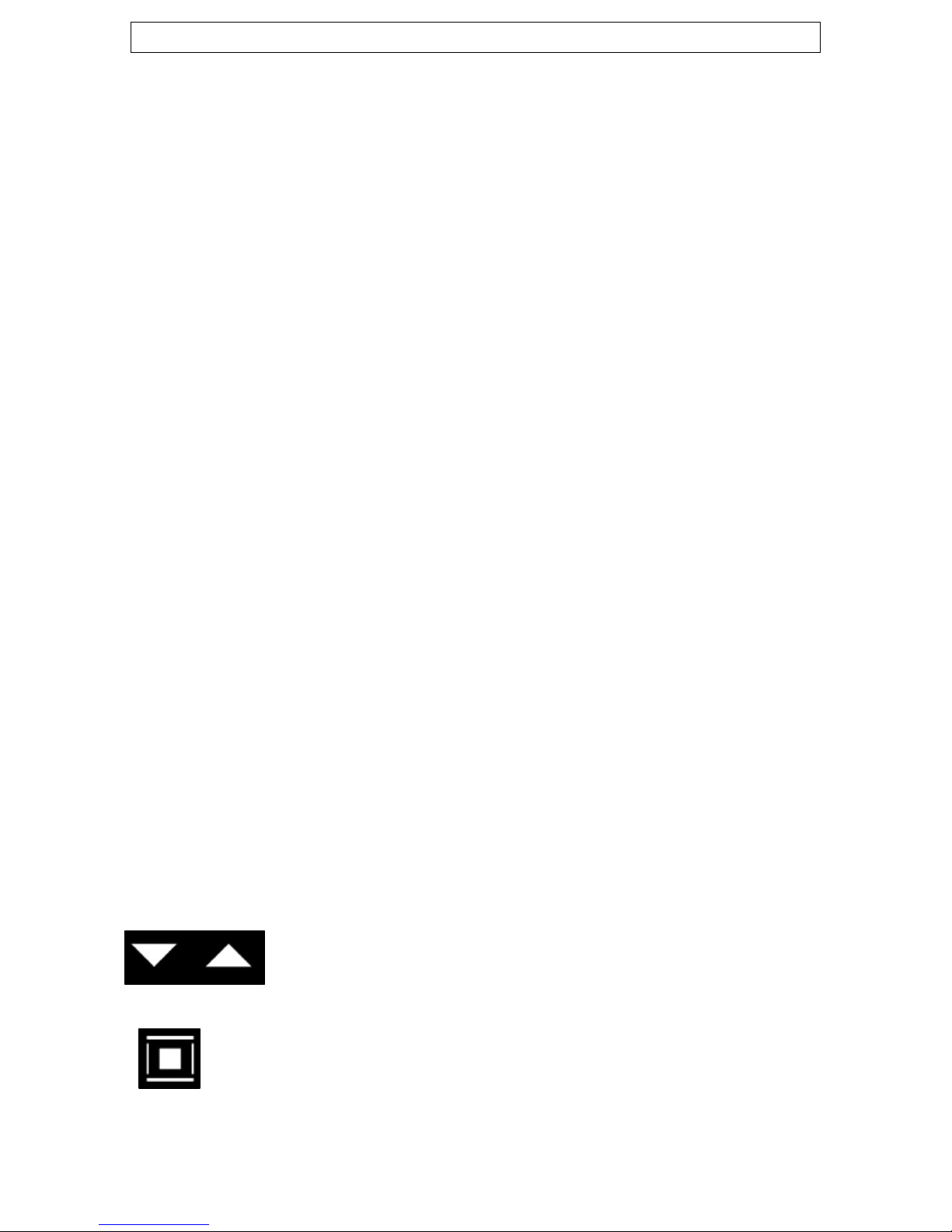

oUse the increase and decrease buttons to scroll
through the list of languages. You can choose
from English, German, Dutch, Italian,
Portuguese, Spanish, Polish and Russian.
oWhen the required language is highlighted on

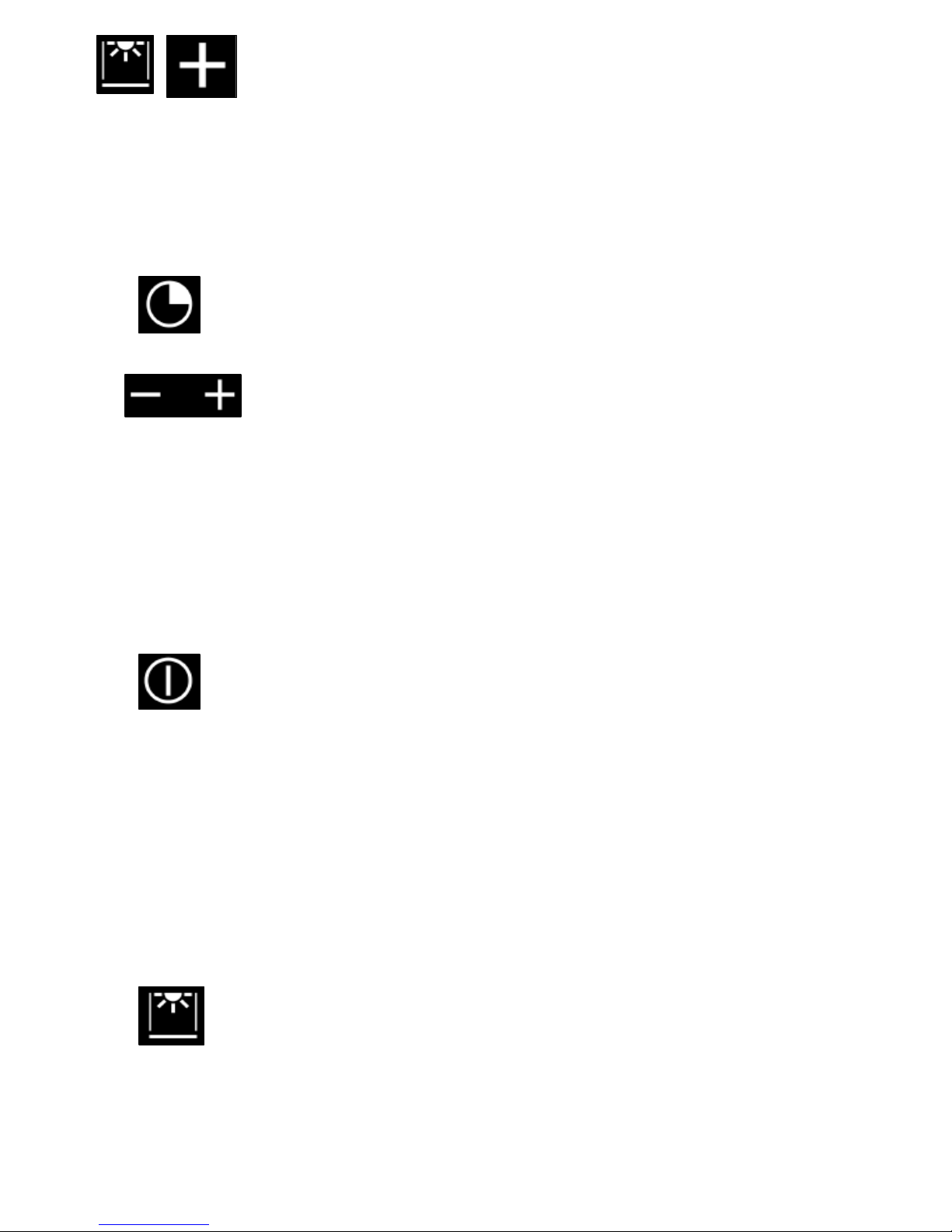

oTo change the operating language press the oven
light button and the plus button simultaneously when
the oven is not in use. You will then be able to set
the required language by following the steps above.
Setting the time of day
oAfter setting the operating language during the initial start up
you can then proceed to set the current time of day which will
appear on the display.
oTo enter the time setting mode, press and hold the timer
button for about 3 seconds. The “:” symbol will flash to
indicate the oven has entered the time setting mode.
oUse the plus and minus buttons to set the current
time of day. When the correct time appears on the
display, release all buttons and in a few seconds the
“:” symbol will remain steady and the time will be set.
Turning the appliance on
oTo switch the appliance on press the power button.
oAfter you have turned the appliance on, if no other buttons are
pressed within 1 minute, the oven automatically switches back
off.
oPress the power button to turn the appliance off after
cooking.
Demonstration mode
oWhenever there is a power failure or the oven is disconnected
from the power supply, when it is switched back on the oven will
automatically enter demonstration mode.
oEach of the control panel icons will light in turn and the display
will show the word “Demo”. The oven cannot be operated while
in this mode.
oTo exit the demonstration mode and use your oven in
normal operation, press and hold the oven light button
for 5 seconds. The oven will then return to normal
operation.
12

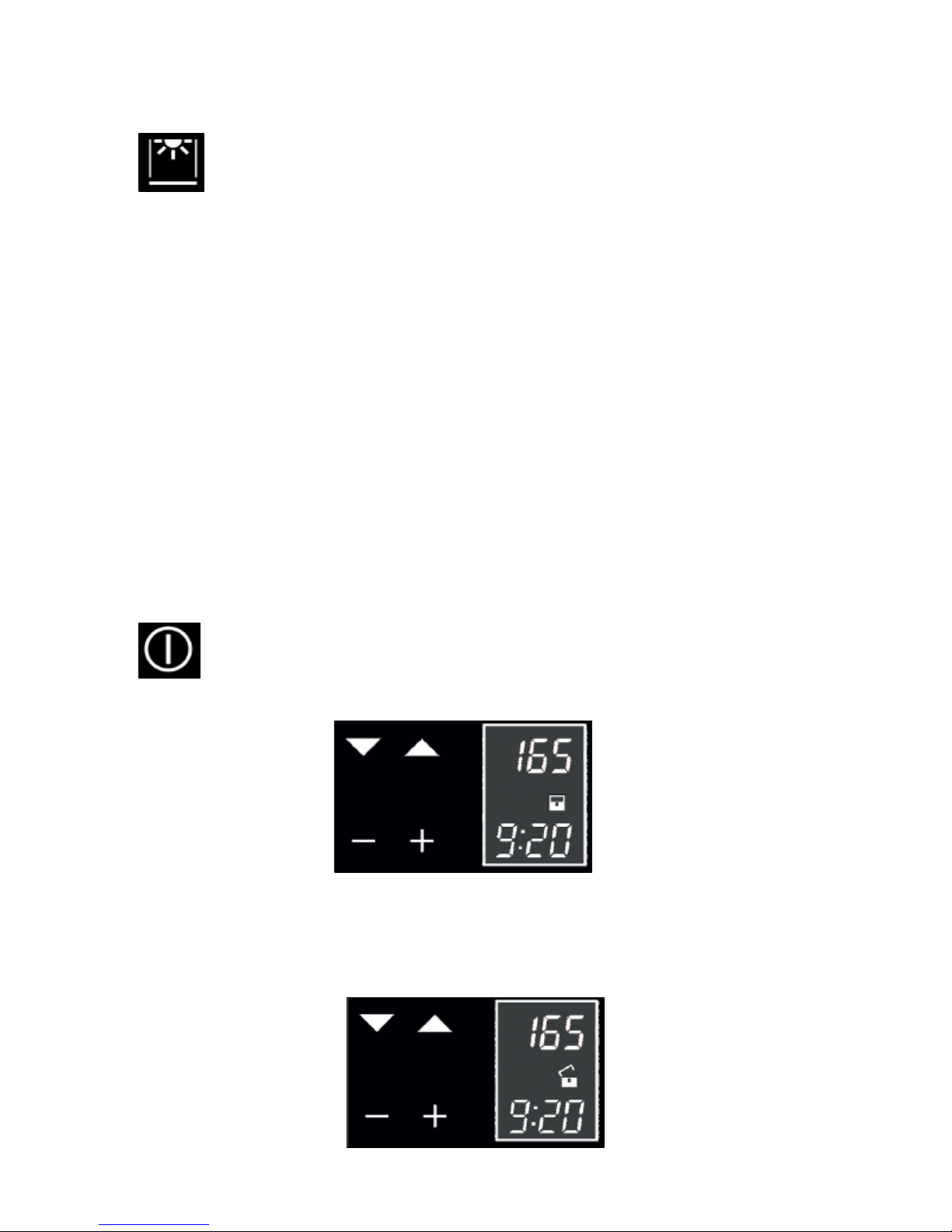

The oven light
oThe oven light can be turned on and off regardless of whether
the oven is currently in use.
oThe oven light is switched on by pressing the oven light
button. Press it again to turn the oven light back off.
oThe oven light will turn on automatically for all of the cooking
functions during heating and then for 3 minutes after the set
temperature has been reached. After this, the oven light will
switch off in order to save energy.
oYou can turn the oven light on at any time by pressing the oven
light button. The light will stay on for 3 minutes before turning
back off automatically unless you turn it off manually before this
time.
oThe oven light always turns on when the oven door is opened
and remains on until the oven door is closed.
The safety lock
oThe control panel can be locked to prevent accidental operation
of the buttons by unauthorised persons such as children.
oTo activate the safety lock, press and hold the power
button for about 3 seconds. The safety lock icon on the
LCD display will show a closed padlock to indicate that
the safety lock has been activated.
oTo deactivate the safety lock, press and hold the power button
for 3 seconds again. The safety lock icon on the LCD display will
show an open padlock to indicate that the safety lock has been
deactivated and the controls can now be operated.
13

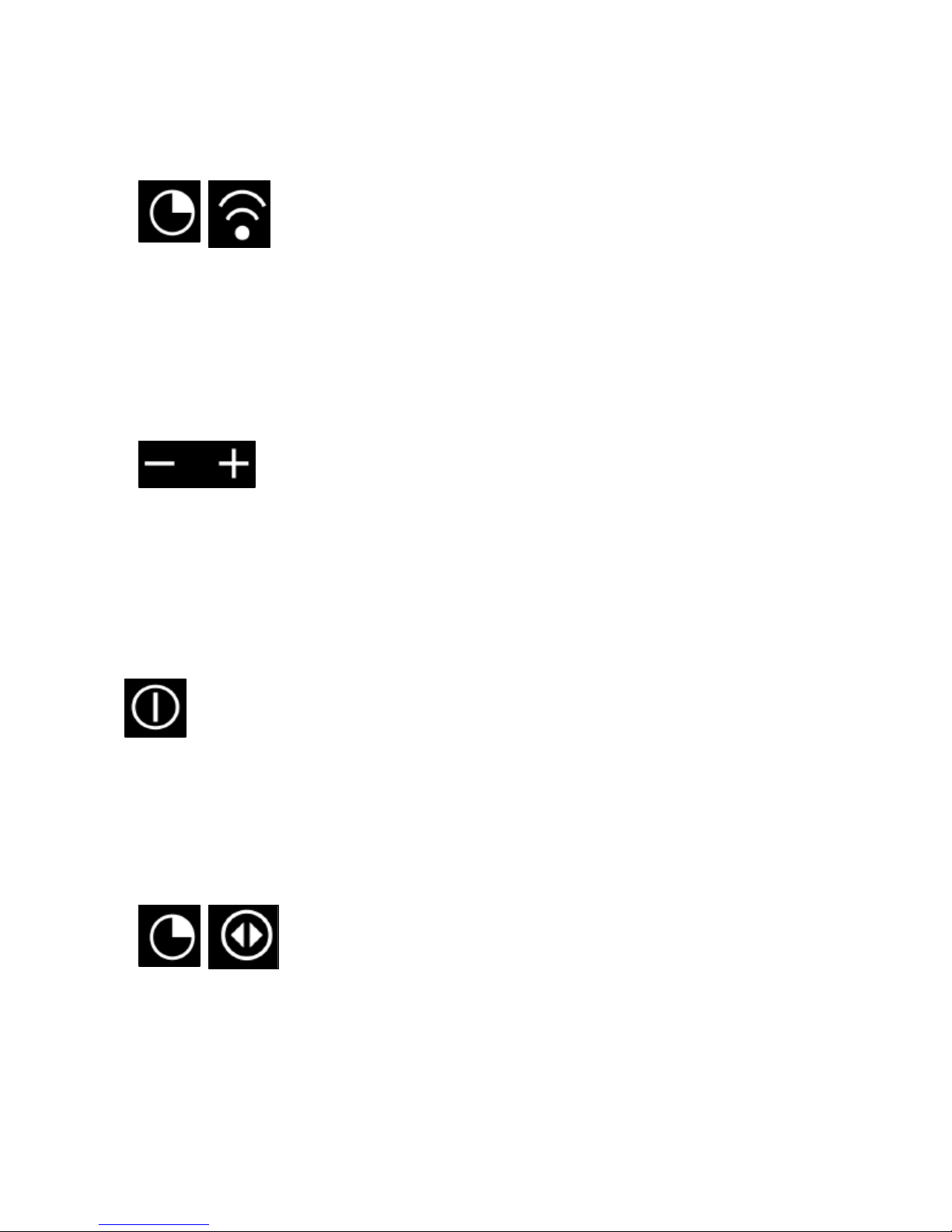

Setting the minute minder
You are able to set the minute minder, regardless of whether an oven
function has been selected. You can set a period of time using the
minute minder and an alarm will sound when this period of time has
elapsed. oTo enter the minute minder setting mode when
the oven is not in use, press the timer button
once. The minute minder symbol will light up.
oTo enter the minute minder setting mode when the oven is in
use, press the timer button three times. The minute minder
symbol will light up.
oThe display will show “00:00” and the “:” symbol will flash to
indicate that you can set the countdown time.
oUse the plus and minus buttons to program the
countdown time required. When the timer display
shows the correct countdown time release all
buttons and in a few seconds the “:” will remain steady and the
countdown will begin.
oAfter the set time has passed the alarm will sound and the
minute minder symbol will flash. Press any button to silence the
alarm.
oImportant: If you have an oven function in progress, the
oven will continue to heat when the audible signal sounds
you will need to switch the oven off manually, using the
power button.
Setting the cooking time function
This function will allow you to set a countdown time similar to the
minute minder function. However the oven will no longer continue to
heat, once the countdown period has elapsed.
oTo enter the cooking time setting mode press
the timer button once after you have chosen
your oven function and temperature. The
cooking time symbol will light up.
oThe display will show “00:00” and the “:” symbol will flash to
indicate that you can set the cooking time.
14

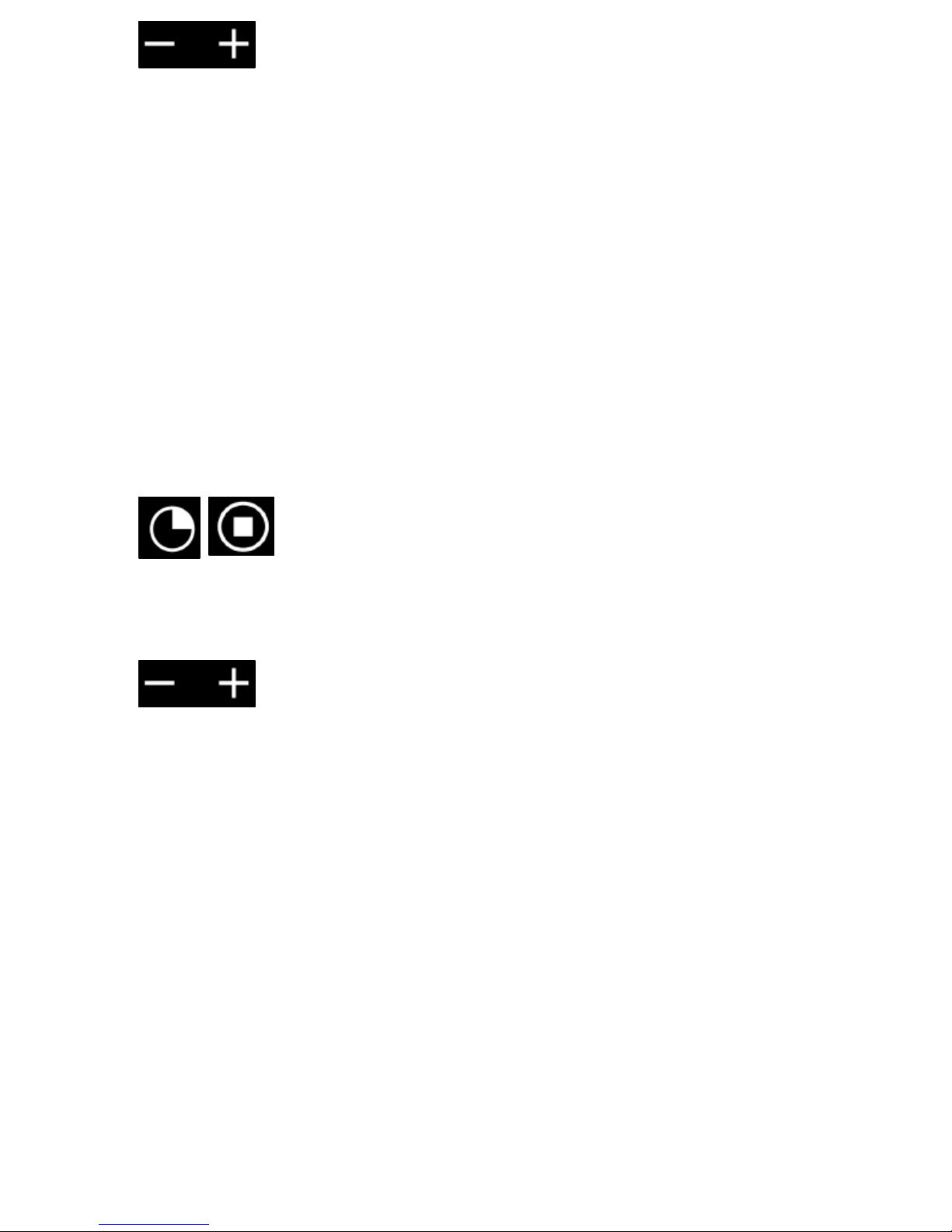

oUse the plus and minus buttons to program the
cooking time required. When the timer display
shows the correct cooking time release all buttons
and in a few seconds the “:” will remain steady and the cooking
time will start to count down.
oAfter the set time has passed the alarm will sound and the oven
will stop heating. The display will show the words “Program
finished remove the dish”. Press any button to silence the alarm
or open the oven door.
oIf no other buttons are pressed, the oven will switch off
automatically after 1 minute.
Setting the end of cooking time function
This function is similar to the cooking time function, however instead
of selecting a period of time that you wish the oven to switch off after,
you select the time of day that you wish the oven to switch off at.
oTo enter the end of cooking time setting mode
press the timer button twice after you have
chosen your oven function and temperature. The
end of cooking symbol will light up.
oThe display will show the current time of day and the “:” symbol
will flash to indicate that you can set the end of cooking time.
oUse the plus and minus buttons to program the
time of day you wish for cooking to stop at. When
the display shows the correct end of cooking time
release all buttons and in a few seconds the “:” will remain
steady and the cooking time will begin.
oWhen the programmed time of day is reached the alarm will
sound and the oven will stop heating. The display will show the
words “Program finished remove the dish”. Press any button to
silence the alarm or open the oven door.
oIf no other buttons are pressed, the oven will switch off
automatically after 1 minute.
15

Setting the start and end of cooking time function
This function will allow you to set a time in the future that the oven
switches on at and a time that the oven will switch off at.
oPrepare the food that you wish cook and place it in the oven. Set
the required cooking function and temperature.
oTo enter the cooking time setting mode press the
timer button once. The cooking time symbol will
light up.
oThe display will show “00:00” and the “:” symbol will flash to
indicate that you can set the cooking time.
oUse the plus and minus buttons to program the
cooking time required.
oWhen the timer display shows the correct cooking
time immediately press the timer button again to
enter the end of cooking time setting
mode. The end of cooking symbol will light up.
oThe display will show a proposed end of cooking time by adding
the cooking time previously set to the current time of day. The
“:” symbol will flash to indicate that you can adjust the end of
cooking time.
oUse the plus and minus buttons to program the time of day that
you wish for cooking to stop at. When the display shows the
correct end of cooking time release all buttons and in a few
seconds the “:” will remain steady and the timer function will be
set.
oThe oven will go into standby mode and the oven light will turn
off. The oven will calculate what time it needs to switch on at
based on the cooking time you have set and the end of cooking
time that you have programmed.
oWhen the programmed time of day is reached the alarm will
sound and the oven will stop heating. The display will show the
words “Program finished remove the dish”. Press any button to
silence the alarm or open the oven door.
oIf no other buttons are pressed, the oven will switch off
automatically after 1 minute.
16

Cancelling a timer function
oIf you wish to cancel a timer function at any time, simply adjust
the countdown time to “00:00” or turn the oven off using the
power button.
Oven functions
The appliance is supplied with 11 cooking functions:
OVEN LIGHT: Separate light control which allows the light to
be switched on, even when the oven is switched off.
CONVECTION OVEN (top and lower element): This
method of cooking provides traditional cooking, with heat
from the top and lower elements. This function is suitable for
roasting and baking on one shelf only.
LOWER ELEMENT: This method of cooking uses the lower
element to direct heat upward to the food. For slow-cooking
recipes or for warming up meals.
HALF GRILL: This method of cooking utilises the inner part of
the top element only, which directs heat downwards onto the
food. This function is suitable for grilling small portions of
sausages, bacon, steaks, fish etc.
FULL GRILL: This method of cooking utilises the inner and
outer parts of the top element, which directs heat downwards
onto the food. This function is suitable for grilling medium or
large portions of sausages, bacon, steaks, fish etc.
FAN OVEN AND GRILL: This method of cooking utilises the
top element in conjunction with the circular element and fan,
which helps to provide a fast cooking process. This function is
17
suitable where quick cooking and browning is required.
CONVECTION OVEN AND FAN: This method of cooking
provides traditional cooking with heat from the top and the
lower element, it also utilises the circulation fan. This ensures
a fast and even distribution of the heat. Suitable for light and
delicate baking, such as pastries.
FAN OVEN: This method of cooking uses the circular element
while the heat is distributed by the fan. This results in a faster
and more economical cooking process. The fan oven allows
food to be cooked simultaneously on different shelves,
preventing the transmission of smells and tastes from one
dish onto another.

PIZZA FUNCTION: This method of cooking uses the lower
and circular element, whilst the heat is distributed by the fan.
This reproduces the same conditions as a traditional clay
18
horten cooking times.
wood-fire stove
DEFROST MODE: The fan runs without heat to reduce the
defrosting time of frozen foods. The time required to defrost
the food will depend on the room temperature, the quantity
and type of food. Always check food packaging for the
defrosting instructions.
AUTO-RECIPES: This function allows you access to the 30
preset recipes and 100 personal recipes for quick and
efficient cooking.
PREHEATING: The boost function can be used for rapid
preheating to s
For a general guide to cooking particular food types please refer to the
tables below:
Cakes Bread Pizza Fish Sausages Vegetables
160 -
200 160 - 180 140 - 160 200 - 230 210 - 220 160 – 180 190 230 - MAX 190 - 210 170 – 190
2 - 3 2 2 1 - 3 2 2 - 3 2 – 3 2 - 3 2 2 - 3
30 –
50
mins
20 –
40
mins
10 -
40
mins
10 –
20
mins
45 –
60
mins
45 –
60
mins
60 –
70
mins
14 – 18
mins 40 – 50
mins
40 – 50
mins
Beef Pork Chicken
225 -
250 160 - 180 210 - 230 160 - 190 200 - 220 160 – 180 175 - 190
2 2 2 2 2 - 3 2 2
120 –
150
mins
120 –
160
mins
90 –
120
mins
90 –
120
mins
50 –
60
mins
45 –
60
mins
60 –
70
mins

IMPORTANT: These tables should be viewed as a guide only.
Cooking times and temperatures may vary depending on the
weight and type of food as well as personal preference.
Selecting a cooking function and temperature
oTurn the appliance on using the power button. Place the
food you wish to cook into the oven and close the door.
oSelect a cooking function by pressing the relevant button on the
control panel.
oWhen you have chosen a cooking function, the
temperature display will show a suggested
temperature. You can change the temperature using the increase
and decrease buttons.
oPlease refer to the table below for the suggested temperatures
for each cooking function and the temperature ranges that can
be set for each.
Oven function Suggested
temperature
(°C)
Temperature range
(°C)
Convection oven 190 50 - MAX
Lower element 50 50 - MAX
Half grill MAX 50 – MAX
Full grill MAX 50 - MAX
Fan oven and grill 165 50 - MAX
Convection oven
and fan 165 50 - MAX
Fan oven 165 50 – MAX
Pizza function 230 50 - MAX
Defrost 0 0 - 60
oWhen the display is showing your desired cooking temperature
release all buttons and after a few seconds the new temperature
will be set.
oDuring the heating process, the centigrade symbol (°C) will flash
to indicate that it is heating up to the selected temperature.
When the temperature is reached the oven will beep and the
centigrade symbol will remain steady.
19

oWhen you have finished cooking you can turn the appliance off
by pressing the power button.
Residual heat
oAfter you have finished cooking and have turned the oven off,
the display will show the cavity temperature until it drops below
50°C.
oThis is a safety feature to prevent accidental burns from the hot
parts of the oven after cooking.
Preheating
oUsing the rapid preheating function can help shorten the overall
cooking time by reducing the time is takes for the oven to reach
the set temperature.
oWhen you have selected an oven function and
temperature, by following the instructions above, press
the preheating button.
oThe oven will then boost the preheating process and ensure that
the oven is ready for cooking in a much quicker time.
oYou can deactivate the boost function at any time by pressing
the preheating button again.
Cooking guidelines
oPlease refer to the information given on food packaging for
guidance on cooking temperatures and times. Once familiar with
the performance of your appliance, temperatures and times can
be varied to suit personal preference.
oIf you are using the fan oven function, then you should follow
the information given on the food packaging for this particular
mode of cooking.
oYou should pre-heat the oven and not place food inside of it until
the centigrade symbol stops flashing. You can choose not to pre-
heat when using the fan oven mode; however you should extend
the cooking time given on the food packaging by at least ten
minutes.
oIMPORTANT: You should pre-heat the oven if you are baking no
matter what oven function you are using.
20
