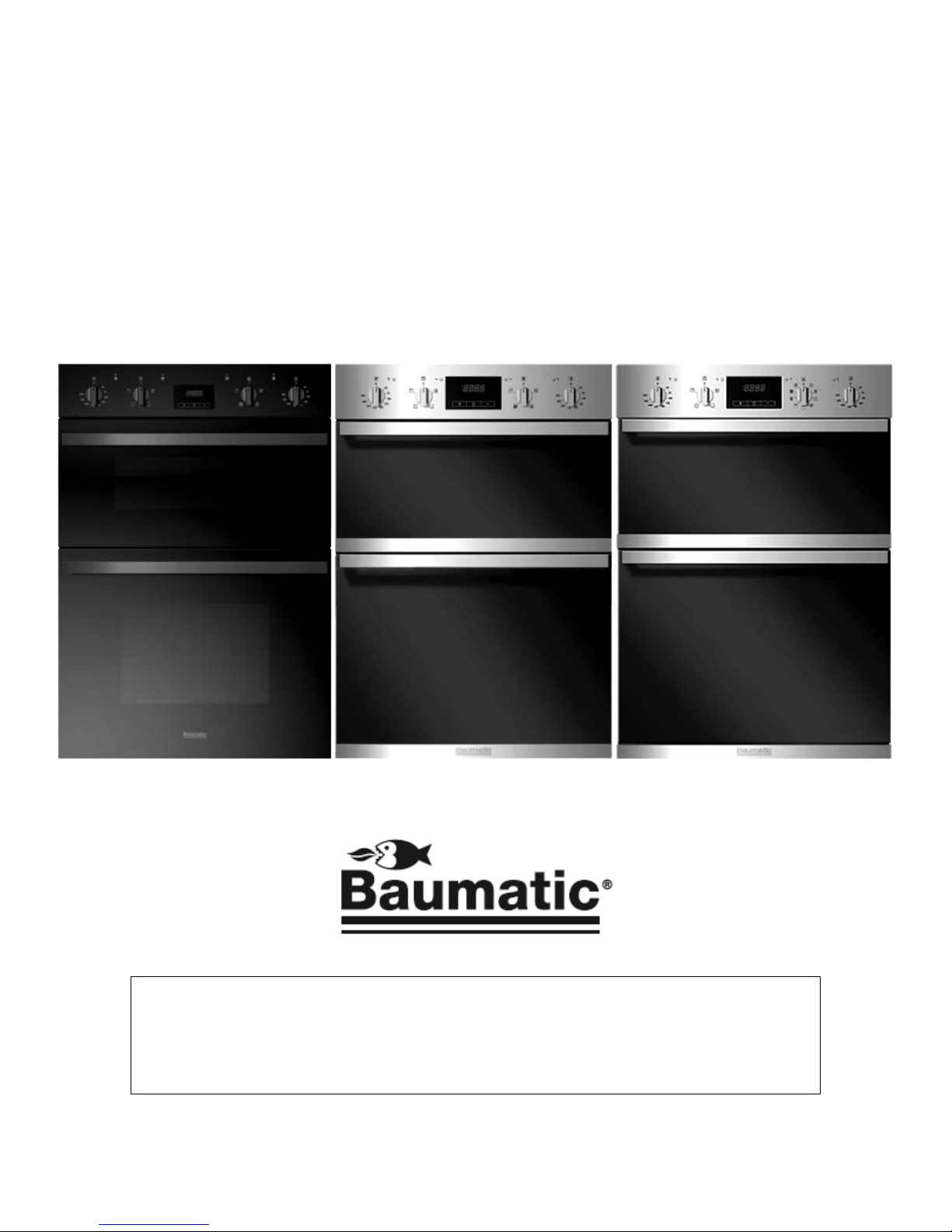

BO988BL 60 cm Built in electric double
oven
BO992SS 60 cm Built in electric double
oven
BO996SS 60 cm Built in electric double
oven

User Manual for your Baumatic
BO988BL 60cm Built in double electric oven
BO992SS 60 cm Built in double electric oven
BO996SS 60 cm Built in double electric
multifunction oven
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
DD 23/03/10
2

3
Contents
Environmental note 4
Important safety information 5 – 7
Specifications 8 – 12
Product and aperture dimensions (all models) 8
BO988BL/BO992SS 9
BO996SS 10
Coolingfans 11
Controlpanel 11
Ovenprogrammer/timer 12
Initial set up of your oven 12 – 13
Setting the time of day 12
Before first use 13
Timerfunctions 14 – 18
The minute minder function (main oven and top oven) 14
The semi-automatic cooking function (main oven only) 15
The end of cooking function (main oven only) 16
The automatic cooking function (main oven only) 17 – 18
Cancelling the semi-automatic and automatic function 18
Cancelling the minute minder function 18
Adjusting the volume of the audible signal 18 - 19
Changingthetimeofday 19
Using your oven 19-23
Selecting an oven function 19 – 20
Main oven functions (all models) 19
Additional main oven functions (BO996SS) 20
Top oven functions (all models) 20
Thermostat control knob (main and top oven) 20
Oven operating light (main and top oven) 21
Cooking guidelines 21 - 22
Warnings 22-23
Cleaning and maintenance 23 – 27
Removing the side racks 24
Replacing the oven bulb (main oven) 25
Replacing the oven bulb (secondary oven) 25 - 26
Removing the oven door for cleaning 26 - 27
Installation 27 - 32
Electrical connection 27 – 28
Connecting the mains supply cable 28 – 29
Replacing the mains supply cable 29
Positioning the appliance 30
Ventilation requirements 31
Installing the oven into the housing unit 31
My appliance isn’t working correctly 32 - 33
Contact details 34

Environmental note
4
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
all packaging material with due regard for the
environment.
oPlease discard

5
IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
ooklet, please contact the Baumatic Advice Line.
eneral Information
ambient temperature
scolouration at
han 4mm to the appliance, will be the
t of Baumatic Ltd.
Guarantee. The foregoing does not
affect your statutory rights.
atic service
engineers or their authorised service agent.
arning and safety instructions
ill
ng use and retain heat after operation.
b
G
oThis appliance is designed for domestic household use and can
be built into a standard kitchen cabinet or housing unit.
oIMPORTANT: The adjacent furniture or housing and all
materials used in the installation must be able to withstand a
minimum temperature of 85°C above the
of the room it is located in, whilst in use.
oCertain types of vinyl or laminate kitchen furniture are
particularly prone to heat damage or di
temperatures below the guidelines given above.
oAny damage caused by the appliance being installed in
contravention of this temperature limit, or by placing adjacent
cabinet materials closer t
liability of the owner.
oThe use of this appliance for any other purpose or in any other
environment without the express agreemen
will invalidate any warranty or liability claim.
oYour new appliance is guaranteed against electrical or
mechanical defects, subject to certain exclusions that are noted
in Baumatic’s Conditions Of
oRepairs may only be carried out by Baum
W
oThis appliance complies with all current European safety
legislation. Baumatic do wish to emphasise that this compliance
does not remove the fact that the appliance surfaces w
become hot duri

6
babies and young children
are prevented from being near to the appliance and not allowed
ssary for younger family members to be in the
kitchen, please ensure that they are kept under close supervision
heavy objects on the oven door or lean on the
oven door when it is open, as this can cause damage to the oven
oDo not place pans or baking trays directly on the base of the
oDo not allow electrical fittings or cables to come into contact
oDo not use the appliance to heat the room it is located in or to
y using the
oven door or handle, as this may cause damage to the appliance
sult in injury to the person lifting the appliance.
Great care should be taken whilst using this appliance and when
oIMPORTANT: The appliance must be disconnected from the
mains before following the cleaning procedure.
Child Safety
oBaumatic strongly recommend that
to touch the appliance at any time.
oIf it is nece
at all times.
General Safety
oDo not place
door hinges.
oDo not leave heated oil or fat unattended, as this is a fire risk.
oven cavity, or line it with aluminium foil.
with areas on the appliance that get hot.
dry clothing.
oDo not install the appliance next to curtains or soft furnishings.
oDo not attempt to lift or move cooking appliances b
or re
Cleaning
oCleaning of the oven should be carried out on a regular basis.
o
following the cleaning procedure.

7
correctly installed by a
suitably qualified person, strictly in accordance
with the manufacturer’s instructions.
sibility for injury or
damage, to person or property, as a result of improper
ventilated. If the appliance is going to be used for
prolonged periods of time, then additional ventilation may be
oPlease consult with your qualified installer if you are in any doubt
tilation that you will require.
ccordance with the requirements of the EC
directive 89/109 transposed in the Italian Legislative Decree No.
the European directives
89/336/EEC, 93/68/EEC, 73/23/EEC and subsequent revisions
in
accordance with the standards currently in force. This appliance
mercury, hexavalent
chromium, polybrominated biphenyl (PBB) and polybrominated
diphenyl ether (PBDE) flame retardants.
Installation
This appliance must be
oBaumatic Ltd. declines any respon
use or installation of this appliance.
oHeat, steam and moisture will be created during use of the
appliance, take care to avoid injury and ensure that the room is
adequately
required.
about the amount of ven
Declaration of conformity.
oIn the parts destined to come into contact with foodstuffs, this
appliance is in a
108 of 25/01/92.
oCE: Appliance conforming to
and “RoHS” directive 2002/95/CE.*
oThe manufacturer declares that the oven is built using certified
materials and requires the appliance to be installed
must be used by a trained person for domestic purposes only.
*The RoHS directive stands for “the restriction of the use of
certain hazardous substances in electrical and electronic
equipment”. This directive bans the placing on the EU market of
new electrical and electronic equipment containing more than
the agreed levels of lead, cadmium,

Specifications
Product and aperture dimensions (all models)
Product Dimensions
8
Height: 885 mm
idth: 596 mm
epth: 547 mm
e D
Width: 562 - 565 mm
Depth: 560 mm (min)
Apertur imensions
Height: 800 - 882 mm
W
D

9
LED full programmer (main oven only)
rs
Top oven: static oven with grill
oMain oven: fan oven with grill
litres
o4 functions
rays with handle
o2 x Safety shelves
oRemovable side racks
ne
oSCL.1KIT Stay clean liners (main oven only)
lectrical details
Rated Voltage:
uble pole switched fused
outlet with 3mm contact gap)
ax Rated Inputs: 4.41 kW
ains Supply Lead: 3 x 2.5 mm²
ven Light Bulb: 25 W/300°C screw type pigmy
BO988BL/BO992SS
Product specifications
oEnergy efficiency class: A
o
o2 x cooling fans
oTriple-glazed removable doo
o
oOven capacity: 36 litres
o4 functions
oOven capacity: 60
Standard accessories
o2 x Enamelled baking t
o2 x Trivets
Optional extras
oBPS2 Pizza sto
E
220 - 240 V~ 50/60 Hz
Supply Connection: 20 A (do
M
M
O

10
LED full programmer (main oven only)
rs
Top oven: static oven with grill
oMain oven: multifunction oven
litres
o9 functions
rays with handle
o2 x Safety shelves
oRemovable side racks
ne
oSCL.1KIT Stay clean liners (main oven only)
lectrical details
Rated Voltage:
uble pole switched fused
outlet with 3mm contact gap)
ax Rated Inputs: 4.92 kW
ains Supply Lead: 3 x 2.5 mm²
ven Light Bulb: 25 W/300°C screw type pigmy
BO996SS
Product specifications
oEnergy efficiency class: A
o
o2 x cooling fans
oTriple-glazed removable doo
o
oOven capacity: 36 litres
o4 functions
oOven capacity: 60
Standard accessories
o2 x Enamelled baking t
o2 x Trivets
Optional extras
oBPS2 Pizza sto
E
220 - 240 V~ 50/60 Hz
Supply Connection: 20 A (do
M
M
O

11
inside of these appliances,
to make the internal temperature of the oven stable and the
time afterwards.
The length of time will depend on how long the oven has been
ice. The rating plate for your oven can be
cated by opening the main oven door and looking on the right hand
ate of Purchase ……………………………….
light
light
) Main oven thermostat control knob
Cooling fans
oTwo tangential cooling fans are fitted
external surface temperature lower.
oAfter you have finished cooking and switched off the oven, the
cooling fan will continue to run for a period of
switched on for and at how high a temperature.
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invo
lo
side of the oven chassis.
Model Number ……………………………….
Serial Number ……………………………….
D

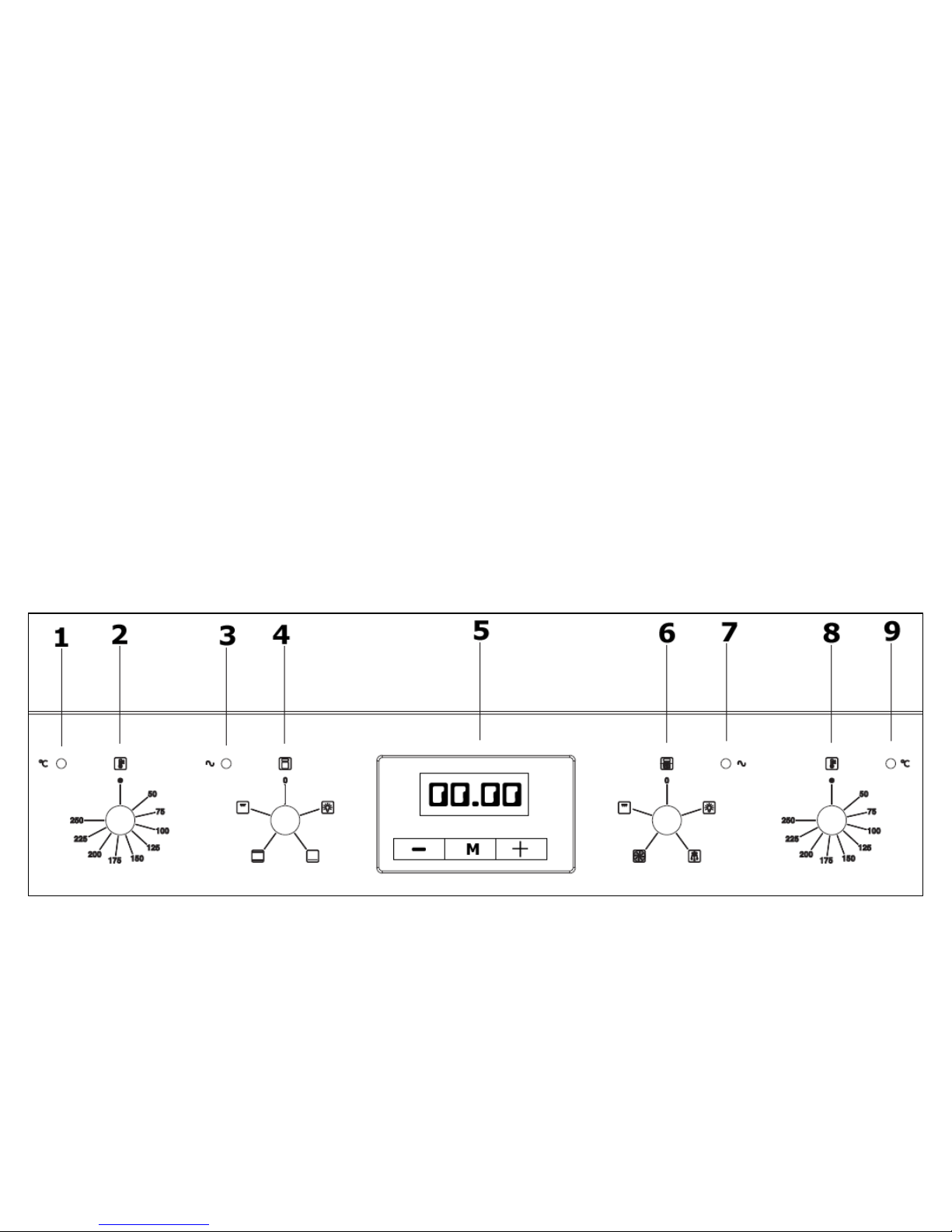

Control Panel
1) Top oven operating light
2) Top oven thermostat control knob
3) Top oven power indicator
4) Top oven function selector knob
5) Oven programmer/timer
6) Main oven function selector knob
7) Main oven power indicator
8
9) Main oven operating light

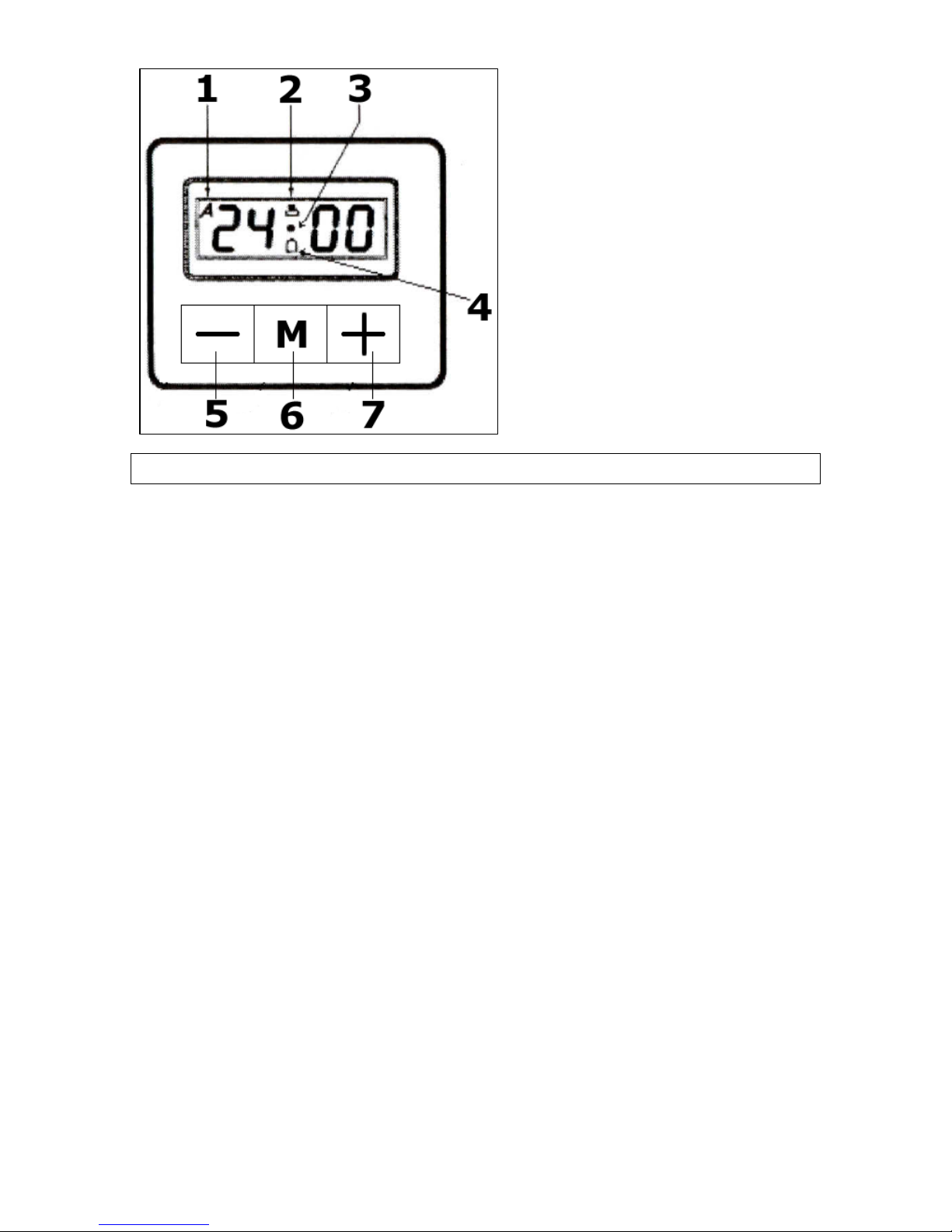

Oven programmer/timer
12
bol
symbol
ol
= Programme button
= Plus button
oven
1 = Automatic cooking sym
2 = Oven in use symbol
3 = Decimal point
4 = Minute minder symb
5 = Minus button
6
7
Initial set-up of your
Setting the time of day
After your appliance is connected to your mains supply for the first
supply for the first
time (or after a power cut), the digits on the LED display and
programme button (6) for a couple of
seconds. The automatic cooking symbol will go out and the
oWhilst the decimal point symbol (3) is flashing, use the plus (7)
e the plus and minus buttons and wait a few seconds. The
decimal point symbol will stop flashing and the oven is ready to
use.
time, you must set the time of day before you can use the oven.
oWhen the oven is connected to your mains
the automatic cooking symbol (1) will flash.
oPress and hold down the
digits will remain steady.
and minus (5) buttons to set the correct time of day.
oWhen the correct time of day is shown on the LED display,
releas

13
oven and the conventional oven
function for the top oven. Separately set each oven to its
oIt is perfectly normal for a smell to be produced during this
oYou should make sure that any windows in the room are left
oIt is advisable for you not to remain in the room whilst the
oYou should leave each oven on maximum setting for 30 – 40
oIMPORTANT: You should not burn off both ovens
, they should then be cleaned
with warm soapy water, using either a sponge or soft cloth. No
he oven should be cleaned with warm soapy
water, using either a sponge or soft cloth. No abrasive cleaners
ecommend that an appropriate stainless steel cleaner
and polish is regularly used on the stainless steel surfaces of this
appliance.
Before first use
oTo remove any residue from the oven cavities that may have
been left from the manufacturing process, you should select the
fan oven function for the main
maximum temperature setting.
process.
open during this process.
burning off process is taking place.
minutes.
simultaneously.
oAfter the oven cavities have cooled
abrasive cleaners should be used.
oOuter parts of t
should be used.
oWe would r

14
Timer functions
The minute minder function (main oven and top oven)
he minute minder functioT
o
n is a countdown time that can be set on the
oappears on the LED display,
signal will
the relevant oven function
selector knob and the thermostat control knob to their OFF
positions.
ven programmer/timer. When the countdown time has finished, an
audible signal will sound.
oPress and hold down the programme button (6) until the
decimal point starts to flash to enter programming mode.
oUse the plus (7) and minus (5) buttons to set the countdown
time that you require.
oThe maximum countdown time that can be set is 23 hours and
59 minutes.
When the correct countdown time
release the plus and minus buttons and the countdown will start
immediately.
oThe oven in use symbol (4) will appear on the LED display to
show that a countdown time is in progress.
oAfter a few seconds the LED display will return to showing the
time of day.
oAt the end of the countdown time, an audible signal will sound
and the oven in use symbol will go out. The audible
sound for 7 minutes before switching off or you can silence it by
pressing any of the oven programmer/timer buttons.
oIMPORTANT: If either of the ovens are in use whilst using the
minute minder function, they WILL NOT switch off at the end of
the countdown time. YOU MUST turn

15
allow you to set a countdown time similar to the
inute minder function, however the oven will switch off at the end of
oPlace the food that you want to cook inside of the oven and
Select an oven function and cooking temperature using the
ntil the
decimal point starts to flash to enter programming mode, the
it again. The
automatic cooking symbol (1) will flash and “dur” will appear
oUse the plus (7) and minus (5) buttons to set the cooking time
release the plus and minus buttons. Cooking will begin
oThe automatic cooking symbol and the oven in use symbol (2)
oAt the end of the cooking time, an audible signal will sound and
ss the
programme button until the oven in use symbol appears on the
selector knob and main oven thermostat control knob to their
OFF positions, when you reset the oven it will continue to heat.
The semi-automatic cooking function (main oven only)
This function will
m
the cooking time.
close the door.
o
relevant control knobs.
oPress and hold down the programme button (6) u
oven in use symbol (4) will appear on the LED display.
oRelease the programme button and then press
briefly on the LED display before showing “0.00”.
that you require.
oThe maximum countdown time that can be set is 10 hours.
oWhen the correct countdown time appears on the LED display,
immediately, after a few seconds the countdown time will start.
will appear on the LED display.
the automatic cooking symbol will flash on the LED display.
oTo reset the oven and cancel the audible alarm, pre
LED display and the automatic cooking symbol goes out.
oIMPORTANT: If you have not turned the main oven function

16
emi-automatic function, however
stead of setting a countdown time, you select the time of day that
oPlace the food that you want to cook inside of the oven and
Select an oven function and cooking temperature using the
l the
decimal point starts to flash to enter programming mode, the
ramme button and then press it again. The
automatic cooking symbol (1) will flash and “dur” will appear on
ramme button and then press it for a third
time, “end” will appear briefly on the LED display before
Use the plus (7) and minus (5) buttons to set the time of day
release the plus and minus buttons. Cooking will begin
oThe automatic cooking symbol and the oven in use symbol (2)
oAt the end of the cooking time, an audible signal will sound and
ss the
programme button until the oven in use symbol appears on the
selector knob and main oven thermostat control knob to their
OFF positions, when you reset the oven it will continue to heat.
The end of cooking function (main oven only)
This function is similar to the s
in
you want the oven to switch off at.
close the door.
o
relevant control knobs.
oPress and hold down the programme button (6) unti
minute minder symbol (4) will appear on the LED display.
oRelease the prog
the LED display.
oRelease the prog
showing “0.00”.
o
that you want the oven to switch off at.
oThe maximum countdown time that can be set is 10 hours.
oWhen the correct time of day appears on the LED display,
immediately, after a few seconds the countdown time will start.
will appear on the LED display.
the automatic cooking symbol will flash on the LED display.
oTo reset the oven and cancel the audible alarm, pre
LED display and the automatic cooking symbol goes out.
oIMPORTANT: If you have not turned the main oven function

17
his function will allow you to set the time of day that you want the
oPlace the food that you want to cook inside of the oven and
Select an oven function and cooking temperature using the
l the
decimal point starts to flash to enter programming mode, the
it again. The
automatic cooking symbol (1) will flash and “dur” will appear
oUse the plus (7) and minus (5) buttons to set the cooking time
oWhen the correct countdown time appears on the LED display,
IMMEDIATELY press the programme button, “end” will appear
Use the plus (7) and minus (5) buttons to set the time of day
The automatic cooking symbol and the time of day will appear
automatically calculate what time of day it
needs to switch the oven on at, so that it runs for the cooking
e oven switches on, the oven in use symbol (2) will
appear on the LED display, as well as the automatic cooking
oAt the end of the cooking time, an audible signal will sound and
The automatic cooking function (main oven only)
T
oven to switch off at and how long you want the oven to cook for.
close the door.
o
relevant control knobs.
oPress and hold down the programme button (6) unti
minute minder symbol (4) will appear on the LED display.
oRelease the programme button and then press
briefly on the LED display before showing “0.00”.
that you require.
oThe maximum countdown time that can be set is 10 hours.
release the plus and minus buttons.
o
briefly on the LED display before showing “0.00”.
o
that you want the oven to switch off at.
o
on the LED display.
oThe appliance will
time that you set.
oWhen th
symbol.
the automatic cooking symbol will flash on the LED display.

18
function
selector knob and main oven thermostat control knob to their
oIMPORTANT: If you have not turned the main oven function
ostat control knob to their
OFF positions, when you reset the timer function, it will continue
Cancelling the minute minder function
down the programme button (6) until the
decimal point starts to flash to enter programming mode.
oPress and hold down the minus (5) and plus (7) buttons
oIMPORTANT: If you have not turned the main oven function
control knob to their
OFF positions, when you reset the timer function, it will continue
djusting the volume of the audible signal
ould proceed as follows:-
(2) must
be lit.
o flash.
oPress the programme button (6) and the LED display will show
ber. 1 is the loudest volume, 2 is the
middle volume and 3 is the quietest volume.
oTo reset the oven and cancel the audible alarm, press the
programme button until the oven in use symbol appears on the
LED display and the automatic cooking symbol goes out.
oIMPORTANT: If you have not turned the main oven
OFF positions, when you reset the oven it will continue to heat.
Cancelling the semi-automatic and automatic function
oPress and hold down the minus (5) and plus (7) button
simultaneously, until the automatic cooking symbol (1) goes out
and the oven in use symbol (2) is lit.
selector knob and main oven therm
to heat.
oPress and hold
simultaneously.
oThe minute minder symbol (4) will go out.
selector knob and main oven thermostat
to heat.
A
The volume of the audible signal has 3 levels, low, medium and high.
To adjust the volume, you sh
oIMPORTANT: The oven timer/programmer must not be in any
form of countdown mode and the oven in use symbol
oPress and hold down the minus (5) and plus (7) buttons
simultaneously until the decimal point starts t
“n” followed by a num

19
e of day
(2) must
be lit.
he minus (5) and plus (7) buttons
simultaneously until the decimal point starts to flash.
Release these buttons and then use the minus and plus buttons
oUse the minus button to select the volume level that you desire.
Changing the tim
oIMPORTANT: The oven timer/programmer must not be in any
form of countdown mode and the oven in use symbol
oPress and hold down t
o
to alter the time of day.
Using your oven
Selecting an oven function
The main and top oven function selector knobs should be used to
elect the particular mode of cooking that you require. The appliance
e oven cavity, depending on the
ven function that you select. When a function is selected, the relevant
n
Main oven functions (all models)
is distributed by the fan. This results in a faster
nd more economical cooking process. The fan oven allows
ish
GRILL MODE: This method of cooking utilises the inner
fan runs without heat to reduce the
defrosting time of frozen foods. The time required to defrost
the food will depend on the room temperature, the quantity
aging for the
defrosting instructions.
s
will utilise different elements within th
o
dicator light will come on and the oven light.power i
OVEN LIGHT: Separate light control which allows the light to
be switched on, even when the oven is not in use.
FAN OVEN: This method of cooking uses the circular element
while the heat
a
food to be cooked simultaneously on different shelves,
preventing the transmission of smells and tastes from one d
onto another.
sections of the top element, which directs heat downwards
onto the food. This function is suitable for grilling portions of
bacon, toast and meat etc.
DEFROST MODE: The
and type of food. Always check food pack

20
o
ng, with heat from the top and lower
elements. This function is suitable for roasting and baking on
ner and
ds
the food. This function is suitable for grilling
medium or large portions of sausages, bacon, steaks, fish
ng
fan. This
ensures a fast and even distribution of the heat. Suitable for
a
table where quick
browning is required and “sealing” the juices in, such as
ent in conjunction with the fan, which helps to
circulate the heat. This function is suitable for sterilizing and
e
VEN LIGHT: Separate light control which allows the light to
be switched on, even when the oven is not in use.
lower element to direct heat upward to the food. This function
.
ng, with heat from the top and lower
elements. This function is suitable for roasting and baking on
which directs heat downwards
illing portions of
bacon, toast and meat etc.
nal main oven functions (BO996SS)
CONVENTIONAL OVEN: This method of cooking provides
Additi
traditional cooki
one shelf only.
FULL GRILL: This method of cooking utilises the in
outer parts of the top element, which directs heat downwar
onto
etc.
CONVECTION OVEN AND FAN: This method of cooki
provides traditional cooking with heat from the top and the
lower element, it also utilises the circulation
light and delicate baking, such as pastries.
FAN AND GRILL: This method of cooking utilises the top
element in conjunction with the fan, which helps to provide
quick circulation of heat. This function is sui
steaks, hamburgers, some vegetables etc.
FAN AND LOWER ELEMENT: This method of cooking utilises
the bottom elem
preserving jars.
n functions (all models) Top ov
O
LOWER ELEMENT ONLY: This method of cooking uses the
is suitable for slow-cooking recipes or for warming up meals
CONVENTIONAL OVEN: This method of cooking provides
traditional cooki
one shelf only.
GRILL MODE: This method of cooking utilises the inner
sections of the top element,
onto the food. This function is suitable for gr
