User Manual for your Baumatic
B501BS/B501SS
Built-in Oven
60 cm Multifunction oven in black
60 cm Multifunction oven in stainless steel
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
3
DD 24/06/08

4
Contents
Environmentalnote 5
Important safety information 6 – 8
Specifications 9
Controlpanel 10
Oven programmer/timer display 10
Setting and using the oven programmer/timer 11
Selecting manual operation mode 11
Settingthetimeofday 11
Theoventimer 11
Setting the minute minder function 12
Setting the duration function 13
Setting the end cook function 14
Setting the start and end time function 15
Selecting a cooking function and temperature 16
Selecting an oven function 16 – 17
The thermostat control knob 17
Ovenoperatinglight 17
Cooking guidelines 18
Warnings 18–19
Accessories 19
Cleaning and maintenance 20
Removable oven cavity roof liner 21
Replacing the oven bulb 21
Installation 22
Electricalconnections 22
Installing the oven into the kitchen cabinet 23
Ventilation requirements 24
My appliance isn’t working correctly 25 – 26
Cookingtables 27 – 31
Contact details 32

Environmental note
5
oBaumatic uses are environmentally
friendly and can be recycled.
oall packaging material with due regard for the
environment.
The packaging materials that
Please discard

6
IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If yo
are unsure of any of the information contained i
booklet, pleas
u
n this
e contact the Baumatic Technical
ent.
eneral Information
od can
o
ambient temperature
on at
o
han 4mm to the appliance, will be the
ormation given in the installation instructions
o
f Baumatic Ltd.
o
uarantee. The foregoing does not
affect your statutory rights.
oService
Engineers or their authorised service agent.
Departm
G
This appliance is designed for domestic household use an
be built into a standard kitchen cabinet or housing unit.
IMPORTANT: The adjacent furniture or housing and all
materials used in the installation must be able to withstand a
minimum temperature of 85°C above the
of the room it is located in, whilst in use.
Certain types of vinyl or laminate kitchen furniture are
particularly prone to heat damage or discolouratio
temperatures below the guidelines given above.
Any damage caused by the appliance being installed in
contravention of this temperature limit, or by placing adjacent
cabinet materials closer t
liability of the owner.
For use in leisure accommodation vehicles, please refer to
the appropriate info
for this appliance.
The use of this appliance for any other purpose or in any other
environment without the express agreement o
will invalidate any warranty or liability claim.
Your new appliance is guaranteed against electrical or
mechanical defects, subject to certain exclusions that are noted
in Baumatic’s Conditions Of G
Repairs may only be carried out by Baumatic

7
arning and safety instructions
oiance
become hot during use and retain heat after operation.
hild Safety
oappliance and not allowed
to touch the appliance at any time.
ose ensure that they are kept under close supervision
at all times.
eneral Safety
oen it is open, as this can cause damage to the oven
door hinges.
oDo not leave heated oil or fat unattended, as this is a fire risk.
oon the base of the
oven cavity, or line it with aluminium foil.
ocome into contact
with areas on the appliance that get hot.
oe appliance to heat the room it is located in or to
dry clothing.
oDo not install the appliance next to curtains or soft furnishings.
oe appliance
or result in injury to the person lifting the appliance.
Cle
oCleaning of the oven should be carried out on a regular basis.
ousing this appliance and when
following the cleaning procedure.
oIMPORTANT:
mains before following the cleaning procedure.
W
This appliance complies with all current European safety
legislation. Baumatic do wish to emphasise that this compl
does not remove the fact that the appliance surfaces will
C
Baumatic strongly recommend that babies and young children
are prevented from being near to the
If it is necessary for younger family members to be in the
kitchen, plea
G
Do not place heavy objects on the oven door or lean on the
oven door wh
Do not place pans or baking trays directly
Do not allow electrical fittings or cables to
Do not use th
Do not attempt to lift or move cooking appliances by using the
oven door or handle, as this may cause damage to th
aning
Great care should be taken whilst
The appliance must be disconnected from the

8
nstallation
person, strictly in accordance
with the manufacturer’s instructions.
oesult of improper
use or installation of this appliance.
os
periods of time, then additional ventilation may be
required.
oany doubt
about the amount of ventilation that you will require.
eclaration of conformity.
ohis
ansposed in the Italian Legislative Decree No.
108 of 25/01/92.
oand subsequent revisions
and “RoHS” directive 2002/95/CE.*
ocertified
must be used by a trained person for domestic purposes only.
*f
f
an
) and polybrominated
diphenyl ether (PBDE) flame retardants.
I
This appliance must be correctly installed by a
suitably qualified
Baumatic Ltd. declines any responsibility for injury or
damage, to person or property, as a r
Heat, steam and moisture will be created during use of the
appliance, take care to avoid injury and ensure that the room i
adequately ventilated. If the appliance is going to be used for
prolonged
Please consult with your qualified installer if you are in
D
In the parts destined to come into contact with foodstuffs, t
appliance is in accordance with the requirements of the EC
directive 89/109 tr
CE: Appliance conforming to the European directives
89/336/EEC, 93/68/EEC, 73/23/EEC
The manufacturer declares that the oven is built using
materials and requires the appliance to be installed in
accordance with the standards currently in force. This appliance
The RoHS directive stands for “the restriction of the use o
certain hazardous substances in electrical and electronic
equipment”. This directive bans the placing on the EU market o
new electrical and electronic equipment containing more th
the agreed levels of lead, cadmium, mercury, hexavalent
chromium, polybrominated biphenyl (PBB

9
pecificationsS
Product dimensions
Height: 591 mm
Width: 595 mm
Depth: 547 mm
Aperture dimensions
Height: 580 mm
Width: 560 mm
Depth: 550 mm
p i
ll
door
ta d
ks
o in
oke
n for a period of time, until the oven has
ith 3mm contact gap
24
S ec fications
oEnergy efficienc cl : A 7 functions
oy ass
Oven capacityo: 57 litres
LED full programmeroThermostaticoally controlled gri
Cooling fano
oTriple-glazed removable
oMark resistant coating
S n ard accessories
oRemovable side rac Removable roof liner
o2 x Safoety shelves
Triveto
oEnamelled drip tray
C ol g fan
A tangential cooling fan is fitted inside of this appliance, to ma
the internal temperature of the oven stable and the external
surface temperature lower. After the oven has been used the
cooling fan will run o
cooled sufficiently.
Electrical details
Rated Voltage: 230 Vac 50 Hz
13 A (double pole switched fusedSupply Connection: outlet w

Max Rated Inputs: 2400W
Mains Supply Lead 3 x 1.5mm²:
ven Light Bulb: 25 W/300°C screw type pigmy
n
the oven door and looking on the right hand side of
e oven chassis.
odel Number ……………………………….
erial Number ……………………………….
ate of Purchase ……………………………….
Control Panel
O
For future reference please record the following information which ca
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The rating plate for your oven can be
located by opening
th
M
S
D

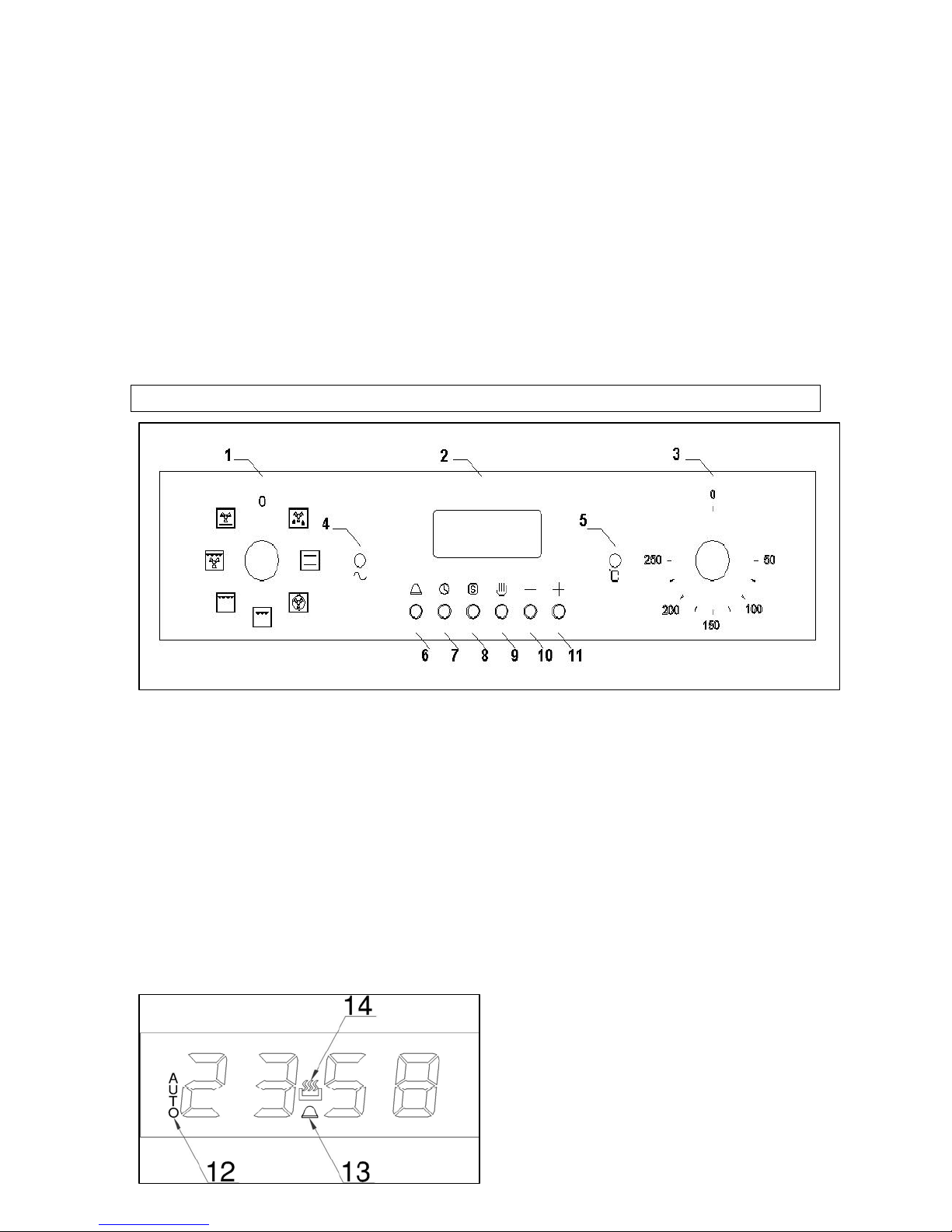

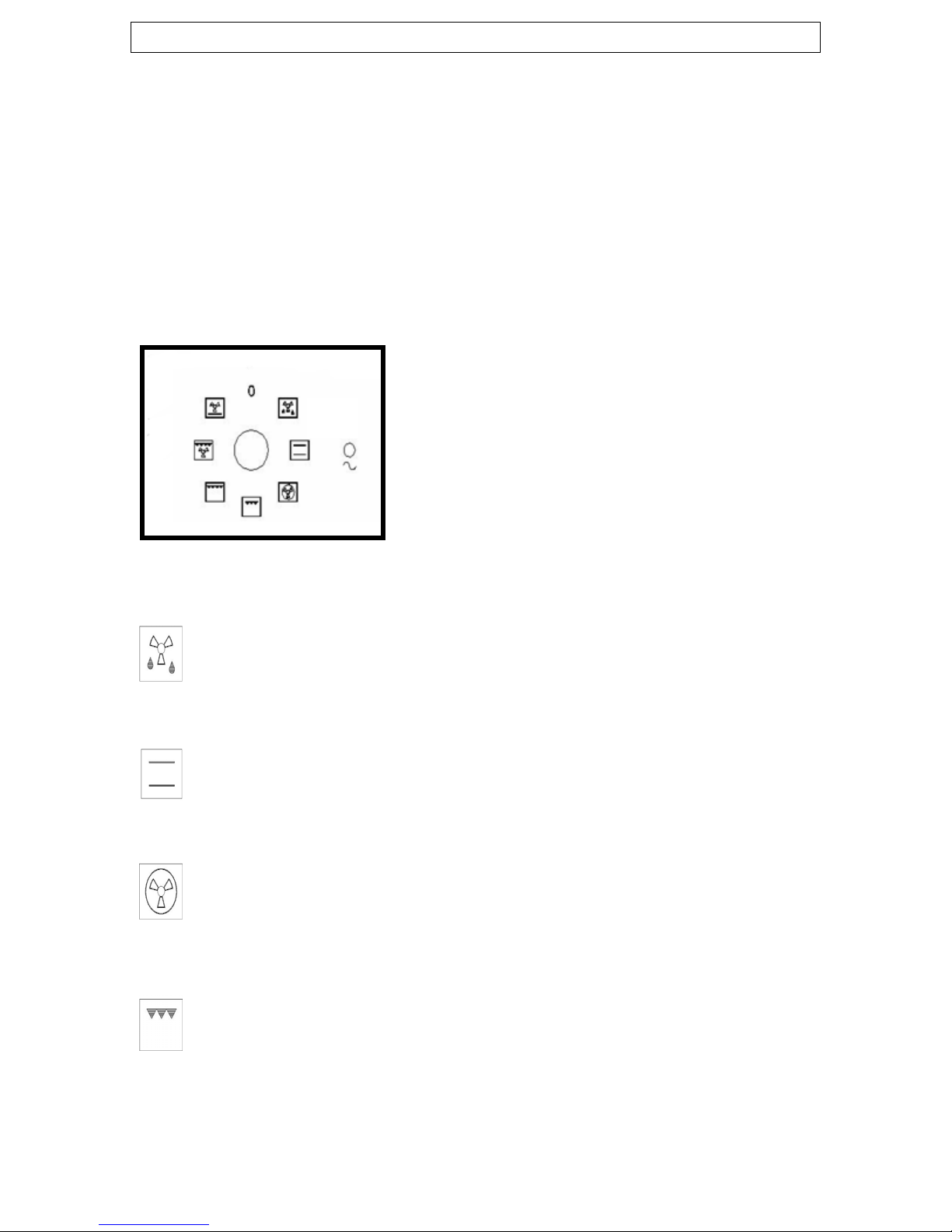

1) Oven function selector knob
ob
utton
on” button
1) Timer “plus” button
4) “Manual operation” symbol.
2) Oven programmer/timer
3) Thermostat control kn
4) Power indicator light
5) Oven operating light
6) Timer “minute minder” b
7) Timer “duration” button
8) Timer “end cook” button
9) Timer “manual operati
10) Timer “minus” button
1
Oven programmer/timer display
12) “Auto” function symbol
13) “Minute minder” symbol
1
10

11
Setting and using the oven programmer/timer
Selecting manual operation mode
After your appliance is connected to your mains supply for the
first time, the numbers on the timer display will flash. Before
you can select a cooking function or set a temperature, you
must set the appliance into “manual operation” mode.
oTo select manual operation mode, press the “manual operation”
button (9) on the control panel.
Setting the time of day
After setting your oven for manual operation, you should also
set the time of day.
oAfter pressing the “manual operation” button (9), use the
“minus” button (10) and “plus” button (11) to adjust the time
that appears in the display. After getting the display to the
correct time, release the “minus” and “plus” buttons. After a few
seconds the time will fix in the display and you will be able to
use your oven.
The oven timer
oOnly the minute minder can be used with the defrost oven
function. None of the other timer modes will work with the
defrost function.

12
Setting the minute minder function
You are able to set the minute minder at any time, regardless
of whether an oven function has been selected. You can set a
period of time using the minute minder function and an alarm
will sound when that period of time has elapsed.
oPress the “minute minder” button (6), the display will show a
value of 00:00. Set the period of time that you wish the minute
minder to countdown for, by using the “minus” (10) and “plus”
(11) buttons.
oOnce the display has got to your desired countdown time, let go
of the “minus” and “plus” buttons. The minute minder symbol
(13) will appear on the timer display.
oOnce a countdown time has been set, it is possible to shorten or
lengthen the time by using the “minus” or “plus” buttons.
oAn alarm will sound when the countdown time has elapsed. The
alarm can be silenced by pressing the “minute minder” button.
oImportant: The oven will continue to heat once the alarm has
been silenced. If you have finished cooking, then you should turn
the oven function selector and thermostat control knob to 0.

13
Setting the duration function
This function will allow you to set a countdown time similar to
the minute minder function. However the oven will no longer
continue to heat, once the countdown period has elapsed.
oUse the thermostat control knob (3) to set the temperature that
you require. The manual operation symbol (14) will appear on
the display.
oUse the oven function selector knob (1) to select the mode of
cooking that you require.
oIt is then possible to set the duration of the cooking time that
you require.
oPress the “duration” button (7) and the display will show a value
of 00:00. Set the period of time that you wish the duration
function to countdown for, by using the “minus” (10) and “plus”
(11) buttons.
oOnce the display has got to your desired countdown time, let go
of the “minus” and “plus” buttons. The countdown will start
immediately and the word AUTO will appear on the timer display.
oOnce a countdown time has been set, it is possible to shorten or
lengthen the time by using the “minus” or “plus” buttons.
oAn alarm will sound when the countdown time has elapsed and
the oven will switch off. The word AUTO will flash and the
heating symbol will disappear. The alarm can be silenced by
pressing the “duration” button.
oYou will need to return the oven to manual operation mode, once
the duration function has been used. To do this you should press
the “manual operation” button, the word AUTO will disappear
from the display and the manual operation symbol will appear
instead.
oImportant: If you do not turn the thermostat control knob and
oven function selector knob to 0, then the appliance will continue
to operate as soon as you press the “manual operation” button.

14
Setting the end cook function
This function is similar to the duration function, however
instead of selecting a period of time that you wish the oven to
switch off after. You select the time of day that you wish the
oven to switch off at.
oUse the thermostat control knob (3) to set the temperature that
you require. The manual operation symbol (14) will appear on
the display.
oUse the oven function selector knob (1) to select the mode of
cooking that you require.
oPress the “end cook” button (8) and the display will show a
value of 00:00. Set the time of day that you wish the oven to
stop cooking at by using the “minus” (10) and “plus” (11)
buttons. The timer will calculate how long the cooking time will
be, based on the time of day that you have selected and show it
on the display.
oOnce the display has got to the time of day that you want the
oven to stop cooking at, let go of the “minus” and “plus”
buttons. The countdown will start immediately and the word
AUTO symbol will appear on the timer display.
oWhen the time is set, it can be modified by pressing the “minus”
and “plus” buttons.
oWhen the time of day reaches the end of cooking time that you
set, the oven will switch off and an alarm will sound. The word
AUTO will flash and the heating symbol will disappear. The
alarm can be silenced by pressing the “end cook” button.
oYou will need to return the oven to manual operation mode, once
the end cook function has been used. To do this you should
press the “manual operation” button, the word AUTO will
disappear from the display and the manual operation symbol will
appear instead.
oImportant: If you do not turn the thermostat control knob and
oven function selector knob to 0, then the appliance will continue
to operate as soon as you press the “manual operation” button.

15
Setting the start and end time function
This function will allow you to set a time in the future that the
oven switches on at and a time that the oven will switch off at.
oUse the thermostat control knob (3) to set the temperature that
you require. The manual operation symbol (14) will appear on
the display.
oUse the oven function selector knob (1) to select the mode of
cooking that you require.
oPress the “duration” button (7) and the display will show a value
of 00:00. Set the period of time that you wish to cook for, by
using the “minus” (10) and “plus” (11) buttons. The word AUTO
will appear on the timer display.
oImmediately press the “end cook” button (8) and the timer
display will show the value 00:00. Set the time of day that you
want the oven to switch off at, using the “minus” and “plus”
buttons.
oThe oven will calculate what time it needs to switch on at, so
that your food will cook for the length of time that you selected.
It will automatically switch itself on, once it reaches the time of
day that it has calculated.
oWhen the time of day reaches the end of cooking time that you
set, the oven will switch off and an alarm will sound. The word
AUTO will flash and the heating symbol will disappear. The alarm
can be silenced by pressing the “end cook” or “duration” button.
oYou will need to return the oven to manual operation mode, once
the start and end time function has been used. To do this you
should press the “manual operation” button, the word AUTO will
disappear from the display and the manual operation symbol will
appear instead.
oImportant: If you do not turn the thermostat control knob and
oven function selector knob to 0, then the appliance will continue
to operate as soon as you press the “manual operation” button.

Selecting a cooking function and temperature
Selecting manual operation mode
After your appliance is connected to your mains supply for the
first time, the numbers on the timer display will flash. Before
you can select a cooking function or set a temperature, you
must set the appliance into “manual operation” mode.
oTo select manual operation mode, press the “manual operation”
button (9) on the control panel.
Selecting an oven function
The oven function selector knob should be
used to select the particular mode of
cooking that you require. The appliance will
utilise different elements within the oven
cavity, depending on the oven function that
you select. When a function is selected, the
power indicator light will come on.
There are seven cooking functions available on your appliance:
DEFROST: The fan runs without heat to reduce the defrost time
of frozen foods. The time required to defrost the food will depend
on the room temperature, the quantity and type of food. Always
check food packaging for the defrosting instructions.
CONVENTIONAL OVEN (top and lower element): This
method of cooking provides traditional cooking, with heat from
the top and lower elements. This function is suitable for roasting
and baking on one shelf level only.
FAN OVEN: This method of cooking uses the circular element
whilst the heat is distributed by the fan. This results in a faster
and more economical cooking process. The fan oven allows food
to be cooked simultaneously on different shelves, preventing the
transmission of smells and tastes from one dish onto another.
HALF GRILL: This method of cooking utilises the inner part only
of the top element, which directs heat downwards onto the food.
This function is suitable for grilling small portions of bacon, toast
and meat etc.
16

FULL GRILL: This method of cooking utilises the inner and outer
parts of the top element, which directs heat downwards onto the
food. This function is suitable for grilling medium or large
portions of sausages, bacon, steaks, fish etc.
FAN AND GRILL: This method of cooking utilises the top
element in conjunction with the fan, which helps to provide a
quick circulation of heat. This function is suitable where quick
browning is required and “sealing” the juices in, such as steaks,
hamburgers, some vegetables etc.
FAN AND LOWER ELEMENT: This method of cooking utilises
the bottom element in conjunction with the fan, which helps to
circulate the heat. This function is suitable for sterilizing and
preserving jars.
Thermostat control knob
The oven thermostat control knob
sets the required temperature of the
oven. It is possible to regulate the
temperature within a range of 50 -
250°C.
Turn the control knob clockwise.
Oven operating light
This light will come on to indicate
that the oven’s heating elements are
in operation. The light will turn off
when the temperature set on the
thermostat control knob has been
reached. It will cycle on and off
throughout the cooking time.
You should not place food inside
the cavity, until the correct
cooking temperature has been
reached.
17

18
Cooking guidelines
oPlease refer to the information given on food packaging for
guidance on cooking temperatures and times. Once familiar with
the performance of your appliance, temperatures and times can
be varied to suit personal preference.
oIf you are using the fan oven function, then you should follow
the information given on the food packaging for this particular
mode of cooking.
oYou should pre-heat the oven and not place food inside of it until
the oven operating light has gone off. You can choose not to pre-
heat when using the fan oven mode; however you should extend
the cooking time given on the food packaging by at least ten
minutes.
oIMPORTANT: You should pre-heat the oven if you are baking,
regardless of whether you are using the conventional oven or fan
oven functions.
oIf there is no guidance given on the food packaging specifically
for cooking in fan oven mode, you can generally reduce the
cooking time and temperature by 10% from the information
given for conventional oven cooking.
oMake sure that frozen foods are thoroughly thawed before
cooking, unless the instructions on the food packaging advise
that you can “cook from frozen”.
oBefore cooking, check that any accessories that are not required
are removed from the oven.
oPlace cooking trays in the centre of the oven and leave gaps
between the trays to allow air to circulate.
oTry to open the door as little as possible to view the dishes.
oThe oven light will remain on during cooking.
Warnings
oKeep the oven door closed when using any of the grill functions.
oDo not use aluminium foil to cover the grill pan or heat items
wrapped in aluminium foil under the grill. The high reflectivity of
the foil could potentially damage the grill element.

oYou should also never line the base of your oven with aluminium
foil.
oDuring cooking, never place pans or cookware directly onto the
bottom of your oven. They should always be placed on the
shelves provided.
oThe grill heating element and other internal components of the
oven become extremely hot during operation, avoid touching
them inadvertently when handling the food which you are
grilling.
oImportant: Be careful when opening the door, to avoid contact
with hot parts of the oven and steam.
oThe drip tray handle should only be used to reposition the drip
tray and NOT for removing it from the oven cavity. When
removing the drip tray, you should ALWAYS use an oven glove.
oThe drip tray handle should not be left in position when the
appliance is switched on.
oWarning: Accessible parts may become hot during use. Young
children should be kept well away from the oven when it is in
use.
Accessories
Your oven will come supplied with the
following oven furniture:
o2 safety shelves (A)
oRemovable side racks, which
allow you to cook on four
different levels (B)
o1 drip tray (C)
o1 handle for the drip tray
The numbers 1 – 4, indicate the different shelf positions that you can
utilise within the oven.
19

Cleaning and maintenance
Cleaning operations must only be carried out
when the oven is cool.
The appliance should be disconnected from your
mains supply before commencing any cleaning
process.
oThe oven should be thoroughly cleaned before it is operated for
the first time and after each use. This will avoid residual food
stuffs becoming baked on the oven cavity. After residues have
been baked on several times, they are far more difficult to
remove.
oNever clean the oven surfaces by steam cleaning.
oThe oven cavity should only be cleaned with warm soapy water,
using either a sponge or soft cloth. No abrasive cleaners should
be used.
oAny stains that may appear on the bottom of the oven will have
originated from food splashes or spilt food, these splashes occur
during the cooking process. These could possibly be a result of
the food being cooked at an excessively high temperature or
being placed in cookware that is too small.
oYou should select a cooking temperature and function that is
appropriate for the food that you are cooking. You should also
ensure that the food is placed in an adequately sized dish and
that you use the drip tray where appropriate.
oOuter parts of the oven should only be cleaned with warm soapy
water, using either a sponge or soft cloth. No abrasive cleaners
should be used.
oIf you use any form of oven cleaner on your appliance, then you
must check with the manufacturer of the cleaner that it is
suitable for use on your appliance.
oDo not use harsh abrasive cleaners or metal scrapers to clean
the oven door glass as this can scratch the surface, which may
result in the oven glass shattering.
oAny damage that is caused to the appliance by a cleaning
product will not be fixed by Baumatic free of charge, even
if the appliance is within the guarantee period.
20
