Baumatic BOR600-W User manual

1
BOR600-W/BL/RD/PG
60cm Built-in
RETRO
Multifunction oven.

User Manual for your Baumatic
60 cm 9 Function multifunction oven
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
JW 13/05/13
2

3
Contents
Environmental note 4
Important safety information 5 – 7
Specifications 8 – 10
Dimensions 8
Accessories 8
Electricaldetails 9
Coolingfan 9
Controlpanel 10
Oven programmer/timer display 10
Setting and using the oven programmer/timer 11 - 16
Selecting manual operation mode 11
Setting the time of day 11
Before first use 11-12
Theoventimer 12
Setting the minute minder function 12
Setting the duration function 13
Setting the end cook function 14
Setting the start and end time function 15
Cancelling a timer function 16
Adjusting the audible signal 16
Changingthetimeofday 16
Selecting a cooking function and temperature 17 - 20
Selecting an oven function 17-18
Thermostatcontrolknob 18
Ovenoperatinglight 18
Cooking guidelines 20
Warnings 19-20
Shelflevels 20
Cleaning and maintenance 21 - 24
Removable oven roof liner 22
Replacing the oven bulb 22
Removing the oven door for cleaning 23
Removing the inner door glass for cleaning 24
Removing the side racks 25
Installation 26 - 28
Electricalconnection 26
Installing the oven into the kitchen cabinet 27
Positioning the appliance 27
Ventilation requirements 28
My appliance isn’t working correctly 29 - 30
Cooking tables 31-32
Contact details 35

Environmental note
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
all packaging material with due regard for the
environment.
oPlease discard
4

5
IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
booklet, please contact the retailer where you
urchased this unit.
eneral Information
se and can be
the ambient temperature of the room it
r discolouration at temperatures below the
than 4mm to the appliance, will be the
ent of Baumatic Ltd. will
uarantee. The foregoing does not affect your
statutory rights.
orised service
arning and safety instructions
ill become hot during use and
p
G
This appliance is designed for domestic household uobuilt into a standard kitchen cabinet or housing unit.
oIMPORTANT: The adjacent furniture or housing and all materials
used in the installation must be able to withstand a minimum
temperature of 85°C above
is located in, whilst in use.
oCertain types of vinyl or laminate kitchen furniture are particularly
prone to heat damage o
guidelines given above.
oAny damage caused by the appliance being installed in
contravention of this temperature limit, or by placing adjacent
cabinet materials closer
liability of the owner.
oThe use of this appliance for any other purpose or in any other
environment without the express agreem
invalidate any warranty or liability claim.
oYour new appliance is guaranteed against electrical or mechanical
defects, subject to certain exclusions that are noted in Baumatic’s
Conditions Of G
Repairs may only be carried out by authotechnicians or their authorised service agent.
W
oThis appliance complies with all current safety legislation. Baumatic
do wish to emphasise that this compliance does not remove the fact
that the appliance surfaces w
retain heat after operation.

6
, unless they have been given
supervision or instruction concerning use of the appliance by a
onsible for their safety.
tbabies and young children are
prevented from being near to the appliance and not allowed to
ecessary for younger family members to be in the kitchen,
please ensure that they are kept under close supervision at all
Children should be supervised to ensure that they do not play with
place heavy objects on the oven door or lean on the oven
door when it is open, as this can cause damage to the oven door
Do not place pans or baking trays directly on the base of the oven
Do not allow electrical fittings or cables to come into contact with
Do not use the appliance to heat the room it is located in or to dry
ces by using the
oven door or handle, as this may cause damage to the appliance or
result in injury to the person lifting the appliance.
oThis appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge
person resp
Child Safety
oBaumatic strongly recommend tha
touch the appliance at any time.
oIf it is n
times.
othe appliance.
General Safety
oDo not
hinges.
oDo not leave heated oil or fat unattended, as this is a fire risk.
ocavity, or line it with aluminium foil.
oareas on the appliance that get hot.
oclothing.
oDo not install the appliance next to curtains or soft furnishings.
oDo not attempt to lift or move cooking applian

Cleaning
7
Great care should be taken whilst using this appliance and when
IMPORTANT: The appliance must be disconnected from the mains
wing the cleaning procedure.
stalled by a
uitably qualified person, strictly in accordance
ith the manufacturer’s instructions.
esponsibility for injury or
damage, to person or property, as a result of improper use
ventilated. If the appliance is going to be used for
prolonged periods of time, then additional ventilation may be
Please consult with your qualified installer if you are in any doubt
tion that you will require.
lled in accordance
with the standards currently in force. This appliance must be used
by a trained person for domestic purposes only.
oCleaning of the oven should be carried out on a regular basis.
ofollowing the cleaning procedure.
obefore follo
Installation
This appliance must be correctly in
s
w
oBaumatic Ltd. declines any r
or installation of this appliance.
oHeat, steam and moisture will be created during use of the
appliance, take care to avoid injury and ensure that the room is
adequately
required.
oabout the amount of ventila
Declaration of conformity.
oThe manufacturer declares that the oven is built using certified
materials and requires the appliance to be insta

8
pecifiS cations
Aperture dimensionsProduct Dimensions
Height: 590 mm Height: 580 mm
Width: 595 mm
Depth: 550 mm Width: 560 mm Depth: 550 mm
litres
oor glass
cks
oof liner
Product specifications
o9 oven functions
oEnergy efficiency class: A
oGross oven capacity: 59 litres
Net oven capacity: 50o
oOven light
oLED full programmer
oCooling fan
oThermostatically controlled grill
oDouble-glazed removable door
oRemovable inner d
Standard accessories
oEnamelled baking tray with handle
2 x Safety shelveso
oTrivet
oRemovable side ra
oRemovable r
oDeep baking tray
oPizza stone

9
lectrical details
240 Vac, 50 Hz
:
ven Light Bulb: 25 W/300°C screw type pygmy
ooling fan
the oven stable and the
external surface temperature lower.
oven has been
switched on for and at how high a temperature.
the oven door and looking on the right hand side of
e oven chassis.
odel Number ……………………………….
erial Number ……………………………….
ate of Purchase ……………………………….
E
Rated Voltage: 220 -
Supply Connection: 16A
Max Rated Inputs: 3.35 kW
Mains Supply Lead 3 x 1.5mm² (supplied)
O
C
oA tangential cooling fan is fitted inside of these appliances, to
make the internal temperature of
oAfter you have finished cooking and switched off the oven, the
cooling fan will continue to run for a period of time afterwards.
The length of time will depend on how long the
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The rating plate for your oven can be
located by opening
th
M
S
D

10

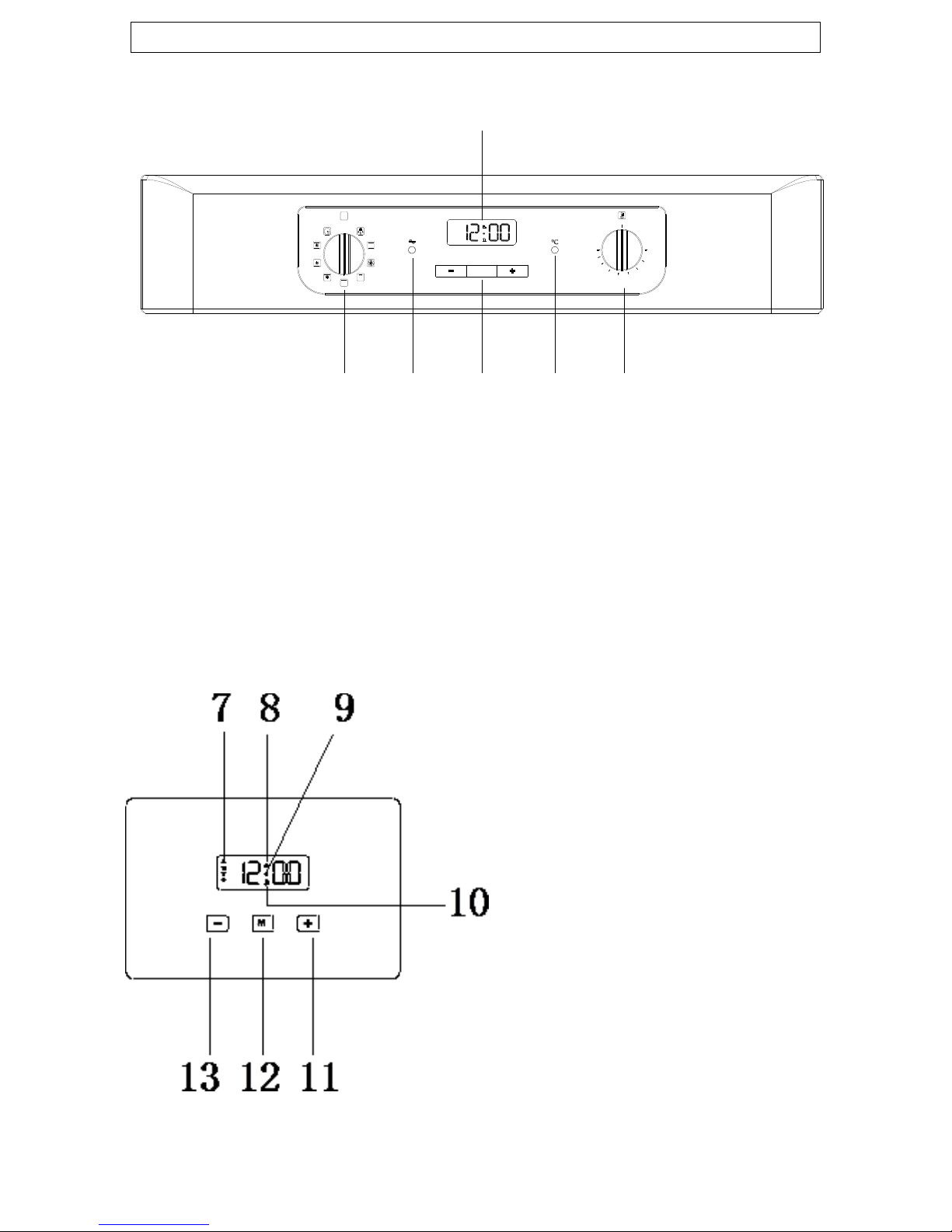

ontrol PanelC
1) Oven function selector kn
2) Power indicator light ob
ontrol knob
) LED display
ven programmer/timer
bol
bol
tton
13) Minus button
3) Oven programmer/timer
4) Oven operating light
5) Thermostat c
6
O
7) Automatic cooking sym
8) Oven in use symbol
9) Decimal point symbol
10) Minute minder sym
11) Plus button
12) Programme bu
50
100
150
200
250
A
U
T
O
M
12345
6
0

11
ogrammer/timerSetting and using the oven pr
Selecting manual operation mode
After your appliance is connected to your mains supply for the first
time (or after a power-cut) the numbers on the timer display will flash.
Before you can select a cooking function or set a temperature, you
seconds. The oven in use symbol (8) will light in the
first
re the oven is in manual operation mode (as outlined
plus (11) and
al
will stop flashing and the oven is ready to use.
nction
re that any windows in the room are left open
o remain in the room whilst the burning
ld leave the oven on maximum setting for 30 – 40
either a sponge or soft cloth. No abrasive
cleaners should be used.
must set the appliance into “manual operation” mode.
oTo select manual operation mode, press the program button (12)
for three
display.
Setting the time of day
After your appliance is connected to your mains supply for the
time, you must set the time of day before you can use the oven.
Make suoabove).
oPress the program button (12) once to set the time of day. Whilst
the decimal point symbol (9) is flashing, use the
minus (13) buttons to set the correct time of day.
oWhen the correct time of day is shown on the LED display, release
the plus and minus buttons and wait a few seconds. The decim
point symbol (9)
Before first use
oTo remove any residue from the oven that may have been left from
the manufacturing process, you should select the fan oven fu
and set the thermostat to its maximum temperature setting.
oIt is perfectly normal for a smell to be produced during this process.
You should make suoduring this process.
It is advisable for you not tooff process is taking place.
You shouominutes.
oAfter the oven cavity has cooled, it should then be cleaned with
warm soapy water, using

12
oOuter parts of the oven should be cleaned with warm soapy water,
using either a sponge or soft cloth. No abrasive cleaners should be
used.
oWe would recommend that an appropriate stainless steel cleaner
and polish is regularly used on the stainless steel surfaces of this
appliance.
Timer functions
The minute minder function
The minute minder function is a countdown time that can be set on the
oven programmer/timer. When the countdown time has finished, an
audible signal will sound.
oPress the programme button (12) twice. The decimal point (9)
starts to flash and the minute minder symbol (10) will light on the
display and will show “00:00”.
oUse the plus (11) and minus (13) buttons to set the countdown
time that you require.
oThe maximum countdown time that can be set is 23 hours and 59
minutes.
oWhen the correct countdown time appears on the LED display,
release the plus and minus buttons and the countdown will start
immediately.
oThe minute minder symbol (10) will remain in the LED display to
show that a countdown time is in progress.
oAfter a few seconds the LED display will return to showing the time
of day.
oAt the end of the countdown time, an audible signal will sound and
the oven in use symbol will go out. The audible signal will sound for
7 minutes before switching off or you can silence it by pressing any
of the oven timer buttons.
IMPORTANT: If the oven is in use whilst using the minute
minder function, the oven WILL NOT switch off at the end of
the countdown time. YOU MUST turn the oven function selector
knob and the thermostat control knob to their OFF positions.

13
The semi-automatic cooking function
This function will allow you to set a countdown time similar to the
minute minder function, however the oven will switch off at the end of
the cooking time.
oPlace the food that you want to cook inside of the oven and close
the door.
oSelect an oven function and cooking temperature using the relevant
control knobs.
oPress the programme button (12) three times. The decimal point,
the oven in use symbol (8) and the Automatic cooking symbol (7)
will flash on the LED display. The display will show “00:00”.
oUse the plus (11) and minus (13) buttons to set the cooking time
that you require.
oThe maximum countdown time that can be set is 10 hours.
oWhen the correct countdown time appears on the LED display,
release the plus and minus buttons. Cooking will begin immediately,
after a few seconds the countdown time will start.
oAt the end of the cooking time the oven will turn off and an audible
signal will sound. The automatic cooking symbol (7) and the
minute minder symbol (10) will flash on the LED display.
oTo reset the oven and cancel the audible alarm, press any button
once to stop the alarm. Then press and hold the programme button
twice for 3 seconds. After the first press the oven time will flash,
and on the second press the oven in use symbol appears on the
LED display and the automatic cooking (7) symbol goes out.
oIMPORTANT: If you have not turned the oven function selector
knob and thermostat control knob to their OFF positions, when you
reset the oven it will continue to heat.

14
The end of cooking function
This function is similar to the semi-automatic function, however
instead of setting a countdown time, you select the time of day that
you want the oven to switch off at.
oPlace the food that you want to cook inside of the oven and close
the door.
oSelect an oven function and cooking temperature using the relevant
control knobs.
oPress the programme button (12) four times. The decimal point
starts to flash, and the oven in use symbol (8) and the Automatic
cooking symbol (7) will light on the LED display.
oThe display will show the current time of day which will flash. Use
the plus (11) and minus (13) buttons to set the cooking end time
that you require.
oThe maximum end time that can be set is 10 hours into the future.
oWhen the correct end time appears on the LED display, release the
plus and minus buttons. Cooking will begin immediately, after a few
seconds the countdown time will start.
oAt the end of the cooking time the oven will turn off and an audible
signal will sound. The automatic cooking symbol (7) and the Minute
Minder symbol (10) will flash on the LED display.
oTo reset the oven and cancel the audible alarm, press any button
once to stop the alarm. Then press and hold the programme button
twice for 3 seconds. After the first press the oven time will flash,
and on the second press the oven in use symbol appears on the
LED display and the automatic cooking (7) symbol goes out.
oIMPORTANT: If you have not turned the oven function selector
knob and thermostat control knob to their OFF positions, when you
reset the oven it will continue to heat.

15
The automatic cooking function
This function will allow you to set the time of day that you want the
oven to switch off at and how long you want the oven to cook for.
oPlace the food that you want to cook inside of the oven and close
the door.
oSelect an oven function and cooking temperature using the relevant
control knobs.
oPress the programme button (12) three times. The decimal point
starts to flash, and the oven in use symbol (8) and the automatic
cooking symbol (7) will light on the LED display.
oUse the plus (11) and minus (13) buttons to set the cooking time
that you require.
oThe maximum cooking duration time that can be set is 10 hours.
oIMMEDIATELY press the programme button.
oThe display will then show the current time of day which will flash.
Use the plus (11) and minus (13) buttons to set the cooking end
time that you require.
oThe maximum end time that can be set is 10 hours into the future.
oWhen the correct end time appears on the LED display, release the
plus and minus buttons.
oCooking will begin at the calculated preset time.
oAt the end of the cooking time the oven will turn off and an audible
signal will sound. The automatic cooking symbol (7) and the Minute
Minder symbol (10) will flash on the LED display.
oTo reset the oven and cancel the audible alarm, press any button
once to stop the alarm. Then press and hold the programme button
twice for 3 seconds. After the first press the oven time will flash,
and on the second press the oven in use symbol appears on the
LED display and the automatic cooking (7) symbol goes out.
oIMPORTANT: If you have not turned the oven function selector
knob and thermostat control knob to their OFF positions, when you
reset the oven it will continue to heat.

16
Cancelling a timer function
oTo cancel the minute minder function press the programme button
(12) once to select the minute minder function and then reduce the
time to “00:00” .
oTo cancel the semi-automatic timer press the programme button
(12) three times to select the semi-automatic timer then and
reduce the time to “00:00”.
oTo cancel the end of cooking timer press the programme button
(12) four times to select the end of cooking timer and then reduce
the time to the current time of day.
oTo cancel the automatic timer press the programme button (12)
three times and reduce the (duration) time to “00:00” and then
press the program button again and reduce the (end) time to the
current time of day.
oIMPORTANT: If you do not turn the oven function selector knob
and thermostat control knob to their OFF positions, when you reset
the timer function, it will continue to heat.
Adjusting the audible signal
The audible signal has 3 tones. To adjust the signal you should
proceed as follows:-
oIMPORTANT: The oven timer must not be in any form of
countdown mode and the oven in use symbol (8) must be lit.
oPress and hold down the minus (13) and plus (11) buttons
simultaneously for 2 seconds and you will hear an audible signal.
This is the audible signal which is currently set.
oPress and hold down the minus (13) and plus (11) buttons
simultaneously again for 2 seconds to hear the next audible signal
which will be set. This process can be repeated.
oWhen you hear the audible signal that you wish to use, release all
buttons and wait for the display to go back to showing the time of
day. The audible signal has now been set.
Changing the time of day
oIMPORTANT: The oven timer/programmer must not be in any
form of countdown mode and the oven in use symbol (8) must be
lit.
oPlease follow the guidelines on “setting the time of day”.

Selecting an oven function
oThe oven function selector knob should be used
to select the particular mode of cooking that you
require. The appliance will utilise different
elements within the oven cavity, depending on
the oven function that you select. When a
function is selected, the power indicator light will
come on.
0
Oven functions
CONVENTIONAL OVEN (top and lower element): This method
of cooking provides traditional cooking, with heat from the top and
lower elements. This function is suitable for roasting and baking on
one shelf only.
GRILL MODE: This method of cooking utilises the inner sections of
the top element, which directs heat downwards onto the food. This
function is suitable for grilling portions of bacon, toast and meat
etc.
17
c.
FULL GRILL: This method of cooking utilises the inner and outer
parts of the top element, which directs heat downwards onto the
food. This function is suitable for grilling medium or large portions
of sausages, bacon, steaks, fish et
FAN OVEN: This method of cooking uses the circular element while
the heat is distributed by the fan. This results in a faster and more
economical cooking process. The fan oven allows food to be cooked
simultaneously on different shelves, preventing the
transmission of smells and tastes from one dish on to another.
FAN AND LOWER ELEMENT: This method of cooking utilises the
bottom element in conjunction with the fan, which helps to circulate
the heat. This function is suitable for sterilizing and preserving jars.
CONVENTIONAL OVEN AND FAN: This method of cooking
provides traditional cooking with heat from the top and the lower
element, it also utilises the circulation fan. This ensures a fast and
even distribution of the heat. Suitable for light and delicate baking,
such as pastries.

FAN AND GRILL: This method of cooking utilises the top element
in conjunction with the fan, which helps to provide a quick
circulation of heat. This function is suitable where quick browning is
required and “sealing” the juices in, such as steaks, hamburgers,
some vegetables etc.
PIZZA MODE: This method of cooking uses the lower and circular
element while the heat is distributed by the fan reproducing the
same conditions of traditional clay wood-fire stoves.
DEFROST MODE: The fan runs without heat to reduce the
defrosting time of frozen foods. The time required to defrost the
food will depend on the room temperature, the quantity and type of
food. Always check food packaging for the defrosting instructions.
Thermostat control knob
The oven thermostat control knob sets the
required temperature of the oven. It is
possible to regulate the temperature within
a range of 50 - 250°C.
50
100
150
200
250
Oven operating light
This light will come on to indicate that
the oven’s heating elements are in
operation. The light will turn off when
the temperature set on the
thermostat control knob has been
reached. It will cycle on and off
throughout the cooking time.
You should not place food inside the cavity, until the correct
cooking temperature has been reached.
18

19
Cooking guidelines
oPlease refer to the information given on food packaging for
guidance on cooking temperatures and times. Once familiar with
the performance of your appliance, temperatures and times can
be varied to suit personal preference.
oIf you are using the fan oven function, then you should follow
the information given on the food packaging for this particular
mode of cooking.
oYou should pre-heat the oven and not place food inside of it until
the oven operating light has gone off. You can choose not to pre-
heat when using the fan oven mode; however you should extend
the cooking time given on the food packaging by at least ten
minutes.
oIMPORTANT: You should ALWAYS pre-heat the oven if you are
baking.
oIf there is no guidance given on the food packaging specifically
for cooking in fan oven mode, you can generally reduce the
cooking time and temperature by 10% from the information
given for conventional oven cooking.
oMake sure that frozen foods are thoroughly thawed before
cooking, unless the instructions on the food packaging advise
that you can “cook from frozen”.
oBefore cooking, check that any accessories that are not required
are removed from the oven.
oPlace cooking trays in the centre of the oven and leave gaps
between the trays to allow air to circulate.
oTry to open the door as little as possible to view the dishes.
oThe oven light will remain on during cooking.
Warnings
oKeep the oven door closed when using ALL oven functions,
including the grill function.
oDo not use aluminium foil to cover the enamelled baking tray or
heat items wrapped in aluminium foil under the grill. The high
reflectivity of the foil could potentially damage the grill element.

oYou should also never line the base of your oven with aluminium
foil.
oDuring cooking, never place pans or cookware directly onto the
bottom of your oven. They should always be placed on the shelf
provided.
oThe grill heating element becomes extremely hot during
operation, avoid touching it inadvertently when handling the
food which you are grilling.
oImportant: Be careful when opening the door, to avoid contact
with hot parts and steam.
Shelf positions
Your oven will come supplied with the
following oven furniture:
(A) Oven shelf
(B) Enamelled baking tray & trivet
oThe numbers 1 – 4, indicate the
different shelf positions that you can
utilise within the oven.
(Image for reference only – actual product may differ slightly)
oInsert the oven shelf and baking tray between the 2 side rails at
any position (1 to 4) on both sides. The oven shelf has safety stops
to prevent accidental withdraw. After engaging the oven shelf into
the side rails, as you push the oven shelf into the oven, lift the front
of the shelf slightly to bypass the stops and allow the oven shelf to
slide fully into the rails.
oTo remove the oven shelf, gently pull the oven shelf outwards.
When the shelf stops, lift the front slightly to bypass the safety
stops and then completely withdraw the oven shelf from the oven.
oWhen installed correctly, the shelf and tray should be horizontal and
not on an angle.
20
