Baumatic P610SS User manual

1
P610SS Fan oven
P620BL/SS & P630SS
60 cm Multifunction built
in oven.

2
User Manual for your Baumatic
P610SS 4 Function 60 cm fan oven
P620BL/SS 7 Function 60 cm
multifunction oven
P630SS 9 Function 60 cm
multifunction oven
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
GS 24/02/12

3
Contents
Environmental note 4
Important safety information 5 – 7
Specifications 8-13
P610SS 8
P620BL/SS 9
P630SS 10
Electricaldetails 11
Coolingfan 11
Controlpanel 12-13
Ovenprogrammer/timerdisplay 13
Setting and using the oven programmer/timer 13-18
Selecting manual operation mode 13
Setting the time of day 13
Beforefirstuse 14
Setting the minute minder function 14
Setting the duration function 15
Settingtheendcookfunction 16
Setting the start and end time function 17
Adjusting the audible signal 17-18
Selecting a cooking function and temperature 18-22
Selecting manual operation mode 18

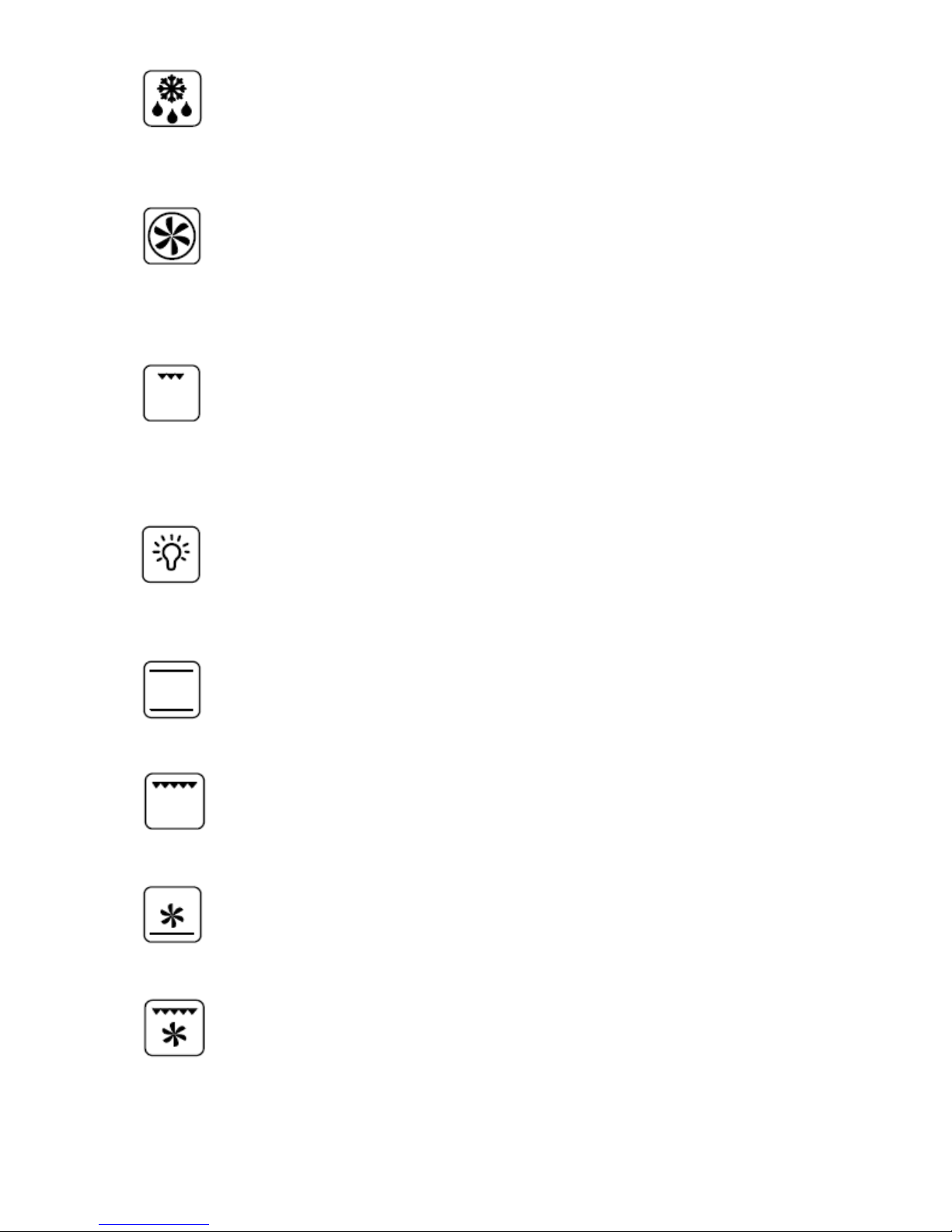

Selectinganovenfunction 18
P610SS, P620BL/SS and P630SS standard oven functions 19
P610SS additional functions 19
P620BL/SS and P630SS additional functions 19
P630SS additional functions 20
Thermostatcontrolknob 20
Oven operating light 20
Cooking guidelines 21
Warnings 22
Cleaning and maintenance 23-28
Replacing the oven bulb 24
Removing the oven door for cleaning 25
Removing the inner door glass for cleaning 26-28
Installation 28-31
Electrical connection 28-29
Installing the oven into the kitchen cabinet 30
Positioningtheappliance 30
Ventilationrequirements 30-31
My appliance isn’t working correctly 32-34
Baumatic consumables 35
Contact details 36

4
Environmental note
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
oPlease discard all packaging material with due regard for the
environment.

5
IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
booklet, please contact the Baumatic Customer Care
Department.
General Information
oThis appliance is designed for domestic household use and can
be built into a standard kitchen cabinet or housing unit.
oIMPORTANT: The adjacent furniture or housing and all
materials used in the installation must be able to withstand a
minimum temperature of 85°C above the ambient temperature
of the room it is located in, whilst in use.
oCertain types of vinyl or laminate kitchen furniture are
particularly prone to heat damage or discolouration at
temperatures below the guidelines given above.
oAny damage caused by the appliance being installed in
contravention of this temperature limit, or by placing adjacent
cabinet materials closer than 4mm to the appliance, will be the
liability of the owner.
oFor use in leisure accommodation vehicles,please refer to
the appropriate information given in the installation instructions
for this appliance.
oThe use of this appliance for any other purpose or in any other
environment without the express agreement of Baumatic Ltd.
will invalidate any warranty or liability claim.
oYour new appliance is guaranteed against electrical or
mechanical defects, subject to certain exclusions that are noted
in Baumatic’s Conditions Of Guarantee. The foregoing does not
affect your statutory rights.
oRepairs may only be carried out by Baumatic Service
Engineers or their authorised service agent.

6
Warning and safety instructions
oThis appliance complies with all current European safety
legislation. Baumatic do wish to emphasise that this compliance
does not remove the fact that the appliance surfaces will
become hot during use and retain heat after operation.
Child Safety
oBaumatic strongly recommend that babies and young children
are prevented from being near to the appliance and not allowed
to touch the appliance at any time.
oIf it is necessary for younger family members to be in the
kitchen, please ensure that they are kept under close supervision
at all times.
General Safety
oDo not place heavy objects on the oven door or lean on the
oven door when it is open, as this can cause damage to the oven
door hinges.
oDo not leave heated oil or fat unattended, as this is a fire risk.
oDo not place pans or baking trays directly on the base of the
oven cavity, or line it with aluminium foil.
oDo not allow electrical fittings or cables to come into contact
with areas on the appliance that get hot.
oDo not use the appliance to heat the room it is located in or to
dry clothing.
oDo not install the appliance next to curtains or soft furnishings.
oDo not attempt to lift or move cooking appliances by using the
oven door or handle, as this may cause damage to the appliance
or result in injury to the person lifting the appliance.
Cleaning
oCleaning of the oven should be carried out on a regular basis.
oGreat care should be taken whilst using this appliance and when
following the cleaning procedure.
oIMPORTANT: The appliance must be disconnected from the
mains before following the cleaning procedure.

7
Installation
This appliance must be correctly installed by a
suitably qualified person, strictly in accordance
with the manufacturer’s instructions.
oBaumatic Ltd. declines any responsibility for injury or
damage, to person or property, as a result of improper
use or installation of this appliance.
oHeat, steam and moisture will be created during use of the
appliance, take care to avoid injury and ensure that the room is
adequately ventilated. If the appliance is going to be used for
prolonged periods of time, then additional ventilation may be
required.
oPlease consult with your qualified installer if you are in any doubt
about the amount of ventilation that you will require.
Declaration of conformity
oIn the parts destined to come into contact with foodstuffs, this
appliance is in accordance with the requirements of the EC
directive 89/109 transposed in the Italian Legislative Decree No.
108 of 25/01/92.
oCE:Appliance conforming to the European directives
89/336/EEC, 93/68/EEC, 73/23/EEC and subsequent revisions
and “RoHS” directive 2002/95/CE.*
oThe manufacturer declares that the oven is built using certified
materials and requires the appliance to be installed in
accordance with the standards currently in force. This appliance
must be used by a trained person for domestic purposes only.
*The RoHS directive stands for “the restriction of the use of
certain hazardous substances in electrical and electronic
equipment”. This directive bans the placing on the EU market of
new electrical and electronic equipment containing more than
the agreed levels of lead, cadmium, mercury, hexavalent
chromium, polybrominated biphenyl (PBB) and polybrominated
diphenyl ether (PBDE) flame retardants.

8
Specifications
P610SS
Product Dimensions
Height: 600 mm
Width: 598 mm
Depth: 565.5 mm
Aperture dimensions
Height: 583 - 585 mm
Width: 560 mm
Depth: 560 mm
Product specifications
oEnergy efficiency class: A
o4 oven functions
oOven capacity (net): 61 litres
oOven capacity (gross): 68 litres
oLED full programmer
oOven light
oCooling fan
oThermostatically controlled grill
oDouble-glazed removable door
oRemovable inner glass door
oMark resistant coating
Standard accessories
oEnamelled baking tray with handle
oSafety shelf
oTrivet
oRemovable side racks
Optional extras
oBPS2 Pizza stone
oTEL6KIT Telescopic runners kit
oSCL6KIT Stay-clean liners kit

9
P620BL/SS
Product Dimensions
Height: 600 mm
Width: 598 mm
Depth: 565.5 mm
Aperture dimensions
Height: 583 - 585 mm
Width: 560 mm
Depth: 560 mm
Product specifications
oEnergy efficiency class: A
o7 oven functions
oOven capacity (net): 61 litres
oOven capacity (gross): 68 litres
oLED full programmer
oOven light
oCooling fan
oThermostatically controlled grill
oDouble-glazed removable door
oRemovable inner glass door
oMark resistant coating
Standard accessories
oEnamelled baking tray with handle
o2 x Safety shelves
oTrivet
oRemovable side racks
Optional extras
oBPS2 Pizza stone
oTEL6KIT Telescopic runners kit
oSCL6KIT Stay-clean liners kit

10
P630SS
Product Dimensions
Height: 600 mm
Width: 598 mm
Depth: 565.5 mm
Aperture dimensions
Height: 583 - 585 mm
Width: 560 mm
Depth: 560 mm
Product specifications
oEnergy efficiency class: A
o9 oven functions
oOven capacity (net): 61 litres
oOven capacity (gross): 68 litres
oLED full programmer with temperature display
oOven light
oElectronically controllable thermostat
oPush/pull knob control operation
oWipeClean enamelled cavity
oCooling fan
oTriple-glazed removable door
oMark resistant coating
Standard accessories
oEnamelled baking tray with handle
o2 x Safety shelves
oTrivet
oRemovable side racks
oTelescopic runners – 1 level
Optional extras
oBPS2 Pizza stone
oSCL6KIT Stay-clean liners kit
