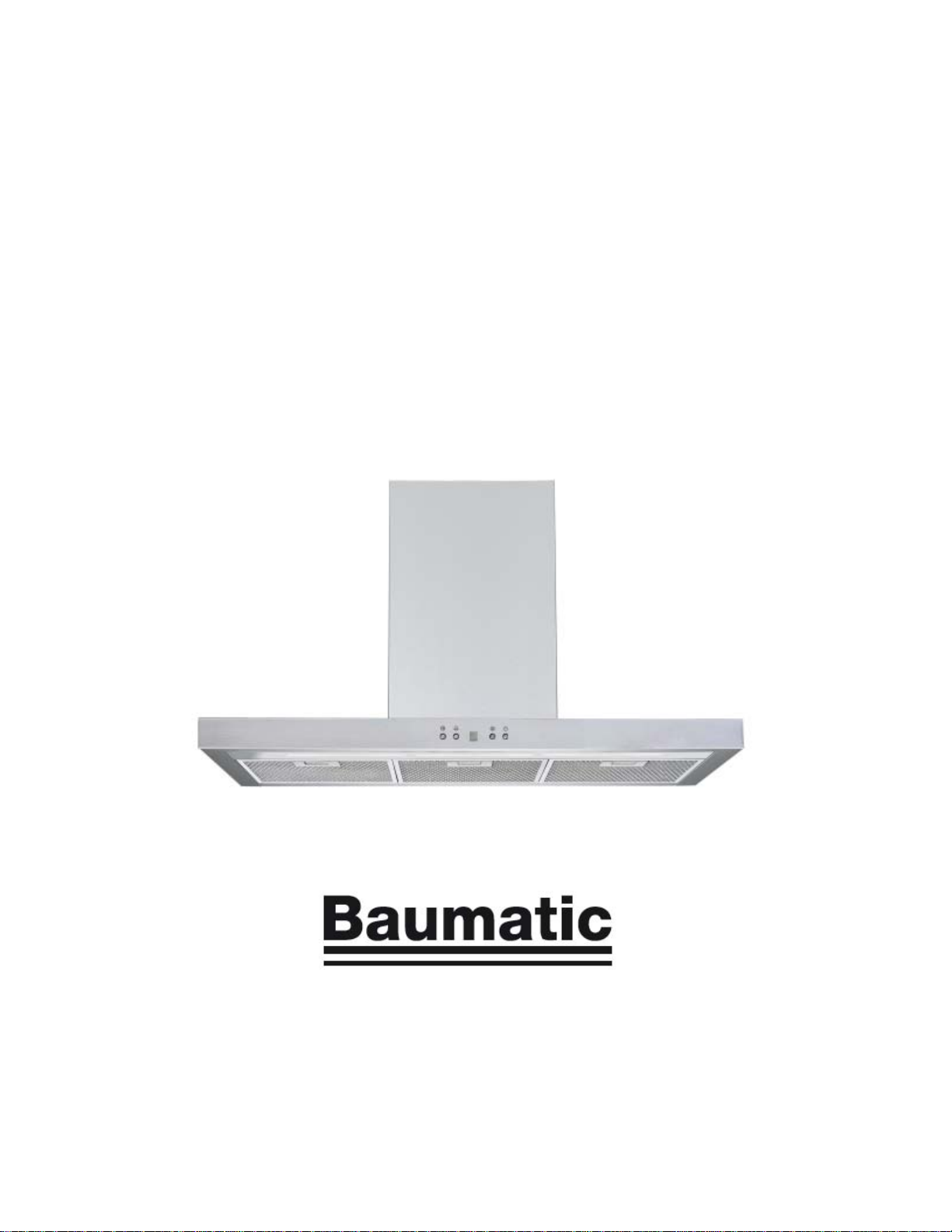

Baumatic BRT60SS User manual

User Manual for your Baumatic
600/900mm Stainless Steel Box Canopy Rangehood
BRT60SS
BRT90SS
BRT90ISS
NOTE: This user manual contains important information including safety &
installation points which will enable you to get the most out of your Baumatic
appliance. Please keep it in a safe place so that it is readily available for future
reference.

Contents
Environmental note 1
Important safety information 2
Specifications of your rangehood 5
Using your rangehood
Before first use 6
To use your rangehood 6
Cleaning your rangehood
The grease filter 8
Maintenance
Removing and cleaning the grease filter 9
Changing a light bulb 9
Fitting the carbon filter 10
Installation
Electrical connection 11
Before beginning installation 12
Installing your rangehood 13
Fitting the chimney 14
Connecting to external ducting 16

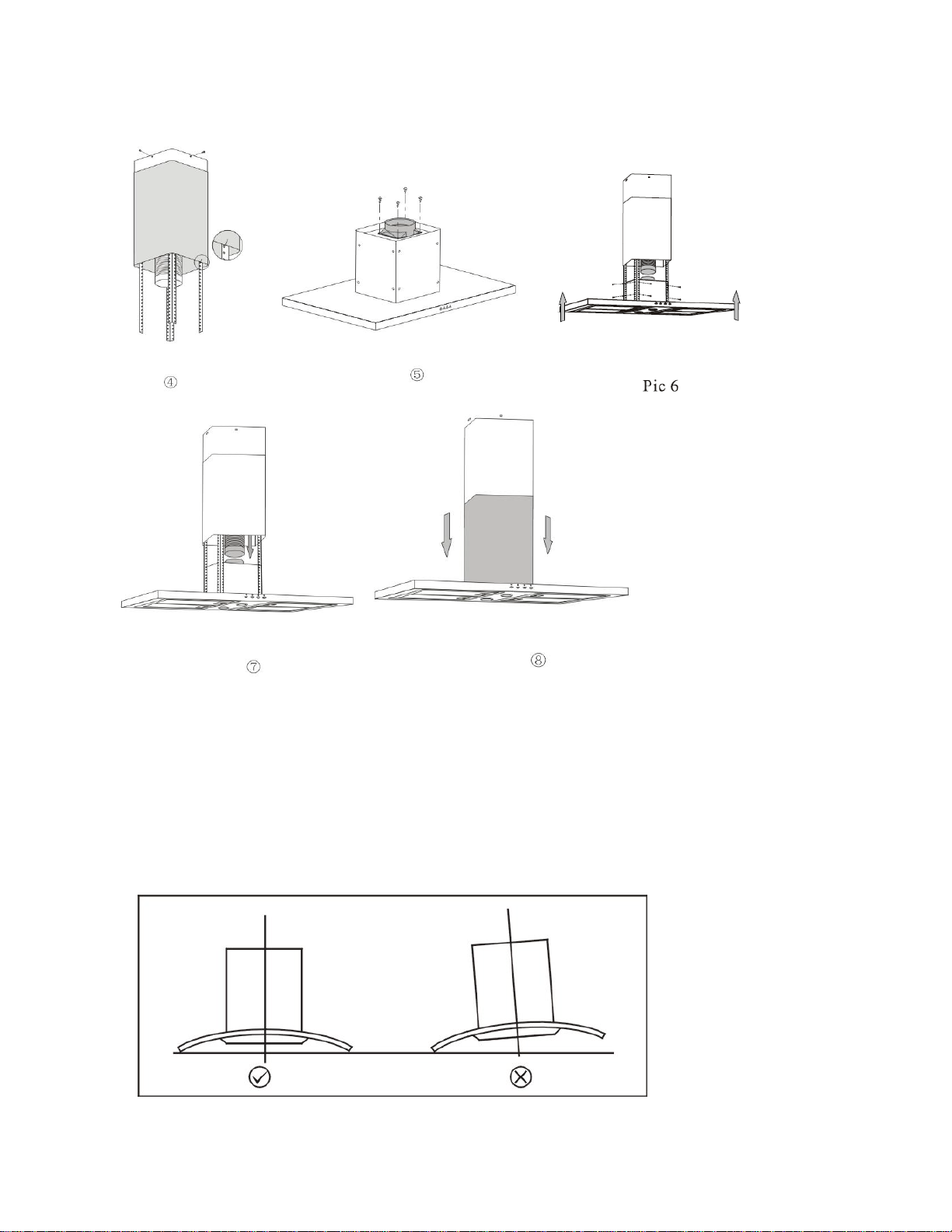

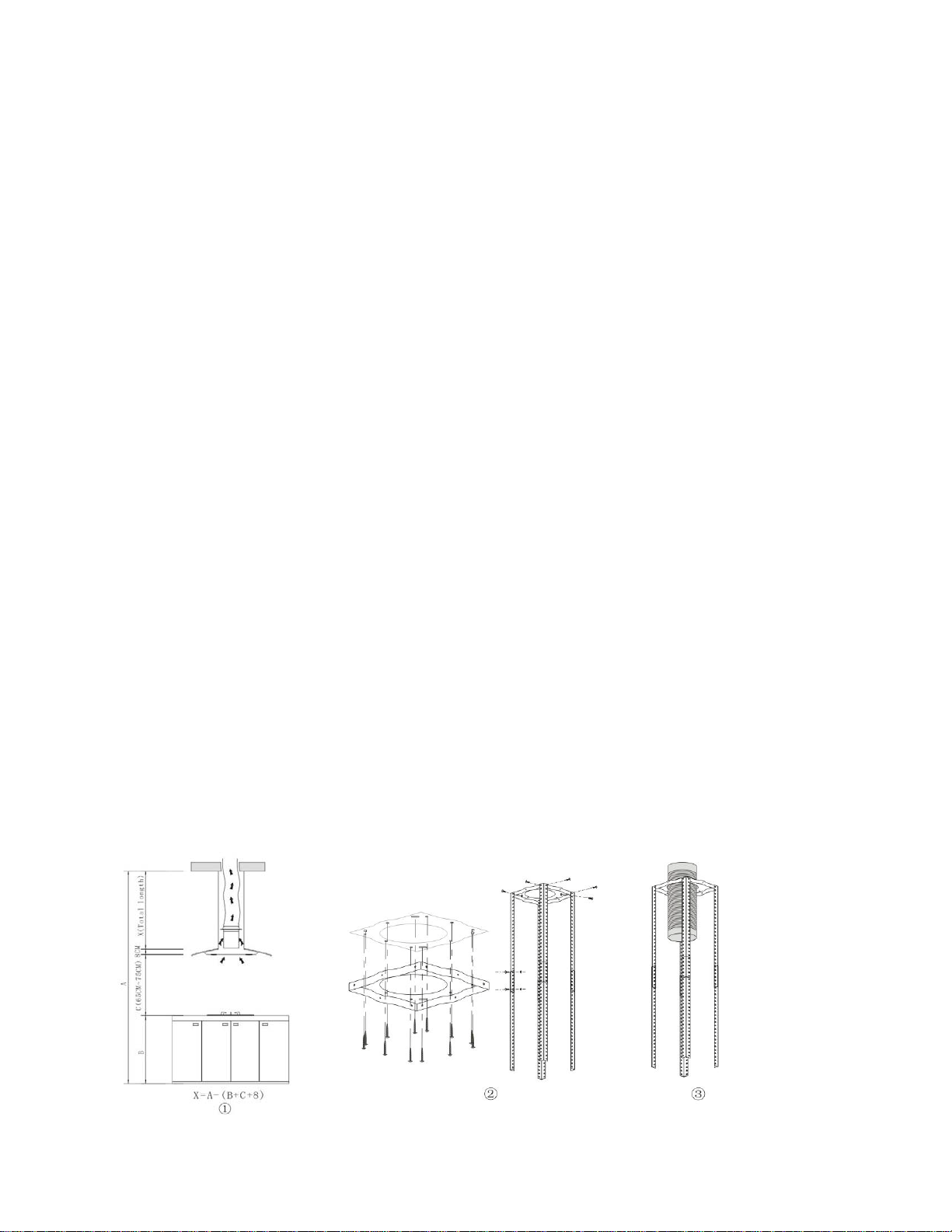

Island installation (BRT90ISS) 17
Completing the installation 19

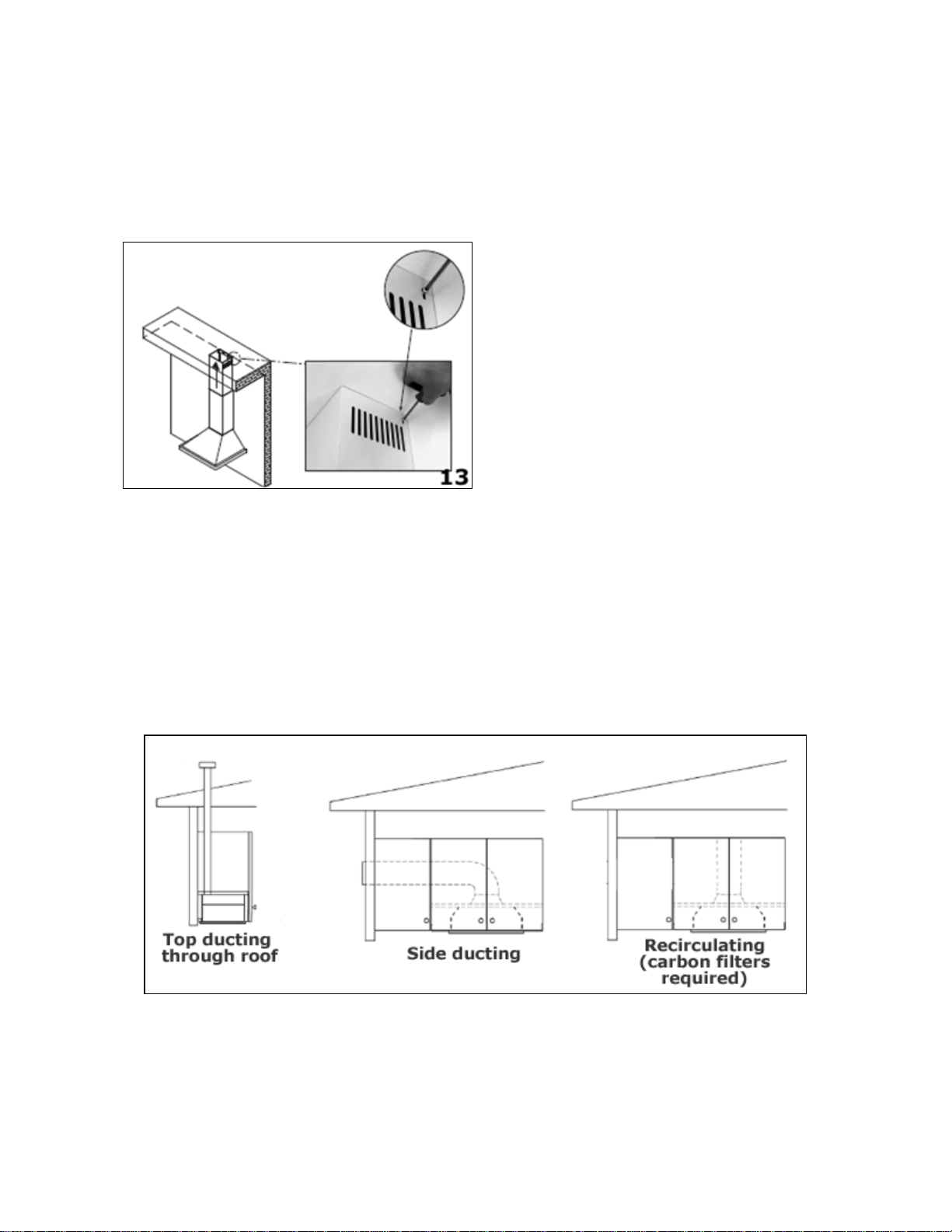

Extraction mode or recirculation mode? 20
Troubleshooting 21

1
Environmental note
Note: Before discarding an old appliance, switch off and disconnect it from the
power supply. Cut off and render any plug useless. Cut the cable off directly
behind the appliance to prevent misuse. This should be undertaken by a
competent person.
This appliance is marked according to the European directive 2002/96/EC on Waste
electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate waste handling of
this product.
The symbol on the product or on the documents accompanying the product
indicates that this appliance may not be treated as household waste. Instead it
shall be handed over to the applicable collection point for the recycling of electrical and
electronic equipment.
Disposal must be carried out in accordance with local environmental regulations for
waste disposal. For more detailed information about treatment, recovery and recycling
of this product, please contact your local city office or local waste management office.
oThe packaging materials that we use are environmentally friendly and can be
recycled.
oPlease discard all packaging material with due regard for the environment.

2
Important safety information
Your safety is of the utmost importance to us. Please make sure that
you read this instruction booklet before attempting to install or use
the appliance. If you are unsure of any of the information contained in
this booklet, please contact the Retailer where you purchased your
unit from.
IMPORTANT: Any installation work must be carried out by a
qualified electrician or competent person.
oThe rangehood must be installed in accordance with the installation instructions
and all measurements followed.
oIf the rangehood is installed for use above a gas appliance then the provision for
ventilation must be in accordance with the Gas Installations standard AS/NZS
5601.1 & 2:2013, the Gas Safety and Measurement Regulations 2010, and the
Building (Specified Systems, Change the Use, and Earthquake-prone Buildings)
Regulations 2005 issued under the Building Act 2004.
oIt is dangerous to alter the specifications or to modify this product. Do not tamper
with it or attempt to modify the appliance in any way.
oWhen installing the rangehood, ensure that the following recommended
distances are observed between the highest point on the hob top (including the
burners) and the bottom of the rangehood:
Electric cookers: 700 mm
Gas cookers: 700 mm
Coal/ oil cookers: 800 mm
IMPORTANT: Do not set your rangehood less than 700mm above your
cooker.

3
oWhen installed between adjoining wall cabinets, the cabinets must not overhang
the hob.
oThe edges of the rangehood are sharp – be mindful of this as you handle your
appliance, especially during installation and cleaning. DO NOT CLEAN IN
BEHIND THE GREASE FILTERS!
oIf the room where the rangehood is to be used contains a fuel burning appliance
such as a central heating boiler then its flue must be of the sealed or balanced
flue type.
oIf other types of flue or appliances are fitted, ensure that there is an adequate
supply of air in the room.
oWhen the rangehood is being used in its extractor function, ensure that the
ducting is fire retardant and that there are no bends sharper than 90 degrees as
this will reduce the efficiency of the rangehood.
oEnsure the ducting for the extractor function has the same diameter as the outlet
hole all the way through.
oKeep young children from using, playing with or tampering with the rangehood.
oYour rangehood is for domestic use only.
oPlease dispose of the packing material carefully – children are especially
vulnerable to it.
oDirty oil is an even greater fire risk.
oAlways put lids on pots and pans when cooking on a gas cooker.
oThe manufacturer refuses to accept any responsibility for damages arising to the
rangehood, including it catching on fire, due to a failure to observe the fire safety
advice contained in this instruction booklet.
oRemember that when in extraction mode, your rangehood is removing air from
your room. Ensure that proper ventilation measures are being observed.
oNote that the rangehood removes odours from your room, not steam.
oWarning - Always ensure that the rangehood has been switched off before
carrying out any work, including replacing light bulbs.

4
oDo not connect the ducting system of this appliance to any existing ventilation
system which is being used for any other purpose.
oDo not install above a cooker with a high level grill.
oNever leave frying pans unattended during use as overheated fats and oils might
catch fire.
oThe rangehood should not be exposed to a direct heat source from the cooking
device underneath it, i.e. a naked flame from a gas burner or heat from electric
hob zones without a pan on them.
oDo not attempt to use the rangehood if it is damaged in any way. Never attempt
to use it without the grease filters fitted or if the filters are excessively greasy!
oNever flambé cook under this rangehood.
oThe lights on this appliance should only be used during operation of the
rangehood. They should not be left on permanently and used as a lighting source.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY IN THE
EVENT OF FAILURE TO OBSERVE THE INSTRUCTIONS GIVEN
HERE FOR INSTALLATION, MAINTENANCE AND SUITABLE USE
OF THE RANGEHOOD.

5
Specifications of your rangehood
BRT60SS / BRT90SS BRT90ISS
Product dimensions
Height: 640 – 1220mm (BRT60/90SS)
637 – 1137mm (BRT90ISS)
Width: 600mm (BRT60SS)
900mm (BRT90SS/BRT90ISS)
Depth: 500mm (BRT60/90SS)
600mm (BRT90ISS)
Rated Voltage: 220-240 Vac 50 Hz
Power Rating: 269W (BRT60SS) / 272W (BRT90SS) / 279W (BRT90ISS)
Your rangehood is fitted with:
oLED strip lighting SYKL34B (BRT60SS) /SYKL34 (BRT90SS/BRT90ISS)
oLED electronic controls
o3 speed fan
o2/3 honeycomb aluminium filters SYRSF353C60 / SYRSF353C90 / SYRSF353IS
o150mm diameter ducting outlet
oExtendable chimney flue
Extraction capacity: 1000 m³/hr
Noise level min/max: 52 – 62 dB
Optional extras:
CF260 (BRT60SS and BRT90SS) / SQ1 (BRT90ISS)
Recirculation possible with optional charcoal filter:

6
Using your rangehood
Before first use
IMPORTANT: This process must be followed before the rangehood is used for the
first time.
You should use a mild liquid detergent and a damp cloth on all the external areas of
your rangehood before it is used for the first time. This will help to remove any residues
from the manufacturing process.
To use your rangehood
IMPORTANT: Ideally you should switch on your rangehood ten minutes before
you start to cook, or at the very least when you begin cooking. You should also
run your rangehood for ten minutes after you have finished cooking.
1) Make sure it has been properly installed.
2) Find the CONTROL PANEL. It is located on the rangehood’s front surface near the
upper right corner of the unit.
3) The CONTROL PANEL contains switches as shown in the Figure below.
These perform separate functions. You will need to understand what the switches do
before you attempt to use your rangehood.
Your rangehood’s control panel
1. Power on: After you have connected the cooker hood to the main supply, the
backlight of button will turn on. The backlight will turn off after 30s without
any operation and the cooker hood will enter into stand-by mode.
2. Press button once, lights will be on. Press button again; lights will be
off.
3. Turn on hood and select the speed, use button “ ”, the motor works at 3
speeds, low, mid and high, and the LED display will display “1”, “2”, “3”.

7
Press once, the motor starts to work at low speed and the LED display will
display “1”,
Press again base on the low speed, the motor works at mid speed and the
LED display will display “2”,
Press again base on the mid speed, the motor works at high speed and the
LED display will display “3”.
Go on pressing button, the hood works at low speed again and it repeats:
“low→mid→high→low→mid…”
4. Press button once, the hood will work at the speed which it works last time.
Press button again, the hood stop working.
5. The time button works when the motor is working only.
Press , the cooker hood enters into timer setting mode. The max delay time
is 9 min, and the LED display will display “9”.
When the timer is set, the LED display will display
“9”,”8”,”7”…….decreasing by every minute, when it display “0”, the motor will
start working. Press once, the cooker hood will enter into timer setting mode,
press once again, the cooker hood will exit the timer setting mode. Press
once when the cooker hood is working at timer setting, the cooker hood will
exit the timer setting mode automatically.
Please note that your rangehood can be used either in recirculation mode or in
extraction mode. To use it in re-circulation mode, you will need to fit the Carbon
foam.

8
Cleaning your rangehood
IMPORTANT: Before cleaning, always ensure that you have
switched your rangehood off at the omni-polar switch, set at the
wall from the cable.
Cleaning
oClean the external parts of your rangehood with mild liquid detergent and a new
damp cloth.
oNever use abrasive powder, corrosive solvents or brushes.
oNever insert pointed objects into the motor’s protective grid.
oOnly clean the control panel and grease filter grill with mild liquid detergents and
a new damp cloth.
oIf you are using the appliance in recirculation mode, then be sure to replace the
carbon filters at the recommended interval (see section on “Fitting the carbon
filter” on page 9). A build up of grease could cause a fire hazard.
oNever attempt to clean the area above the grease filter.
The Grease filter
oYour rangehood includes a grease filter which helps to absorb grease particles to
protect your kitchen and furniture from greasy residues.
oYour rangehood includes a metal filter which can be periodically washed.
oThe filter may become flammable if it becomes saturated with greasy residue.
oTo prevent this fire hazard, the metal filter should be cleaned regularly.
Depending on use, this should be done every two months, using hot water and
normal washing-up detergent.
IMPORTANT: Do not wash the grease filter in a dishwasher as the chemicals can
cause damage.

9
Maintenance
Removing and cleaning the grease filter
Part Number: SYRSF353C60 / SYRSF353C90 / SYRSF353IS
oFirst remove the grease filter by sliding the securing nibs at the sides of the grille
on the underside of the cooker hood.
oSoak the grease filter in hot water and washing up liquid for about an hour.
oRinse it off thoroughly with hot water.
oRepeat the process if required.
oIMPORTANT: Let the grease filter dry thoroughly before refitting it in the
rangehood.
oNever attempt to use your rangehood without the grease filter in place.
Changing a light bulb
Part number: SYKL34B / SYKL34
oIMPORTANT – Always ensure the rangehood has been
switched off before carrying out any work, including
replacing light bulbs.
oPrior to removing the LED light, ensure that it has
cooled down.
oRemove the grease filter by sliding the securing nibs at the sides of the grill on
the underside of the rangehood.
oDisconnect the internal plug leading to the LED light
oReplace in reverse order using only genuine spare part SYKL34B / SYKL34

10
oIMPORTANT: Defective bulbs should be replaced immediately.
oIf the light still does not work, make sure that the internal plug is fitted properly
before you call for technical assistance.
oRefit the grease filter.
Fitting the carbon filter
Part number CF260 / SQ1
If the appliance is going to be used in recirculation mode then it is necessary to fit a
carbon filter. This will help to absorb unpleasant odours caused by cooking.
IMPORTANT: Before attempting to fit or remove the carbon filters, you must ensure the
rangehood is switched off first.
To remove, or install, the charcoal filter (CF260/SQ1) in the direction shown below.
CF260 SQ1
1) Remove the grease filters (as described previously).
2) Insert the carbon filter in the rectangular hole, fitting it over the motor.

11
Installation
IMPORTANT: Before installation read all the instructions and make
sure that the voltage (V) and the frequency (Hz) indicated on the
rating plate are exactly the same as the voltage and frequency in
your home. The rating plate can be found behind the grease filters.
The manufacturer declines all responsibility in the event of the
installer failing to observe all the accident prevention regulations in
force, which are necessary for normal use and the regular operation of the electric
system.
Electrical connection
Your rangehood is intended for
o The power cable must be connected to
the terminals marked L (live) and N
(neutral) in the rangehood and fixed with
a cable clamp.
fitting with power cord & plug for connection to
10A power outlet.
o The rangehood’s power cable must be
fitted upstream from the electrical
connection using an omni-polar switch
with a contact distance of at least 3mm.

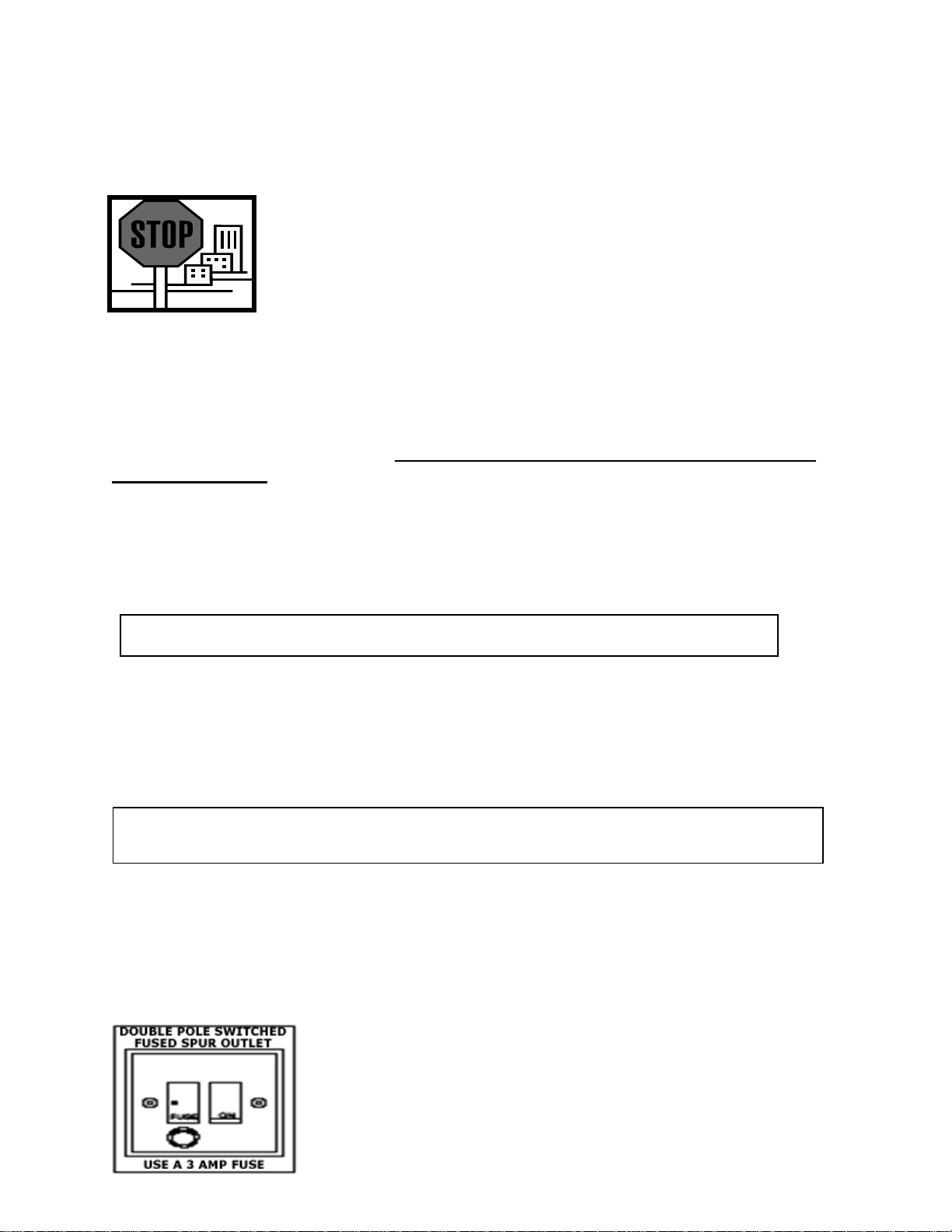

WARNING – THIS APPLIANCE MUST BE EARTHED!
We recommend that the appliance is connected by a qualified electrician, who is
registered with the EWRB and who will comply with ALL regulations. The wires in the
mains lead are coloured in accordance with the following UK code:
Blue = Neutral, Brown = Live, Green/Yellow = Ground
If you can only find two wires in the cable (blue and brown), neither must be
connected to the Earth terminal!
oAs the colours of the wires in the appliance’s mains lead may not correspond
with the coloured markings identifying the terminals in your spur box, please
proceed as follows:
oThe blue wire must be connected to the terminal
marked “N” (neutral), or coloured black.

12
oThe brown wire must be connected to the terminal marked “L” (live), or coloured
red.
oThe green/yellow wire must be connected to the terminal marked “E” or ⏚.
Before beginning installation
oCheck that the product purchased is of a suitable size for the chosen installation
area. In addition, check whether there is an electrical socket available that will be
accessible once the rangehood is mounted. If the product is going to be used in
extraction mode, then there should also be space to connect a ducting hose to
the outside.
oCarry out all necessary masonry work prior to the fitting of the rangehood.
oEnsure that all electrical connections are carried out by a suitably qualified
person.
oBefore commencing installation of the rangehood the grease filters should be
removed.
oCheck inside the product and ensure that there is no transit packaging or any
other materials, such as packets of screws, guarantees etc. These should be
removed and kept for future use.
oIf possible, disconnect and move freestanding or slot-in cookers from their
position, to provide easier access to the rear wall and ceiling. If this is not
possible then a thick, protective covering should be placed over the worktop, hob
top or cooker. This will help to protect these surfaces from damage and debris.
oSelect a flat surface for assembling the rangehood. Cover that surface with a
protective covering and place all rangehood parts and fittings on it.
oDo not tile, grout or silicone this appliance to the wall or cabinetry. This appliance
is designed to be surface mounted only.

13
Installing your rangehood (BRT60SS/BRT90SS)
IMPORTANT: You will have to decide before installing your rangehood whether to use it
in extraction mode or recirculation mode. Please refer to page 17 to understand the
differences between these two modes.
oWe recommend that at least two people install this rangehood.
oIf you are using the appliance in recirculation mode, then PLEASE NOTE that all
of the vent in the upper chimney section must be exposed. You will have to take
this into account when calculating the minimum height of the extractor when
installed.
oIMPORTANT: If the recirculation vents are obstructed then the efficiency of
the extraction will be affected and could damage the motor.
IMPORTANT: YOUR RANGEHOOD SHOULD BE CONNECTED TO YOUR MAINS
SUPPLY AFTER THE REST OF THE INSTALLATION PROCESS HAS BEEN
COMPLETED.
1) Determine the correct height for the hood and fix the hook. Ensure that the hook
is level when fixed. Mark and fix the inner chimney bracket as described in the
section “Fitting the chimney” on page 13.
2) Fix the outer chimney bracket to the outer chimney ensuring that the inner
chimney is free to slide to the required height and the exhaust ducting does not
impede the movement. Then fit the exhaust ducting and the chimney assembly
to the hood and hang on the hook.

14
3) Feed the exhaust ducting to your desired position then adjust the height of the
inside chimney to the inner chimney bracket and screw in place. Once the
position is fixed secure the unit with two safety screws through the Ø6mm holes
in the back casing.
Fitting the chimney
9) Take the two chimney sections (C) and (D).
oRest the bottom of chimney section (C) on the
top of the hood. You should take care to position
the tabs on the chimney section into the rear of
the hood.
oMark the side measurement of both sides of
chimney section (C) on the wall with a pencil.

15
10) Lift chimney section (D) upwards until it reaches the ceiling. You must ensure that it
is perpendicular to the hood.
oMark the side measurements of both sides of chimney section (D) on the wall with a
pencil and then remove chimney section (D).
11) Take the flat bracket (E) and
place it between the two pencil
marks that you made in step 9.
oKeeping the bracket in contact
with the wall, use a pencil to
mark on the wall the anchoring holes that are cut out of the bracket.
12) Using a 6 mm drill bit, drill two holes on
the pencil markings that you made in step 10.
Insert rawl plugs into the holes and then use
a screwdriver to secure the fixing bracket to
the wall.

16
oRefit chimney section (C) to the hood and fix it onto the hood using the two screws
that are supplied.
oSecure the top of chimney section (C) to the flat bracket, using the screws provided.
oSlide chimney section (D) inside of chimney section (C). Then secure the L
shaped bracket to the wall, using the same method as you have just used to
secure the lower bracket.
13) Lift chimney section (D) up to the ceiling and secure it to the L shaped bracket using
the screws provided.
Connecting to external ducting (top)
oConnect the coupling to the top of the rangehood, using two of the smaller
screws provided (if side ducting, this is either through the wall or the Soffit).

17
oConnect a 150 mm ducting hose to a discharge outlet that is suitable for cooking
vapours. Please note that the ducting hose is not supplied with the appliance but
one can be obtained from the Retail outlet where you purchased your appliance.
oThe maximum distance between the coupling and your discharge outlet should
be 3 metres, with one 90 degree bend. For each additional 90 degree bend, the
maximum distance is reduced by a further metre.
oBefore fixing the rangehood into the kitchen unit, you should connect the other
end of the ducting hose to the coupling in the top of the cooker hood.
Installing your rangehood (BRT90ISS)
1. The ceiling must can bear at least 40kgs weight, and the thickness of the ceiling
must be ≧30MM, see pic 2, drill 1*170mm round hole in the ceiling.
2. According to the hanging board, drill 12 holes in the ceiling, see pic 2, 12pcs of
ST6*40mm big flat screws will be used to fix the hanging board on the ceiling, and
then 8pcs of M4*10 screws and M4 nut with gasket will be used to connect the
angle iron into the hanging board, see pic 1, calculated the length of the angle iron,
and 16pcs M4*10 big flat screws and M4 nut with gasket will be used to connect
the angle iron and another angle iron ( the overlap length of angle iron can not less
100MM)
3. Let the one side of the extensible pipe go outside through the hole of 170MM, see
pic 3.
4. 4pcs ST4*8 big flat screws will be used to connect the internal chimney into the
hanging board, then put one the external chimney, two hooks will be used to put up
the external chimney in order to the next installation, see pic 4.
5. 4pcs ST4*8 big flat screws will be used to install the outlet, see pic 5.
6. Hold up the hood, 16pcs M4*10 big flat screws will be used to connect the hood
body into angle iron, see pic 6.
7. Put the extensible pipe on the outlet; after ensure all the things ok, put down the
hook, take from the external chimney, all the installation is finished, see pic7& 8.

18
4
NOTICE OF INSTALLATION
1. Before installation, please ensure the area is clean to avoid suction of the
remaining bits of broken wood and dust.
2. It cannot share the same air ventilation tube with other appliance such as gas
tube, warmer tube, and hot wind tube.
3. The bending of ventilation tube should be≤120°, parallel or above the start
point and should be connected to the external wall.
4. After installation, make sure that the extractor is level to avoid grease collection
at one end.
