Baumatic ISL4SS User manual

ISL4SS 40 cm
Island hood

User Manual for your Baumatic
ISL4SS 40 cm
Island hood
2
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
DD 20/06/07

3
Contents Page
Environmentalnote 4
IMPORTANT SAFETY INFORMATION 5 – 7
Specifications of your cooker hood 8
Using your Baumatic cooker hood 9
Thecontrolpanel 9
Setting intensive or normal mode 10
Switching on your cooker hood 10
Thetimerbutton 11
Thelightbulbs 11
Grease filter maintenance reminder 11
Carbon filter replacement reminder 12
Cleaning your Baumatic cooker hood 13
The grease filter 13
Maintenance 14
Removing and cleaning the grease filter 14
Changingalightbulb 15
Fitting the carbon filters 16 - 17
Installation 17
Electrical connection 17 - 18
Before beginning installation 19
Installing your cooker hood 20 - 26
Connecting to external ducting 27
Completing the installation 28
Extraction mode or recirculation mode? 28
Troubleshooting 29
Baumatic Ltd. conditions of guarantee 30
Contactdetails 31

ENVIRONMENTAL NOTE
Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any
plug useless. Cut the cable off directly behind the appliance to
prevent misuse. This should be undertaken by a competent
person.
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
oPlease discard all packaging material with due regard for the
environment.
4

IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If
you are unsure of any of the information contained in
this booklet, please contact the Baumatic Technical
Department.
IMPORTANT: Any installation work must be
carried out by a qualified electrician or
competent person.
oThe hood must be installed in accordance with the installation
instructions and all measurements followed.
oIf the cooker hood is installed for use above a gas appliance then
the provision for ventilation must be in accordance with the Gas
Safety Codes of Practice BS.6172, BS.5440 & BS.6891 (Natural
Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation &
Use) Regulations, the Building Regulations issued by the
Department of the Environment, the Building Standards
(Scotland) (Consolidated) Regulations issued by the Scottish
Development Department.
oIt is dangerous to alter the specifications or to modify this
product in any way. Do not tamper with or attempt to modify
the appliance in any way.
oWhen installing the hood, ensure that the following
recommended distances are observed between the highest point
on the hob top (including the burners) and the bottom of the
cooker hood:
¾Electric cookers: 700 mm
¾Gas cookers: 700 mm
¾Coal/ oil cookers: 800 mm
IMPORTANT: DO NOT SET YOUR COOKER HOOD LESS
THAN 700mm ABOVE YOUR COOKER.
5

oThe edges of the cooker hood are sharp – be mindful of this as
you handle your appliance, especially during installation and
cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTER!
oIf the room where the cooker hood is to be used contains a fuel
burning appliance such as a central heating boiler then its flue
must be of the sealed or balanced flue type.
oIf other types of flue or appliances are fitted, ensure that there is
an adequate supply of air in the room.
oWhen the hood is being used in extraction mode, ensure that the
ducting is fire retardant and that there are no bends greater than
90 degrees as this will reduce the efficiency of the hood.
oEnsure the ducting for extraction mode has the same diameter
as the outlet hole all the way through.
oKeep young children from using, playing with
or tampering with the cooker hood. Older
children and infirm persons should be
supervised if they are using the cooker hood.
oYour cooker hood is for domestic use only.
oPlease dispose of the packing material carefully – children are
especially vulnerable to it.
oDirty oil is an even greater fire risk.
oAlways put lids on pots and pans when cooking
on a gas cooker.
oThe manufacturer refuses to accept any responsibility for
damages arising to the cooker hood or your property from a
failure to observe the fire safety advice contained in this
instruction booklet.
6

oRemember that when in extraction mode, your cooker hood is
removing air from your room. Ensure that proper ventilation
measures are being observed.
oNote that the cooker hood removes odours from your
room, not steam.
oWarning - Always ensure that the cooker
hood has been disconnected from the
power supply before carrying out any work
on the hood, including cleaning and
replacing light bulbs.
oDo not connect the ducting system of this appliance to an
existing ventilation system being used for any other purpose.
oDo not install above a cooker with a high level grill.
oNever leave frying pans unattended during use
as overheated fats and oils might catch fire.
oDo not leave naked flames under the cooker
hood.
oDo not attempt to use the cooker hood if it is damaged in any
way. Never attempt to use it without the grease filters fitted or
if the filters are excessively greasy!
oNever flambé cook under this cooker hood.
THE MANUFACTURER DECLINES ALL
RESPONSIBILITY IN THE EVENT OF FAILURE TO
OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR
INSTALLATION, MAINTENANCE AND SUITABLE
USE OF THE HOOD.
7

Specifications of your cooker hood
Congratulations on purchasing a Baumatic Cooker
Hood!
PRODUCT DIMENSIONS
Height: 710 - 1100 mm
Width and depth: 400 mm
Your canopy hood is fitted with:
oPerimetral aspiration
oTouch control operation
o5 Speeds and booster
oCut-off timer (15 minutes)
oService warning indicator
o1 Metallic grease filter
o2 Halogen lights
Extraction capacity: 750 m³/hr
Optional extras: 1 x C1 Carbon filter for air
recirculation mode
Venting kit
(Both optional extras are available from the Baumatic
Spares Department).
8

Using your Baumatic cooker hood
The control panel
oBefore using the cooker hood make sure that it has been
installed by a suitably qualified person, as per the information
contained in Baumatic’s installation instructions.
oFind the control panel, which is located at the front of the cooker
hood.
oThere are several buttons on the control panel, which perform
separate functions, as listed below.

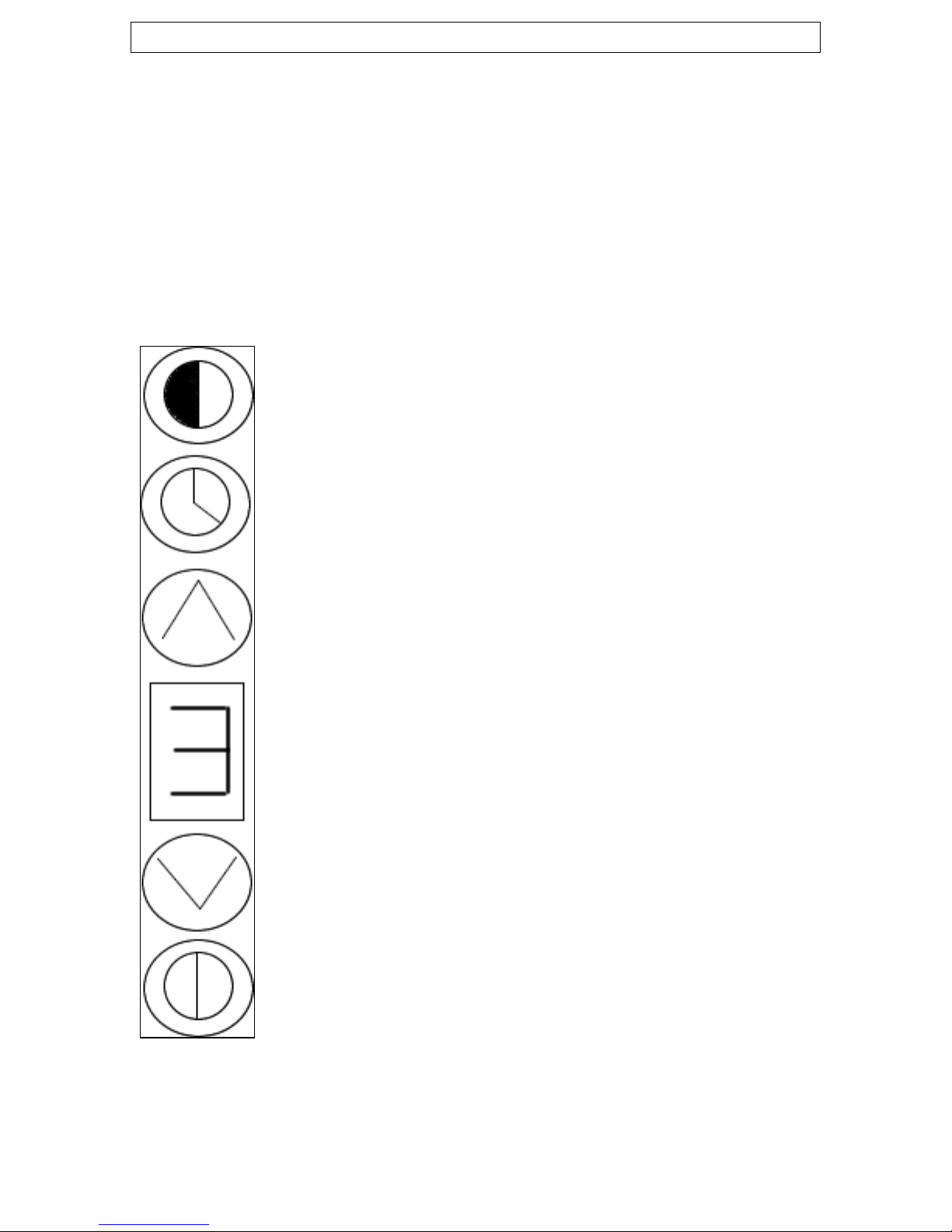

1) Light bulbs ON/OFF button
2) Timer button
3) Increase speed
4) LED display
5) Decrease speed
6) ON/OFF button
9

IMPORTANT: IDEALLY YOU SHOULD TURN ON YOUR
HOOD TEN MINUTES BEFORE YOU START TO COOK,
OR AT THE VERY LEAST WHEN YOU BEGIN COOKING.
YOU SHOULD ALSO RUN YOUR HOOD FOR TEN
MINUTES AFTER YOU HAVE FINISHED COOKING.
Setting intensive or normal mode
oYou can set your cooker hood to run in normal or intensive
mode.
oBefore the cooker hood is switched on, press and hold down the
light bulb ON/OFF button for 5 seconds.
oAn “L” or “H” will appear on the LED display. “L” indicates that
the cooker hood will operate in normal extraction mode; “H”
indicates that the cooker hood will operate in intensive extraction
mode.
oIn normal (L) mode you can set a fan speed of between 1 and
6.
oIn intensive (H) mode, you can set a fan speed of between 1
and 5, plus an intensive sixth speed. The hood will operate at the
6th speed for 10-15 minutes and the LED display will flash during
this time. The hood will then revert to speed 5.
Switching on your cooker hood
oUse the ON/OFF button to switch the cooker hood on.
oThe hood will automatically select speed 3 when the hood is first
switched on.
oUse the increase and decrease buttons to regulate the speed
that the motor is running at.
oThe speed level that you have selected will appear on the LED
display.
oIf you have set the cooker hood into intensive mode, then if the
cooker hood is on speed 5 and you press the increase button
again, the booster speed will be selected. The number 6 will
flash on the LED display to confirm that the booster speed is in
use. The hood will revert to speed 5 after 10-15 minutes.
IMPORTANT: You should not leave the appliance operating at
booster speed for prolonged periods of time.
oTo switch the cooker hood off, press the ON/OFF button.
10

11
The timer button
oIf you press the timer button whilst the cooker hood is in
operation, then it will countdown for 15 minutes.
oDuring the countdown the number on the LCD display will flash.
oIt is possible to adjust the speed that the cooker hood is
operating at whilst it is on a countdown.
oWhen the countdown has finished the cooker hood will switch
off.
oIf you have the lights switched on, then these will also go out
when the countdown period finishes.
oIf you press the timer button again during the countdown, then
the cooker hood will return to normal operation.
The light bulbs
oThe light bulbs can be switched on, whether the cooker hood is
switched on or off.
oTo turn the light bulbs on, press the light bulbs ON/OFF button
once.
oAfter you have switched the cooker hood off using the ON/OFF
button, the light bulbs will remain on. You should turn them off
using the light bulbs ON/OFF button.
Grease filter maintenance reminder
oAfter approximately 30 hours of operation, an “A” will flash on
the LED display when you switch the cooker hood on.
oYou should follow the “Removing and cleaning the grease filters”
section on page 14.
oOnce the grease filters have been cleaned, then without the
hood being switched on, you should press and hold the decrease
speed button for longer than five seconds.
oThe letter “A” will appear on the LED display, after five seconds it
will disappear, you have then reset the maintenance reminder.
oIMPORTANT: The grease filter should be cleaned at the time
intervals suggested on page 13. You should not wait until the
maintenance alarm activates before cleaning the grease filter.

Carbon filter replacement reminder
oIf your cooker hood is operating in recirculation mode, then a
carbon filter will need to be fitted.
oAfter approximately 120 hours of operation, a “C” will flash on
the LED display when you switch the cooker hood on.
oYou should follow the “Fitting the carbon filters” section on pages
16 – 17.
oOnce the carbon filter has been replaced, then without the hood
being switched on, you should press and hold the increase speed
button for longer than five seconds.
oThe letter “C” will appear on the LED display, after five seconds
it will disappear, you have then reset the replacement reminder.
IMPORTANT: TO MAINTAIN THE CORRECT
FUNCTIONING OF THE CONTROL PANEL, WE
RECOMMEND THAT YOU REGULARLY CLEAN IT.
12

Cleaning your Baumatic cooker hood
IMPORTANT: BEFORE CLEANING, ALWAYS
ENSURE THAT YOU HAVE SWITCHED YOUR
COOKER HOOD OFF AT THE OMNI-POLAR
SWITCH, SET AT THE WALL FROM THE MAINS
CABLE.
Cleaning
oClean the external parts of your cooker hood with mild liquid
detergent and a new damp cloth.
oNever use abrasive powder, corrosive solvents or brushes.
oNever insert pointed objects into the motor’s protective grid.
oOnly clean the control panel and grease filter with mild liquid
detergents and a new damp cloth.
oIf you are using the appliance in recirculation mode, then be
sure to replace the carbon filter at the recommended intervals
(see section on “Fitting the carbon filter”). A build up of grease
on the carbon filter could cause a fire hazard.
oNever attempt to clean the area above the grease filters, as
there could be sharp edges in this location.
The grease filter
oYour cooker hood includes a grease filter which helps to absorb
grease particles and to protect your kitchen & furniture from
greasy residues.
oThe metallic filter may become flammable if it becomes
saturated with this greasy residue.
oTo prevent a fire hazard, the filter should be cleaned regularly.
Depending on use, this should be done every 10-15 days or at
least once a month, using hot water and normal washing-up
detergent.
oDO NOT WASH THE GREASE FILTERS IN A DISHWASHER.
13

Maintenance
Removing and cleaning the grease filter
IMPORTANT: BEFORE ATTEMPTING TO CLEAN
THE GREASE FILTER, YOU MUST ENSURE THAT
YOU HAVE DISCONNECTED THE COOKER HOOD
FROM YOUR MAINS SUPPLY.
oLift up the cover screen and then
remove the grease filter by pulling
down on the handle. Next pull the
grease filter away from the main
body of the cooker hood.
14
oSoak the grease filter in hot water and washing up liquid for
about an hour.
oRinse it off thoroughly with hot water.
oRepeat the process if required.
oRefit the grease filter once it has dried and shut the cover
screen.
oIMPORTANT: Let the grease
filter dry thoroughly before
refitting it in the cooker hood.

Changing a light bulb
15
IMPORTANT: BEFORE ATTEMPTING TO CHANGE
A LIGHT BULB, YOU MUST ENSURE THAT YOU
HAVE DISCONNECTED THE COOKER HOOD FROM
YOUR MAINS SUPPLY.
oPrior to touching the light bulbs ensure they are cooled down.
oFind the bulb that requires replacement, you will find it located in
the light fixture which is on the underneath of the cooker hood.
oUsing a flat tipped screwdriver, remove the cover that goes over
the halogen bulb. Take out the bulb and insert a new G4 12V
20W (max) bulb.
oIMPORTANT: Defective bulbs should be replaced immediately.
oIf the light or lights still do not work, make sure that the bulbs
are fitted properly into their housings before you call for
technical assistance.

Fitting the carbon filter
If the appliance is going to be used in recirculation mode then it is
necessary to fit a carbon filter. This will help to absorb unpleasant
odours caused by cooking.
IMPORTANT: BEFORE ATTEMPTING TO FIT OR
REMOVE THE CARBON FILTER, YOU MUST
ENSURE THAT YOU HAVE DISCONNECTED THE
COOKER HOOD FROM YOUR MAINS SUPPLY.
1) Remove the grease filter.
2) You will see the motor and a rectangular
opening.
16
3) Place the carbon filter over the
rectangular opening, covering the motor.
The side with the plastic grid should be
facing you.
4) Press down on the carbon filter to make
sure that it sits fully inside the rectangular
opening.

5) Squeeze the clips on one side of the
carbon filter, until it clicks firmly into place.
oTo remove the carbon filter in future, you will need to press the
clips and then pull the carbon filter downwards away from the
rectangular opening.
Installation
IMPORTANT: Before installation read all the
instructions and make sure that the voltage (V)
and the frequency (Hz) indicated on the rating
plate are exactly the same as the voltage and
frequency in your home. The rating plate can be
found behind the grease filter.
The manufacturer declines all responsibility in the event of the installer
failing to observe all the accident prevention regulations in force,
which are necessary for normal use and the regular operation of the
electric system.
17

Electrical connection
YOUR COOKER HOOD IS INTENDED FOR FITTED AND
PERMANENT INSTALLATION.
oIf not supplied the power cable must be connected to the
terminals marked L (live) and N (neutral) in the hood and fixed
with a cable clamp.
oThe cooker hood’s power cable must be fitted upstream from the
electrical connection, using an omni-polar switch with a contact
distance of at least 3 mm.
WARNING: THIS APPLIANCE MUST NOT BE
EARTHED. It should only be connected by a competent
person, using fixed wiring via a double pole switched fused
spur outlet. (UK ONLY).
We recommend that the appliance is connected by a qualified
electrician, who is a member of the N.I.C.E.I.C. and who will comply
with the I.E.E. and local regulations. The wires in the mains lead are
coloured in accordance with the following UK code:
Blue = Neutral
Brown = Live
You will find only find two wires in the main’s lead (blue and
brown); neither must be connected to the earth terminal.
oAs the colours of the wires in the appliance’s mains lead may not
correspond with the coloured markings identifying the terminals
in your spur box, please proceed as follows:
oThe blue wire must be connected to the
terminal marked “N” (neutral), or coloured
black.
oThe brown wire must be connected to the
terminal marked “L” (live), or coloured red.
18

19
Before beginning installation
oCheck that the product purchased is of a suitable size for the
chosen installation area. In addition check whether there is an
electrical socket available that will be accessible once the hood is
mounted. If the product is going to be used in extraction mode,
then there should also be space to connect a ducting hose to the
outside.
oCarry out all necessary masonry work prior to the fitting of the
cooker hood.
oEnsure that all electrical connections are carried out by a suitably
qualified person.
oBefore commencing installation of the cooker hood the grease
filter should be removed.
oCheck inside the product and ensure that there is no transit
packaging or any other materials, such as packets of screws,
guarantees etc. These should be removed and kept for future
use.
oIf possible, disconnect and move freestanding or slot-in cookers
from their position, to provide easier access to the rear wall and
ceiling. If this is not possible, then a thick, protective covering
should be placed over the worktop, hob top or cooker. This will
help to protect these surfaces from damage and debris.
oSelect a flat surface for assembling the cooker hood. Cover that
surface with a protective covering and place all cooker hood
parts and fittings on it.
oDo not tile, grout or silicone this appliance to the ceiling. This
appliance is designed to be surface mounted only.

Installing your cooker hood
IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE
INSTALLING YOUR COOKER HOOD WHETHER TO USE
IT IN EXTRACTION MODE OR RECIRCULATION
MODE. PLEASE TURN TO PAGE 28 NOW TO
UNDERSTAND THE DIFFERENCES BETWEEN THESE
TWO MODES.
oThe cooker hood should not be exposed to a direct heat source
from the cooking device underneath it, i.e. naked flame from a
gas burner or heat from electric hob zones without a pan on
them.
oWe recommend that two people install this hood.
oThe lights on this appliance should only be used during operation
of the cooker hood. They should not be left on permanently and
used as a lighting source.
oYour cooker hood should only be suspended from ceiling joists or
joints between joists that are weight bearing. DO NOT hang this
hood from a suspended ceiling.
oIt must be positioned at least 700 mm above the hob
underneath it. You cannot fit this product by securing it between
two cupboards.
IMPORTANT: YOUR COOKER HOOD SHOULD BE CONNECTED
TO YOUR MAINS SUPPLY AFTER THE REST OF THE
INSTALLATION PROCESS HAS BEEN COMPLETED.
20
