Baumr-ag Ss16 User manual

Scroll Saw - SS16

User Manual

[Revision 1.0 May 2017]

READ THIS MANUAL CAREFULLY BEFORE USE –FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY

DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by

this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.

Scroll Saw - SS16

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you

do not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you

do not follow instructions.

You CAN be INJURED if you

do not follow instructions or

equipment damage may occur.

It is important that you read and

understand the instruction manual before

use and keep the manual in a safe place

for future reference. Safety information

presented here is generic in nature –some

advice may not be applicable to every

piece of equipment.

All safety precautions must be observed to

reduce the risk of personal injury when

operating the equipment.

The term “equipment" refers to your

product, be it electrical mains, battery or

petrol engine powered.

IMPORTANT –Handle the equipment

safely and carefully.

BEFORE USE - If you are not familiar with

the safe operation/handling of this

equipment, or are in any way unsure of any

aspect of suitability or correct use it for

your application, you should complete

training conducted by a person or

organization qualified in safe use and

operation of this equipment, including

fuel/electrical handling and safety.

WARNINGS

•Read all safety warnings and all

instructions. Failure to follow warnings

and instructions may result in electric

shock, fire and/or serious injury.

•Never run a combustion engine in

confined areas.

•Do not operate the equipment in

flammable or explosive environments,

such as in the presence of flammable

liquids, gases or dust. Engine and

equipment may create sparks or heat

that may ignite vapours, dust etc

•Keep clear of moving parts.

•This equipment may be a potential

source of electric shock if misused.

•Do not operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

•Do not allow others to use the

equipment unless they have read this

manual and are adequately trained.

•When using the equipment, basic

safety precautions detailed here must

always be followed to reduce the risk

of fire, electric shock, personal injury

and material damage.

•When wiring electrically powered

equipment, follow all electrical and

safety codes.

•Ensure all power sources conform to

equipment voltage requirements and

are disconnected before connecting

equipment.

General Work Area Safety

Work areas should be clean and well it.

Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

Personal Safety

Keep packaging away from children - risk

of suffocation! Operators must use the

equipment correctly. When using the

equipment, consider conditions and pay

due care to persons and property.

Prevent unintentional starting of the

equipment - ensure equipment and power

source switches are in the OFF position

before connecting or moving the

equipment. Do not carry equipment with

hands/fingers touching any controls.

Remove any tools or other items that are

not a part of the equipment from it before

starting or switching on.

Stay alert and use common sense when

operating equipment. Do not overreach.

Keep proper footing and balance at all

times. Do not use equipment when tired or

under the influence of drugs, alcohol or

medication. This equipment is not intended

for use by persons with reduced physical,

sensory or mental capabilities.

You must wear appropriate protective

equipment when operating, servicing, or

when in the operating area of the

equipment to help protect from serious

injury, including eye injury, inhalation of

toxic fumes, burns, and hearing loss.

Always wear eye protection. Protective

equipment such as respirators, non-skid

safety shoes, hard hat, hearing protection

etc should be used for appropriate

conditions. Other people nearby should

also wear appropriate personal protective

equipment. Do not wear loose clothing or

jewellery, which can be caught in moving

parts. Keep hair and clothing away from

the equipment.

If devices are provided for the connection

of dust extraction and collection facilities,

ensure these are connected and properly

used. Use of dust collection can reduce

dust-related hazards.

General Equipment Use and Care

Do not force the equipment. Use the

correct equipment for your application. The

correct equipment will perform better and

be safer within its design parameters. Do

not use the equipment if the ON/OFF

switch malfunctions –any equipment that

cannot be controlled with the ON/OFF

switch is dangerous and must be repaired.

Use the equipment and accessories etc. in

accordance with these instructions, taking

into account working conditions and the work

to be performed. Using the equipment for

operations different from those intended

could result in hazardous situations.

Before use, inspect the equipment for

misalignment or binding of moving parts,

loose components, damage or any other

condition that may affect its operation. If

damaged, have the equipment repaired by an

authorized service centre or technician before

use.

Always keep the equipment and accessories

(cutting tools, nozzles, bits etc) properly

maintained. Keep the equipment, controls

and handles dry and free from dirt, oil and

grease.

Store the equipment out of reach of children

or untrained persons. To avoid burns or fire

hazards, let the equipment cool completely

before transporting or storing. Never place

the equipment in places where there are

flammable materials, combustible gases or

combustible liquids etc.

The equipment is not weatherproof, and

should not be stored in direct sunlight, at high

ambient temperatures or locations that are

damp or very humid.

Product Use and Care

•The machine is for domestic use only.

•Not for outdoor use.

•Risk of injury when operating the

machine. Always use caution when

handling the work-piece.

•Health risks may be present from the

inhalation of sawdust. Wear a respirator.

A dust extraction system is

recommended.

•Risk of injury when handling saw blades.

Use caution and wear protective gloves.

•Ensure that the blade is correctly

installed and adjusted before using the

machine.

•Do NOT attempt to cut materials that are

not suitable to the cutting speed of the

machine and blade type. For example,

hard metals.

•Know the condition of the machine. If

any part is missing, damaged, or does

not operate properly, replace the

component before use.

•Properly protect your body including

your eyes, hands, face, and ears.

•Do not cut a work piece too small to be

held safely.

Scroll Saw - SS16

Product Use and Care

•Use supplied or recommended

accessories only. Follow the

instructions supplied with the

accessory. The use of improper

accessories may cause risk of injury

and void any warranty.

•Do not reach under the scroll saw

table when the motor is running.

•Switch the machine OFF and

disconnect it from the electrical supply

before changing the blade, performing

maintenance or making adjustments.

•Make sure the switch is OFF before

plugging in the power cord to an

electric outlet.

•Carry the machine by its base. Do not

move it by pulling on the power cord.

•Secure the machine to a firm and

level surface with adequate space

around it for working.

•Before moving the machine,

disconnect the power cable from the

electrical supply.

•Always hold the work-piece firmly

against the table.

•Always feed the work-piece into the

machine at the rate the saw will cut.

•Do not start the machine with the

work-piece touching the blade.

•Use caution when cutting round or

irregularly shaped work-pieces.

Round items may roll and irregularly

shaped work pieces can pinch the

blade.

•Obtain advice from a qualified person

if you’re not thoroughly familiar with

the operation of scroll saws.

•Make sure the table is locked into

position before starting the machine.

•Do not use dull or bent blades.

•When cutting large work-pieces,

make sure the material is supported

at table height.

•If the blade jams, switch the machine

OFF and disconnect it from the

electrical supply. Jams are usually

caused by sawdust filling the cut.

Wedge open the work-piece just

enough to back out the blade, then

clear the cut.

Electrical Information

•Electrocution / shock hazard - The

machine MUST be connected to a

properly grounded electrical socket.

Check with a licensed electrician or

service personnel if you do not

completely understand the grounding

instructions or whether the tool is

properly grounded.

•Do NOT use the equipment if the

electrical supply cable or plug is

damaged –have the equipment

repaired.

•Extension cords MUST be grounded

3-wire types. For lengths up to 25m,

the wires must have a cross section

of 1.5mm2. Extension cords over 25m

long must have a minimum cross

section of 2.5mm2.

•Before connecting the machine to the

electrical supply, ensure the electrical

supply conforms to the electrical

requirements of the machine as

stated on the nameplate.

General Service Information

•Have the equipment serviced or

repaired at authorized service centres

by qualified personnel only.

•Replacement parts must be original

equipment manufacturer (OEM) to help

ensure that equipment safety is

maintained.

•Do not attempt any maintenance or

repair work not described in this

instruction manual.

•After use, the equipment and

components may still be hot –allow the

equipment to cool and disconnect spark

plugs and/or electrical power sources

and/or batteries from it before making

adjustments, changing accessories or

performing repair or maintenance.

•Do not make adjustments while the

equipment is running.

•Perform all service related activities

under suitable conditions, such as a

workshop etc.

•Replace any worn, damaged or missing

warning labels immediately.

•Do not clean equipment with solvents,

flammable liquids or harsh abrasives.

Scroll Saw - SS16
E&OE © 2017 Baumr-AG 4
Table of Contents
Safety.............................................................................................................................................2

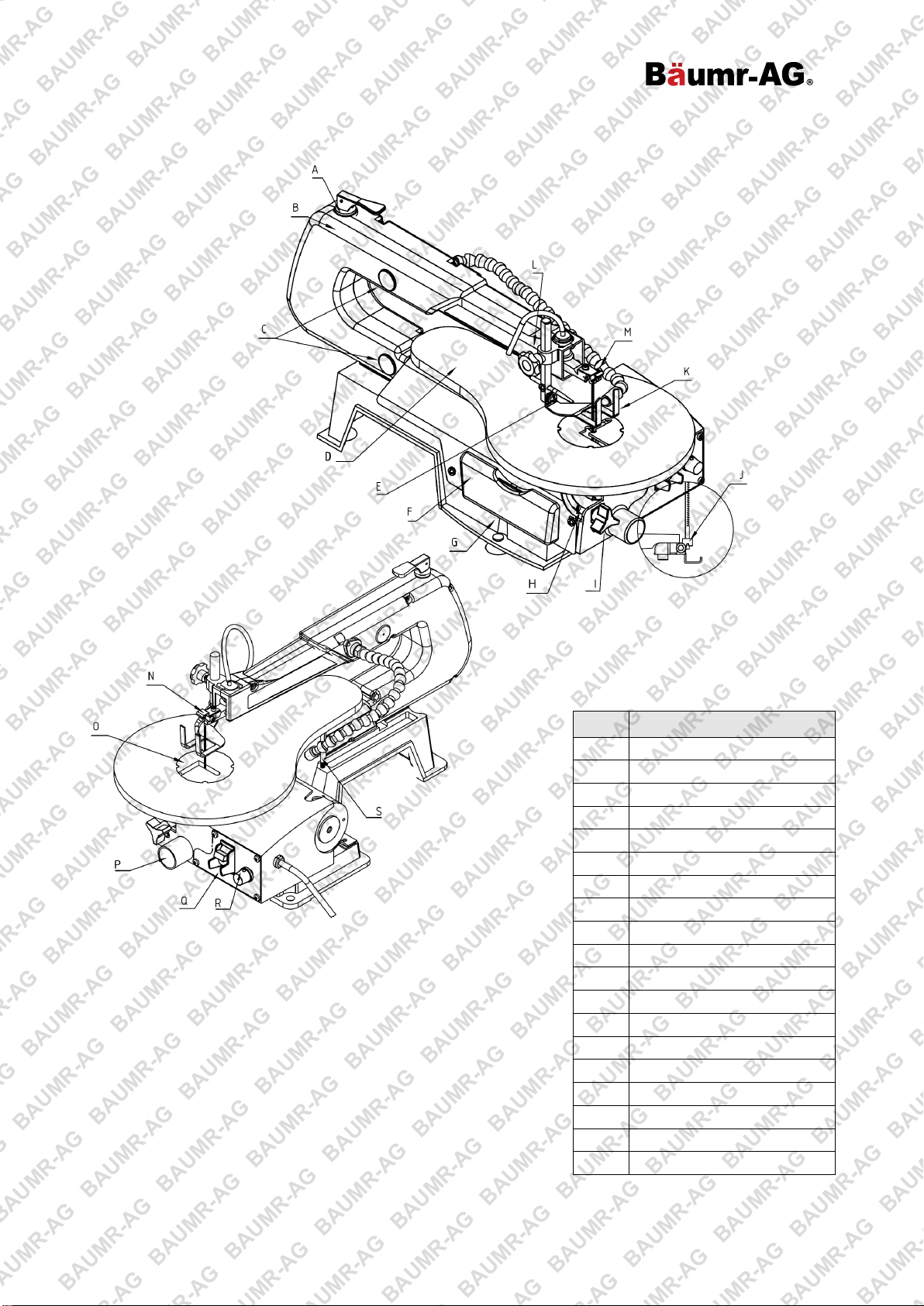

Parts Identification........................................................................................................................ 5
Assembly and Set-Up................................................................................................................... 6
Mounting the Machine to a Workbench .......................................................................................................6
Align the Bevel Indicator ..............................................................................................................................7
Blade Guard Foot Adjustment......................................................................................................................7
Dust Blower Adjustment...............................................................................................................................7
Sawdust Collection Port...............................................................................................................................8
Blade Selection ............................................................................................................................................8
Operation.......................................................................................................................................9
General Operational Recommendations......................................................................................................9
Power Switch and Speed Control ..............................................................................................................10
Freehand Cutting .......................................................................................................................................10
Angle Cutting (Bevelling)............................................................................................................................10
Interior Cutting............................................................................................................................................11
Rip or Straight Line Cutting........................................................................................................................11
Maintenance................................................................................................................................12
Lubrication..................................................................................................................................................12
Blade Removal and Installation..................................................................................................................12
Pin-End Blades....................................................................................................................................12
Plain Blades.........................................................................................................................................13
Specifications .............................................................................................................................14


Scroll Saw - SS16

Parts Identification

Letter

Name

A

Blade Tension Knob

B

Arm Housing

C

Rubber Bearing Covers

D

Table

E

Sawdust Blower

F

Storage Area

G

Base

H

Bevel Scale and Pointer

I

Table/Bevel Lock Knob

J

Lower Blade Holder

K

Blade Guard Foot

L

Blade Guard Foot Lock Knob

M

LED Light

N

Upper Blade Holder

O

Table Insert

P

Sawdust Collection Port

Q

ON/OFF Switch

R

Speed Control Knob

S

Table Adjusting Screw

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Scroll Saw - SS16

Assembly and Set-Up

Do not attempt to modify the product or use accessories not supplied or recommended for

use with this tool. Any such alteration or modification may result in hazards leading to

possible serious personal injury and will void any warranty. • Do not connect the machine to an electrical

supply until assembly is complete. Failure to comply could result in accidental starting and possible serious

personal injury. • Do not lift the saw by the arm that holds the blade. The saw will be damaged. • To avoid

injury from accidental starting of the machine, switch the machine OFF and disconnect it from the power

supply before making any adjustments.

INCLUDES (Fig. 1)

A - Scroll saw

B - Extra pin blade

C - Wrench

STORAGE AREA (Fig. 2)

A convenient storage location for Allen hex key and extra blade is

located beneath the table.

Mounting the Machine to a Workbench

If the machine is to be used in a permanent location, it is recommended you secure it to a workbench or

other stable surface using suitable fasteners (not supplied). Use the base of the machine to mark and pre-

drill the mounting holes. To reduce noise and vibration, install a soft foam pad (not supplied) between the

machine base and the workbench.

•Secure the saw in a position where people cannot stand, sit, or walk behind it. Debris thrown from the

saw could injure people standing, sitting, or walking behind it.

•Secure the saw on a firm, level surface where the saw cannot rock. Make sure there is adequate room

for handling and properly supporting the work-piece.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Scroll Saw - SS16

Align the Bevel Indicator

The bevel indicator has been factory adjusted, however, should

be checked prior to use (Fig. 3 to 6).

1. Remove the blade guard foot (1) using the Phillips screwdriver

(2) to loosen the screw.

2. Loosen the table bevel lock knob (3) and move the table until

it is approximately at a right angle to the blade.

3. Loosen the locking nut (5) on the table adjusting screw (6)

under the table by rotating it left (anti-clockwise). Lower the

table adjusting screw by rotating it right (clockwise).

4. Use a combination square (7) to set the table exactly 90° to the

blade (8). If there is space between the square and blade,

adjust the table angle until the space is closed.

5. Lock the table bevel lock knob under the table (3) to prevent

movement.

6. Tighten the adjusting screw (6) under the table until the tip of

the screw touches the table. Tighten the lock nut (5).

7. Loosen the screw (4) holding the bevel scale pointer and

position pointer to 0°. Tighten the screw.

8. Attach the blade guard foot (1)

using the hex key (2) so the foot

rests flat against the table.

Tighten the screw.

Avoid setting the edge of

the table against the top of

the motor. This can cause excess

noise when the saw is running.

Blade Guard Foot Adjustment

When cutting at angles, the blade guard foot should be adjusted so

it is parallel to the table and rests flat above the work-piece (Fig. 7

and 8).

1. To adjust, loosen the screw (2), tilt the foot (1) so it is parallel

to the table, and tighten the screw.

2. Loosen the height adjustment knob (3) to raise or lower the

foot until it just rests on top of the work piece. Tighten the knob.

Dust Blower Adjustment

For best results, the dust blower tube (1) should be adjusted to direct air at

both the blade and the work-piece (Fig. 9).

1

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Scroll Saw - SS16

Sawdust Collection Port

(Fig. 10 and 11)

This scroll saw allows a hose or vacuum accessory (not supplied) to be connected to the dust port (1). If

excessive sawdust build up occurs inside the base, use a vacuum cleaner or manually remove sawdust by

removing the screws (2) and metal plate on the left side of the saw. Re-attach the metal plate and screws

before starting the saw.

Blade Selection

This machine accepts 5" length pin-end and plain blades, with a wide

variety of blade thicknesses and widths. The type of material and

intricacies of cutting operations will determine the most suitable

number of teeth per inch ("tpi"). Always select the narrowest blades for

intricate curve cutting and the widest blades for straight and large

curve cutting operations. The following table represents suggestions

for various materials. Use this table as an example, but with practice,

personal preference will be the best selection method (Fig. 12).

When choosing a blade, use very fine, narrow blades to scroll cut in

thin wood 6mm (1/4") thick or less. Use wider blades for thicker

materials but this will reduce the ability to cut tight curves. A smaller

blade width can cut circles with smaller diameters.

Thinner blades will have a greater tendency for deflection, especially when cutting at angles not

perpendicular to the table.

Teeth/Inch

(TPI)

Width

Thickness

Strokes/Min (SPM)

Material

10 to 15

0.11"

0.018"

500 to 1200

Medium turns on ¼" to 1-3/4" wood,

soft metal, hardwood

15 to 28

0.055" to 0.11"

0.01" to 0.018"

800 to 1600

Small turns on 1/8" to 1-1/2" wood,

soft metal, hardwood

30 to 48

0.024" to 0.041"

0.012" to 0.019"

Varies

Non-ferrous metals/hardwoods

using very slow speeds

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Scroll Saw - SS16

Operation

Risk of injury when operating the machine. Always use caution when handling the work-

piece. • Risk of injury when handling saw blades. Use caution and wear protective gloves. •

Ensure that the blade is correctly installed and adjusted before using the machine. • Do NOT attempt to cut

materials that are not suitable to the cutting speed of the machine and blade type. For example, hard metals.

• Know the condition of the machine. If any part is missing, damaged, or does not operate properly, replace

the component before use. • Properly protect your body including your eyes, hands, face, and ears. • Do not

cut a work piece too small to be held safely. •Use supplied or recommended accessories only. Follow the

instructions supplied with the accessory. The use of improper accessories may cause risk of injury and void

any warranty. • Do not reach under the scroll saw table when the motor is running. • Switch the machine OFF

and disconnect it from the electrical supply before changing the blade, performing maintenance or making

adjustments. • Make sure the switch is OFF before plugging in the power cord to an electric outlet. • Always

hold the work-piece firmly against the table. • Always feed the work-piece into the machine at the rate the

saw will cut. • Do not start the machine with the work-piece touching the blade. • Use caution when cutting

round or irregularly shaped work-pieces. Round items may roll and irregularly shaped work pieces can pinch

the blade. • Make sure the table is locked into position before starting the machine. • Do not use dull or bent

blades. • When cutting large work-pieces, make sure the material is supported at table height. • If the blade

jams, switch the machine OFF and disconnect it from the electrical supply. Jams are usually caused by

sawdust filling the cut. Wedge open the work-piece just enough to back out the blade, then clear the cut

General Operational Recommendations

A scroll saw is basically a curve-cutting machine. It can also be used for straight cutting and bevelling or

angle cutting operations. Read and understand the following before attempting to use the saw.

•There is a learning curve for each person using this saw. During that period, it is expected that some

blades will break until you learn how to use the saw.

•When feeding the work-piece into the machine, do so at a rate where cutting is efficient and there is not

unnecessary force on the blade that can cause deflection and breakage.

•The blade teeth cut on the down stroke ONLY.

•Best results are achieved when cutting materials under 25mm (1") thick. When cutting material thicker

than 25mm, feed the work-piece very slowly into the blade and take extra care not to bend or twist the

blade while cutting.

•Teeth on scroll saw blades wear out and the blades must be replaced for best cutting results. Blades

generally stay sharp for 1/2 hour to 2 hours of cutting.

•To get accurate cuts, be prepared to compensate for the blade tendency to follow the wood grain.

•This scroll saw is primarily designed to cut wood or wood products. For cutting precious and nonferrous

metals, the speed control must be set to very slow speeds.

•When choosing a blade, use very fine, narrow blades to cut materials 6mm (1/4") thick or less. Use wider

blades for thicker materials. Wider blades, however, reduce the ability to cut tight curves.

•Blades wear down faster when cutting plywood or abrasive particle board. Angle cutting in hardwoods

also wears blades down faster.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Scroll Saw - SS16

Power Switch and Speed Control

To avoid injury from accidental start-ups, always switch the machine OFF and disconnect it

from the electrical supply before moving it, replacing the blade, or making adjustments. •

Always wait for the saw to come to a complete stop before restarting.

To switch the machine ON:

•Press the green ON ("I) button.

To switch the machine OFF:

•Press the red OFF ("O") button.

To adjust speed (strokes per minute / SPM):

Speed is adjustable between 400 and 1600 SPM. Rotate the speed control

right (clockwise) to increase speed; rotate left (anti-clockwise) to reduce speed.

Freehand Cutting

(Fig. 17)

1. Raise the blade guard foot (1) by loosening the height

adjustment knob (2).

2. Position the work-piece against the blade and place the

blade guard foot against the top surface of the work-piece.

3. Secure the blade guard foot (1) by tightening the height

adjustment knob (2).

4. Remove the work-piece from the blade prior to switching

the machine ON.

5. Slowly feed the work piece into the blade by guiding and

pressing the work piece down against the table.

6. When the cut is complete, move the trailing edge of the

work piece beyond the blade guard foot.

Angle Cutting (Bevelling)

(Fig. 18)

1. Move the blade guard foot to the highest position by

loosening the height adjustment knob (1). Re-tighten the

knob.

2. Tilt the table to the desired angle by loosening the table

bevel lock knob (2). Move the table to the required angle

using the degree scale and the pointer (3).

3. Tighten the table bevel lock knob (2).

4. Loosen the blade guard screw, and tilt the blade guard to the

same angle as the table. Re-tighten the blade guard screw.

5. Position the work piece on the right side of the blade. Lower

the blade guard foot against the surface by loosening the

height adjustment knob. Re-tighten the knob.

6. Slowly feed the work piece into the blade by guiding and pressing the work piece down against the table.

7. When the cut is complete, move the trailing edge of the work piece beyond the blade guard foot.

3

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Scroll Saw - SS16

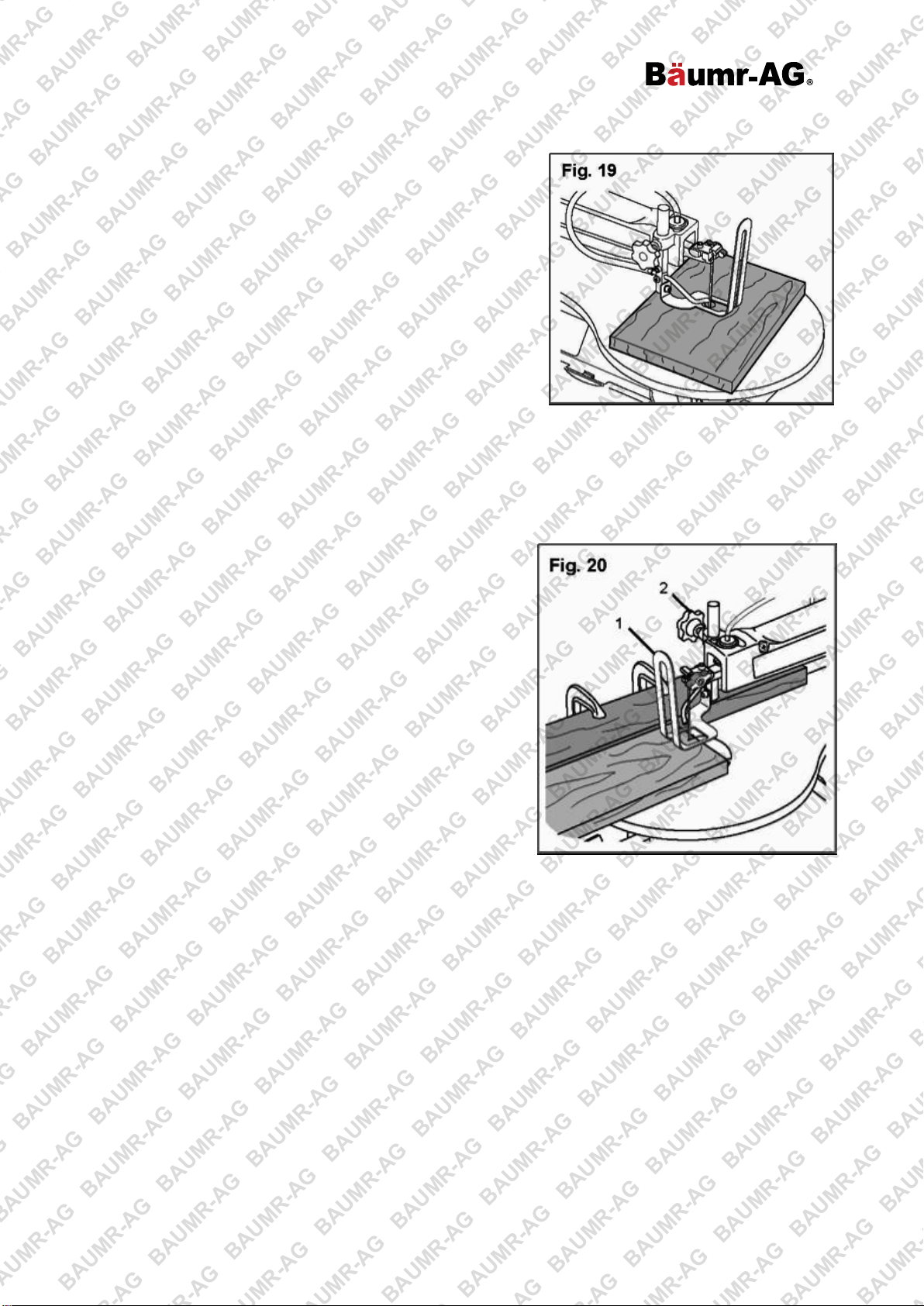

Interior Cutting

(Fig. 19)

1. Drill a 6mm (1/4") or larger hole in the work-piece.

2. Remove the blade from the machine.

3. Place the work-piece on the table, with the hole in it over the

access hole in the table.

4. Install a blade through the hole in the work-piece.

5. Position the work-piece against the blade and place the

blade guard foot against the top surface of the work-piece.

6. Secure the blade guard foot by tightening the height

adjustment knob.

7. Remove the work-piece from the blade prior to switching the

machine ON.

8. Slowly feed the work-piece into the blade by guiding and pressing the work-piece down against the table.

9. When the cut is complete, switch the machine OFF and disconnect it from the electrical supply, then

remove the blade and work-piece.

Rip or Straight Line Cutting

(Fig. 20)

1. Raise the blade guard foot (1) by loosening the height

adjustment knob (2).

2. Measuring from the side of the blade, place a straight edge

on the table at the required distance and parallel to the

blade.

3. Clamp the straight edge to the table.

4. Recheck your measurements and make sure the straight

edge is secure.

5. Position the work-piece against the blade and place the

blade guard foot against the top surface of the work piece.

6. Secure the blade guard foot in place by tightening the

height adjustment knob.

7. Remove the work-piece from the blade prior to turning the

scroll saw ON.

8. Position the work piece against the straight edge prior to touching the leading edge of the work-piece

against the blade.

9. Slowly feed the work-piece into the blade, guiding the work-piece against the straight edge and pressing

the work piece down against the table.

10. When the cut is complete, move the trailing edge of the work-piece beyond the blade guard foot.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Scroll Saw - SS16

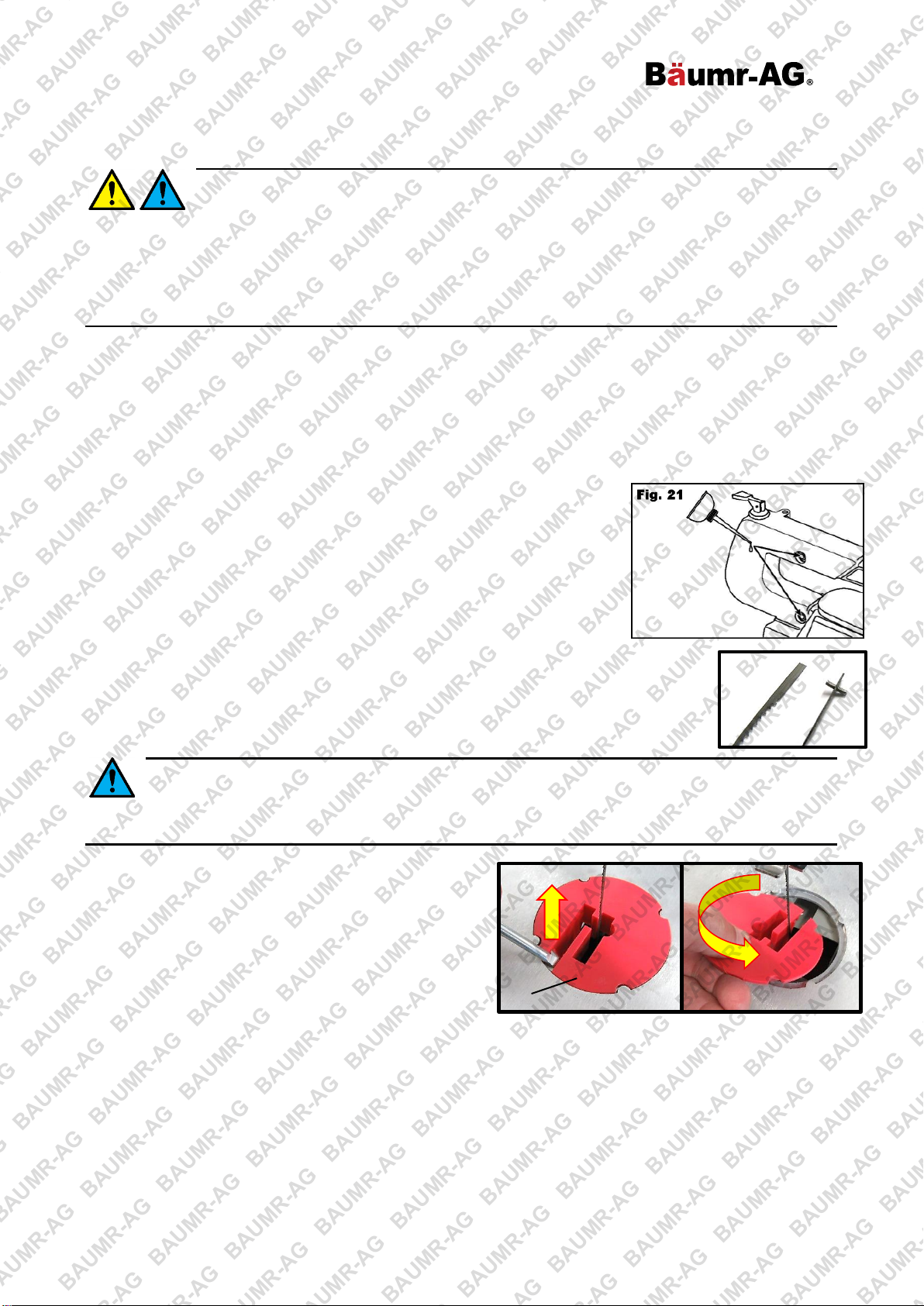

Maintenance

Ensure the machine is switched OFF and disconnected from the electrical supply before

performing any maintenance tasks. • All protection and safety devices must be immediately

re-installed once the maintenance work is completed. • When servicing, use only identical replacement parts.

Use of any other parts may create a hazard or cause product damage and may void any warranty. • Some

maintenance activities described may be beyond the scope of some users. For procedures that you are not

comfortable with or have the tools or experience for, have the unit serviced by a service centre or qualified

technician. • Do not allow chemicals, solvents or petroleum based products come into contact with plastic

parts as this may damage and weaken them, creating a hazard.

To keep the machine performing at optimal efficiency, regular checks and maintenance is required. Proper

care and maintenance ensures best performance and longest service life.

•Clean the machine after each use with a brush and cleaning cloth to help prevent the build-up of

sawdust and particles. Do not use chemicals, solvents or abrasive materials.

•To ensure that the work-piece moves smoothly across the table, periodically apply a coat of paste wax

(not supplied) to the surface of the table.

Lubrication

Lubricate the arm bearings after every 50 hours of use (Fig. 21).

1. Turn the saw on its side and remove the 2 bearing covers.

2. Squirt a generous amount of SAE 20 oil (lightweight motor oil, not

supplied) around the shaft and bearing and let the oil soak in overnight.

3. Repeat the above procedure for the opposite side of the saw.

Blade Removal and Installation

This saw uses pin-end and plain blades. Pin-end blades are faster to install and may

provide faster cutting on a variety of materials, however, are thicker than plain types. The

image shows a pin-end blade on the right and a plain type on the left.

Always install blades with the teeth pointing downward and towards the front of the machine. •

Some blades may stretch slightly when first used –if this occurs, increase tension on the blade. •

Do not bend blades when installing. • Always set proper blade tension. • Use the correct blade for the task

(see instructions on replacement blade packaging for proper use).

Pin-End Blades

1. Remove the table insert (1) –carefully pry up on the

insert to lift it from the table, then rotate and pull it

from the machine.

2. Loosen the tension on the blade by rotating the blade

tension knob (2) left (anti-clockwise) until no tension

remains on the blade.

3. Unhook the blade pins from the lower slotted blade holder (3) and upper slotted blade holder (4) and

remove the blade from the machine.

4. Hook the bottom pin of the replacement blade under the lower slotted blade holder (3), and the top pin

over the upper slotted blade holder (4).

5. Increase tension on the blade by rotating the blade tension knob (2) right (clockwise) until the blade is

straight and "twangs" if you pluck it.

6. Re-install the table insert (1) and ensure that it is sitting flush with the table surface.

1

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Scroll Saw - SS16

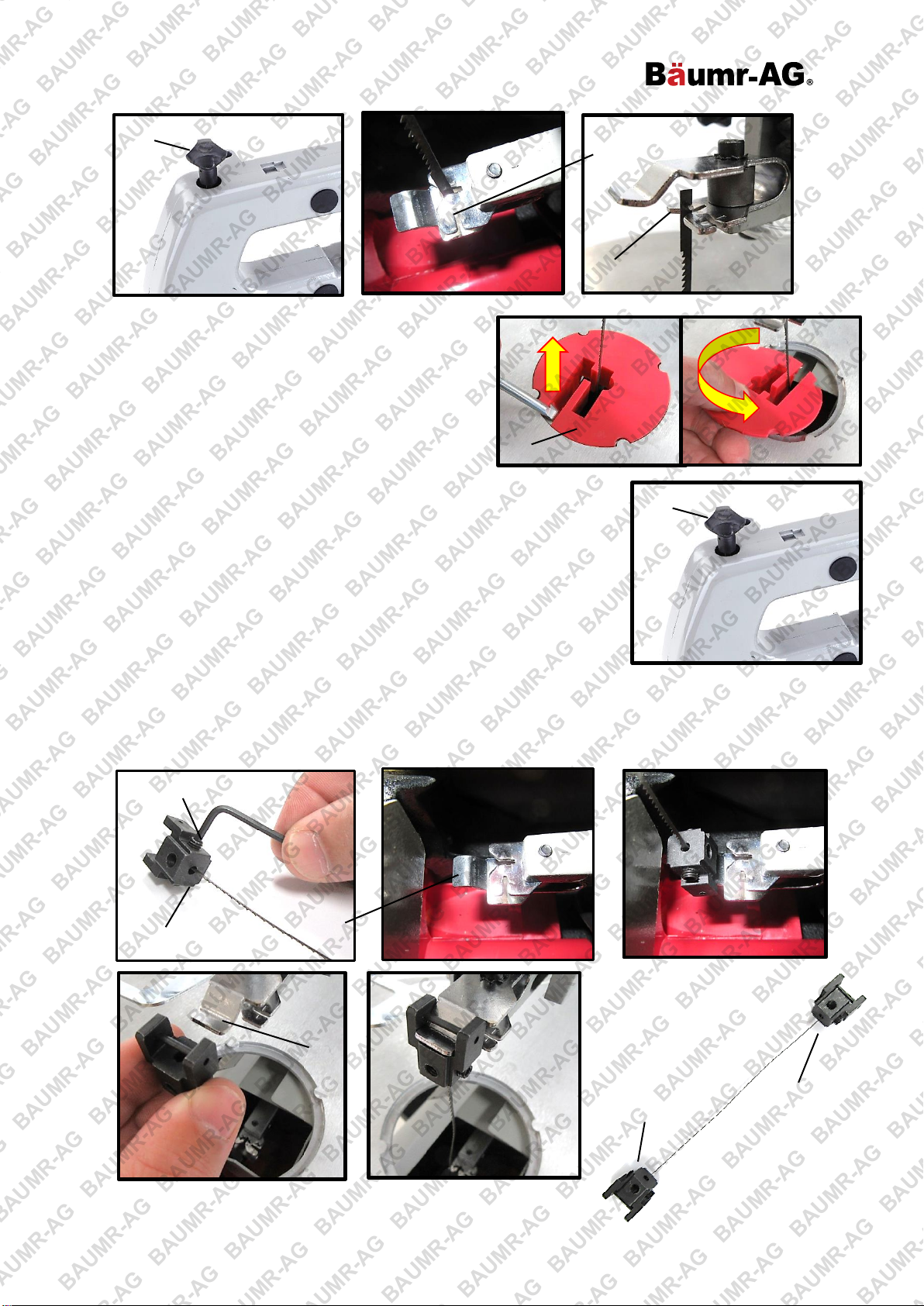

Plain Blades

1. Remove the table insert (1) –carefully pry up on the

insert to lift it from the table, then rotate and pull it

from the machine.

2. Loosen the tension on the blade by rotating the blade

tension knob (2) left (anti-clockwise) until no tension

remains on the blade.

3. Unhook the blade holders (6) from the lower flat blade holder (3) and

upper flat blade holder (4) and remove the blade from the machine.

4. Loosen the grub screw (5) securing the blade to the blade holders (6),

and remove the blade.

5. Place the ends of the replacement blade into the blade holders (6) and

secure the blade by tightening the grub screws (5). Ensure that the

blade is held centrally and that the blade ends do not protrude from the

holders, as per (7).

6. Hook the bottom blade holder around the lower flat blade holder (3), and

the top blade holder around the upper flat blade holder (4).

7. Increase tension on the blade by rotating the blade tension knob (2) right (clockwise) until the blade is

straight and "twangs" if you pluck it.

8. Re-install the table insert (1) and ensure that it is sitting flush with the table surface.

2

3

4

1

5

6

2

6

3

4

7

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Scroll Saw - SS16

Specifications

Electrical Requirements

240VAC / 50Hz, 0.8A

Speed

550 to 1600 SPM

Throat Depth

406mm (16")

Blade

5" pin-end and plain

Blade Stroke

14mm (9/16")

Cutting Capacity

50mm (2") at 90°

Table Tilt

0° to 45°

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Scroll Saw - SS16

Some experts believe that the incorrect or prolonged use of almost any

product may cause serious injury or death. To help reduce your risk of

serious injury or death, refer to the information below. For more information,

see www.datastreamserver.com/safety

Consult all documentation, packaging

and product labelling before use. Note

that some products feature

documentation available online. It is

recommended to print and retain the
