Baxi 759 User manual

5113224/03
© Baxi Heating U.K. Limited 2006.
Model759
OPEN DECORATIVE GAS FIRE
Fitted with an
ARC fascia
(GC No. 32-032-68)
INSTALLER: Please leave this guide with the
owner
OWNER GUIDE
We trust that this guide gives
sufficient details to enable this
appliance to be operated and
maintained satisfactorily. However, if
further information is required, our
Baxi Fires Division Technical
Helpline will be pleased to help.
Telephone [phone] (National
call rates apply in the United
Kingdom).
In the Republic of Ireland
Telephone [phone].
This guide is intended to help you care
for your Baxi Fires Division gas fire.
Please read thoroughly before using
and keep for future reference.

© Baxi Heating U.K. Limited 2006.
All rights reserved. No part of this publication may be reproduced in any material form
(including photocopying), stored in any medium by electronic means (including in any
retrieval system or database) or transmitted, in any form or by any means, whether
electronic, mechanical, recording or otherwise, without the prior written permission of
the copyright owner.
Applications for the copyright owner's permission to reproduce any part of this
publication should be made, giving details of the proposed use, to the following address:
The Company Secretary, Baxi Heating UK Limited, Pentagon House, Sir Frank Whittle
Road, Derby, DE21 4XA.
Warning: Any person who does any unauthorised act in relation to a copyright work
may be liable to criminal prosecution and civil claims for damages.
Baxi Fires Division, Erdington, Birmingham B24 9QP
www.firesandstoves.co.uk
Because our policy is one of constant development and improvement, details may vary slightly from those
given in this publication
Page 2
OWNER GUIDE
THIS APPLIANCE IS FOR USE WITH NATURAL GAS (G20).
THIS APPLIANCE IS SUITABLE ONLY FOR INSTALLATION IN THE UNITED
KINGDOM (GB) AND THE REPUBLIC OF IRELAND (IE).

Safety First.
Baxi Fires Division fires are CE Approved and designed to meet the appropriate British
Standards and Safety Marks.
Quality and Excellence.
All Baxi Fires Division fires are manufactured to the highest standards of quality and
excellence and are manufactured under a BS EN ISO 9001 quality system accepted by
the British Standards Institute.
The Highest Standards
Baxi Fires Division is a member of the Society of British Gas Industries which works to
ensure high standards of safety, quality and performance.
Careful Installation
Baxi Fires Division is a CORGI registered company. All our gas fires must be
installed by a competent CORGI Registered Installer in accordance
with our Installer Guide and should not be fitted directly on to a
carpet or floor of combustible material.
Page 3
OWNER GUIDE

LIST OF CONTENTS
Section Page
SAFETY 5
GAS CONSUMPTION 6
APPLIANCEDIMENSIONS 7
OPERATING THE FIRE 7
The Oxysafe flame sensing & flue blockage safety system. 7
To light the fire. 8
Lighting with a taper. 9
CLEANING YOUR FIRE 9
Metal parts and enammelled top. 9
Ceramic fuel effect . 9
Burner. 10
CERAMIC FUEL EFFECT REFITTING 10
MAINTENANCE 10
USEFUL TELEPHONE NUMBERS 11
This gas fire is designed to meet the most stringent quality, performance and safety
requirements to provide you with many years’ trouble-free service.
This guide aims to improve your understanding and appreciation of your gas fire by
providing simple and informative instructions to ensure that you benefit from the
excellent performance and features it has to offer.
Page 4
OWNER GUIDE

SAFETY
Do have the fire installed by a competent person. In the United Kingdom,
installation must be in accordance with the latest edition of the Gas Safety
(installation & use) Regulations. In the Republic of Ireland, installation must be in
accordance with all national and local regulations in force.
Do
have the chimney swept prior to installation if it was previously used for solid fuel.
Do have the fire installed in accordance with the installation instructions.
Do provide a minimum clearance of 775mm from the base of the fireplace opening /
hearth to any shelf made of wood or other combustible material where the shelf is not
more than 150mm deep. For a shelf deeper than 150mm, add 12.5mm to the clearance
for every 25mm of additional shelf depth (See graph1).
Do provide a suitable guard that complies with BS 8423 for the protection of young
children, the elderly and the infirm. Such a guard is also recommended for the
protection of pet animals. (Although this fire conforms to all the applicable
Page 5
OWNER GUIDE
IF YOU SMELL GAS
! DON’T SMOKE.
! EXTINGUISH ALL NAKED FLAMES.
! DON’T TURN ELECTRICAL SWITCHES ON OR OFF.
! TURN OFF THE GAS SUPPLY AT THE METER.
! OPEN DOORS AND WINDOWS TO GET RID OF THE GAS.
! IMMEDIATELY CALL THE GAS EMERGENCY SERVICE FROM A
NEIGHBOURS PHONE - SEE YOUR LOCAL TELEPHONE DIRECTORY.

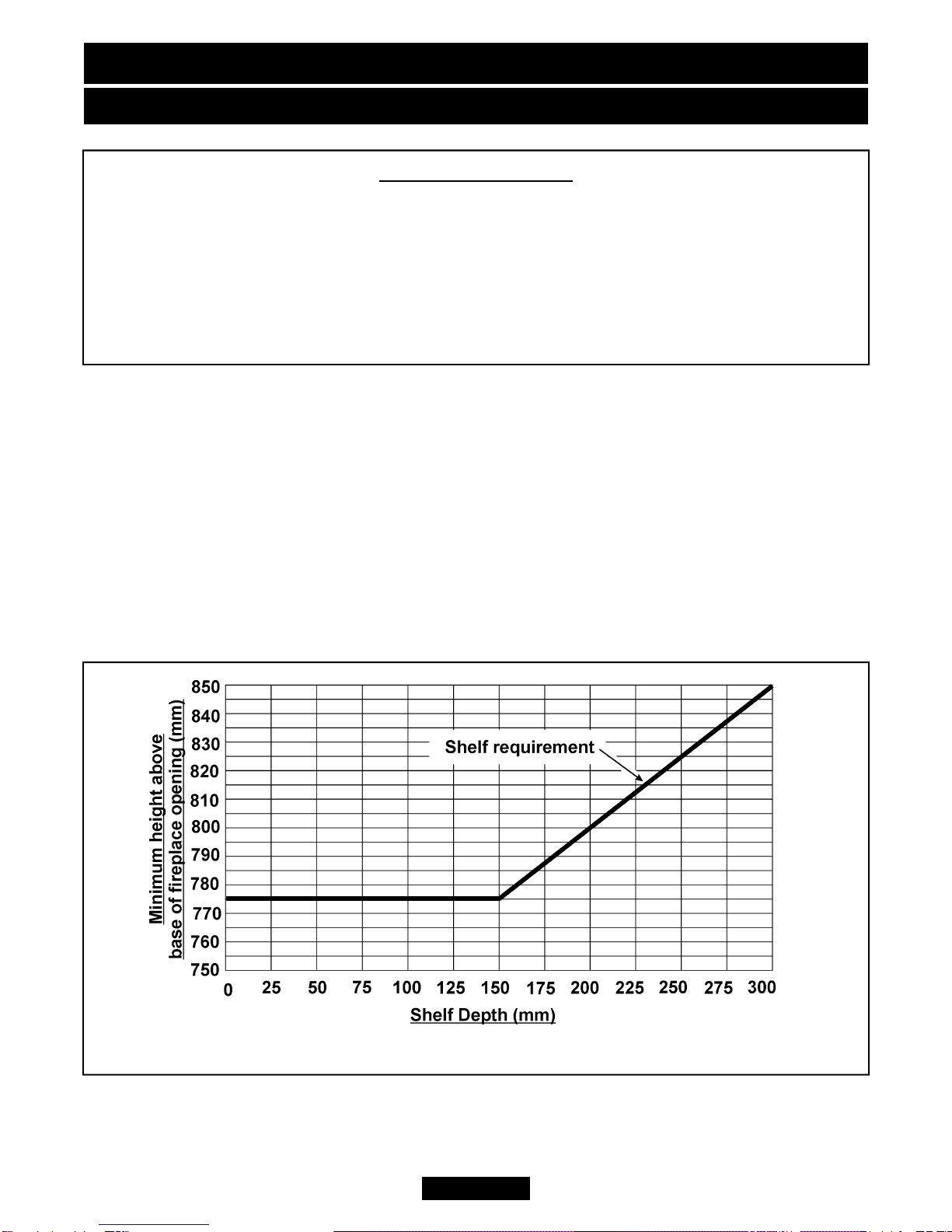

Graph 1. Combustible shelf clearances

standards, it is a heating appliance and certain parts of its surface will become hot.).
Do wait three minutes before attempting to relight if the fire is switched off or the
flames are extinguished for any reason. (Your fire is fitted with a safety device that will
automatically shut off the gas supply to the fire if, for any reason, the flames
go out).
Do get advice about the suitability of any wall covering near your fire. Soft wall
coverings (e.g. embossed vinyl, etc.) which have a raised pattern are easily affected
by heat. They may, therefore, scorch or become discoloured when close to a heating
appliance. Please bear this in mind whenever you are considering redecorating.
Do
provide a minimum side clearance as detailed in figure 1. Please bear this in mind if
ever you are considering altering the room.
Don’t hang clothing, towels or any other fabrics over the front of the fire.
Don’t
add any extra ceramic fuel effect pieces above the number stated in the installer
and owner guide supplied with the ceramic fuel effect. This should have been placed
inside or attached to this guide by the installer. This could cause incomplete combustion
and consequent safety hazard.
Don’t put paper or any other material on the fire.
Don’t place any combustible material (rugs, carpet, plastic tiles, etc.) on the hearth.
Don’t
attempt to clean or service the fire until it has been switched off and allowed to
cool completely.
GAS CONSUMPTION
Model 759
Has a maximum natural gas input of 5.1kW (Gross)
Has a minimum natural gas input of 3.0kW
Page 6
OWNER GUIDE

APPLIANCE DIMENSIONS
OPERATING THE FIRE
The Oxysafe flame sensing & flue blockage safety system.
For your safety, this appliance is fitted with a flue blockage safety device that will shut
down the appliance in the event of abnormal flue conditions. This device is NOT a
substitute for an independently mounted Carbon Monoxide detector.
The device will also automatically shut off the gas supply to the fire if the pilot flame
goes out due to lack of oxygen or for any other reason.
If this device starts to repeatedly shut off the gas, get expert advice.
This device incorporates a probe that senses that the heat from the pilot flame is correct.
Page 7
OWNER GUIDE
PLEASE NOTE
When operating your fire for the first time, some vapours may be given off which may
cause a slight odour and could possibly set off any smoke alarms in the immediate
vicinity. These vapours are quite normal with new appliances. They are totally harmless
and will disappear after a few hours use.

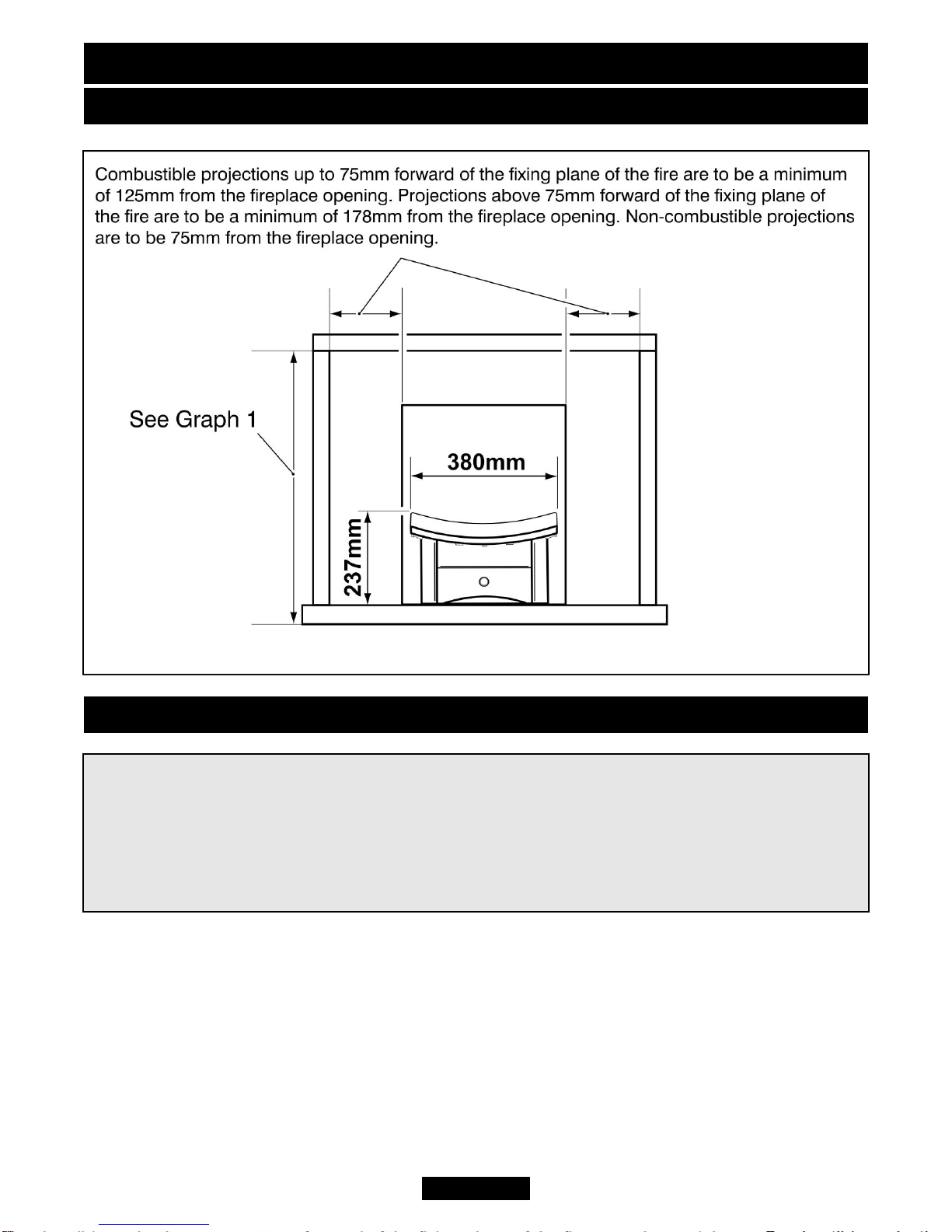

Figure 1. Appliance dimensions

If this probe is cool, the device will prevent any gas flow unless the control knob is held
in at the ignition position.
If, for any reason, the flames go out when the fire is hot or if the fire is turned off when
hot, always wait at least three minutes before attempting to relight.
To light the fire.
Remove the firefront cover. Depress the control
knob and rotate it anticlockwise to the pilot
ignition position. A ‘click’ will be heard as the
integral piezo operates. A flame should appear
at the pilot. Keep the control knob depressed
and hold the pilot ignition position for five
seconds. When the control knob is released the
pilot flame should remain lit. If a flame does
not appear at the pilot then turn the control
knob clockwise to the ‘OFF’ position and
repeat the above.
When the pilot burner is operating properly,
gradually turn the control knob anti-clockwise to ‘HIGH’ position. (Depress the knob
slightly to get past the pilot ignition position). The main burner should now light.
Depress the control knob slightly to release from the ‘HIGH’ position and turn back
(clockwise) to ‘LOW’. While turning, the burner flames should gradually become lower
but remain alight. Depress the control knob slightly to release from the ‘LOW’ position
and turn back (clockwise) to the Pilot ignition position. The main burner should
extinguish but the pilot should remain alight. Depress the control knob slightly and turn
back (clockwise) to turn OFF. This will extinguish the pilot.
While cooling, the ceramic fuel effect may make some crackling noises. This is quite
normal.
! If the flames go out while setting the control, repeat the full lighting procedure.
! If the flames repeatedly go out have the fire serviced.
!
Please note. When first turned on the flames will appear predominantly blue. The
ceramic fuel effect will take time to warm up. Although some glow will be seen after
approximately ten minutes, the full visual effect will only be apparent after a somewhat
longer time.
!
The appliance will operate to its maximum potential if the flue is primed during the
first 20 – 30 minutes of operation. To do this, simply turn the control knob to its
‘HIGH’ setting. This will also burn off any carbon deposits that may have formed
during previous operations.
!
If operating the appliance for long periods it is beneficial occasionally to change
Page 8
OWNER GUIDE
Figure 2. Lighting the fire

the settings. This will also help to remove any carbon deposits that may form during
operation.
Lighting with a taper.
See figure 3.
In the unlikely event of failure of the ignition
spark, the pilot can be lit by a taper or long
spill. Insert the taper or spill between the second
and third left hand ceramic fuel effect pieces on
the first row. Operate the control knob as
described in the section headed ‘To light the
fire’.
CLEANING YOUR FIRE
Turn the fire off and allow it to cool completely before attempting any cleaning.
Note
that the fire will retain heat for some time after it has been turned off.
If large pieces of debris are found anywhere in the fireplace, have the chimney
inspected before further use.
Metal parts and enamelled top.
Clean the metal or enamelled parts with a slightly damp cloth and then dry. Do not use
abrasive cleaners, they could scratch the surface.
Ceramic fuel effect .
This product uses fuel effect pieces containing Refractory Ceramic Fibres
(RCF), which are man-made vitreous silicate fibres. Excessive exposure to this
material may cause irritation to eyes, skin and respiratory tract.
Consequently, it is important to take care when handling these articles to
ensure that the release of dust is kept to a minimum.
!
Light coatings of soot will usually be burnt off during the normal operation of the
fire.
! Should any soot accumulation become excessive, the ceramic fuel effect pieces
Page 9
OWNER GUIDE

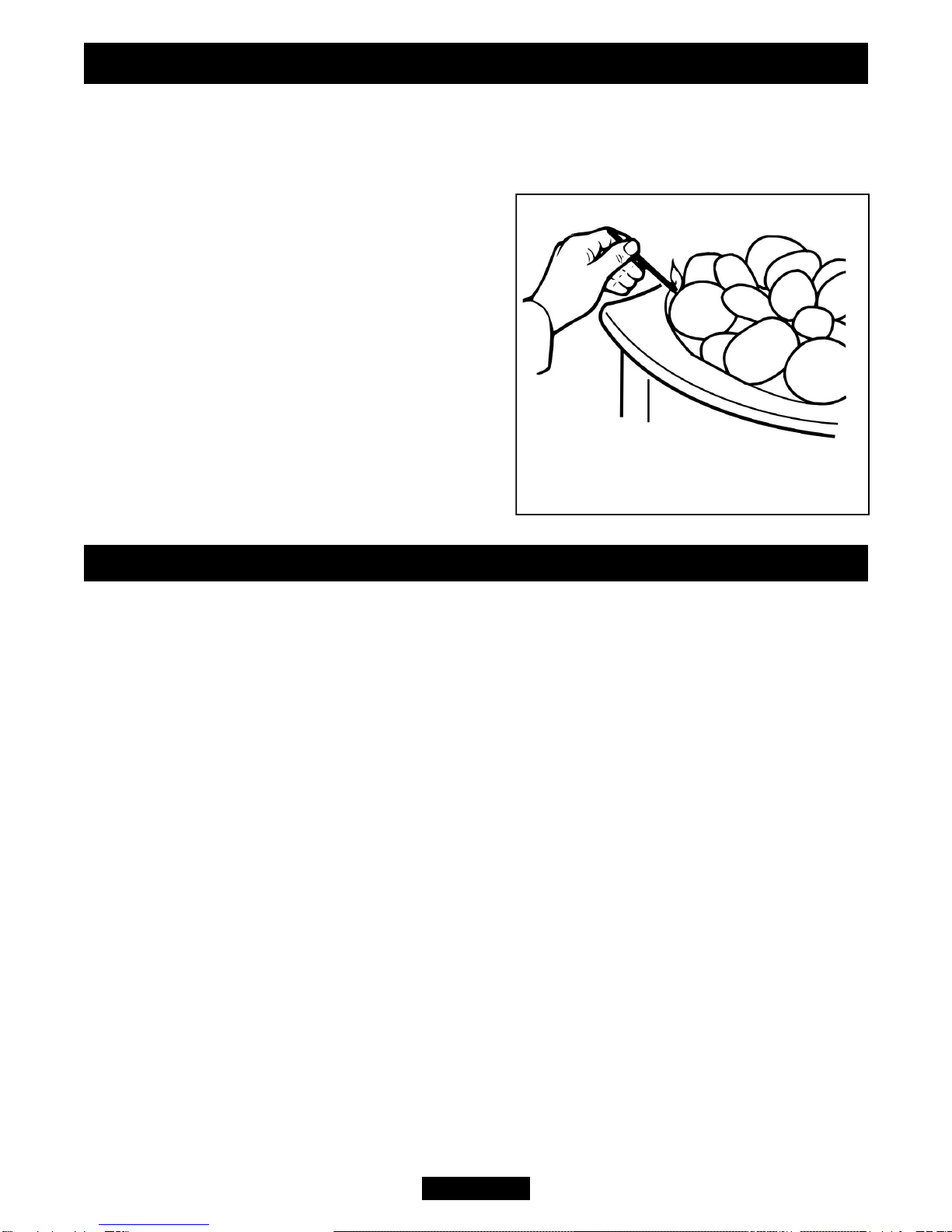

Figure 3. Lighting with a taper

should be removed from the fire for cleaning.
!
Cleaning should be carried out in a well-ventilated area or in the open air by gently
brushing with the pieces held away from your face so that you avoid inhaling the dust.
!
We do not recommend the use of a normal domestic vacuum cleaner that may blow
dust back into the air.
! We suggest that you remove the ceramic fuel effect pieces in the reverse order to
that shown in the installer and owner guide supplied with the ceramic fuel effect. This
should have been placed inside or attached to this guide by the installer.
Burner.
Remove any deposits of soot or other foreign matter from the the burner with a dry soft
brush. Be careful not to brush any particles into the open holes. Remove any particles
from the holes with a vacuum cleaner fitted with a soft brush attachment.
Do not poke
wire, etc. into the holes in the burner.
CERAMIC FUEL EFFECT REFITTING
The installer and owner guide for the ceramic fuel effect is separate from this guide. The
installer may have attached it to this guide or placed it inside. It is important that the
installer and owner guide for the ceramic fuel effect is followed correctly. If replacing
the ceramic fuel effect, where a new guide is supplied, follow the installer and owner
guide supplied with the replacement fuel effect.
Keep the replacement installer and owner guide with this owner guide for future
reference.
MAINTENANCE
Regular maintenance.
In order to achieve and maintain high levels of personal safety and performance
efficiency, it is essential that the opening at the back of the fire and the flue are kept
clear of any form of obstruction. It is possible that deposits of mortar or soot could fall
and accumulate causing the flue to be blocked or restricted and so preventing proper
clearance of dangerous exhaust fumes.
In the United Kingdom it is the law that a landlord must have any gas appliance, flue
and pipework which is situated in a tenant’s premises checked for safety at least every
twelve months by a competent person (In the U.K, a CORGI registered installer).
We recommend that all gas appliances and their flues, wherever situated, are checked
annually.
Page 10
OWNER GUIDE
