Bayliner Capri 21' User manual

Hull Identification Number: _____________________________________________
Engine Serial Number: _________________________________________________
The Hull Identification Number (HIN) is located on the starboard side of the transom. Be sure
to record the HIN in the space provided above and always refer to the HIN for all correspon-
dence or orders.
© 2001 Bayliner Technical Publications. All rights reserved.
No part of this publication may be reproduced, stored in any retrieval system, or transmitted in
any form by any means, electronic, mechanical, photocopying, recording or otherwise, without
prior written permission of Bayliner. Printed in the United States of America.
Proprietary Rights
This document discloses subject matter in which Bayliner has proprietary rights. The information
and design disclosed herein were originated by and are the property of Bayliner. Neither receipt
nor possession thereof confers or transfers any right to reproduce, copy, alter or disclose the docu-
ment or any part thereof, any information contained therein, or to construct boats or any item from
it, except by written permission from or written agreement with Bayliner. This document is to be
returned upon request to Bayliner.
General Notes
The material in this document is for information only and is subject to change without notice.
While reasonable efforts have been made in the preparation of this document to assure its accu-
racy, Bayliner assumes no liability resulting from errors or omissions in this document, or from
the use of information contained herein.
Due to our commitment to product improvement, Bayliner reserves the right to make changes in
the product design, specifications, and equipment at any time without notice or obligation. Illus-
trations and/or photos may show optional equipment.
All Bayliner products meet or exceed USCG (Unites States Coast Guard) and/or NMMA
(National Marine Manufacturer’s Association) construction standards. Manufactured with 1,1,1
Trichloroethane, a substance which harms public health and environment during the manufactur-
ing process by destroying ozone in the upper atmosphere.
TYPICAL HIN LOCATION
STARBOARD TRANSOM
BOARDING LADDER

CONTENTS
CHAPTER 1: ABOUT THIS MANUAL
1Dealer Service
1Boating Experience
2Engine & Accessories Guidelines
2Qualified Maintenance
3Special Care For Moored Boats
3Safety Standards
4Hazard Warning Symbols
5Carbon Monoxide (CO)
5 Sources of CO

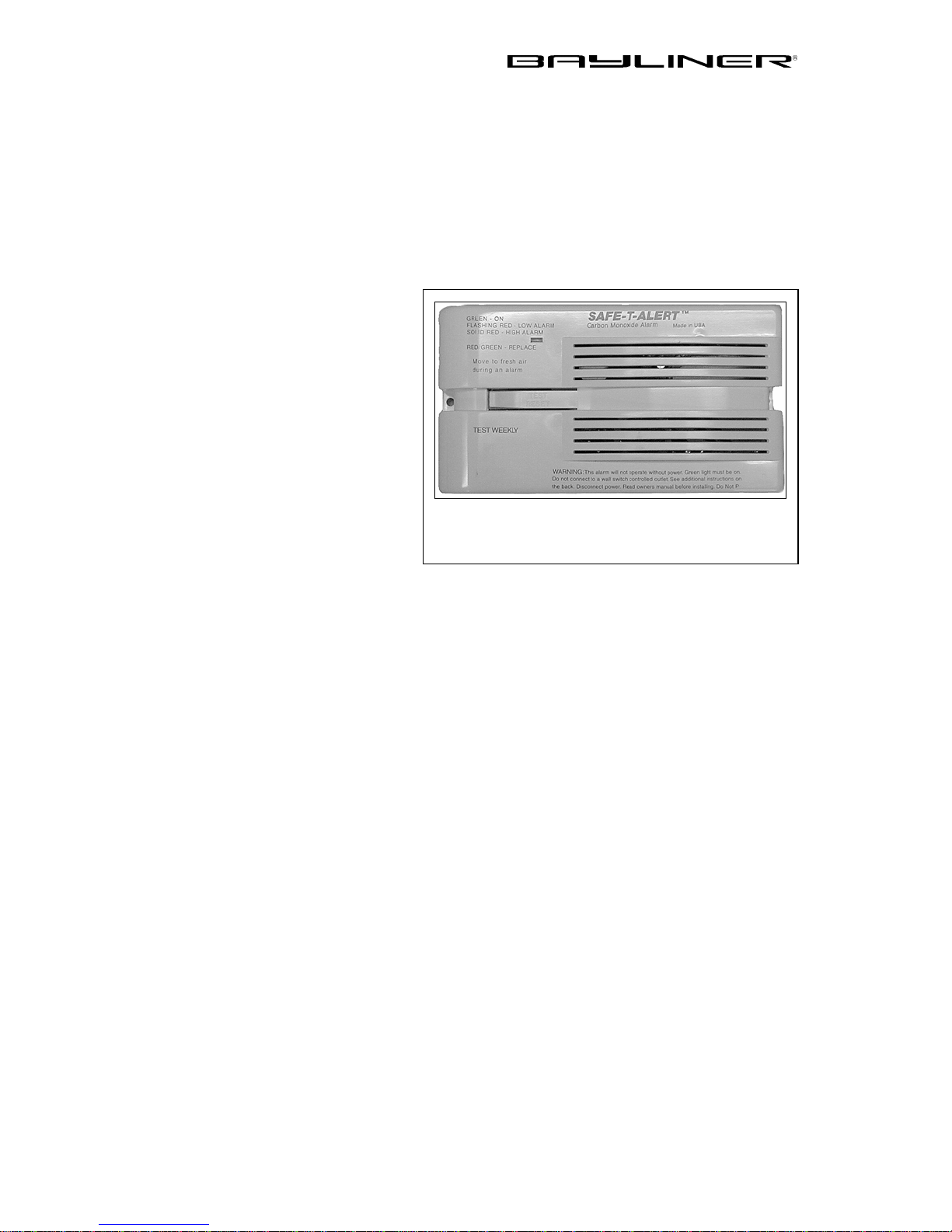

6 Carbon Monoxide Alarm System
6 What To Do If Carbon Monoxide Is Detected
CHAPTER 2: PRODUCT SPECIFICATIONS
72150 (BX)
72150 (BZ)
82150 (CT)
82152 (BK)
92152 (CY)
92152 (BL)
10 2350 (BC)
10 2350 (BD)
11 2352 (BF)
CHAPTER 3: COMPONENTS/SYSTEMS
12 Electrical System (12Volt DC)
13 Fuses and/or Circuit Breakers
14 Dash Programming (2150BX/BZ, 2152BK/BL only)
16 Controls
16 Navigation and Interior Lights
16 Compass
17 Depth Finder
17 Anchoring
17 Ski Tow Ring

18 Hull Exterior Drains & Hardware
19 Quick Oil Drain System
20 Fuel System
20 Fuel Fills and Vents
20 Fuel Filters
21 Bilge Blower
22 Bilge Pump
22 Bilge Pump Testing
24 Fresh Water System
25 Marine Head With Pump-out
25 Portable Toilet
26 Alcohol Stove (2352BF Option)
27 Jump Seat to Sunlounge Conversion
27 Models, 2150BX and 2152BK
28 Models, 2150CT and 2152CY
29 Sleeper Seat Adjustment
29 Operating Positions:
29 Lounge positions:
30 Canvas Top (Option) Installation
31 Canvas Stowage
CHAPTER 4: WIRING DIAGRAMS
32 2150BX, 2150BZ, 2150BK and 2152BL
33 2150CT, 2152CY, 2350BC, 2350BD and 2350BF
APPENDIX A: BAYLINER CAPRI LIMITED WARRANTY
34 Limited Lifetime Structural Hull Warranty
34 One Year Parts and Components Limited Warranty
34 Six Month Cosmetic Gelcoat Defect Limited Warranty
34 What Is Not Covered
34 Other Limitations
34 Your Obligations
34 Transferability

Capri 21’ - 23’ • Owner’s Manual Supplement
1
CHAPTER 1: ABOUT THIS MANUAL
This Owner’s Manual Supplement provides specific information about your boat
that is not covered in the Sport Boat Owner’s Manual. Study the Sport Boat
Owner’s Manual and this supplement carefully. Pay particular attention to
APPENDIX A: BAYLINER CAPRI LIMITED WARRANTY in this supplement.
Keep the Sport Boat Owner’s Manual and this supplement on your boat in a secure,
yet readily available place.
Dealer Service
Make sure you receive a full explanation of all systems from the selling dealer
before taking delivery of your boat. Your selling dealer is your key to service. If
you experience any problems with your new boat, immediately contact the selling
dealer. If for any reason your selling dealer is unable to help, you can call us direct
on our customer service hotline: [phone] or send us aFAX: 360-403-4235.
Boating Experience
If this is your first boat or if you are changing to a type of boat you are not familiar
with, for your own comfort and safety, you must obtain handling and operating
experience before assuming command of the boat.
Take one of the boating safety classes offered by the U.S. Power Squadrons or the
U.S. Coast Guard Auxiliary. For more course information, including dates and
locations of upcoming classes, contact the organizations directly:
•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet
at: http://www.usps.org
•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at:
http://www.cgaux.org
Outside the United States, your selling dealer, national sailing federation or local
yacht club can advise you of local sea schools or competent instructors.
CONTROL HAZARD! A qualified operator must be in control of the boat at all
times. DO NOT use your boat while under the influence of alcohol or drugs.
WARNING!
!

2 CHAPTER 1: ABOUT THIS MANUAL
Capri 21’ - 23’ • Owner’s Manual Supplement
Engine & Accessories Guidelines
Your boat’s engine and accessories were selected to provide optimum performance
and service. Installing different engines or other accessories may cause unwanted
handling traits. Should you choose to install a different engine or to add accessories
that will affect the boat’s running trim, have an experienced marine technician per-
form a safety inspection and handling test before using your boat again.
Be advised that certain modifications to your boat can result in cancellation of your
warranty protection. Check with your dealer before making any modifications to
your boat.
The engine and accessories installed on your boat come with their own operation
and maintenance manuals. Read and understand these manuals before operating the
engines and accessories.
Qualified Maintenance
Failure to maintain your boat’s systems as designed could violate the laws in your
jurisdiction and could expose you and other people to the danger of bodily injury or
accidental death. Follow the instructions provided in the Sport Boat Owner’s Man-
ual, this Owner’s Manual Supplement, the engine owner’s manual and all accessory
instruction sheets/manuals included in your boat’s owner’s packet.
NOTICE
When storing your boat please refer to your engine’s operation and mainte-
nance manuals.
To maintain the integrity and safety of your boat, only qualified people should
perform maintenance on, or in any way modify: The steering system, propul-
sion system, engine control system, fuel system, environmental control system,
or electrical system.
WARNING!
!

CHAPTER 1: ABOUT THIS MANUAL 3
Capri 21’ - 23’ • Owner’s Manual Supplement
Special Care For Moored Boats
If moored in saltwater or fresh water, your boat will collect marine growth on its
hull bottom. This will detract from the boat’s beauty, greatly affect its performance
and may damage the gelcoat.
Periodically haul the boat out of the water and scrub the hull bottom with a bristle
brush and a solution of soap and water.
Safety Standards
Your boat’s mechanical and electrical systems were designed to meet safety stan-
dards in effect at the time it was constructed. Some of these standards were man-
dated by law. All of them were designed to insure your safety, and the safety of
other people, vessels and property.
In addition to this supplement, read the Sport Boat Owner’s Manual, warning labels,
and all literature in your owner’s packet for important safety standards and
hazard information.
NOTICE
To help seal the hull bottom and reduce the possibility of gelcoat blistering on
moored boats, apply an epoxy barrier coating, such as INTERLUX, Interprotect
2000E/2001E. Cover the barrier coating with several coats of anti-fouling paint.
Many states regulate the chemical content of bottom paints. Ask your local
dealer about the laws in effect in your area.
DANGER
PERSONALSAFETYHAZARD! DO NOT allow anyone to ride on
parts of the boat not designated for such use.
Sitting on seat backs, lounging on the forward deck, bow riding, gunwale riding
or occupying the transom platform or the aft sunlounge cushions while under-
way is especially hazardous and WILL cause personal injury or death.
DANGER!
!
DANGER
PERSONAL SAFETY HAZARD! Always secure the anchor and other loose
objects before getting underway. The anchor and other items that are not
properly secured can come loose when the boat is moving and cause personal
injury or death.
DANGER!
!

4 CHAPTER 1: ABOUT THIS MANUAL
Capri 21’ - 23’ • Owner’s Manual Supplement
Hazard Warning Symbols
The hazard warning symbols shown below are used throughout this supplement to
call attention to potentially dangerous situations that could lead to either personal
injury or product damage. Read these warnings and follow all safety instructions.
EXPLOSION
HAZARD!
HOT
HAZARD! ROTATING PROPELLER HAZARD!
PERSONAL INJURY
& FALLING HAZARD!
OPEN FLAME
HAZARD! ELECTRICAL HAZARD!
FIRE
HAZARD!
CO POISONING
HAZARD!
This message box alerts you to immediate hazards which WILL cause severe
personal injury or death if the warning is ignored.
DANGER!
!
This message box alerts you to hazards or unsafe practices which COULD
result in severe personal injury or death if the warning is ignored.
WARNING!
!
This message box alerts you to hazards or unsafe practices which COULD
result in minor personal injury or cause product or property damage if the
warning is ignored.
CAUTION!
!
This message box calls attention to installation, operation or maintenance
information, which is important to proper operation but is not hazard related.
NOTICE

CHAPTER 1: ABOUT THIS MANUAL 5
Capri 21’ - 23’ • Owner’s Manual Supplement
Carbon Monoxide (CO)
CO poisoning causes a significant number of boating deaths each year. Called the
"silent killer", CO is an extremely toxic, colorless, odorless and tasteless gas.
Breathing CO blocks the ability of your blood to carry oxygen. The effects are
cumulative, even low levels of exposure can result in injury or death.
Sources of CO
Sources of CO include:
To correct stationary situations a and/or b:
•Close all windows, portlights and hatches.
•If possible, move your boat away from the source of the CO.
To correct running situations c and/or d:
•Trim the bow down.
•Open windows and canvas.
•When possible, run the boat so that the prevailing winds will help dissipate
the exhaust.
IMMEDIATELY take corrective action when CO is detected (see, Carbon
Monoxide Alarm System, on the next page).
CARBON MONOXIDE POISONING HAZARD! Carbon monoxide
gas (CO) is colorless, odorless, and extremely dangerous. All
engines, generators, and fuel burning appliances produce CO as
exhaust. Direct and prolonged exposure to CO will cause BRAIN
DAMAGE or DEATH. Signs of CO poisoning include headache,
nausea, dizziness, and drowsiness.
DANGER!
!
a. Using the engine or generator
when the boat is moored in a
confined space.
b. Mooring close to another boat that
is running its engine, generator, or
any other CO source.
c. Running the boat with the trim
angle of the bow too high.
d. Running the boat without through
ventilation (station wagon effect).

6 CHAPTER 1: ABOUT THIS MANUAL
Capri 21’ - 23’ • Owner’s Manual Supplement
Factors increasing the effects of CO include:
•Age.
•Smokers or people exposed to high concentrations of cigarette smoke.
•Consumption of alcohol.
•Lung disorders, heart problems, and pregnancy.
Carbon Monoxide Alarm System
Your boat may feature a carbon
monoxide (CO) alarm system. DO
NOT DISCONNECT THE
ALARM SYSTEM. Read and
understand the manufacturer’s
instructions for your CO alarm
system. If you did not receive an
instruction manual, call (800) 383-
0269 and one will be mailed to
you. If your boat is not equipped
with a carbon monoxide alarm,
consider purchasingone from your
dealer or marine supply store.
What To Do If Carbon Monoxide Is Detected
•Immediately ventilate any enclosed spaces that are occupied by people and reset
your CO alarm.
•Immediately move anyone showing any symptoms of CO poisoning into fresh
air. See a doctor if any symptoms persist. If the person is unconscious, immedi-
ately administer oxygen or CPR and call for emergency help.
MARINE TECHNOLOGIES INC.
CARBON MONOXIDE ALARM MODEL 60-541
(REPLACE AFTER TEN YEARS OF USE)

Capri 21’ - 23’ • Owner’s Manual Supplement
7
CHAPTER 2: PRODUCT SPECIFICATIONS
2150 (BX)
2150 (BZ)
Overall
Length Bridge Clearance Beam Maximum Draft Fuel Tank Capacity (gal)
20' 10'' 3' 11'' 8' 2'' 2' 11'' 40
Overall
Length Bridge Clearance Beam Maximum Draft Fuel Tank Capacity (gal)
20' 10'' 3' 11' 8' 2'' 2' 11'' 40

8 CHAPTER 2: PRODUCT SPECIFICATIONS
Capri 21’ - 23’ • Owner’s Manual Supplement
2150 (CT)
2152 (BK)
Overall
Length Bridge Clearance Beam Maximum Draft Fuel Tank Capacity (gal)
20' 9'' 4' 3'' 8' 0'' 2' 11'' 37
Overall
Length Bridge Clearance Beam Maximum Draft Fuel Tank Capacity (gal)
21' 3'' 4' 9'' 8' 2'' 2' 11'' 55

CHAPTER 2: PRODUCT SPECIFICATIONS 9
Capri 21’ - 23’ • Owner’s Manual Supplement
2152 (CY)
2152 (BL)
Overall
Length Bridge Clearance Beam Maximum Draft Fuel Tank Capacity (gal)
20' 9'' 4' 6'' 8' 0'' 3' 0'' 37
anchor 
anchor 
locker
Overall
Length Bridge Clearance Beam Maximum Draft Fuel Tank Capacity (gal)
21' 3'' 4' 9'' 8' 2'' 2' 11'' 55

10 CHAPTER 2: PRODUCT SPECIFICATIONS
Capri 21’ - 23’ • Owner’s Manual Supplement
2350 (BC)
2350 (BD)
Overall
Length Bridge Clearance Beam Maximum Draft Fuel Tank Capacity (gal)
23' 10'' 5' 2'' 8' 4'' 3' 1'' 65
Overall
Length Bridge Clearance Beam Maximum Draft Fuel Tank Capacity (gal)
23' 10'' 5' 2'' 8' 4'' 3' 1'' 65

CHAPTER 2: PRODUCT SPECIFICATIONS 11
Capri 21’ - 23’ • Owner’s Manual Supplement
2352 (BF)
Overall
Length Bridge Clearance Beam Maximum Draft Fuel Tank Capacity (gal)
Optional
Water Tank
Capacity (gal)
23' 10'' 5' 2'' 8' 4'' 3' 1'' 65 11

Capri 21’ - 23’ • Owner’s Manual Supplement
12
CHAPTER 3: COMPONENTS/SYSTEMS
Electrical System (12Volt DC)
Thoroughly read and understand this section, the electrical sections of the Sport
Boat Owner’s Manual and all accessory manuals included in your boat’s owner’s
packet. Wiring diagrams are provided in Chapter 4 of this supplement.
EXTREME FIRE, ELECTRIC SHOCK
and EXPLOSION HAZARD!
To minimize the risks of fire, electric shock and explosion:
• NEVER install knife switches or other arcing devices in the fuel
compartments.
• NEVER substitute automotive parts for marine parts. Electrical, ignition
and fuel system parts were designed and manufactured to comply with
rules and regulations that minimize risks of fire and explosion.
• Ensure all of the battery switches are in the OFF position before perform-
ing any work in the engine spaces.
• DO NOT modify the electrical systems or relevant drawings.
• Only qualified personnel should install batteries and/or perform mainte-
nance on the electrical system.
DANGER!
!
FIRE & EXPLOSION HAZARD!
• Fuel fumes are heavier than air and will collect in the bilge areas where
they can be accidently ignited. Visually and by smell (sniff test), check the
engine and fuel compartments for fumes or accumulation of fuel. Always
use the bilge blowers for at least four minutes prior to engine starting,
electrical system maintenance or activation of electrical devices.
• Minimize the danger of fire and explosion by not exposing batteries to
open flame or sparks. It is also important that no one smoke anywhere
near the batteries.
WARNING!
!
CAUTION!
SHOCK & ELECTRICAL SYSTEM DAMAGE HAZARD!
• NEVER disconnect the battery cables while the engine is running since
damage may occur to your boat’s electrical system components.
• The battery charging systems (alternators and battery charger) are
designed to charge conventional lead-acid batteries. Before installing gel-
cell (or other new technology) batteries, read and follow the battery
charger’s operating instructions.
!

CHAPTER 3: COMPONENTS/SYSTEMS 13
Capri 21’ - 23’ • Owner’s Manual Supplement
Fuses and/or Circuit Breakers
Please read the electrical section of the Sport Boat Owner’s Manual for important
safeguards concerning your boat’s fuse block.
NOTICE
Electrical connections are prone to corrosion. To reduce corrosion caused elec-
trical problems, keep all electrical connections clean and apply a spray-on pro-
tectant that is designed to protect connections from corrosion.
NOTICE
VOLTAGES - All boats use either 110-volt AC/60 Hertz, 240-volt AC/60
Hertz or 220-volt AC/50 Hertz single phase systems, and 12-volt DC or 24-
volt DC. Electrical distribution panels are labeled with voltage and frequency
of AC and DC.
DEPTH FINDER 
(OPTION), RED WIRE
BLANK (SPARE 10 amp)
BLOWER (I.O. BOATS 
ONLY), YELLOW WIRE
INSTRUMENTS, 
BLUE WIRE
BILGE PUMP, 
BROWN WIRE
12v POWER 
SUPPLY, RED WIRE
IGNITION SWITCH 
(I.O. BOATS ONLY), 
RED/PURPLE WIRE
HORN, BROWN/ 
GREEN WIRE
NAVIGATION/ANCHOR

LIGHTS, BLUE WIRE
STEREO, RED WIRE
10 amp
10 amp
5 amp
10 amp
5 amp
10 amp
15 amp
10 amp
10 amp
10 amp
FUSE BLOCK (TYPICAL)

14 CHAPTER 3: COMPONENTS/SYSTEMS
Capri 21’ - 23’ • Owner’s Manual Supplement
Dash Programming (2150BX/BZ, 2152BK/BL only)
Clock
Depth, Ft/M
Distance Log
Trip Log
Total Hours
Trip Hours
Seawater Temp
M
and
S
M
and
S
M
and
S
To Reset to 0.0
M
and
S
To Reset to 0.0
Use the
M
“LCD Mode” switch to
toggle through the 7 basic settings
.
Press both
M
“LCD Mode” and
enter or change values.
MS
(option)
S
“LCD Set” at the same time to
Arrow(s) show current function.
