NON-INVASIVE
BLOOD PRESSURE
SIMULATORS
NIBP-1030
NIBP-1020
NIBP-1010
USER MANUAL

i
WARNINGS, CAUTIONS, NOTICES ...............................................................................ii
DESCRIPTION............................................................................................................. 1
OVERVIEW.................................................................................................................. 4

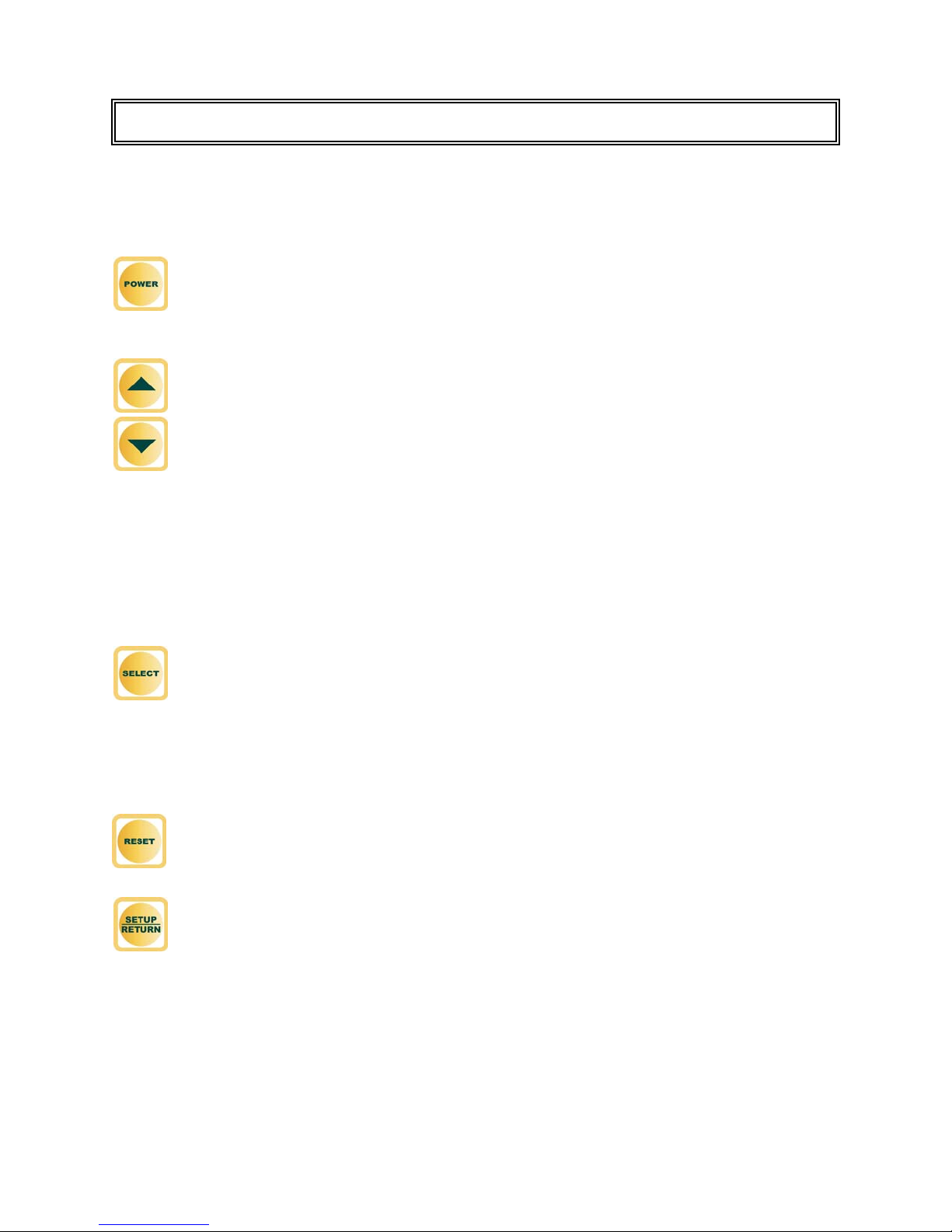

KEYS............................................................................................................................ 7
SCREENS.................................................................................................................... 8
SETUP ......................................................................................................................... 13
OPERATIONS.............................................................................................................. 16
CONNECTING PRESSURE CUFFS............................................................... 16
CONNECTING PATIENT LEADS .................................................................... 17
IBP CONNECTOR (NIBP-1030 ONLY)............................................................ 17
TEMPERATURE CONNECTOR (NIBP-1030 ONLY)....................................... 18
AUX CONNECTOR.......................................................................................... 18
THEORY OF OPERATIONS........................................................................... 19
RUNNING A TEST .......................................................................................... 21
MANUAL REVISIONS.................................................................................................. 33
WARRANTY................................................................................................................. 33
SPECIFICATIONS ....................................................................................................... 34
NOTES......................................................................................................................... 40
BC BIOMEDICAL
NIBP-1000 SERIES
TABLE OF CONTENTS

ii
WARNING - USERS
The NIBP-1000 Series Simulators are for use by
skilled technical personnel only.
WARNING - USE
The NIBP-1000 Series Simulators are intended
for testing only and they should never be used in
diagnostics, treatment or any other capacity
where they would come in contact with a patient.
WARNING - CONNECTIONS
All connections to patients must be removed
before connecting the Device Under Test (DUT)
to the Simulators. A serious hazard may occur
if the patient is connected when
testing with the Simulators.
Do not connect any leads from the patient
directly to the Simulators or DUT.
WARNING - ADAPTER
Turn Power Off and unplug any AC Power
Adapter before cleaning the surface
of the Simulators.
WARNING - LIQUIDS
Do not submerge or spill liquids on Simulators.
Do not operate the Simulators if internal
components may have been exposed to fluid,
as the internal leakage may have caused
corrosion and be a potential hazard.
WARNING - MODIFICATIONS
The NIBP-1000 Series Simulators are intended
for use within the published specifications. Any
application beyond these specifications or any
unauthorized user modifications may result in
hazards or improper operation.

iii
CAUTION - SERVICE
The NIBP-1000 Series Simulators are intended to
be serviced only by authorized service
personnel. Troubleshooting and service
procedures should only be performed by
qualified technical personnel.
CAUTION - ENVIRONMENT
The NIBP-1000 Series Simulators are intended to
function between 15 and 40 °C.
Exposure to temperatures outside this range can
adversely affect the performance
of the Simulators.
CAUTION - CLEANING
Do not immerse. The Simulators should be
cleaned by wiping gently with a damp,
lint-free cloth.
CAUTION - INSPECTION
The NIBP-1000 Series Simulators should be
inspected before each use for wear and
the Simulator should be serviced
if any parts are in question.

iv
NOTICE – CE
The NIBP-1000 Simulators bear the mark
Based on the following testing standards:
ELECTROMAGNETIC COMPATIBILITY DIRECTIVE
EMC – Directive 89/336/EEC and 2004/108/EC as amended by
92/31/EEC, 93/68/EEC and Directive 91/263/EEC [ TTE/SES ]
EN 61326-1:1997 + A1:1998 + A2:2001 + A3:2003
“Electrical equipment for measurement, control and
laboratory use – EMC requirements”
This equipment has been type tested by an independent, accredited testing laboratory
and compliance was demonstrated to the above standard to the extent applicable.
EMISSIONS
Radiated and Line Conducted Emissions
EN 61000-3-2 Harmonic Current Emissions
EN 61000-3-3 Voltage Fluctuation and Flicker
IMMUNITY– CLASS C
EN 61000-4-2 Electrostatic Discharge
EN 61000-4-3 Radiated Electric Field Immunity
EN 61000-4-4 Electrical Fast Transients / Bursts
EN 61000-4-5 Surge Voltage
EN 61000-4-6 Conducted Disturbance
EN 61000-4-11 Voltage Dips and Short Interrupts
LOW VOLTAGE DIRECTIVE
EC – Directive 73/23/EC
EN 61010-1:2001
“Safety requirements for electrical equipment for measurement, control, and
laboratory use – General requirements”
This equipment has been type tested and compliance was demonstrated
to the above standard to the extent applicable.

v
NOTICE – SYMBOLS
Symbol Description
Caution
(Consult Manual for Further Information)
Center Negative
Direct Current
Per European Council Directive
2002/95/EC, do not dispose of this
product as unsorted municipal waste.
NOTICE – ABBREVIATIONS
AC Alternating Current
BP Blood Pressure
Bpm Beats per minute
brpm breaths per minute
C Celsius
° degree
DUT Device Under Test
Dias Diastolic
ECG Electrocardiogram
Euro European
HR Heart Rate
Hz hertz
k kilo- (10
3
)
Kg Kilogram
µ micro- (10
-6
)
µA microampere
m milli- (10
-3
)
mA milliampere
mm millimeter
mmHg millimeter mercury
mV millivolt
min minutes
Neo Neonatal
NSR Normal Sinus Rhythm
Ωohm
lbs pounds
R Respiration
Sec seconds
Syst Systolic
US United States
VDC Direct Current Voltage

vi
User Manual NIBP-1000 Series Copyright © 2008
www.bcgroupintl.com Made in the USA
1/08 Rev10
NOTICE – DISCLAIMER
BC GROUP INTERNATIONAL, INC. RESERVES THE RIGHT TO
MAKE CHANGES TO ITS PRODUCTS OR SPECIFICATIONS AT
ANY TIME, WITHOUT NOTICE, IN ORDER TO IMPROVE THE
DESIGN OR PERFORMANCE AND TO SUPPLY THE BEST
POSSIBLE PRODUCT. THE INFORMATION IN THIS MANUAL HAS
BEEN CAREFULLY CHECKED AND IS BELIEVED TO BE
ACCURATE. HOWEVER, NO RESPONSIBILITY
IS ASSUMED FOR INACCURACIES.
NOTICE – CONTACT INFORMATION
BC BIOMEDICAL
BC GROUP INTERNATIONAL, INC.
PO BOX 25125
9415 GENTRY AVE
ST. LOUIS, MO 63125
USA
1-800-242-8428
314-638-3800
www.bcgroupintl.com
[email protected]
NOTICE – DISCLAIMER
BC GROUP INTERNATIONAL, INC. WILL NOT BE RESPONSIBLE
FOR ANY INJURIES SUSTAINED DUE TO UNAUTHORIZED
EQUIPMENT MODIFICATIONS OR APPLICATION OF EQUIPMENT
OUTSIDE OF THE PUBLISHED INTENDED USE AND
SPECIFICATIONS.

1
The Model NIBP-1000 Series is a family of Microprocessor based, High Precision Non-
Invasive Blood Pressure (NIBP) Simulators. The units are small, easy to use and have
multiple features to fit many different applications. The NIBP-1020, offers ECG waveforms
that are full QRS and respiration waveforms that look real. The NIBP-1030 offers Invasive
Blood Pressure, Temperature, Arrhythmias and a Leak Rate test mode.

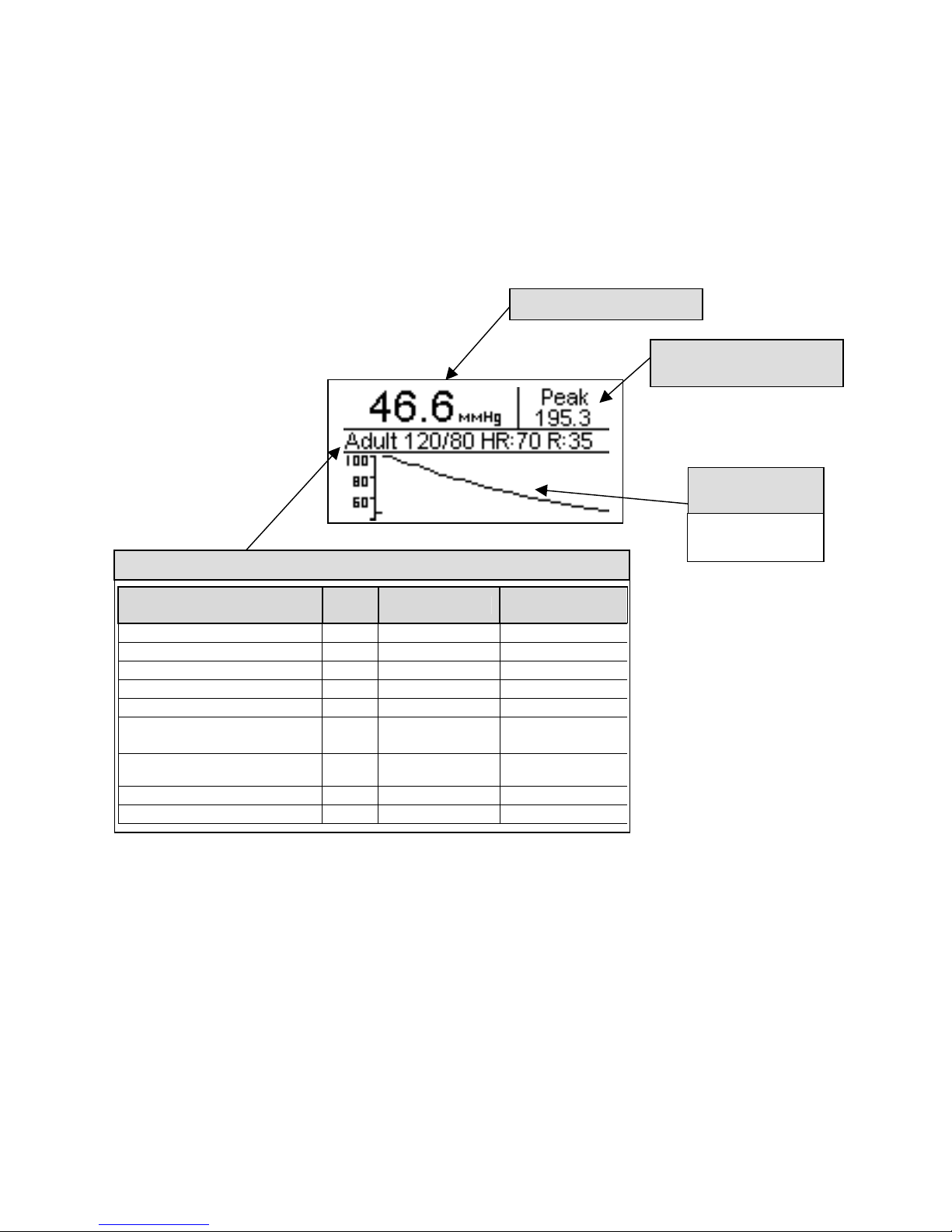

The graphics display not only provides multiple screens that give the pressure digitally in
mmHg, but also offers views of the plot of the overall pressure or a close-up of the BP
waveform.
The following are highlights of some of the main features:
NIBP-1010 (BASIC FEATURES, NIBP ONLY):
• LARGE GRAPHICS DISPLAY WITH CURSOR SELECTION OF OPTIONS
AND SETUP OF PARAMETERS
• FULL RANGE MANOMETER
• ADULT, NEONATAL HYPERTENSIVE AND HYPOTENSIVE MODES
• 0-500 mmHg PRESSURE RANGE
• +/- 1% OF READING PRESSURE ACCURACY
• DIGITAL PRESSURE ENVELOPE OFFSET
• OPTIONAL PEAK PRESSURE DETECT WITH SIMPLE RESET
• SpO
2
READY – COMPATIBLE WITH MSP-2100 MODULE
• DIGITAL CALIBRATION – NO POTS TO TURN
• SELECTABLE DISPLAY OPTIONS AND DIGIT SIZES
• SOFTWARE ADJUSTABLE CONTRAST
• FLASH PROGRAMMABLE

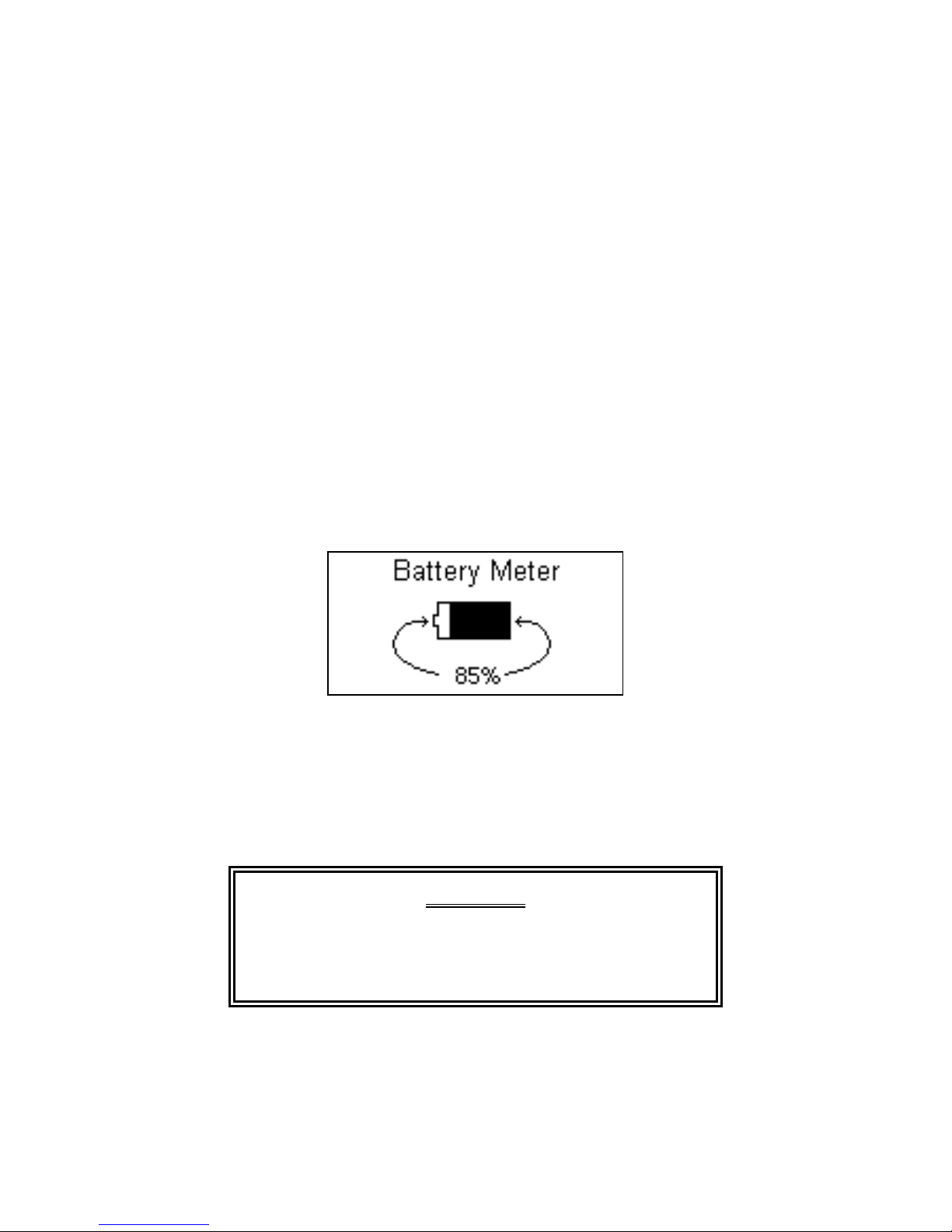

• BATTERY LIFE DISPLAY (0 TO 100%)
• OPTIONAL RECHARGEABLE NiMH BATTERIES
• BATTERY ELIMINATOR
• RS232 INTERFACE
NIBP-1020 (NIBP, ECG PACE & RESP)
HAS ALL THE BASIC MODEL FEATURES PLUS:
• ECG OUTPUT WITH FULL NSR WAVEFORM
• SINUSOIDAL RESPIRATION SIMULATION
• ECG TEST WAVEFORMS
• PACE WAVEFORM
• OPTIONAL PEAK PRESSURE DETECT WITH ECG ALARM TEST
• ECG SYNCRONIZED WITH BLOOD PRESSURE
BC GROUP
NIBP-1000 SERIES
NON-INVASIVE BLOOD PRESSURE SIMULATORS

2
NIBP-1030 (NIBP, IBP, TEMPERATURE, ECG PACE & RESP)
HAS ALL THE 1020 MODEL FEATURES PLUS:
• BACKLIT LCD DISPLAY
• SYNCHRONIZED INVASIVE BLOOD PRESSURE OUTPUT
• SELECTABLE IBP SENSITIVITY 5/40 µV/V/mmHg
• STATIC IBP SIMULATION –10mmHg TO 400 mmHg
• LEAK RATE TEST
• ECG ARRHYTHMIA WAVEFORMS
• ECG ARRHYTHMIA SEQUENCE
• YSI 400 AND 700 SERIES TEMPERATURE SIMULATION
AVAILABLE MODELS:
NIBP1010 BASIC UNIT
NIBP1010-P + PEAK
NIBP1010-BP + BATTERY & PEAK
NIBP1010-KIT NIBP1010-BP, 5 ADAPTERS & SOFT CARRYING CASE
NIBP1020 BASIC UNIT WITH ECG
NIBP1020-PA + PEAK & ALARM
NIBP1020-BPA + BATTERY, PEAK & ALARM
NIBP1020-KIT NIBP1020-BPA, 5 ADAPTERS & SOFT CARRYING CASE
NIBP1030 BASIC UNIT WITH ECG, IBP, TEMP, PEAK & ALARM + MANY MORE
NIBP1030-B + BATTERY
NIBP1030-KIT NIBP1030-B, 5 ADAPTERS & SOFT CARRYING CASE
ACCESSORIES:
• BC20-40614 AC POWER ADAPTER (EURO)
• BC20-40613 AC POWER ADAPTER (US)
OPTIONAL ACCESSORIES:
• BC20-30111 SOFT CARRYING CASE
• BC20-40714 DINAMAP/CRITIKON ADAPTER
• BC20-40715 QUICK DISCONNECT ADAPTER
• BC20-40716 LUER ADAPTER
• BC20-40717 MARQUETTE ADAPTER
• BC20-40608 BULB ADAPTER
• BC20-40602 NIBP FITTING KIT (HP CUFF ADAPTER,
INFLATION BULB, CPC CONNECTOR, QUICK
COUPLER WITH 1/8” MNPT AND SILICONE
TUBING AND TEE)
• BC20-40605 NIBP ADAPTER KIT (11 CONNECTORS)

3
INVASIVE BLOOD PRESSURE CABLES
FOR A COMPLETE LIST CONSULT THE BC GROUP WEBSITE AT
WWW.BCGROUPINTL.COM
TEMPERATURE CABLES
BC20 - 41333 UT-1 YSI-400
BC20 - 41334 UT-2 YSI-700

4
This section looks at the layout of the NIBP-1030 and gives descriptions of the elements
that are present.
OVERVIEW
7 pin Mini-
Din
connector for
RS-232 and
Power
2.1 mm Jack
6 Light Touch Keys for
Selecting Parameters
and Settings:
POWER for Turning Unit
On and Off
UP and DOWN Arrows
for Scrolling Through
Selected Options.
(When No Options are
Selected, for Changing
Display Screen.)
SELECT for Choosing
Setting or Parameter to
Change
SETUP/RETURN for
Entering and Exiting
Setup Menu
RESET for resetting
peak pressure reading.
LCD Graphical
Display:
Shows Test Data and
Configuration Data
10 Snap Patient
Lead Connectors:
RA R
LA L
RL N
LL F
V1 C1
V2 C2
V3 C3
V4 C4
V5 C5
V6 C6
Male Quick
Connect for
Pressure
In
p
ut
6 pin Mini-
Din
connector for
IBP
8-Pin Mini-DIN
Plug Connector for
Temperature

5

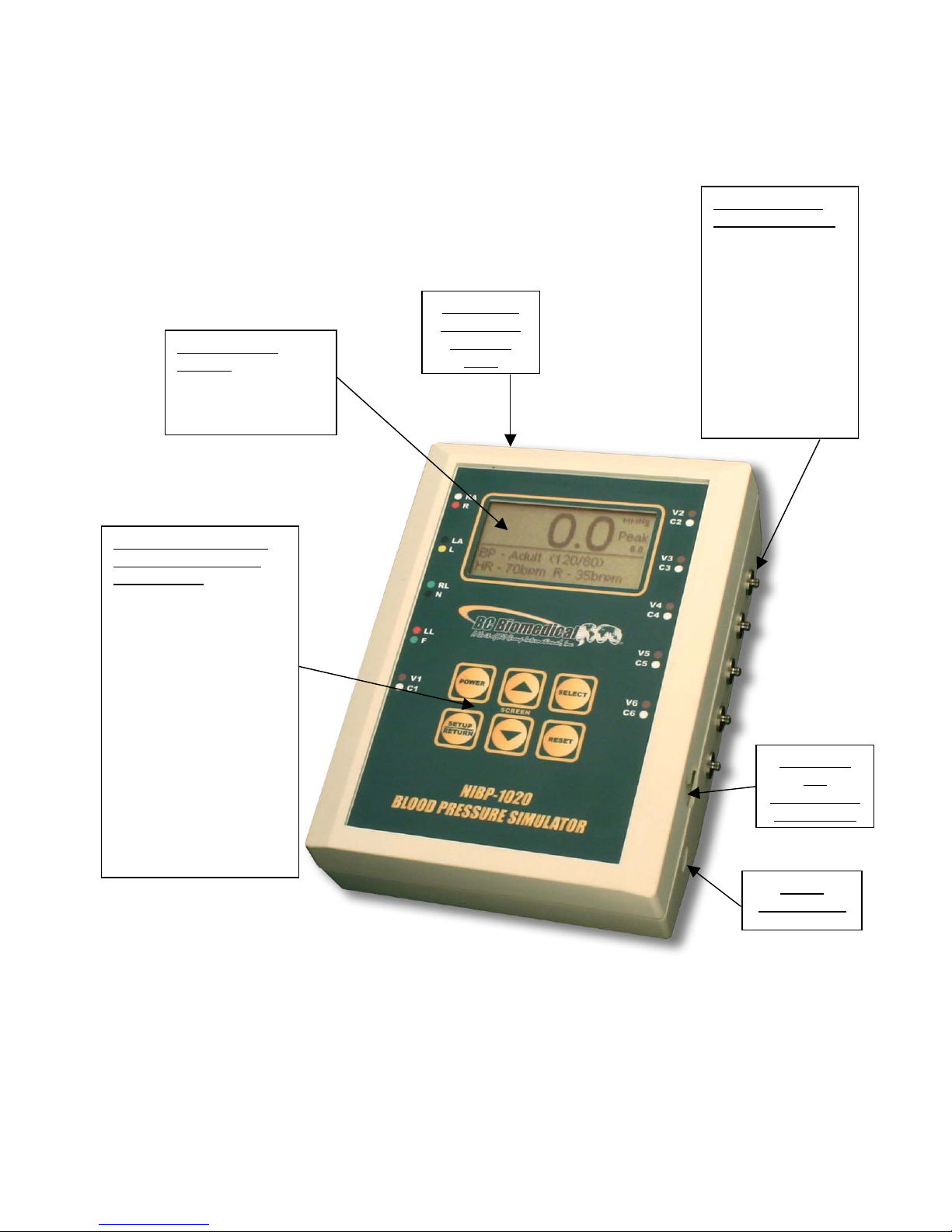

This section looks at the layout of the NIBP-1020 and gives descriptions of the elements
that are present.
7 pin Mini-
Din
connector for
RS-232 and
Power
2.1 mm Jack
6 Light Touch Keys for
Selecting Parameters
and Settings:
POWER for Turning Unit
On and Off
UP and DOWN Arrows
for Scrolling Through
Selected Options.
(When No Options are
Selected, for Changing
Display Screen.)
SELECT for Choosing
Setting or Parameter to
Change
SETUP/RETURN for
Entering and Exiting
Setup Menu
RESET for resetting
peak pressure reading.
LCD Graphical
Display:
Shows Test Data and
Configuration Data
10 Snap Patient
Lead Connectors:
RA R
LA L
RL N
LL F
V1 C1
V2 C2
V3 C3
V4 C4
V5 C5
V6 C6
Male Quick
Connect for
Pressure
In
p
ut

6
This section looks at the layout of the NIBP-1010 and gives descriptions of the elements
that are present.
7 pin Mini-
Din
connector for
RS-232 and
Power
2.1 mm Jack
6 Light Touch Keys for
Selecting Parameters
and Settings:
POWER for Turning Unit
On and Off
UP and DOWN Arrows
for Scrolling Through
Selected Options.
(When No Options are
Selected, for Changing
Display Screen.)
SELECT for Choosing
Setting or Parameter to
Change
SETUP/RETURN for
Entering and Exiting
Setup Menu
RESET for resetting
peak pressure reading.
LCD Graphical
Display:
Shows Test Data and
Configuration Data
Male Quick
Connect for
Pressure
In
p
ut

7
Six tactile-touch keys are provided for system operation:
– This key turns the unit off and on. The unit will return to the screen that was
active when it was turned off.
– In the DISPLAY MODE, these keys toggle the display through the available
main screens.
In the SELECT MODE, if a parameter has been highlighted, these keys will scroll through
the available settings.
– On the Main screen, this key sequences through the available NIBP or ECG
simulations. On the Setup screen, there are a number of parameters that may be selected
and changed. This key sequences the cursor (Highlight) through those parameters.
– This key is used to RESET the peak pressure reading or to begin a Leak Test.
– This key toggles the unit into and out of the Setup Mode. Depressing this key
will enter the Setup screen where the configuration can be viewed and adjusted.
Depressing the key again will exit the Setup Mode and return to the previously viewed
main screen.
KEYS

8
MAIN SCREENS – There are five main screens: Pressure Only, Pressure with Output
Waveform, Pressure with Pressure Graph, ECG (optional) and Battery Indicator (optional).
The available screens can be toggled using .
PRESSURE ONLY SCREEN – This screen has a large pressure display, as shown below.
Also displayed on this screen is the peak pressure and selected output waveform
The display will resemble the following:
SCREENS
PEAK PRESSURE
(Optional)
Systolic/Diastolic (mean) Mean Heart Rate Respiration
Rate (Optional)
Adult 120/80 93 80 35
Adult 120/80 w/Pace 93 Pacemaker 70 35
Adult High 190/120 150 80 35
Adult Low 80/40 53 80 35
Neonatal 70/40 55 94 47
Alarm Test (Optional)
(Alternates every 30 sec) - 47
160
00
80
Arrhythmia Seq
(NIBP-1030 Only)
- 80 35
Leak Test (NIBP-1030 Only) - - -
Manometer - - -
OUTPUT SELECTION
PRESSURE
PRESSURE ENVELOPE
OFFSET
This line is only displayed
if a non-zero value is
programmed into the
Systolic &/or Diastolic
Shift. (See Setup for
more information).

9
OUTPUT WAVEFORM SCREEN – This screen shows the output waveform, as well as, the
pressure, peak pressure and output selection.
The display will resemble the following:
NOTE
This waveform is not intended to be
physiologically correct.
OUTPUT
WAVEFORM
(as generated by
the NIBP-1000
Si )
Dependant on
pressure
PEAK PRESSURE
(Optional)
PRESSURE
Systolic/Diastolic (mean) Mean Heart Rate Respiration
Rate (Optional)
Adult 120/80 93 80 35
Adult 120/80 w/Pace 93 Pacemaker 70 35
High (Adult) 190/120 150 80 35
Low (Adult) 80/40 53 80 35
Neo (Neonatal) 70/40 55 94 47
Alarm Test (Optional)
(Alternates every 30 sec) - 47
160
00
80
Arrhythmia Seq
(NIBP-1030 Only)
- 80 35
Leak Test (NIBP-1030 Only) - - -
Manometer - - -
OUTPUT SELECTION

10
PRESSURE GRAPH SCREEN – This screen provides a graph of the pressure, as well as,
the pressure, peak pressure and output selection
PRESSURE
GRAPH
2mmHg per
pixel
PEAK PRESSURE
(
O
p
tional
)
PRESSURE
Systolic/Diastolic (mean) Mean Heart Rate Respiration
Rate (Optional)
Adult 120/80 93 80 35
Adult 120/80 w/Pace 93 Pacemaker 70 35
High (Adult) 190/120 150 80 35
Low (Adult) 80/40 53 80 35
Neo (Neonatal) 70/40 55 94 47
Alarm Test (Optional)
(Alternates every 30 sec) - 47
160
00
80
Arrhythmia Seq
(NIBP-1030 Only)
- 80 35
Leak Test (NIBP-1030 Only) - - -
Manometer - - -
OUTPUT SELECTION

11

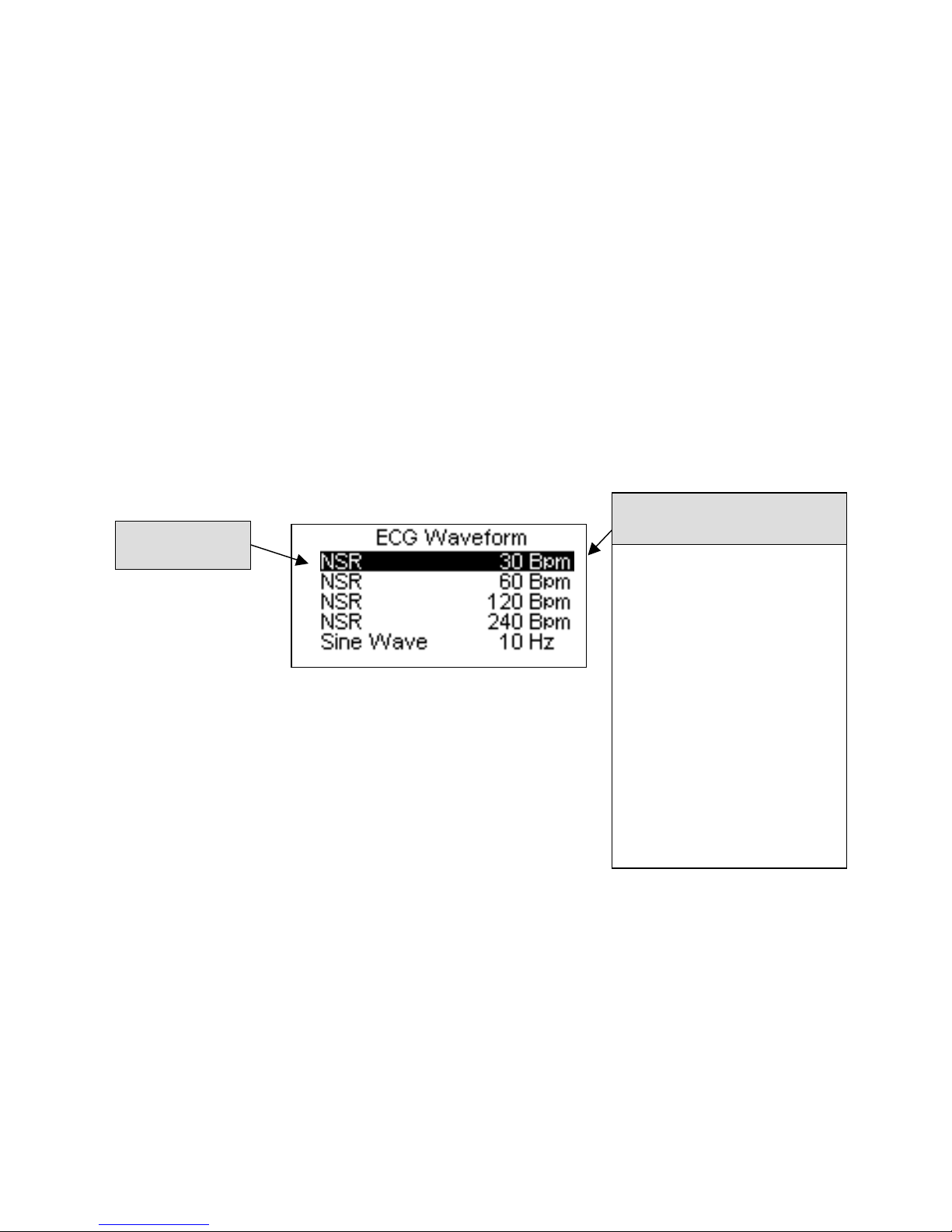

ECG OUTPUT SCREEN – This screen shows the selected ECG output mode.
(NIBP-1020 & NIBP-1030 units only)
NOTE: While in this mode, the NIBP simulation does not run.
NOTE: NSR ECG output is active during NIBP testing at the rate stipulated for the selected
test.
The display will resemble the following:
LIST OF AVAILABLE
OUTPUTS
SELECTED
OUTPUT NSR 30 Bpm
NSR 60 Bpm
NSR 120 Bpm
NSR 240 Bpm
Sine Wave 10 Hz
Sine Wave 60 Hz
Sine Wave 100 Hz
Square Wave 0.125 Hz
Square Wave 2 Hz
Triangle Wave 2 Hz
PVC Arrhythmia*
Pair of PVC’s*
Run of 5 PVC’s*
Ventricular Tachycardia*
Ventricular Fibrillation*
A
systole*
*NIBP-1030 Only

12
BATTERY INDICATOR SCREEN – This screen shows the status of the battery voltage
level with Built-In Battery Option only.
NOTE: It is only an estimate of the battery life remaining.
When the level reaches 10%, the BP simulation mode will be disabled; however, the
Manometer and ECG (optional) will continue to function. Once the battery level reaches
0%, the unit will automatically turn itself off to avoid damaging the batteries.
The display will resemble the following:
Batteries charge from provided AC power adapter. The charge time is about 4 hours from
full discharge. While the batteries are charging, the display will flash “charging.”
CAUTION
USE ONLY THE AC POWER ADAPTER PROVIDED
WITH THE NIBP-1010, NIBP-1020 AND NIBP-1030.
