Becker europa TR User manual

Service Manual
A-1 valid BEZW (24 volt type)
devices Technology C / 08 from
device 700. 000th A 50001

Table of Contents
page 3 Operating Features and Specifications
page 4 Image for Operating Features
page 5 Electrical function description AM bands
page 6 Electrical Function Description FM areas
page 7 Electrical function description LF section
page 7 Voltage switching polarity switching

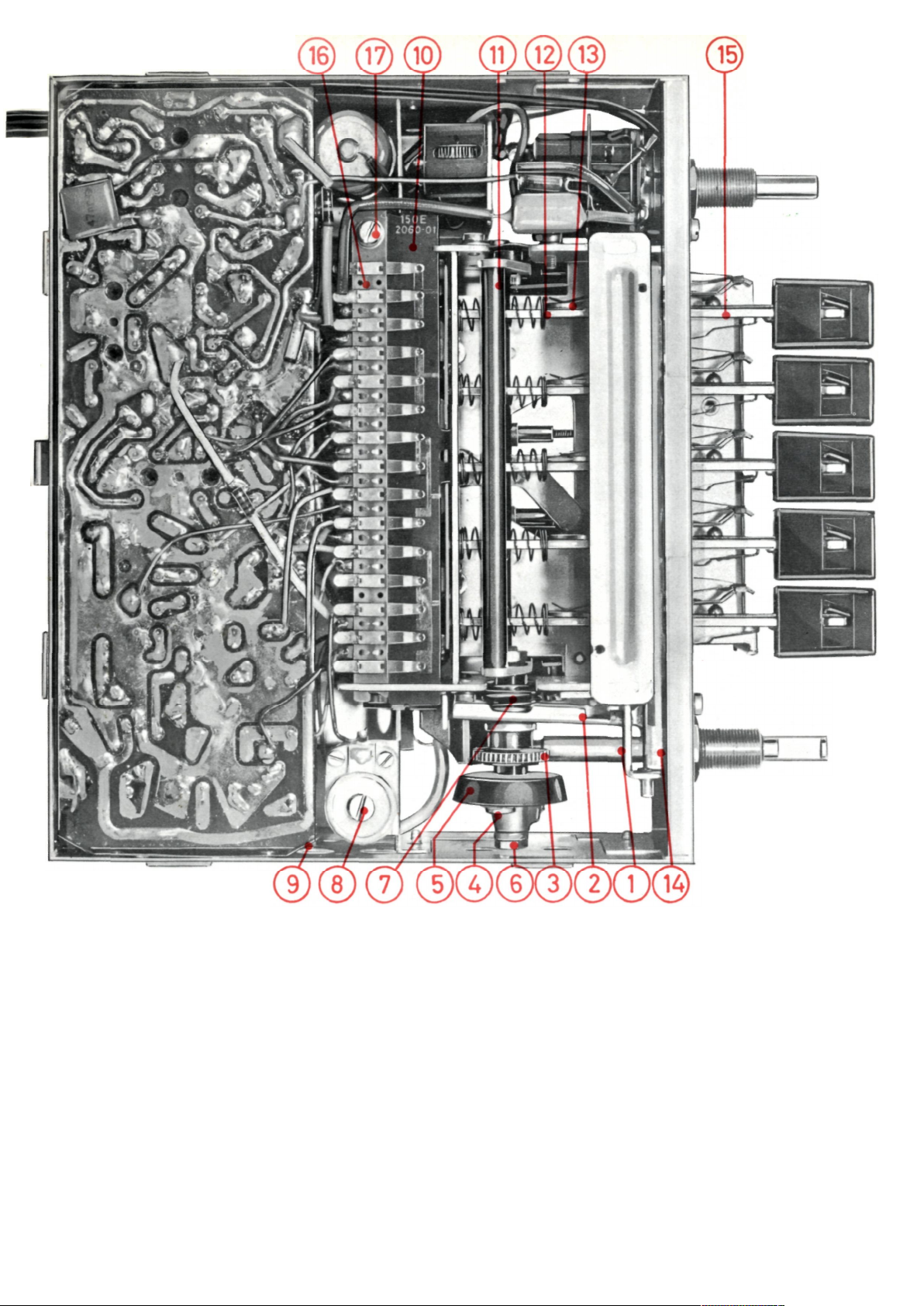

page 8 Mechanical design and function
Page 9, 10th , , , ldungen Device Abbi
page 11 Notes for mechanical adjustment and repair work

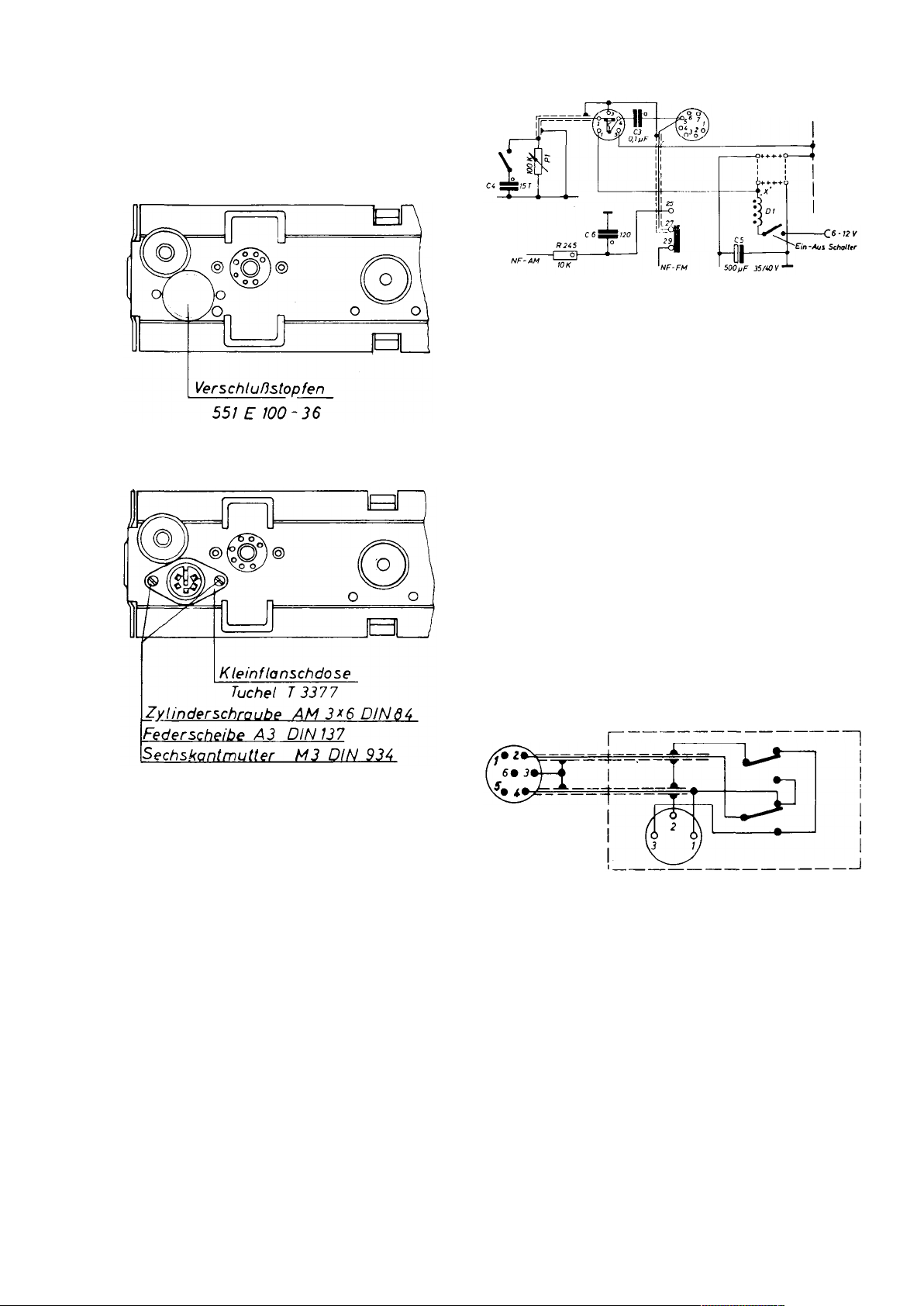

page 13 Conversion process for connecting a record player or tape recorder
page 14 Technical data of the Mikrofonvorsetzers
page 14 Note on the minibus system with microphone connection Printed circuit
boards
page 15 UK-plate
page 19 RF to IF plate
page 23 NF-plate
page 26 level diagram
page 27 General calibration instructions
page 28 LF part Europe TR 24 Volt
page 29 Clean Tools
page 30 Adjustment positions
page 31 balance manual
page 32 Diagram Europe TR LMKU
page 33 Diagram Europe TR LMKU 24 Volt
page 34 Parts List (electrical parts) HF-IF section
page 36 Parts List (electrical parts) NF-Tei l
page 38 Parts List (mechanical parts)

Operating Features and Specifications
Tuning: range setting:
Fade:
Connection options:
Operating voltage:
means variometer vote on pushbuttons.
Possibility to lock stations (1 x LW, MW 1 x, 1 x KW, 2 x FM)
2-stage
1 or 2 speakers shortwave adapter "Reims
8" automatic antenna
switchable to request connection for car turntable or tape recorder (for recording and
playback) to 6 V or 12 V plus or minus to ground
Technical specifications
wavebands
LMK FM
Frequencies
145-400 kHz
510-1630 kHz
5.9 to 6.25 MHz
87-108 MHz
variable circles
3
3
1
2
solid circles
5
5 7
11
Intermediate Frequency:
Shrinkage control:
Scales lamp: Assembly:
AM 460 kHz FM 10.7 MHz
effective over 2 steps 7 V / 0.1 A
transistors
diodes
Receiver 2 x
106 4 x AF AF
138
4 x 3 x AA112
AA119
NF-part 1 x 125
1 x AC AC AC
126 1 x 128 2 x
148 1 x AD St 1
to stabilize internal voltages diodes:
1 x 2.1 10 St 1 x
100 BZ
Quiescent current:
Talk performance:
Dimensions:
Weight:
0.3 A for 6 volts - Operating
0.29 A for 12 volt operation
>= 5 W at k total =
10%
Width
Height
Depth
2.7 kg
receiver part
180 mm 52
mm 150
mm
NF-part 180
mm 52
mm 83
mm
- 3 -

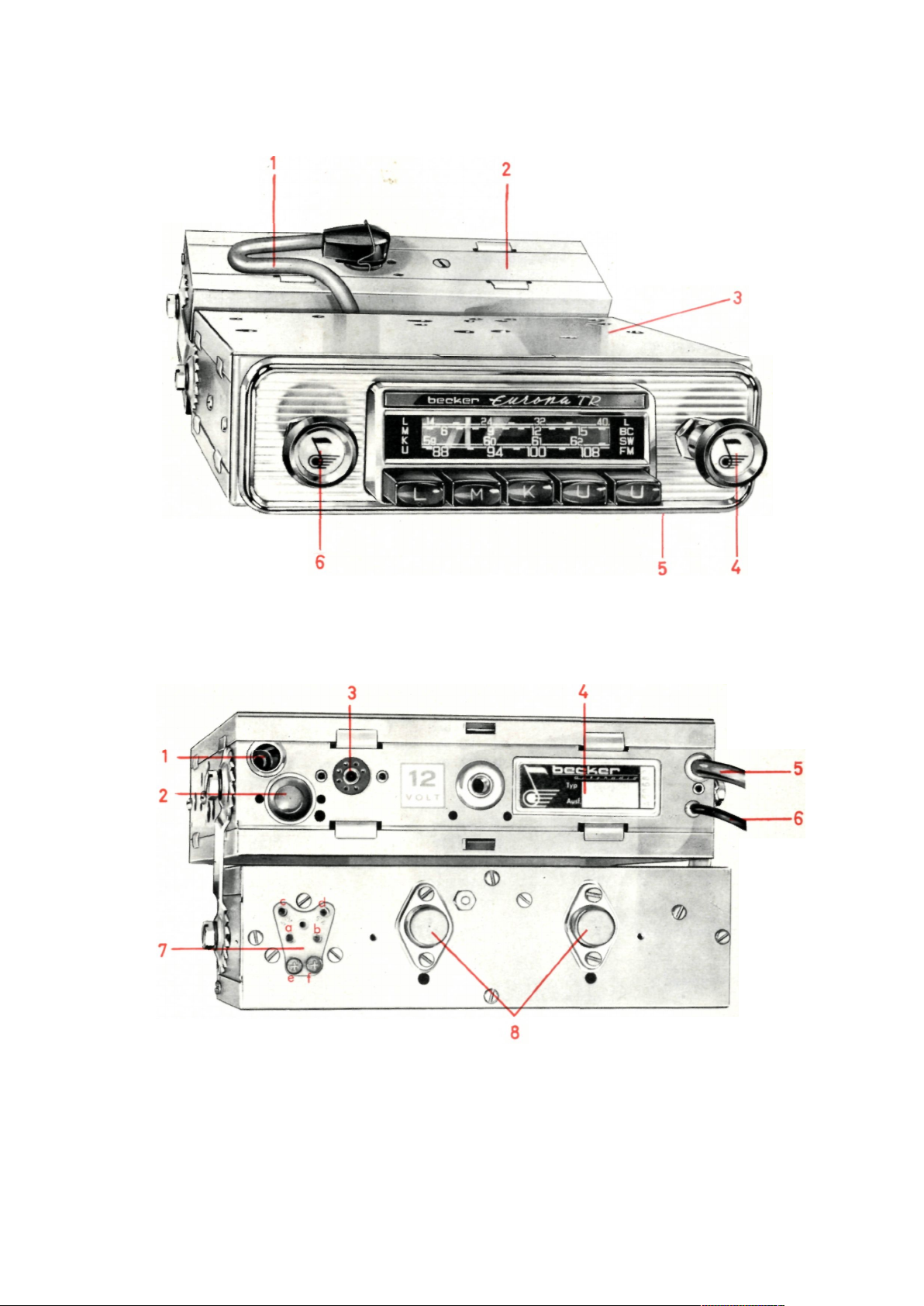

Fig. 1
1 connection cable between the device and LF section
2. LF part with end stage
3. receiver part
4. Manual tuning
5th hole for the adjustment of the antenna trimmer (below 750 mm seen against
device-back)
6. volume control, on-off (by rotation), tone control (in two stages, by -Zug to use)
Fig. 2
1. Antenna socket
2. plug (for connection Installation of turntable or tape recorders)
3. Ratio adjustment socket
4. Nameplate
5. connecting cable between the device and LF section
6. Power Cable
7. speaker connection plate (with two sockets for connecting any of a KW-adapter
"Reims 8" or an automatic Antenna e, f)
Explanatory note: A loudspeaker (5 Ω) between a-b connect. Two speakers (each 5 Ω) Explanatory note: A loudspeaker (5 Ω) between a-b connect. Two speakers (each 5 Ω) Explanatory note: A loudspeaker (5 Ω) between a-b connect. Two speakers (each 5 Ω) Explanatory note: A loudspeaker (5 Ω) between a-b connect. Two speakers (each 5 Ω)
between a-c and b-d
connect.
Before connecting a load to the socket e or f of the plastic plug must be removed
(by releasing the respective stud). The stud bolts are perpendicular to reach under
the sleeves e or f by the openings provided in the lid.
8. output transistors under the protection angle plate.
- 4 -

Electrical function description
1. AM bands KML
a) precursor
The antenna voltage is fed from the Trennkonden- sator C 1 (10 nF) to the input
circuit, which as for MW πKreis is designed. It is formed from the elements C 2 (An circuit, which as for MW πKreis is designed. It is formed from the elements C 2 (An
antenna trimmer with 10/60 pF) L 201 (input circuit variometer) and the series
connection of 203 C (170 pF) and 204 C (3 nF). Through the resistor R201 (180
ohms) can be the impedance curve ohms) can be the impedance curve
linearize. It also serves
the derivation of static charges. Possible low- frequency interference will be the
combination of R 202 (8,2 ohms), 204 C (3 nF) effective attenuated (see combination of R 202 (8,2 ohms), 204 C (3 nF) effective attenuated (see combination of R 202 (8,2 ohms), 204 C (3 nF) effective attenuated (see
KW of input circuit is fixed tuned. It is formed by the coil L and the antenna 204
Trimmer C 2 (10/60 pF) including the antenna intrinsic capacitance. The base of
the transistor precursors
inductively to this
Circuit coupled (see Fig. 5).
constricting resistance R 205 (2.2 ohms), by the C 207 (47 nF) constricting resistance R 205 (2.2 ohms), by the C 207 (47 nF)
is bridged for the HF.
Different mass points at the input circuit with C 2 (10 / 60pF) on the housing, R
201 (180 ohms), R202 (8.2 ohms), C 201 (20/100 pF), C 204 (3 nF), etc. are on the 201 (180 ohms), R202 (8.2 ohms), C 201 (20/100 pF), C 204 (3 nF), etc. are on the
inner negative pole by the
polarity switch due to battery voltage. The
collector side at the preliminary stage transistor lying off
agreed intermediate circuit is in turn adapted to the wave ranges as ML n-circle. In
conjunction with fol - constricting elements:
MW: C 210 (500 pF)
L 207 (variometer coil) 221 C (10/40
pF) C 220 (68 pF) in series with C 222
(1 nF) LW: C 210 (500 pF)
C 213 (5 nF) L 206 in series with L
207 C 220 (68 pF) C 222 (1 nF) C
219 (1.2 nF) C 223 (5 nF)
The collector current is supplied through R 209 (4.7 ohms) in parallel feed. The collector current is supplied through R 209 (4.7 ohms) in parallel feed.
KW for the intermediate circuit is provided as a fixed-tuned Vol circular l-
connected with L 205, C 211 (1.2 nF) in series with C 212 (200 pF). The basis of
the subsequent mixing stage is due to a partial capacity of this circle.
b) self-oscillating mixer
The oscillator and mixer function are met by the transit sistor T 202nd The
selectively comparable strengthened via the preamplifier input signal is conces-
via the respective divisional dependent capacitive divider based on T 202nd
Thus, the mixing transistor for the recom- works start signal
in the emitter circuit. For the oscillator chip
voltage is set by the base, the capacity of the divider condensers sufficiently low
impedance to the inner device masse, so that works in this case T 202 in the base
of circuitry, via the resistors R 214 (6.8 ohms) and R 226 (2.7 ohms) is biased, the of circuitry, via the resistors R 214 (6.8 ohms) and R 226 (2.7 ohms) is biased, the
base of the mixing transistor having a stabilized voltage part. the A
flow by temperature fluctuations and Exemplarstreu- Ungen wi rd through the
emitter resistor R 216 (2.7 ohms) reduced. emitter resistor R 216 (2.7 ohms) reduced.
be due to the collector of the transistor of the mixed The primary circuit of the first be due to the collector of the transistor of the mixed The primary circuit of the first
IF filter and the oscillator circuit. The IF circuit is tapped as the
Internal resistance of a
Mix stage in relation to the having a smaller value of an IF stage.
The oscillator circuit on MW Fig. 6 shows.
The RF precursor with T 201 operates in the usual emitter
circuit. To compensate for copy-scattering and temperature stabilization is Lie of
the emitter path
- 5 -
Fig. 3)
From the voltage divider C 203, C 204, the RF signal is applied to the base of the transistor T
two hundred and first
LW for the input circuit 202 as a full circle (LW-input circuit -Serienspule) works,
consisting of the series connection of L 201 (input circuit variometer) and L to the
C 2 (10/60 trimmer pF), C 201 (line trimmer 20/100 pF ) and the series connection
of 202 C (900 pF) and 204 C (3 nF) parallel to C 203 (170 pF), the circuit
capacitance form (see Fig. 4).
Fig. 4
Fig. 6
Fig. 5

iff a capacitive precipices the collector is of
T 202 at the oscillator circuit. The collector supply voltage wi rd through R 217 (47 ohms)T 202 at the oscillator circuit. The collector supply voltage wi rd through R 217 (47 ohms)
fed. The oscillator vibrates in three-point circuit. The series inductor L 215 is used
for narrowing the variation range, R 218 (33 ohms) to the oscillator variometer L for narrowing the variation range, R 218 (33 ohms) to the oscillator variometer L
216 linearizes the parallel resonant voltage over the areas. LW to the MW-OS 216 linearizes the parallel resonant voltage over the areas. LW to the MW-OS
zillator inductors (L 215, L 216) is connected the series coil L 218th The parallel
inductor L 217 is required to obtain a smooth running in LW. The oscillator
capacity wi rd in the LW range around 239 C (10/60 pF) + C 240 (440 pF)
increases. In KW-operation wi rd the inductances L 215, L 216, L 214 additionally
switched on as a parallel coil circuit capacitance as the capacitors of the divider
233 C (350 pF), C 234 (600 pF) are Merely effective.
c) IF gain c) IF gain
The following IF amplifier is 2-stage constructed
(T 203 and T 204). It contains the band filters F 202, F 204 and the individual
circuit L 225. The coupling of the low-basis via a respective capacitive divider ven.
The transistor T 203 is regulated. T 204 wi rd not regulated, so that it distort large
signal amplitudes can handle rungsarm.
d) Demodulation and control d) Demodulation and control
Signal and control means are concerned by the diode Di 206, which is inductively
coupled to the arrival last IF circuit. The resistors R 236 (3.3 ohms) + R 235 (6.8 coupled to the arrival last IF circuit. The resistors R 236 (3.3 ohms) + R 235 (6.8
ohms) form the load resistor. The NF is taken at R 235 (6.8 ohms) and supplied to ohms) form the load resistor. The NF is taken at R 235 (6.8 ohms) and supplied to
the volume control over C3 (0.1 microfarads). Through the resistors R 235 (6.8 ohms), the volume control over C3 (0.1 microfarads). Through the resistors R 235 (6.8 ohms),
R 236 (3.3 ohms) and R 230 (18 ohms) receives the base of the first transistor T R 236 (3.3 ohms) and R 230 (18 ohms) receives the base of the first transistor T
203 IF part of the stabilized through the diode Di 207 voltage as voltage
Grundvorspan-. The voltage drop across R 234 (390 Ω) biases diode Di 206 in Flow Grundvorspan-. The voltage drop across R 234 (390 Ω) biases diode Di 206 in Flow Grundvorspan-. The voltage drop across R 234 (390 Ω) biases diode Di 206 in Flow
direction before, thereby improving demodulators lation and
Demodulationsverzerrungen be Ringert comparable.
The in demodulation on the load resistor R 236 (3.3 ohms), R 235 (6.8 ohms) The in demodulation on the load resistor R 236 (3.3 ohms), R 235 (6.8 ohms)
resulting DC voltage is used for automatic uses gain control and R 230 (18 ohms), resulting DC voltage is used for automatic uses gain control and R 230 (18 ohms), resulting DC voltage is used for automatic uses gain control and R 230 (18 ohms),
R 225 (2.7 ohms) and R 219 (1 ohms) placed on the base of T 203rd The resulting
voltage diode clamping the basic prestress is opposed coupled ver thus a signal at
the incident Ringert the effective base bias of T 203. By thus verbun dene
lowering of the collector or emitter current will consequently the slope and thus the Gain lowering of the collector or emitter current will consequently the slope and thus the Gain
reduced. The emitter resistor R 222 (2.2 ohms) ent stationary voltage drop is used reduced. The emitter resistor R 222 (2.2 ohms) ent stationary voltage drop is used
for regulation of the pre-stage transistor T two hundred and first fal Since
transmission means l, the emitter current of T drops 203, the base bias of T 201
low, which also corresponds to a slope control of this transistor. the out Stabilization low, which also corresponds to a slope control of this transistor. the out Stabilization
reasons absolutely necessary emitter resistor R 205 (2.2 ohms) now exerts a reasons absolutely necessary emitter resistor R 205 (2.2 ohms) now exerts a reasons absolutely necessary emitter resistor R 205 (2.2 ohms) now exerts a
disadvantageous gen impact on the regulation since it any type of emitter current
change, so therefore also compensated by the control desired stabilizing effect.
This effect is the diode Di 201 in conjunction with the divider R 206 (680 Ω), R 207 This effect is the diode Di 201 in conjunction with the divider R 206 (680 Ω), R 207
(5.6 opposed ohms). In unge regulated state of the input transistor, the diode is
blocked, ie the measured against "inner Plus" clamping voltage drop at the emitter
branch R 205 (2.2 ohms) is greater than that from the divider 206 R (680 Ω), R 207 branch R 205 (2.2 ohms) is greater than that from the divider 206 R (680 Ω), R 207 branch R 205 (2.2 ohms) is greater than that from the divider 206 R (680 Ω), R 207
(5.6 ohms) Festge withstand voltage. In this operating case undergoes the (5.6 ohms) Festge withstand voltage. In this operating case undergoes the
transistor T 201 not influenced in its temperature stability through the diode
branch. however, Wi rd T 201 turned down, the emitter potential falls below
soon a value at which the diode Di opens wi 201 rd. This means for further down
rules that the precursor transistor wi tung kept almost constant Emitterschal- rd,
on which it has been switched on by diode Di 201 overall. So that the unwanted
DC negative feedback is canceled. Each additional increase of the RF input
voltage controls the level down further effective because changes in the control
voltage now vol l become effective on the base-emitter junction. In extreme cases,
the base potential of the emitter may up to even slightly positive, because the
emitter voltage of the controlled IF stage 203 to zero T
running. this chip
voltage also represents the control voltage for the transit sistor T two hundred and
first exceeded the down-regulated state
the control voltage, the temperature stabilization.
2. FM area
The FM input signal travels from the antenna via the AM-FM switch to the input of the
transformer Tr. 101. The input circuit formed with the secondary side of this
transformer is strongly attenuated and by the low input impedance of the pre-stage
transistor T 101 tuned to mid-band. In the collector branch of the transistor Lie
precursor gene by variometer (L 101) and a tunable intermediate circuit with the
voltage drop across R 102 (150 Ω) preloaded Damping diode Di 101, which prevents an voltage drop across R 102 (150 Ω) preloaded Damping diode Di 101, which prevents an voltage drop across R 102 (150 Ω) preloaded Damping diode Di 101, which prevents an
overdriving the mixing stage for large input signals comparable.
via the capacitor C 109 (4 pF), the amplified input signal reaches the emitter of the
self-oscillating mixer stage 102. The T
inductively tunable oscillator circuit loading
protrudes from the variometer L 102 and the circuit capacitance, Ge forms the trimmer
C 114 (3/10 pF) and the series connection of C 115 (18 pF) and C 116 (39 pF). The
feed- back a part of the oscillating voltage is done via C 113 (4 pF) to the emitter.
While the oscillator circuit to a capacitive Abgri the collector of the mixing stage ff is
the first 10.7 MHz IF circuit is performed fully on this transistor. That means:
for the oscillator frequency affects the IF
Coil as a high impedance choke through which the collector receives the operating
voltage. For the IF frequency, however, the relatively low-variometer coil L 102 is
parallel to the capacitors C 115 (18 pF) and C 116 (39 pF) to ground. The input and
output capacities,
in particular the
Oscillator and mixer transistor, are very dependent on the collector emitter voltage tor.
Therefore, the operating voltage by means of zener diode Di 208 was stabilized, the Di
to 208 connected in parallel electrolytic capacitor C 264 (50 uF) may seventh possible
low-frequency disturbances from the UK operating voltage. The IF voltage of the coil L
wi rd taken inductively 103 and the first filter F 101 supplied to the IF amplifier through
a coupling line (link line).
The subsequent amplification of the 10.7 MHz IF via four stages. The stages are
coupled via the bandpass filter F 202, F 203 and F 204 together. Al l IF stages are
neutralized, for reasons of stability. On the primary side of the filter 203 F wi rd
removed via C 225 (10 pF), a part of the ZF-voltage and in a chip
nungsverdopplerschaltung means of the diodes Di 202 and Di 203 used for generating
a control voltage. Via the resistor R 106 (2.2 ohms) reaches the control voltage a control voltage. Via the resistor R 106 (2.2 ohms) reaches the control voltage
clamping the base of the input transistor. If the demodulation of the IF signal
sym in the
trically constructed Ratio Filter F 205. Mi t means of the regulator R 241
(potentiometer. lin 3 kOhm.) can be possible tolerances in the ratio load resistors and (potentiometer. lin 3 kOhm.) can be possible tolerances in the ratio load resistors and
diodes compensate. The NF-signal passes through the deemphasis member R 240
(8.2 ohms), C 265 (68 nF), and is then about 3 C (0.1 uF) on Lautstärkereg- ler P. 1 (8.2 ohms), C 265 (68 nF), and is then about 3 C (0.1 uF) on Lautstärkereg- ler P. 1 (8.2 ohms), C 265 (68 nF), and is then about 3 C (0.1 uF) on Lautstärkereg- ler P. 1
- 6 -

3. NF gain
From the volume control the NF-voltage across C 301 (0.1 uF) reaches the input of the
transistor T 301. The high input resistance itself of this stage will now be greatly
reduced by the necessary basic divider. For this reason, it must How-through feedback
capacitor C 302 (2 microfarads) of the be lifted. Thus, the additional burden of the
demodulation stages is very low. In addition, the high input resistance for the
connectivity of a plate-tenspielers or tape recorder is desired.
The emitter resistor R 304 serving as an external resistance of the precursor and acts
at the same temperature-stabilizing effect. The second NF-T transistor 302 amplifies
the low-frequency signal in the emitter circuit. In this stage, the resistance R 309
unbridged linearized in frequency-dependent lung Stromgegenkopp- the course of the
amplification. The following driver stage T 303 must bring the control line up for the
push-pull output stage. At this stage the collector Treibertrans- is formator. Its
secondary winding drives the bases of the output transistors. To keep the distortion
low, wi the driver stage rd fed back into itself.
The NF-power output stage (T 304, T 305) working in push-pull B circuit with emitter
degeneration. The Kollektorruhe- current of 60 mA by means of wi rd R 318 is set. To
com- pensation one in the base chip temperature influences is voltage divider
lying NTC resistor. The influence possible
Licher voltage operating voltage variations on the basic advantages and
indirectly to the collector quiescent currents
is almost eliminated by acting as a stabilizer silicon diode Di three hundred and first
4. filtering, voltage switching polarity voters
The most important elements for the Liberation of interference from the electrical
system, the throttle D 1 and the Elektrolytkonden- sator C 5. The operating voltages of
the low signal levels suppressed by further filtering means and decoupled. Switching to
6 or 12 Volt operation takes place in the LF section. In this case corresponding contact
pins are bridged in the socket connector with a small repluggable contact plate. are
switched:
a) At the output transformer T 302, the collectors of the output transistors,
b) dividing the basis of the output stage R 319,
c) resistor for scale illumination R 320,
d) a series resistor for the operating voltage of all the small-signal stages R 316th
The device can be adapted to the vehicle battery larity means of a plug of the desired
Po. This requires additional change-over the housing-free guidance of the "inner
minus" or the "internal ground".
- 7 -

Mechanical design and function
The device EUROPA TR is 2-part, it consists of a receiver section (RF-IF part) and the
NF-part. The latter is screwed on in the normal fal l pivotally mounted on the receiver
part (fi gure 1 + 2). The LF section to be disposed of by the receiver part.
The tuning is done via the function keys of the printing unit and is possible in two
ways:
1. manual tuning,
2. The push-button voting.
Operation of the hand vote:
(For this purpose, see FIG. 7, 8 a, 8 b, 9, 10)
The hand drive shaft is provided with a screw WEL surface engages the hub located
on the drive wheel. A leaf spring presses the hand drive shaft against the thrust
bearing and in the drive gear, thus causing a play-free engagement of the tooth flanks.
The hub is ferrous ben the already mentioned driving wheel also riveted a frustoconical
clutch housing. The counterpart of the coupling is a triangular shaped clutch plate
screwed on the drive stud of the rocker
is.
The compound of the clutch is accomplished by a spring pressure. Upon rotation of the
hand drive shaft, the drive wheel wi rd moved, which pivots the rocker about its axis.
The rocker actuated thereby two voltage applied to its legs tongues which are
connected to the sled variometer and free of play comparable stressed by tension
springs 2. The vertical speed slide wi thus forced rd
Fastening screw of the abutment (AM 3 x 4
DIN 84)
thrust bearing
drive wheel
as moved. Wi around the drive turned to the left, the vertical speed cores dive into the
variometer coils with clockwise rotation they move in the opposite direction. In this
way, wi variable adjustment to the individual transmitters around causes.
Operation of the pushbuttons vote:
(For this, see Figures 7, 8 a, 8 b, 9, 10). The push buttons
have two functions:
1. Switching to different wavelength ranges (LW, MW, SW, FM) and
2. Determination of preferred stations for any repetition.
The station selection using the pushbutton following happens so:
First, wi the desired band around by actuating the corresponding push-button set. To
Kennt- lichmachung of the switched wave range remains the key pressed 2.5 mm back
are in the printing direction. The desired channel is now einge- by manual tuning sets,
the previously pressed pushbutton then until the stop is pulled out, therefore, the
previously set transmitter is fixed. Because now includes a well-defined position of the
vertical speed cores at any position of the rocker can once
fixed transmitter repeatedly by operating
the button can be set. This option is available once each in the LW, MW and SW area,
and twice in the VHF range. Fig. 8 a
Kupplungsglocke
Hand drive shaft
lifting flank
Fig. 8b
- 8th -
compression spring
release lever
Role in the release lever
Hexagonal nut (M 4
DIN 439 adjustment)
clutch disc
locking screw
"X"
"X"
Fig. 7
leaf spring

1. Hand drive shaft (see also Fig. 7 u. 8 a)
2. release lever
3. drive
4. clutch disc
5. Kupplungsglocke
6. adjusting nut M DIN 4 439 (see also Fig. 8a)
7. spring
8. Antenna Trimmer
9. retaining spring
10. Oil switch plate
11 rocker
12, return spring (to the shifting rod)
13. Segment (see also Fig. 11 b)
14 clutch comb
15 shift rod
16 wave switch I cpl.
17 cylinder head screw (at the shaft switch)
- 9 -
Fig. 9

1. Blend screen
2. hexagonal nut M 3 DIN 439
3. spacer bolts
4. hex nut
5. bell crank
6. variometers cores AM + FM
7. polarity switching plug
8. The fastening screw (on Umschaltträger)
9. Cylinder head screw (after wave switch)
10 AM variometer unit
11. FM variometer unit
12. counter bearing
13. snail
14. locking screw (M 4 x12 DIN 931)
15 tab
16. pointer lever
17. variometers slide
18. Rest case
19. dial pointer
20th spring (on the window screen)
- 10 -

Notes for mechanical adjustment and repair work

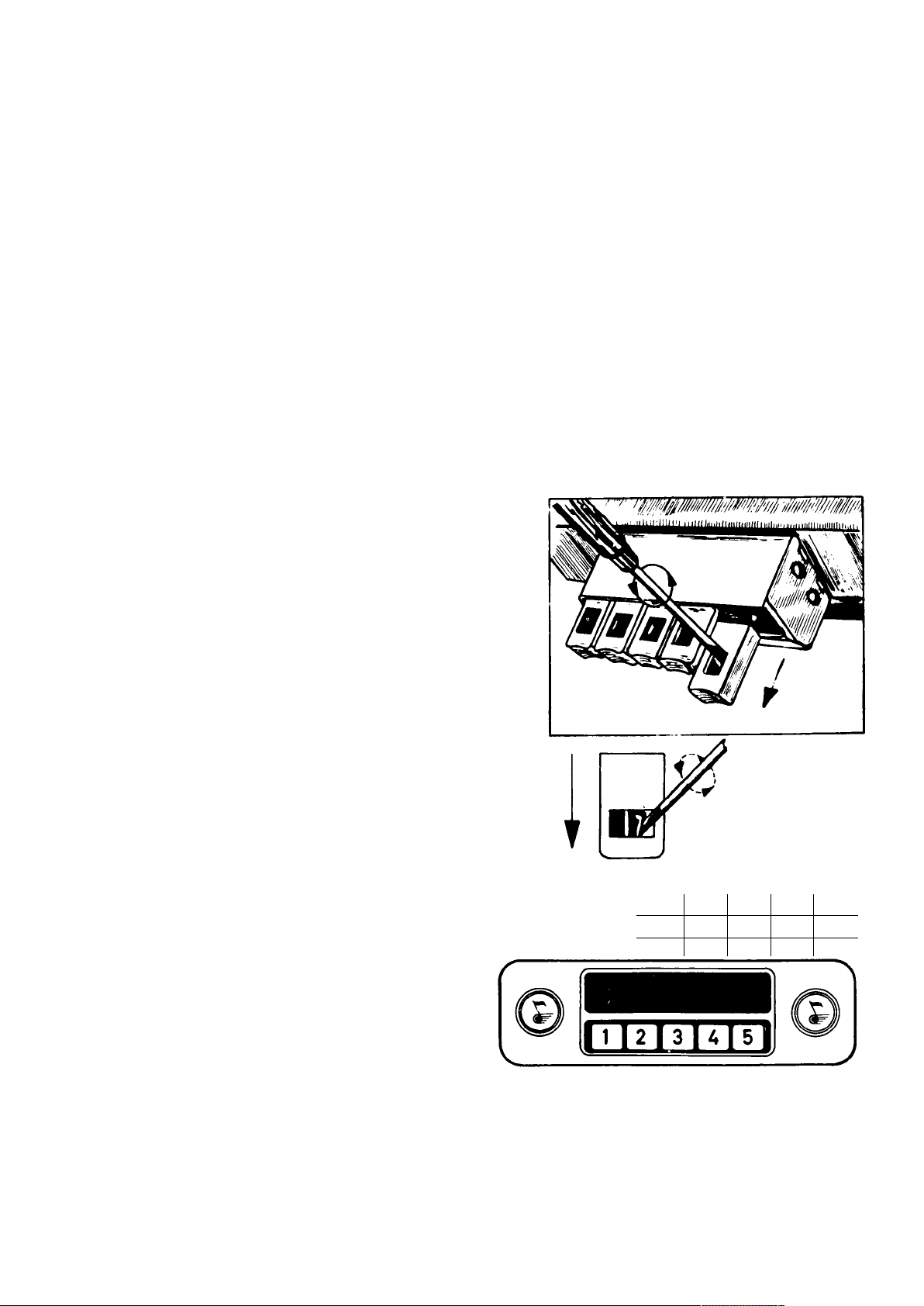

1. Remove lid
The lids are not screwed and can be opened with a screwdriver. The aim is
executors blade of the rectangular latching hole are inserted in the cover edge at
the rear side between the locking spring and the upper edge of the screw. By a
simultaneous rotation of the screwdriver, the DEK takes off angle. The lid
is then easily by further waste
lift withdraw backwards.
2. Setting the hand drive shaft (Abstimmachse)
(Fig. 7 + 8 a)
Shows the manual control for some reason a larger axial clearance
(Possibly after a blow or
similar occasions), it is as follows adjust again:
a through put) screwdriver through the round opening side of the frame and 3 x
loosen the fixing screw of the abutment (AM 4 DIN 84).
b) with a further screw, lever-like intermediate the anvil and the base rule used,
press the hand drive shaft against the leaf spring to the stop to the end wall.
Then loosen slightly while tightening the mounting screw first default. Check
the setting.
The cup is set correctly when the hand drive shaft no appreciable Axia has!
Game and can still rotate quickly.
c) fixing screw tightening and tempt.
3. Setting the clutch
After prolonged use, especially when the hand
drive shaft often rotates in spite of the attacks rd wi occurs a slight wear on the
clutch disc. This makes the game between the overrun is reduced curve of the
clutch ridge and the role in the disengagement lever. Is on the roll, so the
compression spring no longer presses the two coupling halves against each other
and the clutch slips.
Remedy: readjustment of the clutch
(Fig. 7, 8 a + 8 b)
a) M locking screw 4 x 12 DIN 931 in the clutcha) M locking screw 4 x 12 DIN 931 in the clutch
disc solve (preferably with a 7 mm socket wrench), then with a 7 mm spanner, the
Sechskantmut- ter M 4 DIN 439 (adjusting) on the drive stud tighten until between
the lifting flank and the roller a clearance of about 0.3 mm is available.
b) Tighten the set screw moderately.
c) To the accurate adjustment to check, it is neces- dig, to fix two shift rods in the
opposite end position and to operate several times. The coupling is correctly
adjusted, when carried out by pressing a shift bar from one to the other end
position, a lifting end face just prior to incidence of the segment on the rocker rod.
Only then tighten the clamping screw. Adjusting and locking screw are to entice.
FIG. 11a
Fig. 11 b
- 11 -

4. Set the shift rods ( Fig. 11 a + 11 b) The shifting rods are set in the factory, tested 4. Set the shift rods ( Fig. 11 a + 11 b) The shifting rods are set in the factory, tested
and secured by lock nut and varnish. Readjustment same so unnecessary as a result.
Nevertheless, should such. be necessary, by spring breakage replacement of the
defective part, and thereby an adjustment, the necessary handles are described, see
the following:
a) To adjust two 7 mm spanner in
Miniature design (eg Belzerliliput) is required.
b) until contact of the clamping piece put on the segment In the unlocked shift rod
special hex bolt 150 E 2040-07.
c) Then loosen the hex screw about 1/6 turn (about 0.08 mm).
d) Konterumtter get dressed (special nut 100 E 2035-02). there
it must be ensured that the hexagonal nut does not rotate.
e) In the case of tight position locknut the segment is to be movable just by its own
weight.
entice f) lock nut.
g) The expanding spring nestled in the unlocked state of the shift rod.
In the locked state to the
Expanding spring is 4.0 mm to 4.7 mm perpendicular to the shift rod measured
spread. Any deviations must be corrected by bending the same.
h) Also by appropriately cautious bending is a deformed tongue of the locking spring to
correct 150 E 2040-01, when the same no more clicks when plugging the key.
i) The hexagonal nut M 2 DIN 934-4 D is to entice safety reasons also.
5. Adjusting the shaft switch 1 (150 E 2060) ( Fig. 9 + 10) In a compressed FM shift 5. Adjusting the shaft switch 1 (150 E 2060) ( Fig. 9 + 10) In a compressed FM shift
rod, the switch plate 150 to be located in the right end position E 2060-01.
a) Remove the cylinder head bolt and the contact carrier are shifting while at a
gedrück- th FM shift rod until the fifth contact spring from left coincides exactly with
the underlying the contact spring 2 mm wide conductor counterpart. The socket
head screw and tighten entice.
b) The switch is correctly adjusted, when the switch plate to center and hold down the
L- or M-key is the wave switch plate while holding K- button in the left end position
and thereby
respectively corresponds
speaking guide sections with the contact springs cover.
6. Adjustment of the shaft 2 switch (150 E 2070)
a) L key press and move while pressing the switching rod and dissolved cylinder head
bolt the contact carrier until the two
the peephole of the Vario
meter switch plate visible contact springs coincide with the traces. Variometers
cup with UK-plate must be lifted forecasts. The cylinder head bolt tighten.
b) The switch is properly adjusted when cover while pressing the L button, the contact
spring with the heads exactly. In any other desired key pressed no contact is
allowed to take place by the two springs. Cylinder head bolt entice.
7. Changing the scale lamp ( Fig. 10) 7. Changing the scale lamp ( Fig. 10)
The replacement of a defective scale lamp is possible even when the device is
mounted in the car.
a) It should deduct the scale article forward. valid only for the universal scale essay.
Daimler-Benz
Ben execution for removing the scales essay remove the loading and
dienungsknöpfe Unscrew slotted nuts. Turn pointer to the left.
b) At the left hexagon nut M 3 DIN 439 by removing the screw (5.5 mm - width
across flats) and the spring washer
3.2 DIN 137 decrease. For devices with snap button fastening to the same point
pull the lamp shade easily on the top edge forward.
c) The tension spring Unhook the right on the window screen. Glare screen lifting the
right and to the spacer bolt as the fulcrum pivot upward. Here, the light shade
hanging down out of the glare screen support and is now with the simultaneous
lifting of the spacer bolts to the right removable.
d) The scales lamp is then free for replacement and is increasing by pushing against
the springy contact challenges.
8. Replace the print button
a) t Mi matching screwdriver on the underside of the push-button through the cutout,
the narrow spring tongue with a rotary motion to the shift rod and press at the
same time pull the push button to the front.
b) The mounting of the push button is done by simply plugging up to the stop, while the
narrow spring tongue engages audibly. Fig. 12a
Fig. 12 b
Europe TR / LMKU Europe TR
/ MU / USA Europe TR / M
L
BC
M
M M
BC
K
BC
M
U
FM
M
U
FM
M
10. Replacing the potentiometer
a) le terminals Al Unsolder.
b) the hexagonal nut (14 mm width across flats) and remove the insert ring decrease
(Fig. 10).
c) fastening screw (tapping screw) of the switcher carrier unscrewed (Fig. 10).
d) Umschaltträger pull. The potentiometer then can be taken out easily.
- 12 -
9. Order of pushbuttons

11. Replacing the manual drive shaft ( Fig. 9) 11. Replacing the manual drive shaft ( Fig. 9)
a) lock washer St 5 x 0.6 (Seeger) with a pair of pliers squeeze out from the groove.
b) The hand drive shaft can then be forward pull. Installation is performed in reverse
order.
c) Solve the counter-fastening screw Before installation. Further adjustment see point 2
"inputs provide the hand drive shaft" a), b), c).
12. Replacing the clutch disc hub and the release lever ( Fig. 7, 8 a, 8 b + 9) 12. Replacing the clutch disc hub and the release lever ( Fig. 7, 8 a, 8 b + 9)
a) To this end, the frame portion after loosening the two tapping screws aufzubiegen
something on the side part.
b) Caution! The retaining spring of the printed board to the front b) Caution! The retaining spring of the printed board to the front b) Caution! The retaining spring of the printed board to the front
press against the frame. Failure to comply with this instruction may the corner of
the RF to IF plate could break off.
c) hex nut M 4 DIN 439 by removing the screw from the coupling axis and disk
decrease 150 E 2000-13.
d) After loosening the hex screw M 4 x 12 DIN 931, the clutch disc is deducted forward.
e) straighten The small nose of the release lever and the release lever while
simultaneously Niederdrük- ken in the direction of the end wall of the bearing angle
press out (Fig. 7).
f) In order to be pulled off: caulked hub 14 mm balls 2, spherical shell release lever
complete,
Sleeve, and compression spring.
g) Assembly is performed in reverse order. Setting the coupling see under the title
"Setting the clutch."
N ote: The bolt M 4 x 12 DIN 931 is facing up, otherwise the same overall gene
suggests the bottom cover (Fig 8 a + 10.).
13. Replacing the shift rods ( Fig. 9 + 11 a + 11 b) Replacement of the shift rails and 13. Replacing the shift rods ( Fig. 9 + 11 a + 11 b) Replacement of the shift rails and
of the return spring is possible only when decrease of the end wall. Without removing
the bulkhead but the following completely belongs to the shift rod parts are replaced:
a) Segment (by raising of the unlock). Hex nut 100 E 2035-02.
Hex bolt 150 E 2040-07 and thus the unlocking spring, clamping piece and the
ball 4 mm.
b) Furthermore, without removing the selector rod after completion of the hexagonal
nut M 2 DIN 934, screw the spreading
To switch spring, shoulder screw and lock spring.
c) For installation, in reverse order. about
the setting, see "Setting the shift rods".
14. Replacing the vertical speed units (AM, FM) ( Fig. 10) 14. Replacing the vertical speed units (AM, FM) ( Fig. 10)
a) All connections Unsolder.
b) variometer carriage drive shaft bringing in the forward position by turning the
Handan-.
c) Both retaining screws (l + ll), the variometer set is then subtracted from the
variometer cores backwards.
15. Replacing the shaft switch 1 + 2 15. Replacing the shaft switch 1 + 2
a) In the shaft switch 2 before the FM variometer set as "Replacing the AM-FM
variometer set" is described to expand.
b Unsolder) ports.
Caution ! the contact springs solder tails not bend, breakage!
c) the cylinder head bolt M 3 x 4 DIN 84 unscrewed with the disc 3.2 DIN 125th
Pull d) wave switch from the right side wall and lift off.
e) The assembly is carried out in reverse order. Only tighten fixing screw only slightly.
Cancel f) Both locking lugs of the switch re-used with a pair of pliers. The switch plate
is only now displaced.
see "Adjusting the shaft switch" g) To adjust.
16. Switching to extra carriage mass, and from 12 to 6 volt operating
voltage ( Fig. 10) voltage ( Fig. 10)
a) The switch to extra carriage mass in the
Receiver section after removal of the upper cover devices. there
is the STEK located behind the potentiometer ker switch stuck on the
switch carrier so that the arrow on the dot next to the symbol "positive earth".
b) The switching of the operating voltage of 12 volts at 6 takes place in the LF section
after removing the cover shield marked by an adhesive. Simply plug the switch
environmental board of the inside of the lid is attached Umschaltanleitung perform
circuit the environmental.
On the diagram of the device, the switching can instructions also be inspected
visually.
Conversion process for connecting a record player or tape recorder
G eneral: basic unit:
E UROP A TR
Connection:
Turntable PHILIPS "Auto-Mignon", tape recorders PHILIPS RECORDER are
"Recorder 3301" equipped with auto bracket or other devices with a
radio-phono switch.
Necessary accessories:
Between cable 200 Z 2190th
additionally for record players or tape recorders without radio phono switch
control box 200 Z 2100 (see FIG. 14).
- 13 -

Receiver remodeling
a) reclosing plug 551 E 100-36 remove (see FIG. 12).
b) In the proposed group of holes of the frame rear wall by means of screw connection
comprises a Kleinflanschdose (Tuchel T3377) attach (see Fig. 12a).
Fig. 13
Fig. 12
a) before the conversion
Fig. 12a
b) after the conversion
Note on the technical data of the microphone Vorsetzers for BECKER TR
devices
Type Nr. 334 E 0012 (12 volt) type no.
334 E 0006 (6 volts)
Electrical construction work
a) capacitor C3 (0.1 uF) of contact 27 on the Wel LEN Unsolder switch.
b) an intermediate shaft switch contact 27 and ratio measurement socket contact 5
(embarrassed as soldering terminal) with a shielded cable.
c) between said soldering terminal (Ratio-socket contact 5) and Kleinflanschdose
(Tuchel T 3377) contact 4, condensation sator C3 (0.1 microfarads).
d) a solder abgechirmte line between hot end P 1 and Kleinflanschdose contact. 2
e) The shield as mentioned under b) and d) are Leitun- gen soldered to the cold end of
P 1 and the contact 3 Kleinflanschdose.
f) Intermediate Kleinflanschdose contact 1 and the point X (see Fig. 13) is an
unshielded, einge- insulated wire
soldering (power supply 6.12 V).
g) From Kleinflanschdose contact 5 to the chassis is to produce a compound mass.
h) Within the Kleinflanschdose are Schaltzungen- their terminals respectively
connected to contacts 2 and 4 to connect, see Fig. 13).
Operating voltage: Power
requirements:
Input impedance ratio of the
transformer: Dimensions:
Microphone: Plug Connection:
Basic volume:
6/12 volt switchable about 1 watts
at 7 volts about 2 watts at 14
volts 200 Ω volts 200 Ω
1:15 62 x 49 x 45 250 g 332 Z 7500
(Beyer M 41 bS) microphone cable to
Vorsetzer (according to DIN 41524)
Receiver Vorsetzer (according to DIN 41524) is
adjustable by means of potentiometers (P 1)
Gez. Switch position: radio playback
In regard to Europe TR / LMKU minibus reception system with
microphone connection
The van version EUROPE TR / LMKU with microphone system circuit is different from
the 12.6 Volt version only in the RF / IF section. The LF part is the same for 12.6 volts.
Applicable are all descriptions and test and Abgleichanweisun- th receiver parts gen of
6.12 volts and NF-parts for the van version. In the RF / IF rt
is also a 5-pin strength standard jack
(Hirschmann Mab 50 S) is installed. To the minibus conditioning has not a
Mikrofonvorsetzer 334, which is connected to a connecting cable 200 Z 7613 at the
5-pin connector.
Caution! is device without cables and Vorsetzer not operational. Caution! is device without cables and Vorsetzer not operational.
- 14 -
Fig. 14 control box 200 Z 2100 seen plug and
socket of solder termination.
seen both sockets of appliances outside.

UK-plate
(Component side)
Condensers coils resistors /
inductors transistors / diode
= =
= =
violet
blue
green
brown
- 15 -
FM (FM) circuit board compl.
150 E 0120

UK-plate
(conductor side)
- 16 -

Cover sheet
not accompanied by notes!
- 17 -

Cover sheet
not accompanied by notes!
- 18 -

RF IF plate
(Component side)
Condensers coils resistors /
inductors transistors / diode
= =
= =
violet
blue
green
brown
- 19 -
RF to IF
circuit board
150 E 0125-03
