Beckhoff EtherCAT Box User manual

Quick start guide | EN
IO configuration in TwinCAT
EtherCATBox modules
2020-09-02 | Version: 1.1

Table of contents
IO configuration in TwinCAT 3Version: 1.1
Table of contents
1 Foreword ....................................................................................................................................................5
1.1 Notes on the documentation..............................................................................................................5
1.2 Safety instructions .............................................................................................................................6
1.3 Documentation issue status ..............................................................................................................7
2 Introduction................................................................................................................................................8
3 Distinction between Online and Offline...................................................................................................9
4 Offline IO configuration...........................................................................................................................10
5 Online IO configuration...........................................................................................................................12
6 Configuration of EtherCAT P via TwinCAT ...........................................................................................17
7 Appendix ..................................................................................................................................................23
7.1 Support and Service ........................................................................................................................23

Table of contents
IO configuration in TwinCAT4 Version: 1.1

Foreword
IO configuration in TwinCAT 5Version: 1.1
1 Foreword
1.1 Notes on the documentation
Intended audience
This description is only intended for the use of trained specialists in control and automation engineering who
are familiar with the applicable national standards.
It is essential that the documentation and the following notes and explanations are followed when installing
and commissioning these components.
It is the duty of the technical personnel to use the documentation published at the respective time of each
installation and commissioning.
The responsible staff must ensure that the application or use of the products described satisfy all the
requirements for safety, including all the relevant laws, regulations, guidelines and standards.
Disclaimer
The documentation has been prepared with care. The products described are, however, constantly under
development.
We reserve the right to revise and change the documentation at any time and without prior announcement.
No claims for the modification of products that have already been supplied may be made on the basis of the
data, diagrams and descriptions in this documentation.
Trademarks
Beckhoff®, TwinCAT®, EtherCAT®, EtherCATG®, EtherCATG10®, EtherCATP®, SafetyoverEtherCAT®,
TwinSAFE®, XFC®, XTS® and XPlanar® are registered trademarks of and licensed by Beckhoff Automation
GmbH. Other designations used in this publication may be trademarks whose use by third parties for their
own purposes could violate the rights of the owners.
Patent Pending
The EtherCAT Technology is covered, including but not limited to the following patent applications and
patents: EP1590927, EP1789857, EP1456722, EP2137893, DE102015105702 with corresponding
applications or registrations in various other countries.
EtherCAT® is registered trademark and patented technology, licensed by Beckhoff Automation GmbH,
Germany.
Copyright
© Beckhoff Automation GmbH & Co. KG, Germany.
The reproduction, distribution and utilization of this document as well as the communication of its contents to
others without express authorization are prohibited.
Offenders will be held liable for the payment of damages. All rights reserved in the event of the grant of a
patent, utility model or design.

Foreword
IO configuration in TwinCAT6 Version: 1.1
1.2 Safety instructions
Safety regulations
Please note the following safety instructions and explanations!
Product-specific safety instructions can be found on following pages or in the areas mounting, wiring,
commissioning etc.
Exclusion of liability
All the components are supplied in particular hardware and software configurations appropriate for the
application. Modifications to hardware or software configurations other than those described in the
documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co. KG.
Personnel qualification
This description is only intended for trained specialists in control, automation and drive engineering who are
familiar with the applicable national standards.
Description of instructions
In this documentation the following instructions are used.
These instructions must be read carefully and followed without fail!
DANGER
Serious risk of injury!
Failure to follow this safety instruction directly endangers the life and health of persons.
WARNING
Risk of injury!
Failure to follow this safety instruction endangers the life and health of persons.
CAUTION
Personal injuries!
Failure to follow this safety instruction can lead to injuries to persons.
NOTE
Damage to environment/equipment or data loss
Failure to follow this instruction can lead to environmental damage, equipment damage or data loss.
Tip or pointer
This symbol indicates information that contributes to better understanding.

Foreword
IO configuration in TwinCAT 7Version: 1.1
1.3 Documentation issue status
Version Comment
1.1 • Screenshots updated
1.0 • First release

Introduction
IO configuration in TwinCAT8 Version: 1.1
2 Introduction
The IO configuration is the prerequisite for the use of the functions of IO modules in a PLC program. It
covers the appending and parameterization of IO modules in TwinCAT.
This quick start guide describes the basic IO configuration in TwinCAT 3 for IO modules of the type:

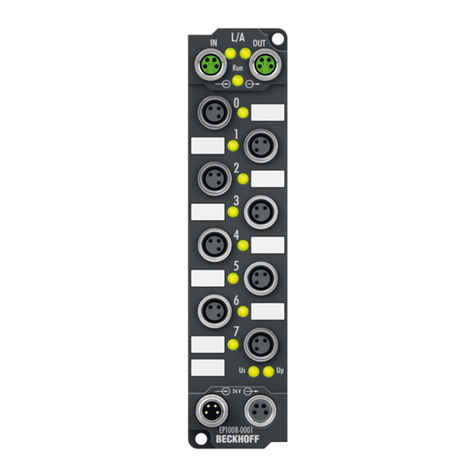

• EtherCAT Box (EPxxxx)
• EtherCAT P Box (EPPxxxx)
Link
The complete documentation for TwinCAT 3.

Distinction between Online and Offline
IO configuration in TwinCAT 9Version: 1.1
3 Distinction between Online and Offline
The distinction between online and offline refers to the existence of the actual I/O environment (drives,
terminals, box modules).
If the configuration is to be prepared in advance of the system configuration as a programming system, e.g.
on a laptop, this is only possible in "Offline configuration" mode. In this case all components have to be
entered manually in the configuration, e.g. based on the electrical design (as described under TwinCAT
configuration setup, manual).
If the designed control system is already connected to the EtherCAT system and all components are
energized and the infrastructure is ready for operation, the TwinCAT configuration can simply be generated
through "scanning" from the runtime system. This is referred to as online configuration.
In any case, during each startup the EtherCAT master checks whether the devices it finds match the
configuration.
To ensure that the latest features/settings of the master can be used, always download the latest ESI file.
Please note the following information.
Installation of the latest ESI-XML device description
The TwinCAT System Manager needs the device description files for the devices to be used in or-
der to generate the configuration in online or offline mode. The device descriptions are contained in
the so-called ESI files (EtherCAT Slave Information) in XML format. These files can be requested
from the respective vendor and are made available for download. The ESI files for Beckhoff Ether-
CAT/EtherCATP devices are available on the Beckhoff website (https://www.beckhoff.de/english/
download/elconfg.htm?id=1983920606140). The ESI files should be stored in the TwinCAT installa-
tion directory (default: C:\TwinCAT\IO\EtherCAT). The files are read (once) when a new System
Manager window is opened. A TwinCAT installation includes the Beckhoff ESI files that were cur-
rent at the time when the TwinCAT build was created. From TwinCAT 2.11 and in TwinCAT 3 the
ESI directory can be updated from the System Manager, if the programming PC is connected to the
internet (TwinCAT → EtherCAT Devices → Update Device Description…)

Offline IO configuration
IO configuration in TwinCAT10 Version: 1.1
4 Offline IO configuration
The manual configuration of an EtherCAT Box/EtherCATP Box in TwinCAT is described in this part of the
documentation.
1. Open the section "I/O" in the "Solution Explorer".
2. Right click on „Devices“ and click on „Add new Item“.
ðA dialog window opens.
3. Select the entry "EtherCAT Master" in the dialog window and click on "OK".
ðAn entry "Device 1 (EtherCAT)" appears.

Offline IO configuration
IO configuration in TwinCAT 11Version: 1.1
4. Right click on "Device 1 (EtherCAT)" and click on „Add new Item“.
ðA dialog window opens.
5. Choose the desired box in the dialog window, e.g. EPP1322-0001. Click on "OK".
ðResult: The desired box was appended.

Online IO configuration
IO configuration in TwinCAT12 Version: 1.1
5 Online IO configuration
The configuration of a physically existing EtherCAT Box/EtherCATP Box in TwinCAT is described in this part
of the documentation.
For the creation of the configuration
• the real EtherCAT/EtherCATP and IO-Link hardware (devices, couplers, drives) must be present and
installed.
• the devices/modules must be connected via EtherCAT/EtherCATP or IO-Link cables in the same way
as they are to be used later.
• the devices/modules must be connected to the power supply and ready for communication.
• TwinCAT must be in CONFIG mode on the target system.
The online scan process consists of:
• Detection of the EtherCAT/EtherCATP device (Ethernet port on the IPC)
• Detection of the connected EtherCAT/EtherCATP devices. This step can be carried out independently
of the preceding step.
• Troubleshooting
The scan with existing configuration can also be carried out for comparison.
Detecting/scanning the EtherCAT/EtherCATP device
The online device search can be used if the TwinCAT system is in Config mode (blue TwinCAT icon or blue
indication in the System Manager).
Fig.1: TwinCAT Config mode display
Online scanning in Config mode
The online search is not available in RUN mode (production operation).
Note the differentiation between TwinCAT programming system and TwinCAT target system. The
TwinCAT icon next to the Windows clock always shows the TwinCAT mode of the local IPC. The
System Manager window shows the TwinCAT state of the target system.
Right-clicking on "I/O Devices" in the configuration tree opens the search dialog.

Online IO configuration
IO configuration in TwinCAT 13Version: 1.1
Fig.2: Scan Devices
This scan mode not only tries to find EtherCAT/EtherCATP devices (or Ethernet ports that can be used as
such), but also NOVRAM, fieldbus cards, SMB etc. However, not all devices can be found automatically.
Fig.3: Note for automatic device scan
Ethernet ports with installed TwinCAT real-time driver are shown as "RT Ethernet" devices. An EtherCAT
frame is sent to these ports for testing purposes. If the scan agent detects from the response that an
EtherCAT/EtherCATP device is connected, however, then the port is immediately shown as an "EtherCAT
Device".
Fig.4: detected Ethernet devices
After confirmation with "OK" a device scan is suggested for all selected devices (see the illustration below).

Online IO configuration
IO configuration in TwinCAT14 Version: 1.1
Detecting/Scanning the EtherCAT devices
Online scan functionality
When scanning, the master queries the identity information of the EtherCAT/EtherCATP device
from the device's EEPROM. The name and revision are used for determining the type. The respec-
tive devices are located in the stored ESI data and integrated in the configuration tree in the default
state defined there.
If an EtherCAT device was created in the configuration (manually or through a scan), the I/O field can be
scanned for devices/slaves.
Fig.5: Scan query after automatic creation of an EtherCAT/EtherCATP device
The configuration was established and switched directly to the online state (operational). The EtherCAT
system should be in a cyclic operational state, as shown in the following illustration.
Fig.6: online display example
Please note:
• All Boxes should be in OP state
• "frames/sec" should match the cycle time taking into account the sent number of frames
• no excessive "LostFrames" or CRC errors should occur
The configuration is now complete. It can be modified as described under manual procedure.

Online IO configuration
IO configuration in TwinCAT 15Version: 1.1
As can be seen in the illustration below, the connected EtherCAT/EtherCATP Box (in this case:
EPP1322-0001 and EPP1008-0002) is shown in the TwinCAT tree.
Fig.7: Box display after "Scan for boxes"
Troubleshooting
Various effects may occur during scanning.
• An unknown device is detected, i.e. an EtherCAT/EtherCATP device for which no ESI XML
description is available.
In this case the System Manager offers to read any ESI that may be stored in the device.
•Device are not detected properly
Possible reasons include
- faulty data links, resulting in data loss during the scan
- the device has an invalid device description
The connections and devices should be checked in a targeted manner, e.g. via the emergency scan.
Then re-run the scan.
Scan over existing Configuration
If a scan is initiated for an existing configuration, the actual I/O environment may match the configuration
exactly or it may differ. This enables the configuration to be compared.
Fig.8: Identical configuration
If differences are detected, they are shown in the correction dialog, so that the user can modify the
configuration as required.

Online IO configuration
IO configuration in TwinCAT16 Version: 1.1
Fig.9: Example correction dialog
It is recommended to check the "Extended Information" box, in order to show differences in the revision.
Color Explanation
green this EtherCAT/EtherCATP device has a counterpart on the other side. Both type and revision
match.
blue this EtherCAT/EtherCATP device is present on the other side, but in a different revision. If the
found revision is higher than the configured revision, the use is possible provided compatibility
issues are taken into account. If the found revision is lower than the configured revision, it is
likely that the use is not possible. The found devices may not support all functions that the
master expects based on the higher revision number.
light blue this EtherCAT/EtherCATP device is ignored ("Ignore" button)
red this EtherCAT/EtherCATP device is not present on the other side.
Fig.10: Example correction dialog with modifications
Once all modifications have been saved or accepted, click "OK" to transfer them to the real *.tsm
configuration.

Configuration of EtherCAT P via TwinCAT
IO configuration in TwinCAT 17Version: 1.1
6 Configuration of EtherCAT P via TwinCAT
EtherCATP tab
From TwinCAT 3 Build 4020 TwinCAT has the tab “EtherCATP”. This tab contains a planning tool to
calculate voltages, currents and cable lengths of EtherCATP system. The figure below shows the tab
EtherCATP when no device is connected to the junction device (A).
A
Fig.11: Tab EtherCAT P: No device connected to junction device
If a device is connected to the junction device (A), you can set the cross-section and the length of the
EtherCAT P cable in the Tab „EtherCAT P“ of the device. See figure below, B).
A
B
Fig.12: Tab EtherCAT P: One device connected to junction device

Configuration of EtherCAT P via TwinCAT
IO configuration in TwinCAT18 Version: 1.1
Are three devices connected to the three ports of the junction device (A), they are displayed as shown in the
figure below.
A
Fig.13: Tab EtherCAT P: Three devices connected to junction device
You can display the topology of your EtherCAT P system [}22].

Configuration of EtherCAT P via TwinCAT
IO configuration in TwinCAT 19Version: 1.1
Wire Gauge Selection of the wire cross-sectional area of the cable which is to be used
AWG 22 = 0.34 mm²
AWG 24 = 0.22 mm²
Length (m) Indication of the cable length which is to be used
Check EtherCATP
System
At least one device is connected to the controller, the connected EtherCATP
system can be checked
Type Listing of two voltages: Box supply US, Auxiliary voltage UP
Actual Voltage (V) The respective voltage at which the system is powered, can be entered
manually. The default setting is 24.00V.
Min Voltage (V) The minimum voltage is preset by the device and described in the ESI file. The
EtherCATP system is to be interpreted after this voltage. It is valid not to fall
short this voltage.
Load (A) The total consumption of the connected sensors / actuators at the device can be
specified here,e.g. 100mA.
Load Type The characteristic of the load which is connected to the devices can be selected
here. Which of the three options is right for the connected load (Sw regulator,
LDO, Resistor), must be taken from the datasheet. In case of doubt please
select the default value "Sw Regulator".
Sw Regulator: Switching regulators, consume more energy and therefore
require an efficient power supply.
LDO: Low drop voltage regulator, the energy demand is often small and the heat
dissipation is not a problem, e.g. proximity sensor.
Resistor: electronic, passive components e.g. relay, coil

Configuration of EtherCAT P via TwinCAT
IO configuration in TwinCAT20 Version: 1.1
If you click on the button “Check EtherCATP System”, all devices that are attached to your TwinCAT tree
are listed as shown in the following figure.
Fig.14: Check EtherCAT P System
No. The automatically assigned number of the device according to its
position in the EtherCAT P strand.
Name Designation of the device in TwinCAT.
Previous Number of the previous device in the EtherCAT P strand and the
output port used (A/B/C/D).
Us (V), Up (V) Supply voltage which is present at the input of the device. For device
No.1 You can enter the voltages manually.
Sum Is(A), Sum Ip(A) Sum currents of the supply voltages at the input of the device.
Us Load, Up Load Enter here the total load at the IO ports of the device here.
The unit of this value is set by the choice of "UsLoadType" and
"UpLoadType".
Us Load Type, Up Load Type Choose here the characteristic of the load [}19], which is connected
to the IO ports of the device.
Cable Length (m) Enter here the length of the EtherCAT P cable, which is connected to
the input of the device.
Wire Gauge Choose here the wire cross-section of the EtherCAT P cable, which is
connected to the input of the device.
• AWG22 = 0,34mm²
• AWG24 = 0,22mm²
Example with problem case and troubleshooting
The following figure shows the planning of the EtherCATP system without a problem. All voltages in the
column “Supply Voltage (V)” are highlighted in green.
Fig.15: Check EtherCAT P system without problem
The following figure shows the planning of the EtherCATP system with a problem. The “Supply Voltage (V)”
of Box 5 drops below the “Min. voltage (V)”. The corresponding field is highlighted in red. The error occurs
because longer cables (adjustable in Cable Length (m)) and also AWG 24 instead of AWG 22 cables
(adjustable in Wire Gauge) be used.
