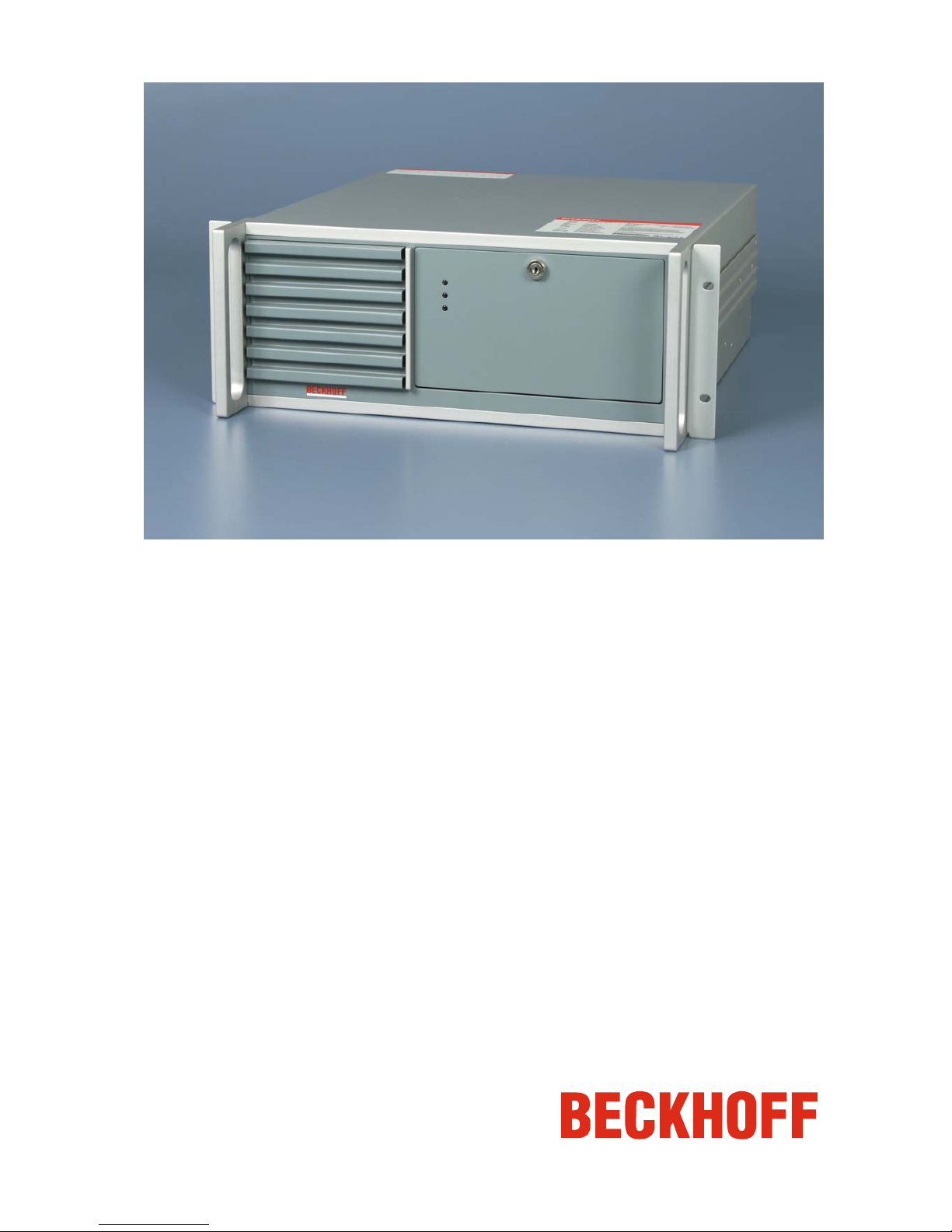

Beckhoff C5102-0060 User manual

Installation and Operating instructions for
19 Inch Rack Mount
Industrial PC C5102 from -0060
Version: 3.0
Date: 2018-02-16

Foreword
Table of contents
1.
2.
3.
4.
5.
Foreword 4
Notes on the Documentation 4
Liability Conditions 4
Trademarks 4
Patent Pending 4
Copyright 4
State at Delivery 4
Delivery conditions 4
Description of safety symbols 5
Basic safety measures 6
Operator's obligation to exercise diligence 7
Operator requirements 7
Product Description 8
Appropriate Use 8
Structure 8
Interfaces from C5102-0060 10
PS/2 connections 10
Serial interfaces 10
USB interfaces 10
Network connection 10
Sound-On-Board 10
DVI-D (Digital Visual Interface) 10
DisplayPort 10
Additional plug-in cards (optional) 10

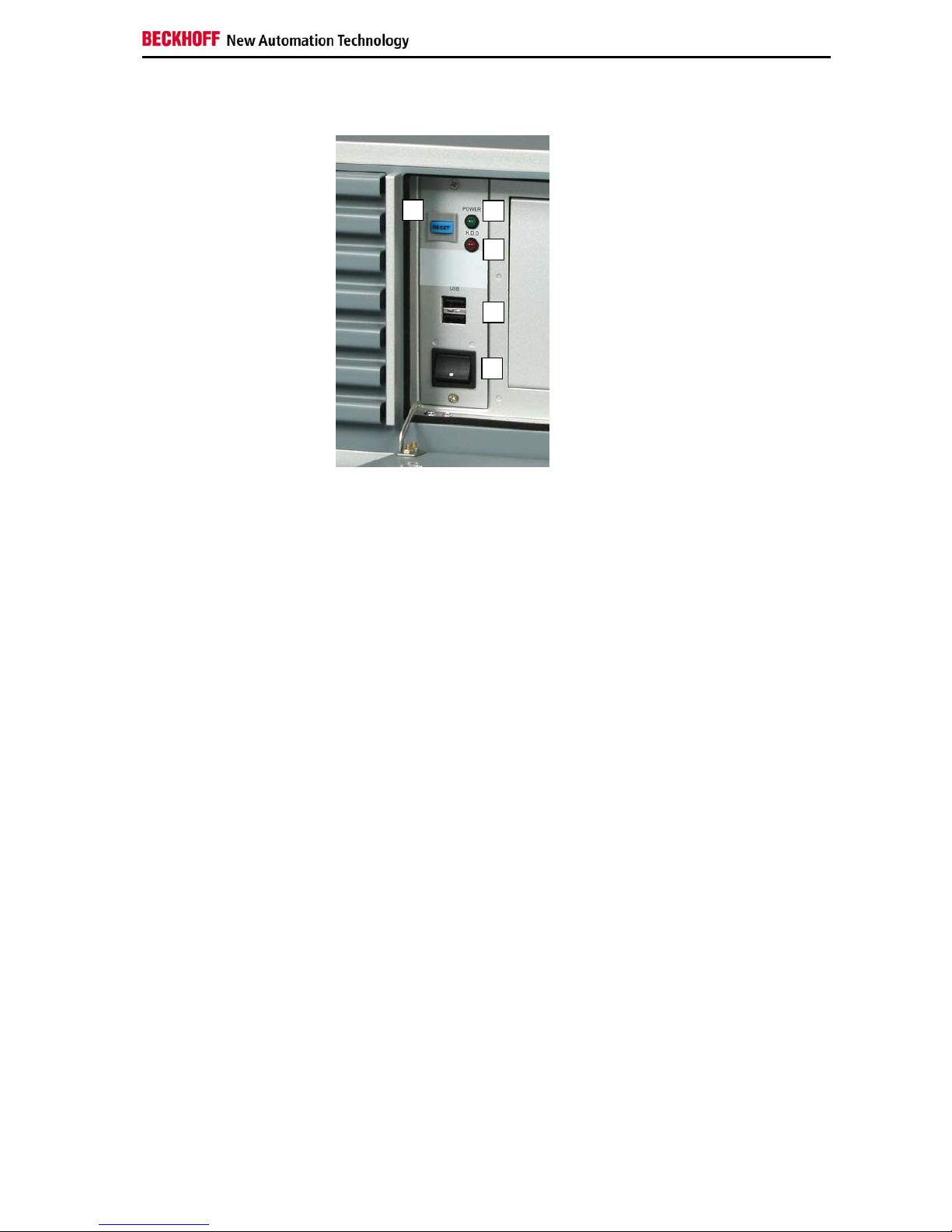

Interfaces behind the front flap 11
Reset pushbutton 11
Keyboard-Lock 11
LEDs 11
USB interfaces 11
Power pushbutton 11
Installation Instructions 12
Transport and Unpacking 12
Transport 12
Unpacking 12
Installation of the PC in the control cabinet 13
Power Supply Connection 14

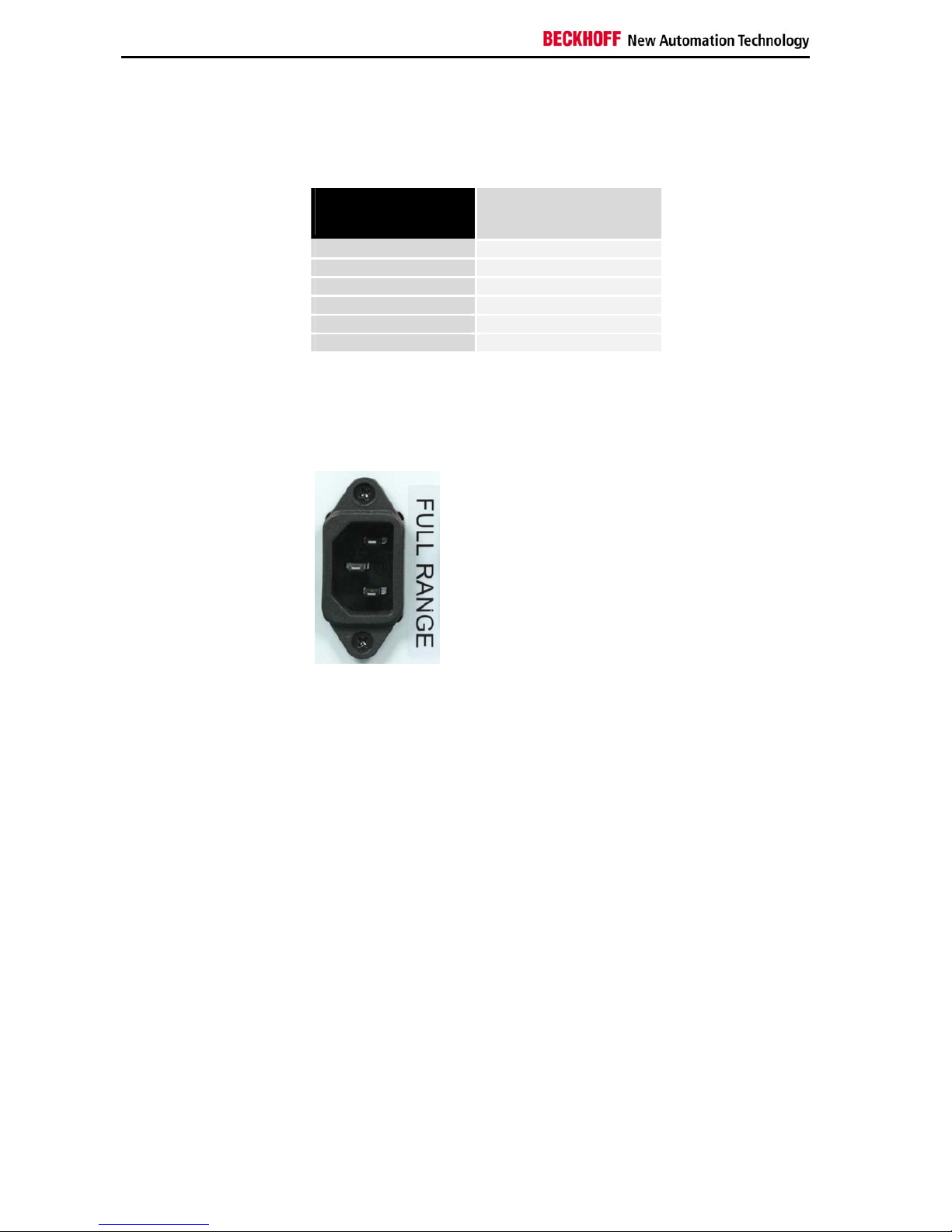

Mains Socket 14
Power supply cords 14
Connecting devices 15
Connecting cables 15
Check voltage rating and connect. 15
Operating Instructions 16
Switching the Industrial PC on and off 16
First switching on and driver installation 16
Servicing and Maintenance 17
Cleaning the Industrial PC 17
Servicing 17
Replacing the battery on the motherboard 17
Changing the filter mat 18
Shutting down 18
Disposal 18
Troubleshooting 19
Fault correction 19
Service and Support 20
Beckhoff's branch offices and representatives 20
Beckhoff headquarters 20
2C5102

Foreword
Beckhoff Support 20
Beckhoff Service 20
6.
7.
Assembly dimensions 21
Appendix 22
Technical data 22
Approvals 22
FCC: Federal Communications Commission Radio Frequency Interference
Statement 22
FCC: Canadian Notice 22
C5102 3

Foreword
Foreword
Notes on the Documentation
This description is only intended for the use of trained specialists in control
and automation engineering who are familiar with the applicable national
standards. It is essential that the following notes and explanations are
followed when installing and commissioning these components.
The responsible staff must ensure that the application or use of the
products described satisfy all the requirements for safety, including all the
relevant laws, regulations, guidelines and standards.
Liability Conditions
The documentation has been prepared with care. The products described
are, however, constantly under development. For that reason the
documentation is not in every case checked for consistency with
performance data, standards or other characteristics. In the event that it
contains technical or editorial errors, we retain the right to make alterations
at any time and without warning. No claims for the modification of products
that have already been supplied may be made on the basis of the data,
diagrams and descriptions in this documentation.
All pictures shown in the documentation are exemplary. Illustrated
configurations can differ from standard.
Trademarks
Beckhoff®, TwinCAT®, EtherCAT®, Safety over EtherCAT®, TwinSAFE®
and XFC®are registered trademarks of and licensed by Beckhoff
Automation GmbH.
Other designations used in this publication may be trademarks whose use
by third parties for their own purposes could violate the rights of the
owners.
Patent Pending
The EtherCAT Technology is covered, including but not limited to the
following patent applications and patents:
EP1590927, EP1789857, DE102004044764, DE102007017835
with corresponding applications or registrations in various other countries.
The TwinCAT Technology is covered, including but not limited to the
following patent applications and patents:
EP0851348, US6167425 with corresponding applications or registrations in
various other countries.
Copyright
© Beckhoff Automation GmbH & Co.KG.
The reproduction, distribution and utilization of this document as well as the
communication of its contents to others without express authorization are
prohibited. Offenders will be held liable for the payment of damages. All
rights reserved in the event of the grant of a patent, utility model or design.
State at Delivery
All the components are supplied in particular hardware and software
configurations appropriate for the application. Modifications to hardware or
software configurations other than those described in the documentation
are not permitted, and nullify the liability of Beckhoff Automation
GmbH & Co.KG.
Delivery conditions
In addition, the general delivery conditions of the company Beckhoff
Automation GmbH & Co.KG apply.
4C5102

Foreword
Description of safety symbols
The following safety symbols are used in this operating manual. They are
intended to alert the reader to the associated safety instructions.
Acute risk of injury!!
DANGER If you do not adhere the safety advise adjoining this symbol, there is
immediate danger to life and health of individuals!
Risk of injury!
WARNING
If you do not adhere the safety advise adjoining this symbol, there is
danger to life and health of individuals!
Hazard to individuals!
CAUTION
If you do not adhere the safety advise adjoining this symbol, there is
obvious hazard to individuals!
Hazard to devices and environment
Attention
If you do not adhere the notice adjoining this symbol, there is obvious
hazard to materials and environment.
Note or pointer
Note
This symbol indicates information that contributes to better understanding.
C5102 5

Foreword
Basic safety measures
Only switch the PC off after
closing the software
Before the Industrial PC is switched off, software that is running must
be properly closed.
Otherwise it is possible that data on the hard disk is lost. Please read the
section Switching the Industrial PC on and off.
Switch off all parts of the equipment, then uncouple the fieldbus
Attention
Before opening the housing of the PC, and whenever the PC is being
used for purposes other than plant control, such as during functional tests
following repair, all parts of the equipment must first be switched off, after
which the Industrial PC can be uncoupled from the plant.
Pulling out the fieldbus connection plug uncouples the PC (optional).
Items of equipment that have been switched off must be secured against
being switched on again.
The Industrial PC’s power supply unit must be supplied with
100 VAC - 240 VAC.
Do not open the power supply unit while voltage is applied!
DANGER
The supply voltage must be switched off before the power supply unit
housing is opened.
Do not exchange any parts when under power
Attention
When components are being fitted or removed, the supply voltage must
be switched off.
Fitting work on the Industrial PC can result in damage:
• if metal objects such as screws or tools fall onto operating circuit
boards.
• if connecting cables internal to the PC are removed or inserted
during operation.
• if plug-in cards are removed or inserted when the PC is switched
on.
6C5102

Foreword
Operator's obligation to exercise diligence
The operator must ensure that
• the Industrial PC is only used for its intended use (see also Product
Description).
• the Industrial PC is in a sound condition and in working order
during operation (see also chapter Servicing and Maintenance).
• the operation manual is in good condition and complete, and
always available for reference at the location of the Industrial PC.
• the Industrial PC is operated, maintained and repaired only by
sufficiently qualified and authorized personnel.
• the personnel is instructed regularly about relevant occupational
safety and environmental protection aspects, and is familiar with
the operating manual and in particular the safety notes contained
herein.
• none of the safety and warning notes attached to the Industrial PC
are removed, and that all notes remain legible.
National regulations
depending on the machine
type
Depending on the type of machine and plant in which the Industrial PC is
being used, there will be national regulations for the control of such
machines and plant that the operator must observe. These regulations
cover, amongst other things, the intervals between inspections of the
controller.
The operator must initiate such inspections in good time.
Only trained persons may open the Industrial PC housing!
Attention
The operator is responsible for ensuring that only trained electrical staff
opens the housing of the Industrial PC.
Procedure in the event of a
fault
In the event of a fault in the Industrial PC, appropriate measures can be
determined with the aid of the list in the Fault correction section.
Operator requirements
Read the operating
instructions
Every user of the Industrial PC must have read these operating
instructions.
Software knowledge Every user must be familiar with any of the functions of the software
installed on the PC that he can reach.
C5102 7

Product Description
Product Description
Appropriate Use
The C5102 Industrial PC has been designed as a rack mount PC for fitting
into 19 inch racks used in machine and plant engineering applications.
Structure
Front view of the C5102
Opening the front flap In order to gain access to the power pushbutton and to the drives, open the
flap on the front with the key provided for the purpose (see photo above).
Rear view of the C5102
Only trained persons may open the Industrial PC housing!
Attention
Before opening the PC housing, the power plug must be drawn.
Fire enclosure!
DANGER
The Industrial PC is equipped with a fire enclosure. Before switching on
the PC, the casing must be closed!
8C5102

Product Description
Opening the housing
In order to open the PC housing, remove the 4 fastening screws at the side
of the housing cover (sea photo Rear view of the C5102) using a cross-
head screwdriver. The cover of the housing can then be lifted up, providing
access to the hard drive, processor, memory and plug-in cards, sea
following photographer.
Removing the card holder
Remove the 2 fastening screws of the card holder (see arrows) using a
cross-head screwdriver. The holder can then be lifted up.
View of the open PC
The standard ATX Motherboard (1) with six slots for plug-in cards (2) is
located under the housing cover.
The power supply unit (3), the hard drive and the CD/ DVD-drives (4) are
easily accessible.
The connections to the outside are located at the rear of the housing (5)
and behind the front flap.
5
2 3
1
4
C5102 9

Product Description
Interfaces from C5102-0060
ATX motherboard
interfaces
PS/2 connections
PS/2 The upper PS/2 connector (X104) allows a PS/2 mouse to be used, while a
PC keyboard can be connected to the lower PS/2 connector (X103).
Serial interfaces
RS 232
COM1 - COM2
The basic version of the Industrial PC has two serial interfaces,
COM1 (X105) and COM2, using the type RS 232, which are each brought
to a 9 pin SUB-D plug connector. The interface COM2 is located in the
upper part of the first slot right beside the ATX-slot.
USB interfaces
USB1 – USB4 The four USB interfaces (X108 –X111) are used to connect peripheral
devices with USB connections:
 Devices with Intel®4th generation processors (C33xx-0060) are
equipped with 2 USB2.0 (X110, X111) and 2 USB3.0 (X108, X109)
interfaces
 Devices with Intel®6th and 7th generation processors (C33xx-0070) are
equipped with 4 USB3.0 interfaces.
Two more USB interfaces are located behind the front flap.
USB2.0 standard is supported.
Network connection
LAN1 The RJ-45 connector (X112) allows the PC to be connected to a
10/100/1000BASE-T Local Area Network (LAN).
LAN2 The RJ-45 connector (X113) allows the PC to be connected to a
10/100/1000BASE-T Local Area Network (LAN).
Sound-On-Board
Sound The Industrial PC has a on-board-interface with the following connectors:
Line In (X116), Line Out (X115) and Microphone jack (X114).
DVI-D (Digital Visual Interface)
DVI-D out The DVI connectors (X117, X118) are used for transferring the video
signal. DVI-D standard is supported.
DisplayPort
DisplayPort The DisplayPort (X119) is used for transferring the video signal.
X116
X105
X104 X117
X115
X112 X113
X103 X118 X109 X111 X114
X119
X108 X110
Additional plug-in cards (optional)
Type plate There is a type plate on the top of the Industrial PC which provides
information about the hardware configuration of the Industrial PC at the
time it was supplied.
10 C5102

Product Description
Interfaces behind the front flap
Interfaces behind the
front flap
Reset pushbutton
Reset-pushbutton The reset pushbutton (1) allows to reboot the PC.
Keyboard-Lock
Keyboard-Lock The pushbutton KB-LK (2) locks the keyboard.
LEDs
Power The LED Power (3) indicates correct power supply.
HDD The LED HDD (4) indicates HDD access.
KB-LK The LED KB-LK (5) indicates a locked keyboard.
USB interfaces
USB4 – USB5 The two USB interfaces (6) are used to connect peripheral devices with
USB connections.
USB2.0 standard is supported.
Power pushbutton
Power pushbutton The Industrial PC is switched on via the power pushbutton (7).
1
2
3
4
5
9
C5102 11

Installation Instructions
Installation Instructions
Please also refer to chapter Foreword.
Transport and Unpacking
The specified storage conditions must be observed (see chapter Technical
data).
Transport
Despite the robust design of the unit, the components are sensitive to
strong vibrations and impacts. During transport, your Industrial PC should
therefore be protected from excessive mechanical stress. Therefore,
please use the original packaging.
Danger of damage to the unit
Attention
If the device is transported in cold weather or is exposed to extreme
variations in temperature, make sure that moisture (condensation) does
not form on or inside the device.
Prior to operation, the unit must be allowed to slowly adjust to room
temperature. Should condensation occur, a delay time of approximately
12 hours must be allowed before the unit is switched on.
Unpacking
Proceed as follows to unpack the unit:
1.Remove packaging.
2.Do not discard the original packaging. Keep it for future relocation.
3.Check the delivery for completeness by comparing it with your order.
4.Please keep the associated paperwork. It contains important
information for handling the unit.
5.Check the contents for visible shipping damage.
6.If you notice any shipping damage or inconsistencies between the
contents and your order, you should notify Beckhoff Service.
12 C5102

Installation Instructions
Installation of the PC in the control cabinet
The C5102 Industrial PC is designed for rack mounting in machine and
plant engineering applications.
The ambient conditions specified for operation must be observed (see
chapter Technical data).
Preparation of the control
cabinet
Four holes for the fixing bolts have to be provided in the control cabinet
according to the dimensions of the PC (see chapter Assembly dimensions).
Circulation of air
Note
When the unit is installed in an enclosure, adequate space for ventilation
and for opening the PC must be provided.
The clearance above and below the housing must be at least 5 cm in
order to ensure adequate ventilation of the PC.
Avoid extreme environmental conditions
Attention
Extreme environmental conditions should be avoided as far as possible.
Protect the PC from dust, moisture and heat.
The ventilation slots of the PC must not be covered.
C5102 13

Installation Instructions
Power Supply Connection
Supplied mains power unit The Industrial PC is fitted with a 100-240 V/ 3 A max., 50-60 Hz full range
power supply unit (with the option of an uninterruptible power supply UPS).
Current carrying capacity
of the 100-240 V power
supply unit
Output voltages from
the 100-240 V power
supply unit
Current loading
maximum
+3,3 V 13 A
+5 V stand by 2 A
+5 V 13 A
-5 V 0,3 A
+12 V 6 A
-12 V 0,8 A
Mains Socket
A mains socket is located at the rear of the PC housing in order to connect
the power supply.
Socket at the PC housing
Power supply cords
Power cords Europe In the area Europe you use the provided cable with inlet connector for non-
heating apparatus to connect the Industrial-PC to the power supply.
Power cords USA / Canada In the area USA / Canada the power supply cable must show the following
specifications according to the supply voltage:
Listed, Detachable, maximum 4.5 m (14.76 ft.) long; rated minimum 125 V,
10 A, Type SJT or Type SVT; one end terminates in NEMA 5-15P/-20P
grounding-type attachment plug, other end in appliance coupler
or
Listed, Detachable, maximum 4.5 m (14.76 ft.) long; rated minimum 250 V,
10 A, Type SJT or Type SVT; one end terminates in NEMA 6-15P/-20P
grounding-type attachment plug, other end in appliance coupler.
14 C5102

Installation Instructions
Connecting devices
Power supply plug
Attention
The power supply plug must be withdrawn!
Please read the documentation for the external devices prior to
connecting them.
During thunderstorms, plug connector must neither be inserted nor
removed.
When disconnecting a plug connector, always handle it at the plug. Do not
pull the cable!
Connecting cables
The connections are located at the top of the Industrial PC and are
documented in the product description chapter.
When connecting the cables to the Industrial PC, proceed according to the
following sequence:
• Switch off all the devices that are to be connected.
• Disconnect all the devices that are to be connected from the power
supply.
• Connect all the cables between the Industrial PC and to the
devices that are to be connected.
• Connect all data transfer cables (if present) to the appropriate
plug-in receptacles of the data/telecommunication networks.
• Reconnect all devices to the power supply.
Check voltage rating and connect.
1. Check that the mains voltage is correct.
2. Insert the provided power supply cable into the Industrial PC's
power supply socket. Then connect it to a power socket with a
grounded earth connection.
C5102 15

Operating Instructions
Operating Instructions
Please also refer to chapter Foreword.
Switching the Industrial PC on and off
Switch on The Industrial PC is switched on with the power pushbutton behind the
front flap.
Shutting down and
switching off
The Industrial PC is switched off when either of these switches is off.
Control software such as is typically used on Industrial PCs permits various
users to be given different rights. A user who may not close software may
also not switch the Industrial PC off, since data can be lost from the hard
disk by switching off while software is running.
First shut down, then switch off the PC
Attention
If the Industrial PC is switched off as the software is writing a file to the
hard disk, the file will be destroyed. Control software typically writes
something to the hard disk every few seconds, so that the probability of
causing damage by switching off while the software is running is very
high.
Switch off power supply
Attention
When you have shut down the Industrial PC, you have to switch off power
supply for at least 10 seconds before rebooting the system.
After resetting power supply the PC will start booting automatically.
First switching on and driver installation
When you switch on the Industrial PC for the first time, the pre-installed
operating system (optional) will be started. In this case, all the required
drivers for any additional, optional hardware components ordered with the
PC will already have been installed.
If the PC was ordered without operating system, you have to install the
operating system and the driver software for any auxiliary hardware
yourself. Please follow the instructions in the documentation for the
operating system and the additional devices.
16 C5102

Operating Instructions
Servicing and Maintenance
Please also refer to chapter Foreword.
Cleaning the Industrial PC
Disconnect from power supply
Attention
Switch off the Industrial PC and all connected devices, and disconnect the
Industrial PC from the power supply.
The Industrial PC can be cleaned with a soft, damp cloth. Do not use any
aggressive cleaning materials, thinners, scouring material or hard objects
that could cause scratches.
Servicing
The Industrial PC requires no maintenance.
Replacing the battery on the motherboard
A used battery on the motherboard has to be replaced.
Danger of Explosion!
WARNING
Replace battery only with the identical type or an alternative type
recommended by the manufacturer. Notice correct polarity!
Handling of Lithium Batteries
WARNING
Lithium Batteries should not be recharged, exposed to fire, opened and
they should be protected against sunlight and moisture.
The used battery must be disposed of in accordance with national
electronics scrap regulations.
C5102 17

Operating Instructions
Changing the filter mat
If the Industrial PC is used in an environment where the air is particularly
dirty, the fan's filter mat should be examined at regular intervals to see how
dirty it is, and should be exchanged, if necessary, for an original Beckhoff
filter mat (item number C9900-Z213, filter mat for C510x, 10 per pack).
Please also refer to chapter Changing the filter mat.
Front view showing the filter
drawer
Access to the filter mat Access to the filter mat is obtained behind the front flap. This must be
opened with its key. The filter drawer (1) can then be pulled out towards
the right using the retention tongue (2).
After the mat (3) has been changed the filter is refitted in the reverse
sequence.
1
3
2
Shutting down
Disposal
Dismantling the Industrial
PC
Observe national
electronics scrap
regulations
The device must be fully dismantled in order to dispose of it. The housing
can be sent for metal recycling.
Electronic parts such as disk drives and circuit boards must be disposed of
in accordance with national electronics scrap regulations.
18 C5102

Troubleshooting
Troubleshooting
Please also refer to chapter Foreword.
Fault correction
Fault Cause Procedure
Nothing happens after the Industrial
PC has been switched on
No power supply to the Industrial
PC
Other cause
Check power supply cable
Call Beckhoff Service
The Industrial PC does not boot
fully
CD in drive
Setup settings are incorrect
Other cause
Remove CD and press any
key
Check the setup settings
Call Beckhoff Service
Computer boots, software starts,
but control does not operate
correctly
Cause of the fault is either in the
software or in parts of the plant
outside the Industrial PC
Call the manufacturer of the
machine or the software
Memory device access error Faulty CD
Faulty device
Check the disk in another
disk drive
Call Beckhoff Service
The Industrial PC functions only
partially or only part of the time, e.g.
no or dark picture, but disk drive
responds when switching on
Defective components in the
Industrial PC
Call Beckhoff Service
C5102 19

Service and Support
Beckhoff and their partners around the world offer comprehensive service
and support, making available fast and competent assistance with all
questions related to Beckhoff products and system solutions.
Beckhoff's branch offices and representatives
Please contact your Beckhoff branch office or representative for local
support and service on Beckhoff products!
The addresses of Beckhoff's branch offices and representatives round the
world can be found on her internet pages:
http://www.beckhoff.com
You will also find further documentation for Beckhoff components there.
Beckhoff headquarters
Beckhoff Automation GmbH & Co. KG
Huelshorstweg 20
D-33415 Verl
Germany
Phone: [phone]
Fax: [phone]
e-mail: [email protected]
Beckhoff Support
Support offers you comprehensive technical assistance, helping you no
only with the application of individual Beckhoff products, but also with
other, wide-ranging services:
• world-wide support
• design, programming and commissioning of complex automation
systems
• and extensive training program for Beckhoff system components
Hotline: [phone]
Fax: [phone]
e-mail: [email protected]
Beckhoff Service
The Beckhoff Service Center supports you in all matters of after-sales
service:
• on-site service
• repair service
• spare parts service
• hotline service
Hotline: [phone]
Fax: [phone]
e-mail: [email protected]
Quote the project number If servicing is required, please quote the project number of your Industrial
PC.
20 C5102
