Beckhoff C6240 User manual

Operating instructions for
Control Cabinet PC C6240
Version: 1.0
Last Change: 02.01.2002

Eiserstraße 5 / D-33415 Verl / Telefon [phone] / Telefax 05246/963-149
C6240 Contents 2
C6240
Contents
1. General safety instructions 3
Description of safety symbols 3
Basic safety measures 3
Operator's obligation to exercise diligence 4
Operator requirements 4
2. Product description 5
Appropriate Use 5
Structure 5
Connections 7
Power supply 7
Fitting the Power Supply Cable 8
PS/2 Connections 10
USB Interfaces 10
Parallel interface 10
Serial interfaces 10
Video connection 10
Additional plug-in cards (optional) 10
Technical data 11
3. Transport 12
Dimensions and weight 12
Installation and transport 12
Unpacking 12
Installation 12
Shipping and relocation 12
4. Start-up and operation 13
Connecting devices 13
Connecting cables 13
Check voltage rating and connect. 13
Switching the PC on and off 14
First switching on and driver installation 14
5. Troubleshooting 15
Possible faults and their correction 15
6. Maintenance 16
Cleaning the PC 16
Servicing 16
7. Shutting down 17
Disposal 17
8. Approvals 18
FCC: Federal Communications Commission 18
FCC: Canadian Notice 18

Eiserstraße 5 / D-33415 Verl / Telefon [phone] / Telefax 05246/963-149
3 C6240 General safety instructions
C6240
General safety instructions
Description of safety symbols
The following safety symbols are used in this operating manual. They are
intended to alert the reader to the associated safety instructions.
Danger
This symbol is intended to highlight risks for the life or health of
personnel.
Warning
This symbol is intended to highlight risks for equipment, materials or
the environment.
i
Note
This symbol highlights information which aids better understanding
of the operation of the Industrial PC.
Basic safety measures
Only switch the PC off after
closing the software
Before the Industrial PC is switched off, software that is running must
be properly closed.
Otherwise it is possible that data on the hard disk is lost. Please read the
section on “Switching off”.
Warning
Switch off all parts of the equipment, then uncouple the fieldbus!
Before opening the housing of the PC, and whenever the PC is being used
for purposes other than plant control, such as during functional tests
following repair, all parts of the equipment must first be switched off, after
which the Industrial PC can be uncoupled from the plant.
Pulling out the fieldbus connection plug uncouples the PC (optional).
Items of equipment that have been switched off must be secured against
being switched on again.
The Industrial PC’s power supply unit must be supplied with 100-240 V AC
or 24 V DC (optional).
Danger
Do not open the power supply unit while voltage is applied!
The supply voltage must be switched off before the power supply unit
housing is opened.
Do not exchange any parts when under power !
When components are being fitted or removed, the supply voltage must be
switched off.
Fitting work on the PC can result in damage:
· if metal objects such as screws or tools fall onto operating circuit
boards.
· if connecting cables internal to the PC are removed or inserted
during operation.
· if plug-in cards are removed or inserted when the PC is switched on.

Eiserstraße 5 / D-33415 Verl / Telefon [phone] / Telefax 05246/963-149
C6240 General safety instructions 4
C6240
Operator's obligation to exercise diligence
The operator must ensure that
· the Industrial PC is only used for its intended use (see also product
description chapter).
· the Industrial PC is in a sound condition and in working order during
operation.
· the operation manual is in good condition and complete, and always
available for reference at the location of the Industrial PC.
· the Industrial PC is operated, maintained and repaired only by
sufficiently qualified and authorised personnel.
· the personnel is instructed regularly about relevant occupational
safety and environmental protection aspects, and is familiar with the
operating manual and in particular the safety notes contained herein.
· none of the safety and warning notes attached to the Industrial PC
are removed, and that all notes remain legible.
National regulations
depending on the machine
type
Depending on the type of machine and plant in which the Industrial PC is
being used, there will be national regulations for the control of such
machines and plant that the operator must observe. These regulations
cover, amongst other things, the intervals between inspections of the
controller.
The operator must initiate such inspections in good time.
Warning
Only trained personnel may open the PC’s!
The operator is responsible for ensuring that only trained electrical staff
opens the housing of the Industrial PC.
Mandatory software knowledge!
Every user must be familiar with any of the functions of the software
installed on the PC that he can reach.
Procedure in the event of a
fault
In the event of a fault in the Industrial PC, appropriate measures can be
determined with the aid of the list in the “Faults” section.
Service numbers The BECKHOFF Service number:
for Germany: 05246/963-460
International: +49-5246/963-460
for North America: [phone]
Operator requirements
Read the operating
instructions
Every user of the Industrial PC must have read these operating
instructions.
Software knowledge Every user must be familiar with any of the functions of the software
installed on the PC that he can reach.

Eiserstraße 5 / D-33415 Verl / Telefon [phone] / Telefax 05246/963-149
5C6240 Product description
C6240
Product description
Appropriate Use
The C6240 Industrial PC is designed for the installation in control cabinet
walls in machine and plant engineering applications.
Structure

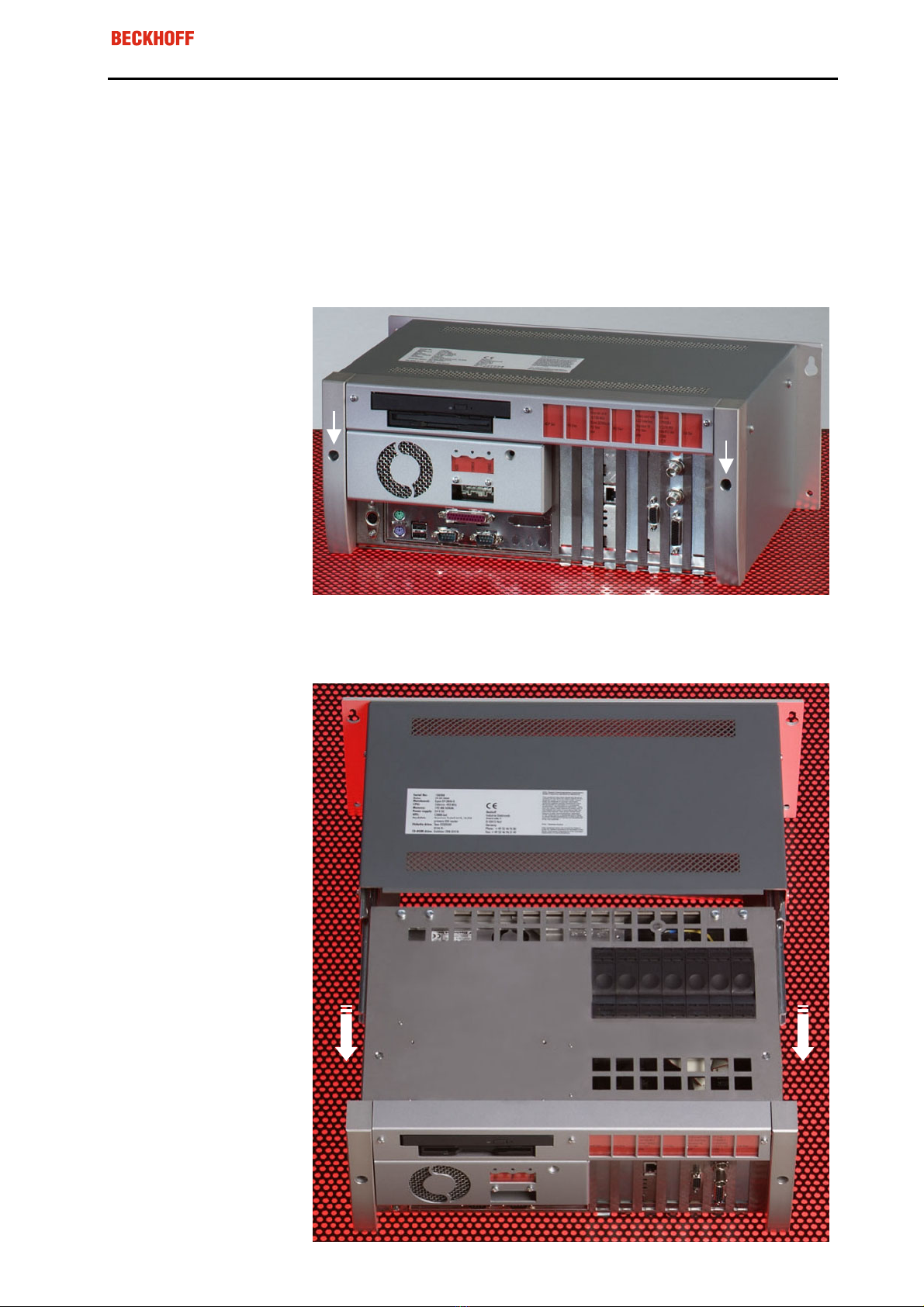

Front view of the C6240
(Similar photograph)
Opening the housing To open the PC housing, initially rotate the two fast closing screws (see
photograph above) by 90 degrees in either direction using a screwdriver.
The inner chassis can now be pulled out on telescopic guide supports (see
photograph below).
Removable
inner chassis

Eiserstraße 5 / D-33415 Verl / Telefon [phone] / Telefax 05246/963-149
C6240 Product description 6
C6240

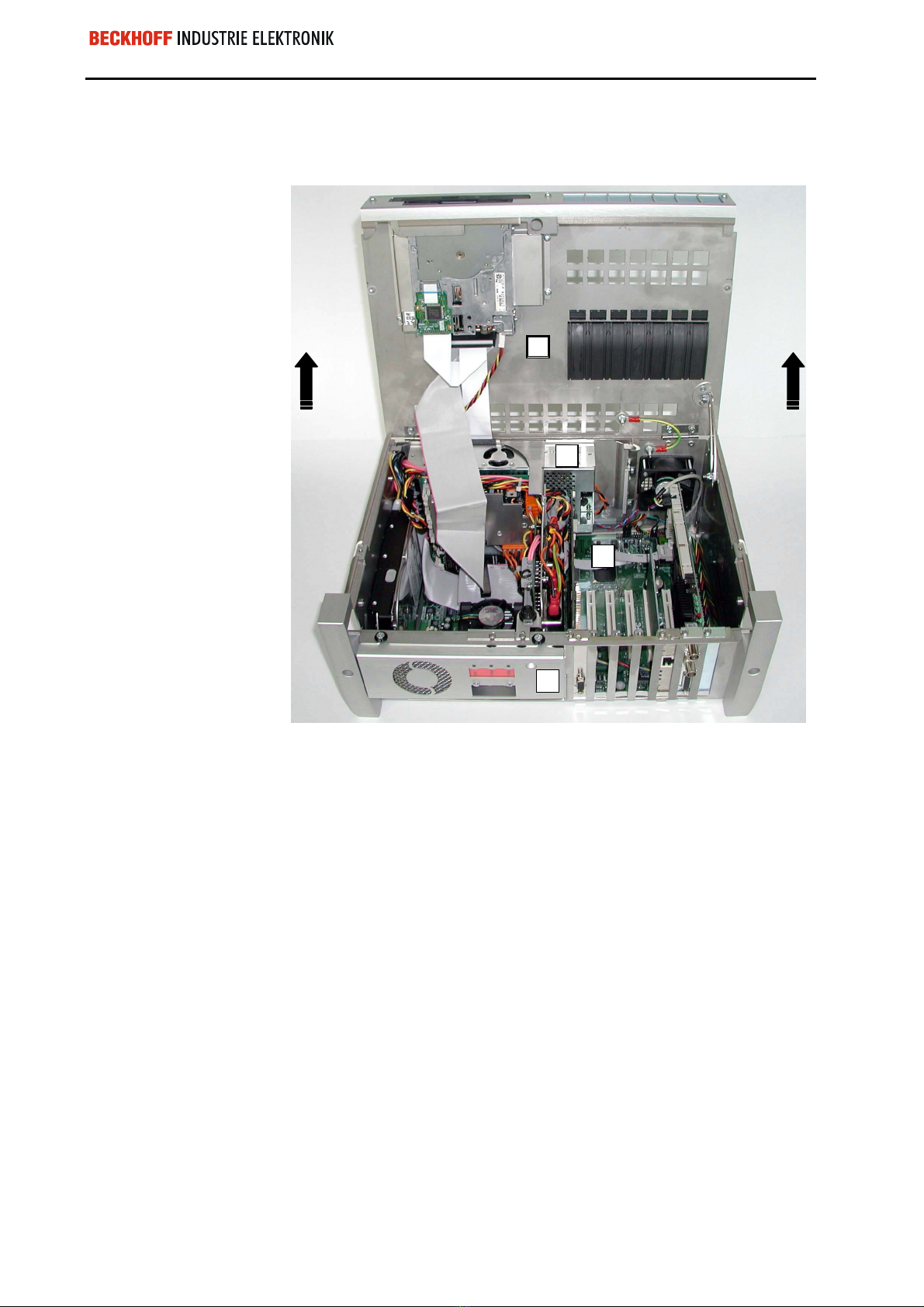

The upper housing cover (1) can now be tilted upwards (see photograph
below), thus providing access to the disk drive, the 3 ½ inch hard disk, the
processor, the memory and the plug-in cards.
View of the open PC
Under the housing cover (1) is a 7 slot computer core with standard ATX
motherboard (2) and power supply unit (3). The connections are located at
the front of the housing (4).
1
2
3
4

Eiserstraße 5 / D-33415 Verl / Telefon [phone] / Telefax 05246/963-149
7C6240 Product description
C6240
Connections
Power supply
The 5-pin CAGE CLAMP plug connector and mounting flange illustrated is
located on the PC housing in order to connect the power supply.
The socket at the PC
housing
Technical data Connecting socket
Number of contacts 5
Contact spacing [mm] 5
Minimum conductor cross-section
[mm²]
1.5
Minimum conductor cross-section
[AWG]
16
Rated voltage EN [V] 250
Rated voltage CSA [V] 300
Current EN [A] 12
Current CSA [A] 15
Length of stripped conductor [mm] 8-9
Supplied mains power unit The Industrial PCs is either fitted with a 100-240 V, 50/-60 Hz power supply
unit (standard) or with a 24 V DC power supply unit (optionally with UPS).
Current carrying capacity
of the 100-240 V power
supply unit
Output voltages from
the 100-240 V power
supply unit
Current carrying
maximum
+3,3 V 16 A
+5 V standby 2 A
+5 V 25 A
-5 V 0.3 A
+12 V 13 A
-12 V 0.8 A
Current carrying capacity
of the 24 V power supply
unit
Output voltages from
the 24 V power supply
unit
Current carrying
maximum
+5 V 25 A
-5 V 1 A
+12 V 10 A
-12 V 1.5 A

Eiserstraße 5 / D-33415 Verl / Telefon [phone] / Telefax 05246/963-149
C6240 Product description 8
C6240
Coding pieces
The connectors are coded differently at the factory, using snap-on coding
pieces, according to the power supply unit that has been fitted.
Differently coded plug
connectors
Coding for the 100-240 V, 50-60 Hz
power supply unit
Coding for the 24 V DC power
supply unit
Fitting the Power Supply Cable
A 5-pin female plug connector with CAGE CLAMP connection and insertion
catches is supplied along with a snap-on strain relief housing in order to
assemble the PC power supply cable.
Materials for assembly of
the connector
Female plug connector
Strain relief housing
Female plug connector is
correspondingly coded
This female plug connector is also coded at the factory, according to the
type of power supply fitted, so that the plug, when assembled, will fit the
PC's connecting socket.
A
B
C
D

Eiserstraße 5 / D-33415 Verl / Telefon [phone] / Telefax 05246/963-149
9C6240 Product description
C6240
Technical data Female plug connector
Number of contacts 5
Contact spacing [mm] 5
Minimum conductor cross-section
[mm²]
1.5
Minimum conductor cross-section
[AWG]
16
Rated voltage EN [V] 250
Rated voltage CSA [V] 300
Current EN [A] 16
Current CSA [A] 15
Length of stripped conductor [mm] 8-9
Pin assignment and cable requirements
Pin assignment There is an adhesive label with the pin assignments on the top of the
female plug connector. The minimum permitted conductive cross-
section is 1.5 mm², fused for 10 A (AWG 16).
Industrial PCs with 100-240 V, 50-60 Hz power supply unit
Pin Function
1 Power supply N
2 Power supply L
3 Protective conductor, PE
4 not used
5 not used
Pin assignment for the 100-
240 V, 50-60 Hz power
supply unit
Industrial PCs with 24 V DC power supply unit (optionally with UPS)
Pin Function
1 Power supply +24 V
2 Power supply GND
3 Protective conductor
4 Battery +24 V (only on UPS
option)
5 Battery GND (only on UPS
option)
Pin assignment for the 24 V
DC power supply unit
When fitted with UPS If the conductor cross-section is 1.5 mm² (AWG 16) the UPS cable may
not be longer than 4 m, or 8 m if the cross-section is 2.5 mm² (AWG 13)!
Fitting the connector to the
cable
The plug is fitted to the cable as follows:
1. Strip insulation from the cable ends. Follow the technical data for the
female plug connector in the above table!
2. Push the conductors into their mountings, simply by pushing them in as
indicated on the pin assignment label.
3. Push the lower part (part A) of the strain relief housing (see
photograph on page ...) onto the top of the female plug connector until
it snaps into place.
4. Relieve the strain on the supply cable by fixing it in place with the cable
clamp (part C) and fixing screws (part D) (see photograph below).
Applying the strain relief
54321
54321

Eiserstraße 5 / D-33415 Verl / Telefon [phone] / Telefax 05246/963-149
C6240 Product description 10
C6240
5. Fix the upper part (part B) of the strain relief housing by snapping it
onto the lower part.

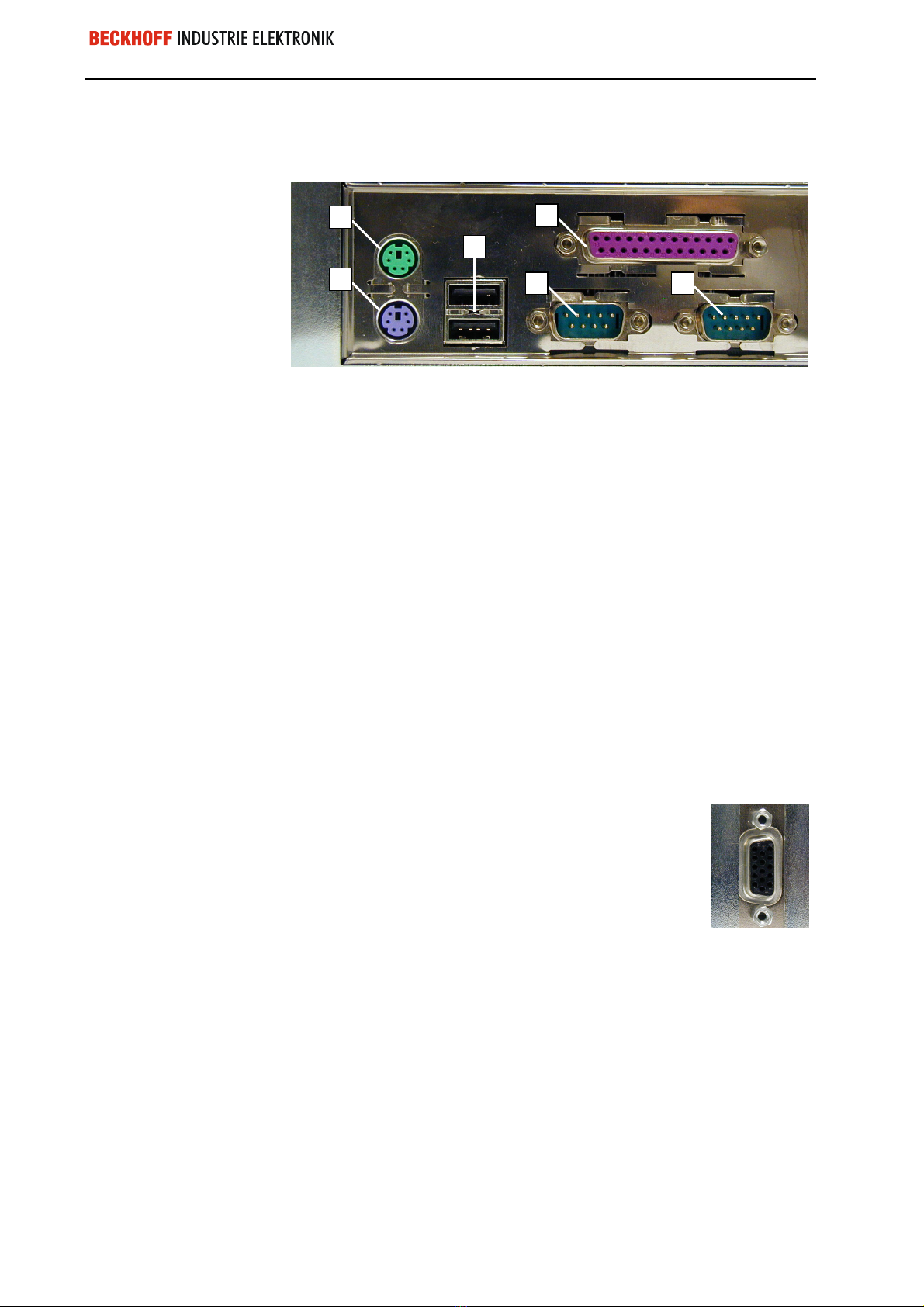

ATX motherboard
interfaces
PS/2 Connections
PS/2 The upper PS/2 connector (1) allows a PS/2 mouse to be used, while a PC
keyboard can be connected to the lower PS/2 connector (2).
USB Interfaces
USB1 – USB2 Both USB interfaces (3) provide for the connection of any peripheral
devices with USB connections.
Parallel interface
Printer
LPT1
The parallel interface (4) corresponds to the Centronics standard, and is
addressed by the software as LPT1.
Serial interfaces
RS 232
COM1 - COM2
The basic version of the C6240 Industrial PC has two serial interfaces,
COM1 (5) and COM2 (6), using the type RS 232, which are brought to a 9
pin SUB-D plug connector.
Interface COM 2 is assigned to the optional touch screen.
Video connection
Video A 15-pin SUB-D socket connector allows a VGA monitor to
be connected.
Additional plug-in cards (optional)
Type plate There is a type plate on the rear of the PC which provides information
about the hardware configuration of the PC at the time it was supplied.
1
2
3
4
5 6

Eiserstraße 5 / D-33415 Verl / Telefon [phone] / Telefax 05246/963-149
11 C6240 Product description
C6240
Technical data
Dimensions Dimensions (W x H x D): 470 x 202 x 270 mm
Weight: 12.3 kg
(basic configuration)
Do not use the PC in areas
of explosive hazard
The Industrial PC may not be used in areas of explosive hazard.
The following technical specifications must be observed during
operation:
Environmental conditions Ambient temperature: 0 to 55 °C
Atmospheric humidity: Maximum 95%, non-condensing
Shock resistance Housing & chassis: Vibrations 5 G at 10..55 Hz
Impact resistance 30 G
Disk drive: Vibrations 0.5 G at 5..500 Hz
Impact resistance 5 G
Hard disk: Vibrations 0.5 G at 17..500 Hz
Impact resistance 10 G
Protection class: IP20
Power supply
100-240 V AC mains power
supply unit
Supply voltage: 100-240 V 50-60 Hz
Power consumption: 65 W for the basic version
Power supply
24 V DC power supply
(optional)
Supply voltage: 24 V DC
Power consumption: 65 W for the basic version
Compatibility Resistance to interference: according to EN 50082-2
FCC Class A
Transport and storage The same values for atmospheric humidity and shock resistance are to be
observed during transport and storage as in operation. The shock
resistance during transport can be improved by means of suitably packing
the Industrial PC. The ambient temperature during storage and transport
must be between -20°C and +65°C.

Eiserstraße 5 / D-33415 Verl / Telefon [phone] / Telefax 05246/963-149
C6240 Transport 12
C6240
Transport
The specified storage conditions must be observed (see chapter "Technical
data ").
Dimensions and weight
Dimensions Dimensions (W x H x D): 430 x 202 x 270 mm
Weight: 12.3 kg
(basic configuration)
Installation and transport
Unpacking
Proceed as follows to unpack the unit:
1.Remove packaging.
2.Do not discard the original packaging. Keep it for future relocation.
3.Check the delivery for completeness by comparing it with your order.
4.Please keep the associated paperwork. It contains important
information for handling the unit.
5.Check the contents for visible shipping damage.
6.If you notice any shipping damage or inconsistencies between the
contents and your order, you should notify Beckhoff Service.
Warning
Danger of damage to the unit!
During transport in cold conditions, or if the unit is subjected to extreme
temperature swings, condensation on and inside the unit must be avoided.
Prior to operation, the unit must be allowed to slowly adjust to room
temperature. Should condensation occur, a delay time of approximately 12
hours must be allowed before the unit is switched on.
Installation
The units are designed for installation in control cabinets.
You will find installation instructions on the following pages.
Shipping and relocation
Despite the robust design of the unit, the components are sensitive to
strong vibrations and impacts. During transport, your computer should
therefore be protected from excessive mechanical stress. Therefore,
please use the original packaging.

Eiserstraße 5 / D-33415 Verl / Telefon [phone] / Telefax 05246/963-149
13 C6240 Start-up and operation
C6240
Start-up and operation
Please also refer to chapter "General safety instructions".
Connecting devices
Warning
The power supply plug must be withdrawn!
Please read the documentation for the external devices prior to connecting
them.
During thunderstorms, plug connector must neither be inserted nor
removed.
When disconnecting a plug connector, always handle it at the plug. Do not
pull the cable!
Connecting cables
The connections are located at the top of the PC and are documented in
the product description chapter.
When connecting cables, please adhere to the following order:
· Switch off all affected devices.
· Disconnect the power supply to the devices.
· Plug in all connectors on the PC and on the peripheral equipment.
· Connect all data transfer cables (if present) to the appropriate plug-in
receptacles of the data/telecommunication networks.
· Reconnect all devices to the power supply.
Check voltage rating and connect.
With Standard ATX power supply 100-240 V 56/60 Hz:
1. Check that the mains voltage is correct.
2. Insert the power supply cable that you have assembled (see the
section on "Fitting the Power Supply Cable") into the PC's power
supply socket. Then connect it to a power socket with a grounded earth
connection.
24 V DC power supply (optional):
1. Check that the external power supply is providing the correct voltage.
2. Insert the power supply cable that you have assembled (see the
section on "Fitting the Power Supply Cable") into the PC's power
supply socket. Then connect it to your external 24 V power supply.

Eiserstraße 5 / D-33415 Verl / Telefon [phone] / Telefax 05246/963-149
C6240 Start-up and operation 14
C6240
Switching the PC on and off
Switching on The Industrial PC does not have its own mains switch. When the plant is
switched on, or when it is connected to its power supply, the Industrial PC
will start up.
Switching off When the plant is switched off, or when it is disconnected from its power
supply, the Industrial PC will be switched off.
Control software such as is typically used on Industrial PCs permits various
users to be given different rights. A user who may not close software may
also not switch the Industrial PC off, since data can be lost from the hard
disk by switching off while software is running.
If the Industrial PC is switched off as the software is writing a file to the
hard disk, the file will be destroyed. Control software typically writes
something to the hard disk every few seconds, so that the probability of
causing damage by switching off while the software is running is very high.
First switching on and driver installation
When you switch on the PC for the first time, the pre-installed operating
system (optional) will be started. In this case, all the required drivers for
any additional, optional hardware components ordered with the PC will
already have been installed.
If the PC was ordered without operating system, you have to install the
operating system and the driver software for any auxiliary hardware
yourself. Please follow the instructions in the documentation for the
operating system and the additional devices.

Eiserstraße 5 / D-33415 Verl / Telefon [phone] / Telefax 05246/963-149
15 C6240 Troubleshooting
C6240
Troubleshooting
Please also refer to chapter "General safety instructions".
Possible faults and their correction
Quote the project number If servicing is required, please quote the project number of your PC.
Service numbers The BECKHOFF Service number:
for Germany: 05246/963-460
International: +49-5246/963-460
for North America: [phone]
Fault Cause Procedure
Nothing happens after the Industrial
PC has been switched on
No power supply to the Industrial
PC.
Other cause.
1.Check fuse
2.Measure voltage at
connection, check plug
wiring.
Call Beckhoff Service.
The Industrial PC does not boot
fully
Floppy disk in drive.
Hard disk damaged (e.g. by
switching off while software
running).
Incorrect setup.
Other cause.
Remove floppy disk and
press any key
1. Boot with boot diskette.
2. Start SCANDISK.
Check setup.
Call Beckhoff Service.
Computer boots, software starts,
but control does not operate
correctly
Cause of the fault is either in the
software or in parts of the plant
outside the Industrial PC.
Call the manufacturer of the
machine or the software.
Error during floppy disk access Faulty floppy disk.
Faulty disk drive.
Check the disk in another
disk drive.
Call Beckhoff Service.
The Industrial PC functions only
partially or only part of the time, e.g.
no or dark picture, but disk drive
responds when switching on
Defective components in the
Industrial PC
Call Beckhoff Service.

Eiserstraße 5 / D-33415 Verl / Telefon [phone] / Telefax 05246/963-149
C6240 Maintenance 16
C6240
Maintenance
Please also refer to chapter "General safety instructions".
Cleaning the PC
Danger
Switch off the PC and all connected devices, and disconnect the PC from
the power supply.
The front of the Industrial PC can be cleaned with a soft, damp cloth. Do
not use any aggressive cleaning materials, thinners, scouring material or
hard objects that could cause scratches.
Servicing
The PC is maintenance-free.

Eiserstraße 5 / D-33415 Verl / Telefon [phone] / Telefax 05246/963-149
17 C6240 Shutting down
C6240
Shutting down
Disposal
Dismantling the Industrial
PC
Observe national
electronics scrap
regulations
The device must be fully dismantled in order to dispose of it. The housing
can be sent for metal recycling.
Electronic parts such as disk drives and circuit boards must be disposed of
in accordance with national electronics scrap regulations.

Eiserstraße 5 / D-33415 Verl / Telefon [phone] / Telefax 05246/963-149
C6240 Approvals 18
C6240
Approvals
FCC: Federal Communications
Commission
Radio Frequency Interference Statement
FCC Approval for USA This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own
expense.
FCC: Canadian Notice
FCC Approval for Canada This equipment does not exceed the Class A limits for radiated emissions
as described in the Radio Interference Regulations of the Canadian
Department of Communications.
