BEFCO®
Operator’s Manual
HAY EQUIPMENT
Hay Rakes
RS2-04R, RS2-05R, RS2-06R
RS2-04L, RS2-05L, RS2-06L
The operator’s manual is a technical service guide and must always accompany the machine.
Manual 960-184B
November 2014

SAFETY
Take note! This safety alert symbol found throughout this manual is used to call your
attention to instructions involving your personal safety and the safety of others. Failure to
follow these instructions can result in injury or death.
Signal Words
Note the use of the signal words DANGER, WARNING and CAUTION with the safety messages. The
appropriate signal words for each have been selected using the following guidelines:
DANGER: Indicates an imminently hazardous situation that, if not avoided, will result in death or
serious injury.
WARNING: Indicates a potentially hazardous situation that, if not avoided, could result in death or
serious injury, and includes hazards that are exposed when guards are removed. It may also be used
to alert against unsafe practices.
CAUTION: Indicates a potentially hazardous situation that, if not avoided, may result in minor or
moderate injury.
This symbol means:
ATTENTION!
BECOME ALERT!
YOUR SAFETY IS INVOLVED!

33
PARTS MANUAL
29
8 - WARRANTY
28
7 - PRE-DELIVERY CHECKLIST
26
6 - TROUBLESHOOTING
255.03 - Storage
255.02 - Suggested Spare Parts
245.01 - Rake Teeth Replacement
24
5 - REPAIR PROCEDURES
224.02 - Service
214.01 - Maintenance Safety
21
4 - MAINTENANCE
193.10 - Transport
193.09 - Uneven Terrain
153.08 - Operating Techniques
153.07 - Working Speed
143.06 - Startup
133.05 - Attaching to the Tractor
133.04 - Pre-Operational Check
113.03 - Assembly Instructions
113.02 - Setup
93.01 - Operational Safety
9
3 - OPERATION
72.03 - Messages and Signs
72.02 - Starting and Stopping
62.01 - Preparation
6
2 - SAFETY PRECAUTIONS
51.03 - Model and Serial Number ID
41.02 - Warranty Information
41.01 - General
4
1 - GENERAL INFORMATION
INDEX
INDEX 3BEFCO

1 - GENERAL INFORMATION
Thank you and congratulations for having chosen our implement. Your new hay rake is
a technologically advanced machine constructed of high quality, sturdy components that
will fulfill your working expectations. Read this manual carefully. It will instruct you on
how to operate and service your implement safely and correctly. Failure to do so could
result in personal injury and/or in equipment damage.
1.01 - General
CAUTION: Unless otherwise specified, all hardware is metric. Use only metric
tools on metric hardware. Other tools that do not fit properly can slip and cause
injury.
CAUTION: Right hand and left hand sides of the implement are determined by
facing in the direction the implement will travel when going forward (see fig. 2).
1.02 - Warranty Information
Carefully read the Warranty section1, detailing coverage and limitations of this warranty.
Warranty is provided for customers who operate and maintain their equipment as
described in this manual. Warranty registration is accomplished by the dealer by
completing and forwarding the Warranty Registration form to the Company, along with
a copy of the dealer’s invoice. It is in your best interest to insure that this has been
done.
Warranty does not cover the following:
1. Cleaning, transporting, mailing and service call charges.
2. Normal wear items such as rake teeth, etc.
3. Depreciation or damage caused by normal wear, accidents, improper maintenance,
improper protection or improper use.
4. The use of non-original spare parts and accessories.
Your Authorized Company Dealer has genuine parts in stock. Only these approved
replacement parts should be used.
This limited warranty covers defective material and workmanship. The cost of normal
maintenance or repairs for accidents or improper use and related labor will be borne by
the owner.
HAY RAKES OPERATOR’SMANUAL
GENERAL INFORMATION 4BEFCO
1See Chapter 8 - Warranty.

1.03 - Model and Serial Number ID
Attached to the frame is an ID plate showing the model and the serial number. Record
your implement model and serial number in the space provided below. Your dealer
needs this information to give you prompt, efficient service when you order parts.
HAY RAKES OPERATOR’SMANUAL
GENERAL INFORMATION 5BEFCO

2 - SAFETY PRECAUTIONS
Safety is the primary concern in the design and manufacture of our products.
Unfortunately our efforts to provide safe equipment can be wiped out by a single
careless act of an operator.
In addition to the design and configuration of equipment, hazard control and accident
prevention are dependent upon the awareness, concern, prudence and proper training
of personnel involved in the operation, transport, maintenance and storage of
equipment. It is the operator’s responsibility to read and understand all safety and
operating instructions in the manual and to follow these.
Allow only properly trained personnel to operate the implement. Working with unfamiliar
equipment can lead to careless injuries. Read this manual, and the manual for your
tractor, before assembly or operation, to acquaint yourself with the machines. It is the
owner’s responsibility, if this machine is used by any person other than yourself, is
loaned or rented, to make certain that the operator, prior to operating, reads and
understands the operator’s manuals and is instructed in safe and proper use.
2.01 - Preparation
1. Before operating equipment read and understand the operator’s manual and the
safety signs (see fig. 2).
2. Thoroughly inspect the implement before initial operation to assure that all
packaging materials, i.e., wires, bands, and tape have been removed.
3. Personal protection equipment including hard hat, safety glasses, hearing protection,
safety shoes, and gloves are recommended during assembly, installation, operation,
adjustment, maintaining and/or repairing the implement.
4. Operate the implement only with a tractor equipped with an approved
Roll-Over-Protective-System (ROPS). Always wear your seat belt. Serious injury or
even death could result from falling off the tractor.
5. Clear area to be worked of stones, branches or other debris that might be thrown,
causing injury or damage.
6. Before beginning operation, contact local utility companies to make certain there are
no bundled gas lines, electrical cables, etc., in the work area.
7. Operate only in daylight or good artificial light.
8. Ensure implement is properly mounted, adjusted and in good operating condition.
9. Ensure that all safety decals are properly installed and in good condition.
SAFETY PRECAUTIONS 6BEFCO
HAY RAKES OPERATOR’SMANUAL

2.02 - Starting and Stopping
1. Be sure that no one is near the machine prior to engaging or while the machine is
working.
2. Be sure the tractor is in “Neutral” before starting engine.
3. Equipment operating power is ground driven. Know how to stop the tractor quickly in
case of an emergency.
4. After striking an obstacle, shut the tractor off, remove key and thoroughly inspect for
damage before restarting.
2.03 - Messages and Signs
1. Read and adhere to all safety and operating decals on this machine (see fig. 2).
2. Before dismounting tractor: Allow moving parts to stop, stop engine, set brake and
remove the key of unattended equipment.
3. Keep safety decals in place and in good condition.
4. Do not use with bystanders in area.
5. Allow no riders on tractor or implement.
6. Allow moving parts to stop before repair.
7. Securely support implement before working underneath.
Additional warning and operating decals are available at no extra charge. Please specify
model and serial number when ordering.
SAFETY PRECAUTIONS 7BEFCO
HAY RAKES OPERATOR’SMANUAL

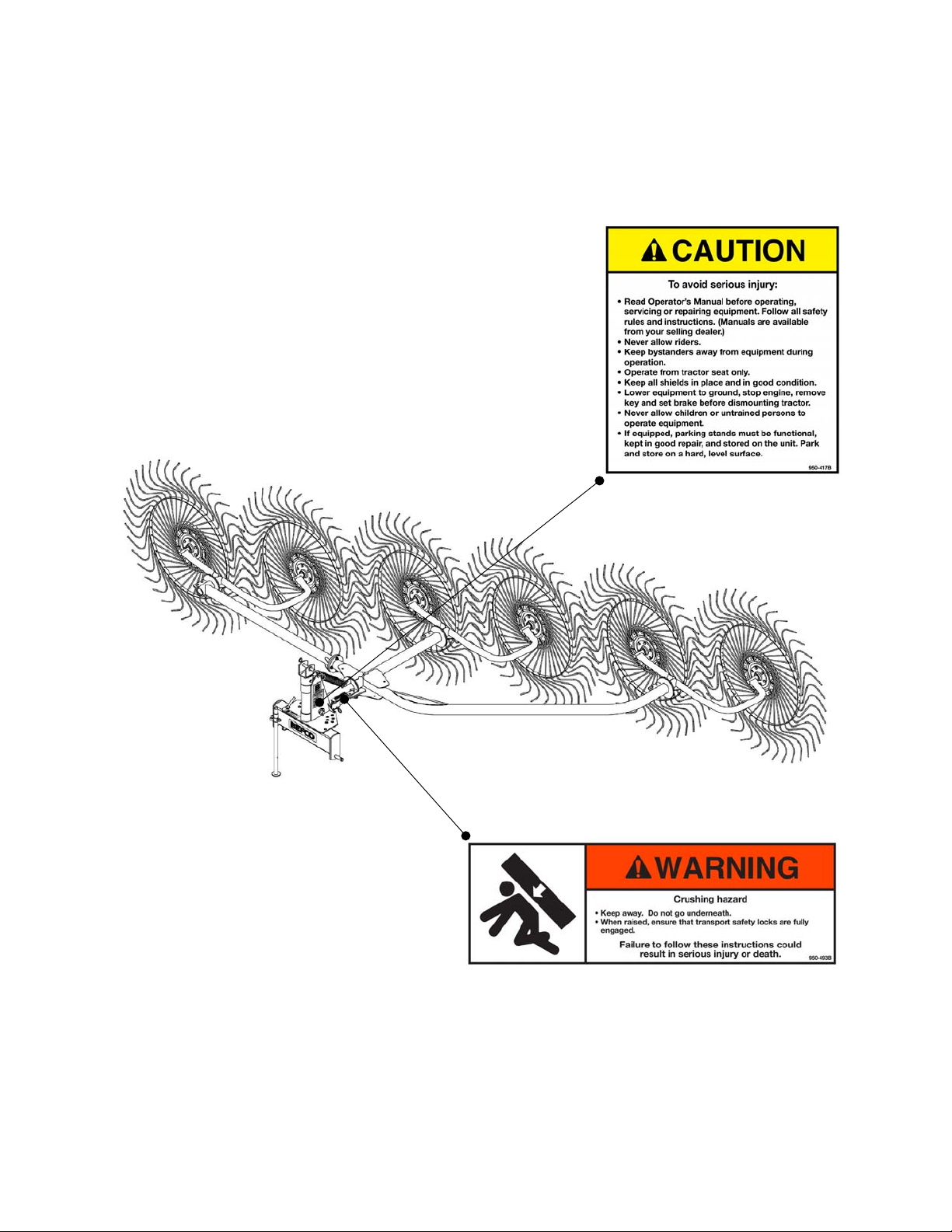

Fig. 2 - Safety decals - implement; replace immediately if damaged.
SAFETY PRECAUTIONS 8BEFCO
HAY RAKES OPERATOR’SMANUAL
r
ight side
left side

3 - OPERATION
You have purchased a ground driven hay rake which will provide you with high quality
raking results with overall very low costs of ownership and maintenance.
As the tractor moves forward, the wheels on BEFCO’s hay rakes gently turn the hay
towards the back of the unit leaving all the hay raked in fluffy windrows suitable to form
a compact and even bale. Tines are made of flexible steel for a more gentle and clean
contact with the forage. The greasable wheel hubs on BEFCO’s rakes are made of cast
steel and contain tapered roller bearings that ensure the maximum possible lifetime of
the wheel hub. Bearings are protected by dust caps.
With working widths ranging from 8’6” to 12’9” and working speeds of up to 14 mph
there is no doubt that BEFCO offers the ideal rake for all your raking needs.
3.01 - Operational Safety
CAUTION: Our ground driven hay rakes are designed considering safety as the
most important aspect and are the safest available in today’s market.
Unfortunately, human carelessness can override the safety features built into our
machines. Injury prevention and work safety, aside from the features on our hay
rakes, are very much due to the responsible use of the equipment. It must always
be operated prudently following with great care, the safety instructions laid out in
this manual.
1. The use of this equipment is subject to certain hazards which cannot be prevented
by mechanical means or product design. All operators of this equipment must read
and understand this entire manual, paying particular attention to safety and
operating instructions, prior to using.
2. Do not operate the tractor and implement when you are tired, sick or when using
medication.
3. Keep all helpers and bystanders at least 100 feet from the implement. Only properly
trained people should operate this machine.
4. Accidents are most likely to occur with machines that are loaned or rented to
someone who has not read the operator’s manual and is not familiar with the
implement.
5. Always stop the tractor, set brake, shut off the tractor engine, remove the ignition
key and lower implement to the ground before dismounting tractor. Never leave
equipment unattended with the tractor running.
6. Never place hands or feet under implement with tractor engine running or before you
are sure all motion has stopped. Stay clear of all moving parts.
OPERATION 9BEFCO
HAY RAKES OPERATOR’SMANUAL

7. Do not reach or place yourself under equipment until it is blocked securely.
8. Do not allow riders on the implement or tractor at any time. There is no safe place
for riders.
9. Before backing up, look behind carefully.
10.Never operate tractor and implement under trees with low hanging limbs. Operators
can be knocked off the tractor and then run over by the implement.
11.The parts of this machine have been designed and tested for rugged use. However,
they could fail upon impact with heavy, solid objects such as steel guard rails and
concrete abutments. Such impact could cause the broken objects to be thrown
outward at very high velocities. To reduce the possibility of property damage, serious
injury, or even death, never allow the machine to contact such obstacles.
12.Frequently check rake teeth. They should be free of nicks and cracks and securely
fastened.
13.Stop implement immediately upon striking an obstruction. Turn engine off, remove
key, inspect and repair any damage before resuming operation.
14.Stay alert for holes, rocks and roots in the terrain and other hidden hazards. Keep
away from drop-offs.
15.Use extreme care and maintain minimum ground speed when transporting on
hillside, over rough ground and when operating close to ditches or fences. Be careful
when turning sharp corners.
16.Before beginning operation, contact local utility companies to make certain there are
no bundled gas lines, electrical cables, etc., in the work area.
17.Reduce speed on slopes and sharp turns to minimize tipping or loss of control. Be
careful when changing directions on slopes. Do not start or stop suddenly on slopes.
Avoid operation on steep slopes.
18.When using a unit, a minimum 20% of tractor and equipment weight must be on
tractor front wheels. Without this weight, tractor could tip over, causing personal
injury or death. The weight may be attained with a front end loader, front wheel
weights, ballast in tires or front tractor weights. When attaining a minimum 20% of
tractor and equipment weight on the front wheels, you must not exceed the ROPS
weight certification. Weigh the tractor and equipment. Do not guess or estimate!
19.Inspect the entire machine periodically2. Look for loose fasteners, worn or broken
parts, and leaky or loose fittings.
20.Pass diagonally through sharp dips and avoid sharp drops to prevent “hanging up”
tractor and implement.
21.Avoid sudden starts and stops while traveling up or downhill.
22.Always operate down slopes; never across the face. Avoid operation on steep
slopes. Slow down on sharp turns and slopes to prevent tipping and/or loss of
control.
23.Comply with all federal, state and local laws during transport on roads.
24.Before parking the machine, lower the foot stand and secure it with the lock pins.
OPERATION 10 BEFCO
HAY RAKES OPERATOR’SMANUAL
2See Chapter 4 - Maintenance.

3.02 - Setup
Notice to dealer: Pre-delivery setup and service including lubrication is the
responsibility of the authorized dealer. It is up to him to assure that the machine is in
perfect condition and ready to be used. It is his responsibility to ensure that the
customer is aware of all safety aspects and operational procedures for the implement.
He must also fill out the Pre-Delivery Checklist3prior to delivering the implement.
3.03 - Assembly Instructions
363024Washer external lock Ø10 Z 363024Nut HH M10-1.50 C6 Z MD 363024Bolt HH M10-1.50x25 C8.8 Z F
Hardware bag contains: 654Rake wheel 111Frame holder hitch assembly 111Three point hitch base w/foot stand 111Top link support 1--Support arm, rear section RS2-06 1--Support arm, front section RS2-06 -1-Support arm RS2-05 --1Support arm RS2-04 -1-Arm w/hub (1 wheel) RS2-05 322Arm w/hub (2 wheel) RS2-06 Qty.RS2-05 Qty.RS2-04 Qty.Description
Each unit is shipped as a kit that consists of the following:
Note: All hardware needed for assembly will be found either on the machine or in the
hardware bag. Assembly will be easier if all parts are loosely assembled before
tightening the hardware.
CAUTION: Stand clear of bands when cutting as they could be under sufficient
tension to cause them to fly loose. Take care in removing bands and wire. They
often have extremely sharp edges and cut very easily.
To assemble RS2-04, RS2-05 and RS2-06 hay rakes do the following (see fig. 3):
1. Remove the top hitch support from the three point hitch base.
2. Slide the frame holder hitch on to the three point hitch base.
3. Install the top link support over the frame holder hitch and secure it using the
M14x100 bolt, the Ø14 lock washer and M14 nut to tighten it.
4. Lock the frame holder hitch to the three point hitch base by inserting the Ø16x178
locking pin through the hole used for transport on the frame holder hitch and secure
it using the Ø4 hairpin cotter.
5. To facilitate further assembly, use a hoist to attach the three point hitch of the hay
rake to the three point hitch of the tractor. Secure the top link with the top hitch pin
and the Ø4 hairpin cotter and the bottom hitches with lynch pins.
OPERATION 11 BEFCO
HAY RAKES OPERATOR’SMANUAL
3See Chapter 7 - Pre-Delivery Checklist.

6. Slide the support arm of the rake into the large hole in the pivot housing of the frame
holder hitch until the flanges on both pieces are bumped up to one another. Secure
the support arm with the locking lever then secure the lever with the Ø12x56 locking
pin and the Ø3 hairpin cotter.
7. Slide each arm with hubs in the holes at each end of the support arm until the
flanges on both pieces are bumped up to one another. Secure the arm with the
locking lever then secure the lever with the Ø12x56 locking pin and the Ø3 hairpin
cotter. On hay rake models RS2-05 only, assemble the single wheel arm with hub in
the center hole of the support arm and secure it using the M14x100 bolt, the lock
washer and the M14 nut.
Note: When installing the arms with hubs always make sure to assemble them to the
support arm with the bend facing upwards. This will allow for better clearance from
the ground and therefore more hay to be raked.
8. Assemble the wheels making sure the inner wheel is facing away from the tractor
(see fig. 4).
9. Secure each wheel by inserting the supplied M10x25 bolts on the hub side and the
Ø10 external lock washers and M10 nuts on the inner wheel side.
10.Assemble the foot stand on the base and secure it with the Ø4 hairpin cotter.
11.Tighten all hardware securely.
OPERATION 12 BEFCO
HAY RAKES OPERATOR’SMANUAL

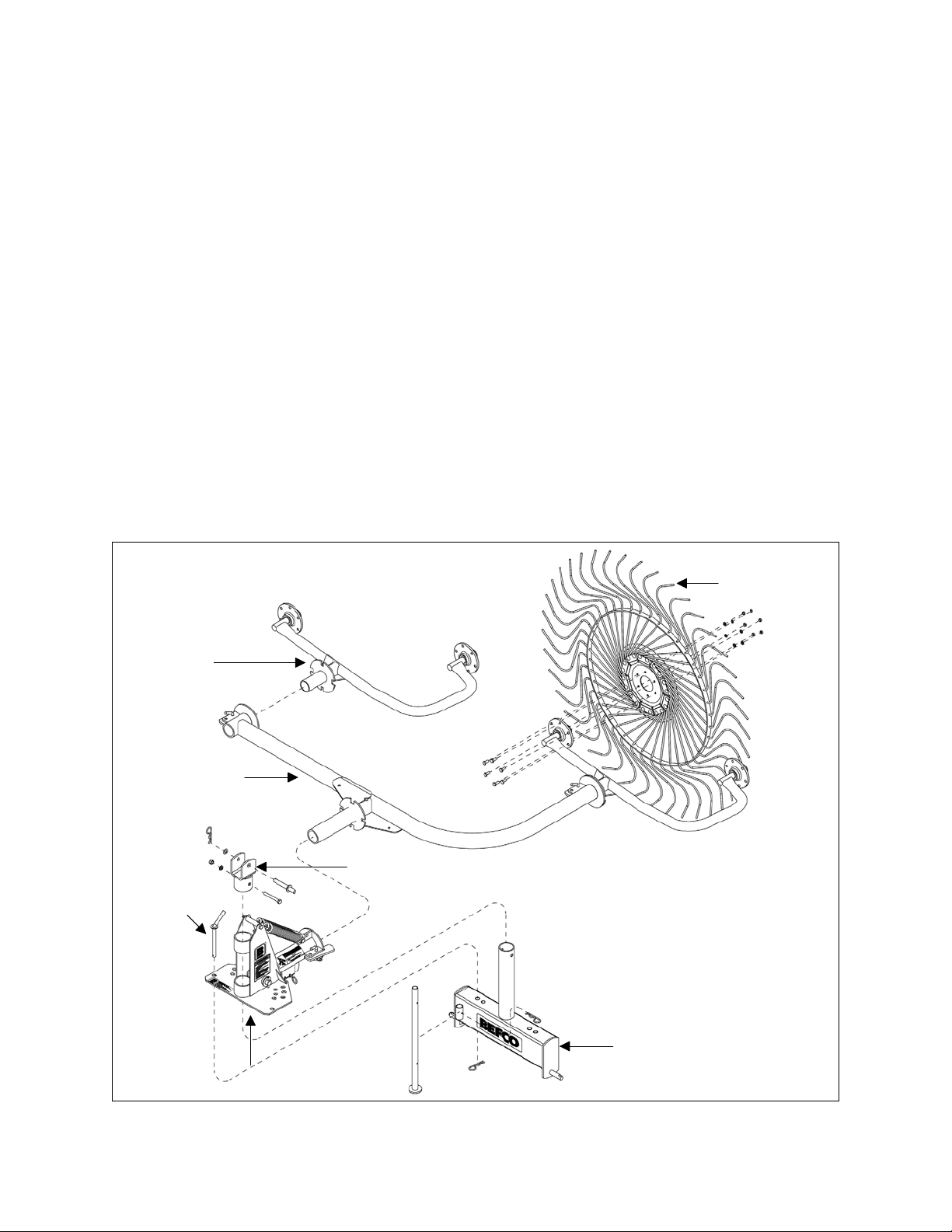

Fig. 3 - Rake assembly
frame holder hitch
top link support
support arm
three point hitch base
arm with
hubs
rake wheel
locking
pin

To identify right hand and left hand rake wheels, set the rake wheels up against a wall
with the tine clips facing the wall and the inner wheel facing away from the wall. On a
right hand wheel the rake teeth touching the ground will bend towards the right. On a
left hand rake the rake teeth touching the ground will bend towards the left (see fig. 4).
3.04 - Pre-Operational Check
IMPORTANT: Check each of the following, carefully, prior to engaging the equipment:
1. No wrappings or foreign objects are around the implement.
2. The teeth are properly installed and the bolts properly torqued4.
3. All hardware is tight.
4. No people or animals are in the work area.
3.05 - Attaching to the Tractor
Models RS2-04, RS2-05 and RS2-06 may be used on tractors from 30 to 80 HP and a
category 1 three point hitch5.
DANGER: Never allow anyone to stand between the hay rake and tractor during
hookup operations.
OPERATION 13 BEFCO
HAY RAKES OPERATOR’SMANUAL
5Refer to Table 2 - Technical Features, page 23.
4Refer to Table 1 - Torque Specifications, page 23.

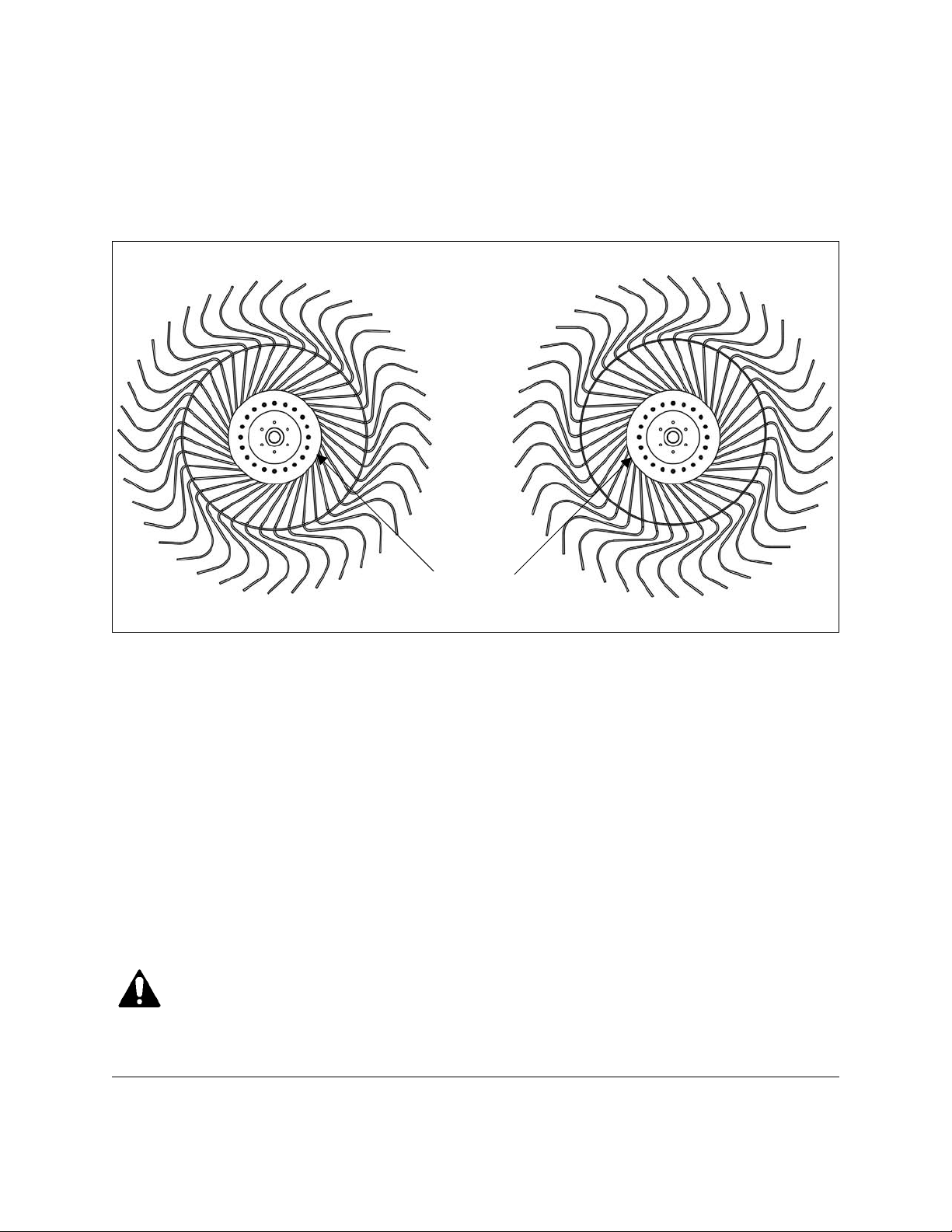

Fig. 4 - Rake wheel identification
left hand rake wheel right hand rake wheel
inner wheel
facing out

To attach the hay rake to the tractor proceed as follows:
1. Back up the tractor to the hay rake until the draft links align with the lower hitch pins.
2. Stop engine, engage parking brakes and remove key before dismounting tractor.
3. Secure the draft links to the hitch pins and secure them in place with cotter pins.
4. Raise foot stand all the way up and secure with hairpin cotter.
5. Attach top link to the top hitch of the hay rake using a top link pin.
6. Adjust the tractor sway chains/bars to center the hay rake behind the tractor and
control the side sway.
7. Ensure rake is level by adjusting draft links and top link.
8. Slowly operate tractor controls up and down to ensure that the drawbar, tires and
other equipment on the tractor does not touch the rake frame and wheels. If
necessary adjust or remove tractor drawbar to eliminate interference with rake.
Ensure rake is at least 6” from tractor tires throughout the complete range of three
point movement.
DANGER: Never attempt to attach the implement to the tractor or make any
adjustments to it without first turning the tractor off.
DANGER: Failure to ensure a secure coupling of the implement to the tractor can
cause injury and damage to the implement or tractor.
3.06 - Startup
DANGER: Never allow anyone around the implement when it is in operation.
CAUTION: For emergency reasons, learn how to stop the tractor and implement
quickly.
Before starting to work, never forget that the operator is responsible for the following:
1. Safe and correct driving of the tractor and implement.
2. To learn precise safe operating procedures for both the tractor and the implement.
3. To ensure all maintenance and lubrication has been performed on the implement.
4. To have read and understood all safety aspects for the implement in the operator’s
manual.
5. To have read and understood all safety decals on the implement.
6. To have contacted the local utility companies to make certain there are no bundled
gas lines, electrical cables, etc., in the work area.
7. Checking the overall condition of the machine.
OPERATION 14 BEFCO
HAY RAKES OPERATOR’SMANUAL

8. Checking to see if front weights need to be added to the tractor in order to maintain
balance.
9. Checking the tractor tires for the proper pressure in accordance with the tractor
operator’s manual.
10.Making sure the proper attire is worn. Avoiding loose fitting clothing which can
become entangled. Wearing sturdy, tough-soled work shoes and protective
equipment for eyes, hands, ears and head. Never operate tractor or implements in
bare feet, sandals or sneakers.
11.Checking area for stones, branches and other debris that might be thrown.
12.Ensuring proper lighting is available, sunlight or good artificial lighting.
3.07 - Working Speed
Ground speed is determined by the soil condition and tractor power. Simple
experimentation will determine the best speed for the desired results, usually 8 to 14
mph.
3.08 - Operating Techniques
When working, rake wheels should slightly touch the ground. This gives the individual
wheels and tines maximum flexibility to insure clean raking on any terrain. The correct
pressure will always depend on field conditions, quantity and type of forage being
windrowed. For heavy crops, more down pressure may be needed. Too much pressure
may cause dirt and debris to be rolled into the windrow. The ideal setting allows rake to
float smoothly across ground contour while moving crop cleanly into a row.
If the crop was mowed with a sickle bar mower, operate the rake in the same direction
the crop was mowed, while if the crop was mowed with a rotary mower, best results are
obtained by operating the rake in the opposite direction the crop was mowed.
To set ground pressure do the following:
1. Slide the lock plate (see fig. 5) in the unlocked position and secure it with the Ø5
hairpin cotter. This will allow the rake to float evenly across the surface even when
raking over uneven terrain and prolong the life of the rake’s teeth.
2. Lower rake so that wheels are slightly touching the ground. Adjust the tractor’s lift
arms so that they are approximately 19” from the ground when raking (see fig. 7)
and 22” from the ground when spreading or turning the hay (see fig. 8 and 9).
3. Assemble the spring clip in the desired position. The pressure that the rake wheel
applies on the ground can be adjusted by bolting the lower spring clip to one of the
other two holes available on the pivot housing tube (see fig. 5). Moving the lower
spring clip to one of the holes further away from the springs will cause the spring
tension to increase and therefore decrease the amount of pressure that the rake
wheels will apply on the ground. As a general rule, in standard working conditions
use the first hole for RS2-04 rakes (see #1, fig. 5) and the second hole for RS2-05
and RS2-06 rakes (see #2, fig. 5). Setting the rake with the least amount of
pressure will help to keep the finger wheels cleaner and therefore keep dirt off the
forage.
OPERATION 15 BEFCO
HAY RAKES OPERATOR’SMANUAL

4. Adjust top link of tractor hitch to hold rake three point assembly vertical.
To further adjust ground pressure, shortening the tractor top link will decrease pressure
while lengthening the top link will increase the pressure.
BEFCO’s RS2-04, RS2-05 and RS2-06 hay rakes offer six different angling positions
that allow the operator to fine tune the unit to obtain the best raking results for his job
(see fig. 6). The first hole on either side of the frame holder hitch is always the one to
be used when transporting the hay rake (see #1, fig. 6).
The holes on the right of the frame holder hitch are the ones used when operating a
right hand rake while the holes on the left of the frame holder hitch are the ones used
when operating a left hand rake. Under normal working conditions it is advisable to
select a hole position between 3 and 5 (see fig. 6). Remove the locking pin from the
transport position hole on the frame holder hitch and select one of the six raking angle
adjustments available (see fig. 6). Once the desired raking angle is selected insert the
locking pin through the hole and secure it with the Ø4 hairpin cotter. Lower the rake to
the ground so that the rake wheels are carrying the weight at the back of the unit. Select
the desired working speed and begin raking.
IMPORTANT: Always make sure the locking lever is engaged and secured with
the locking pin in the working position before operating the hay rake (see fig. 6).
OPERATION 16 BEFCO
HAY RAKES OPERATOR’SMANUAL

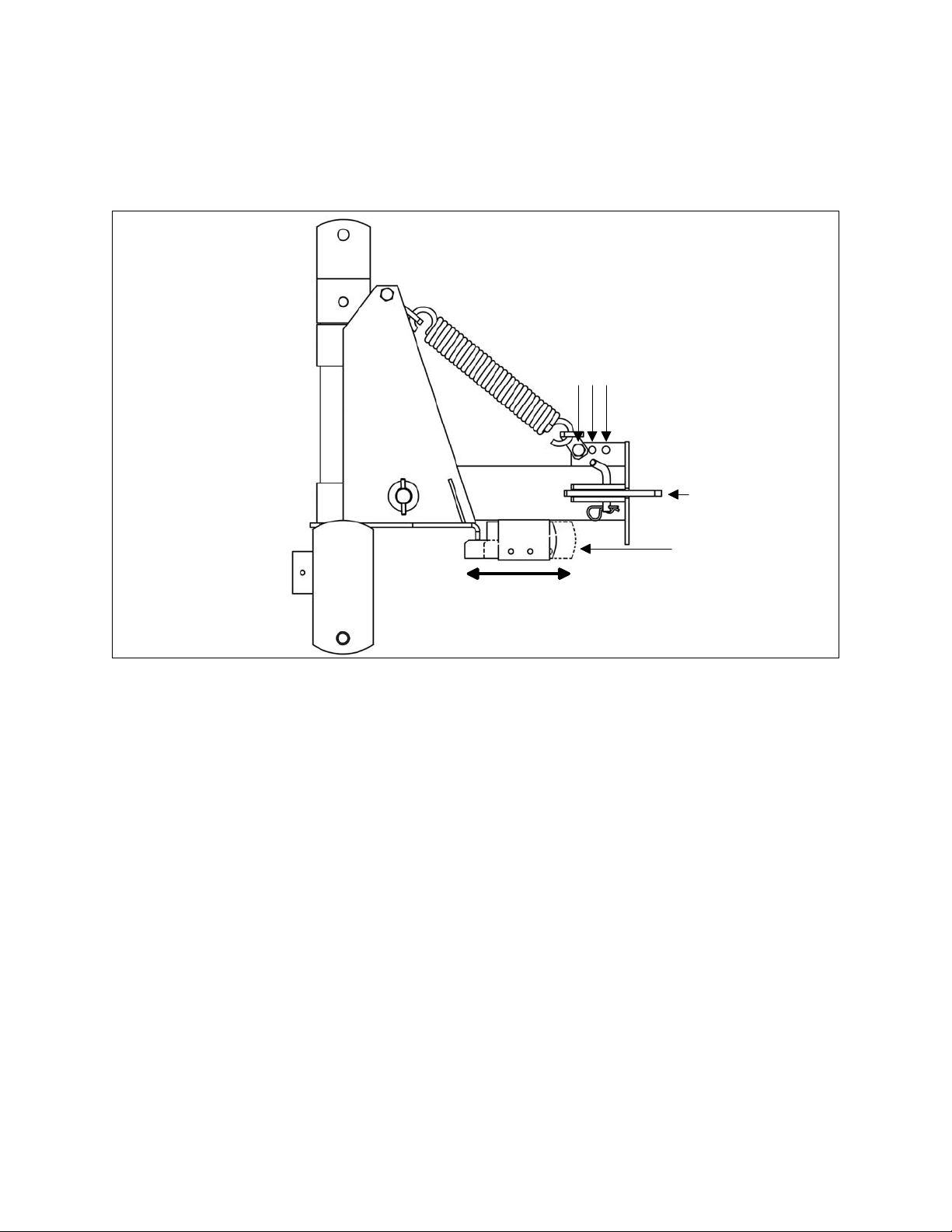

Fig. 5 - Operating the hay rake
locked unlocked
transport work
rake wheel pressure
adjustment
123
lock plate
locking lever

Raking (all models)
In the raking position, the rake wheels overlap front to back moving the crop to the
center (see fig. 7). Proper raking is obtained by positioning the bends, on both the
support arm and the arms with hubs, towards the back of the unit.
OPERATION 17 BEFCO
HAY RAKES OPERATOR’SMANUAL

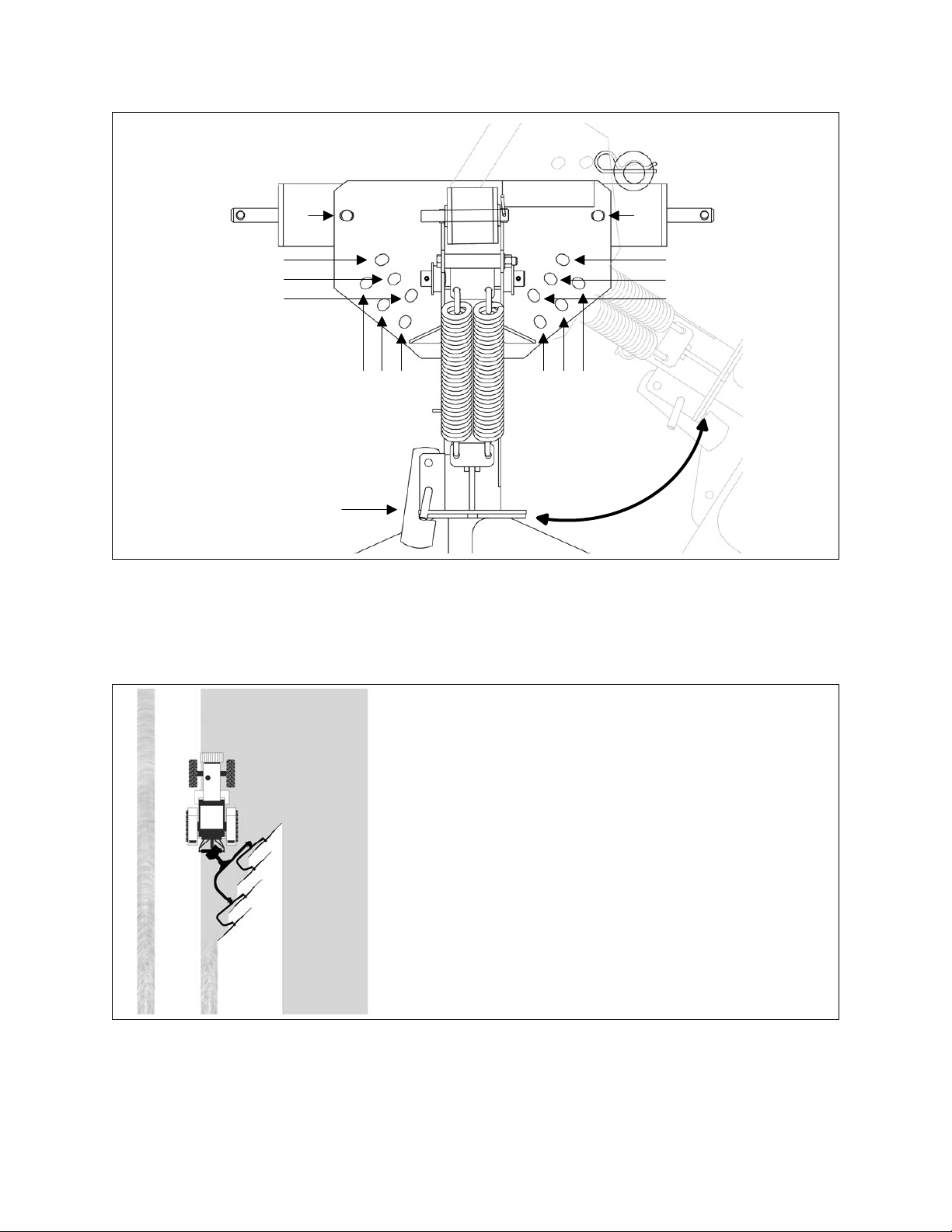

Fig. 6 - Angling the hay rake
1
2
3
4
5
6
7
1
2
3
4
5
6
7
left rake adjustments right rake adjustments
locking lever
Fig. 7 - Raking

Spreading (models RS2-04, RS2-06)
Hay rakes can be used to spread hay that has already been windrowed. This is
normally done to help wet hay dry faster. If the machine is assembled in the spreading
position, all rake wheels will be aligned causing them to spread the hay across the width
of the machine. Proper spreading is obtained by positioning the bends on both the
support arm and the arms with hubs towards the tractor (see fig. 8).
Turning (models RS2-04, RS2-06)
In the turning position, each pair of rake wheels overlap front to back turning the forage
crop and allowing it to dry faster. In the turning position, the finger wheels are set to
work in pairs turning two windrows in each pass. Proper turning is obtained by
positioning the bend on the support arm towards the tractor and bends on the arms with
hubs towards the back of the unit (see fig. 9).
OPERATION 18 BEFCO
HAY RAKES OPERATOR’SMANUAL
Fig. 8 - Spreading
Fig. 9 - Turning

3.09 - Uneven Terrain
DANGER: Be careful of rollover when operating tractor and implement over
uneven ground.
The following precautions should always be observed when working on uneven terrain:
1. In extremely uneven terrain rear wheel weights, front tractor weights, and/or tire
ballast should be used to improve stability.
2. Observe the type of terrain and develop a safe working pattern.
3. Operate the implement up and down steep slopes, not across slopes, to prevent the
tractor from tipping. Avoid sudden stops and starts, and slow down before changing
directions on a slope.
4. Pass diagonally through sharp dips and avoid sharp drops to prevent hanging up the
tractor and implement.
5. Slow down on sharp turns and slopes to prevent tipping or loss of control.
6. Watch for holes, roots or other hidden objects. Do not use near the edge of a gully,
ditch or stream bank.
3.10 - Transport
CAUTION: Do not tow tractor and implement behind other vehicles. Use a
properly equipped trailer with heavy tie-downs for towing operations.
OPERATION 19 BEFCO
HAY RAKES OPERATOR’SMANUAL
Fig. 10 - Preparing hay rake for transport
turn support
arm 90°
tighten turnbuckle
to increase ground
clearance

Once the field has been raked raise the three point hitch so the rake wheels are clear
off the ground. Always engage the lock plate before transporting the unit to and from its
storage location (see fig. 5). Insert the locking pin in the transport position hole and
secure it with the Ø4 hairpin cotter (see fig. 6).
Before transporting the rake on public roads, disengage the locking lever (see fig. 5) on
the pivot housing and turn the support arm 90° so that it sits vertical over the three point
hitch (see fig. 10). Re-engage the locking lever and secure it with the locking pin and
the Ø3 hairpin cotter. Tighten the turnbuckle on the three point hitch in order to angle
the rake forward and increase the rake wheels clearance from the ground (see fig. 10).
Some tractors may not have enough lift clearance to raise the support arm of larger
rakes to the 90° position and off the ground enough to transport them on the road.
On models RS2-05 and RS2-06 it will be necessary to turn the arm with hub furthest to
the back by 90° so that it sits horizontally to the three point hitch when the rake is in the
transport position (see #2 & 3, fig. 11).
Before transporting:
1. Always select a safe ground speed that is appropriate for the terrain.
2. Beware of traffic on public roads. Install a SMV (Slow Moving Vehicle) sign when
traveling on roads or streets. Comply with all federal, state and local laws.
3. Reduce ground speed when turning and take care that the implement does not strike
obstacles such as trees, fences or buildings.
IMPORTANT: Always remember to engage the lock plate (see fig. 5) and
reposition the locking pin in the transport position hole before transporting the
hay rake (see fig. 6).
OPERATION 20 BEFCO
HAY RAKES OPERATOR’SMANUAL
Fig. 11 - Transporting the hay rake
1. RS2-04 2. RS2-05 3. RS2-06
