Behringer EUROLIGHT LD6230 User manual

Installation Instructions
EUROLIGHT LD6230
Professional 6-Channel 10 A Dimmer Pack with DMX and Analog Control

2EUROLIGHT LD6230 Installation Instructions
LEGAL DISCLAIMER
LIMITED WARRANTY
Terminals marked with this symbol carry
electrical current of sucient magnitude
to constitute risk of electric shock.
Use only high-quality professional speaker cables with
¼"TS or twist-locking plugs pre-installed. Allother
installation or modication should be performed only
by qualiedpersonnel.
This symbol, wherever it appears,
alertsyou to the presence of uninsulated
dangerous voltage inside the
enclosure-voltage that may be sucient to constitute a
risk ofshock.
This symbol, wherever it appears,
alertsyou to important operating and
maintenance instructions in the
accompanying literature. Please read the manual.
Caution
To reduce the risk of electric shock, donot
remove the top cover (or the rear section).
No user serviceable parts inside. Refer servicing to
qualied personnel.
Caution
To reduce the risk of re or electric shock,
do not expose this appliance to rain and
moisture.The apparatus shall not be exposed to dripping
or splashing liquids and no objects lled with liquids,
suchas vases, shall be placed on the apparatus.
Caution
These service instructions are for use
by qualied service personnel only.
Toreduce the risk of electric shock do not perform any
servicing other than that contained in the operation
instructions. Repairs have to be performed by qualied
servicepersonnel.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding-type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. Ifthe
provided plug does not t into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Use only attachments/accessories specied by
themanufacturer.
12. Use only with the
cart, stand, tripod, bracket,
or table specied by the
manufacturer, orsold with
the apparatus.When a cart
is used, use caution when
moving the cart/apparatus
combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power supply cord or plug
is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed
to rain or moisture, does not operate normally, or has
beendropped.
15. The apparatus shall be connected to a MAINS socket
outlet with a protective earthing connection.
16. Where the MAINS plug or an appliance coupler is
used as the disconnect device, the disconnect device shall
remain readily operable.
TECHNICAL SPECIFICATIONS AND APPEARANCES
ARE SUBJECT TO CHANGE WITHOUT NOTICE AND
ACCURACY IS NOT GUARANTEED. BEHRINGER IS
PART OFTHE MUSIC GROUP MUSICGROUP.COM.
ALL TRADEMARKS ARE THE PROPERTY OF THEIR
RESPECTIVE OWNERS. MUSICGROUP ACCEPTS NO
LIABILITY FOR ANY LOSSWHICH MAY BE SUFFERED
BY ANY PERSONWHO RELIES EITHER WHOLLY OR
IN PART UPON ANY DESCRIPTION, PHOTOGRAPH
OR STATEMENT CONTAINED HEREIN. COLORS AND
SPECIFICATIONS MAY VARY FROM ACTUAL PRODUCT.
MUSIC GROUP PRODUCTS ARE SOLDTHROUGH
AUTHORIZED FULLFILLERS AND RESELLERS ONLY.
FULLFILLERSAND RESELLERS ARE NOT AGENTS OF
MUSICGROUP AND HAVE ABSOLUTELY NO AUTHORITY
TO BIND MUSICGROUP BY ANY EXPRESS OR IMPLIED
UNDERTAKING OR REPRESENTATION. THIS MANUAL
IS COPYRIGHTED. NO PART OFTHIS MANUAL MAY
BE REPRODUCED OR TRANSMITTED IN ANY FORM
OR BY ANY MEANS, ELECTRONIC OR MECHANICAL,
INCLUDING PHOTOCOPYING AND RECORDING OF ANY
KIND, FOR ANY PURPOSE,WITHOUTTHE EXPRESS
WRITTEN PERMISSION OF MUSICGROUPIPLTD.
ALL RIGHTS RESERVED.
© 2012 MUSICGroupIPLtd.
Trident Chambers,Wickhams Cay, P.O. Box 146,
Road Town, Tortola, British Virgin Islands
§ 1 Warranty
(1) This limited warranty is valid only if you purchased
the product from a MUSIC Group Authorized Reseller in
the country of purchase. A list of authorized resellers can
be found on BEHRINGER’s website behringer.com under
“Where to Buy”, or you can contact the MUSIC Group o
ce
closest to you.
(2) MUSICGroup* warrants the mechanical and
electronic components of this product to be free of defects
in material and workmanship if used under normal
operating conditions for a period of one (1) year from
the original date of purchase (see the LimitedWarranty
terms in §4 below), unless a longer minimum warranty
period is mandated by applicable local laws. If the product
shows any defects within the specied warranty period
and that defect is not excluded under §4, MUSICGroup
shall, at its discretion, either replace or repair the product
using suitable new or reconditioned product or parts.
Incase MUSICGroup decides to replace the entire product,
thislimited warranty shall apply to the replacement
product for the remaining initial warranty period, i.e.,
one (1) year (or otherwise applicable minimum warranty
period) from the date of purchase of the original product.
(3) Upon validation of the warranty claim, the repaired
or replacement product will be returned to the user
freight prepaid by MUSICGroup.
(4) Warranty claims other than those indicated above
are expressly excluded.
PLEASE RETAIN YOUR SALES RECEIPT. IT ISYOUR PROOF
OF PURCHASE COVERINGYOUR LIMITEDWARRANTY.
THIS LIMITEDWARRANTY IS VOIDWITHOUT SUCH PROOF
OFPURCHASE.
§ 2 Online registration
Please do remember to register your new BEHRINGER
equipment right after your purchase at behringer.com
under“Support”and kindly read the terms and conditions
of our limited warranty carefully. Registeringyour
purchase and equipment with us helps us process
your repair claims quicker and more eciently.
Thankyouforyour cooperation!
§ 3 Return materials authorization
(1) To obtain warranty service, please contact the
retailer from whom the equipment was purchased.
Should your MUSIC Group Authorized Reseller not be
located in your vicinity, you may contact the MUSICGroup
Authorized Fulller for your country listed under
Important Safety
Instructions

3EUROLIGHT LD6230 Installation Instructions
“Support”at behringer.com. Ifyour country is not
listed, please check if your problem can be dealt with
by our“OnlineSupport”which may also be found under
“Support”at behringer.com. Alternatively,please submit
an online warranty claim at behringer.com BEFORE
returning the product. All inquiries must be accompanied
by a description of the problem and the serial number
of the product. Afterverifying the product’s warranty
eligibility with the original sales receipt, MUSICGroup
will then issue a ReturnMaterials Authorization
(“RMA”)number.
(2) Subsequently, the product must be returned in
its original shipping carton, together with the return
authorization number to the address indicated by
MUSICGroup.
(3) Shipments without freight prepaid will not
beaccepted.
§ 4 Warranty Exclusions
(1) This limited warranty does not cover consumable
parts including, but not limited to, fuses and batteries.
Where applicable, MUSICGroup warrants the valves or
meters contained in the product to be free from defects
in material and workmanship for a period of ninety (90)
days from date of purchase.
(2) This limited warranty does not cover the product
if it has been electronically or mechanically modied
in any way. If the product needs to be modied or
adapted in order to comply with applicable technical
or safety standards on a national or local level, inany
country which is not the country for which the
product was originally developed and manufactured,
thismodication/adaptation shall not be considered a
defect in materials or workmanship. Thislimited warranty
does not cover any such modication/adaptation,
regardless of whether it was carried out properly or not.
Under the terms of this limited warranty, MUSICGroup
shall not be held responsible for any cost resulting from
such a modication/adaptation.
(3) This limited warranty covers only the product
hardware. It does not cover technical assistance for
hardware or software usage and it does not cover
any software products whether or not contained in
the product. Any such software is provided“AS IS”
unless expressly provided for in any enclosed software
limitedwarranty.
(4) This limited warranty is invalid if the
factory-appliedserial number has been altered or
removed from theproduct.
(5) Free inspections and maintenance/repair work
are expressly excluded from this limited warranty,
inparticular, if caused by improper handling of the
product by the user.This also applies to defects caused
by normal wear and tear, in particular, of faders,
crossfaders, potentiometers, keys/buttons, guitar strings,
illuminantsand similar parts.
(6) Damage/defects caused by the following conditions
are not covered by this limited warranty:
• improper handling, neglect or failure to operate the
unit in compliance with the instructions given in
BEHRINGER user or service manuals;
• connection or operation of the unit in any way
that does not comply with the technical or safety
regulations applicable in the country where the
product is used;
• damage/defects caused by acts of God/Nature
(accident, re, ood, etc) or any other condition that
is beyond the control of MUSICGroup.
(7) Any repair or opening of the unit carried out by
unauthorized personnel (user included) will void the
limitedwarranty.
(8) If an inspection of the product by MUSICGroup
shows that the defect in question is not covered by the
limited warranty, the inspection costs are payable by
thecustomer.
(9) Products which do not meet the terms of this
limited warranty will be repaired exclusively at the buyer’s
expense. MUSICGroup or its authorized service center will
inform the buyer of any such circumstance. If the buyer
fails to submit a written repair order within 6 weeks after
notication, MUSICGroup will return the unit C.O.D. with
a separate invoice for freight and packing. Such costs will
also be invoiced separately when the buyer has sent in a
written repair order.
(10) MUSIC Group Authorized Resellers do not sell new
products directly in online auctions. Purchasesmade
through an online auction are on a“buyer beware”basis.
Online auction conrmations or sales receipts are not
accepted for warranty verication and MUSICGroup will
not repair or replace any product purchased through an
online auction.
§ 5 Warranty transferability
This limited warranty is extended exclusively to the
original buyer (customer of authorized reseller) andis
not transferable to anyone who may subsequently
purchase this product. No other person (reseller,etc.)
shallbe entitled to give any warranty promise on behalf
of MUSICGroup.
§ 6 Claim for damage
Subject only to the operation of mandatory applicable
local laws, MUSICGroup shall have no liability to the buyer
under this warranty for any consequential or indirect
loss or damage of any kind. In no event shall the liability
of MUSICGroup under this limited warranty exceed the
invoiced value of the product.
§ 7 Limitation of liability
This limited warranty is the complete and exclusive
warranty between you and MUSICGroup. It supersedes
all other written or oral communications related to this
product. MUSICGroup provides no other warranties for
this product.
§ 8 Other warranty rights and
nationallaw
(1) This limited warranty does not exclude or limit the
buyer’s statutory rights as a consumer in any way.
(2) The limited warranty regulations mentioned herein
are applicable unless they constitute an infringement of
applicable mandatory local laws.
(3)
This warranty does not detract from the seller’s
obligations in regard to any lack of conformity of the
product and any hidden defect.
§ 9 Amendment
Warranty service conditions are subject to change without
notice. For the latest warranty terms and conditions
and additional information regarding MUSICGroup’s
limited warranty, please see complete details online at
behringer.com.
* MUSICGroup Macao Commercial Oshore Limited of
RuedePequim No. 202-A, Macau Finance Centre 9/J, Macau,
including all MUSICGroup companies

4EUROLIGHT LD6230 Installation Instructions
The BEHRINGER EUROLIGHT LD6230 Dimmer Pack was developed to meet
the highest demands of light engineering. Its wide-ranging functions
make it an all-purpose workhorse for various commercial applications
(TV studios, theatreor live events).
The EUROLIGHT LD6230 has all the important features needed to control your
lighting equipment, yet its controls are clearly arranged and simple to use.
Youcan select between digital DMX or analog control. You get trouble-free
operation with the extensive LEDs used for signal error detection.
Important Information
◊ Installation as well as initial operation must be performed by qualified
personnel. Always assure that your LD6230 is completely disconnected
from the mains before removing the casing cover.
◊ The LD6230 was designed for indoor use only.
◊ Please keep in mind that sudden temperature changes (e.g. bringing
your equipment from colder environments into warmer environments)
may cause condensation on electronic components, leading to possible
equipment damage and physical harm to the operator.
◊ Please adhere to all applicable national safety standards
during installation.
◊ Please read the installation instructions and the enclosed user’s
manual in their entirety to familiarize yourself with the LD6230
and all of its functions. Please follow all instructions and store both
the installation instructions and the manual in a safe place for
future reference.
◊ Please assure that your EUROLIGHT is sufficiently cooled and that it is
not placed near heat sources that could cause overheating.
◊ If you want to run your EUROLIGHT on mains voltage other than
factory-specified voltage, contact the nearest BEHRINGER service center.
◊ To effectively limit harmonic currents and avoid voltage fluctuations that
could affect other electrical appliances, connect this equipment to an AC
outlet that complies with all applicable technical standards. In all other
cases, contact your local power supply provider for advice prior to usage.
Mains/Illuminant Connectors
To facilitate additional exibility, your dimmer pack has a connector terminal
strip. Cable bushings for connecting to the mains and your illuminants are
located in the back. Flexibility is further enhanced with the option to retrot a
CEE connector and a 16-pin HARTING connector.
Both xed and mobile installations require compliance with IEC 61010-1:2001
(EN 6110-1:2001). In particular, a 3-phase separator (pursuant IEC60947-1 and
IEC60947-3) needs to be included in the installation. This separator needs to be
labeled according to IEC 60417-50008 and IEC 0417-5007.
To assure compliance with Directive 89/336/EEC, only use specied upstream line
lters with your EUROLIGHT. Using it without line lters specied by BEHRINGER
may lead to electromagnetic interference. More detailed information on this
subject can be found at behringer.com.
Safety and Initial Operation
As soon as you connect your LD6230 to the mains, internal controls are activated.
The six automated fuses (circuit breakers) can all handle 10 A and serve as
overload protection for the connected equipment.
◊ Please keep in mind that activating circuit breakers 1, 2, 3, 4, 5 or 6 also
means that the respective channels can conduct voltage.
Electronic controls are additionally protected with triple high-sensitivity fuses
located on the main board.
◊ Defective fuses must be replaced with fuses with identical rating!
The LD6230 is a Class I device in which a low-Ohm protective ground wire is an
integral part of its safety design.
During the installation, make sure that a low-Ohm protective conductor (<0,1Ohm)
exists between all bare metal parts and the grounding on the mainconnector.
Output Channels
Phase CH 1* CH 2 CH 3* CH 4 CH 5* CH 6
L1 X X
L2 X X
L3 X X
* Activation of control electronics and respective output channel
Connector Terminal Strip
The connector terminal strip of your LD6230 is laid out for cables with diameters
between 0.326 mm2(AWG 22) and 4 mm2(AWG 12). When using exible access
lines, cable end contacts corresponding to manufacturer specications have to be
used. To assure good contact, skin the cable endings between 9 - 13 mm.
During the installation, all applicable national standards need to be adhered to.
(2)
(2)
(1)
(3)
(4)

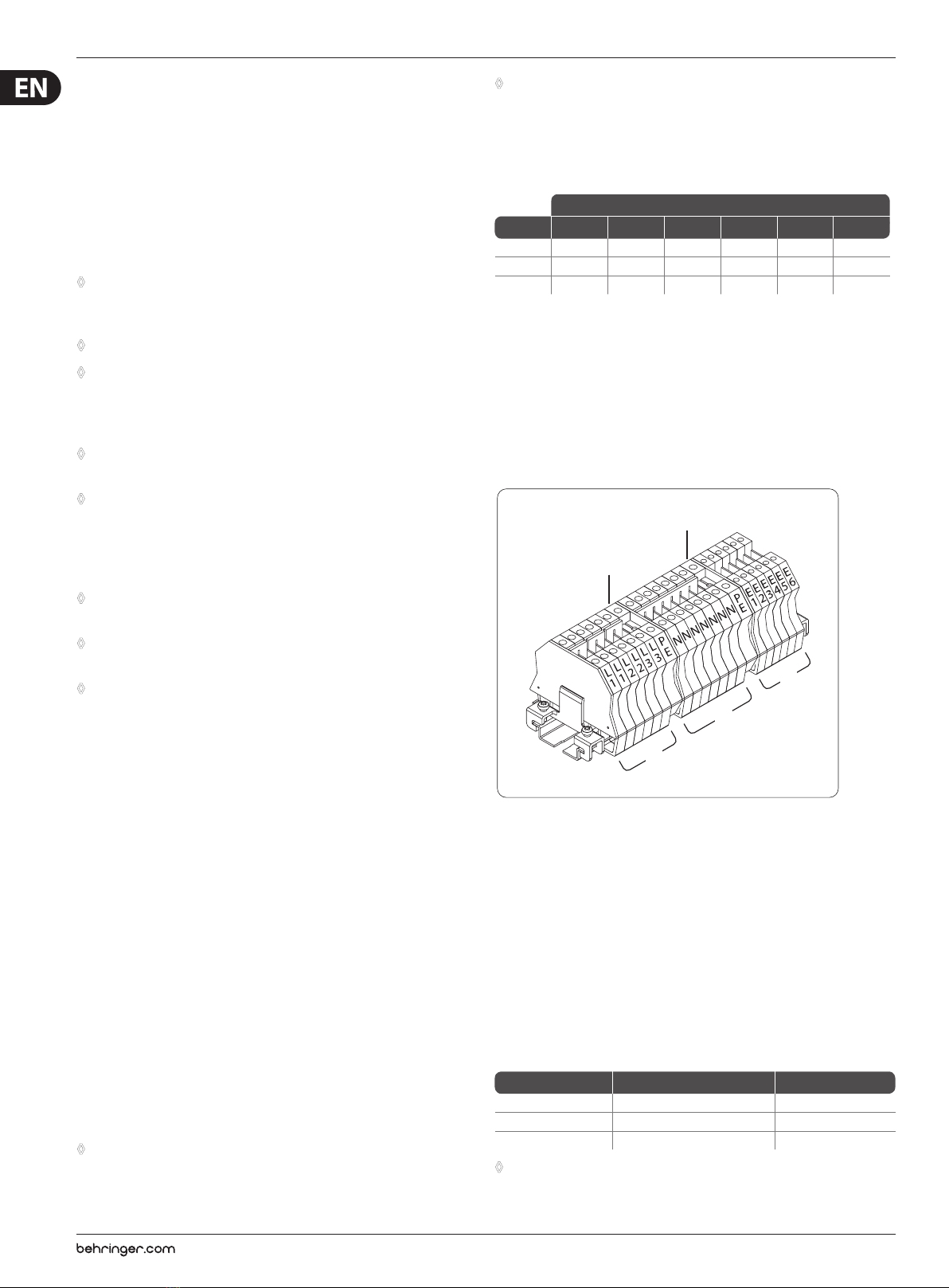

Illustration: LD6230 connector terminal strip
When your LD6230 leaves the assembly plant, all incoming and outgoing
neutral conductor connectors (3) are bridged. The incoming phases L1/L1,
L2/L2 and L3/L3 (1) are always connected to one another in pairs and
switched to the overload protection of the channels 1 to 6. They protect output
connectors E1 to E6 (4). Each of the channels can handle currents of maximum
10 Amperes. Thegreen-yellow conductors (2) (PE) may only be used as
protectiveconductors.
The lowest cable gauge between L1 and L3, incoming neutral conductor (N)
andprotective earth (PE) is 4 mm2(AWG 12). For outgoing channels E1 to E6,
usecables with gauges corresponding to the loads used (2.5 mm2(AWG 14)
or1.5mm2(AWG 16)).
◊
Output assessment [A] Nominal cross section [mm²] (EU) AWG (USA)
6-10 1.5 16
13-16 2.5 14
18-25 412
During the installation, please adhere to all manufacturer instructions.
Regardless from mains supply voltage, the maximum output current of
the EUROLIGHT LD6230 is 10 A per dimmer circle.

5EUROLIGHT LD6230 Installation Instructions
◊ Please make sure that each dimmer load is connected to a separate
channel. Never connect more than one output to just one common
neutral conductor.
◊ ATTENTION: Due to electrocution danger, do not use your dimmer pack
if there are bare cables visible.
Connection Options for Flexible Usage
Output Connector (HARTING)
In the back of your LD6230 there is a cable bushing for connecting your
illuminants. Open the ap on the top of the LD6230 to get to the terminal clamps
used for this purpose. Here you have the option to retrot a 16-pin HARTING
connector. To do that, you rst have to remove the back-bearing cover sheet and
connect the HARTING connector to the terminal clamps.
PIN assignment/HARTING connector
PIN 1 Phase channel 1 E1 PIN 9 Neutral channel 1 N
PIN 2 Phase channel 2 E2 PIN 10 Neutral channel 2 N
PIN 3 Phase channel 3 E3 PIN 11 Neutral channel 3 N
PIN 4 Phase channel 4 E4 PIN 12 Neutral channel 4 N
PIN 5 Phase channel 5 E5 PIN 13 Neutral channel 5 N
PIN 6 Phase channel 6 E6 PIN 14 Neutral channel 6 N
PIN 7 free –PIN 15 free –
PIN 8 free –PIN 16 free –
Ground wires need to be fastened to their respective PE connectors
CEE Power Supply Connector
Also located in the back is a cable bushing for the mains supply. Here, you can
retrot a 5-pin CEE 32 A mains connector by removing the back-bearing cover
sheet and connect the CEE high-voltage connector to the connecting terminal.
The following illustration shows how the connections are allocated:
L3 L2
N L1
CEE connector pin allocation
◊ Removable mains connector cables with mains interconnections
(pursuant IEC60320) must match the minimal load-carrying capacity
of the connector or must comply with the IEC60799 standard.
The interconnection and the cable must comply with prevalent
nominal values (maximal voltage and current).
◊ During the installation, please adhere to the instructions provided by
the connector manufacturer.
Specications
Channels
Number 6
Load per channel 0.2 A min./10 A max.
Maximal load per channel 10 A using a 3-phase connector
Frequency 50/60 Hz
Inputs
Power supply 3-phase connector, internal
terminalblock/PG cable screw joint,
CEEconnector(optionalinstallation by
qualied personnel)
Analog 0 to +10 V via 8 pin DIN
Digital DMX512 via XLR 5 pin
Outputs
Digital DMX512 via XLR 5 pin
Load Internal terminal block/PG cable screw
joint, HARTING®(optional installation by
qualiedpersonnel)
System Fuses
Load securing per channel 10 A cable protection switch (type C)
Control section fuse 2 x T 100 mA H/250 V 1 x T 160 mA
H/250 V for voltage range 220 - 230 V
(EU) 2 x T 160 mA H/250 V 1 x T 315 mA
H/250 V for voltage range 120 V (UL)
Power Supply
Voltage
USA/Canada 120 V~, 60 Hz
Europe/U.K./Australia 240 V~, 50 Hz
Maximum power consumption 3 x 20 A
Dimensions/Weight
Dimensions (H x W x D) approx. 3 ⁄ x 19 x 15 ⁄"
approx. 84.3 x 482.6 x 403.8 mm
Weight approx. 21.6 lbs / 9.80 kg
BEHRINGER continuously strives to assure the highest quality standards possible. Required modifications may
be implemented without prior notice. Technical data and the appearance of the unit may deviate from the above
values and/or illustrations.
