Behringer U-CONTROL UCA202 User manual

Operating Manual
Version 1.1 March 2006
U-CONTROL UCA202

2
U-CONTROL UCA202
CAUTION: To reduce the risk of electric
shock, do not remove the top
cover (or the rear section). No
user serviceable parts inside;
refer servicing to qualified
personnel.
WARNING: To reduce the risk of fire or
electric shock, do not expose
this appliance to rain and
moisture. The apparatus shall
not be exposed to dripping or
splashing and no objects filled
with liquids, such as vases, shall
be placed on the apparatus.

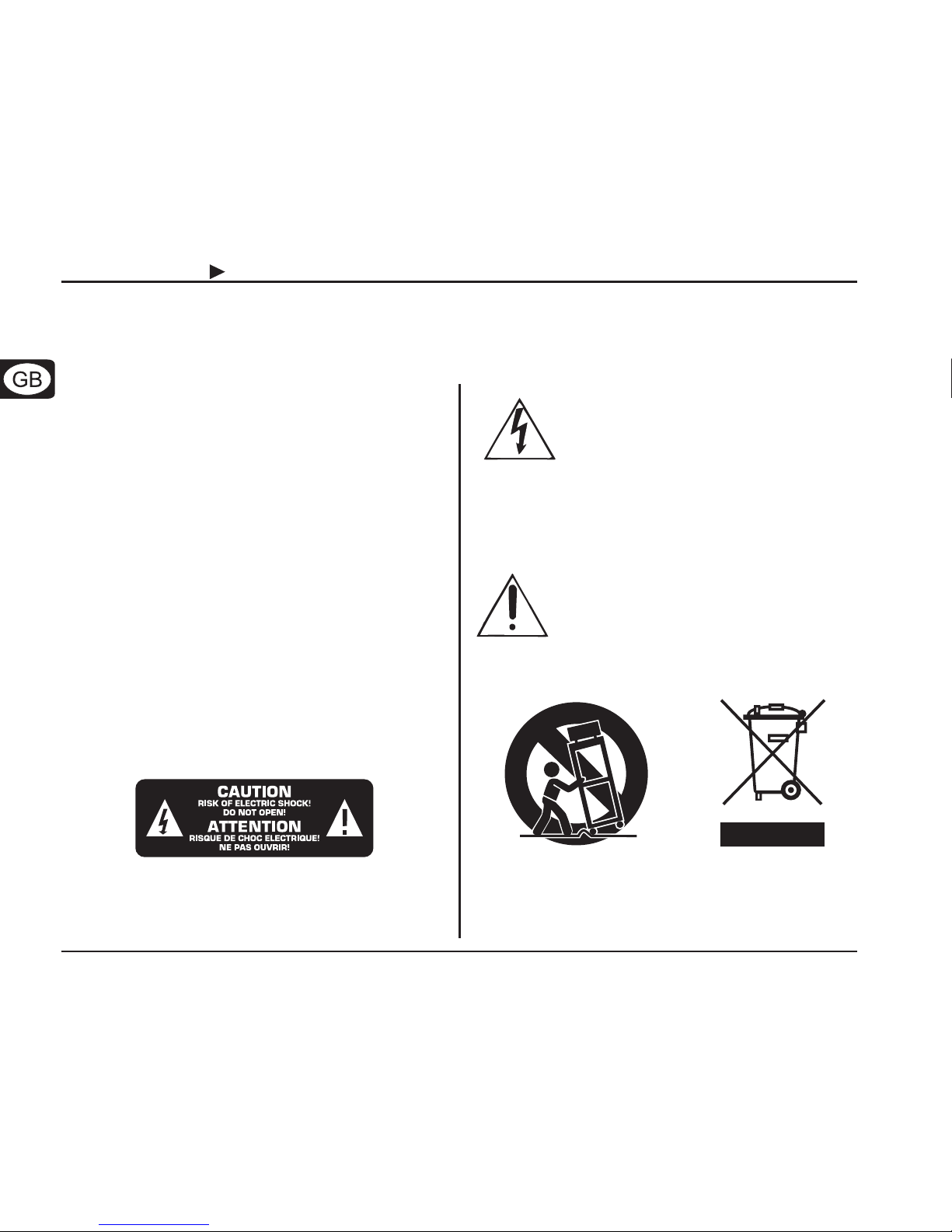

This symbol, wherever it appears, alerts
you to the presence of uninsulated
dangerous voltage inside the en-
closure—voltage that may be
sufficient to constitute a risk of shock.
This symbol, wherever it appears, alerts
you to important operating and mainte-
nance instructions in the accompanying
literature. Please read the manual.
IMPORTANT SAFETY INSTRUCTIONS

DEUTSCH
3
U-CONTROL UCA202
DETAILED SAFETY INSTRUCTIONS:
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
8) Only use attachments/accessories specified by the manufacturer.
9) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in
any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
10) CAUTION - These service instructions are for use by qualified service personnel only. To reduce the risk of
electric shock do not perform any servicing other than that contained in the operation instructions unless you are
qualified to do so.

4
U-CONTROL UCA202
UCA202UCA202 UCA202UCA202
UCA202
VUltra-flexible audio interface connects your instruments, mixer etc. with your computer for recor-
ding and playback
VHigh-resolution 48 kHz converters for high-end audio quality
VWorks with your PC or Mac–no setup or drivers required. Free audio recording and editing softwa-
re downloadable at www.behringer.com
VStereo headphone output with dedicated level control lets you monitor both input and output
VAdditional S/PDIF optical output for direct digital conversion
VPowered via USB bus–no external power supply needed
VHigh-quality components and exceptionally rugged construction ensure long life
VConceived and designed by BEHRINGER Germany
All Trademarks mentioned belong to their respective owners and are not affiliated with BEHRINGER®
Ultra low-latency 2 In/2 Out USB/Audio Interface with Digital Output
U-CONTROL

DEUTSCH
5
U-CONTROL UCA202
FOREWORD
Dear Customer,
welcome to the team of U-CONTROL users, and thank you very much for
expressing your confidence in us by purchasing the UCA202. It is one of
my most pleasant tasks to write this letter to you, because it is the culmination
of many months of hard work delivered by our engineering team to reach a
very ambitious goal: to develop a first rate unit, which is flexible enough to
be used mobile as well as within studio setups.
The task to design our new UCA202 certainly meant a great deal of
responsibility. You, the discerning user and musician, were the focus of
our entire development efforts. It also meant a lot of work and night shifts
to accomplish this goal. But it was fun, too. Developing a product usually
brings a lot of people together, and what a great feeling it is when every-
body who participated in such a project can be proud of what we’ve
achieved.
It is our philosophy to share our joy with you, because you are the most
important member of the BEHRINGER family. With your highly competent suggestions for new products
you’ve greatly contributed to shaping our company and making it successful. In return, we guarantee
you uncompromising quality as well as excellent technical and audio properties at an extremely favorab-
le price. All of this will enable you to fully unfold your creativity without being hampered by budget
constraints.
We are often asked how we can make it to produce such high-grade devices at such unbelievably low
prices. The answer is quite simple: it’s you, our customers! Many satisfied customers means large sales
volumes enabling us to get better conditions of purchase for components, etc. Isn’t it only fair to pass this
benefit back to you? Because we know that your success is our success, too!

6
U-CONTROL UCA202
I would like to thank all people whose help on U-CONTROL UCA202 has made it all possible. Everybody
has made very personal contributions, starting from the designers of the unit via the many staff members
in our company to you, the user of BEHRINGER products.
My friends, it’s been worth the trouble!
Thank you very much,
Uli Behringer

DEUTSCH
7
U-CONTROL UCA202
TABLE OF CONTENTS
1. INTRODUCTION ........................................................................................... 8
1.1 Before you started .............................................................................................................. 9
1.1.1 Shipment ..................................................................................................................... 9
1.1.2 Initial operation ............................................................................................................ 9
1.1.3 Online registration .................................................................................................... 10
2. SYSTEM REQUIREMENTS ......................................................................... 11
2.1 Hardware connection .........................................................................................................11
3. OPERATING ELEMENTS AND CONNECTIONS ......................................... 12
3.1 Front panel .......................................................................................................................... 12
3.2 Rear panel .......................................................................................................................... 13
4. WORKING WITH THE UCA202 .................................................................. 14
4.1 Application example ............................................................................................................ 14
5. AUDIO CONNECTIONS .............................................................................. 16
5.1 Wiring .................................................................................................................................. 16
5.2 Headphones connection .................................................................................................... 17
6. SPECIFICATIONS ...................................................................................... 18
7. WARRANTY ............................................................................................... 20

8
U-CONTROL UCA202
1. INTRODUCTION
Welcome to the family of U-CONTROL users and thank you for expressing your confidence in BEHRIN-
GER products by purchasing the UCA202. With the UCA202 you have purchased a high-performance
audio interface that includes a USB connector. It is thus an ideal sound card for your laptop computer or
an essential recording/playback component for studio environments that involve desktop computers.
The UCA202 is PC and Mac-compatible. Therefore, no separate installation procedure is required, while
the operating system drivers ensure an extremely short latency. Thanks to its robust construction and
compact dimensions, the UCA202 is also ideal for traveling. The separate headphones output allows you
to play back your recordings at any time, even if you don’t happen to have any loudspeakers available.
2 inputs and outputs as well as the digital stereo output give you total connecting flexibility to mixing
consoles, loudspeakers or headphones. Power is supplied to the unit via the USB interface. The LED
gives you a quick check that the UCA202 is properly connected to the computer. The UCA202 is the ideal
extra for every computer musician.
1. INTRODUCTION

DEUTSCH
9
U-CONTROL UCA202
1. INTRODUCTION
1.1 Before you started
1.1.1 Shipment
Your UCA202 was carefully packed at the assembly plant to assure secure transport. Should the
condition of the cardboard box suggest that damage may have taken place, please inspect the unit
immediately and look for physical indications of damage.
Damaged equipment should NEVER be sent directly to us. Please inform the dealer
from whom you acquired the unit immediately as well as the transportation com-
pany from which you took delivery. Otherwise, all claims for replacement/repair may
be rendered invalid.
Please always use the original packaging to avoid damage due to storage or ship-
ping.
Never let unsupervised children play with the equipment or with its packaging.
Please dispose of all packaging materials in an environmentally friendly fashion.
1.1.2 Initial operation
Please make sure the unit is provided with sufficient ventilation, and never place the UCA202 on top of
an amplifier or in the vicinity of a heater to avoid the risk of overheating.
The current supply is made via the USB connecting cable, so that there is no external power supply unit
required. All required safety precautions have been adhered to.

10
U-CONTROL UCA202
1. INTRODUCTION
1.1.3 Online registration
Please do remember to register your new BEHRINGER equipment right after your purchase by visiting
www.behringer.com (alternatively www.behringer.de) and kindly read the terms and conditions of our
warranty carefully.
Should your BEHRINGER product malfunction, our goal is to have it repaired as quickly as possible. To
arrange for warranty service, please contact the retailer from whom the equipment was purchased.
Should your BEHRINGER dealer not be located in your vicinity, you may directly contact one of our
subsidiaries. Corresponding contact information is included in the original equipment packaging (Global
Contact Information/European Contact Information). Should your country not be listed, please contact the
distributor nearest you. A list of distributors can be found in the support area of our website
(www.behringer.com/support).
Registering your purchase and equipment with us helps us process your repair claims quicker and more
efficiently.
Thank you for your cooperation!

DEUTSCH
11
U-CONTROL UCA202
2. SYSTEM REQUIREMENTS
2. SYSTEM REQUIREMENTS
The UCA202 is PC and Mac-compatible. Therefore, no installation procedure or drivers
are required for the correct functioning of the UCA202.
To work with the UCA202, your computer must fulfill the following ninimum requirements:
PC MAC
®
Intel
®
or AMD
®
CPU, 400 MHz or higher G3, 300 MHz or higher
minimum 128 MB RAM minimum 128 MB RAM
USB 1.1 interface USB 1.1 interface
Windows
®
XP, 2000 Mac OS
®
9.0.4 or higher, 10.X or higher
2.1 Hardware connection
Use the USB connecting cable supplied with the UCA202 to connect the unit to your computer. The USB
connection also supplies the UCA202 with current. You can connect a variety of devices and equipment
to the inputs and outputs.

12
U-CONTROL UCA202
3. OPERATING ELEMENTSAND CONNECTIONS
3. OPERATING ELEMENTS AND CONNECTIONS
3.1 Front panel
1
2 3 4
LED
Fig. 3.1: Front panel UCA202
The LED indicates the status of the USB power supply.
DIGITAL OUTPUT: The Toslink jack carries an S/PDIF signal which can be connected via a fiber
optic cable, for example, to the digital input of an effects device.
Use the jack to connect a standard pair of headphones equipped with a 1/8" TRS connector.

DEUTSCH
13
U-CONTROL UCA202
3. OPERATING ELEMENTSAND CONNECTIONS
The VOLUME control adjusts the volume level of the headphones output. Turn the control fully to
the left before you connect the headphones. This helps you avoid the damage that is caused by
high volume settings.
3.2 Rear panel
75 6
Fig. 3.2: back of the UCA202
Use the LINE-OUT jacks for audio cables with RCA connectors.
Use the LINE-IN jacks for audio cables with RCA connectors.
The OFF/ON-MONITOR switch activates the monitor function. In this case the input signal is
routed directly to the headphones output.

14
U-CONTROL UCA202
4. WORKING WITH THE UCA202
4.1 Application example

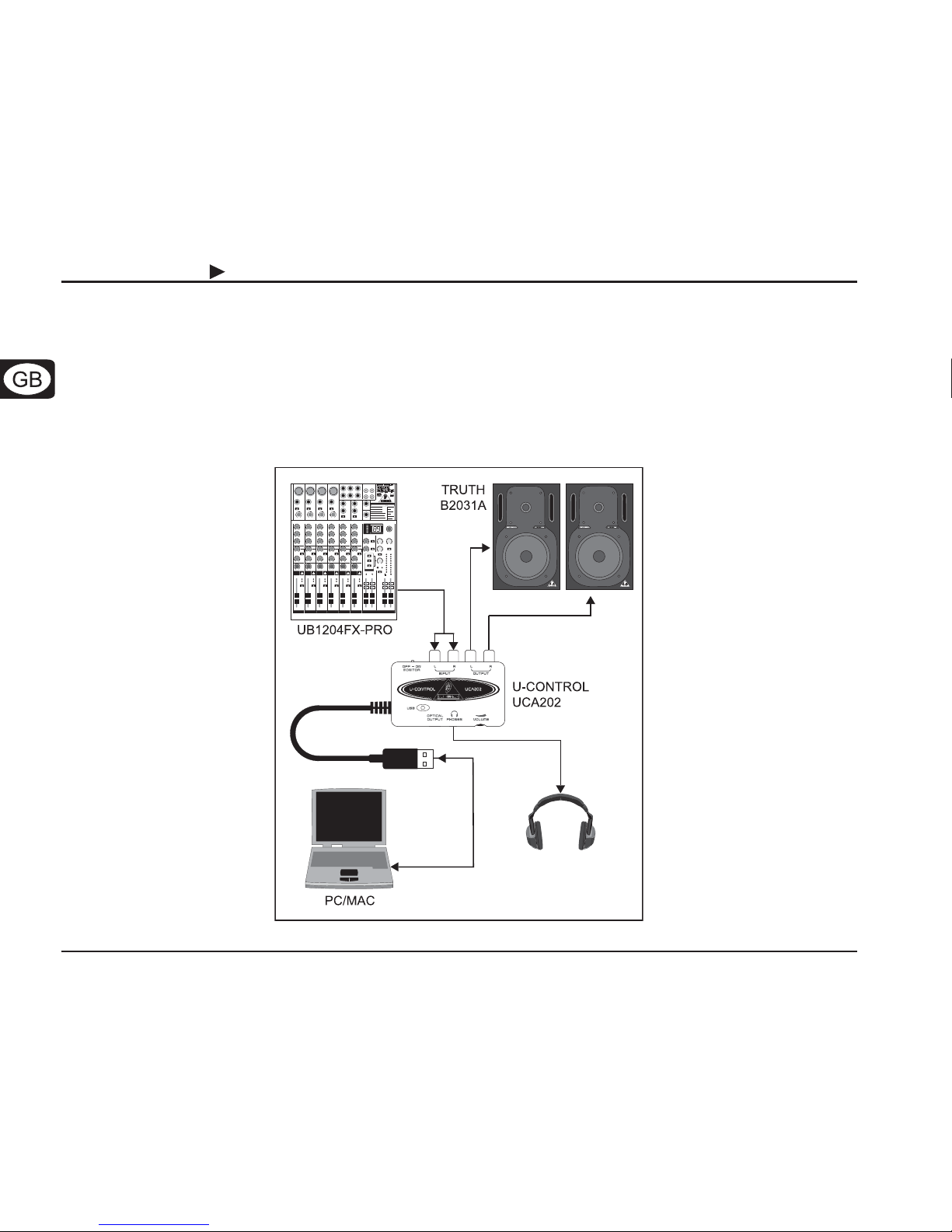

Fig. 4.1: Common version with the UCA202
4. WORKING WITH THE UCA202

DEUTSCH
15
U-CONTROL UCA202
To provide a professional recording interface between mixing console and computer, you can use the
UCA202 in combination with a suitable mixing console that includes subgroup outputs. This type of setup
allows you to record several signals in the computer at the same time, to simultaneously play back
several takes or playbacks which have been recorded, and to listen to the whole recording via loudspea-
kers (or headphones). Figure 4.1 shows a possible setup with one UCA202.
Connect the outputs of the subgroup (in this case ALT 3-4 OUT) with the inputs of the UCA202 . You
can choose to connect the outputs of the interface either to the TAPE INPUT sockets or to your
monitor speakers. You can connect control headphones to the socket of the UCA202 or to the
headphones output of your mixing console. Use the USB cable supplied with the unit to connect your PC
or MAC®via the USB interface.
By routing each channel that you want to record through the ALT3-4 subgroup, you can now use the
input channels of the mixing console to record different signals (e.g. microphone, guitar, sound module,
etc.) in the computer. If you connect the OUT jacks of the UCA202 to channel inputs 7/8 (not via TAPE
INPUT), make sure that the signal is not switched to the subgroup but instead to the main output of your
mixer (MUTE key on the UB1204FX-PRO in channel 7/8 not pressed). Otherwise feedback can occur.
Make sure that you use the SOURCE section on the mixing console to select the correct monitoring paths
(ALT 3-4 and MAIN MIX or ALT 3-4 and TAPE).
If you lead the UCA202 back via a channel input (not TAPE INPUT), you can also use the aux path in the
channel to set up a monitor mix for live musicians. To do this, use the Aux Send (e.g. Aux 1) in this
channel input. If the musicians want to hear themselves as well as the playback or previous recording
takes, use the Aux Sends in the recording channels to mix in the recording signals with the monitor mix.
4. WORKING WITH THE UCA202

16
U-CONTROL UCA202
5. AUDIO CONNECTIONS
Although there are various ways to integrate the UCA202 into your studio or live set-up, the audio
connections to be made will basically be the same in all cases:
5.1 Wiring
Please use standard RCA cables to connect the UCA202 to other audio equipment. You can also use an
adapter cable.
Fig. 5.1: RCA cable
5. AUDIO CONNECTIONS

DEUTSCH
17
U-CONTROL UCA202
Fig. 5.2: Adapter cable with 1/4" jack
5.2 Headphones connection
The UCA202 is provided with a headphones jack. Here, you can connect any standard pair of stereo
headphones with a 1/8" TRS connector.
5. AUDIO CONNECTIONS

18
U-CONTROL UCA202
6. SPECIFICATIONS
LINE IN
Connectors RCA, unbalanced
Input impedance approx. 27 kΩ
Max. input level 2 dBV
LINE OUT
Connectors RCA, unbalanced
Output impedance approx. 400 Ω
Max. output level 2 dBV
DIGITAL OUTPUT
Socket Toslink, optical cable
Output format S/PDIF
PHONES OUT
Socket 1/8" TRS stereo jack
Output impedance approx. 50 Ω
Max. output pegel -2 dBu, 2 x 3,7 mW @ 100 Ω
USB 1.1
Connectors type A
6. SPECIFICATIONS

DEUTSCH
19
U-CONTROL UCA202
DIGITAL PROCESSING
Converter 16-bit converter
Sample rate 32.0 kHz, 44.1 kHz, 48.0 kHz
SYSTEM DATA
Frequency response 10 Hz to 20 kHz, ± 1 dB @ 44.1 kHz sample rate
10 Hz to 22 kHz, ± 1 dB @ 48.0 kHz sample rate
THD 0.05 % typ. @ -10 dBV, 1kHz
Crosstalk -77 dB @ 0 dBV, 1 kHz
Signal-to-noise ratio A/D 89 dB typ. @ 1 kHz, A-weighted
D/A 96 dB typ. @ 1 kHz, A-weighted
POWER SUPPLY
USB connection 5 V , 100 mA max.
DIMENSIONS/WEIGHT
Dimensions (H x W x D) approx. 22 mm (0.87") x 88 mm (3.46") x 60 mm (2.36")
Weight approx. 0.12 kg
BEHRINGER always takes great care to ensure the highest standard of quality. Any modifications which may be
necessary will be made without prior notification. Technical data and appearance of the equipment can therefore differ
from the details or illustrations shown.
6. SPECIFICATIONS

20
U-CONTROL UCA202
7. WARRANTY
§ 1 OTHER WARRANTY RIGHTS AND NATIONAL LAW
1. This warranty does not exclude or limit the buyer’s statutory rights provided by national law, in particular, any such
rights against the seller that arise from a legally effective purchase contract.
2. The warranty regulations mentioned herein are applicable unless they constitute an infringement of national warranty
law.
§ 2 ONLINE REGISTRATION
Please do remember to register your new BEHRINGER equipment right after your purchase by visiting www.behringer.com
(alternatively www.behringer.de) and kindly read the terms and conditions of our warranty carefully.
Registering your purchase and equipment with us helps us process your repair claims quicker and more efficiently.
Thank you for your cooperation!
§ 3 WARRANTY
1. BEHRINGER (BEHRINGER International GmbH including all BEHRINGER subsidiaries listed on the enclosed page,
except BEHRINGER Japan) warrants the mechanical and electronic components of this product to be free of defects
in material and workmanship for a period of one (1) year* from the original date of purchase, in accordance with the
warranty regulations described below. If the product shows any defects within the specified warranty period that are not
excluded from this warranty as described under § 5, BEHRINGER shall, at its discretion, either replace or repair the
product using suitable new or reconditioned parts. In the case that other parts are used which constitute an improvement,
BEHRINGER may, at its discretion, charge the customer for the additional cost of these parts.
2. If the warranty claim proves to be justified, the product will be returned to the user freight prepaid.
3. Warranty claims other than those indicated above are expressly excluded.
§ 4 RETURN AUTHORIZATION NUMBER
1. To obtain warranty service, the buyer (or his authorized dealer) must call BEHRINGER (see enclosed list) during
normal business hours BEFORE returning the product. All inquiries must be accompanied by a description of the
problem. BEHRINGER will then issue a return authorization number.
7. WARRANTY
